PackTite 2 Bedienungsanleitung

PackTite 2™

ASSEMBLY AND OPERATING

INSTRUCTIONS

Patent pending heating system safely eliminates

all stages of bed bugs.

Read these instructions carefully before using this device.

For demonstrations on assembly and use,

go to the PackTite page on Facebook (www.facebook.com/packtite)

SERVICE & SUPPORT

Patent Pending

EPA Est. No. 85055

Packtite 2™ is assembled in the United States from components made in China, Taiwan and the U.S.A.

PT2 V1 03152014

In the event service of the device is required or if you have any questions,

please contact us at:

service@PackTite.com

Working Voltage: 120V AC/60Hz

Amps: 12.5

Wattage: 1500W (+5%-10%)

SPECIFICATIONS

SAFETY FEATURES

1. A thermal overload protector is built in to

the heater to prevent overheating.

2. If an overheat temperature is reached,

the heater will automatically shut oﬀ. It

can only resume operation when the user

resets the unit.

To reset the heater:

1. Turn Control to OFF.

2. Unplug the unit and wait 30 minutes.

3. Plug in and operate normally.

WARNING

When using electrical appliances, basic

precautions should always be followed to

reduce the risk of ﬁre, electrical shock and

injury to persons, including the following:

1. Read all instructions before using this

device.

2. Use the heater unit only as described in

this manual.

3. Do not use extension cords with the

heater.

4. ALWAYS plug heaters directly into a wall

outlet/receptacle.

5. DO NOT plug heater into any other

cord-connected device, such as a power

strip, surge protector, multiple outlet

adapter, cord reel or outlet-type air

freshener. e use of such devices may

create a ﬁre hazard.

6. Plug unit directly into a 120V wall outlet

only.

7. Be sure that the plug ﬁts snugly in the

outlet before each use. A loose plug can

overheat. Faulty wall outlet connections

may cause the wall outlet to overheat.

Check to make certain the heater plug

is not overheating. If necessary, have a

qualiﬁed electrician check and/or replace

the wall outlet.

8. DO NOT use this heater with any solid

state speed control devices.

9. DO NOT OVERLOAD CIRCUITS.

10. Make certain the power source conforms

to the electrical requirements of the

heater.

11. Only connect heater to a properly

grounded outlet.

12. Keep combustible materials out of

contact with the heating unit and heating

elements.

13. Clean the PackTite 2™ unit after every

use. DO NOT allow dust, hair, insects or

other debris to build up in the unit.

14. DO NOT operate this device around

children, animals or invalids.

15. DO NOT use this device where oxygen

tanks are used or stored.

16. Always unplug the device when not in

use.

17. DO NOT operate this device with a

damaged cord or plug or after the device

has malfunctioned, has been dropped or

damaged in any manner.

18. DO NOT use this device outdoors.

19. e heater and heater housing are HOT

when in use. To avoid burns, DO NOT

let bare skin touch the hot surfaces.

Always use the heater handle and the

enclosure handles when moving the unit.

20. DO NOT operate in bathrooms, laundry

areas and similar indoor locations where it

may come into contact with water. Never

locate the device where it may fall into a

bathtub or other water container.

21. DO NOT run cord under carpeting

or cover cord with throw rugs, runners

or similar coverings. Arrange cord and

device away from traﬃc areas and where it

will not be tripped over.

22. Before unplugging the device, turn the

heater setting knobs to OFF.

IMPORTANT OPERATING INSTRUCTIONS

CLEANING & MAINTENANCE

IMPORTANT

Never leave the unit unattended while it is

operating.

THE FOLLOWING ITEMS SHOULD

NOT BE TREATED IN THE

PackTite 2™: medications, liquid, food,

aerosol cans, ﬂammable materials.

PackTite 2™ is not recommended for treating

electronic devices, including cameras, laptop

or other computers, phones, ipods, MP3

players, etc.

Always operate the PackTite 2™ unit in

ambient temperature conditions of at least 70°

F. Colder ambient temperatures may prevent

the device and the contents from reaching

temperatures needed to kill bedbugs. Take

care not to overﬁll the PackTite 2™ unit.

e black heater housing may become hot

while the unit is operating. To avoid burns,

do not touch the housing or the heater until

the unit is OFF and completely cooled down.

1. Always unplug the PackTite 2 before

cleaning.

2. Remove the heater from the heater

housing.

3. Lightly run a vacuum cleaner nozzle (with

brush attachment) over the shelf and on

the interior surfaces of the enclosure.

4. Carefully wipe the enclosure interior with

a soft, damp cloth and then again with a

dry cloth.

5. Leave the ﬂap open and allow the

enclosure to dry completely before using.

6. Store the PackTite 2 in the original carton

in a cool, dry location.

Heater Cleaning/Maintenance

WARNING: To reduce the risk of electrical

shock and ﬁre please observe the following

instructions.

Cleaning the heater regularly will help to

maintain its eﬃciency.

1. Always unplug the heater before cleaning.

2. Clean the unit with a soft cloth moistened

with a mild soap and water solution.

3. NEVER use abrasive or ﬂammable

solvents to clean the unit.

4. After cleaning, be sure to completely dry

the unit with a cloth or towel.

5. Store heater in a cool, dry location.

23. DO NOT cover or obscure the top vent

of the enclosure.

24. DO NOT insert or allow foreign objects

to enter any ventilation or exhaust

openings in the heater as this may cause

an electric shock or ﬁre, or damage the

heating unit.

25. DO NOT leave the unit unattended while

in operation.

26. DO NOT overﬁll the device.

27. DO NOT put damp or wet items in the

device. Do not use the device as a dryer.

28. DO NOT use this device in areas where

gasoline, paint or other ﬂammable

materials are used or stored.

29. DO NOT plug the heater into the same

circuit as other appliances.

30. It is normal for the plug to feel warm to

the touch; however, a loose ﬁt between the

AC outlet (wall receptacle) and the plug

may cause overheating and distortion of

the plug. Contact a qualiﬁed electrician

to replace loose or worn outlets.

31. Use of this device is not recommended for

persons with reduced sensitivity to heat or

an inability to react to avoid burns.

32. is device includes an Overheat

Protection System that shuts the heating

unit oﬀif it overheats due to abnormal

conditions. If this occurs, turn the heater

oﬀ, and unplug it. Allow the device to

cool for a few minutes, plug it back in,

and resume normal operation.

33. DO NOT place infants or animals in the

enclosure or allow them to get inside the

enclosure.

34. is device is intended for use by persons

18 years and older.

35. Never pull this devise by the electrical

cord.

36. DO NOT bend or pinch the cord and do

not use if the cord is damaged.

37. DO NOT attempt to open or repair this

device yourself.

38. NEVER allow pets or children near an

electric heater. Accidental contact could

result in serious shock or burns.

39. is appliance has a polarized plug (one

blade wider than the other). To reduce

the risk of electrical shock, the plug is

intended to ﬁt in a polarized outlet only

one way. If the plug does not ﬁt fully in

the outlet, reverse the plug. If it still does

not ﬁt, contact a qualiﬁed electrician. Do

NOTE: ONLY operate the PackTite 2™ with the heater that came with the product. Other types of units

may cause the unit to malfunction or overheat, resulting in ﬁre or injury or may cause damage to the unit.

e heater housing on the PackTite 2™ is speciﬁcally designed for use with the heater provided.

NOTE: If the heater stops and starts intermittently or shuts down altogether:

a. Make sure the top vent on the bag enclosure is not blocked in any way.

b. Turn the heater controls to OFF and unplug the heater. Allow the unit to cool completely, then plug in

and restart the unit.

IMPORTANT OPERATING INSTRUCTIONS

c. Make sure the heater is sitting upright

on the base of the heater housing and is

positioned behind the front bracket.

d. Move the heater backwards

approximately 1 inch (keeping it inside the

housing) and restart.

DO NOT ATTEMPT TO OPEN OR

REPAIR THE HEATER YOURSELF.

DOING SO COULD CAUSE DAMAGE OR

PERSONAL INJURY OR DEATH.

If the problem cannot be resolved by the steps

listed above, contact technical assistance at

[email protected].

TROUBLE SHOOTING TIPS

Studies show that it is necessary to reach and

hold a speciﬁc temperature in order to kill

all life stages of bed bugs (egg, larvae and

adult). To insure elimination of all bedbugs,

MONITOR the temperature of items being

treated to insure they reach (and hold) this

lethal temperature.

Luggage

Place the temperature probe inside the

pocket of a piece of clothing inside the

luggage or attach the probe to the item using

a clip or clothespin. Alternatively, place

the temperature probe inside a pouch or

compartment of the luggage.

Personal Items

Heating of personal items in the PackTite 2™

will vary, depending upon number and types

of items being treated. For clothing, place the

temperature probe inside the pocket of a piece

of clothing or attach the probe to the item

using a clip or clothespin. For other items,

place the probe in the center of the item being

treated (purse, shoe, backpack, etc.).

If the internal temperature of the item does not

reach the required lethal temperature within a

reasonable time, the PackTite 2™ unit may be

overloaded. Remove some items and restart

the unit.

Do not treat items that are enclosed in paper

wrapping, Styrofoam, cardboard or plastic

tubs. ese materials act as heat insulators

and will prevent items from reaching critical

the temperature. Remove items from such

packaging and treat packaging separately.

NOTE: For tips and demonstrations on treating speciﬁc

items, visit the PackTite page on facebook:

(facebook.com/packtite).

Recommended

Temperature Cycles

118 degrees (F) - hold for 1.5 hours

120 degrees (F) - hold for 1 hour

125 degrees (F) - hold for 1/2 hour

TEMPERATURE MONITORING

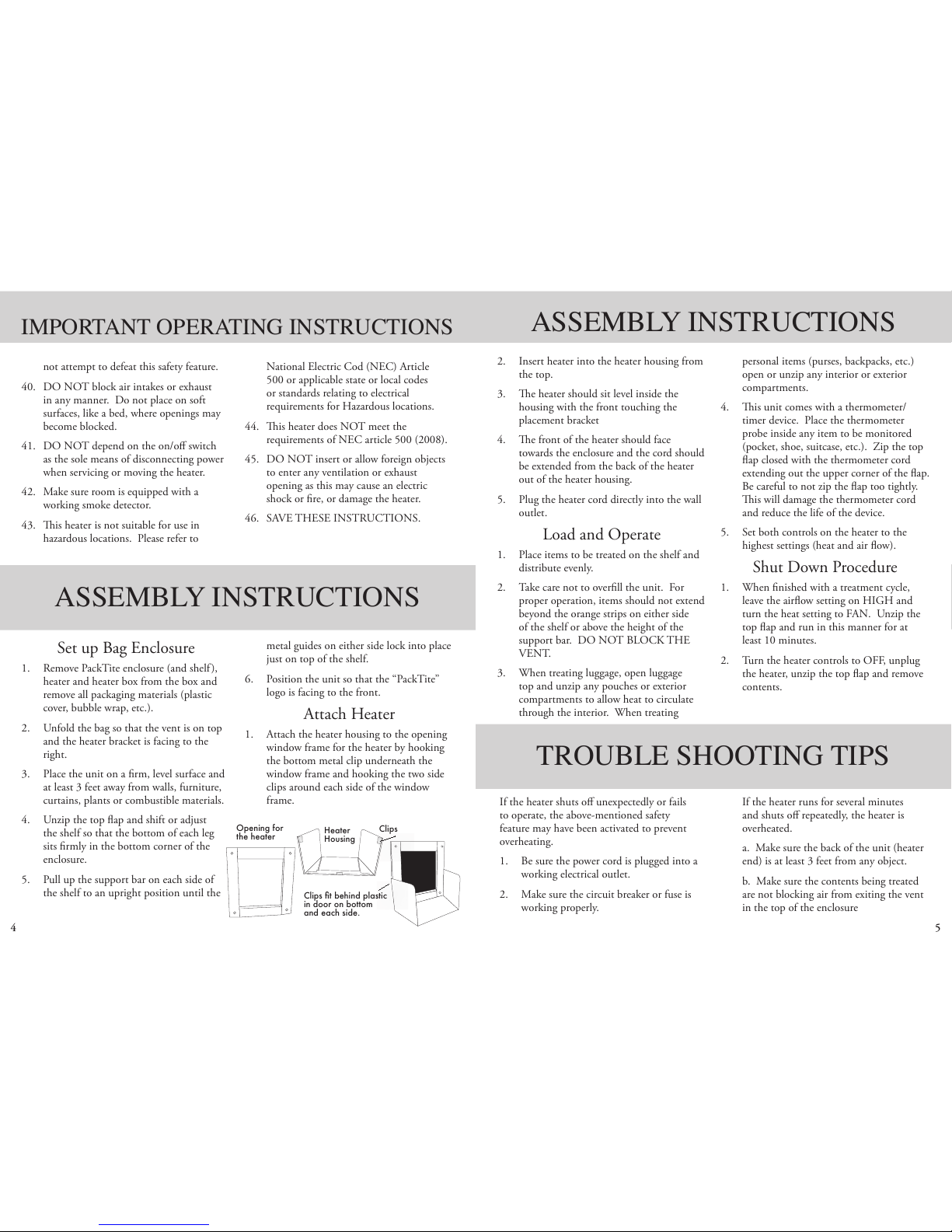

IMPORTANT OPERATING INSTRUCTIONS

not attempt to defeat this safety feature.

40. DO NOT block air intakes or exhaust

in any manner. Do not place on soft

surfaces, like a bed, where openings may

become blocked.

41. DO NOT depend on the on/oﬀswitch

as the sole means of disconnecting power

when servicing or moving the heater.

42. Make sure room is equipped with a

working smoke detector.

43. is heater is not suitable for use in

hazardous locations. Please refer to

National Electric Cod (NEC) Article

500 or applicable state or local codes

or standards relating to electrical

requirements for Hazardous locations.

44. is heater does NOT meet the

requirements of NEC article 500 (2008).

45. DO NOT insert or allow foreign objects

to enter any ventilation or exhaust

opening as this may cause an electric

shock or ﬁre, or damage the heater.

46. SAVE THESE INSTRUCTIONS.

ASSEMBLY INSTRUCTIONS

Set up Bag Enclosure

1. Remove PackTite enclosure (and shelf),

heater and heater box from the box and

remove all packaging materials (plastic

cover, bubble wrap, etc.).

2. Unfold the bag so that the vent is on top

and the heater bracket is facing to the

right.

3. Place the unit on a ﬁrm, level surface and

at least 3 feet away from walls, furniture,

curtains, plants or combustible materials.

4. Unzip the top ﬂap and shift or adjust

the shelf so that the bottom of each leg

sits ﬁrmly in the bottom corner of the

enclosure.

5. Pull up the support bar on each side of

the shelf to an upright position until the

metal guides on either side lock into place

just on top of the shelf.

6. Position the unit so that the “PackTite”

logo is facing to the front.

Attach Heater

1. Attach the heater housing to the opening

window frame for the heater by hooking

the bottom metal clip underneath the

window frame and hooking the two side

clips around each side of the window

frame.

Opening for

the heater

<ebilÛm[^abg]ieZlmb\

bg]hhkhg[hmmhf

Zg]^Z\alb]^'

Heater

Housing

Clips

2. Insert heater into the heater housing from

the top.

3. e heater should sit level inside the

housing with the front touching the

placement bracket

4. e front of the heater should face

towards the enclosure and the cord should

be extended from the back of the heater

out of the heater housing.

5. Plug the heater cord directly into the wall

outlet.

Load and Operate

1. Place items to be treated on the shelf and

distribute evenly.

2. Take care not to overﬁll the unit. For

proper operation, items should not extend

beyond the orange strips on either side

of the shelf or above the height of the

support bar. DO NOT BLOCK THE

VENT.

3. When treating luggage, open luggage

top and unzip any pouches or exterior

compartments to allow heat to circulate

through the interior. When treating

personal items (purses, backpacks, etc.)

open or unzip any interior or exterior

compartments.

4. is unit comes with a thermometer/

timer device. Place the thermometer

probe inside any item to be monitored

(pocket, shoe, suitcase, etc.). Zip the top

ﬂap closed with the thermometer cord

extending out the upper corner of the ﬂap.

Be careful to not zip the ﬂap too tightly.

is will damage the thermometer cord

and reduce the life of the device.

5. Set both controls on the heater to the

highest settings (heat and air ﬂow).

Shut Down Procedure

1. When ﬁnished with a treatment cycle,

leave the airﬂow setting on HIGH and

turn the heat setting to FAN. Unzip the

top ﬂap and run in this manner for at

least 10 minutes.

2. Turn the heater controls to OFF, unplug

the heater, unzip the top ﬂap and remove

contents.

ASSEMBLY INSTRUCTIONS

TROUBLE SHOOTING TIPS

If the heater shuts oﬀunexpectedly or fails

to operate, the above-mentioned safety

feature may have been activated to prevent

overheating.

1. Be sure the power cord is plugged into a

working electrical outlet.

2. Make sure the circuit breaker or fuse is

working properly.

If the heater runs for several minutes

and shuts oﬀrepeatedly, the heater is

overheated.

a. Make sure the back of the unit (heater

end) is at least 3 feet from any object.

b. Make sure the contents being treated

are not blocking air from exiting the vent

in the top of the enclosure

Inhaltsverzeichnis

Andere PackTite Heizung Handbücher

PackTite

PackTite PackTite Kurzanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
