Panasonic CS-A75KR Bedienungsanleitung

F563254

Room Air Conditioner

Indoor Outdoor

Model CS-A75KR Model CU-A75KR

CS-A95KR CU-A95KR

CS-A125KR CU-A125KR

OPERATING INSTRUCTIONS

ENGLISH

................................

P. 1–P. 28

Before using your air-conditioner, please

read this operating instructions carefully

and keep it for future reference.

CONTENTS

:FEATURES ...................................................................... 3

:SAFETY PRECAUTIONS .......................................... 4 – 6

●Installation Precautions

●Operation Precautions

:NAME OF EACH PART ........................................... 7 – 10

●Indoor Unit

■When the front panel is opened

●Outdoor Unit

●Accessories

●Remote Control

■When the remote control is opened

■How to use the remote control

■When the back cover is opened

:PREPARATION BEFORE OPERATION............... 11 – 12

●Indoor unit

●Remote Control

■Inserting batteries

■Setting the clock

■About the batteries

:HOW TO OPERATE...............................................13 – 14

●Automatic • Heating • Cooling • Soft Dry

■Operation details

●Adjusting Airflow Direction and Fan Speed

■Operation details

:SETTING THE TIMER............................................ 15 – 16

●Recommended Setting of Timer

:CONVENIENCE OPERATION ............................... 17 – 18

●Sleep Mode

■Operation details

●Economy or Powerful Mode

■Operation details

Before use

How to use

ENGLISH

:CARE AND MAINTENANCE ................................. 19 – 22

●Cleaning the Indoor Unit and Remote Control

●Cleaning the Air Filter

●Cleaning the Front Panel

■Removing the front panel

■Fixing the front panel

■Cleaning the front panel

●Replacing the Air Purifying Filters

■Removing the air purifying filters

■Reinstalling the air purifying filters

●Pre-season Inspection

●When the Air Conditioner is Not Used for an Extended

Period of Time

●Recommended Inspection

:TROUBLESHOOTING ........................................... 23 – 24

●Normal Operation

●Abnormal Operation

●Call the Dealer Immediately

:HELPFUL INFORMATIONS .......................................... 25

:ENERGY SAVING AND OPERATION HINTS............... 26

If necessary

FEATURES

●SELF-ILLUMINATING BUTTON

For your convenience to operate in the dark.

(Refer page 9)

●AUTOMATIC OPERATION

Sense intake air temperature every hour to

select the optimum mode. (Refer page 13)

●SLEEP MODE

Prevent the room from getting too hot or too cold

while you are sleeping. (Refer page 17)

●ECONOMY MODE

To reduce electrical power consumption.

(Refer page 18)

●POWERFUL MODE

Reaches the desired room temperature quickly.

(Refer page 18)

●REMOVABLE FRONT PANEL

For quick and easy cleaning (washable).

(Refer page 20)

●CATECHIN AIR PURIFYING FILTER.

Filter that can trap dust, tobacco smoke and tiny

particles in the room. It can also prevent the

growth of bacteria and viruses trapped in this

filter. (Refer page 21)

●DEODORIZING FILTER

Used to remove unpleasant odours and

deodorize the air in the room. (Refer page 21)

●AUTO RESTART CONTROL

Automatically restart the unit after power failure.

(Refer page 25)

Note:

Before using your air-conditioner, please read

this operating instructions carefully and keep it

for future reference.

Thank you for purchasing a Panasonic Room

Air Conditioner.

ENGLISH

■Do not install, remove and reinstall the unit yourself.

Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or specialist for

the installation work.

SAFETY PRECAUTIONS

Before operating,please read the following“Safety Precautions”carefully.

To prevent personal injury, injury to others and property damage, the following instructions must be followed.

■Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is

classified as follows:

■The instructions to be followed are classified by the following symbols:

!Warning

!Caution

This symbol (with a white background) denotes

an action that is PROHIBITED.

OFF

These symbols (with a black background)

denote actions that are COMPULSORY.

!Warning

This sign warns of death or serious injury.

!Caution

This sign warns of damage to property.

■This room air conditioner must be earthed.

Improper grounding could cause electric

shock.

■Do not install the unit in a place where there

may be explosive gas leaks.

Gas leaks near the unit could cause

fires.

■Ensure that the drainage piping is

connected properly.

Otherwise, water will leak out.

●Installation Precautions

Do not share outlet.

POWER

ECONOMY POWERFUL

SLEEPTIMER

!Warning

This sign warns of death or

serious injury.

Do not insert plug to operate

the unit. Do not pull out plug

to stop the unit.

Plug in properly.

Do not operate with wet

hands.

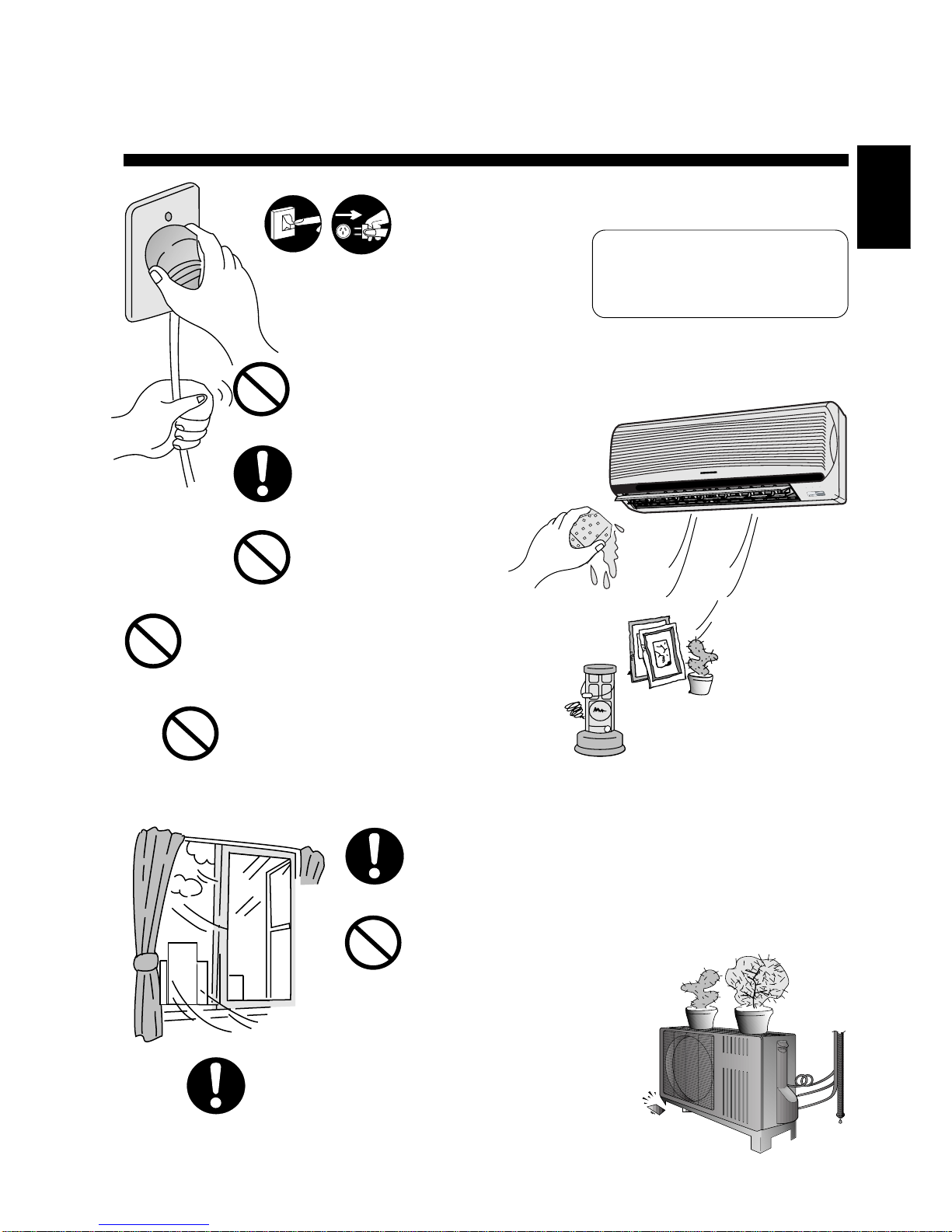

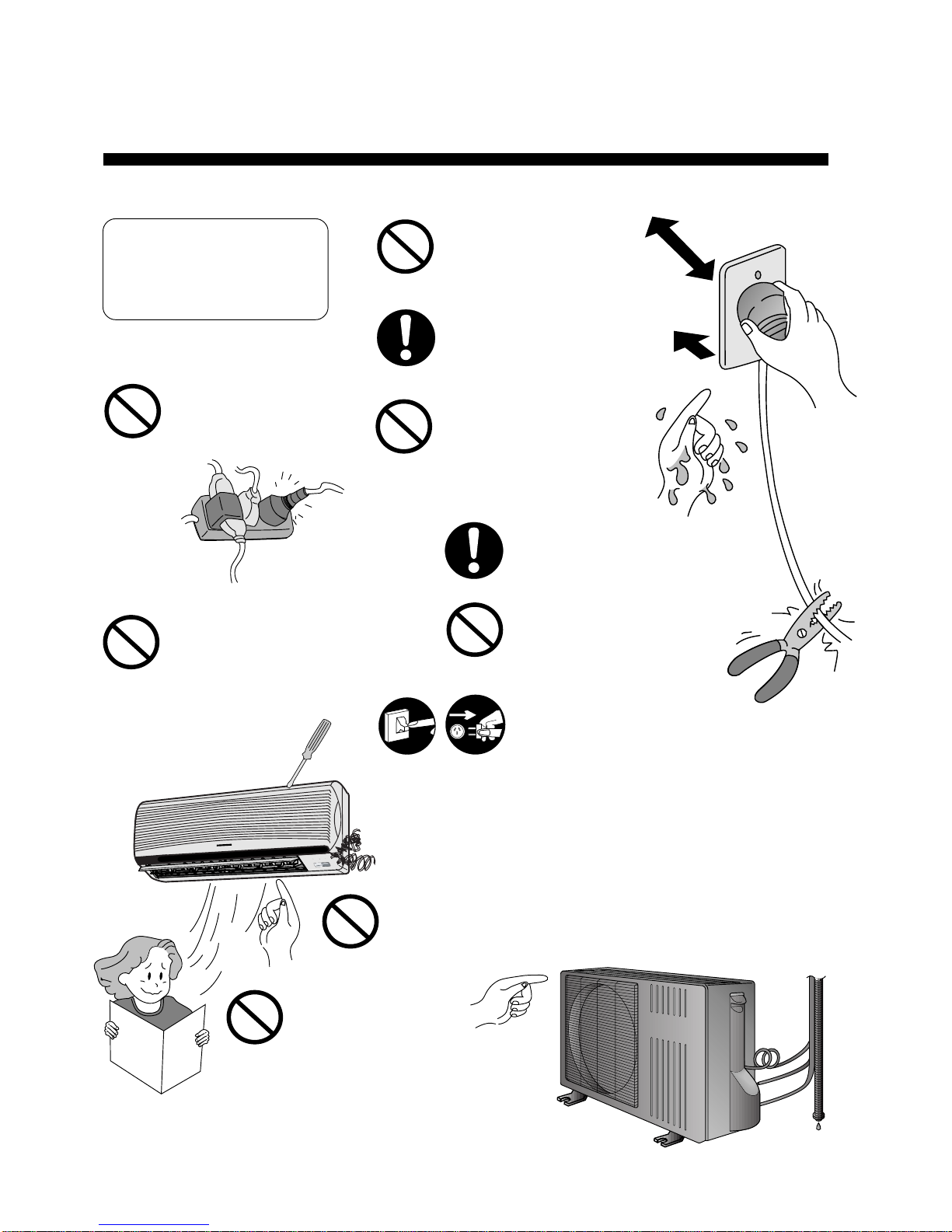

●Operation Precautions

Use specified power cord.

Do not damage or modify

the power cord.

If abnormal condition (burnt smell, etc) occurs, switch off

and unplug the power supply.

OFF

Do not repair by yourself.

Do not exposed directly to cool air

for a long period.

Do not insert finger or other objects into the indoor or

outdoor units.

ENGLISH

POWER

ECONOMYPOWERFUL

SLEEP TIMER

Do not wash the unit with water.

Do not use for other purpose such as preservation or etc.

Do not use any combustible equipment at

airflow direction.

Do not sit or place anything on the outdoor unit.

Ventilate the room regularly.

Pay attention as to whether the installation rack is

damaged due to long period of usage.

!Caution

This sign warns of injury.

Do not pull the cord to disconnect the plug.

Switch off the power supply if the unit is not

used for a long period.

OFF

Switch off the power supply before cleaning it.

POWER

ECONOMY POWERFUL

SLEEP TIMER

POWER

ECONOMY POWERFUL

SLEEP TIMER

NAME OF EACH PART

●Indoor Unit

Air Intake Vents

Power Supply Cord

Panel Opener

Signal Receptor

Operation Indicators

●POWER : Green

●SLEEP : Orange

●TIMER : Orange

Air Outlet Vents

Vertical Airflow Direction

Louver

Horizontal Airflow Direction

Louver (Manually adjusted)

Economy/Powerful Indicators

Economy - Green

Powerful - Orange

Front Panel

■When the front panel is opened

Front Panel

Air Filters

Auto Operation Button

Tab for Front Panel

POWER

ECONOMY POWERFUL

SLEEP TIMER

Air Purifying Filter

ENGLISH

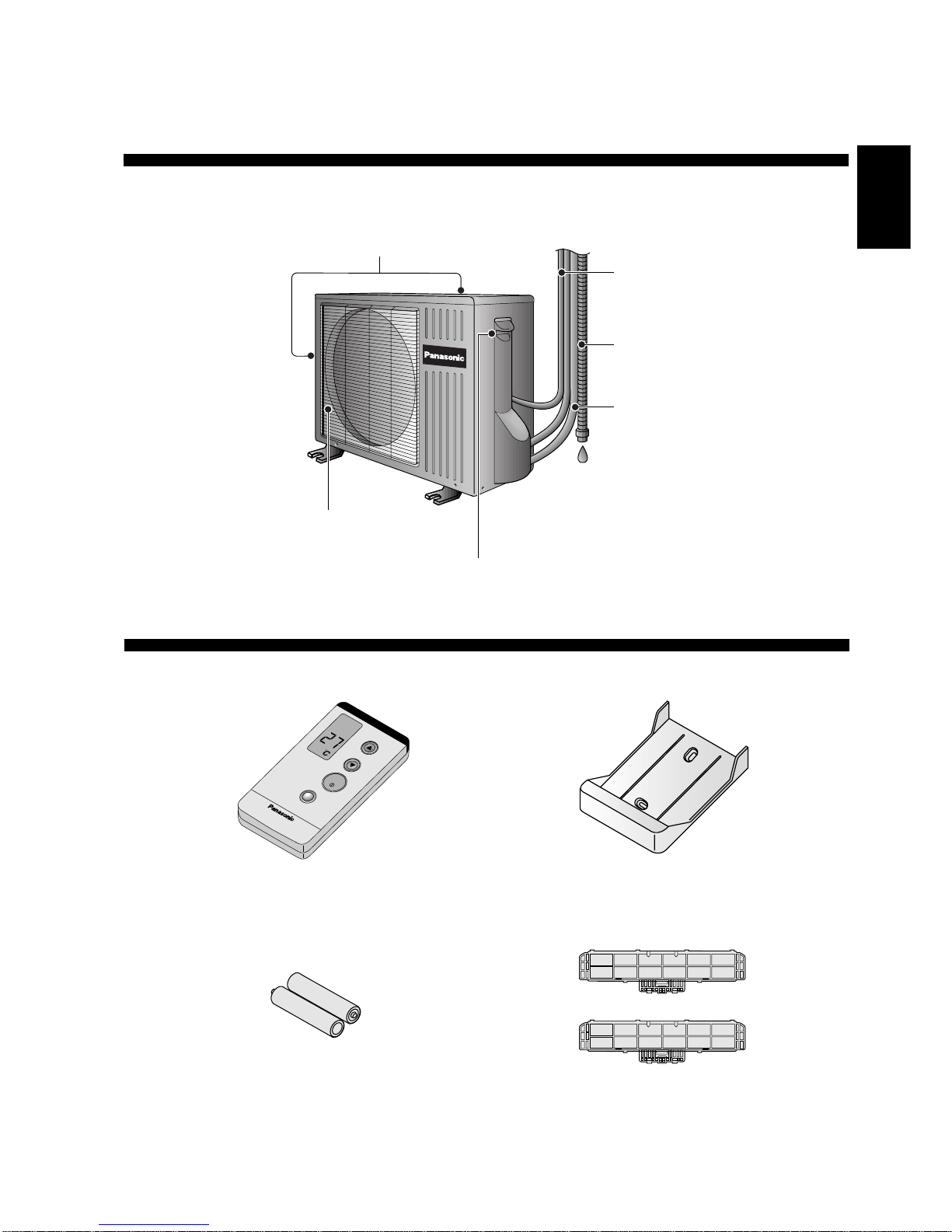

●Outdoor Unit

Connecting cable

Piping

Air Intake Vents

Air Outlet Vents

(Side)

(Rear)

Ground Terminal (Inside Cover)

Drain Hose

●Accessories

Remote Control HolderRemote Control

POWERFUL

TEMP

OFF/ON

COOL

AUTO

Two RO3 (AAA) dry-cell batteries

or equivalent Air Purifying Filters

(Catechin Air Purifying Filters and

Deodorizing Filters)

AIR SWING

TIMER

CLOCK

HEAT

COOL

DRY

AUTO

AUTO FAN

AIR

SWING

AM PM

OFF

AM PM

MODE

ECONOMY

FAN SPEED

AUTO

MANUAL

ON OFF

SET

CANCEL

SLEEP

Room Temperature

Setting Button

(self-illuminating Button)

OFF/ON Button

(self-illuminating Button)

Powerful Mode

Operation Button

Operation Display

Signal Transmitter

■When the remote control cover is opened

Timer Set Button

ON-TIMER Button

OFF-TIMER Button

Timer Cancellation Button

Sleep Mode Operation Button

Manual Airflow Direction

Selection Button

Time-Setting Button

Operation Display

Economy Mode

Operation Button

Clock Button

Auto Airflow Direction Button

Operation Mode Selection Button

●Remote Control

Fan Speed Selection Button

POWERFUL

TEMP

OFF/ON

COOL

AUTO
