Panasonic CS-BE25TKE Bedienungsanleitung

Nederlands Italiano Deutsch Español Français English

ACXF55-05600

Model No.

Indoor Unit Outdoor Unit

CS-BE25TKE

CS-BE35TKE

CS-BE50TKE

CS-DE25TKE

CS-DE35TKE

CS-DE50TKE

CS-KE25TKE

CS-KE35TKE

CS-KE50TKE

CU-BE25TKE

CU-BE35TKE

CU-BE50TKE

CU-DE25TKE

CU-DE35TKE

CU-DE50TKE

CU-KE25TKE

CU-KE35TKE

CU-KE50TKE

Operating Instructions

Air Conditioner

Operating Instructions

Air Conditioner

2-13

Before operating the unit, please read these operating

instructions thoroughly and keep them for future reference.

The included Installation Instructions should be kept and read

by the installer before installation.

Remote control is packaged in the indoor unit and removed

by the installer before installation.

Comment utiliser l’appareil

Climatiseur

14-25

Avant d’utiliser l’appareil, veuillez lire ce mode d’emploi dans

son intégralité et conservez-le pour toute référence ultérieure.

Le manuel d’installation inclus doit être conservé et lu par

l’installateur avant l’installation.

La télécommande est emballée dans l’unité intérieure et

retirée par l’installateur avant l’installation.

Instrucciones de funcionamiento

Climatizador de aire

26-37

Antes de utilizar la unidad, sírvase leer atentamente estas

instrucciones de funcionamiento y conservarlas para futuras

consultas.

El instalador debe guardar y leer las Instrucciones de

instalación incluidas antes de la instalación.

El mando a distancia viene embalado en la unidad interior y

debe ser retirado por el instalador antes de la instalación.

Bedienungsanleitung

Klimagerät

38-49

Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese

Bedienungsanleitung aufmerksam durch und bewahren Sie

sie als künftige Referenz auf.

Das mitgelieferte Installationshandbuch sollte aufbewahrt und

vor der Installation vom Installateur gelesen werden.

Die Fernbedienung ist im Innengerät verpackt und wird vor

der Installation durch den Installateur entfernt.

Istruzioni di funzionamento

Condizionatore d’aria 50-61

Prima di utilizzare l’unità, leggere attentamente le istruzioni

e conservare questo opuscolo per potervi fare riferimento in

futuro.

Le istruzioni per l’installazione fornite in dotazione

devono essere conservate e lette dall’installatore prima

dell’installazione.

Il telecomando si trova nell’unità interna e deve essere

rimosso dall’installatore prima dell’installazione.

Handleiding

Airconditioner

62-73

Lees voor u het apparaat gebruikt deze gebruikshandleiding

grondig en bewaar deze voor toekomstig gebruik.

De bijgevoegde installatiehandleiding moet door de

installateur worden bewaard en gelezen vóór de installatie.

De afstandsbediening is in de binnenunit verpakt en moet

vóór de installatie door de installateur worden verwijderd.

ACXF55-05600_01EN.indd 1ACXF55-05600_01EN.indd 1 1/25/2017 10:03:26 AM1/25/2017 10:03:26 AM

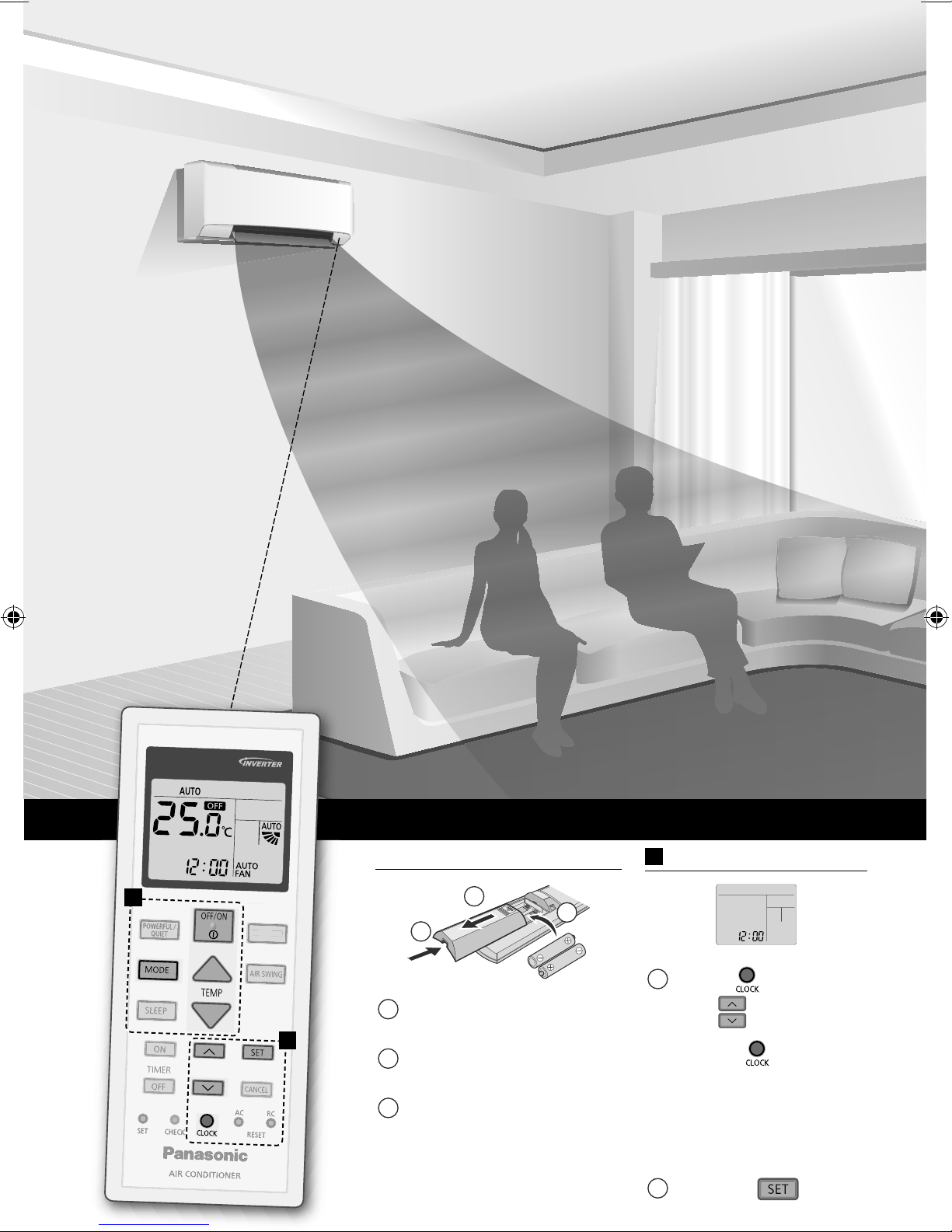

Provides maximum comfort and clean air

with optimal energy saving methods.

Use remote

control within 8 m

from the remote

control receiver of

the indoor unit.

Quick Guide

Inserting the batteries

1Pull out the back cover

of remote control.

Insert AAA or R03

batteries.

3Close the cover.

AClock setting

1Press and

set the

time .

•Press and hold

for approximately

5 seconds to show

time in 12-hour

(am/pm) or 24 hour

indication.

2Conﬁrm .

FAN SPEED

ACXF55-05600_01EN.indd 2ACXF55-05600_01EN.indd 2 1/25/2017 10:03:28 AM1/25/2017 10:03:28 AM

English

Table of contents

Safety precautions

…………

4-6

How to use

………………………

7-8

To learn more

…………………

Cleaning instructions

………

Troubleshooting

…………

11-13

Information………………… 74

Accessories

• Remote control

• AAA or R03 batteries × 2

• Remote control holder

• Screws for remote control

holder × 2

The illustrations in this manual are for

explanation purposes only and may differ

from the actual unit. They are subject

to change without notice for future

improvement.

BBasic operation

1Press to select

the desired mode.

DRY

AUTO HEAT

COOL

2Press to start/

stop the operation.

POWER

•Please note that

the indication

is on display to

start the unit.

3Select the desired

temperature.

Down

Selection range:

16.0 °C ~ 30.0 °C /

60 °F ~ 86 °F.

•Press and hold for

approximately 10 seconds

to switch the temperature

indication in °C or °F.

Thank you for purchasing

Panasonic Air Conditioner.

ACXF55-05600_01EN.indd 3ACXF55-05600_01EN.indd 3 1/25/2017 10:03:32 AM1/25/2017 10:03:32 AM

Safety precautions

To prevent personal injury, injury to

others or property damage, please

comply with the following:

Incorrect operation due to failure to

follow instructions below may cause

harm or damage, the seriousness of

which is classiﬁed as below:

This appliance is not intended for

accessibility by the general public.

WARNING

This sign

warns of

death or

serious

injury.

CAUTION

This sign

warns of

injury or

damage to

property.

The instructions to be followed are

classiﬁed by the following symbols:

This symbol denotes an

action that is PROHIBITED.

These symbols denote

actions COMPULSORY.

WARNING

Indoor unit and outdoor unit

This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand the

hazards involved.

Children shall not play with the

appliance. Cleaning and user

maintenance shall not be made

by children without supervision.

Please consult authorised dealer

or specialist to clean the internal

parts, repair, install, remove

and reinstall the unit. Improper

installation and handling will

cause leakage, electric shock or

ﬁre.

Conﬁrm with authorised dealer

or specialist on usage of any

speciﬁed refrigerant type.

Using refrigerant type other than

the speciﬁed may cause product

damage, burst and injury etc.

Do not install the unit in

a potentially explosive or

ﬂammable atmosphere.

Failure to do so could result in

ﬁre.

Do not insert your ﬁngers

or other objects into the

air conditioner indoor or

outdoor unit, rotating parts

may cause injury.

Do not touch the outdoor

unit during lightning, it may

cause electric shock.

Indoor unit

Outdoor unit

Power supply

Remote control

Air inlet

Air outlet

ACXF55-05600_01EN.indd 4ACXF55-05600_01EN.indd 4 1/25/2017 10:03:34 AM1/25/2017 10:03:34 AM

EnglishSafety precautions

Do not expose yourself directly

to cold air for a long period to

avoid excess cooling.

Do not sit or step on the

unit, you may fall down

accidentally.

Remote control

Do not allow infants and small

children to play with the remote

control to prevent them from

accidentally swallowing the

batteries.

Power supply

Do not use a

modiﬁed cord, joint

cord, extension cord

or unspeciﬁed cord to

prevent overheating

and ﬁre.

To prevent overheating, ﬁre or

electric shock:

•Do not share the same power

outlet with other equipment.

•Do not operate with wet hands.

•Do not over bend the power

supply cord.

•Do not operate or stop the unit

by inserting or pulling out the

power plug.

If the supply cord is damaged,

it must be replaced by the

manufacturer, service agent or

similarly qualiﬁed persons in

order to avoid a hazard.

It is strongly recommended to

be installed with Earth Leakage

Circuit Breaker (ELCB) or

Residual Current Device (RCD)

to prevent electric shock or ﬁre.

To prevent overheating, ﬁre or

electric shock:

•Insert the power plug properly.

•Dust on the power plug should

be periodically wiped with a dry

cloth.

Stop using the product if any

abnormality/failure occurs and

disconnect the power plug or

turn off the power switch and

breaker.

(Risk of smoke/ﬁre/electric

shock)

Examples of abnormality/failure

•The ELCB trips frequently.

•Burning smell is observed.

•Abnormal noise or vibration of

the unit is observed.

•Water leaks from the indoor

unit.

•Power cord or plug becomes

abnormally hot.

•Fan speed cannot be controlled.

•The unit stops running

immediately even if it is

switched on for operation.

•The fan does not stop even if

the operation is stopped.

Contact your local dealer

immediately for maintenance/

repair.

This equipment must be earthed

to prevent electrical shock or ﬁre.

Prevent electric shock by

switching off the power supply

and unplug:

-Before cleaning or servicing,

-When extended non-use, or

-During abnormally strong

lightning activity.

ACXF55-05600_01EN.indd 5ACXF55-05600_01EN.indd 5 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

Safety precautions

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit

with water, benzine, thinner

or scouring powder to avoid

damage or corrosion at the unit.

Do not use for preservation

of precise equipment, food,

animals, plants, artwork or other

objects. This may cause quality

deterioration, etc.

Do not use any combustible

equipment in front of the airﬂow

outlet to avoid ﬁre propagation.

Do not expose plants or pet

directly to airﬂow to avoid injury,

etc.

Do not touch the sharp

aluminium ﬁn, sharp parts

may cause injury.

Do not switch ON the indoor

unit when waxing the ﬂoor. After

waxing, aerate the room properly

before operating the unit.

Do not install the unit in oily and

smoky areas to prevent damage

to the unit.

Do not dismantle the unit for

cleaning purpose to avoid injury.

Do not step onto an unstable

bench when cleaning the unit to

avoid injury.

Do not place a vase or water

container on the unit. Water may

enter the unit and degrade the

insulation. This may cause an

electric shock.

Do not open window or door

for long time during operation,

it may lead to inefﬁcient power

usage and uncomfortable

temperature changes.

Prevent water leakage by

ensuring drainage pipe is:

-Connected properly,

-Kept clear of gutters and

containers, or

-Not immersed in water

After a long period of use or use

with any combustible equipment,

aerate the room regularly.

After a long period of use, make

sure the installation rack does

not deteriorate to prevent the unit

from falling down.

Remote control

Do not use rechargeable (Ni-Cd)

batteries. It may damage the

remote control.

To prevent malfunction or

damage of the remote control:

•Remove the batteries if the unit

is not going to be used for a

long period of time.

•New batteries of the same type

must be inserted following the

polarity stated.

Power supply

Do not disconnect the plug

by pulling the cord to prevent

electric shock.

ACXF55-05600_01EN.indd 6ACXF55-05600_01EN.indd 6 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

EnglishSafety precautions / How to use

How to use

To adjust airﬂow direction

To adjust fan speed

To switch between powerful/quiet

POWERFUL:

To reach the preset temperature quickly

•This operation stops automatically after 20 minutes.

QUIET:

To enjoy quiet operation

•This operation reduces airﬂow noise.

•For AUTO, the indoor fan speed is automatically

adjusted according to the operation mode.

•To have low noise priority operation, select the

lowest fan speed ( ).

AUTO

FAN

Indicator

•Do not adjust the ﬂap by hand.

To maximise comfort while sleeping

•

This operation can be set together with timer.

Sleep operation has the priority over OFF

timer.

•

This operation can be cancelled by pressing

the respective button when the sleep timer

reaches 0.0h.

This operation provides you with a comfortable environment while sleeping. It will

automatically adjust the sleep pattern temperature during the activation period. The indoor

unit indicator will dim when this operation is activated. This is not applicable if the indicator

brightness has been manually dimmed.

SLEEP

(Cancel)

This operation is incorporated with the

activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9

hours).

To adjust airﬂow direction

AIR SWING

Upper direction

•For lateral direction, it is manually

adjustable as shown.

FAN SPEED

Not used

in normal

operations.

Press to restore

the remote

control to default

setting.

POWER

(Green)

TIMER

(Orange)

ACXF55-05600_01EN.indd 7ACXF55-05600_01EN.indd 7 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

To set the timer

Note

SLEEP

•Can be activated in all modes and can be

cancelled by pressing the respective button

again.

•Cannot be selected at the same time.

OFF

TIMER

CANCEL

SET

21 3

1Select ON or OFF

timer Example:

OFF at 22:00

•Each time pressed:

Cancel

2Set the time

3Conﬁrm

•To cancel ON or OFF timer, press

or to select respective or then

press .

•If timer is cancelled manually or due to

power failure, you can restore the timer

again by pressing or to select

respective or then press .

•The nearest timer setting will be displayed

and will activate in sequence.

•Timer operation is based on the clock set

in the remote control and repeats daily

once set. For clock setting, please refer to

Quick Guide.

2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset

times.

Operating conditions

Use this air conditioner in the temperature range indicated in the table.

Temperature

°C (°F) Indoor Outdoor

DBT WBT DBT WBT

COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)

Min. 16 (60.8) 11 (51.8) 5 (41.0) -

HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)

Min. 16 (60.8) - -15 (5.0) -16 (3.2)

DBT: Dry bulb temperature, WBT: Wet bulb temperature

How to use

ACXF55-05600_01EN.indd 8ACXF55-05600_01EN.indd 8 1/25/2017 10:03:37 AM1/25/2017 10:03:37 AM

EnglishHow to use / To learn more...

Operation mode

AUTO : During operation, the POWER indicator will blinks at initial.

Unit selects operation mode every 10 minutes according to the setting and room

temperatures.

HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while

to warm up.

COOL : Provides efﬁcient comfort cooling to suit your needs.

DRY : Unit operates at low fan speed to give a gentle cooling operation.

Energy saving temperature setting

Operating the unit within the recommended temperature range may save energy.

HEAT : 20.0 °C ~ 24.0 °C /

68 °F ~ 75 °F.

COOL: 26.0 °C ~ 28.0 °C /

79 °F ~ 82 °F.

Air ﬂow direction

In COOL/DRY mode:

If AUTO is set, the ﬂap swings up/down automatically.

Auto restart control

If power is resumed after a power failure, the operation will restart automatically after a

period of time with previous operation mode and airﬂow direction.

•This control is not applicable when TIMER is set.

To learn more...

ACXF55-05600_01EN.indd 9ACXF55-05600_01EN.indd 9 1/25/2017 10:03:38 AM1/25/2017 10:03:38 AM

Cleaning instructions

To ensure optimal performance of the unit,

cleaning has to be carried out at regular intervals.

Dirty unit may cause malfunction and you may

see error code “H 99”. Please consult authorised

dealer.

•Switch off the power supply and unplug before

cleaning.

•Do not touch the aluminium ﬁn, sharp parts may

cause injury.

•Do not use benzine, thinner or scouring powder.

•Use only soap ( pH 7) or neutral household

detergent.

•Do not use water hotter than 40 °C / 104 °F.

Indoor unit

Wipe the unit gently with a soft,

dry cloth.

Outdoor unit

Make sure the air outlet of the

outdoor unit is not blocked by

fallen leaves or snow.

Clear any blockage from the

drain pipe.

Air ﬁlters

Once every 2 weeks

•Wash/rinse the ﬁlters gently

with water to avoid damage to

the ﬁlter surface.

•Dry the ﬁlters thoroughly under shade,

away from ﬁre or direct sunlight.

•Replace any damaged ﬁlters.

Remove air ﬁlter Attach air ﬁlter

Insert into the unit

Front panel

Wash gently and dry.

Remove the front panel Close it securely

POWER

TIMER

1Release the hooks at

both ends.

2Pull out and lift up.

POWER

TIMER

1Insert at

both sides.

2Push in.

3Close down.

4Press both ends and center of the front panel.

Indoor unit

Air Purifying Filter

•Do not wash/rinse the ﬁlter with water.

•Replace the ﬁlter every 2 years or replace

any damaged ﬁlter.

Part no.: CZ-SA31P

Air Purifying Filter

Aluminium ﬁn

POWER

TIMER

Front panel

Air ﬁlters

Air Purifying Filter

(CS-KE25/35TKE)

Air Purifying Filter

(CS-KE50TKE)

ACXF55-05600_01EN.indd 10ACXF55-05600_01EN.indd 10 1/25/2017 10:03:38 AM1/25/2017 10:03:38 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Klimaanlage Handbücher

Panasonic

Panasonic CU-2RE18PBE Bedienungsanleitung

Panasonic

Panasonic CS-C73KE Bedienungsanleitung

Panasonic

Panasonic GS-G90KE Bedienungsanleitung

Panasonic

Panasonic CW-807TU Bedienungsanleitung

Panasonic

Panasonic CS-PE9RKE Bedienungsanleitung

Panasonic

Panasonic CS-TU18WKY-5 Series Bedienungsanleitung

Panasonic

Panasonic CS-ME10DTEG Bedienungsanleitung

Panasonic

Panasonic S-71WF3E Bedienungsanleitung

Panasonic

Panasonic WhisperGreen FV-13VKSL3 Bedienungsanleitung

Panasonic

Panasonic CW-A200SR Bedienungsanleitung

Panasonic

Panasonic CS-RE9RKA Bedienungsanleitung

Panasonic

Panasonic CS-E18HKEW Bedienungsanleitung

Panasonic

Panasonic WH-MDC05F3E5 Bedienungsanleitung

Panasonic

Panasonic CS-C12KKV Bedienungsanleitung

Panasonic

Panasonic CS-ME5SD3UA Bedienungsanleitung

Panasonic

Panasonic CS-C9DKK Bedienungsanleitung

Panasonic

Panasonic CW-C101MU Bedienungsanleitung

Panasonic

Panasonic CS-N18XKH-8 Bedienungsanleitung

Panasonic

Panasonic CS-C45FFP8 Bedienungsanleitung

Panasonic

Panasonic CS-RE18JKE Bedienungsanleitung

Panasonic

Panasonic CS-A182KR Bedienungsanleitung

Panasonic

Panasonic CS-KS18NKU Bedienungsanleitung

Panasonic

Panasonic CS-HZ9RKE Bedienungsanleitung

Panasonic

Panasonic CS-W14BD3P Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
