Order No. MAC0706002A2

Air Conditioner

CS-CE7GKEW CU-CE7GKE

CS-CE9GKEW CU-CE9GKE

CS-CE12GKEW CU-CE12GKE

TABLE OF CONTENTS PAGE PAGE

1 Specifications ----------------------------------------------------- 2

1.1. CS-CE7GKEW CU-CE7GKE-------------------------- 2

1.2. CS-CE9GKEW CU-CE9GKE-------------------------- 4

1.3. CS-CE12GKEW CU-CE12GKE----------------------- 6

2 Technical Data----------------------------------------------------- 8

2.1. Operation Characteristics--------------------------------8

2.2. Sensible Capacity Chart--------------------------------20

3 Exploded View and Replacement Parts List-----------21

3.1. Indoor Unit------------------------------------------------- 21

3.2. Outdoor Unit----------------------------------------------- 23

Please file and use this manual together with the service manual for Model No. CS-E9GKEW-5 / CU-

E9GKE-5, CS-E12GKEW-5 / CU-E12GKE-5, Order No. MAC0612063C2.

1 Specifications

1.1. CS-CE7GKEW CU-CE7GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 2.05 (0.70 ~ 2.40)

kCal/h 1760 (600 ~ 2060)

EER W/W 4.27 (4.12 ~ 4.07)

kCal/hW 3.67 (3.53 ~ 3.49)

Noise Level dB (A) High 37, Low 24, Q-Lo 21 High 45

Power level dB High 48, Low 35, Q-Lo 32 58

Capacity kW 2.80 (0.70 ~ 4.00)

kCal/h 2410 (600 ~ 3440)

COP W/W 4.31 (4.38 ~ 3.92)

kCal/hW 3.71 (3.75 ~ 3.37)

Noise Level dB (A) High 38, Low 25, Q-Lo 22 High 46

Power level dB High 49, Low 36, Q-Lo 33 59

Moisture Removal l/h 1.3

pt/h 2.7

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 4.6 (160) —

Heating; 5.1 (180)

Lo m3/min (ft3/min) Cooling; 6.3 (220) —

Heating; 6.5 (230)

Me m3/min (ft3/min) Cooling; 7.2 (250) —

Heating; 7.7 (270)

Hi m3/min (ft3/min) Cooling; 9.8 (350) Cooling; 28.8 (1020)

Heating; 10.3 (360)

SHi m3/min (ft3/min) Cooling; 10.1 (360) —

Heating; 10.7 (380)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 790 (27.9)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 33 (73)

Pipe Diameter Gas mm (inch) 9.52 (3/8)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 650

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 62

Output Power W 30 25

Fan Speed

Q-Lo (Cool/Heat) rpm 740 / 790 —

Lo (Cool/Heat) rpm 790 / 840 —

Me (Cool/Heat) rpm 1010 / 1070 —

Hi (Cool/Heat) rpm 1230 / 1300 750 / -

SHi (Cool/Heat) rpm 1270 /1340 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 19 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle) ø Single

V 230

Hz 50

Input Power W Cooling; 480 (170 ~ 590)

Heating; 650 (160 ~ 1020)

Starting Current A 3.1

Running Current A Cooling; 2.3

Heating; 3.1

Power Factor % Cooling; 91

Heating; 91

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 4.8

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

1.2. CS-CE9GKEW CU-CE9GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 2.60 (0.80 ~ 3.00)

kCal/h 2240 (690 ~ 2580)

EER W/W 4.41 (4.57 ~ 4.00)

kCal/hW 3.80 (3.94 ~ 3.44)

Noise Level dB (A) High 39, Low 25, Q-Lo 21 High 46

Power level dB High 50, Low 36, Q-Lo 32 59

Capacity kW 3.60 (0.80 ~ 5.00)

kCal/h 3100 (690 ~ 4300)

COP W/W 4.31 (4.85 ~ 3.73)

kCal/hW 3.71 (4.18 ~ 3.21)

Noise Level dB (A) High 40, Low 27, Q-Lo 24 High 47

Power level dB High 51, Low 38, Q-Lo 35 60

Moisture Removal l/h 1.6

pt/h 3.4

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 4.9 (170) —

Heating; 6.1 (220)

Lo m3/min (ft3/min) Cooling; 6.6 (230) —

Heating; 7.1 (250)

Me m3/min (ft3/min) Cooling; 7.8 (280) —

Heating; 8.6 (300)

Hi m3/min (ft3/min) Cooling; 10.4 (370) Cooling; 29.8 (1050)

Heating; 11.0 (390)

SHi m3/min (ft3/min) Cooling; 10.7 (380) —

Heating; 11.4 (400)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 965 (34.1)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 34 (75)

Pipe Diameter Gas mm (inch) 9.52 (3/8)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 700

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 65

Output Power W 30 25

Fan Speed

Q-Lo (Cool/Heat) rpm 770 / 890 —

Lo (Cool/Heat) rpm 830 / 940 —

Me (Cool/Heat) rpm 1070 / 1170 —

Hi (Cool/Heat) rpm 1310 / 1420 770 / —

SHi (Cool/Heat) rpm 1350 / 1460 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 19 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle) ø Single

V 230

Hz 50

Input Power W Cooling; 590 (175 ~ 750)

Heating; 835 (165 ~ 1340)

Starting Current A 3.9

Running Current A Cooling; 2.8

Heating; 3.9

Power Factor % Cooling; 92

Heating; 93

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 5.9

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

1.3. CS-CE12GKEW CU-CE12GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 3.50 (0.80 ~ 4.00)

kCal/h 3010 (690 ~ 3440)

EER W/W 3.83 (4.32 ~ 3.39)

kCal/hW 3.29 (3.73 ~ 2.92)

Noise Level dB (A) High 42, Low 28, Q-Lo 21 High 48

Power level dB High 53, Low 39, Q-Lo 32 61

Capacity kW 4.80 (0.80 ~ 6.50)

kCal/h 4130 (690 ~ 5590)

COP W/W 3.81 (4.57 ~ 3.44)

kCal/hW 3.28 (3.94 ~ 2.96)

Noise Level dB (A) High 42, Low 33, Q-Lo 30 High 50

Power level dB High 53, Low 44, Q-Lo 41 63

Moisture Removal l/h 2.0

pt/h 4.2

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 5.0 (180) —

Heating; 8.0 (280)

Lo m3/min (ft3/min) Cooling; 7.0 (250) —

Heating; 8.5 (300)

Me m3/min (ft3/min) Cooling; 8.7 (310) —

Heating; 9.9 (350)

Hi m3/min (ft3/min) Cooling; 11.2 (400) Cooling; 31.0 (1090)

Heating; 11.7 (410)

SHi m3/min (ft3/min) Cooling; 11.5 (410) —

Heating; 12.1 (430)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 980 (34.6)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 35 (77)

Pipe Diameter Gas mm (inch) 12.7 (1/2)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 700

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 70

Output Power W 30 30

Fan Speed

Q-Lo (Cool/Heat) rpm 780 / 1090 —

Lo (Cool/Heat) rpm 920 / 1150 —

Me (Cool/Heat) rpm 1175 / 1325 —

Hi (Cool/Heat) rpm 1430 / 1500 830 / —

SHi (Cool/Heat) rpm 1470 / 1540 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 21 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle)

ø Single

V 230

Hz 50

Input Power W Cooling; 915 (185 ~ 1180)

Heating; 1260 (175 ~ 1890)

Starting Current A 5.8

Running Current A Cooling; 4.2

Heating; 5.8

Power Factor % Cooling; 95

Heating; 95

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 8.7

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

2 Technical Data

2.1. Operation Characteristics

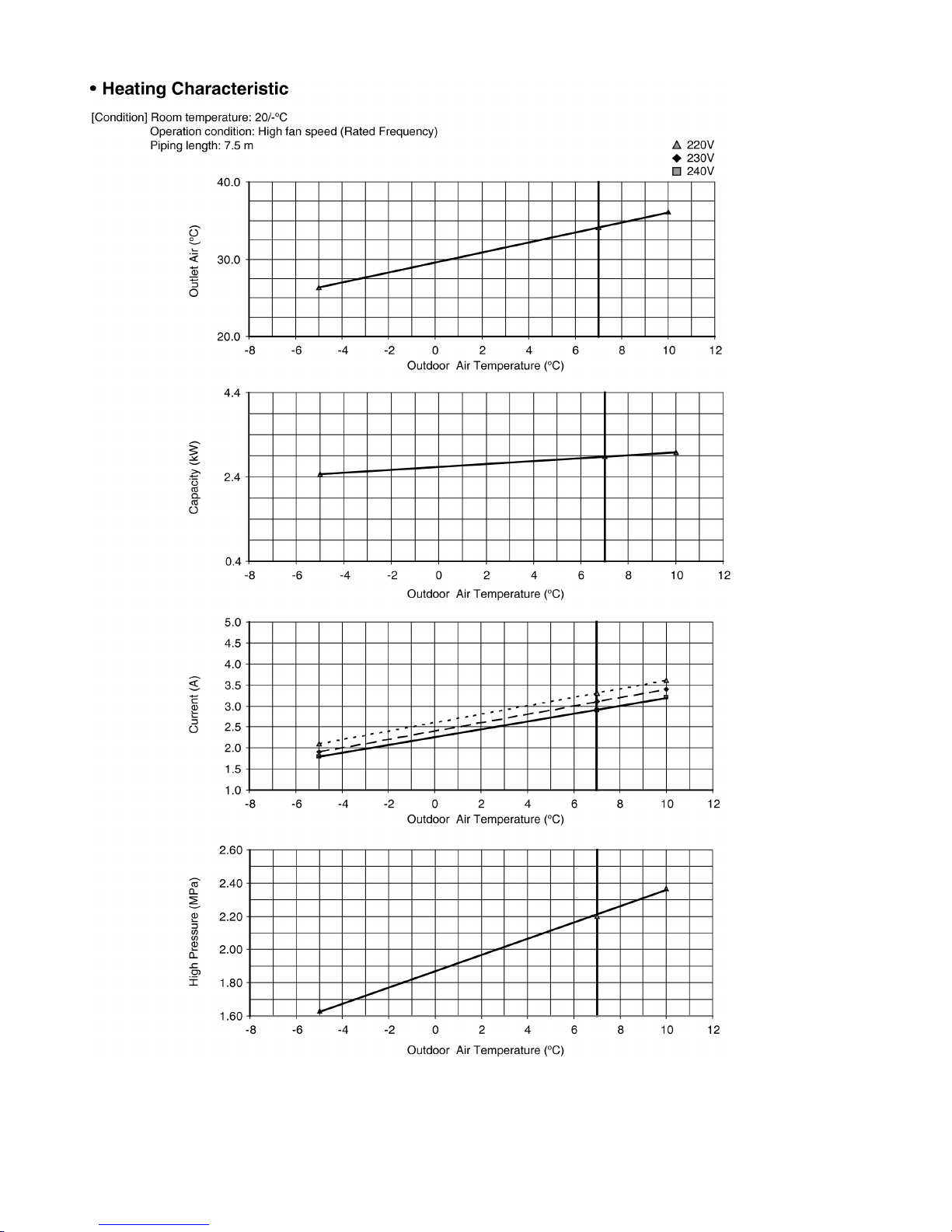

2.1.1. CS-CE7GKEW CU-CE7GKE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Klimaanlage Handbücher

Panasonic

Panasonic CS-MRE7RKE Bedienungsanleitung

Panasonic

Panasonic CS-KE24NKU Bedienungsanleitung

Panasonic

Panasonic U-8ME2E8 Bedienungsanleitung

Panasonic

Panasonic CS-RE9JKR Bedienungsanleitung

Panasonic

Panasonic CU-2E15LBE Bedienungsanleitung

Panasonic

Panasonic CSA18CKPG - SPLIT A/C IN DOOR Bedienungsanleitung

Panasonic

Panasonic U-160PZH2R5 Bedienungsanleitung

Panasonic

Panasonic CS-1273KR Bedienungsanleitung

Panasonic

Panasonic CW-XN2421EA Bedienungsanleitung

Panasonic

Panasonic S-22KA1E5S Bedienungsanleitung

Panasonic

Panasonic CS-V9PKA-2 Bedienungsanleitung

Panasonic

Panasonic CS-KN9XKD-3 Bedienungsanleitung

Panasonic

Panasonic CS-LU9ZKA Bedienungsanleitung

Panasonic

Panasonic CS-XV9UKD-3 Bedienungsanleitung

Panasonic

Panasonic CS-PW18GKE Bedienungsanleitung

Panasonic

Panasonic WH-ADC0916G9E8 Bedienungsanleitung

Panasonic

Panasonic CS-A9KKD Bedienungsanleitung

Panasonic

Panasonic U-8ME1E81 Bedienungsanleitung

Panasonic

Panasonic CS-PN30XKH-1 Bedienungsanleitung

Panasonic

Panasonic CS-E15DTEW Bedienungsanleitung

Panasonic

Panasonic CS-A181KR Bedienungsanleitung

Panasonic

Panasonic CS-MKS9NB4U Installations- und Benutzerhandbuch

Panasonic

Panasonic CW-A120AE Bedienungsanleitung

Panasonic

Panasonic CS-E9DKEW Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
