Panasonic CS-E18GKR Bedienungsanleitung

and distribution is a violation of law.

Order No. MAC0705023C3

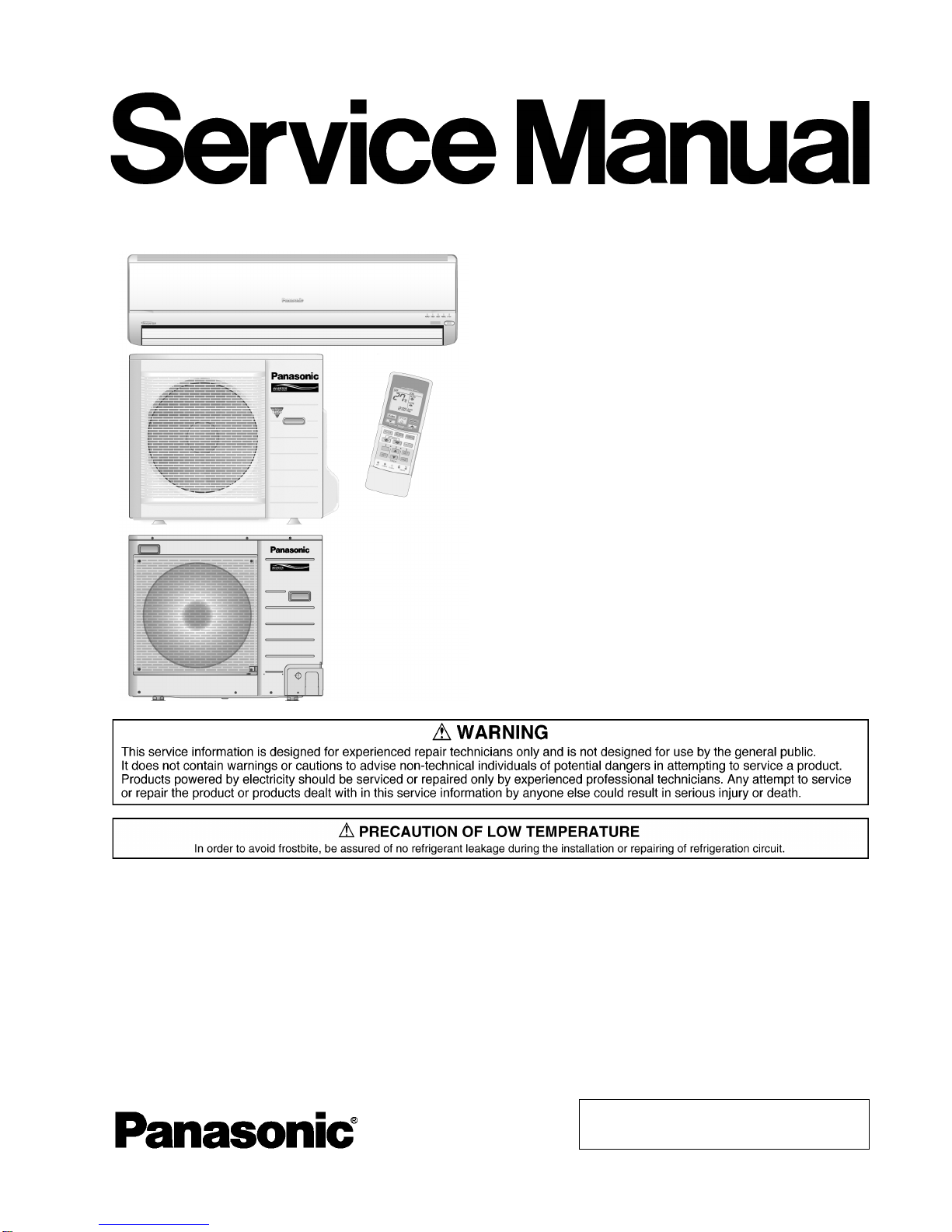

Air Conditioner

CS-E18GKR CU-E18GKR

CS-E21GKR CU-E21GKR

CS-E24GKR CU-E24GKR

CS-E28GKR CU-E28GKR

TABLE OF CONTENTS PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 4

2.1. CS-E18GKR CU-E18GKR ----------------------------- 4

2.2. CS-E21GKR CU-E21GKR ----------------------------- 6

2.3. CS-E24GKR CU-E24GKR ----------------------------- 8

2.4. CS-E28GKR CU-E28GKR ----------------------------10

3Features------------------------------------------------------------12

4 Location of Controls and Components ------------------13

4.1. Indoor Unit------------------------------------------------- 13

4.2. Outdoor Unit----------------------------------------------- 13

4.3. Remote Control-------------------------------------------13

5Dimensions------------------------------------------------------- 14

5.1. Indoor Unit & Remote Control ------------------------14

5.2. Outdoor Unit----------------------------------------------- 15

6 Refrigeration Cycle Diagram--------------------------------17

7 Block Diagram --------------------------------------------------- 18

17 Exploded View and Replacement Parts List

17.1. CS-E18GKR CS-E21GKR CS-E24GKR CS-E28GKR

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

<Model: CS-E18GKR, CS-E21GKR, CS-E24GKR, CS-E28GKR>

(Note)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock.

REF NO. PART NAME & DESCRIPTION QTY. CS-E18GKR CS-E21GKR CS-E24GKR CS-E28GKR

1 CHASSY COMPLETE 1 CWD50C1520 ←←←

2 FAN MOTOR, DC 30W 3PH 1 ARW51H8P30AC ←←←

3 CROSS FLOW FAN COMPLETE 1 CWH02C1010 ←←←

4 SCREW - CROSS FLOW FAN 1 CWH551146 ←←←

5 BEARING ASSY 1 CWH64K007 ←←←

6 EVAPORATOR 1 CWB30C1533 ←CWB30C1678 ←

7 FLARE NUT (1/4) 1 CWT251030 ←←←

8 FLARE NUT (1/2) (5/8) 1 CWT251032 ←CWT251033 ←

9 HOLDER SENSOR 1 CWH32143 ←←←

10 DISCHARGE GRILLE COMPLETE 1 CWE20C2735 ←←←

11 VERTICAL VANE 15 CWE241088 ←←←

12 CONNECTING BAR 1 CWE261025 ←←←

13 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA98260+MJ ←←←

14 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3849 ←←←

15 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA98K1008 ←←←

16 LEAD WIRE - AIR SWING MOTOR 1 CWA67C4445 ←←←

17 HORIZONTAL VANE 1 CWE241152C ←←←

18 HORIZONTAL VANE 1 CWE241153C ←←←

19 CAP - DRAIN TRAY 1 CWH521096 ←←←

20 BACK COVER CHASSIS 1 CWD932162B ←←←

21 CONTROL BOARD CASING 1 CWH102334 ←←←

22 TERMINAL BOARD COMPLETE 1 CWA28C2305 ←←←

23 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2834 CWA73C2835 CWA73C2836 CWA73C2837

24 ELECTRONIC CONTROLLER - POWER 1 CWA744758 ←CWA744805 ←

25 INDICATOR COMPLETE 1 CWE39C1174 ←←←

26 INDICATOR HOLDER 1 CWD932817 ←←←

27 INDICATOR HOLDER 1 CWD932818 ←←←

28 SENSOR COMPLETE 1 CWA50C2122 ←←←

29 CONTROL BOARD TOP COVER 1 CWH131209 ←←←

30 CONTROL BOARD FRONT COVER 1 CWH131210 ←←←

31 REMOTE CONTROL COMPLETE 1 CWA75C3111 ←←←

32 FRONT GRILLE COMPLETE 1 CWE11C3695 ←←←

33 INTAKE GRILLE COMPLETE 1 CWE22C1361 ←←←

34 GRILLE DOOR 1 CWE141076 ←←←

35 SCREW - FRONT GRILLE 3 XTT4+16CFJ ←←←

36 CAP - FRONT GRILLE 3 CWH521062A ←←←

37 DRAIN HOSE 1 CWH851063 ←←←

38 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067 ←←←

39 INSTALLATION PLATE 1 CWH36K1007 ←←←

40 FULCRUM 2 CWH621047 ←←←

41 ION-GENERATOR 1 CWH94C0014 ←←←

42 E-ION AIR PURIFYING SYSTEM 1 CWH14C5600 ←←←

43 E-ION FILTER 2 CWD00K1002 ←←←

17.2. Outdoor Unit

CU-E18GKR CU-21GKR

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

<Model: CU-E18GKR, CU-E21GKR>

REF. NO. DESCRIPTION & NAME QTY. CU-E18GKR CU-E21GKR

1 CHASSY ASS’Y 1 CWD50K2085 ←

2 ANTI - VIBRATION BUSHING 3 CWH50077 ←

3 COMPRESSOR 1 5CS130XAD04 ←

4 NUT - COMPRESSOR MOUNT 3 CWH56000J ←

5 SOUND PROOF MATERIAL 1 CWG302302 ←

6 FAN MOTOR BRACKET 1 CWD541054 ←

7 FAN MOTOR, DC 40W 3PH 1 CWA981166J ←

8 SCREW - FAN MOTOR BRACKET 2 CWH551174J ←

9 SCREW - FAN MOTOR MOUNT 3 CWH551106J ←

10 PROPELLER FAN ASS’Y 1 CWH03K1016 ←

11 NUT - PROPELLER FAN 1 CWH56053J ←

12 CONDENSER COMPLETE 1 CWB32C1317R CWB32C1761

13 TUBE ASS’Y (EXP. VALVE) 1 CWT023679 ←

14 ACCUMLATOR 1 CWB131024 ←

15 RECEIVER 1 CWB14011 —

16 4 WAYS VALVE 1 CWB001026J ←

17 STRAINER 1 CWB11094 ←

18 HOLDER - COUPLING 1 CWH351056 ←

19 3 WAYS VALVE (GAS) 1 CWB011361 ←

20 2 WAYS VALVE (LIQUID) 1 CWB021292 ←

21 SOUND PROOF BOARD 1 CWH151050 ←

22 TERMINAL COVER 1 CWH171039A ←

23 NUT - TERMINAL COVER 1 CWH7080300J ←

24 SENSOR COMPLETE (COMP. TOP) 1 CWA50C2185 ←

25 HOLDER SENSOR 1 CWH32074 ←

26 V-COIL COMPLETE 1 CWA43C2168J ←

27 V-COIL COMPLETE FOR EXP.VALVE 1 CWA43C2058J ←

28 SENSOR CO (COMP.DISCHARGE) 1 CWA50C2180 ←

29 SENSOR COMPLETE 1 CWA50C2181 ←

30 REACTOR 1 CWA421069 ←

31 CONTROL BOARD CASING (SIDE) 1 CWH102273 ←

32 TERMINAL BOARD ASSY 1 CWA28K1110J ←

33 FUSE HOLDERS 1 K3GB1PH00016 ←

34 FUSE CAP TERMINAL 1 K5D303BBA002 ←

35 CONTROL BOARD CASING (BOTTOM) 1 CWH102282 ←

36 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2817R CWA73C2818R

37 CONTROL BOARD COVER (TOP) 1 CWH131167 ←

38 CABINET SIDE PLATE(L) 1 CWE041082A ←

39 HANDLE 1 CWE161010 ←

40 CABINET SIDE PLATE (R) 1 CWE041158A ←

41 HANDLE 2 CWE16000E ←

42 CABINET FRONT PLATE ASSY 1 CWE06K1043 ←

43 WIRE NET 1 CWD041041A ←

44 CABINET TOP PLATE 1 CWE031031A ←

45 CONTROL BOARD COVER (BOTTOM) 1 CWH131168 ←

46 CONTROL BOARD COVER (TOP) 1 CWH131169A ←

47 DRAIN HOSE 1 CWH5850080 ←

48 PACKING - L.TUBE 1 CWB81012 ←

49 SOUND PROOF MATERIAL 1 CWG302270 ←

50 SOUND PROOF MATERIAL 1 CWG302300 ←

51 OPERATING INSTRUCTION 1 CWF565729 ←

52 INSTALLATION INSTRUCTION 1 CWF613285 ←

CU-E24GKR CU-28GKR

<Model: CU-E24GKR, CU-E28GKR>

(Note)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock. [PHAAM] Printed in Malaysia

SFBZ0706 - 00

REF. NO. DESCRIPTION & NAME QTY. CU-E24GKR CU-E28GKR

1 CHASSY ASS’Y 1 CWD52K1177 ←

2 COMPRESSOR (DC 280V) 1 5KD240XAA21 ←

3 ANTI - VIBRATION BUSHING 3 CWH50055 ←

4 NUT - COMPRESSOR MOUNT 3 CWH561049 ←

5 PACKING 3 CWB811017 ←

6 CONDENSER 1 CWB32C1996 CWB32C2164

7 SOUND PROOF MATERIAL 1 CWG302462 ←

8 SOUND PROOF MATERIAL 1 CWG302463 ←

9 SOUND PROOF BOARD 1 CWH151075 ←

10 FAN MOTOR BRACKET 1 CWD54K1034 ←

11 SCREW - FAN MOTOR BRACKET 2 CWH551040J ←

12 FAN MOTOR, AC 80W SINGLE 1 CWA951510 ←

13 SCREW - FAN MOTOR MOUNT 4 CWH551040J ←

14 PROPELLER FAN 1 CWH001019 ←

15 NUT - PROPELLER FAN 1 CWH561038J ←

16 4-WAY VALVE 1 CWB001026J ←

17 RECEIVER 1 CWB14030 CWB14017

18 DISCHARGE MUFFLER 1 CWB121013 ←

19 STRAINER 2 CWB111032 ←

20 2-WAY VALVE (LIQUID) 1 CWB021330 ←

21 TUBE ASSY (CAP.TUBE) 1 CWT07K1350 CWT07K1321

22 3-WAY VALVE (GAS) 1 CWB011251 ←

23 EXPANSION VALVE 1 CWB051016J CWB051018J

24 SENSOR COMPLETE 1 CWA50C2381 ←

25 SENSOR - COMP.DISCHARGE 1 CWA50C2214 ←

26 V-COIL COMPLETE 1 CWA43C2169J ←

27 V-COIL COMPLETE FOR EXP. VALVE 1 CWA43C2058J CWA43C2128J

28 TERMINAL COVER 1 CWH171039A ←

29 NUT - TERMINAL COVER 1 CWH7080300J ←

30 CONTROL BOARD CASING 1 CWH10K1046 ←

31 CAPACITOR - F.M (3.5μF/440V) 1 DS441355NPQA ←

32 TERMINAL BOARD ASSY 1 CWA28K1179 ←

33 TERMINAL BOARD ASSY 1 CWA28K1076J ←

34 CABINET REAR PLATE - CO. 1 CWE02C1037 ←

35 CABINET SIDE PLATE ASSY 1 CWE04K1019A ←

36 HANDLE 3 CWE161008 ←

37 CABINET FRONT PLATE 1 CWE061118A ←

38 DISCHARGE GRILLE 1 CWE201073 ←

39 CABINET FRONT PLATE CO. 1 CWE06C1086 ←

40 PIPE COVER (FRONT) 1 CWD601074A ←

41 PIPE COVER (BACK) 1 CWD601075A ←

42 WIRE NET 1 CWD041102A ←

43 CABINET TOP PLATE ASSY 1 CWE03C1040 ←

44 ELECTRONIC CONTROLLER 1 CWA745001 CWA745002

45 ELECTRONIC CONT. - NOISE FILTER 1 CWA744495 ←

46 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2819R CWA73C2820R

47 SENSOR CO (COMP.TOP) 1 CWA50C2185 ←

48 REACTOR 2 G0C452J00002 ←

49 DRAIN HOSE 6 CWH5850080 ←

50 PACKING - L.TUBE 1 CWB811010 ←

51 WIRING COVER AND BAND 1 CWH82C1105 ←

52 OPERATION INSTRUCTIONS 1 CWF565729 ←

53 INSTALLATION INSTRUCTIONS 1 CWF613287 ←
