Panasonic CS-E9GKR Bedienungsanleitung

and distribution is a violation of law.

Order No. MAC0705022C3

Air Conditioner

CS-E7GKR CU-E7GKR

CS-E9GKR CU-E9GKR

CS-E12GKR CU-E12GKR

TABLE OF CONTENTS PAGE PAGE

1 Safety Precaution ------------------------------------------------ 2

2 Specifications ----------------------------------------------------- 4

2.1. CS-E7GKR CU-E7GKR--------------------------------- 4

2.2. CS-E9GKR CU-E9GKR--------------------------------- 6

2.3. CS-E12GKR CU-E12GKR ----------------------------- 8

3Features------------------------------------------------------------10

4 Location of Controls and Components ------------------11

4.1. Product Overview-----------------------------------------11

5Dimensions--------------------------------------------------------12

5.1. Indoor Unit--------------------------------------------------12

5.2. Outdoor Unit -----------------------------------------------13

6 Refrigeration Cycle Diagram --------------------------------14

7 Block Diagram----------------------------------------------------15

8 Wiring Connection Diagram --------------------------------16

8.1. Indoor Unit--------------------------------------------------16

8.2. Outdoor Unit -----------------------------------------------17

9 Electronic Circuit Diagram -----------------------------------18

9.1. Indoor Unit------------------------------------------------- 18

9.2. Outdoor Unit----------------------------------------------- 19

10 Printed Circuit Board ------------------------------------------ 20

10.1. Indoor Unit-------------------------------------------------20

10.2. Outdoor Unit----------------------------------------------- 22

11 Installation Instruction ----------------------------------------23

11.1. Select The Best Location ------------------------------23

11.2. Indoor/Outdoor Unit Installation Diagram----------23

11.3. Indoor Unit-------------------------------------------------24

11.4. Outdoor Unit-----------------------------------------------27

12 Operation and Control ----------------------------------------30

12.1. Basic Function --------------------------------------------30

12.2. Protection Control----------------------------------------39

13 Servicing Mode-------------------------------------------------- 42

13.1. Auto OFF/ON Button------------------------------------42

13.2. Select Remote Control Transmission Code-------42

13.3. Remote Control Button --------------------------------- 43

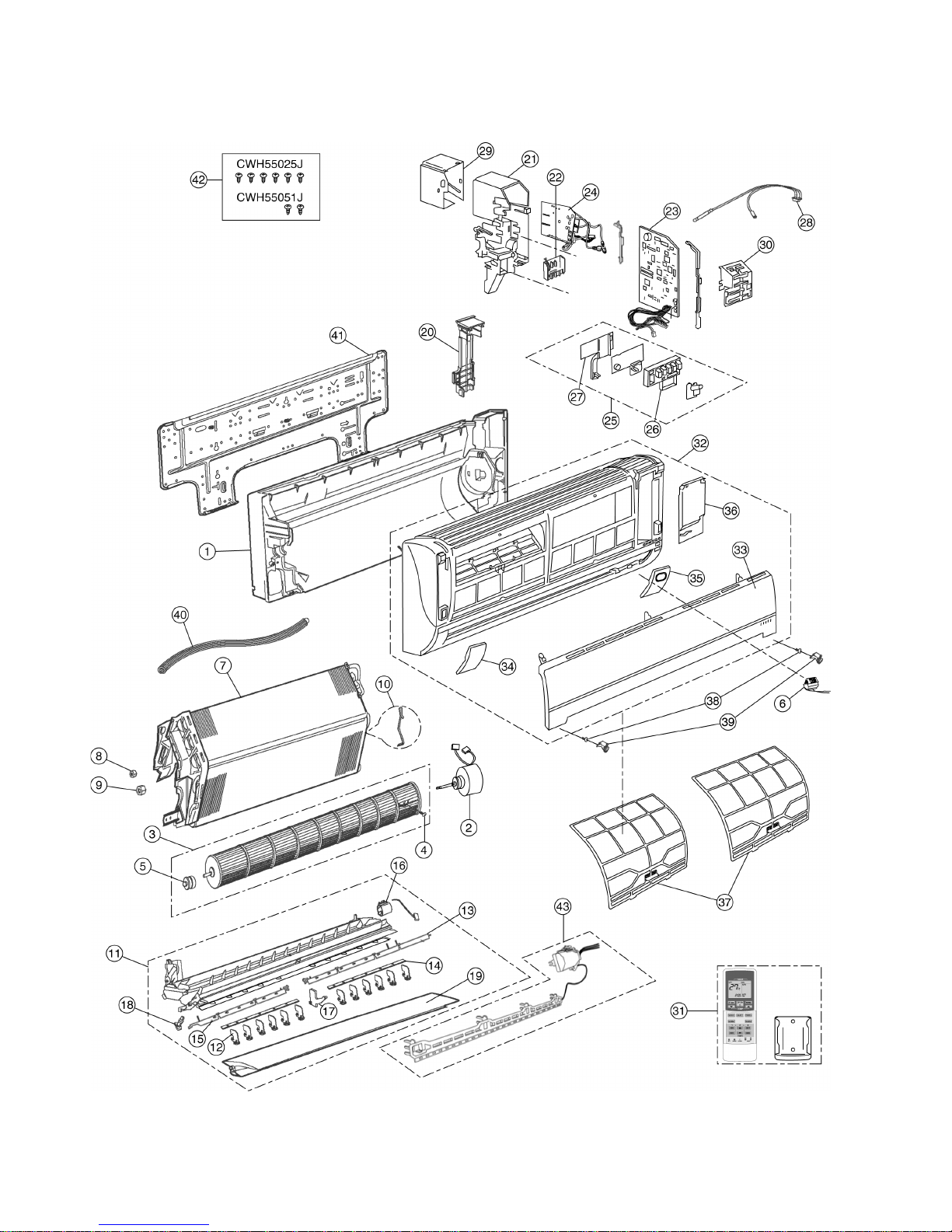

17 Exploded View and Replacement Parts List

17.1. Indoor Unit

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock.

REF. NO. PART NAME & DESCRIPTION QTY. CS-E7GKR CS-E9GKR CS-E12GKR

1 CHASSY COMPLETE 1 CWD50C1513 ←←

2 FAN MOTOR, DC 30W 3PH 1 ARW61E8P30AC ←←

3 CROSS-FLOW FAN COMPLETE 1 CWH02C1045 ←←

4 SCREW - CROSS FLOW FAN 1 CWH551146 ←←

5 BEARING ASSY 1 CWH64K007 ←←

6 ION - GENERATOR 1 CWH94C0014 ←←

7 EVAPORATOR 1 CWB30C2099 ←CWB30C2115

8 FLARE NUT (1/4) 1 CWT251030 ←←

9 FLARE NUT (3/8) (1/2) 1 CWT251031 ←CWT251032

10 INTAKE AIR SENSOR HOLDER 1 CWH32143 ←←

11 DISCHARGE GRILLE COMPLETE 1 CWE20C2627 ←←

12 VERTICAL VANE 12 CWE241157 ←←

13 CONNECTING BAR 1 CWE261092 ←←

14 CONNECTING BAR 2 CWE261071 ←←

15 CONNECTING BAR 1 CWE261091 ←←

16 A.S.MOTOR, DC SINGLE 12V 300 OHM 1 CWA981091 ←←

17 FULCRUM 1 CWH621049 ←←

18 CAP - DRAIN TRAY 1 CWH521096 ←←

19 HORIZONTAL VANE 1 CWE24C1183 ←←

20 BACK COVER CHASSIS 1 CWD932454 ←←

21 CONTROL BOARD CASING 1 CWH102321 ←←

22 TERMINAL BOARD COMPLETE 1 CWA28C2305 ←←

23 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2830 CWA73C2831 CWA73C2832

24 ELECTRONIC CONTROLLER - POWER 1 CWA744567 ←←

25 INDICATOR COMPLETE 1 CWE39C1168 ←←

26 INDICATOR HOLDER 1 CWD932744 ←←

27 INDICATOR HOLDER 1 CWD932745 ←←

28 SENSOR COMPLETE 1 CWA50C2122 ←←

29 CONTROL BOARD COVER (TOP) 1 CWH131207 ←←

30 CONTROL BOARD COVER (FRONT) 1 CWH13C1171 ←←

31 REMOTE CONTROL COMPLETE 1 CWA75C3109 ←←

32 FRONT GRILLE COMPLETE 1 CWE11C3873 ←←

33 INTAKE GRILLE COMPLETE 1 CWE22C1344 ←←

34 DECORATION BASE (L) 1 CWE351173A ←←

35 DECORATION BASE (R) 1 CWE35K1016 ←←

36 GRILLE DOOR COMPLETE 1 CWE14C1010 ←←

37 E-ION FILTER 2 CWD00K1001 ←←

38 SCREW FOR FRONT GRILLE 2 XTT4+16CFJ ←←

39 CAP FOR FRONT GRILLE 2 CWH521109 ←←

40 DRAIN HOSE 1 CWH851063 ←←

41 INSTALLING HOLDER ASSY 1 CWH361067 ←←

42 BAG COMPLETE FOR INSTALLATION 1 CWH82C067 ←←

43 E-ION AIR PURIFYING SYSTEM 1 CWH14C5332 ←←

17.2. Outdoor Unit

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).

• “O” marked parts are recommended to be kept in stock.

[PHAAM] Printed in Malaysia

SFBZ0706-00

REF. NO. PART NAME & DESCRIPTION QTY. CU-E7GKR CU-E9GKR CU-E12GKR

1 CHASSY ASSY 1 CWD50K2073 ←←

2 ANTI - VIBRATION BUSHING 3 CWH50077 ←←

3 COMPRESSOR 1 5RS092XCD01 5RS102XBC01 ←

4 NUT - COMPRESSOR MOUNT 3 CWH56000J ←←

5 SOUND PROOF MATERIAL 1 CWG302293 ←←

6 SOUND PROOF MATERIAL 1 CWG302292 ←←

7 FAN MOTOR BRACKET 1 CWD541089 ←←

8 FAN MOTOR (AC 25W SINGLE, AC 30W SINGLE) 1 CWA951536 CWA951553 CWA951542

9 SCREW - FAN MOTOR BRACKET 2 CWH551217 CWH551174J ←

10 SCREW - FAN MOTOR MOUNT 4 CWH55252J ←←

11 PROPELLER FAN ASSY 1 CWH03K1010 ←←

12 NUT - PROPELLER FAN 1 CWH56053J ←←

13 CONDENSER 1 CWB32C2208 CWB32C1146 ←

14 TUBE ASS’Y CO. (CAP. / CHK VALVE) 1 CWT01C4051 CWT01C4383 CWT01C4384

15 HOLDER - COUPLING 1 CWH351023 ←←

16 3-WAYS VALVE (GAS) 1 CWB011374 ←CWB011367

17 4-WAYS VALVE 1 CWB001037J ←←

18 2-WAYS VALVE (LIQUID) 1 CWB021301 ←←

19 V - COIL COMPLETE 1 CWA43C2143J ←←

20 SOUND PROOF BOARD 1 CWH151172 ←←

21 REACTOR 1 G0C193J00003 ←G0C193J00004

22 SENSOR COMPLETE 1 CWA50C2391 ←←

23 TERMINAL BOARD ASSY 1 CWA28K1110J ←←

24 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2813R CWA73C2814R CWA73C2815R

25 CONTROL BOARD COVER 1 CWH131264 ←←

26 SENSOR COMPLETE 1 CWA50C2205 ←←

27 HOLDER SENSOR 1 CWH321010 ←←

28 TERMINAL COVER 1 CWH171039A ←←

29 NUT - TERMINAL COVER 1 CWH7080300J ←←

30 CABINET SIDE PLATE CO. 1 CWE04C1116 ←←

31 CABINET SIDE PLATE (LEFT) 1 CWE041248A ←←

32 HANDLE 1 CWE161010 ←←

33 WIRE NET 1 CWD041111A ←←

34 CABINET FRONT PLATE CO. 1 CWE06C1039 ←←

35 CABINET TOP PLATE 1 CWE031014A ←←

36 CONTROL BOARD COVER 1 CWH131301 ←←

37 CONTROL BOARD COVER 1 CWH13C1064 ←←

38 L - TUBE 1 CWH5850080 ←←

39 PACKING - L.TUBE 1 CWB81012 ←←

40 OPERATION INSTRUCTIONS 1 CWF565726 ←←

41 INSTALLATION INSTRUCTION 1 CWF613282 ←←
