Panasonic CS-PE9CKE Bedienungsanleitung

1 Functions 2

2 Product Specifications 5

3 Dimensions 9

4 Refrigeration Cycle Diagram 11

5 Block Diagram 12

6 Wiring Diagram 13

7 Operation Details 15

8 Installation Instructions 47

9 Installation and Servicing Air Conditioner Using R410A 57

and distribution is a violation of law.

CS-PE9CKE

CU-PE9CKE

CS-PE12CKE

CU-PE12CKE

10 Disassembly of the parts 68

11 Trouble-shooting guide 73

12 Technical Data 75

13 Exploded View 76

14 Replacement Parts List 77

15 Exploded View 78

16 Replacement Parts List 79

17 Electronic Circuit Diagram 80

18 Electronic Circuit Diagram (Remote Control) 84

Room Air Conditioners

CONTENTS

Page Page

Order No. GMAC0401003C2

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

1 Functions

Operation START/STOP

Operation Mode Selection

Automatic Operation

Heating Mode Operation

Cooling Mode Operation

Soft Dry Mode Operation

Mode

Indoor Fan Speed Selection

Medium Speed

Low Speed

Supper Low Speed

Automatic Speed

Airflow Direction Control

Auto Airflow Direction

Airflow Direction Manual Control

Room Temperature Setting

Temperature Setting(16 to 30 )

Auto Operation

Check Point

Self diagnosis function

Reset Point

Clear memory data

Remote Control

OFF/ON

MODE

FAN

SPEED

High Speed

Supper High Speed

AIR

SWING

TEMP

CHECK

RESET

Error Reset Point

To reset the indoor unit.

ERROR

RESET

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Indoor Unit

Automatic Operation Switch

Press for <5s to run Automatic Operation.

(Used when the remote control cannot be

used.)

Press continuously for 5s and < 8s to run

Forced Cooling Operation.

Press continuously for 8s and <11s to run

Forced Heating Operation.

Press continuously for 11s and <16s to change

different remote controlling setting(A B)

Mode.

Press continuously for 16s and < 21s to switch

OFF/ON Remote Control receiving Sound or

H14 Abnormality Detection Mode.

Operation Indication Lamps

Operation (green)

Timer(orange)

Iights up in operation

Blinks during Test

Run operation and

determining Auto

Operation mode

Timer in operation

Operation Mode

Heating/Cooling/Soft Dry Operation/

Auto Operation

Time Delay Safety Control

The unit will restart operation 3-4

minutes after each pause.

Auto Restart Control

Operation is restarted automatically at

previous mode after a power failure.

Anti-freezing Control for the Evaporator

Cooling or Soft Dry Operation

Supper Low , Low , Medium, High, Supper

High and Auto Fan Speed can be selected.

Deodorization control is available for

cooling and soft dry operation.

Indoor Fan Speed Control

Automatic Airflow Direction Control

The louver automatically swings up and down

Airflow Direction Manual Control

Airflow Direction Control

Anti-fog Discharge Control

Cooling or Soft Dry Operation

AUTO

OFF/ON

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Outdoor Unit

Time Delay Safety Control

30 Seconds Forced Operation Control

Anti-freezing operation for outdoor unit(during

Heating Mode Operation only)

Temperature of the condenser is tested by TRS.

Deicing Control

Outdoor Fan Motor Control

Panasonic

IPM(Power Transistor)

Overheating Protection Control

Total Running Current Control

DC Peak Current Control

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

2 Product Specifications

Unit CS-PE9CKE CU-PE9CKE

Cooling Capacity kW 2.50(0.90-3.00)

Heating Capacity kW 3.7

Moisture Removal L/h 1.4

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min 6.1 —

Indoor air (medium) m3/min 7.9 —

Indoor air (high) m3/min 9.7 —

Outdoor air m3/min — —

Noise Level dB(A) Cooling: High42, Low27 Cooling: High46

Heating: High42, Low27 Heating: High47

Electrical Data Input W Cooling: 780(190-1000)

Heating: 910(170-1110)

Running Current ACooling: 3.7

Heating: 4.0

EER W/W Cooling: 2.76

/COP Heating:3.63

Starting Current A 5.1

Piping Connection Port (Flare piping) Inch

Inch

G: half union 3/8"

L: half union 1/4"

G: 3-way valve 3/8"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gas side 3/8"

L: liquid side 1/4"

G: gas side 3/8"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length (Number of core-wire) m 2.2

3 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 8.5 32

Compressor Type —Rotary Type

Motor Type —Brushless

Rated Output W — 650

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Unit CS-PE9CKE CU-PE9CKE

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Transistor(8poles) Induction (6 pole)

Input W — 56

Rated Output W 30 15

Fan Speed Low rpm 820±60 —

Medium rpm 1060±60 —

High rpm 1300±60 670±60

Heat Exchanger Description Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1×24

FPI 18 19

Dimensions mm 610 × 315 × 25.4 726 × 504 × 18.2

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A or Freol Alpha68A

Refrigerant (R410A) g — 840

Thermostat Electronic Control Overload Protector

Protection Device —

Capillary Length mm — 600

Circulation L/min — 8.15

Inner dia mm — 1.3

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Fan Motor Capacitor µFV — 1.2µF, 400V

•

••

• Specifications are subject to change without notice for further improvement

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Unit CS-PE12CKE CU-PE12CKE

Cooling Capacity kW 3.15(0.90-3.80)

Heating Capacity kW 4.5

Moisture Removal L/h 2.1

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min 6.7 —

Indoor air (medium) m3/min 8.3 —

Indoor air (high) m3/min 9.9 —

Outdoor air m3/min — —

Noise Level dB(A) Cooling: High42, Low30 Cooling: High48

Heating: High42, Low33 Heating: High50

Electrical Data

Input W Cooling: 980(190-1270)

Heating: 1130(170-1400)

Running Current ACooling: 4.5

Heating: 5.0

EER W/W Cooling:2.77

COP Heating: 3.63

Starting Current A 6.5

Piping Connection Port

(Flare piping)

Inch

G: half union 1/2"

L: half union 1/4"

G: 3-way valve 1/2"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gas side 1/2"

L: liquid side 1/4"

G: gas side 1/2"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length

(Number of core-wire)

m 2.1

3 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 8.5 36

Compressor Type —RotaryType

Motor Type —Brushless

Rated Output W — 650

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Unit CS-PE12CKE CU-PE12CKE

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Transistor(8poles) Induction (6 pole)

Input W — 63

Rate Output W 30 25

Fan Speed Low rpm 880±60 —

Medium rpm 1100±60 —

High rpm 1310±60 770±30

Heat Exchanger Description Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 2×24

FPI 18 17

Dimensions mm 610 × 315 × 25.4 726 × 504 × 36.4

696 × 504 × 36.4

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A or Freol Alpha68A

Refrigerant (R410A) g — 1020

Thermostat Electronic Control —

Protection Device — —

Capillary Length mm — Cooling: 310, Heating: 565

Circulation L/min — Cooling: 11.3, Heating: 12.3

Inner dia mm — Cooling: 1.3, Heating: 1.5

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Fan Motor Capacitor µFV — 1.8µF, 400V

•

••

• Specifications are subject to change without notice for further improvement

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

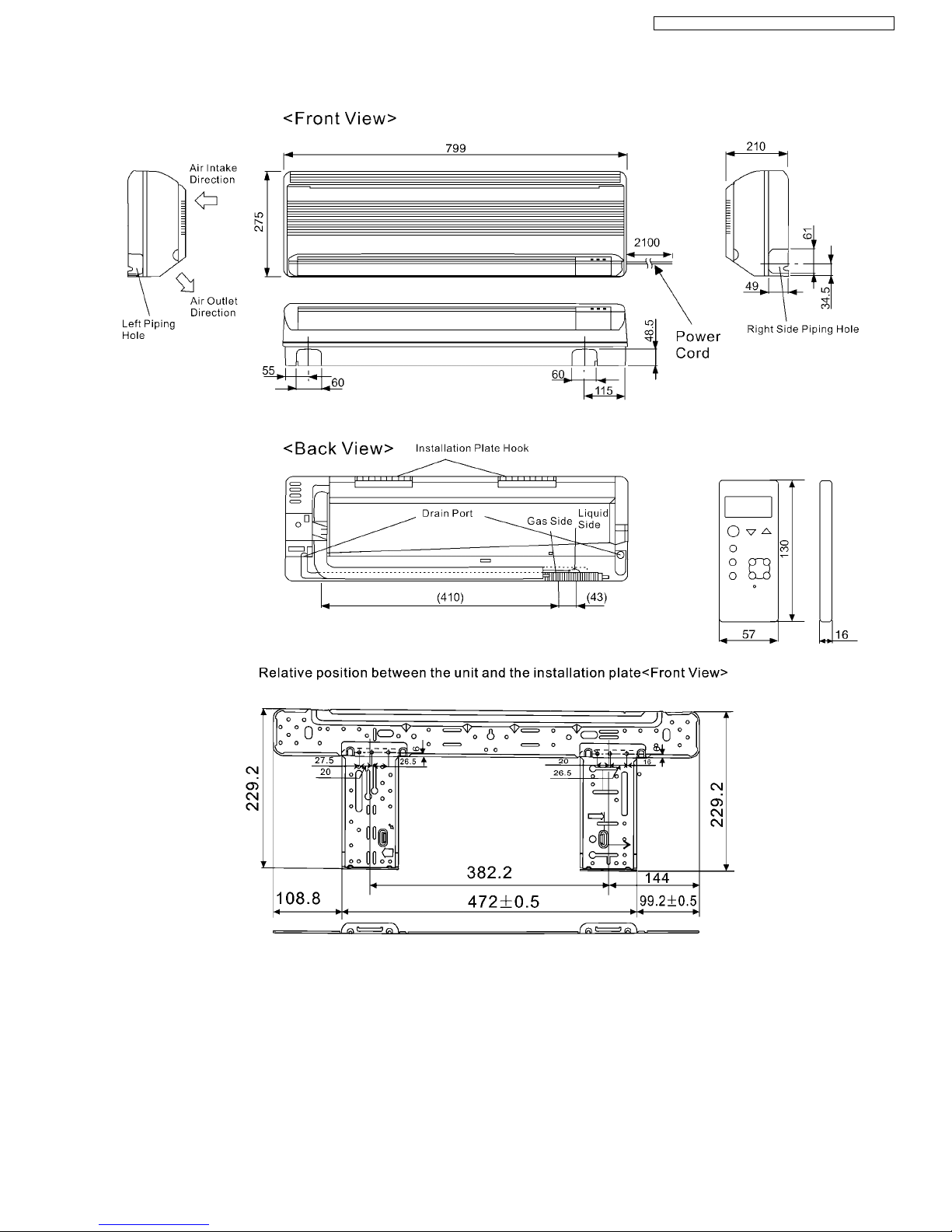

3 Dimensions

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Andere Handbücher für CS-PE9CKE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Klimaanlage Handbücher

Panasonic

Panasonic CS-ME5RKUA Bedienungsanleitung

Panasonic

Panasonic CS-PC12PKP Bedienungsanleitung

Panasonic

Panasonic CS-E15JD3EA Bedienungsanleitung

Panasonic

Panasonic Aquarea WH-UD09JE5-1 Bedienungsanleitung

Panasonic

Panasonic S-22MK2E5A Bedienungsanleitung

Panasonic

Panasonic CS-E9SD3RW Bedienungsanleitung

Panasonic

Panasonic CS-Z25TKEA Bedienungsanleitung

Panasonic

Panasonic CS-A182KR Bedienungsanleitung

Panasonic

Panasonic CS-YA18MKD Bedienungsanleitung

Panasonic

Panasonic CU-5E34PBE Bedienungsanleitung

Panasonic

Panasonic S-73MU2E5A Bedienungsanleitung

Panasonic

Panasonic CS-RE9JKX-1 Bedienungsanleitung

Panasonic

Panasonic CSC9CKPG - SPLIT A/C IN DOOR Bedienungsanleitung

Panasonic

Panasonic CS-PW9MKD-2 Bedienungsanleitung

Panasonic

Panasonic CS-D34DTQ Bedienungsanleitung

Panasonic

Panasonic CS-TE9DKE Bedienungsanleitung

Panasonic

Panasonic CS-PC30MKS Bedienungsanleitung

Panasonic

Panasonic CS-RE18MKD-2 Bedienungsanleitung

Panasonic

Panasonic CS-RE24HKR Bedienungsanleitung

Panasonic

Panasonic S-26PF2U6 Bedienungsanleitung

Panasonic

Panasonic CS-RE18JKX-1 Bedienungsanleitung

Panasonic

Panasonic CS-C18KKS Bedienungsanleitung

Panasonic

Panasonic CS-NE9NKE Bedienungsanleitung

Panasonic

Panasonic CS-KV30UKF-5 Series CU-KV30UKF-5 Series Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
