1 Functions 2

2 Product Specifications 5

3 Dimensions 9

4 Refrigeration Cycle Diagram 11

5 Block Diagram 12

6 Wiring Diagram 13

7 Operation Details 14

8 Installation 25

9 2-way, 3-way Valve 40

and distribution is a violation of law.

CS-SA9CKP CU-

SA9CKP5

CS-SA12CKP CU-

SA12CKP5

10 Disassembly of the parts 47

11 Trouble-shooting guide 51

12 Technical Data 53

13 Exploded View 56

14 Replacement Parts List 57

15 Exploded View 58

16 Replacement Parts List 59

17 ELECTRONIC CIRCUIT DIAGRAM 60

Room Air Conditioners

CONTENTS

Page Page

Order No: GMAC0204003C2

1 Functions

Operation START/ST OP

Operation Mode Selection

Automatic Operation

Heating Mode Operation

Cooling Mode Operation

Soft Dry Mode Operation

Mode

Indoor Fan Speed Selection

High Speed

Medium Speed

Low Speed

Automatic Speed

Airflow Direction Control

Auto Airflow Direction

Airflow Direction Manual Control

Room Temperature Setting

Temperature Setting(16 C to 30 C)

Auto Operation

Timer Operation Selection

Stop/Start Operation Control

(set the ON/OFF Timer hourly later)

Set /Cancel Timer Operation

Set timer/Cancel the set timer

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Indoor Unit

When the remote control cannot be used,

please use this button.

Keep pressing this button for 10sec to turn

on or turn off the signal receiving sound.

Used when testing or repairing

Operation (green)

Timer(orange)

Iights up in operation

Blinks during Test

Run operation and

determining Auto

Operation mode

Timer in operation

Heating/Cooling/Soft Dry/Auto Operation

The unit will restart operation after 3-4

minutes after each pause.

7-minutes automatic restarting at Cooling

Operation

Cooling or Soft Dry Operation

Indoor fan starts running when temperature

of evaporator reaches 30 Cor above.

When temperature of evaporator is between

30 Cand 40 C,indoor fan will run at Super Low

or Low speed.

When temperature of evaporator reaches 34 C,

Warm Booting Operation ends.

High,Med,Low,Auto

Auto Fan Speed

Automatic Airflow Direction Control

The louver automatically swings up and down

Airflow Direction Manual Control

Auto Mode Operation Selection Button

Power Switch ON/OFF

Signal Receiving Sound Control

Test Run

Operation Indication Lamps

Operation Mode

Time Delay Safety Control

Automatic Restarting Control

Anti-freezing Control for the Evaporator

Warm Booting Control

Indoor Fan Speed Controll

Airflow Direction Control

Delayed On-timer Control

For cooling or soft dry mode, the unit

starts 15 minutes before the set time with

the remote controller, but for heating mode

30 minutes before the set time.

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Outdoor Unit

To protect the compressor from reverse

rotation when power off suddenly.

The 2-step Overload Protector is to protect

the compressor when

1/ temperature of compressor reaches 120 C

2/ high temperature or current enters into the

compressor

(Only for CU-SA9CKP5)

Once the compressor is activated,it does not

stop for 60 seconds.It stops immediately with

remote controller ON/OFF button.

Anti-freezing operation for outdoor unit(during

Heating Mode Operation only)

Temperature of the condenser is tested by TRS.

When the temperature of evaporator

reaches 51 C,outdoor fan stops,and will

restart when the temperature of evaporator

declines to 49 C .

When the temperature of evaporator

reaches 65 C,compressor will stop.

If the outdoor fan does not run after the

compressor is activated for 50sec,the

compressor will stop.(only in cooling

and soft dry mode oteration)

If the unit is stopped during Heating

Operation,the 4-way valve will remain in

heating mode operation mode for 5 minutes.

Anti-reverse Protection

Overload Protector

60-seconds Test Operation Control

Deicing Control

Overload Protection Control

Compressor Protection Control

4-way Valve Control

Outdoor Fan Operation Control

Controlled by the indoor unit.

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

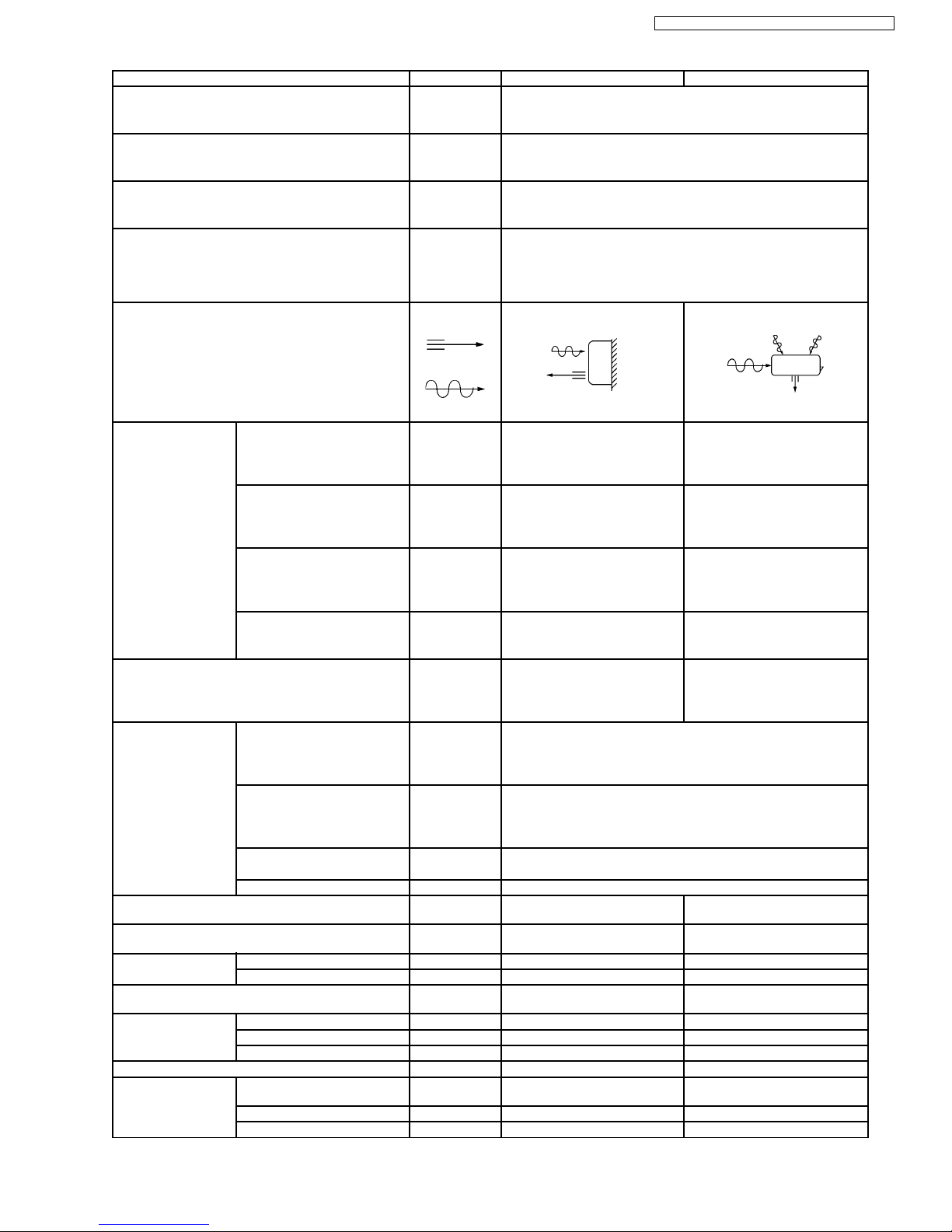

2 Product Specifications

Unit CS-SA9CKP CU-SA9CKP5

Cooling Capacity kW 2.70-2.75

Heating Capacity kW 3.10-3.15

Moisture Removal L/h 1.60

Power Source Phase

Cycle

Single

220-230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min Cooling: 6.79 —

Heating: 6.86

Indoor air (medium) m3/min Cooling: 7.84 —

Heating: 7.93

Indoor air (high) m3/min Cooling: 8.9 —

Heating: 9.0

Outdoor air m3/min — 22.0

Noise Level dB(A) Cooling: High38, Low29 Cooling: High47

Heating: High38, Low29 Heating: High48

Electrical Data Input W Cooling: 940-985

Heating: 800-830

Running Current ACooling: 4.40-4.34

Heating: 3.75-3.70

EER W/W Cooling: 2.87-2.79

COP Heating: 3.88-3.80

Starting Current A 21

Piping Connection Port (Flare piping) Inch

Inch

G: half union 3/8"

L: half union 1/4"

G: 3-way valve 3/8"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gad side 3/8"

L: liquid side 1/4"

G: gas side 3/8"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length (Number of core-wire) m 1.9

5 core-wire/1.5mm2

—

Dimensions Height mm 275 505

Width mm 799 780

Depth mm 210 245

Net Weight kg 9.0 31.0

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA9CKP CU-SA9CKP5

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W — 750

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W — 58.6

Rate Output W 13 20

Fan Speed Low rpm 900 —

Medium rpm 1040 —

High rpm 1180 705

Heat Exchanger Discription Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1×19

FPI 18 19

Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60

(350)

Refrigerant (R-22) g — 840

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Length mm — Cooling: 470, Heating: 1160

Circulation L/min — Cooling: 13.4, Heating: 4.5

Inner dia mm — Cooling:1.5, Heating: 1.2

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV — 25µF, 370V

Fan Motor Capacitor µFV — 1.2µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement

•

• •

• The amount of refrigerant (60g) for air purging not included

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5

Cooling Capacity kW 3.35-3.40

Heating Capacity kW 4.00-4.05

Moisture Removal L/h 1.80

Power Source Phase

Cycle

Single

220 - 230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min Cooling: 7.43 —

heating: 7.92

Indoor air (medium) m3/min Cooling: 8.27 —

heating: 8..81

Indoor air (high) m3/min Cooling: 9.1 —

heating: 9.7

Outdoor air m3/min — 22.0

Noise Level dB(A) Cooling: High39, Low32 Cooling: High49

Heating: High39, Low32 Heating: High49

Electrical Data Input W Cooling: 1230-1250

Heating: 1100-1130

Running Current ACooling: 5.75-5.60

Heating: 5.15-5.05

EER W/W Cooling: 2.72-2.72

COP Heating: 3.64-3.58

Starting Current A 26

Piping Connection Port

(Flare piping)

Inch

G: half union 1/2"

L: half union 1/4"

G: 3-way valve 1/2"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gad side 1/2"

L: liquid side 1/4"

G: gas side 1/2"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length

(Number of core-wire)

m 2.2

5 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 9.0 38.0

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W — 1,100

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W — 58.6

Rate Output W 13 20

Fan Speed Low rpm 980 —

Medium rpm 1090 —

High rpm 1200 750

Heat Exchanger Discription Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 18 18

Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60

(350)

Refrigerant (R-22) g — 940

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Length mm — Cooling: 470, Heating: 1160

Circulation L/min — Cooling: 13.4, Heating: 4.5

Inner dia mm — Cooling: 1.5, Heating: 1.2

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV — 30µF, 370V

Fan Motor Capacitor µFV 1.5µF, 400V 1.8µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement

•

• •

• The amount of refrigerant (60g) for air purging not included

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

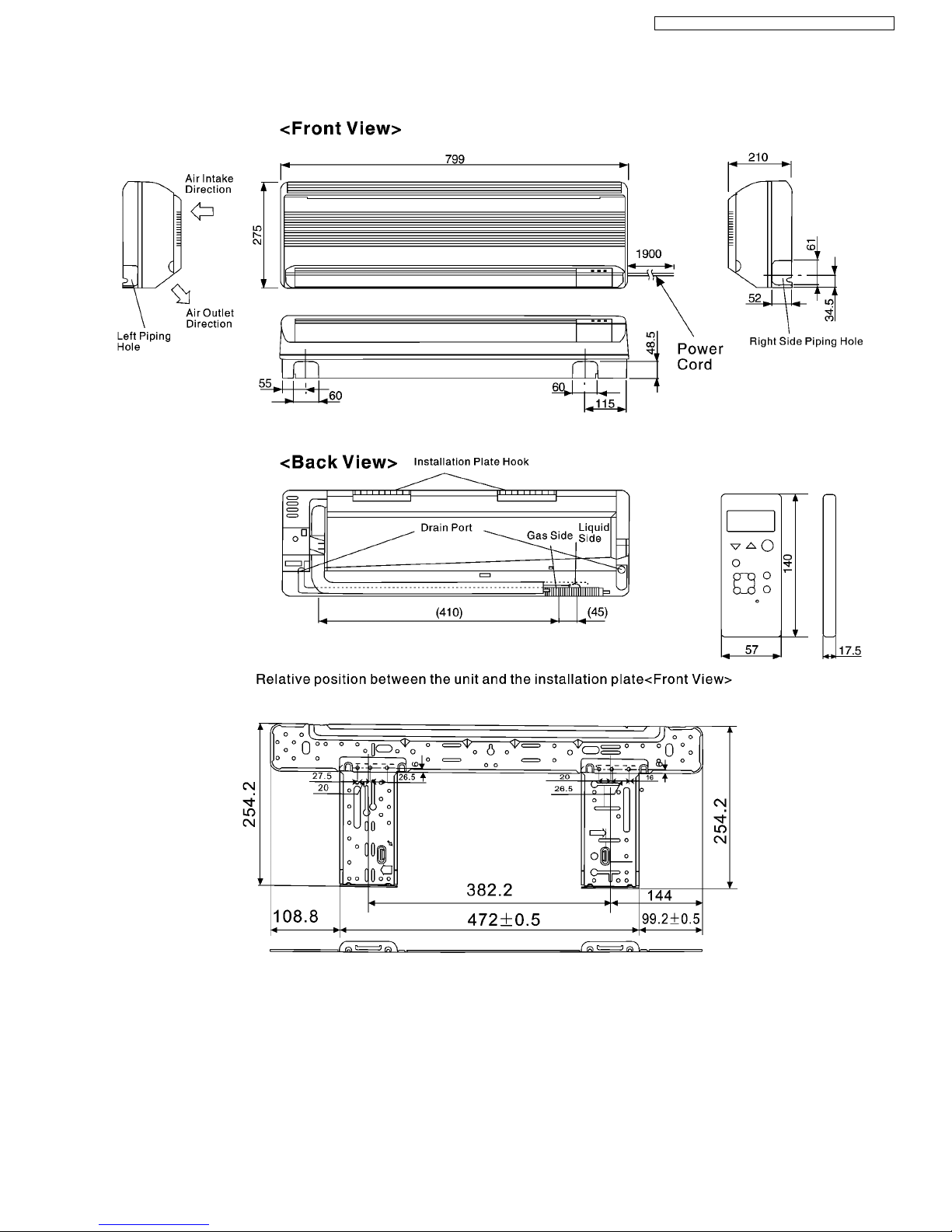

3 Dimensions

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Klimaanlage Handbücher

Panasonic

Panasonic CS-W7DKR Bedienungsanleitung

Panasonic

Panasonic U-72MF1U9 Bedienungsanleitung

Panasonic

Panasonic CSC18DKU - AIR CONDITIONER - SPLIT Bedienungsanleitung

Panasonic

Panasonic CS-LE9NKD Bedienungsanleitung

Panasonic

Panasonic CS/CU-HU12ZKY Series Produkthandbuch

Panasonic

Panasonic CS-C12UKF-2 Bedienungsanleitung

Panasonic

Panasonic CS-YE9WKU1 Bedienungsanleitung

Panasonic

Panasonic CS-KC5PKJ Bedienungsanleitung

Panasonic

Panasonic S-36PU2E5A Bedienungsanleitung

Panasonic

Panasonic CSC9BKP - SPLIT A/C SYSTEM Bedienungsanleitung

Panasonic

Panasonic CU-NE9JKE-1 Bedienungsanleitung

Panasonic

Panasonic CS-BE25TKE Bedienungsanleitung

Panasonic

Panasonic CS-XE7NKEW Bedienungsanleitung

Panasonic

Panasonic CS-TU12VKY Series Bedienungsanleitung

Panasonic

Panasonic OCU-CR1001VF Bedienungsanleitung

Panasonic

Panasonic CU-4E24RBU Bedienungsanleitung

Panasonic

Panasonic CS-C7MKP-7 Bedienungsanleitung

Panasonic

Panasonic CSC9CKPG - SPLIT A/C IN DOOR Bedienungsanleitung

Panasonic

Panasonic CS-RE18NKE Bedienungsanleitung

Panasonic

Panasonic CS-S10PKP Bedienungsanleitung

Panasonic

Panasonic CU-S18NKUA Bedienungsanleitung

Panasonic

Panasonic CS-Z20ZKEW Bedienungsanleitung

Panasonic

Panasonic CS-YC12NKV-6 Bedienungsanleitung

Panasonic

Panasonic CS-E7NKDW Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
