Panasonic CS-W7NKD Bedienungsanleitung

Operating Instructions

Air Conditioner

Model No.

Indoor Unit Outdoor Unit

CS-W7NKD CU-W7NKD

CS-W9NKD CU-W9NKD

CS-W12NKD CU-W12NKD

F568364

Unauthorized copying and distribution is a violation

of law.

ENGLISH

Before operating the unit, read these operating

instructions thoroughly and keep them for future

reference.

QUICK GUIDEQUICK GUIDE

КРАТ 

КОРОТКА 

ЫСҚАША НҰСҚАУЛЫҚ 

TABLE OF CONTENTS OPERATION CONDITION

OPERATION CONDITION

Use this air conditioner under the following temperature range

Temperature (°C) Indoor Outdoor

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

*DBT *WBT *DBT *WBT

COOLING Max. 32 23 43 26

Min. 16 11 16 11

HEATING Max. 30 - 24 18

Min. 16 - -5 -6

СОДЕРЖАНИЕ УСЛОВИЯ ЭКСПЛУАТАЦИИ

УСЛОВИЯ ЭКСПЛУАТАЦИИ

Используйте данный кондиционер вследующем диапазоне температур

Температура (°C) Впомещении Вне помещения

* DBT:

Температура по

сухому термометру

* WBT:

Температура по

влажному

термометру

*DBT *WBT *DBT *WBT

ОХЛАЖДЕНИЕ Макс.32234326

Мин.16111611

ОБОГРЕВ Макс. 30 - 24 18

Мин. 16 - -5 -6

ЗМІСТ УМОВИ ЕКСПЛУАТАЦІЇ

УМОВИ ЕКСПЛУАТАЦІЇ

Кондиціонер потрібно використовувати втакому температурному діапазоні

Температура (°C) Уприміщенні Зовні

* DBT:

Температура за

сухим термометром

* WBT:

Температура за

вологим

термометром

*DBT *WBT *DBT *WBT

ОХОЛОДЖЕННЯ Макс.32234326

Мін.16111611

ОБІГРІВ Макс. 30 - 24 18

Мін. 16 - -5 -6

МАЗМҰНЫ ПАЙДАЛАНУ ШАРТЫ

ПАЙДАЛАНУ ШАРТЫ

Осы ауа желдеткішін мына температура ауқымында пайдаланыңыз

Температура (°C) Ішкі Сыртқы

* DBT:

Құрғақ

температура

* WBT:

Ылғал

температура

*DBT *WBT *DBT *WBT

САЛҚЫНДАТУ Ең көп 32 23 43 26

Ең аз 16 11 16 11

ЖЫЛЫТУ Ең көп 30 - 24 18

Ең аз 16 - -5 -6

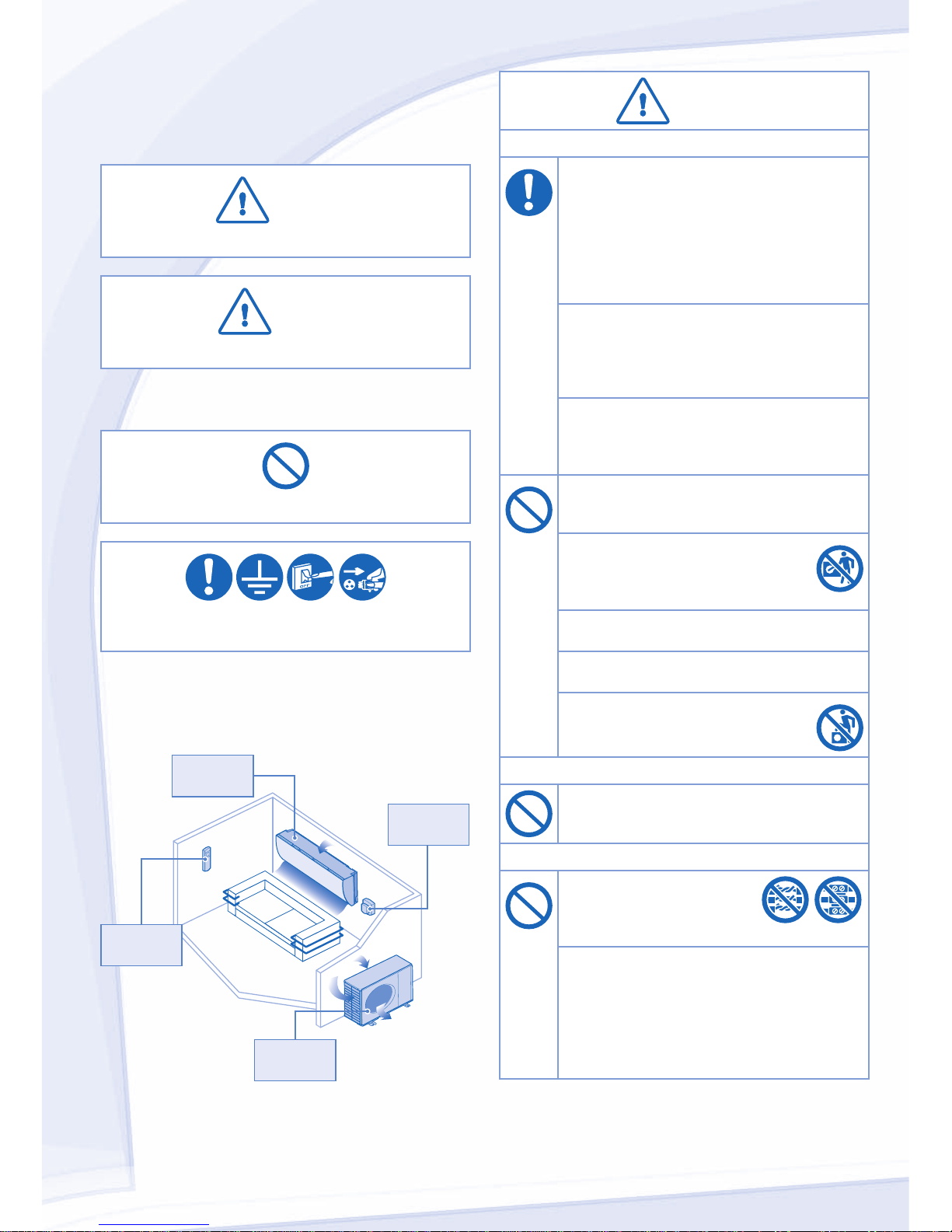

SAFETY PRECAUTIONS

To prevent personal injury, injury to others, or property

damage, please comply with the following.

Incorrect operation due to failure to follow instructions below

may cause harm or damage, the seriousness of which is

classiﬁed as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classiﬁed by the following

symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an actions that is

COMPULSORY.

WARNING

INDOOR UNITAND OUTDOOR UNIT

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have

been given supervision or instruction concerning

use of the appliance by a person responsible for

their safety. Children should be supervised to

ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to

clean the internal parts, repair, install, remove

and reinstall the unit. Improper installation and

handling will cause leakage, electric shock or

ﬁre.

Conﬁrm to authorized dealer or specialist on

usage of speciﬁed refrigerant type. Using of

refrigerant other than the speciﬁed type may

cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive

or ﬂammable atmosphere. Failure to do so could

result in ﬁre.

Do not insert your ﬁngers or other

objects into the air conditioner indoor

or outdoor unit, rotating parts may

cause injury.

Do not touch the outdoor unit during lightning, it

may cause electric shock.

Do not expose yourself directly to cold air for a

long period to avoid excess cooling.

Do not sit or step on the unit, you may

fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play

with the remote control to prevent them from

accidentally swallowing the batteries.

POWER SUPPLY

Do not use a modiﬁed cord,

joint cord, extension cord or

unspeciﬁed cord to prevent

overheating and ﬁre.

To prevent overheating, ﬁre or electric shock:

• Do not share the same power outlet with other

equipment.

• Do not operate with wet hands.

• Do not over bend the power supply cord.

• Do not operate or stop the unit by inserting or

pulling out the power plug.

Air Inlet

Air Outlet

Air Inlet

Remote

Control

Power

Supply

Indoor

Unit

Outdoor

Unit

ENGLISH

WARNING

POWER SUPPLY

If the supply cord is damage, it must be replaced

by the manufacturer, its service agent or similarly

qualiﬁed persons in order to avoid a hazard.

It is strongly recommended to be installed

with Earth Leakage Circuit Breaker (ELCB)

or Residual Current Device (RCD) to prevent

electric shock or ﬁre.

To prevent overheating, ﬁre or electric shock:

• Insert the power plug properly.

• Dust on the power plug should be periodically

wiped with a dry cloth.

Stop using the product if any abnormality/failure

occurs and disconnect the power plug or turn off

the power switch and breaker.

(Risk of smoke/ﬁre/electric shock)

Examples of abnormality/failure

• The ELCB trips frequently.

• Burning smell is observed.

• Abnormal noise or vibration of the unit is

observed.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is

switched on for operation.

• The fan does not stop even if the operation is

stopped.

Contact your local dealer immediately for

maintenance/repair.

This equipment must be earthed to prevent

electrical shock or ﬁre.

Prevent electric shock by switching off the power

supply and unplug when:

- Before cleaning or servicing.

- Extended non-use.

-Abnormally strong lightning activity.

CAUTION

INDOOR UNITAND OUTDOOR UNIT

Do not wash the indoor unit with water, benzene,

thinner or scouring powder to avoid damage or

corrosion at the unit.

Do not use for preservation of precise

equipment, food, animals, plants, artwork

or other objects. This may cause quality

deterioration, etc.

Do not use any combustible equipment in front of

the airﬂow outlet to avoid ﬁre propagation.

Do not expose plants or pet directly to airﬂow to

avoid injury, etc.

Do not touch the sharp aluminium ﬁn,

sharp parts may cause injury.

Do not switch ON the indoor unit when waxing

the ﬂoor.After waxing, aerate the room properly

before operating the unit.

Do not install the unit in oily and smoky areas to

prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to

avoid injury.

Do not step onto an unstable bench when

cleaning the unit to avoid injury.

Do not place a vase or water container on the

unit. Water may enter the unit and degrade the

insulation. This may cause an electric shock.

Do not open window or door for long time during

COOL/DRY mode operation.

Ensure drainage pipe is connected properly and

keep drainage outlet clear of gutters, containers

or does not immersed in water to prevent water

leakage.

After a long period of use or use with any

combustible equipment, aerate the room

regularly.

After a long period of use, make sure the

installation rack does not deteriorate to prevent

the unit from falling down.

REMOTE CONTROL

Do not use rechargeable (Ni-Cd) batteries.

It may damage the remote control.

To prevent malfunction or damage of the remote

control:

• Remove the batteries if the unit is not going to

be used for a long period of time.

• New batteries of the same type must be

inserted following the polarity stated.

POWER SUPPLY

Do not pull the cord to disconnect the plug to

prevent electric shock.

Remote

Control display

FAN SPEED

AIR SWING

POWERFUL/

QUIET

MODE

A.COMFORT

ECONAVI/

TEMP

TIMER

SET

CANCEL

OFF

123

SET CLOCK RESET

OFF/ON

OFF

TIMER ON

TIMER

FAN

SPEED

AIR

SWING

AUTO

HEAT

COOL

DRY

NANOE-G

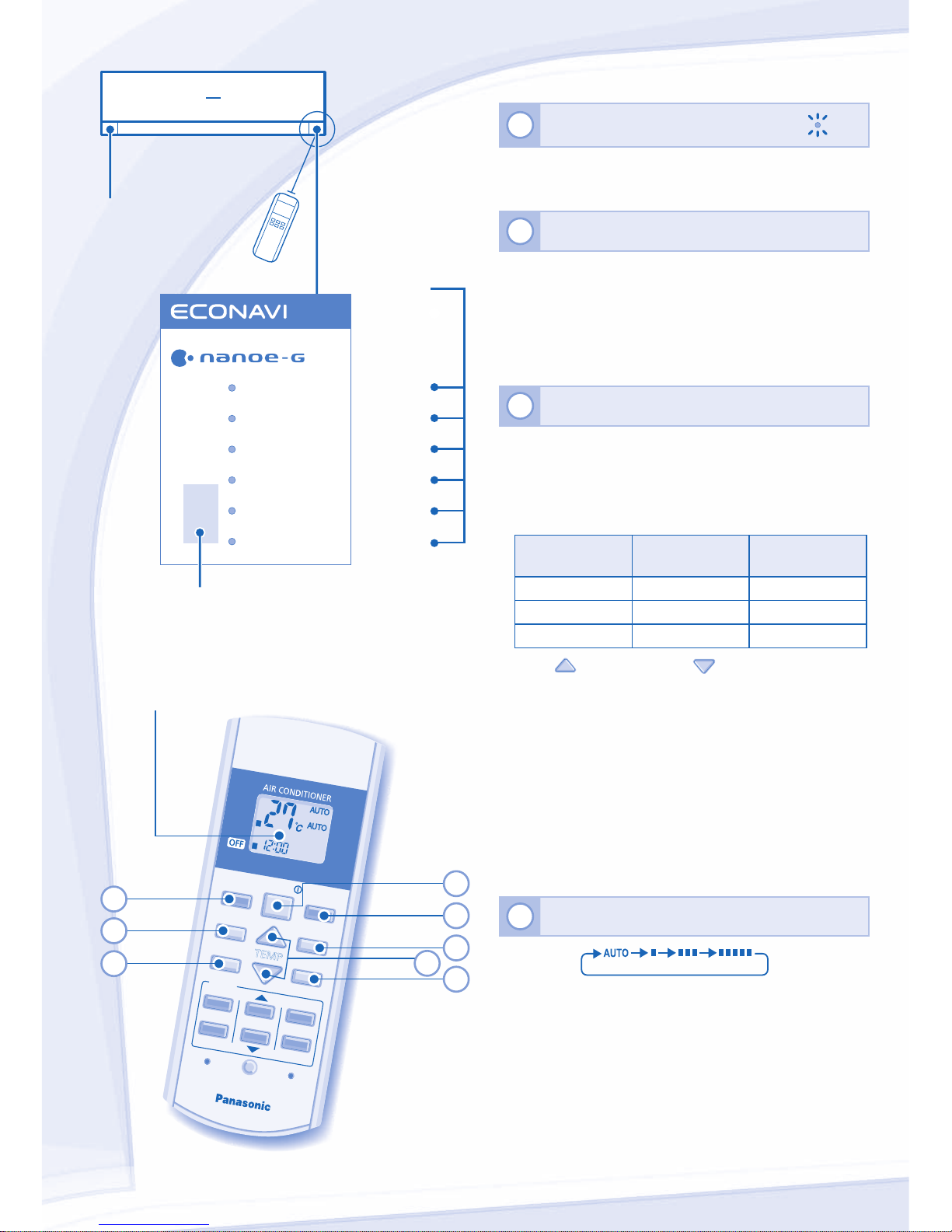

Press the remote control’s button

1TO TURN ON OR OFF THE UNIT

POWER

• Please be aware of the OFF indication on the remote

control display to prevent the unit from starting/stopping

improperly.

2TO SET TEMPERATURE

• For heat, cool and dry modes, the range of temperature

for selection is 16°C ~ 30°C.

• Operating the unit within the recommended temperature

could induce energy saving.

HEAT mode : 20˚C ~ 24˚C.

COOLmode : 26˚C ~ 28˚C.

DRYmode : 1˚C ~ 2˚C lower than room temperature.

3TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects the operation mode according to the room

temperature.

• Once auto mode is selected, the unit will operate at the

standard setting temperature.

Room

temperature Operation mode Standard setting

temperature

23˚C & above Cool 25˚C

Below 23˚C Dry 22˚C

Below 20˚C Heat 21˚C

• Press for “HI” to +2˚C or for “LO” to -2˚C to the

standard setting temperature.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up. The power indicator blinks

during this operation.

COOL mode - To enjoy cool air

• Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling

operation.

4TO SELECT FAN SPEED (3 OPTIONS)

FAN

PEED

• ForAUTO, the indoor fan speed is automatically adjusted

according to the operation mode.

REMOTE CONTROL

Maximum

distance: 8m

Human activity

sensor and

indicator

Indicator

(Green)

(Orange)

(Green)

(Blue)

(Orange/

Green)

POWER

TIMER

ECONAVI

AUTO COMFORT

NANOE-G

POWERFUL/QUIET

Sunlight sensor and remote control receiver

ENGLISH

NOTES

NANOE

POWERFUL/

QUIET

ECONAVI /

A.COMFORT

POWERFUL/

QUIET

ECONAVI /

A.COMFORT

• Can be activated in all modes and can be cancelled by

pressing the respective button again. • Cannot be selected at the same time.

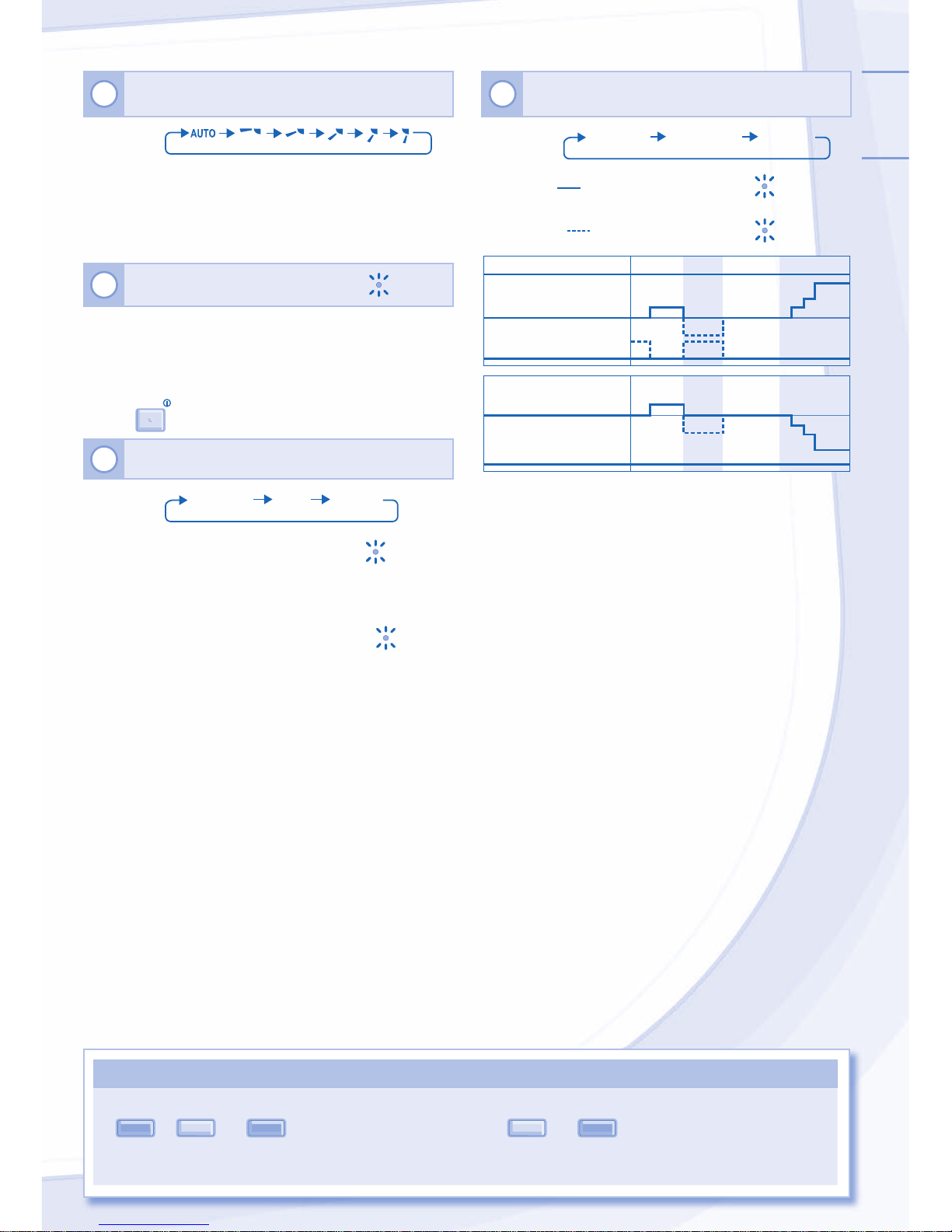

8TO MONITOR HUMAN PRESENCE & ACTIVITY

FOR ENERGY SAVING & COMFORT

A.COMFORT

ECONAVI

A.COMFORTECONAVI NORMAL

ECONAVI

To optimize energy

saving

ECONAVI

To maximize comfort

AUTO COMFORT

Set Fan Speed -2°C

-1°C

HEAT Mode

Set Temperature +0.3°C

Heat Source & Movement NormalHighLow None

Set Fan Speed ≤Medium

Fan

+1 tap*

+2°C

-1°C

+1 tap

+0.3°C

COOL/DRY Mode

Set Temperature

* For first 15 minutes or until set temperature is reached.

• The human activity sensor may not detect moving objects

further than 7m away or beyond detection angle.

• The human activity sensor sensitivity is inﬂuenced by

indoor unit location, movement speed, temperature range,

etc.

• The human activity sensor may mistakenly detect pets,

certain lighting, ﬂuttering curtains and light reﬂection as

human being.

5TOADJUST VERTICALAIRFLOW DIRECTION

(5 OPTIONS)

AIR SWING

• Keeps the room ventilated.

• In COOL/DRYmode, ifAUTO is set, the louver swing

up/down automatically.

• In HEAT mode, ifAUTO is set, the louver ﬁx at

predetermined position.

6TO PURIFY THE AIR

NANOE-G

• Removes/deactivates harmful micro-organisms such as

viruses, bacteria, etc.

• Can be activated even when the unit is turned off. In this

condition, fan speed and air swing cannot be adjusted.

• nanoe-G starts automatically with the unit switched on

with

OFF/ON

7TO SWITCH BETWEEN POWERFUL & QUIET

POWERFUL/

QUIET

QUIETPOWERFUL NORMAL

WERFUL

TO REACH TEMPERATURE

QUICKLY

POWERFUL

• This operation will stop automatically after 20

minutes.

UIET

TO ENJOY QUIET

OPERATION

QUIET

• This operation reduces airﬂow noises.

REMOTE CONTROL

9Press and hold for 5 seconds to dim or restore the

unit’s indicator brightness.

10 Press and hold for approximately 10 seconds to

show temperature setting in °C or °F.

11 Press to restore the remote control’s default setting.

12 Not used in normal operations.

TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

OFF

TIMER

Select ON or

OFF timer Set the time Conﬁrm

• To cancel ON or OFF timer, press

Nor OFF then

press CANCEL.

• When ON Timer is set, the unit may start earlier (up

to 30 minutes) before the actual set time in order to

achieve the desired temperature on time.

• Timer operation is based on the clock set in the

remote control and repeats daily once set. For clock

setting, please refer to Remote Control Preparation

on the back cover.

• If timer is cancelled manually or due to power failure,

you can restore the previous setting (once power is

resumed) by pressing SET .

TIMER

SET

CANCEL

OFF

123

SET CLOCK RESET

ENGLISH

INDOOR UNIT

CAUTION

•Switch off the power supply and unplug before cleaning.

•Do not touch the aluminium ﬁn, sharp parts may cause injury.

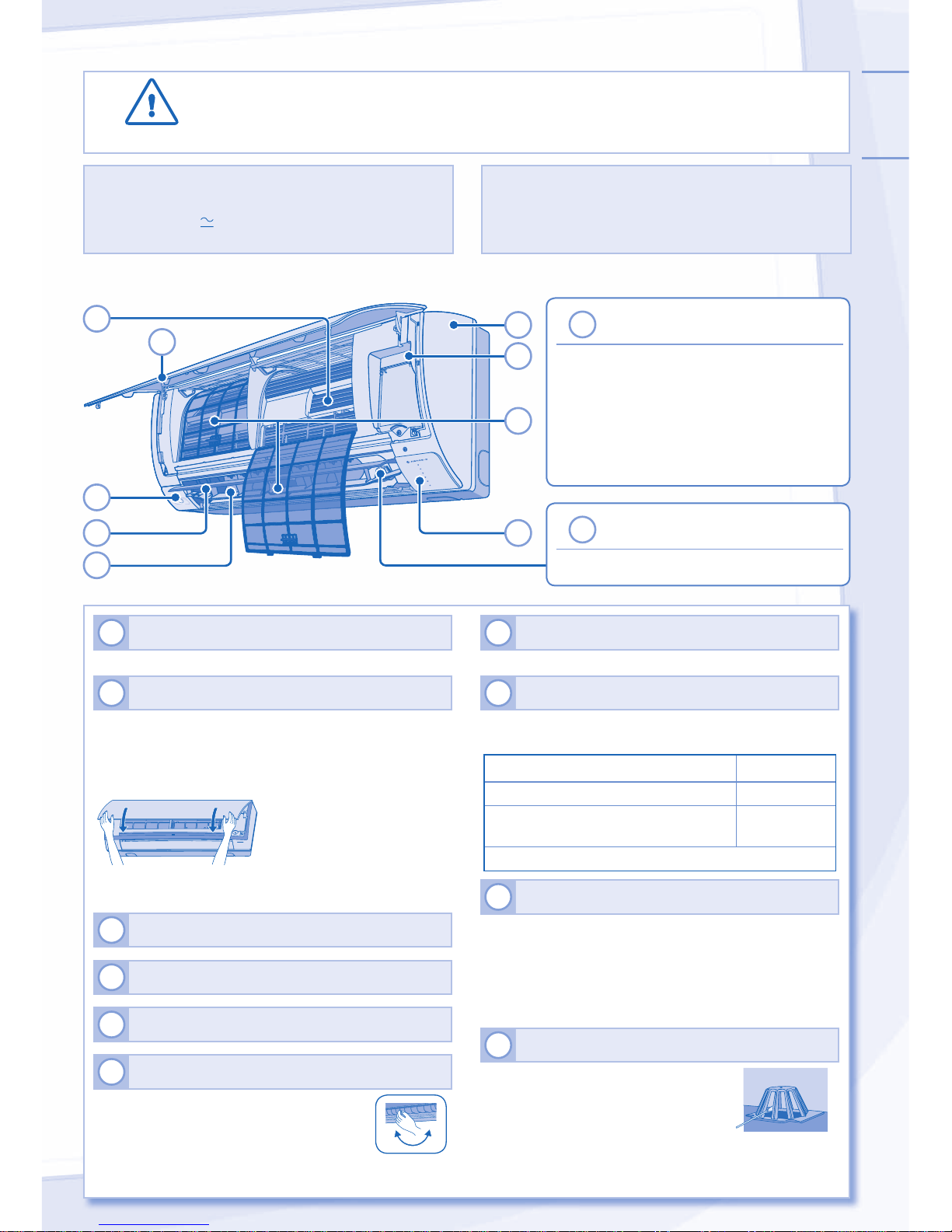

CLEANING INSTRUCTIONS

HINT

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent.

• Do not use water hotter than 40°C.

• To ensure optimal performance of the unit, cleaning

maintenance has to be carried out at regular intervals.

Please consult authorized dealer.

5HUMAN ACTIVITY SENSOR

• Do not hit or violently press the sensor or

poke it with a sharp object. This can lead to

damage and malfunction.

• Do not place large objects near the sensor

and keep away heating units or humidiﬁers

from the sensor’s detection area. This may

lead to sensor malfunction.

POWER

TIMER

ECONAVI

AUTO COMFORT

NANOE-G

POWERFUL/QUIET

7 3 10 nanoe-G GENERATOR

• Do not touch during operation.

1INDOOR UNIT

• Wipe the unit gently with a soft, dry cloth.

2FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.

• Wash gently and dry.

Close Front Panel

• Press down both ends of the front panel to close it

securely.

3REMOTE CONTROL RECEIVER

4ALUMINIUM FIN

5HUMAN ACTIVITY SENSOR

6HORIZONTAL AIRFLOW DIRECTION LOUVER

• Manually adjustable.

7VERTICALAIRFLOW DIRECTION LOUVER

• Do not adjust by hand.

8AUTO OFF/ON BUTTON

• Use when remote control is misplaced or a malfunction

occurs.

Action Mode

Press once. Auto

Press and hold until 1 beep is heard,

then release. Cooling

Press the button to turn off.

9AIR FILTERS

• Air ﬁlter cleaning is required every two weeks.

• Wash/rinse the ﬁlters gently with water to avoid damage

to the ﬁlter surface.

• Dry the ﬁlters thoroughly under shade, away from ﬁre or

direct sunlight.

• Replace any damaged ﬁlters.

10 nanoe-G GENERATOR

Clean with dry cotton bud.

• nanoe-G generator cleaning is

recommended every 6 months.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM

CAUSE

Mist emerges from indoor unit. ►• Condensation effect due to cooling process.

Water ﬂowing sound during operation. ►• Refrigerant ﬂow inside the unit.

The room has a peculiar odor. ►• This may be due to damp smell emitted by the wall,

carpet, furniture or clothing.

Indoor fan stops occasionally during automatic fan speed

setting. ►• This helps to remove the surrounding odours.

Operation is delayed a few minutes after restarting. ►• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam. ►• Condensation or evaporation occurs on pipes.

TIMER indicator is always on. ►• The timer setting repeats daily once set.

POWER indicator blinks during operation and the indoor

fan is stopped. ►• The unit is in defrost mode, and the melted frost is

drained from the outdoor unit.

Indoor fan stops occasionally during heating operation. ►• To avoid unintended cooling effect.

Cracking sound during operation. ►• Changes of temperature caused the expansion/

contraction of the unit.

Check the following before calling for servicing.

SYMPTOM

CHECK

Heating/Cooling operation is not working efﬁciently. ►• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the ﬁlters.

• Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation. ►• Check if the unit has been installed at an incline.

• Close the front panel properly.

Remote control does not work.

(Display is dim or transmission signal is weak.) ►• Insert the batteries correctly.

• Replace weak batteries.

The unit does not work. ►• Check if the circuit breaker is tripped.

• Check if timers have been set.

The unit does not receive the signal from the remote

control. ►• Make sure the receiver is not obstructed.

• Certain ﬂuorescent lights may interfere with signal

transmitter. Please consult authorized dealer.

ENGLISH

INFORMATION

FOR SEASONAL INSPECTIONAFTER EXTENDED

NON-USE

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the

following temperature difference between air inlet and air

outlet vents:

Cooling: ≥8°C Heating: ≥14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2~3 hours as an alternative to

remove moisture left in the internal parts thoroughly to

prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLYAND UNPLUG then

please consult authorized dealer under the following

conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote

control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries

outside the European Union]

These symbols are only valid in the European

Union. If you wish to discard these items,

please contact your local authorities or dealer

and ask for the correct method of disposal.

Note for the battery symbol (bottom two

symbol examples):

This symbol might be used in combination with

a chemical symbol. In this case it complies with

the requirement set by the Directive for the

chemical involved.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Klimaanlage Handbücher

Panasonic

Panasonic CS-E18DKEW Bedienungsanleitung

Panasonic

Panasonic Elite Big PAC-i S-200PE3E5B Handbuch

Panasonic

Panasonic CS-PC12JKF Bedienungsanleitung

Panasonic

Panasonic CS-XZ9ZKH-8 Bedienungsanleitung

Panasonic

Panasonic U-72ME2U9 Bedienungsanleitung

Panasonic

Panasonic S-26PU2U6 Bedienungsanleitung

Panasonic

Panasonic CS-V18DKE Bedienungsanleitung

Panasonic

Panasonic CSC24BKP - SPLIT A/C SYSTEM Bedienungsanleitung

Panasonic

Panasonic CU-3KE19NBU Betriebsanleitung

Panasonic

Panasonic CU-3Z52TBE Bedienungsanleitung

Panasonic

Panasonic CS-YE9MKE Bedienungsanleitung

Panasonic

Panasonic CW-XC184HU Bedienungsanleitung

Panasonic

Panasonic R410A Bedienungsanleitung

Panasonic

Panasonic CU-SA12CKP Bedienungsanleitung

Panasonic

Panasonic CS-A12CTP Bedienungsanleitung

Panasonic

Panasonic CW-XC55HU Bedienungsanleitung

Panasonic

Panasonic CS-Z25UFEAW-1 Bedienungsanleitung

Panasonic

Panasonic CU-UV5RKP Bedienungsanleitung

Panasonic

Panasonic CS-C125KR Bedienungsanleitung

Panasonic

Panasonic CS-S9NKR Bedienungsanleitung

Panasonic

Panasonic CW-XC103VU Bedienungsanleitung

Panasonic

Panasonic CS-PC30JKF-2 Bedienungsanleitung

Panasonic

Panasonic CS-VZ9SKE Bedienungsanleitung

Panasonic

Panasonic CW-1006FU Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
