Panasonic WJ-PB85T08 Bedienungsanleitung

-1-

Before attempting to connect or install this product,

please read these instructions carefully and save this manual for future use.

Extend Card (O.S.D.)

MONITOR OUT

VIDEO IN

OSD

Model No. WJ-PB85T08

■Preface

The WJ-PB85T08 On Screen Display Board is an optional board for displaying the camera title,

clock, and system status on the active monitors.

■Appearance

qMonitor Output Connector (MONITOR OUT, 1 - 8)

Outputs the video signal connected to the VIDEO IN port with the character display for the

video monitor.

wVideo Input Port (VIDEO IN)

Accepts the video signal from the VIDEO OUT Port on the WJ-PB85M16 Cross Point Output

Board of the Cross Point cage (MXSW).

24 13

Pin No. Designation

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

VIDEO 5

VIDEO 6

VIDEO 7

VIDEO 8

Not used

Pin No. Designation

Ground

Hold this board only by its edges. Otherwise components on the board may be damaged by static electricity.

Caution

SW Positions

Monitor Output

Board

No. SW2 SW1

1 - 8

9 - 16

17 - 24

25 - 32

33 - 40

41 - 48

49 - 56

57 - 64

65 - 72

73 - 80

81 - 88

89 - 96

97 - 104

105 - 112

113 - 120

121 - 128

-2-

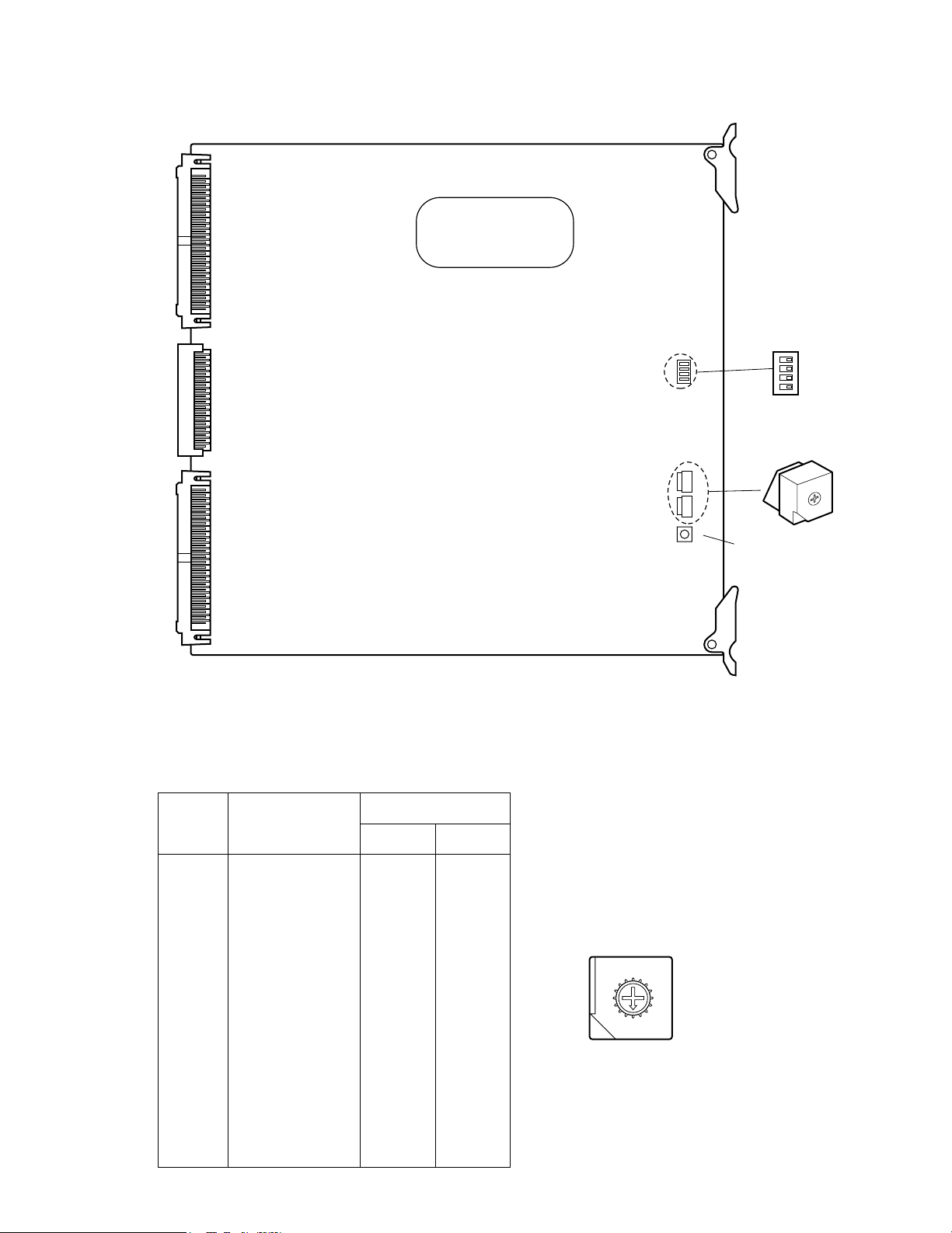

■Board Setting

Before installing this board, the following settings should be made by qualified service personnel or system installers.

SW3

SW2SW1SW5

OFF

1234

Reset Switch

1. Set switches (SW1 and SW2) on the board to designate the On Screen Display board number as shown in the following

table.

The factory default setting is Board Number 1 (00).

1Switch Positions

-3-

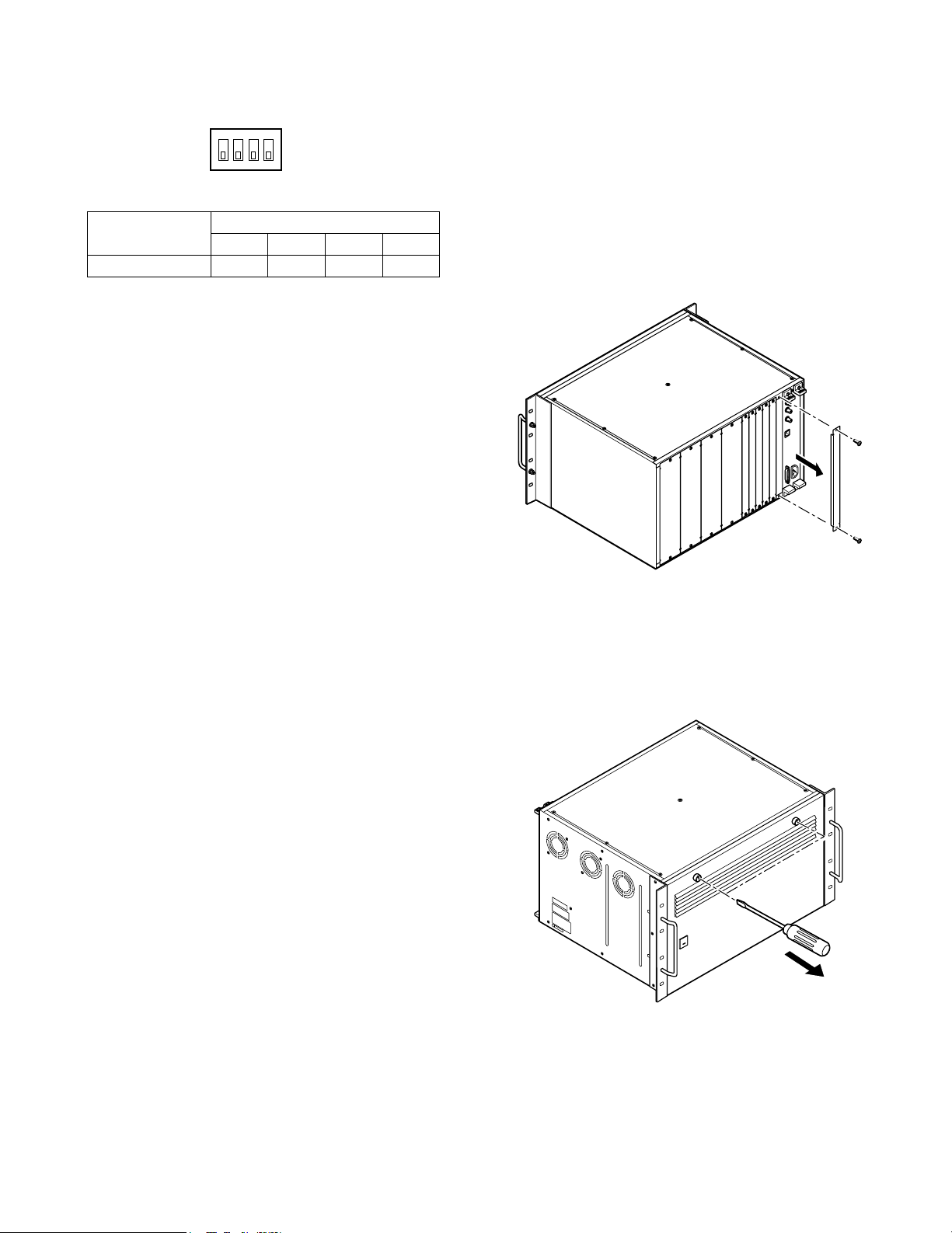

2. Confirm that switches (SW3) on the board are set to

the OFF position as shown below.

SW3

OFF

1234

■Installation

The following installation should be made by qualified

service personnel or system installers.

●Installing Additional Extension

Boards

1. Remove the screws from the rear panel(s) of the

WJ-SX850 Matrix Switcher Card Cage.

432

Switch Number

OFFOFFOFFOFFSW3

2. Remove the rear panel(s).

3. Remove the front panel of the cage by removing the

two screws on the panel shown below.

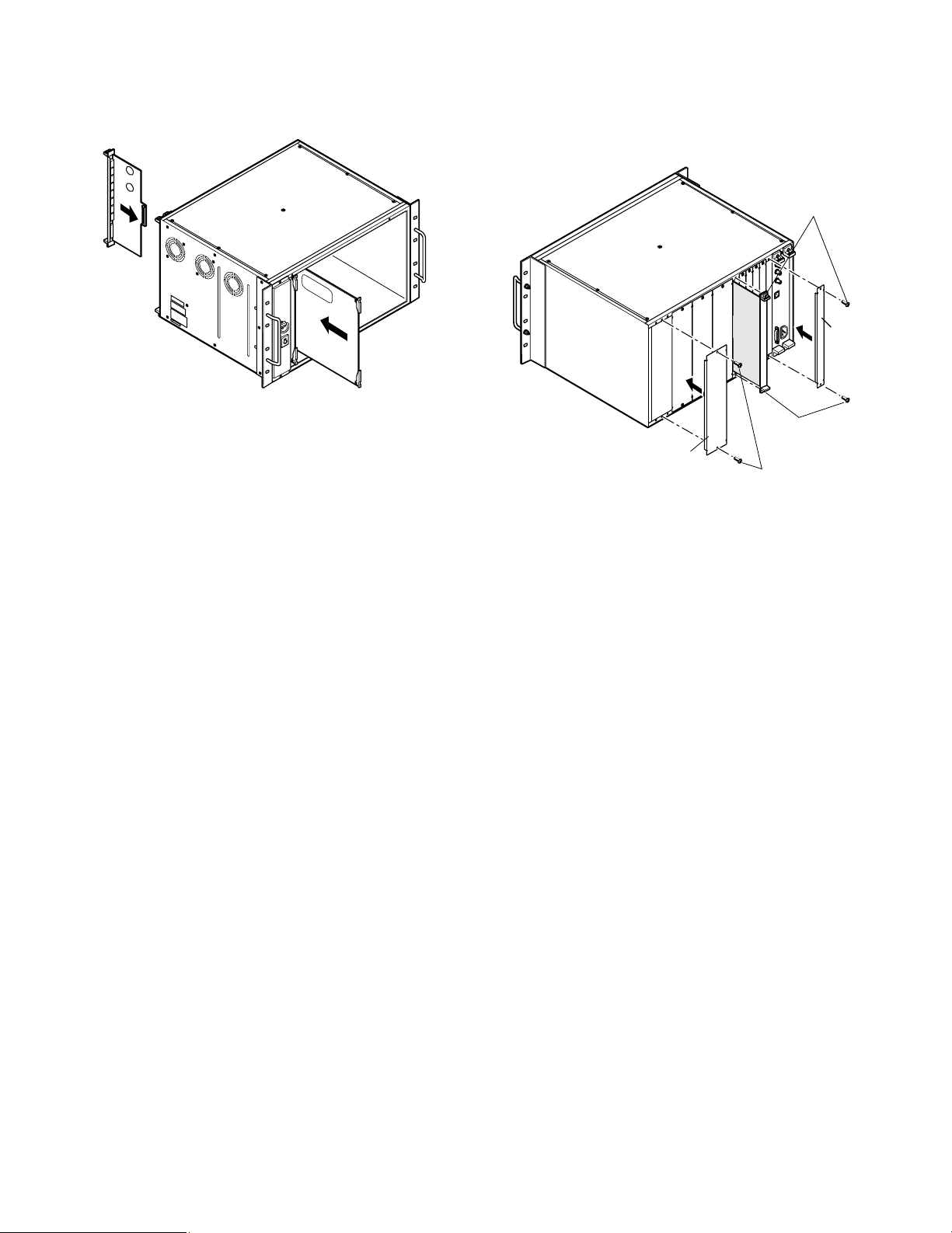

4. Place the Boards into the specified positions in the

front or rear of the Cage by sliding them along the

board guides as shown below.

5. Make sure to push in the Boards until they are seat-

ed firmly.

6. Secure the rear board by tightening the two screws

on the board.

■Specifications

Video Input 1.0 V[p-p]/75Ωcomposite video signal

8 inputs 25-pin D-sub connector

Video Output: 1.0 V[p-p]/75Ωcomposite video signal

On Screen Display:

Time and Date: 3 display types selectable

Camera Title: 1 Line, 30 alphanumeric characters maximum

Dimensions: Front Board; 255(W) x 250(H) x 12(D) mm

10-1/16”(W) x 9-13/16”(H) x 1/2”(D)

Rear Board; 117.5(W) x 265(H) x 20(D) mm

4-5/8”(W) x 10-7/16”(H) x 13/16”(D)

Weight: 0.6 kg (1.3 lbs)

Weight and dimensions indicated are approximate.

Specifications are subject to change without notice.

NM1099-0 YWV8QA5058AN Printed in Japan

N19

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga,

Ontario, L4W 2T3 Canada (905)624-5010

Panasonic Sales Company

Division of Matsushita Electric of Puerto Rico Inc.

Ave. 65 de Infanteria. Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985 (809)750-4300

Panasonic Security and Digital Imaging Company

A Division of Matsushita Electric Corporation of America

Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094

Regional Offices:

Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303

Southern: 1225 Northbrook Parkway, Suite 1-160, Suwanee, GA 30024 (770) 338-6838

Midwest: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211

Western: 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840

Board

Tighten screws

Rear

panel

Rear

panel

Tighten screws

7. Close open spaces on the rear of the Cage with the

supplied rear panel(s).

8. Close the front of the cage by fixing the front panel.
