Panasonic ET-PLF10 Bedienungsanleitung

ENGLISH

Operating Instructions

Lens Fixed Attachment

Model No. ET-PLF10

DPQX1156ZA

Commercial Use

Thank you for purchasing this Panasonic product.

■To ensure safe and correct use, please read this manual together with the operating instructions supplied

with the projector carefully.

■ Before using this product, be sure to read “Read this rst!” (Page 3).

■Please save this manual for future use.

Downloaded from ManualsNet.com search engine

2 - ENGLISH

Contents

Read this rst! ................................................................................................... 3

Before Use.......................................................................................................... 4

Attaching............................................................................................................ 5

Preparing the Projection Lens ............................................................................................ 5

Preparing the Lens Fixing Attachment................................................................................ 5

Attaching the Lens Fixing Attachment ................................................................................ 6

Attaching the Lens Hood .................................................................................................... 9

Specications .................................................................................................. 11

External Dimensions....................................................................................... 11

Downloaded from ManualsNet.com search engine

ENGLISH - 3

Read this rst! Always follow these precautions

WARNING:

Before attaching the lens xing attachment, be sure to turn off the power and disconnect the power

plug from the wall outlet.

zUnexpected projection of light may cause injury to eyes.

zReplacing without removing the power plug may result in electrical shock.

Do not allow children to reach the supplied at washers, spring washers, and thumbscrews.

zThese items can cause personal injury if swallowed.

zIf swallowed, seek medical help immediately.

CAUTION:

Do not touch any part or remove parts other than specied.

zDoing so may cause a loss of performance or safety.

Information for users in the European Union

Importer’s name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Downloaded from ManualsNet.com search engine

4 - ENGLISH

Before Use

■Overview

This product suppresses vibration of projection images due to vibration of the lens by xing the projection lens of

the projector.

■Supported Projectors

PT-RQ32K, PT-RZ31K, and PT-RS30K series

PT-RQ13K, PT-RZ12K, and PT-RS11K series

Note

zModels other than the above may also be supported. Refer to the operating instructions of the projector you

are using.

■Structural components

Check that the package contains the following parts.

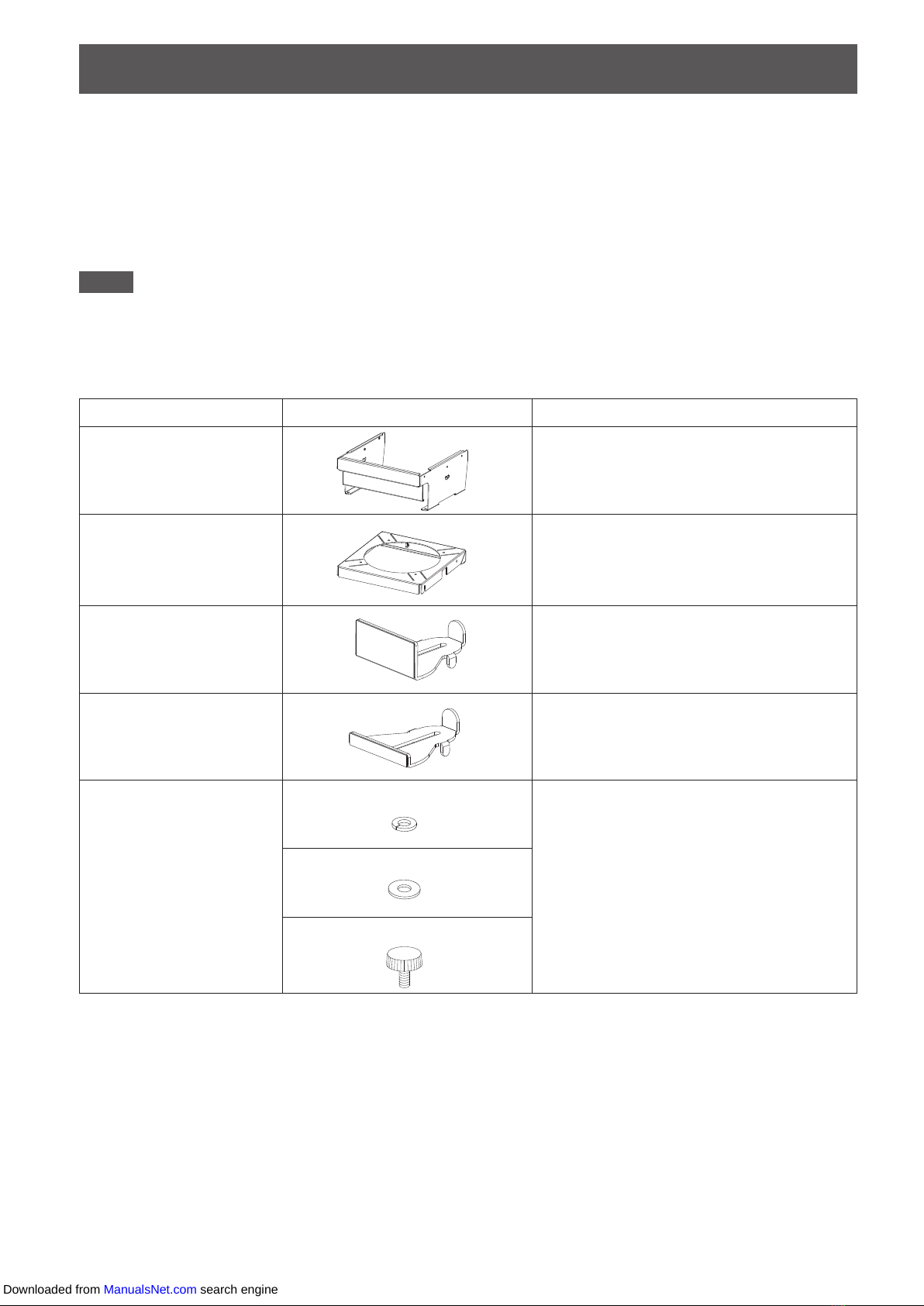

Part name Appearance (quantity) Application

Lens xing attachment

mount bracket

This part attaches to the projector unit.

It is a bracket for attaching the lens xing

attachment bracket

Lens xing attachment

bracket

This part attaches to the lens xing

attachment mount bracket.

It is a bracket for adjusting and xing the

positions of the lens xing brackets.

Lens xing bracket (A)

These x a lens other than the ET-D75LE50 /

ET-D75LE90 / ET-D75LE95.

Lens xing bracket (B)

These x the ET-D75LE50 / ET-D75LE90 /

ET-D75LE95.

Screws and washers Spring washer (M4)

These are used for bracket assembly and

xing the lens xing brackets.

Flat washer (M4)

Thumbscrew (M4 x 10)

Downloaded from ManualsNet.com search engine

ENGLISH - 5

Preparing the Projection Lens

Attach the lens xing attachment after installing and adjusting the lens.

If the lens hood, which is an accessory of the projector, is already mounted, it must rst be removed.

The lens will become unable to be adjusted after the lens xing attachment is attached.

Preparing the Lens Fixing Attachment

Attaching

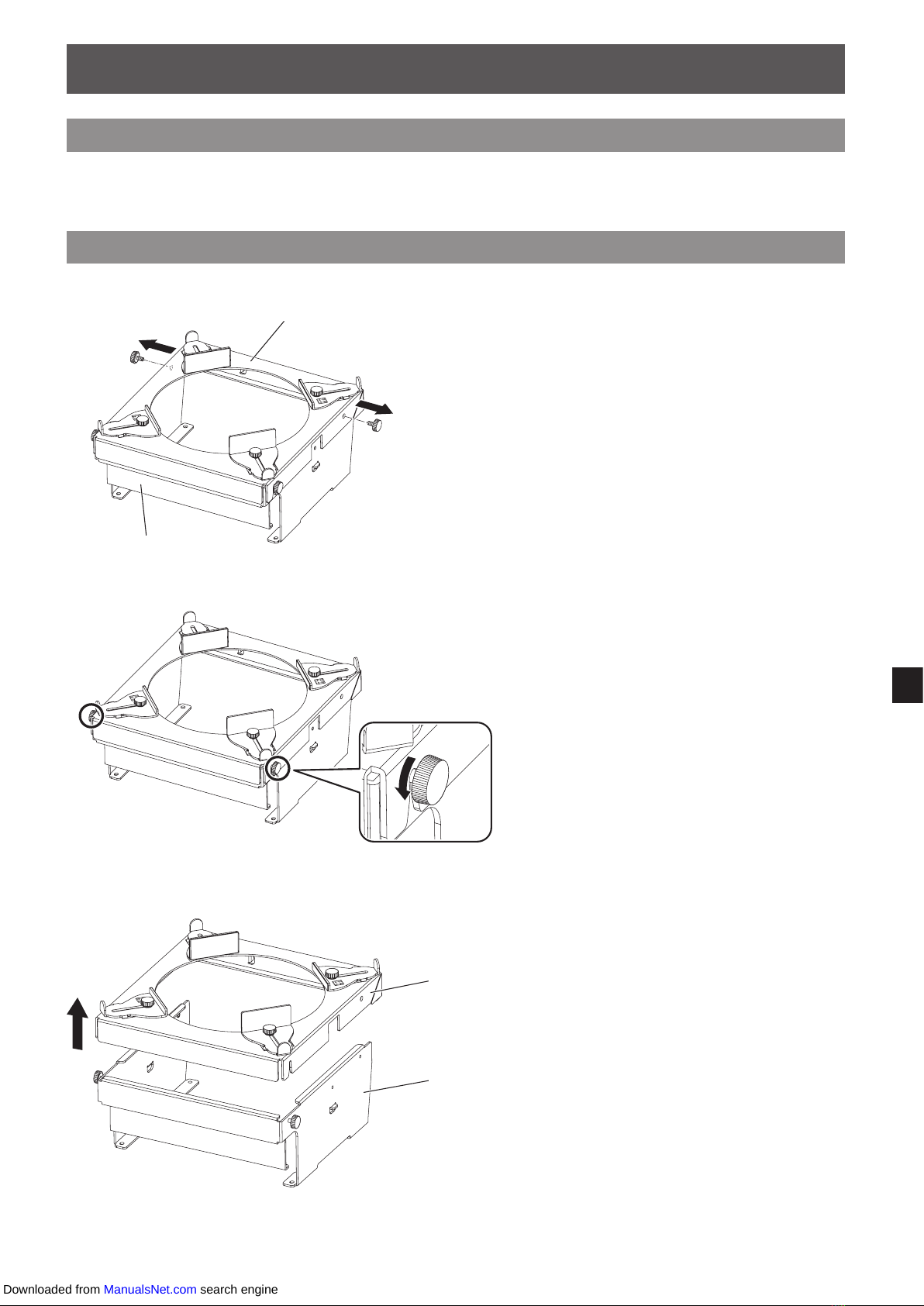

1) Remove the two upper thumbscrews (inserted

in round holes).

2) Loosen the two lower thumbscrews (inserted

in slots).

3) Remove the lens xing attachment bracket as

shown in the gure.

Lens xing

attachment

bracket

Lens xing

attachment mount

bracket

Lens xing attachment bracket

Lens xing attachment

mount bracket

Downloaded from ManualsNet.com search engine

6 - ENGLISH

Attaching (continued)

The illustrations for this procedure use the PT-

RZ31K as an example.

1) Remove the screws from the four places

around the projector lens.

Attaching the Lens Fixing Attachment

2) Fix the upper part the lens xing attachment

mount bracket using two of the screws that

were removed in step 1.

4) Attach the lens xing attachment bracket to

the lens xing attachment mount bracket as

shown in the gure.

3) Fix the lower part of the lens xing

attachment mount bracket using the

remaining two screws.

Screws

Lens xing attachment

bracket

Screws

Downloaded from ManualsNet.com search engine

ENGLISH - 7

Attaching (continued)

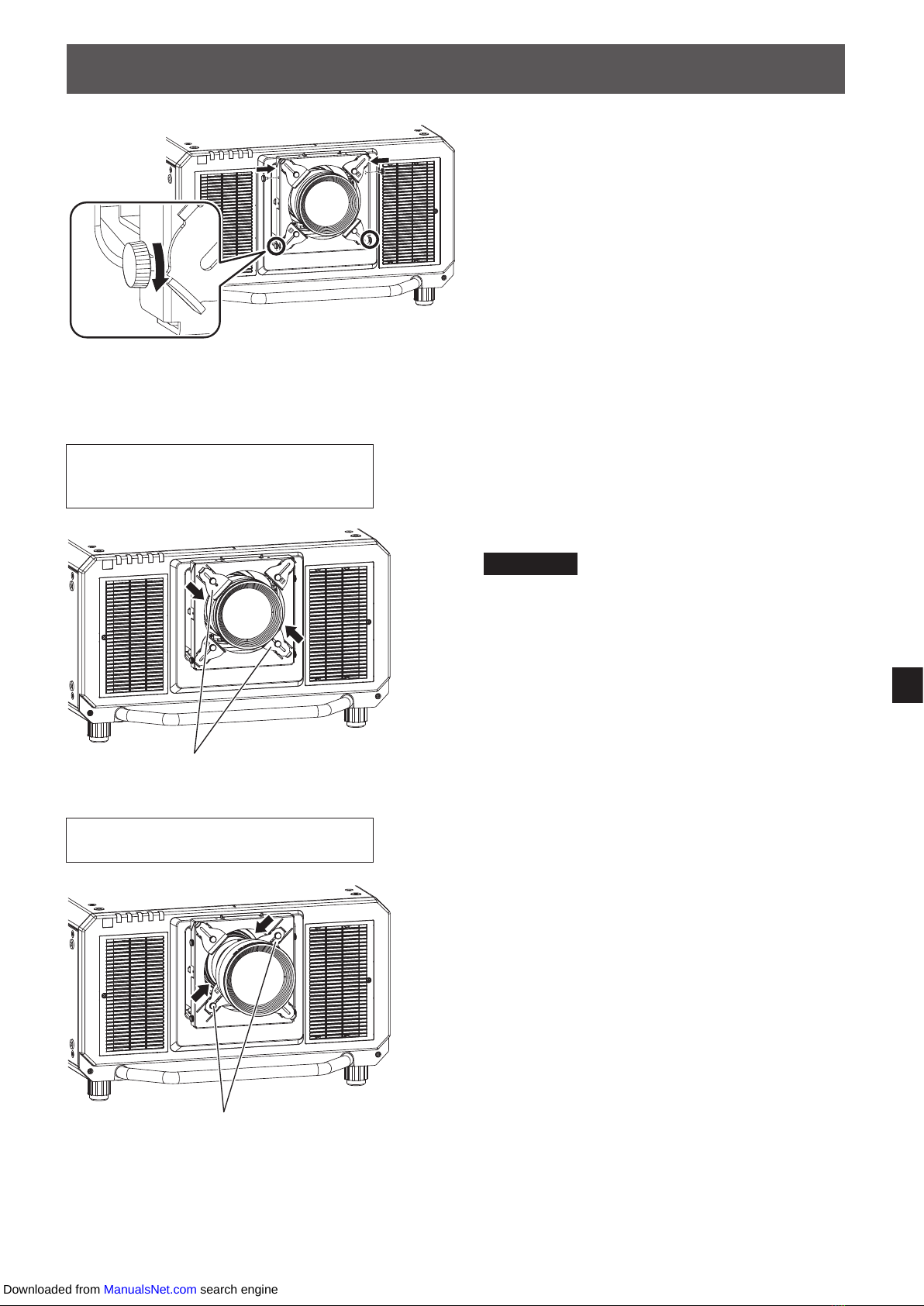

5) Fix the upper part of the lens xing

attachment bracket using the thumbscrews

removed in step 1 of "Preparing the Lens

Fixing Attachment."

6) Fix the lower part of the lens xing attachment

bracket by tightening the thumbscrews (two

places).

7) Loosen the two thumbscrews of the lens

xing brackets.

8) Push the lens xing brackets up against the

lens, and then x them in place by tightening

the two thumbscrews.

Attention

zThe lens xing brackets to use differ as shown in

the gure depending on the lens to be xed.

(The lens xing brackets (B) are labeled "LE50"

and "LE95.")

When lens other than ET-D75LE50 / ET-D75LE90 /

ET-D75LE95:

Use lens xing brackets (A)

When ET-D75LE50 / ET-D75LE90 / ET-D75LE95:

Use lens xing brackets (B)

When using the ET-D75LE50 /

ET-D75LE90 / ET-D75LE95

When using a lens other than the

ET-D75LE50 / ET-D75LE90 /

ET-D75LE95

Lens xing brackets (B)

Lens xing brackets (A)

Downloaded from ManualsNet.com search engine

8 - ENGLISH

<When using the ET-D75LE90 / ET-D75LE95

lens>

The lens xing brackets (B) may interfere with the

screws on the lens side depending on the state (i.e.,

focus adjustment) of the lens.

If they interfere, reattach and use lens xing

brackets (B) in the positions for lens xing brackets

(A).

When attaching the lens xing brackets (B), attach

the spring washers and then the at washers to the

thumbscrews before attaching them to the unit.

Attention

zSafely store the removed lens xing brackets (A),

thumbscrews, spring washers, and at washers

so as not to lose them.

Flat washer

Spring washer

Lens xing

bracket (B)

Thumbscrew

Attaching (continued)

Downloaded from ManualsNet.com search engine

ENGLISH - 9

Attaching the Lens Hood

If you need to attach the lens hood, attach it after attaching the lens xing attachment.

Attention

zWhen mounting the lens hood supplied with the projector to the projector, be sure to request installation from

your dealer or certied personnel.

Be sure to hand this manual and the "Mounting the lens hood" document supplied with the projector to the

personnel performing the installation. After installation, have the installation personnel return these documents

to you, and store them for future reference.

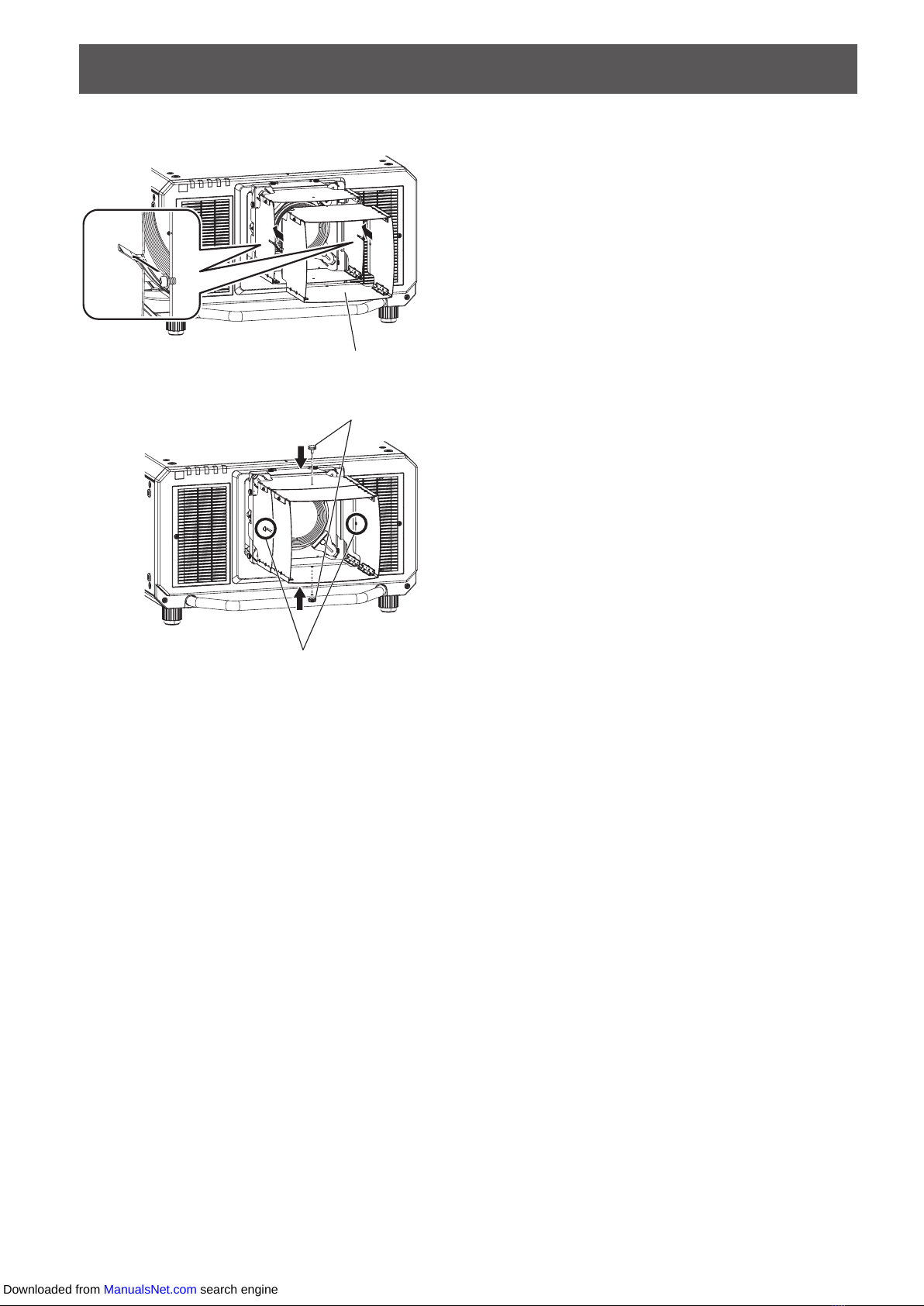

1) Attach lens hood 1 to the lens xing

attachment.

2) Tighten the lens hood screws (two places)

and thumbscrews (two places) to x lens

hood 1.

Thumbscrews

Lens hood 1

Lens hood screw Lens hood screw

Lens hood 1

Attaching (continued)

Downloaded from ManualsNet.com search engine

10 - ENGLISH

1) Attach lens hood 2 to lens hood 1.

Lens hood 2

2) Attach the thumbscrews (one place each at

top and bottom) to x lens hood 2.

3) Tighten the left and right lens hood screws

(one on each side) of lens hood 2.

Thumbscrews

Knurled screws

Attaching (continued)

Downloaded from ManualsNet.com search engine
