Panasonic CF-VDD731 Bedienungsanleitung

DVD-ROM Drive Pack

DVD-ROMドライブドライブ

ドライブドライブ

ドライブ

CF-VDD731

FJ0603-0

DFQX5415ZA

Printed in Japan

Introduction........................................................... 4

Usage Precautions ............................................... 5

Using the Drive ..................................................... 6

Troubleshooting ................................................... 9

Specifications ..................................................... 10

OPERATING INSTRUCTIONS

ENGLISH

Einführung........................................................... 11

Vorsichtsmaßnahmen zum Gebrauch .............. 12

Gebrauch des Laufwerks ................................... 13

Störungsbehebung ............................................. 17

Technische Daten ............................................... 18

BEDIENUNGSANLEITUNG

DEUTSCH

Introduction......................................................... 19

Précautions d’utilisation .................................... 20

Utilisation du lecteur .......................................... 21

Dépannage .......................................................... 25

Spécifications ..................................................... 26

MODE D’EMPLOI

FRANÇAIS

はじめにはじめに

はじめに ..........................................................................

..........................................................................

.....................................

安全上のご注意安全上のご注意

安全上のご注意 ..............................................................

..............................................................

...............................

使用上のお願い使用上のお願い

使用上のお願い ..............................................................

..............................................................

...............................

ドライブを使うドライブを使う

ドライブを使う ..............................................................

..............................................................

...............................

困ったときの困ったときの

困ったときの

Q&A

..........................................................

.............................

仕様仕様

仕様 ..................................................................................

..................................................................................

.........................................

保証とアフターサービス保証とアフターサービス

保証とアフターサービス ..............................................

..............................................

.......................

取扱説明書取扱説明書

取扱説明書

日本語日本語

日本語

保証書付き（日本国内向け）

・この取扱説明書と保証書をよくお

読みのうえ、正しくお使いくださ

い。そのあと保存し、必要なとき

にお読みください。

・保証書は「お買い上げ日・販売店

名」などの記入を必ず確かめ、販

売店からお受け取りください。

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RA-

DIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL

WARNUNG!

DIESES PROUKT ERZEUGT LASERSTAHLUNG.

DURCHFÜHRUNG ANDERER VORGÄNGE ALS DER HIER ANGEGEBENEN KANN

ZU GEFÄHRLICHER STRAHLUNG FÜHREN.

REPARATUREN DÜRFEN NUR VON QUALIFIZIERTEM FACHPERSONAL

DURCHGEFÜHRT WERDEN.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCUTION DE

PROCÉDURES AUTRES QUE CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE

EXPOSITION À DES RADIATIONS DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOI-MÊME.

CONFIER TOUT TRAVAIL D'ENTRETIEN À UN PERSONNEL QUALIFIÉ.

VARNING

Om apparaten används på annat sätt än i denna bruksanvisnig specificerats, kan användaren

utsättas för osynlig laserstrålning, som överskrider gränsen for laserklass 1.

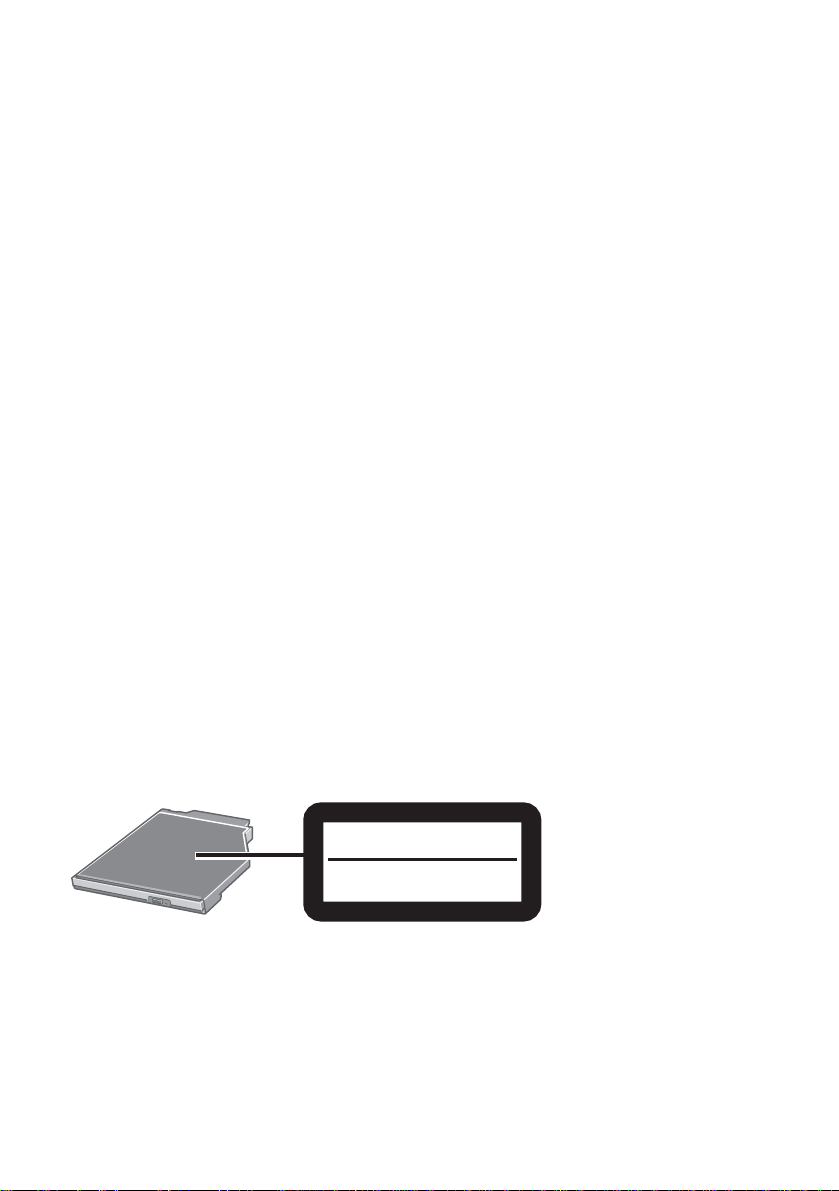

CLASS 1 LASER PRODUCT

LASER KLASSE1

For U.S.A.

Federal Communications Commission Radio Frequency Interference

Statement

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a

computer or peripheral. Also, any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP-5 (1-800-527-8675)

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Thank you for purchasing the DVD-ROM Drive Pack for the Panasonic CF-73 notebook

computer series.

This drive connects to the computer through the Multimedia Pocket.

Store this manual in a safe place after reading it.

DVD-ROM Drive Pack* ...................... 1

Operating Instructions ............1

WinDVD™CD-ROM .................1

WinDVD™Booklet...................1

Introduction

*The DVD-ROM Drive Pack may also be referred to as the drive.

Windows XP

This manual explains the procedure for default settings. The procedure may differ

according to the settings.

NOTE

Microsoft®and Windows®are registered trademarks of Microsoft Corporation in the United States

and/or other countries.

WinDVD™is a trademark of InterVideo, Inc.

[Illustration in this manual]

Windows XP indicates Microsoft®Windows®XP Professional Operating System.

Windows 2000 indicates Microsoft®Windows®2000 Professional Operating System.

Usage Precautions

If the disc gets dirty

After wiping the disc with a moist, soft cloth, wipe it with a dry cloth. Always wipe from

the center toward the edge.

Do not place items other than discs on the tray.

Do not leave the tray in the open position or touch the lens area. Should the lens

become soiled by dust or dirt, the unit may not read discs properly.

Under some conditions, dust may build up on the optical lens or disc, possibly resulting in

malfunction.

Do not apply excessive force to the tray in the open position, doing so could damage the

tray.

Do not open the drive or move the computer while the drive is being accessed. Doing so

could cause it to malfunction. In addition, after running an application involving access to

a disc, do not open the drive or remove the disc until after the application has been closed.

After closing the tray, do not attempt to access a disc until the MP indicator ( ) disap-

pears.

Do not expose the drive to oily or tobacco smoke. Doing so could shorten the service life

of the lens.

If the drive malfunctions, we recommend cleaning the lens with a blower used for camera

lenses. (Do not use strong, cleaning sprays.)

Never insert foreign objects such as paper clips into the drive.

Do not use discs that have become deformed (warped, not completely round, etc.).

For AutoPlay CDs:

• If an AutoPlay CD does not start after the computer resumes from the standby or

hibernation mode, we recommend reinserting the disc again after a 15-second wait.

• An AutoPlay CD may start during the access of a file.

To avoid damaging discs:

Do not touch the surface as it can cause the disc to become dirty or scratched.

Do not allow discs to become dirty or scratched.

Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust.

Do not write on the surface of the disc with a ball-point pen or other writing instrument.

If the disc is brought from a cold into a warm environment, moisture may form on the disc.

Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

Do not drop, bend, or place heavy objects on top of discs.

Cleaning the disc using a disc cleaner is recommended once every 2 or 3 months.

Using the Drive

Refer to the Reference Manual included with your computer on how to install/remove the

drive.

Installing/Removing a Device

Preparations

Windows XP

Confirm that [Transfer Mode] is set to [DMA if available] in [Start] - [Control Panel] -

[Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [IDE ATA/

ATAPI controllers] - [Secondary IDE Channel] - [Advanced Settings] - [Device 0]. Per-

form this setting if it has not yet been made.

Windows 2000

Confirm that [Transfer Mode] is set to [DMA if available] in [Start] - [Settings] - [Control

Panel] - [System] - [Hardware] - [Device Manager] - [IDE ATA/ATAPI controllers] -

[Secondary IDE Channel] - [Advanced Settings] - [Device 0]. Perform this setting if it has

not yet been made.

Be sure to turn the computer off before installing/removing the drive.

CAUTION

Center Holder

Eject Button

Label side up

1Power on your computer.

2Open the disc tray.

Press the eject button and slowly pull out the tray.

3Place a disc.

1Place the disc with the label facing upward in the

drive.

2Push down until the center holder clicks.

Place a finger on the center holder and lift up on the

edge of the disc.

4Close the disc tray.

Close the tray without touching the eject button.

NOTE

If the drive has not been accessed within 90 seconds, the drive motor will automatically shut

down to reduce the power consumption. When the drive is accessed once again, the power

of the drive motor is turned on. However, approximately 30 seconds are required until data

is actually read from the disc.

Power-saving Mode

Setting a Disc

If the vibration of the drive is excessively high, use the Setup Utility to reduce

the drive speed by setting it to [Low].

Information

To play DVD-Video or MPEG2 files, install the DVD playback software (included).

For information on how to install the software, refer to the instructions of the software.

( WinDVDTM booklet)

If the PC Card does not work, there may be no interrupt request (IRQ) line available.

Deactivate unnecessary equipment using in the Setup Utility.

Note that moving picture files with a low compression rate etc., may not be played back

smoothly in some cases.

About Regions Setting

The DVD-Video has a region code that is fixed according to the region where it is sold. In

order to play a DVD-Video, the region code of the player software and of the drive must

match that of the DVD-Video.

For U.S.A. and Canada: “1”

For Europe: “2”

The region code is not set prior to the shipment of this drive. Therefore, operations will

differ depending on the first DVD-Video played.

In the case of a DVD-Video with a specific region code:

The drive will automatically be set with the same region code as the DVD-Video.

In the case of any other DVD-Video:

[Confirm Region] appears. Select region code and select [OK]. Play now begins.

([Confirm Region] may not be displayed for some DVD-Videos. To confirm the cur-

rent region code and the number of settings remaining, right-click on the WinDVD

screen and select [Setup] - [Region].)

Using the Drive

NOTE

[Confirm Region] will also be displayed if a DVD-Video with one region code is

inserted into a drive for which another region code has already been set.

CAUTION

The region code can be set a total of five times, including the initial setting. Proceed

very carefully, because after the fourth change has been made, the region code set

last is fixed and no further changes can be made.

The user must take responsibility for any trouble that results from illegally changing

or altering the region code.

Check the settings by following the instruc-

tions in “Preparations” ( page 6).

Is the drive properly mounted in the multi-

media pocket?

Restart the computer.

Is the disc loaded on the tray correctly?

Is the disc bent, scratched, or dirty?

Is the computer powered on?

To remove a disc when the computer is

powered off, insert a sharp object such as

the bent-out tip of a paper clip into the emer-

gency hole. Pushing it completely to the end

will free the tray so that it can be pulled

out.

Did you touch the eject button when you

close the tray?

Troubleshooting

The computer does not recognize the

drive

The MP indicator ( ) does not light

Cannot play disc or read data from it

Cannot eject disc

The disc tray does not close Emergency Hole

Description

DC 5V ± 0.25 V

4.7GB(DVD-5), 8.5GB(DVD-9), 9.4GB(DVD-10)

220 ms (8x Speed, DVD-9, 1/3 Stroke*1)

DVD-5, DVD-9, DVD-10, DVD-18, DVD-

R*2(3.95 GB, 4.7 GB), DVD-RW*2 (4.7 GB),

DVD-RAM*2*3(2.6 GB, 4.7 GB)

656 MB

135 ms (24x Speed, 1/3 Stroke*1)

CD-Audio, CD-ROM, CD-R*2, Photo CD, Video

CD, Enhanced Music CD, CD-RW*2, CD-TEXT

88.64 Mbit/s(10800 KB/s) 8x speed (Max.)

3600KB/s 24x speed (Max.)

2MB

Conforms to enhanced IDE (ATAPI) standard

132 mm × 146 mm × 15.3 mm

{5.2" × 5.7" × 0.6"}

Approx. 180 g {0.4 lb.}

5°C to 35 °C {41 °F to 95 °F}/

30 % RH to 80 % RH (no condensation)

Specifications

*1Stroke :Indicates the amount of movement the lens (pickup) of the drive must make in order to read

data.

*2Read only.

*3In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be used.

*4If an unbalanced disc (i.e., a disc with which the balance has been displaced from the center) is

inserted, the speed may become slower if there are large vibrations while the disc is rotating.

Item

Operating voltage range

Data Capacity

Access Time

Supports

Data Capacity

Access Time

Supports

DVD-ROM

CD-ROM

Cache memory

Interface

Dimensions (width × depth × height)

Weight

Operating temperature/

Humidity range

DVD-ROM

Data transfer

rate*

Drive

CD-ROM

Inhaltsverzeichnis

Sprachen:

Andere Panasonic DVD-Laufwerk Handbücher

Panasonic

Panasonic DMRE55P Bedienungsanleitung

Panasonic

Panasonic CF-VDM302AU Bedienungsanleitung

Panasonic

Panasonic CF-VDM311U Bedienungsanleitung

Panasonic

Panasonic CFVDR732U - DVD Bedienungsanleitung

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Bedienungsanleitung

Panasonic

Panasonic CF-VDD281 Bedienungsanleitung

Panasonic

Panasonic VWBN2 - PORTABLE DVD BURNER Bedienungsanleitung

Panasonic

Panasonic CF-VDD283 Bedienungsanleitung

Panasonic

Panasonic CF-VDD272 Bedienungsanleitung

Panasonic

Panasonic CF-VDM312U Bedienungsanleitung

Panasonic

Panasonic LF-D101E Bedienungsanleitung

Panasonic

Panasonic CF-VDM Series Bedienungsanleitung

Panasonic

Panasonic SR-8586-B Bedienungsanleitung

Panasonic

Panasonic CF-VDM Series Bedienungsanleitung

Panasonic

Panasonic LF-D321U Bedienungsanleitung

Panasonic

Panasonic SW-9501-S Bedienungsanleitung

Panasonic

Panasonic KXL-CB30AU Bedienungsanleitung

Panasonic

Panasonic LF-D103E Bedienungsanleitung

Panasonic

Panasonic SR-8585-E Bedienungsanleitung

Panasonic

Panasonic LF-D102U Bedienungsanleitung

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Bedienungsanleitung

Panasonic

Panasonic SR-8587-B Bedienungsanleitung

Panasonic

Panasonic CF-VDD723M Bedienungsanleitung

Panasonic

Panasonic CF-VDD371M Bedienungsanleitung

Beliebte DVD-Laufwerk Handbücher anderer Marken

LG GSA-4160B Bedienungsanleitung

Sony

Sony DRU-500AX Bedienungsanleitung

LG GSA-2164D Bedienungsanleitung

Plextor

Plextor PX-755SA Bedienungsanleitung

Pioneer

Pioneer BDC-TD03RS Betriebsanleitung

Samsung

Samsung SM-332B Bedienungsanleitung

Freecom

Freecom MOBILE DVD RW II Bedienungsanleitung

Plextor

Plextor PX-712 Bedienungsanleitung

NEC

NEC ND-3550A Bedienungsanleitung

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Bedienungsanleitung

Philips

Philips PCA532K Bedienungsanleitung

Sony

Sony AD-7740H Bedienungsanleitung

Philips

Philips PCDV5016 Series Referenzhandbuch

Pioneer

Pioneer LaserMemory DVD-115 Bedienungsanleitung

Samsung

Samsung SE-S224Q Bedienungsanleitung

IBM

IBM 71P7285 Bedienungsanleitung

Pioneer

Pioneer DVR-A04 Bedienungsanleitung

IBM

IBM 27L2579 Bedienungsanleitung
