Panasonic FV-08-11VFL5E Bedienungsanleitung

Service Manual

PEG1812039CE

Version:1801

CONTENTS

1.Specifications

2.Parts Identification

3.Wiring Diagram

PAGE

2~5

Ventilating Fan

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-08-11VFL5E

4.Parts List 7~8

1. Specifications

2. Parts Identification

Main Body Section

Louver Assembly

(3pcs)

(4pcs)

(2pcs)

2. Parts Identification

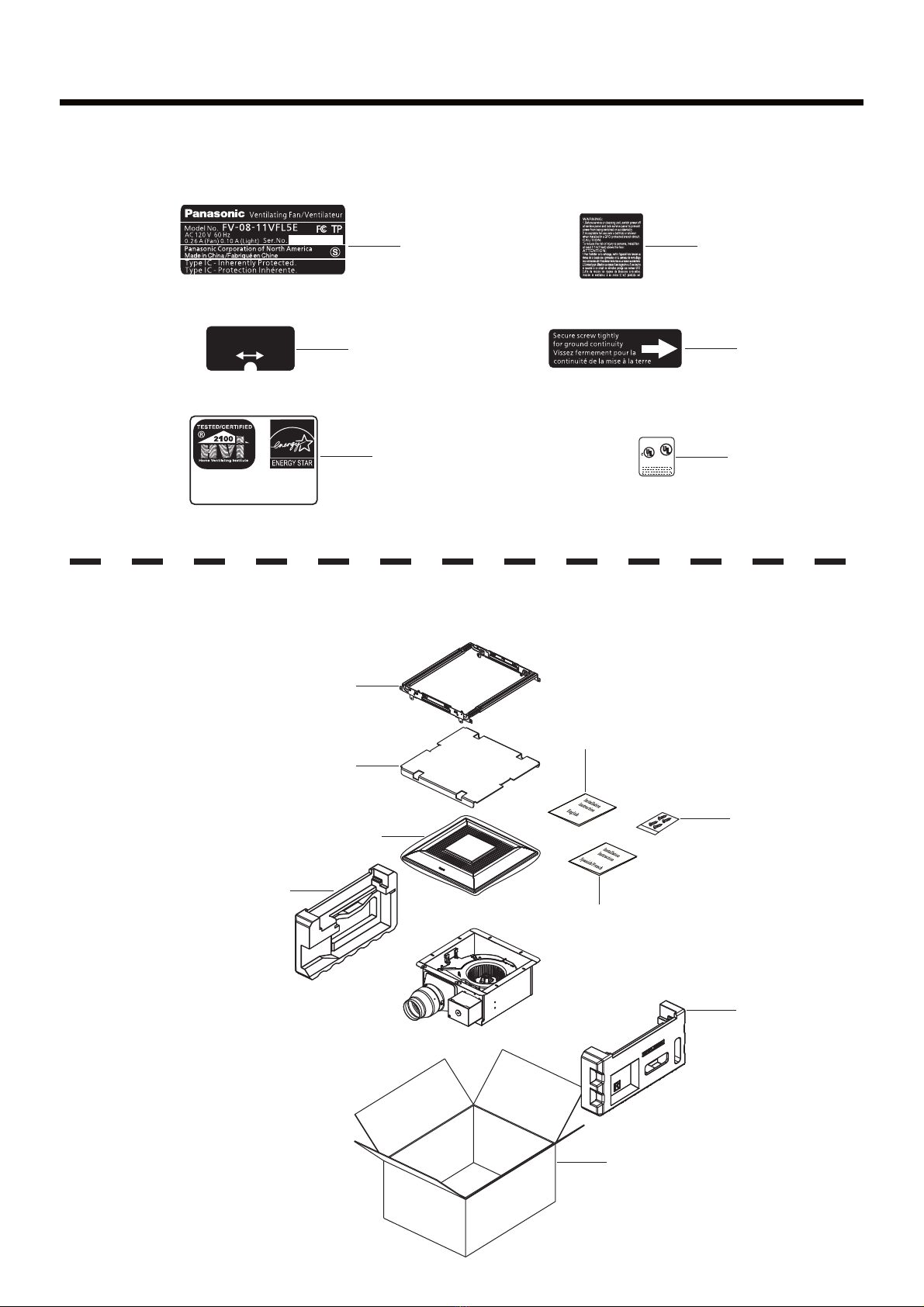

Main Labels

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

/instructions. Non destiné à la zone de cuisson -Voir

/instructions d’installation. No usar en áreas donde

se cocine - Consulte las instrucciones de instalación.

80 110

CFM

Packing Section

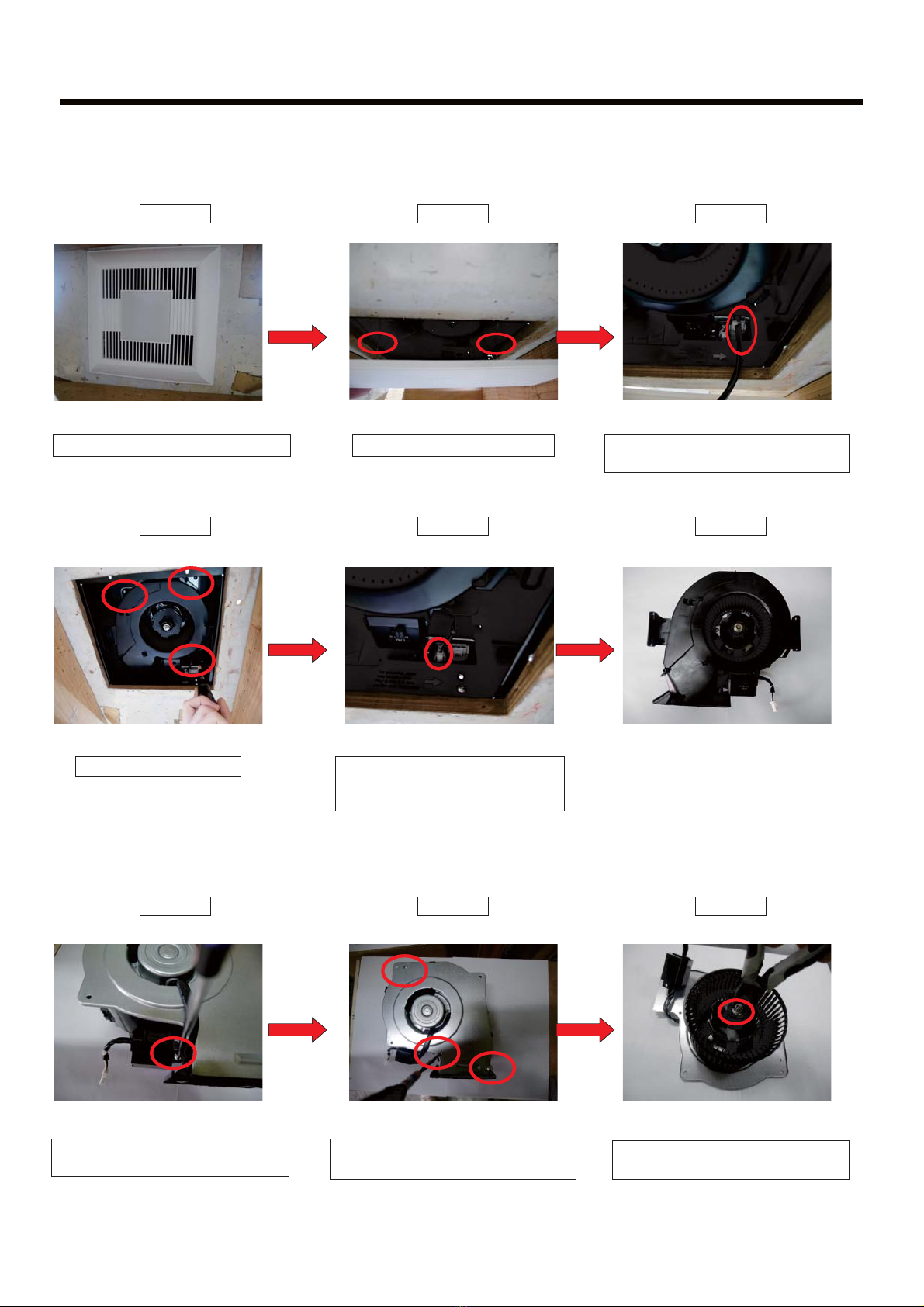

Replace Motor Assembly Method

Remove the louver spring

Step 1. Step 2. Step 3.

Haul down the louver assembly

Step 4. Step 5. Step 6.

Unplug power lead connector,

Then take out the casing unit

from the frame assembly

Step 7. Step 8. Step 9.

2. Parts Identification

Unplug led unit connector ,Then

take out the louver assembly

Remove 3pcs screws

Remove 1pc screws,Then take

out the wiring box assembly

Remove 3pcs screws,Then take

out the casing from casing unit

Remove the nut,Then take out

the blade

Step 10. Step 11.

2. Parts Identification

Remove 4pcs screws,Then take out

the motor unit from motor support

Replace Led Unit Method

Step 1. Step 2. Step 3.

Cut the binder Remove 1pc screw,Then take out

the led unit from louver assembly

Pull out the Led unit lead from

louver assembly

()Clamp

()binder

Replace Motor Assembly Method

3. Wiring Diagram

4. Parts List

No. Part No. Part Name Q'ty Remark

1FFV1600146S Frame Assembly 1

2FFV0000152S Adapter Assembly 1

3FFV0900068S Connector Plate 1

4FFV3450010S Earth Lead Wire 1

5FFV0900069S Connector Assembly (L) 1

6FFV0900059S Connector Assembly (V) 1

7FFV2800020S Junction Cover 1

8FFV0000038S Adapter Connector 1

9FFV3702266S Motor Support Unit 1

10 FFV3702267S Motor Unit 1

11 FFV0400119S Blade 1

12 FFV7020021S Nut 1 For Fixing Blade

13 FFV0790115S Casing Assembly 1 Include 1pc Packing

14 FFV3400147S Louver Assembly 1

15 FFV2520040S Insulation Plate 1

16 FFV3400172S Led Unit 1

17 FFV3400149S Louver Unit 1

AFFV7000108S Truss Tap Screw 4

BFFV7000203S Earth Lead Wire Screw 1 For Fixing Lead Wire

CFFV7000089S Truss Tap Screw 5

DFFV7000074S Truss Tap Screw 4

EFFV7000080S Plus Bind Screw 2

No. Part No. Part Name Q'ty Remark

18 FFV4020952S Name Plate 1

19 FFV5530075S Switch Label 1

20 FFV0810011S Caution Label 1 1

21 FFV0810010S Caution Label 1

22 FFV6730045S Warning Label 1

23 FFV2260003S UL Mark 1

Main Body Section

Main Labels

4. Parts List

No. Part No. Part Name Q'ty Remark

24 FFV2230024S Hanger Assembly 1

25 FFV4710381S Louver Case Assembly 1

26 FFV4650016S Poly Cover 1 For Grille Unit Packing

27 FFV4710390S Left Pad 1

28 FFV2540236S Installation Instructions 1 English,For CA Market/USA Market

29 FFV0010238S Accessory A 1

30 FFV2540237S Installation Instructions 1 French,For USA Market

(30) FFV2540238S Installation Instructions 1 Spanish,For CA Market

31 FFV4710391S Right Pad 1

32 FFV9001397S Packing Case Assembly 1

Packing Section
