Panasonic FV-15NLFS1 Bedienungsanleitung

Service Manual

PEG1712033CE

Version:2201

CONTENTS

2.Parts Identification

3.Wiring Diagram

4.Parts List

PAGE

In-Line Fan

4~5

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-15NLFS1

1.Specifications 1

1. Specifications

Main Body Section

2. Parts Identification FV-15NLFS1

aaaaaaaaaa

aaaaaaaaa

aaaa

aaaaaaaaa

aaaa

aaaaaaaaa

aaaa

aaaaaaaaa

aaaa

Packing Section Casing Section

(8pcs)

(2pcs)

(3pcs)

(4pcs)

(2pcs)

(6pcs)

(4pcs)

(5pcs)

F(4pcs)

(4pcs)

(2pcs)

3(9)

910

(3pcs)

(2pcs)

32(2pcs)

(3pcs)

Installation

Instruction

(3pcs)

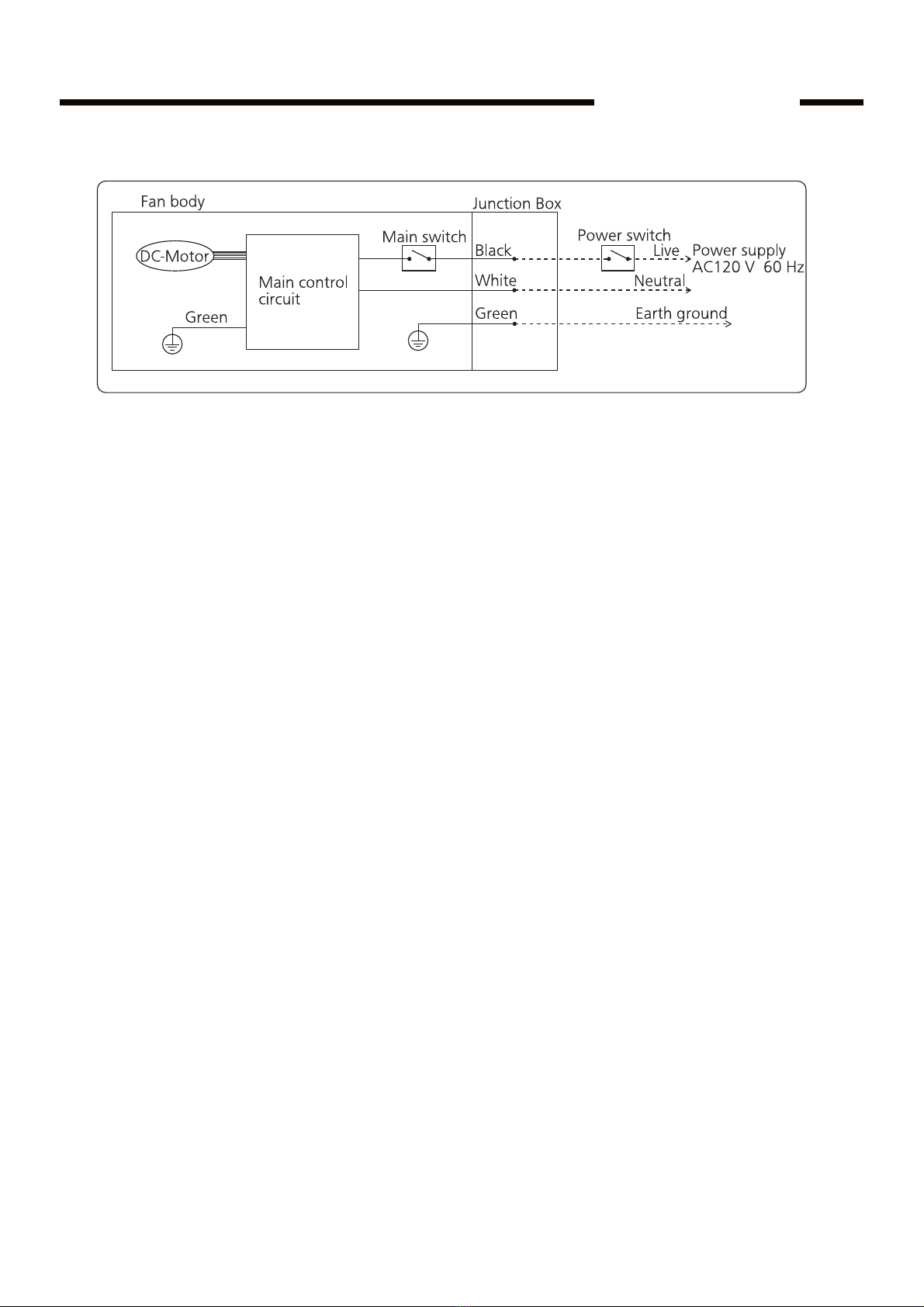

3. Wiring Diagram FV-15NLFS1

4. Parts List FV-15NLFS1

No. Part No. Part Name Q'ty Remark

1 FFV3700370S Motor Panel Assy 1

2 FFV1610087S Pre Filter Assy 1

3 FFV4300158S Merv8 Filter 1 Merv 8

(3) FFV4300159S Merv13 Filter 1 Merv 13

4 FFV6710053S Wiring Cover Assy 1

5 FFV5580017S Switch Assy 1

6 FFV5500042S Sensor Cap 1

7 FFV0010275S Humidity Sensor 1

8 FFV5500050S Sensor Wire Assy 1

9 FFV3740047S Main PCB Cover Assy 1

10 FFV5580011S Switch Spring 1

11 FFV5580010S Switch Knob 3

12 FFV3740048S Main PCB Assy Set 1

13 FFV3740049S PCB Box Assy 1

14 FFV0790125S Casing Assy 1

15 FFV7020022S Nut 1

16 FFV7010055S Washer 1

17 FFV1610088S Fan Unit 1

18 FFV3700371S Motor Holder Assy 1

19 FFV0740020S Cord Clip 1

20 FFV3730129S Motor Base 1

21 FFV4670003S Blade Fixed Plate 1

22 FFV2230023S Holder Gum(A) 1

23 FFV3402192S EA Motor Assy 1

24 FFV2230022S Holder Gum(B) 1

25 FFV3730127S Motor Holder Plate 1

26 FFV5500051S Support Plate B 2

27 FFV0000176S Adapter 2 1

28 FFV1600182S Frame Assy 1

Main Body Section

4. Parts List FV-15NLFS1

No. Part No. Part Name Q'ty Remark

29 FFV0000177S Adapter Assy 1

30 FFV0010276S Accessory Set 1

31 FFV2540256S Instruction 1 Spanish,For USA Market

(31) FFV2540257S Instruction 1 French,For CA Market

32 FFV4710438S Corner Pad 2

33 FFV4650040S Poly Cover 1

34 FFV2230012S Fan Casing Support 3

35 FFV9001364S Packing Case Assy 1

36 FFV2800029S Junction Box 1

37 FFV2800020S Junction Cover 1

AFFV7000018S Truss Tap Screw 16

BFFV7000073S Truss Tapping Screw 16

CFFV7000233S Screw 6

DFFV7000124S Truss Tap Screw 1

EFFV7000191S Bind Screw 2

FFFV7000074S Truss Tap Screw 8

GFFV7000105S Pan Tap Screw 3

HFFV7000108S Truss Tap Screw 1

Main Body Section
