Service Manual

PESMX2210002CE

Version:2201

Ventilating Fan

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

RG-C1315LA

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2~4

(North AmericaMarket)

4.Parts List 6~7

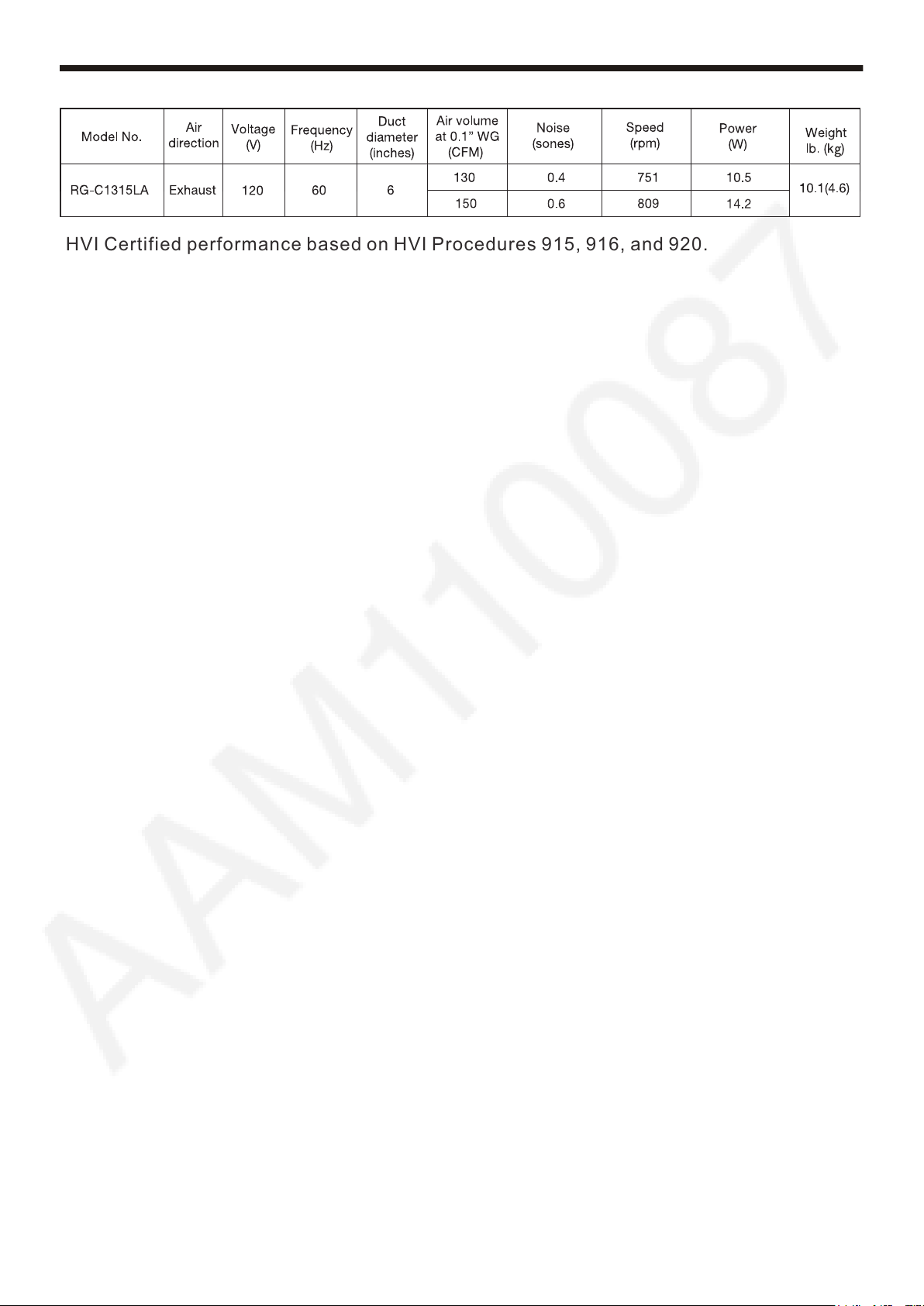

1. Specification

HVI Certified performance based on HVI Procedures 915, 916, and 920.

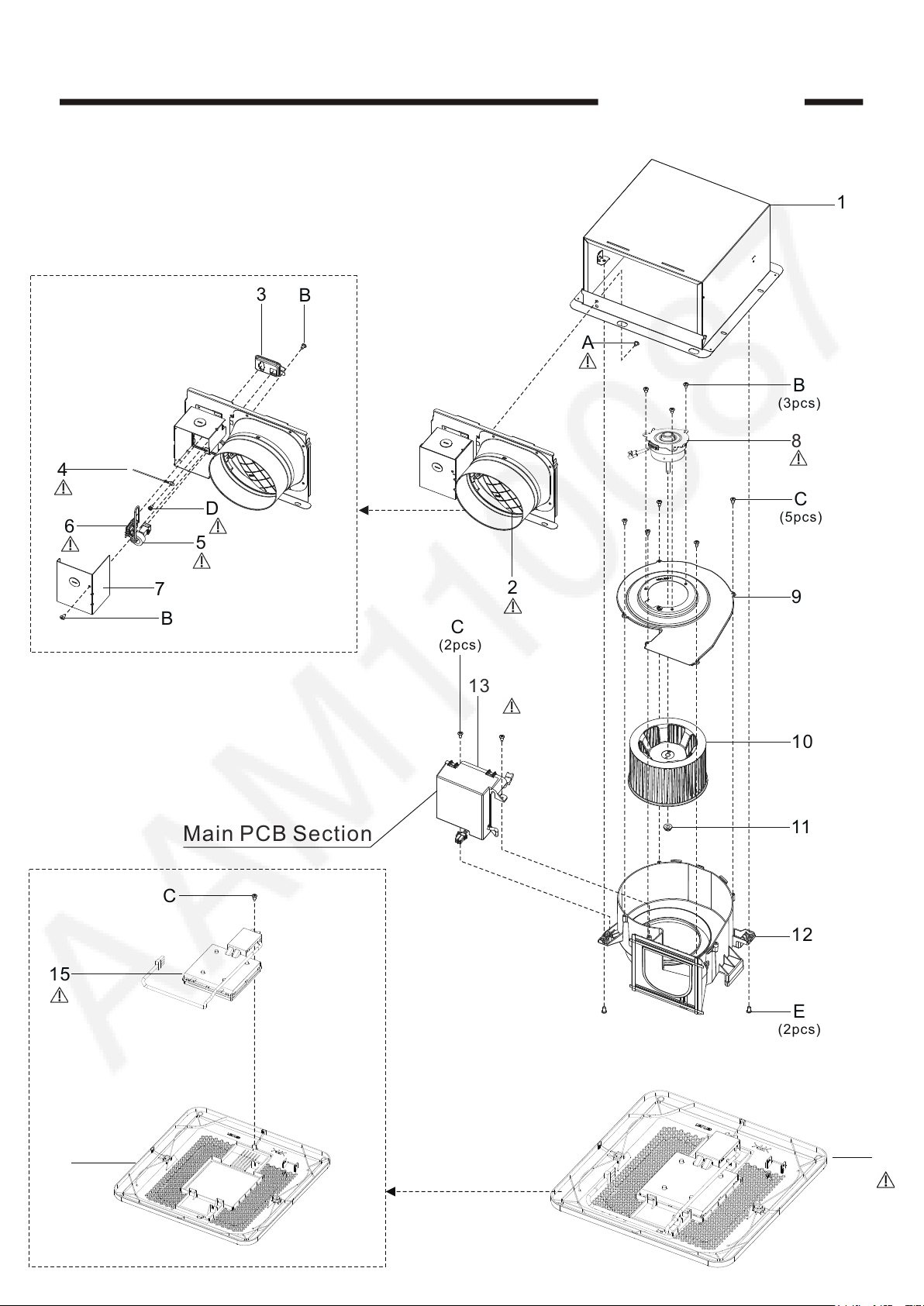

1. Parts Identification

Main Body Section

(3pcs)

(5pcs)

(2pcs)

RG-C1315LA

Main PCB Section

RG-C1315LA

Main Label

(3pcs)

2. Parts Identification

Packing Section

RG-C1315LA

Main control circuit

Fan body

LED

Motor

Junction box

AC120V

60Hz

(Power supply)

AC120V

60Hz

(Power supply)

White

Black

Live (Light)

Live (Fan)

Live (N.Light)

Neutral

Ｂlue

White

Black

Green

(Ground wire)

Main control

circuit

BLACK

WHITE

BLUE

GREEN

Wire nuts

Live

(Light)

Live

(N.Light)

Neutral

Junction box

AC120V 60HZ

LINE IN

Switch box

Conduit

Ground wire

Live (Fan)

Neutral

Ground wire

4. Parts List

RG-C1315LA

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFVC811LH900 Frame Assembly 1

2 FFV15VQL1910 Adapter Assembly 1

3 FFV11QCL1913 Connector Plate 1

4 FFV11QCL1331 Ground Wire 1

5 FFV11QCL1301A Connector Assy 1

6 FFV11QCL1341A Connector Assy (L) 1

7 FFV11QCL1912A Junction Cover 1

8 FFV11QCL1M21AX Motor 1

9 FFVM15VQ10904C Motor Support 1

10 FFV0400115S Blade 1

11 FFV7020021S Nut 1

12 FFVM15VQ10906B Casing 1

13 FFVC1315PCB Main PCB section 1

14 FFVC811LH810 Grill Assembly 1

15 FFV11QCL1070 Led Unit 1

16 FFVC811LH811 Grill Section 1

A FFVXYM4-E8FJ Screw (M4-8) 1

B FFVXTT4-8FFJ Screw (ST4-8) 5

C FFV7000089S Screw (ST4-12) 8

D FFVXYM4DC8BN Screw w/Washer (M4-8) 1

E FFV7000065S Screw (M4-12) 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

17 FFVC1315A991 Main PCB Box 1

18 FFV11QCL1992C MAIN PCB Cover 1

F FFVXTN3-8GFJ Screw (M3-8) 3

4. Parts List

RG-C1315LA

Main Label

No. Part No. Part Name Q'ty Remark

19 FFV811LH112 Speed Switch Label 1

20 FFVC1315L15 Name Plate 1

21 FFV811LH183 Caution Label 1

22 FFV811LH152 Instruction Label 1

23 FFV2260003S Holograph Label 1

24 FFV0810011S Caution Label 1 1

Packing Section

No. Part No. Part Name Q'ty Remark

25 FFV11QCL1920 Hanger Assy 1

26 FFV4710381S Grill Pad Assy 1

27 FFV4650016S Poly Cover 1

28 FFVC1315L420 Installation Inst 1 English / Spanish For USA Market

29 FFV11KSL1M031A Accessory A 1

30 FFV11QCL1891 Left Pad 1

31 FFV11QCL1892 Right Pad 1

32 FFVC1315L400 Packing Case Assy 1
