Panasonic RG-T810A Bedienungsanleitung

Service Manual

PESMX2211003CE

Version:2201

CONTENTS

2.Parts Identification----------------------------------------------------------------------------------

3.Wiring Diagram---------------------------------------------------------------------------------------

4.Parts List-----------------------------------------------------------------------------------------------

PAGE

Ventilating Fan

2~4

6, 7

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

RG-T810A

1.Specifications--------------------------------------------------------------------------------------- 1

(North AmericaMarket)

1. Specifications

2. Parts Identification

Main Body Section

RG-T810A

(2pcs)

(3pcs)

(4 pcs)

(2 pcs)

(3 pcs)

FAN

LIST ED

E78414

2. Parts Identification

Main Labels

RG-T810A

Circuit

board

assembly

inside,

not

drill

the

can/housing.For

details,

please

refer

installation

instructions.

Carte

circuit

imprimé

l’intérieur,

percez

pas

boîtier.

Pour

plus

détails,

consultez

les

instructions

d’installation.

ATTENTION

(2 pcs) 16

Main PCB Section

2. Parts Identification

RG-T810A

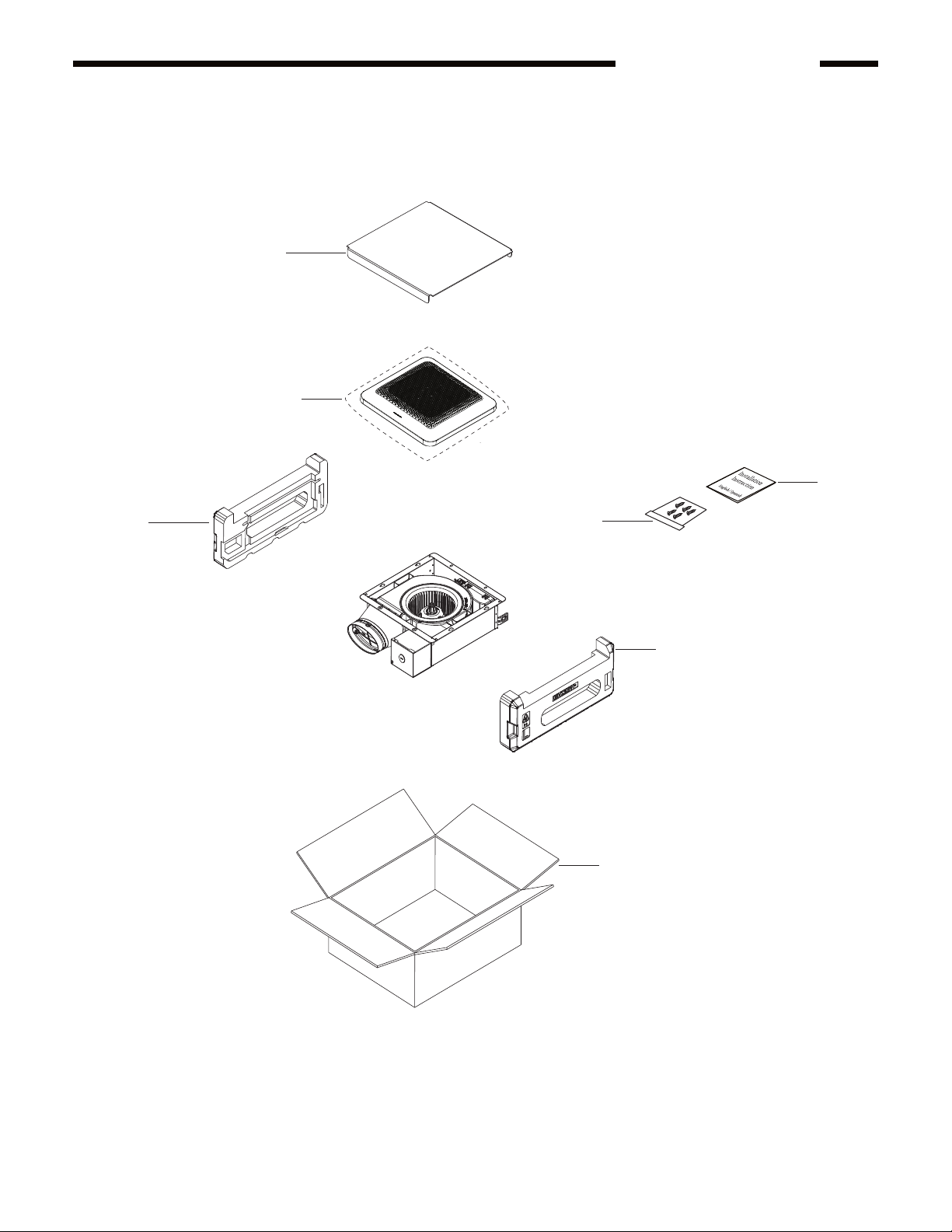

Packing Section

3. Wiring Diagram

RG-T810A

No. Part No. Part Name Q´ty Remark

1 FFV5710025S Suspension Bracket 1

2 FFV1600159S Frame Assy 1

3 FFV0000166S Adapter Assy 1

4 FFV0900052S Connector Plate 1

5 FFV3450010S Ground Wire 1

6 FFV0900072S ConnectorAssy(V) 1

7 FFV2800020S Junction Cover 1

8 FFV10VS1M2 Motor Assy 1

9 FFV510VS19 Motor Support 1

10 FFV510VS18 Blade 1

11 FFV0810RS2 Main PCB Assy 1

12 FFV7020021S Nut 1

13 FFV510VS10 Casing 1

14 FFV1315A810 Grill Assembly 1

A FFV7000108S Truss Tap Screw 5

B FFV7000227S Earth Screw Assy 1

C FFVXTT48GFJ Bind Tap Screw 3

D FFVXTT412GFJ Bind Tap Screw 6

E FFV7000202S Bind Tap Screw 3

No. Part No. Part Name Q´ty Remark

15 FFVT810L199 Main PCB Box 1

16 FFV510VS1992 Main PCB Cover 1

17 FFV510VS112 Motor Lead Wire 1

F FFVXTN268GFJ Screw 1

Main Body Section

Main PCB Section

4. Parts List

RG-T810A

4. Parts List

RG-T810A

No. Part No. Part Name Q´ty Remark

18 FFVT810A105 Name Plate 1

19 FFV6730110S Warning Label 1

20 FFV0810011S Caution Label 1 1

21 FFV2260003S UL Mark 1

No. Part No. Part Name Q´ty Remark

22 FFV4710381S Louver Case Assy 1

23 FFV4650016S Poly Cover 1

24 FFVT810A14 Installation Instructions (ES) 1

25 FFV0010231S Accessory A 1

26 FFV4710369S Right Pad 1

27 FFV4710370S Left Pad 1

28 FFVT810A140 Packing Case Assy 1

Main Labels

Packing Section
