Panasonic SC-BTT270 Gebrauchsanweisung

VQC8348

F0211SB0

1234

FRONT

Lch →



   



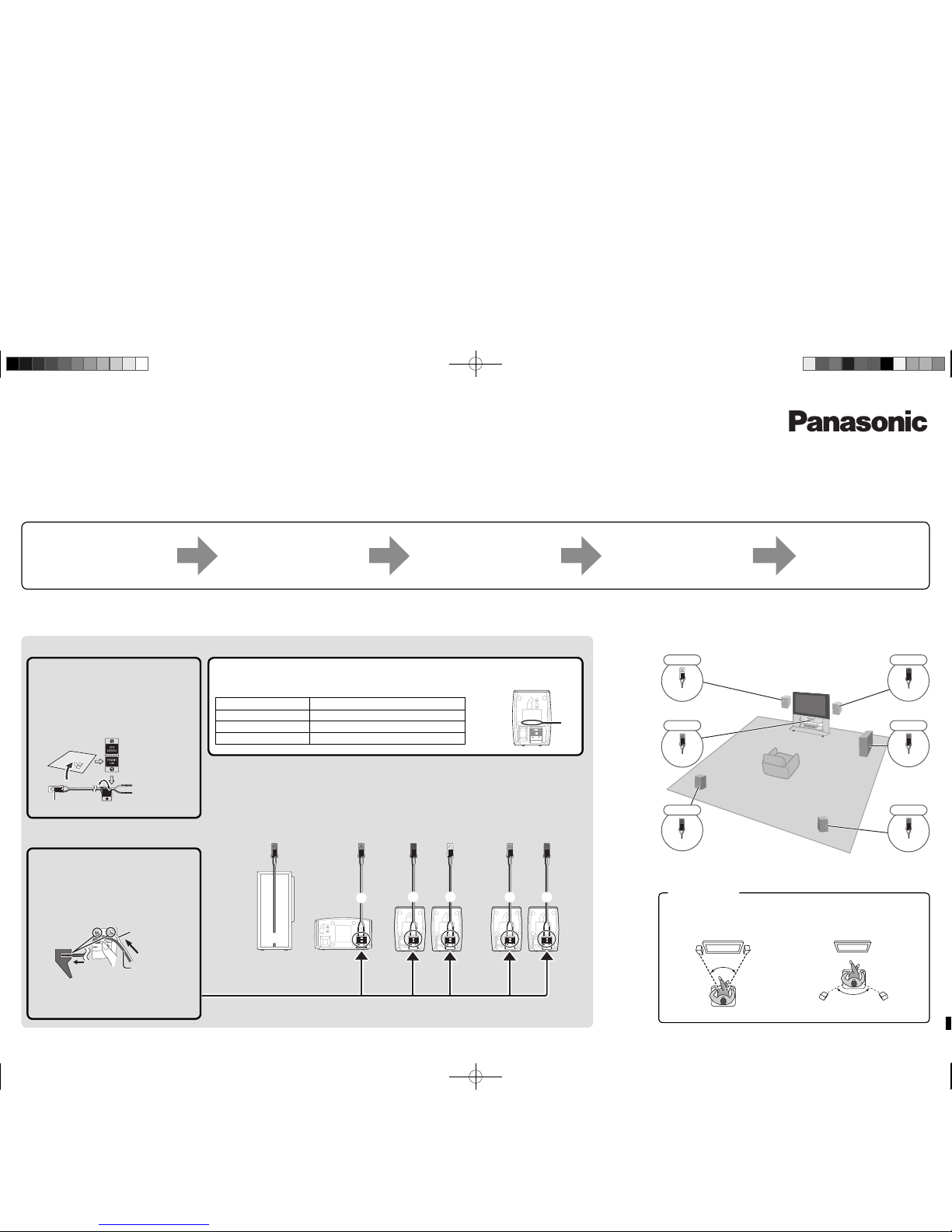

Easy Setting Guide

The order of setting

Prepare the

speakers

See below

Place the

speakers

See below

Connect the

cables

See over

Turn on the

main unit

See over

Prepare the speakers Place the speakers

STEP 1

Label each speaker cable by attaching the

numbered sticker at the position indicated in

the illustration. Be sure to match the number

on each sticker with the circled number in the

illustration.

e.g., Front speaker Lch

WHITE speaker

Connect the speaker cables.

Insert the wire fully, taking care not to insert

beyond the wire insulation.

: White

: Blue line

PUSH!

STEP 2

White

Blue line

Refer to the rear label of the speaker before connecting the corresponding

cable.

Verify the type of speaker with the label on the rear of the speaker.

Speakers 

Front speakers FRONT/AVANT

Centre speaker CENTER/CENTRE

Surround speakers SURROUND/AMBIOPHONIE

Front speakers Surround speakersCentre speakerSubwoofer

PURPLE GREEN

Lch

WHITE

Rch

RED

Lch

BLUE

Rch

GREY

Easy setup

See Easy setup screen

GREEN

GREY

RED

WHITE

PURPLE

BLUE

Recommended

Front speakers

(L, R)

Surround speakers

(LS, RS)

60

120

Model No. SC-BTT270

e.g.,

Blu-ray DiscTM Home Theater Sound System

VQC8348eng.indd2-3VQC8348eng.indd2-3 2011/02/0712:19:032011/02/0712:19:03

12 4

VIDEO IN

AUDIO OUT

HDMI

(ARC)

HDMI

OPTICAL

OUT

SUBWOOFER

6 5 2 1 4 3

RLR L

ΩΩΩΩ

CENTER

SURROUND

FRONT

AUX

FM ANT



R6/LR6, AA



OK

RETURN

Easy setup

Would you like to start easy setup?

Yes

If the HDMI terminal is labeled “HDMI (ARC)”, you can enjoy TV sound and

pictures with a single HDMI cable.

If the HDMI terminal is not labeled “HDMI (ARC)”, an “Audio cable”

or “Optical digital audio cable” is required to listen to sound from the TV.

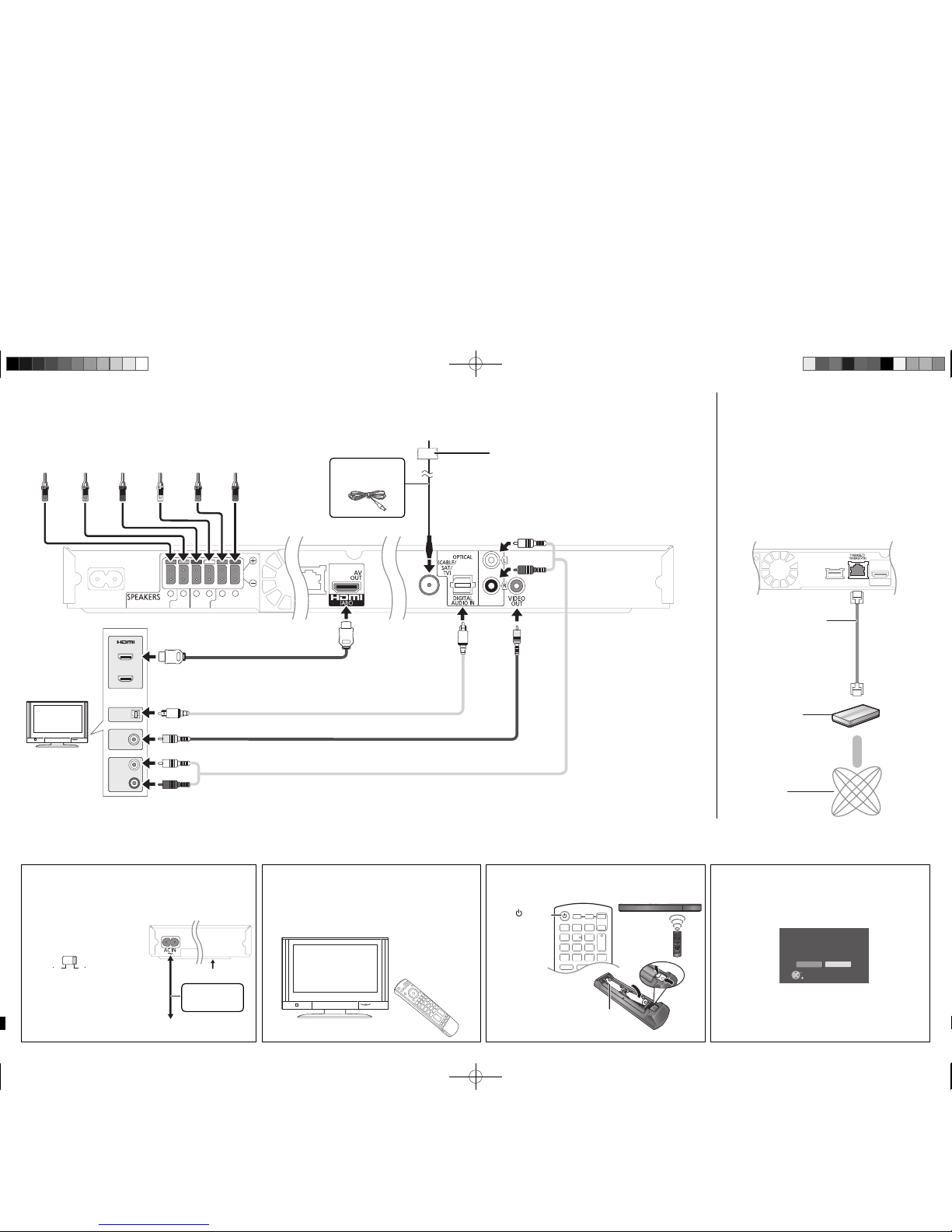

Connect the cables by colour or by the numbers indicated in the illustration

to the appropriate terminals on the rear panel of the unit.

Main unit

PURPLE GREEN RED WHITE GREY BLUE

Connect the cables For detailed information, refer to the operating instructions.

Audio connection

For best quality audio, use the HDMI

cable (with an ARC compatible TV)

or an optical digital audio cable.

If your TV does not support the

above, use the audio cable.

*1Make sure that the video cable connection is

made to view photos/videos from the iPod/iPhone.

FM indoor antenna

(supplied)

Adhesive tape

Video cable*1(supplied)

HDMI cable (not supplied)

(Recommended for highest quality picture)

Optical digital audio cable (not supplied)

Turn on the main unit

Connect the AC mains lead

Connect the AC mains lead to the main unit before connecting

to the household mains socket.

Turn on the TV

Turn on your TV and select the appropriate video input mode

(e.g., VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this

unit.

Broadband Network Connections

By connecting this unit to the network, you can optimise the

internet features of this unit.

•Use category 5 or above straight LAN cables (STP)

when connecting to peripheral devices.

•When using the wireless LAN function*2, the LAN cable that

connected to the main unit is not necessary.

*2South East Asia (For Malaysia, Thailand, Singapore and

Hong Kong) only

Press [, ] to select [Yes] and press [OK].

LAN

Main unit

LAN cable

(not supplied)

Internet

Broadband router, etc.

Other connection

Audio cable (not supplied)

Press [ ] to turn

on the main unit.

Installing batteries in the

remote control

The Easy setup starts

The on screen display will guide you through the steps.

Turn on the main unit

Main unit

To a household mains socket

AC mains lead

(supplied)

It is possible to play back 3D videos and 3D still pictures by connecting this unit with a 3D compatible TV.

Before connecting the AC

mains lead;

Set the voltage at the

bottom of the main unit.

VOLT ADJ

110 127V 220 240V

Use a ﬂat-head screwdriver to

move the voltage selector to the

appropriate position for the area

in which this system is used.

e.g., For South East Asia

AC Voltage selector

VQC8348eng.indd4-5VQC8348eng.indd4-5 2011/02/0712:19:042011/02/0712:19:04
