Panasonic TC-L32B6H Bedienungsanleitung

Unauthorized copying and distribution is a violation

of law.

ORDER NO.MTNC130232CE

32 inch Class 720p LCD HDTV

Model No. TC-L32B6H

KM21 Chassis

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

2 Warning --------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

4 Specifications ------------------------------------------------------7

5 Service Mode -------------------------------------------------------8

5.1. How to enter into Service Mode ------------------------8

5.2. SRV-TOOL------------------------------------------------- 10

5.3. DRV Check - USB HDD Check----------------------- 10

5.4. Hotel mode------------------------------------------------- 11

5.5. Data Copy by USB Memory --------------------------- 12

6 Troubleshooting Guide---------------------------------------- 15

6.1. Check of the IIC bus lines------------------------------ 15

6.2. Power LED Blinking timing chart --------------------- 16

6.3. LCD Panel test mode ----------------------------------- 16

7 Disassembly and Assembly Instructions --------------- 17

7.1. Disassembly Flow Chart for the Unit ---------------- 17

7.2. Disassembly Procedure for the Unit----------------- 18

8 Measurements and Adjustments -------------------------- 21

8.1. Voltage chart of P-board-------------------------------- 21

8.2. Voltage chart of A-board------------------------------- 21

9 Block Diagram --------------------------------------------------- 23

9.1. Main Block Diagram ------------------------------------- 23

9.2. Block (1/2) Diagram ------------------------------------- 24

9.3. Block (2/2) Diagram ------------------------------------- 25

10 Wiring Connection Diagram --------------------------------- 27

10.1. Caution statement.--------------------------------------- 27

10.2. Dressing Wire --------------------------------------------- 27

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the

wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

6. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight

out.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the

two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,

between the jumpered AC plug and each exposed

metallic cabinet part on the equipment such as

screwheads, connectors, control shafts, etc. When the

exposed metallic part has a return path to the chassis, the

reading should be 100 Mohm and over.

When the exposed metal does not have a return path to

the chassis, the reading must be .

1.1.2. Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use

an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15µF capacitors, between each exposed metallic part

on the set and a good earth ground such as a water pipe,

as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of

the above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should

be repaired and rechecked before it is returned to the

customer.

Figure 1

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or

comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. PCB Layout

Board Name Function

A-Board Main

K-Board IR/LED/AI

P-Board Power supply/SW

4 Specifications

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Power source AC 110-127 V, 60 Hz

Power consumption

Rated power 65 W

Standby power 0.3 W

Display panel

Panel TFT LCD Module with LED Backlight

Visible screen size

(diagonal)

32 inches (80 cm)

Display Resolution 1,049,088 (1,366 (W) ×768 (H))

Speaker output 10 W (5 W + 5 W), 10 % THD

Receiving systems / Band name Digital TV : DVB-T

6 MHz VHF / UHF (Colombia) free-to-air TV broadcast reception

Receiving channels (Analogue TV)

VHF BAND 2-13 (NTSC M USA)

UHF BAND 14-69 (NTSC M USA)

CATV 1-125 (USA CATV)

Aerial input VHF / UHF

Operating Conditions Temperature: 0 °C - 40°C

Humidity: 20 % - 80 % RH (non-condensing)

Dimensions (W ×H ×D)

With Pedestal 29.2 inch ×20.3 inch ×7.3 inch

(741 mm ×515 mm ×184 mm)

TV only 29.2 inch ×17.7 inch ×3.1 inch

(741 mm ×450 mm ×78 mm)

Mass (Net)

With Pedestal 15.4 lb. (7 kg)

TV only 13.2 lb. (6 kg)

Connection terminals

AV IN AUDIO L - R RCA PIN Type ×2 0.5 V[rms]

VIDEO RCA PIN Type ×1 1.0 V[p-p] (75Ω)

COMPONENT Y 1.0 V[p-p] (including

synchronization)

PB/CB, PR/CR±0.35 V[p-p]

DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic

HDMI AV IN TYPE A Connectors ×2

USB USB 2.0 TYPE A Connectors ×1

DC 5 V, Max. 500 mA

5 Service Mode

5.1. How to enter into Service Mode

5.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

5.1.2. Key command

[1] button...Main items Selection in forward direction

[2] button...Main items Selection in reverse direction

[3] button...Sub items Selection in forward direction

[4] button...Sub items Selection in reverse direction

[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

5.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 000

COLOR 36

TINT FE

SUB-BRT 800

BACKLGT FFF

H POS 40

H AMP 0

V POS 0

V AMP 0

A COM 0

WB-ADJ R-GAIN 8D

G-GAIN AE

B-GAIN FF

R-CENT 6C

G-CENT 80

B-CENT A0

OPTION Boot ROM Factory Preset.

STBY-SET 00

EMERGENCY ON

CLK MODE 00

CLOCK FC7

Y/C DELAY DYNAMIC

OPT 1 00000000

OPT 2 11100110

OPT 3 00001001

OPT 4 00000000

EDID-CLK HIGH

SVCR-TOOL 00 See Service tool mode.

DRV CHECK DYNAMIC See DRV Check - USB HDD

Check.

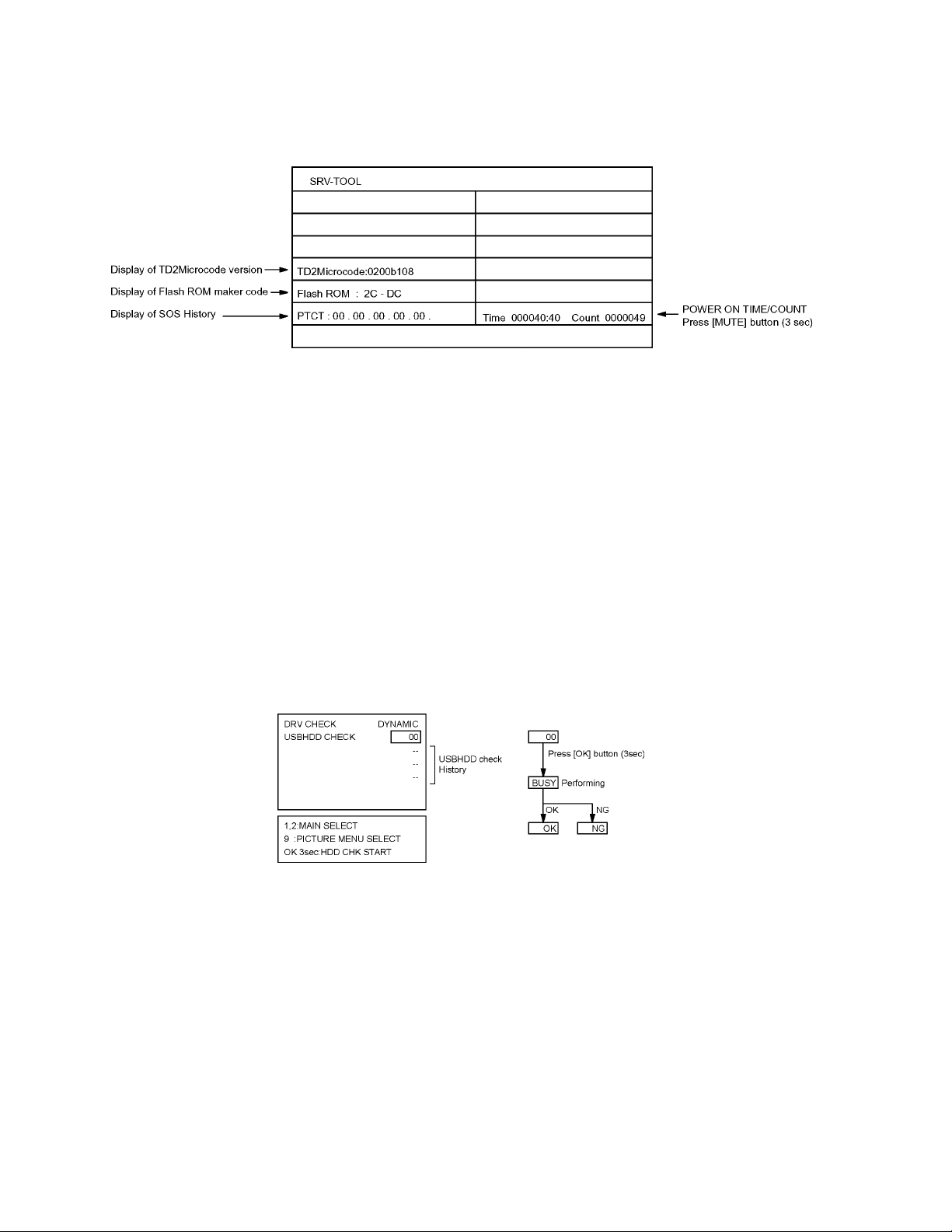

5.2. SRV-TOOL

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED blinking) indication.

From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.

This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory

shipment setting].

5.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.

Time : Cumulative power on time, indicated hour : minute by decimal

Count : Number of ON times by decimal

Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

Disconnect the AC cord from wall outlet or press the [POWER] button on the main unit for 3 seconds to turn off and then turn on

automatically.

5.3. DRV Check - USB HDD Check

1. Select [DRV Check - USBHDD Check] in Service Mode.

2. Press [OK] button on the remote control for more than 3 seconds.

Inhaltsverzeichnis

Andere Panasonic LCD-Fernseher Handbücher

Panasonic

Panasonic Viera TX-26LXD69A Bedienungsanleitung

Panasonic

Panasonic TC-23LX60, TC-26LX60C, TC-26LX60L, TC-32LX60C,... Bedienungsanleitung

Panasonic

Panasonic Viera TH-L32E30A Bedienungsanleitung

Panasonic

Panasonic Viera TX-32LM70FA Bedienungsanleitung

Panasonic

Panasonic TX-20LB5FG Bedienungsanleitung

Panasonic

Panasonic TC-L55WT60W Bedienungsanleitung

Panasonic

Panasonic Viera TX-32LX800A Bedienungsanleitung

Panasonic

Panasonic Viera TH-60CX700A Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LXD71F Bedienungsanleitung

Panasonic

Panasonic VIERA TC-L37E3 Bedienungsanleitung

Panasonic

Panasonic Viera TX-L37V20E Bedienungsanleitung

Panasonic

Panasonic Vieta TX-26LXD70A Bedienungsanleitung

Panasonic

Panasonic Viera TX-37LZD800F Bedienungsanleitung

Panasonic

Panasonic Viera TH-L32X20Z Bedienungsanleitung

Panasonic

Panasonic Viera TC-L32C22 Bedienungsanleitung

Panasonic

Panasonic TH-L32A10X2 Bedienungsanleitung

Panasonic

Panasonic VIERA TX-40CS520E Bedienungsanleitung

Panasonic

Panasonic TX-32LX800M-MALAYSIA Bedienungsanleitung

Panasonic

Panasonic VIERA TC-L32E5X Bedienungsanleitung

Panasonic

Panasonic TX-42LZ80X Bedienungsanleitung

Panasonic

Panasonic Viera TC-26LE70 Bedienungsanleitung

Panasonic

Panasonic Viera TC-L42E30H Bedienungsanleitung

Panasonic

Panasonic TX-20LA2M Bedienungsanleitung

Panasonic

Panasonic SuperFlat CT-27SF26 Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Samsung

Samsung LA32E420 Leitfaden

Dell

Dell W1900 19 Gebrauchsanweisung

Samsung

Samsung LN40C670M1F Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung
