Panasonic Viera TH-L32C3K Bedienungsanleitung

Operating Instructions

LCD TV

BHP

TQB4GC0650-1

Thank you for purchasing this Panasonic product.

Please read these instructions before operating your set and retain

them for future reference.

The images shown in this manual are for illustrative purposes only.

Model No.

TH-L32C3K

TH-L32C3M

TH-L32C3T

TH-L32C3X

English

TH-L32C3KMTX_EN.indd 1TH-L32C3KMTX_EN.indd 1 6/16/2011 9:55:40 AM6/16/2011 9:55:40 AM

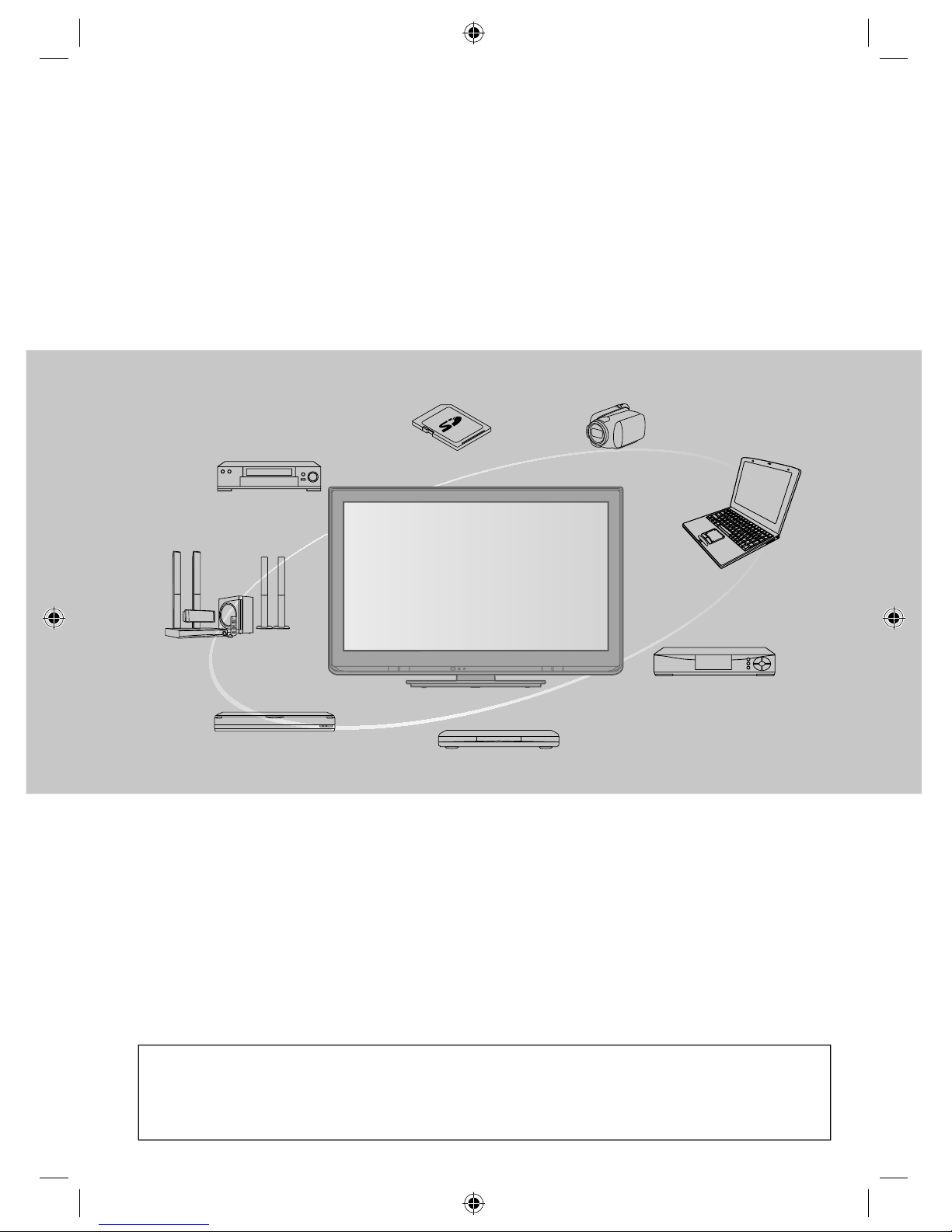

Enjoy rich multimedia

Camcorder

Amplifier with

Speaker system

VCR

DVD Player

Blu-ray Disc Player

DVD Recorder

Set top box

SD Card

Personal computer

Experience an amazing level of

multimedia excitement

Sharp pictures with HDMI terminal

Create home theatre and DVD recorder link-ups with “VIERA Link” without

complicated settings!

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a

consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video

that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from

a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

TH_L32C3KMTX_EN.indd 2TH_L32C3KMTX_EN.indd 2 3/17/2011 3:45:40 PM3/17/2011 3:45:40 PM

Contents

Be Sure to Read

Safety Precautions ······························ 4

(Warning / Caution)

Notes················································ 5

Quick Start Guide

Accessories / Options ·························· 6

Basic Connection ································ 9

Identifying Controls·····························10

Auto Tuning·······································12

Basic Features

Watching TV······································13

Viewing Teletext ·································16

Watching External Inputs ·····················18

How to Use VIERA TOOLS ··················19

How to Use the Menu Functions············20

Advanced Features

Tuning and Editing Channels ················27

Child Lock·········································29

Input Labels ······································30

Shipping Condition (Reset settings) ·······31

Using Media Player·····························32

VIERA Link Functions ·························41

External Equipment ····························47

Technical

Technical Information ··························50

FAQs ···············································56

Maintenance ·····································58

Specifications ····································59

HDMI, the HDMI Logo and

High-Definition Multimedia

Interface are trademarks or

registered trademarks of HDMI

Licensing LLC in the United

States and other countries.

“AVCHD” and the “AVCHD”

logo are trademarks of

Panasonic Corporation and

Sony Corporation.

Manufactured under license

from Dolby Laboratories.

Dolby and the double-D

symbol are trademarks of

Dolby Laboratories.

DivX®, DivX Certified®

and associated logos are

trademarks of DivX, Inc. and

are used under license.

QuickTime and the QuickTime

logo are trademarks or

registered trademarks of

Apple Inc., used under license

therefrom.

SDXC Logo is a trademark of

SD-3C, LLC.

VGA is a trademark of International Business

Machines Corporation.

S-VGA is a registered trademark of the Video

Electronics Standard Association.

HDAVI Control™ is a trademark of Panasonic

Corporation.

Macintosh is a trademark of Apple Inc.

Windows is a registered trademark of Microsoft

Corporation in the United States and/or other

countries.

License

Even if no special notation has been made of

company or product trademarks, these trademarks

have been fully respected.

TH_L32C3KMTX_EN.indd 3TH_L32C3KMTX_EN.indd 3 3/17/2011 3:45:40 PM3/17/2011 3:45:40 PM

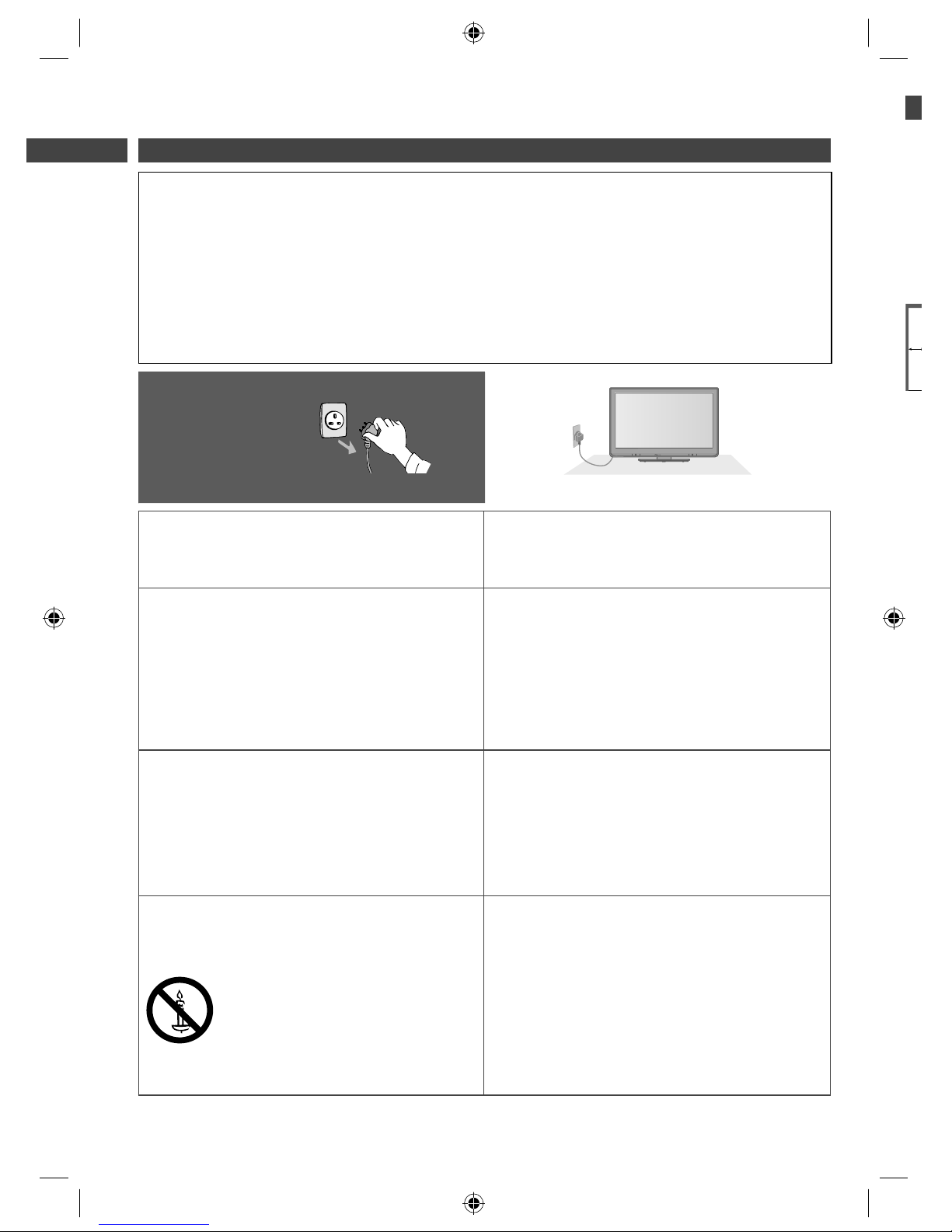

Safety Precautions

Handling the mains plug and lead

●Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat

and cause fire.)

●Ensure that the mains plug is easily accessible.

●Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

●Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

●Do not move the TV with the lead plugged in the socket outlet.

●Do not place a heavy object on the lead or place the lead near a high-temperature object.

●Do not twist the lead, bend it excessively, or stretch it.

●Do not pull on the lead. Hold onto the mains plug body when disconnecting the lead.

●Do not use a damaged mains plug or socket outlet.

If you find any

abnormality, remove

the mains plug

immediately!

●Mains plug types vary between countries.

AC Auto

110-240 V,

50 / 60 Hz

Warning T

●

●I

●

Power source / Installation

●This TV is designed for:

●AC Auto 110 - 240 V, 50 / 60 Hz

●Table top use

Do not insert foreign objects into the TV

●Do not allow any objects to drop into the TV

through the air vents. (Fire or electrical shock

may result.)

Do not remove covers and NEVER

modify the TV yourself

●Do not remove the rear cover as live parts are

accessible when it is removed. There are no

user serviceable parts inside. (High-voltage

components may cause serious electrical

shock.)

●Have the TV checked, adjusted, or repaired at

your local Panasonic dealer.

Do not place the TV on sloped or

unstable surfaces

●The TV may fall off or tip over.

Do not expose to rain or excessive

moisture

●To prevent damage which might result in

electric shock or fire, do not expose this TV to

rain or excessive moisture. This TV must not

be exposed to dripping or splashing water and

objects filled with liquid, such as vases, must

not be placed on top of or above the TV.

Use only the dedicated pedestals /

mounting equipment

●Using an unapproved pedestal or other fixtures

may make the TV unstable, risking injury. Be

sure to ask your local Panasonic dealer to

perform setup.

●Use approved pedestals (p. 6) / wall-hanging

brackets (p. 6).

Do not expose to direct sunlight and

other sources of heat

●Avoid exposing the TV to direct sunlight and

other sources of heat.

Do not allow children to handle SD Card

●As with any small object, SD Cards can be

swallowed by young children. Please remove

SD Card immediately after use and store out of

reach of children.

To prevent the spread

of fire, keep candles

or other open flames

away from this

product at all times

TH_L32C3KMTX_EN.indd 4TH_L32C3KMTX_EN.indd 4 3/17/2011 3:45:40 PM3/17/2011 3:45:40 PM

Caution

Safety Precautions | Notes

This appliance is intended for use in tropical climates

When cleaning the TV, remove the mains plug

●Cleaning an energised TV may cause electrical shock.

When the TV is not going to be used for a long period of time, remove the mains plug

●This TV will still consume some power even in the Off mode, as long as the mains plug is still

connected to a live socket outlet.

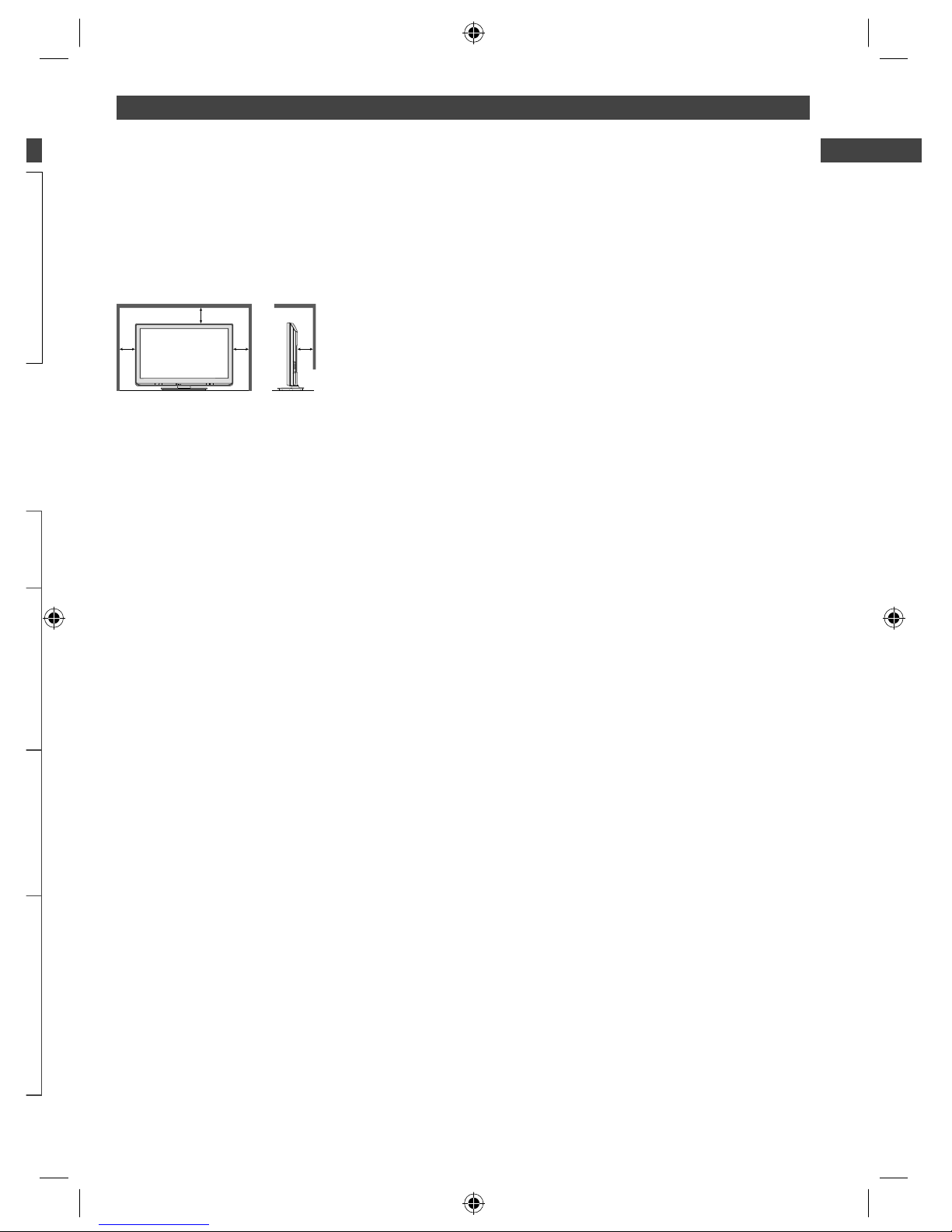

Allow sufficient space around the TV for radiated heat

Minimum distance

10 10

(cm)

●When using the pedestal, keep the space between the bottom of the

TV and the surface where the TV is set.

●If using a Wall-hanging bracket, refer to its manual.

Do not block the rear air vents

●Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical

shock.

Do not apply strong force or impact to the display panel

●This may cause damage resulting in injury.

Do not expose your ears to excessive volume from the headphones

●Irreversible damage can be caused.

Notes

Auto power standby function

●The TV will automatically go to Standby mode in the following conditions:

●no signal is received and no operation is performed for 30 minutes in TV mode

●[Off Timer] is active in the Setup Menu (p. 13)

●no operation is performed for the period selected in [Auto Standby] (p. 26)

Keep the TV away from these types of equipment

●Electronic equipment

In particular, do not place video equipment near the TV. Electromagnetic interference may distort

images / sound.

●Equipment with an infrared sensor

This TV also emits infrared rays. This may affect operation of other equipment.

Transport only in upright position

TH_L32C3KMTX_EN.indd 5TH_L32C3KMTX_EN.indd 5 3/17/2011 3:45:41 PM3/17/2011 3:45:41 PM

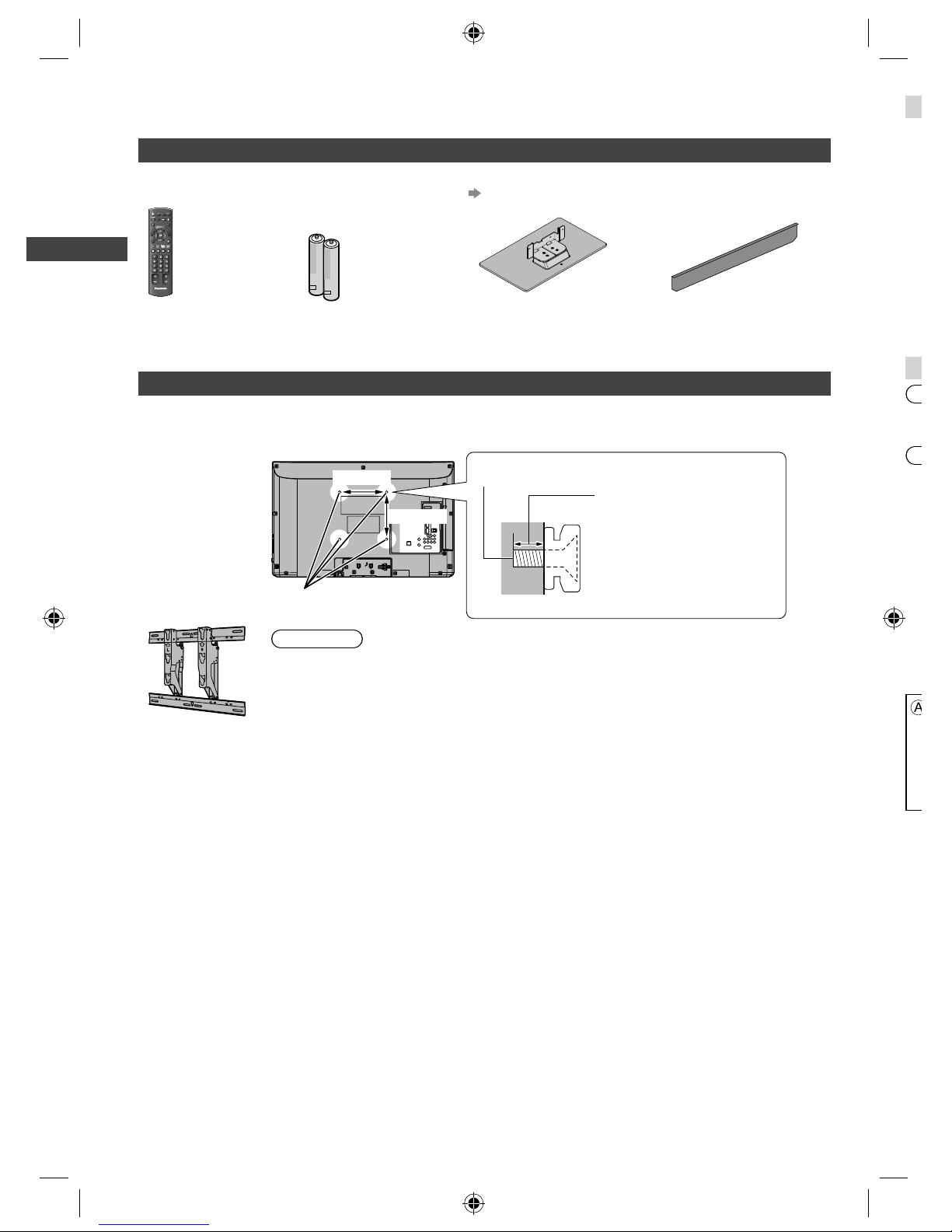

Accessories / Options

Remote Control

●N2QAYB000602

EXITINFO

OPTION

TEXT F.P.

INDEX HOLD

RETURN

SURROUND

INPUT

MUTE

LAST VIEW

AVTVPC

ASPECT

RGYB

POWER

VOL

EXITINFO

OPTION

TEXT F.P.

INDEX HOLD

RETURN

SURROUND

INPUT

MUTE

LAST VIEW

AVTVPC

ASPECT

RGYB

POWER

VOL

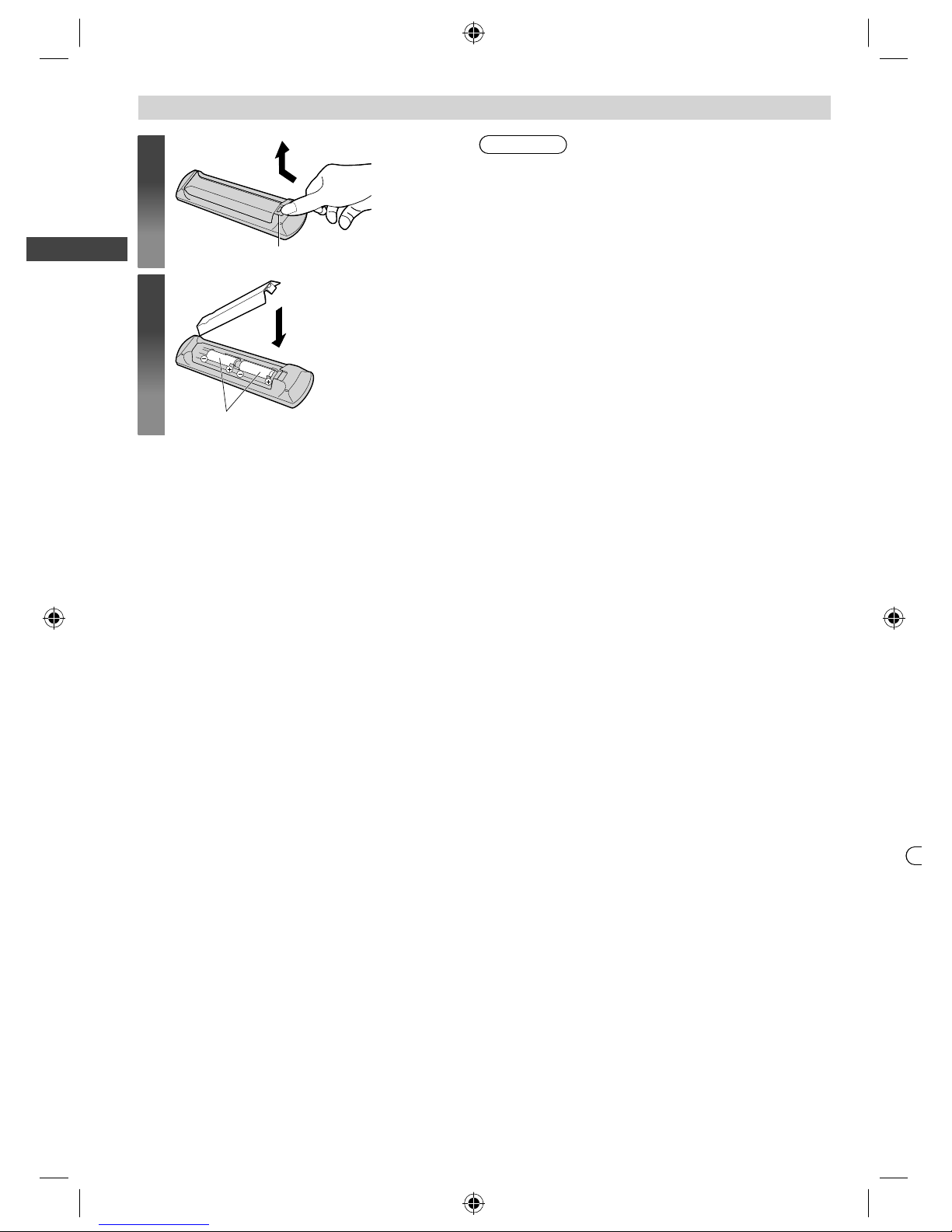

Batteries for the

Remote Control (2)

●R6 (AA)

Pedestal

(p. 7)

Pedestal hole cover sheet

(Not applicable for

TH-L32C3M)

Operating Instructions

●This product contains possibly dangerous parts (such as plastic bags), which can be breathed in or

swallowed by young children accidentally. Keep these parts out of reach of young children.

Standard accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For

additional details, please refer to the manual of the optional accessories.

Wall-hanging

bracket

●TY-WK3L2RW

The angle of

wall-hanging

bracket can be

adjusted in “zero

tilting (vertical)”

and “5 or

10-degree tilting”

for this TV. (View from the side)

Holes for wall-hanging

bracket installation

Depth of screw:

minimum 7 mm

maximum 13 mm

Screw Thread Type: M4

Screw for fixing the TV onto the wall-hanging

bracket (not supplied with the TV)

200 mm

Rear of the TV

Warning

●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself

pose the risk of personal injury and product damage. In order to maintain the

unit’s performance and safety, be absolutely sure to ask your dealer or a licensed

contractor to secure the wall-hanging brackets. Any damage caused by installing

without a qualified installer will void your warranty.

●Do not mount the unit directly below ceiling lights (such as spotlights, floodlights

or halogen lights) which typically give off high heat. Doing so may warp or damage

plastic cabinet parts.

●Take care when fixing wall brackets to the wall. Always ensure that there are no

electrical cables or pipes in the wall before hanging bracket.

●To prevent fall and injury, remove the TV from its fixed wall position when it is no

longer in use.

Optional accessories

●

●I

●

TH_L32C3KMTX_EN.indd 6TH_L32C3KMTX_EN.indd 6 3/17/2011 3:45:41 PM3/17/2011 3:45:41 PM

Accessories / Options

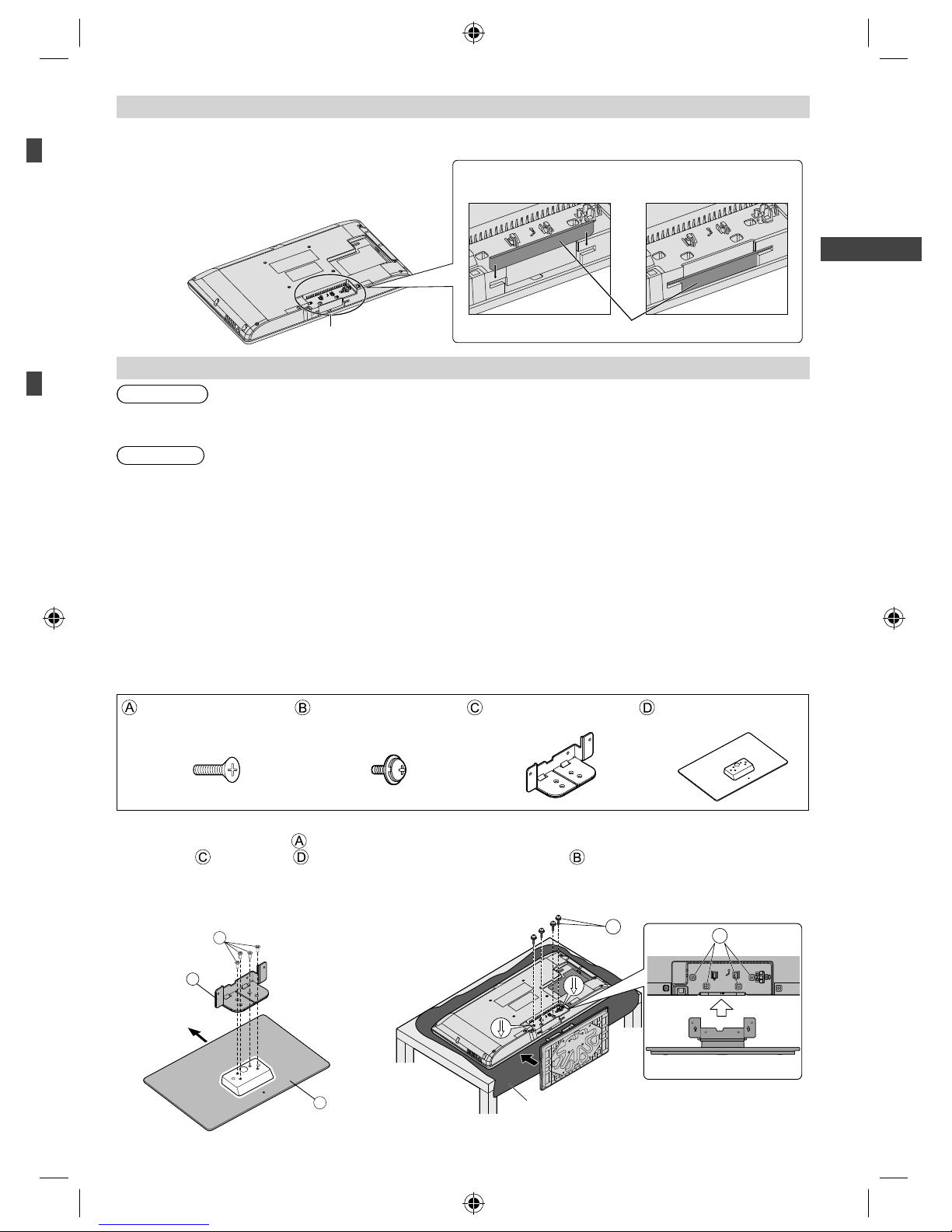

Installing the pedestal hole cover sheet (Not applicable for TH-L32C3M)

You need to install the pedestal hole cover sheet only if you opt to mount your TV on the wall.

1Slide the cover sheet into the pedestal hole area

until it locks into place (follow the arrows as

shown in Figure A).

2The final condition after installation is shown in

Figure B.

Pedestal hole cover sheet

Make sure the cover sheet has covered all area

of the pedestal hole.

Installation area

Figure A Figure B

Attaching the pedestal

Warning

Do not disassemble or modify the pedestal.

●Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than that provided with this TV.

●Otherwise the TV or the display may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

●If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest

Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

●If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will

not be strong enough to support the TV, and it might fall over and become damaged, and personal

injury may result.

Ensure that the TV does not fall over.

●If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and

personal injury may result.

Two or more people are required to install and remove the TV.

●If two or more people are not present, the TV may be dropped, and personal injury may result.

Assembly screw (4)

(black)

Assembly screw (4)

(black)

Bracket Base

Assembling the pedestal

Use the assembly screws to fasten

the bracket to the base securely.

●Make sure that the screws are

securely tightened.

●Forcing the assembly screws the

wrong way will strip the threads.

Securing the TV

Insert the bracket into the TV, and then fasten securely

with the assembly screws .

●Tighten the four assembly screws loosely at first, then

tighten them firmly to fix securely.

Foam mat or thick soft cloth

Front

TH_L32C3KMTX_EN.indd 7TH_L32C3KMTX_EN.indd 7 3/17/2011 3:45:41 PM3/17/2011 3:45:41 PM

Accessories / Options

●

●I

●

Open

Hook

Note the correct polarity (+ or −)

Caution

●Incorrect installation may cause battery leakage

and corrosion, resulting in damage to the remote

control.

●Do not mix old and new batteries.

●Do not mix different battery types (such as alkaline

and manganese batteries).

●Do not use rechargeable (Ni-Cd) batteries.

●Do not burn or breakup batteries.

●Batteries must not be exposed to excessive heat

such as sunshine, fire or the like.

●Do not disassemble or modify the remote control.

Inserting and removing remote’s batteries

TH_L32C3KMTX_EN.indd 8TH_L32C3KMTX_EN.indd 8 3/17/2011 3:45:42 PM3/17/2011 3:45:42 PM

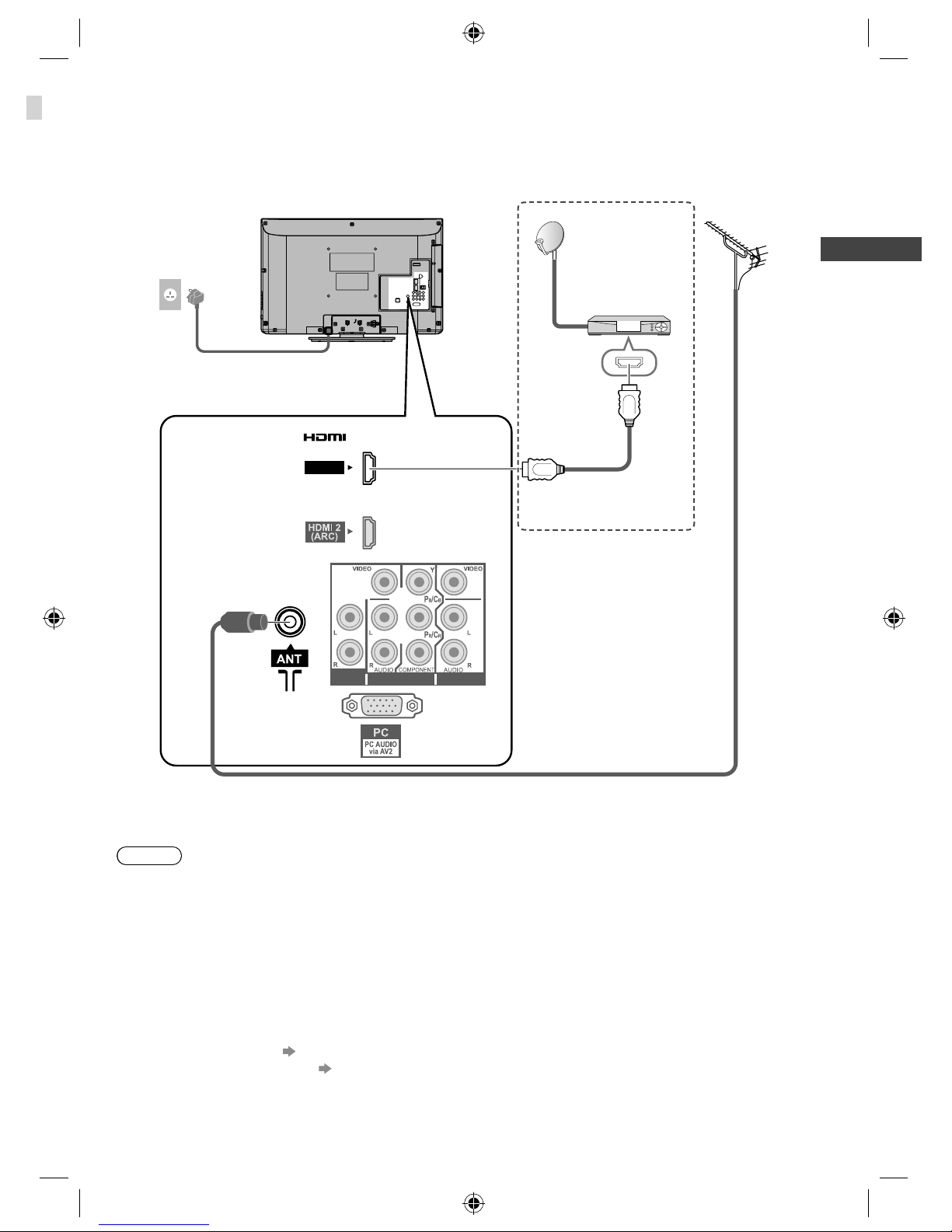

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any

leads.

Note

●Keep some space between the TV and RF cable to prevent distorted image.

●Do not put the RF cable close to the mains lead to avoid noise.

●Do not place the RF cable under the TV.

●To obtain optimum picture and sound quality, an aerial, the correct cable (75 coaxial) and the correct

terminating plug are required.

●If a communal aerial system is used, you may need the correct connection cable and plug between the

wall aerial socket and the TV.

●Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial

system for your area and the accessories required.

●Any matters regarding aerial installation, upgrading of existing systems or accessories required, and

the costs incurred, are the responsibility of you, the Customer.

●VIERA Link connection (p. 41)

●Other equipment connection (p. 47 - 49)

●Read the manual of the equipment, too.

AV IN

HDMI 1

AV1 IN AV2 IN

AUDIO

OUT

Rear of the TV

Mains lead

RF cable

AC Auto

110-240 V,

50 / 60 Hz

Satellite dish

Satellite cable

Aerial

Fully wired HDMI

compliant cable

Set top box

TH_L32C3KMTX_EN.indd 9TH_L32C3KMTX_EN.indd 9 3/17/2011 3:45:42 PM3/17/2011 3:45:42 PM

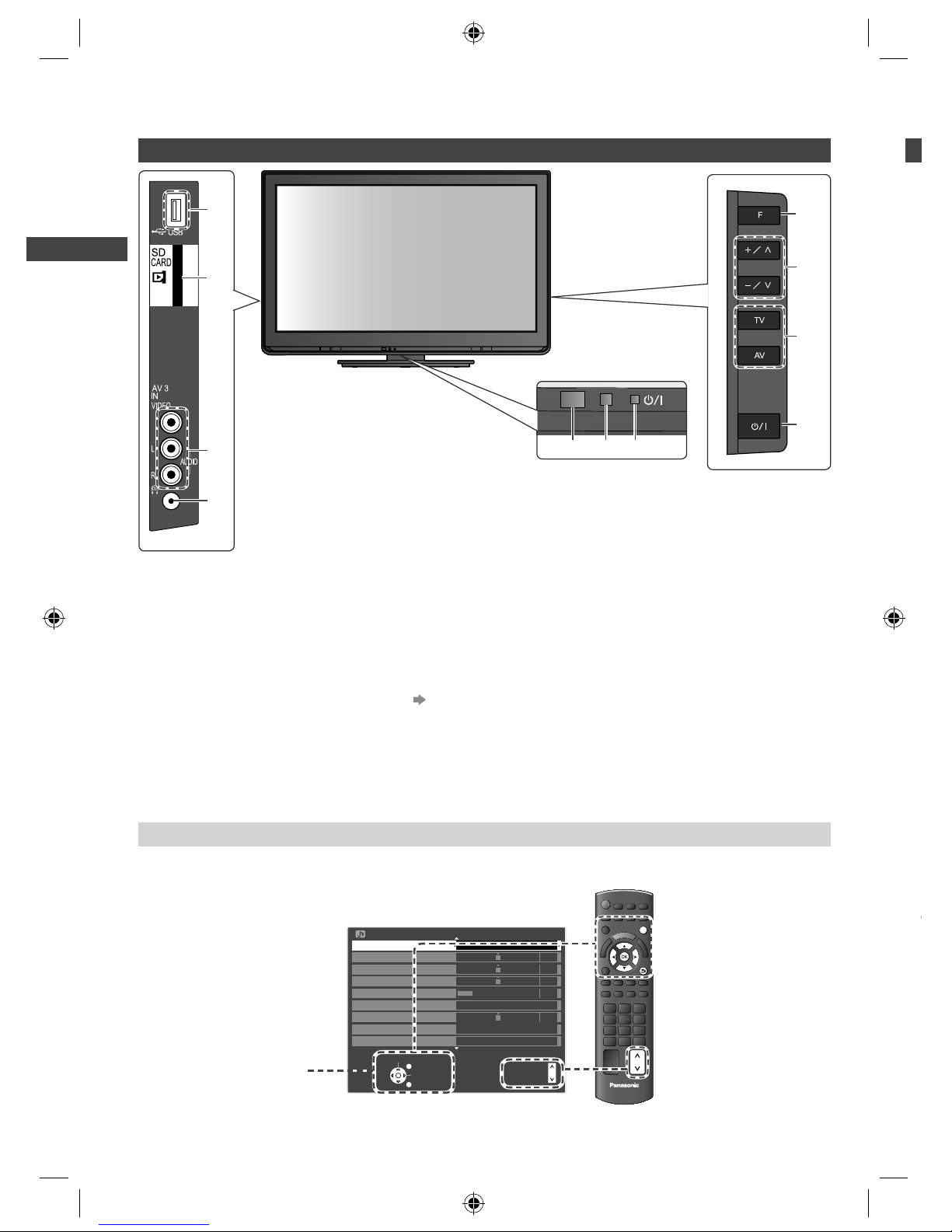

Identifying Controls

1USB port

2SD Card slot

3AV3 terminals

4Headphones jack

5Remote control signal receiver

●Do not place any objects between the

TV remote control signal receiver and

remote control.

6C.A.T.S. (Contrast Automatic Tracking

System) sensor

●Senses brightness to adjust picture

quality when [Eco Mode] in the Picture

Menu is set to [On] (p. 21)

7Power LED

●Red: Standby

Green: On

When using the remote control,

indicates the TV has received a

command.

8Function select

●[Volume] / [Backlight] / [Contrast] /

[Brightness] / [Colour] / [Sharpness] /

[Tint] (NTSC signal) / [Bass]/

[Treble]/ [Balance] / [Auto Tuning]

[Bass] / [Treble] is displayed only when

[Mode] in the Sound Menu is set to

[Music] or [Speech]

(p. 23)

9Channel Up / Down, adjusts settings

(when using the F button), switches the

TV On (press either button for about

1 second when in Standby mode)

10 Changes the input mode

11 Mains power On / Off switch

●Use to switch the TV mains power

On / Off. If you turn your TV to Standby

mode with the remote control (p. 11), and

then turn off the TV mains power, the

TV will be in Standby mode when you

next turn on the mains power.

About the Operation Guide - On-screen Displays

The operation Guide is displayed at the bottom of the On-screen Display.

The buttons for operations and the manner of operations are displayed.

Example: [Sound Menu]

Operation

Guide

Select EXIT

Change

RETURN

Page up

Page down

Sound Menu 1/2

Mode Music

Bass

Treble

Balance

Headphone Volume

Surround

Volume Correction

Speaker Distance to Wall Over 30cm

MPX

Off

Stereo

EXIT

RETURN

567

TH_L32C3KMTX_EN.indd 10TH_L32C3KMTX_EN.indd 10 3/17/2011 3:45:42 PM3/17/2011 3:45:42 PM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic LCD-Fernseher Handbücher

Panasonic

Panasonic TX-L42DT60E Bedienungsanleitung

Panasonic

Panasonic TC22LH1 - 22" WIDE LCD CLR TV Bedienungsanleitung

Panasonic

Panasonic TX-32LXD52 Bedienungsanleitung

Panasonic

Panasonic Viera TC-26LX70 Bedienungsanleitung

Panasonic

Panasonic TXLR42DT60 Bedienungsanleitung

Panasonic

Panasonic TC-50AS660C Bedienungsanleitung

Panasonic

Panasonic Viera TX-47AS750E Bedienungsanleitung

Panasonic

Panasonic TCL42U25 - 42" LCD TV Bedienungsanleitung

Panasonic

Panasonic Viera TX-32CS510B Bedienungsanleitung

Panasonic

Panasonic VIERA TC-L32C3 Bedienungsanleitung

Panasonic

Panasonic Viera TX-L26C20B Bedienungsanleitung

Panasonic

Panasonic Viera TX-L37V20E Bedienungsanleitung

Panasonic

Panasonic TX-L47ET60E Bedienungsanleitung

Panasonic

Panasonic TX-37LZ8P Bedienungsanleitung

Panasonic

Panasonic Viera TX-20LA60F Bedienungsanleitung

Panasonic

Panasonic TX-17LA1M Bedienungsanleitung

Panasonic

Panasonic TX-L37ETW5 Bedienungsanleitung

Panasonic

Panasonic TX-L42DT65B Bedienungsanleitung

Panasonic

Panasonic TCL42U22 - 42" LCD TV Bedienungsanleitung

Panasonic

Panasonic Vieta TX-26LXD70A Bedienungsanleitung

Panasonic

Panasonic TX-26LX1A Bedienungsanleitung

Panasonic

Panasonic Viera TC-26LE70 Bedienungsanleitung

Panasonic

Panasonic TX-47AS802B Bedienungsanleitung

Panasonic

Panasonic TX-P42ST60B Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Samsung

Samsung LA32E420 Leitfaden

Dell

Dell W1900 19 Gebrauchsanweisung

Samsung

Samsung LN40C670M1F Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung
