Panasonic Service and Technology Company
National Training
Technical Guide
2010 Panasonic 3D Plasma TV (13th Generation)
TC-P50VT20
TC-P54VT20
TC-P50VT25
TC-P54VT25
TC-P58VT25
TC-P65VT25
Applies to models:
TTG090507CP\REV090717
Slide 2
Prepared by
Cesar Perdomo
Panasonic Service and Technology Company
National Training
Warning
This service information is designed for experienced repair technicians only and is not designed for use by the
general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in
attempting to service a product. Products powered by electricity should be serviced or repaired only by
experienced professional technicians. Any attempt to service or repair the product or products dealt with in this
service information by anyone else could result in serious injury or death.
Copyright 2009 by Panasonic Service and Technology Company
All rights reserved. Unauthorized copying and distribution is a violation of law.
"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.“
Slide 3
Introduction
The Panasonic 3D Plasma TV uses what’s called “Frame Sequential Method”. By using this
method, the TV outputs alternating imagery at 60 frames per second to each eye. The brain
then combines the images and interprets them as 3D.
The PDP high-speed light emission technology utilized to display high-picture quality full HD
video images for the left and right eyes in frame sequential is unique to Panasonic.
The Panasonic 3D PDP utilizes new phosphor technology for “real deep black and
unsaturated brightness,” and employ proprietary 3D drive technology circuitry to minimize
crosstalk between alternating images.
Slide 4Slide 4
Features/Specifications
Slide 5
Slide 5
Series Line up
TC-P65VT25TC-P58VT25TC-P54VT25
TC-P50VT25
TC-P50VT20
VT SERIES
(FHD Premium 3D)
65”58”54”50”46”42”
MODELSSERIES
Differences between the VT20 and VT25 models
1. The VT25 Series models offer ISFccc (calibrated with an RS232C jack) and Studio reference
mode, and Pro Setting.
ISFccc is a protocol used to help professional (BB ISF) calibrators to adjust the TV for a perfect
picture.
2. RS232C Jack (VT25) for custom installations.
3. The bezel color of the VT20 is gunmetal silver/grey while.
The bezel color of the VT25 Series models is a deep brown metallic.
Slide 6
New Features
Slide 6
Energy Saving (Louver Filter)
Mercury & Lead Free + 100,000 hrs + Eco Mode
Environmentally
Friendly
Metallic
Viera Cast IPTV
Wi-Fi Ready (USB)x2
VIERA Image Viewer (Movie & Photo)
Viera Link
4 HDMI Ports RS232
FHD 3D Dual Scan
Short Stroke Phosphor
THX Certified
Moving Picture 1080 Lines
600Hz Sub-field Drive
Infinite Black Plus (Native CR > 2 Mil:1)
VT20
Stylish Design
Smart Networking
High Picture Quality
VT25
NEW
NEW
NEW
NEW
NEW
Slide 7
Features
Full HD 3D Technology
For a true Full 1080p 3D image, Panasonic’s VT25 Series features new, faster screen phosphors
(short-stroke) which, when coupled with the VIERA VT25’s 600Hz sub-field drive, outputs
alternating imagery at 60 frames per second to each eye. Working in unison with the required
Active Shutter Eyewear, the human brain then combines the images and interprets them as a Full
HD 3D image for the highest possible realistic visual experience; in effect mimicking what the
human eye sees in real life.
Active Shutter Eyewear
All Panasonic VIERA VT25 Series models come with one pair of Panasonic 3D Active Shutter
Eyewear (TY-EW3D10U). Additional pairs of Panasonic 3D Eyewear are available at retail with an
SRP of $149.95.
Infinite Black Pro Panel
A new phosphor technology that produces deep blacks (5,000,000:1 native contrast)2 and vivid
images with minimal reflection.
THX Certified Display
Ensures that every Panasonic Full HD 3D TV displays motion pictures and television content with
exactly the quality and color palette that the director intended.
VIERA CAST WiFi with Skype Capability
Panasonic’s innovative Internet programming package, gives viewers the ability to access feature
films plus information and communication offerings including Amazon Video on Demand™,
Bloomberg News, Fox Sports, Netflix™, and Skype™ on Your VIERA TV3, among others.
Access to a broadband Internet connection is required. Panasonic’s Communication Camera (TY-
CC10W) is required for Skype video functionality and sold separately
All Panasonic VIERA VT25 Series models also feature 600HZ Sub-field Drive, 1080p Lines Moving
Picture Resolution, VIERA Image ViewerTM, VIERA LinkTM Connectivity with Network Cameras,
24p Cinematic Playback, two USB Ports, PC Input, and are ENERGY STAR 4.0 compliant.
Slide 8
Slide 8
Specifications
1EthernetNetwork
Y
Digital Audio
Out
Terminal
Output
RCA/S
(Rear)
AV1 Type
(Position)
Terminal
Input
RCA
(Side)
AV2 Type
(Position)
RCA
(Rear)
Component1
Type (Position)
RCA
(Rear)
Component2
Type (Position)
RearHDMI1 Position
RearHDMI2 Position
RearHDMI3 Position
SideHDMI4 Position
1PC Input
YBBE
YSurroundSound
YSound Control
YBalance Control
Y
Lip Sync
Improvement
VT SERIES
YTHX
w/ Viera CastRemote
Louver
(Direct filter)
Filter
1080 lines
Motion
Reality
Game
Mode
X.V. Color
Deep Color
Gradation
Contrast
(Native)
Resolution
YPicture
Y
Y
6144
Infinite:1
1920X1080
Main
Specification
VT SERIES
VT25 OnlyRS-232C
Viera CastIPTV
2USB
(Wi-Fi Ready)
Other I/F
YSD Card SlotCard I/F
BlueSD Card LED Color
Movie &
SD Function
-DLNAFunction
VT SERIES
Slide 9
FHD 3D Panasonic Consumer Products
TC-P65VT25
TC-P58VT25
DMP-BDT100PPTC-P54VT25
DMP-BDT350PPTC-P50VT25
SC-ZT2DMP-BDT300PPTC-P40VT20
Home
Theater
BD Player3D Plasma TV
Slide 10
New Plasma Display Panel

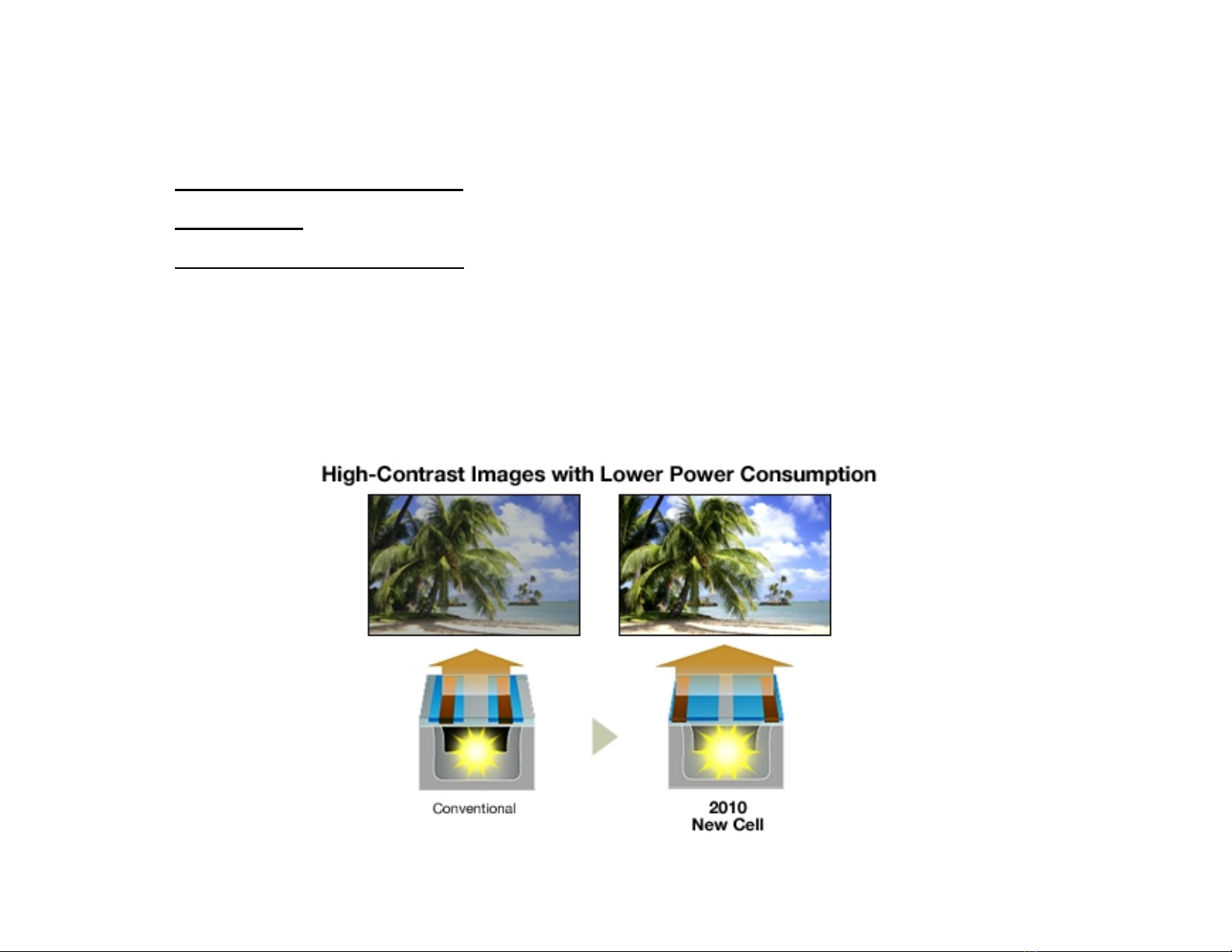

1 - Enlarged Discharge Area (improves brightness and contrast with less power
consumption)
The new cell structure, materials, and phosphors made it possible to enlarge the
discharge area of each cell. This increases both brightness and contrast, so you enjoy a
bright, vibrant picture while using less energy.
Slide 10
The new panel used on the 2010 3D plasma TVs has 3 areas of improvement:
1. Enlarge discharge area.
2. New filter.
3. Reduced pre-discharge.
