Panasonic KX-T7030 Bedienungsanleitung

Panasonic

Proprietary Telephone for

Electronic Modular Switching System

MODEL NO.

KX-17030

Illustrated Model: White 1

KX-T7030 is compatible with all of the Panasonic Electronic Modular

Switching Systems and can perform most functions within each system.

Please read before use.

Important Safety Instructions

When using your telephone

equipment, basic safety

precautions should always be

followed to reduce the risk of fire,

electric shock and injury to

persons, including the following:

1. Read and understand all

instructions.

2. Follow all warnings and

instructions marked on the

product.

3. Unplug this product from the

wall outlet before cleaning.

Do not use liquid cleaners or

aerosol cleaners. Use a damp

cloth for cleaning.

4. Do not use this product near

water, for example, near a

bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet

basement, or near a

swimming pool.

5. Do not place this product on

an unstable cart, stand, or

table. The product may fall,

causing serious damage to

the product.

6. Slots and openings in the

cabinet and the back or

bottom are provided for

ventilation, to protect it from

overheating, these openings

must not be blocked or

covered. The openings

should never be blocked by

placing the product on the

bed, sofa, rug, or other similar

-1

surface. This product should

never be placed near or over

a radiator or heat register.

This product should not be

placed in a built-in installation

unless proper ventilation is

provided.

7. Do not allow anything to rest

on the telephone cord. Do not

locate this product where the

cord will be abused by

persons walking on it.

8. Do not overload wall outlets

and extension cords as this

can result in the risk of fire or

electric shock.

9. Never push objects of any

kind into this product through

cabinet slots as they may

touch dangerous voltage

points or short out parts that

could result in a risk of fire or

electric shock. Never spill

liquid of any kind on the

product.

10. To reduce the risk of electric

shock, do not disassemble

this product, but take it to a

qualified serviceman when

some service or repair work is

required. Opening or

removing covers may expose

you to dangerous voltages or

other risks. Incorrect

reassembly can cause

electric shock when the

appliance is subsequently

used.

11. Unplug this product from the

wall outlet and refer servicing

to qualified service personnel

under the following conditions:

A. When the power supply

cord or plug is damaged or

frayed.

B. If liquid has been spilled

into the product.

C. If the product has been

exposed to rain or water.

D. If the product does not

operate normally by

following the operating

instructions. Adjust only

those controls, that are

covered by the operating

instructions because

improper adjustment of

other controls may result in

damage and will often

require extensive work by

a qualified technician to

restore the product to

normal operation.

E. If the product has been

dropped or the cabinet has

been damaged.

F. If the product exhibits a

distinct change in

performance.

12. Avoid using a telephone

(other than a cordless type)

during an electrical storm.

There may be a remote risk of

electric shock from lightning.

13. Do not use the telephone to

report a gas leak in the

vicinity of the leak.

SAVE THESE

INSTRUCTIONS

Included accessories

Handset............... one

Telephone line cord . . . . one

Handset cord . . . . . . . . . . . one

Card holder with memory

station card . . . . . . . . . . one

Overlay . . . . . . . . . . . . . . . one

-2-

Thank you for purchasing the Panasonic Telephone.

Table of Contents

Important safety instructions ................. .I

Connection ............................... .

Initial setting ............................. .4

Location of controls ........................ .5

Using overlay ............................. .7

Installing the card holder .................... .8

Wall mounting ............................ .9

Important information

....................... 10

Accessory order information .......... Back cover

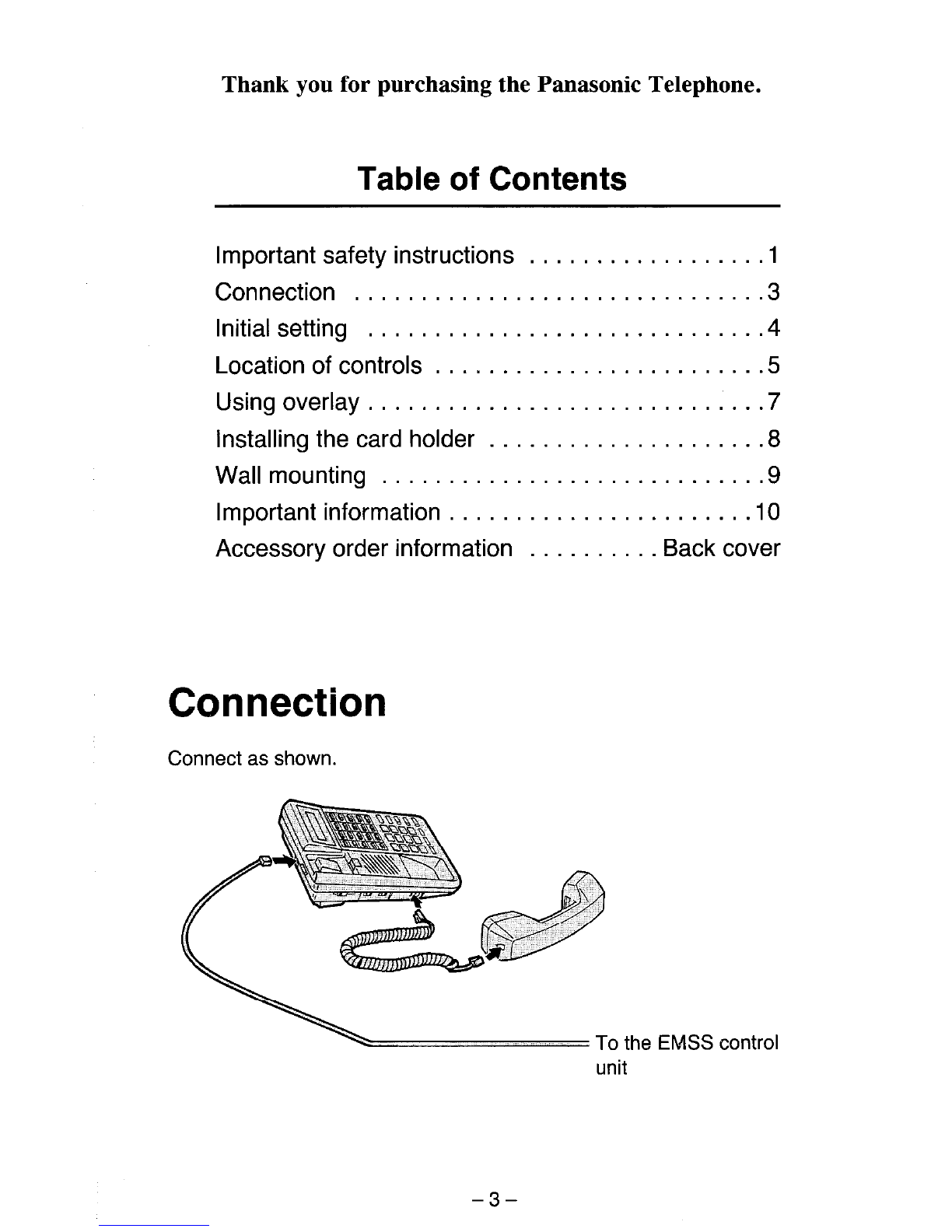

Connection

Connect as shown.

To the EMSS control

unit

-3-

Initial setting

I-

HANDSET VOLUME Selector:

To adjust the volume level of the handset.

NORMAL: Normal voice

HIGH: Loud voice

RINGER VOLUME Selector:

To adjust the volume level of the ringer.

HIGH: Loud ringer

LOW: Low ringer

OFF: No ringer

VOLUME Control:

To adjust the volume level of the speaker volume.

MAX: Loud voice

MIN: Low voice

MEMORY Switch:

Set to “SET”.

For station programming, set to “PROGRAM”.

HANDSET/HEADSET Selector:

Set to “HANDSET”.

For connecting the headset, set to “HEADSET”.

CONTRAST Selector:

To adjust the contrast of the Liquid Crystal Display.

-4-

Location of controls

---a

-a

--a

-0

-----a

----@

KX-T7030 is compatible with the Panasonic Electronic Modular

Switching Systems and can perform most functions within each

system.

-5-

@ INTERCOM Button and

Indicator:

Used for making or receiving

an intercom call.

@CONFERENCE Button and

Indicator:

Used for speaking with three

parties at the same time.

@ REDIAL Button:

Redials the last number

dialed.

@ FLASH Button:

Used for sending the hook

flash signal to the CO line.

@ LCD (Liquid Crystal Display)

@ Programmable Feature Buttons:

Dials or accesses the system

feature with one touch.

@ Flexible CO Line Buttons and

Indicators*:

Used for dialing via CO line,

Direct Station Selection, or

Programmable Feature

buttons.

@ Flexible Message Waiting

Button and Indicator*:

Used for Message Waiting,

Direct Station Selection, or

Programmable Feature button.

@ FWD/DND Button and Indicator:

Sets or cancels the Call

Forwarding/Do Not Disturb

feature.

@TRANSFER Button:

Transfers a call to any

extension.

0 PAUSE Button:

Inserts a pause between the

access number and the

phone number.

@IAUTO DIAL/STORE Button

and Indicator:

Used for dialing the system

speed dialing/For storing

functions into memory.

@AUTO ANSWER/MUTE Button

and Indicator:

Used for answering an

intercom call automatically/

For muting your voice in

hands-free mode.

@ISP-PHONE Button and

Indicator:

Used for making or receiving

a call without using the

handset.

@ HOLD Button:

Places a call on hold.

*These functions are limited to the

specified EMSS Control Units.

Refer to the manual.

-6-

Using overlay

When you set the system programming data, the function of the KX-T7030

connected to your EMSS unit will change as follows.

SECRET

47-

CLEAR

PAUSE

STORE/AUTO

SELECT

-7-

Installing the card holder

Line up the marks (b) on

the card holder and ones on

the slide rails of the unit.

Push the two shaded

portions slightly and insert

the edges of the holder

under the slide rails and

then slide down toward

arrow “A”.

Removing the card holder:

Push the card holder toward

arrow “B” while keeping the tip

of the holder pulled toward arrow

“C”.

-8-

Wall mounting

This unit can be mounted on the wall phone plate.

Turn the handset hook

upside down.

Place the stand on the

center of the unit.

Remove the attached stand.

Mount the unit on the wall

phone plate.

shows UP for WALL.

To temporarily place the handset

down during a conversation, hook

as shown.

-9-
