Panasonic KX-TA824 Bedienungsanleitung

Advanced Hybrid System

User Guide

for KX-T77 Series

Model No.

KX-TA824

Please read this guide before using and save for future reference.

Features List

Outside (CO) Line button Feature number

Talk

Off-hook On-hook *

"Location of Controls" is shown on page 9.

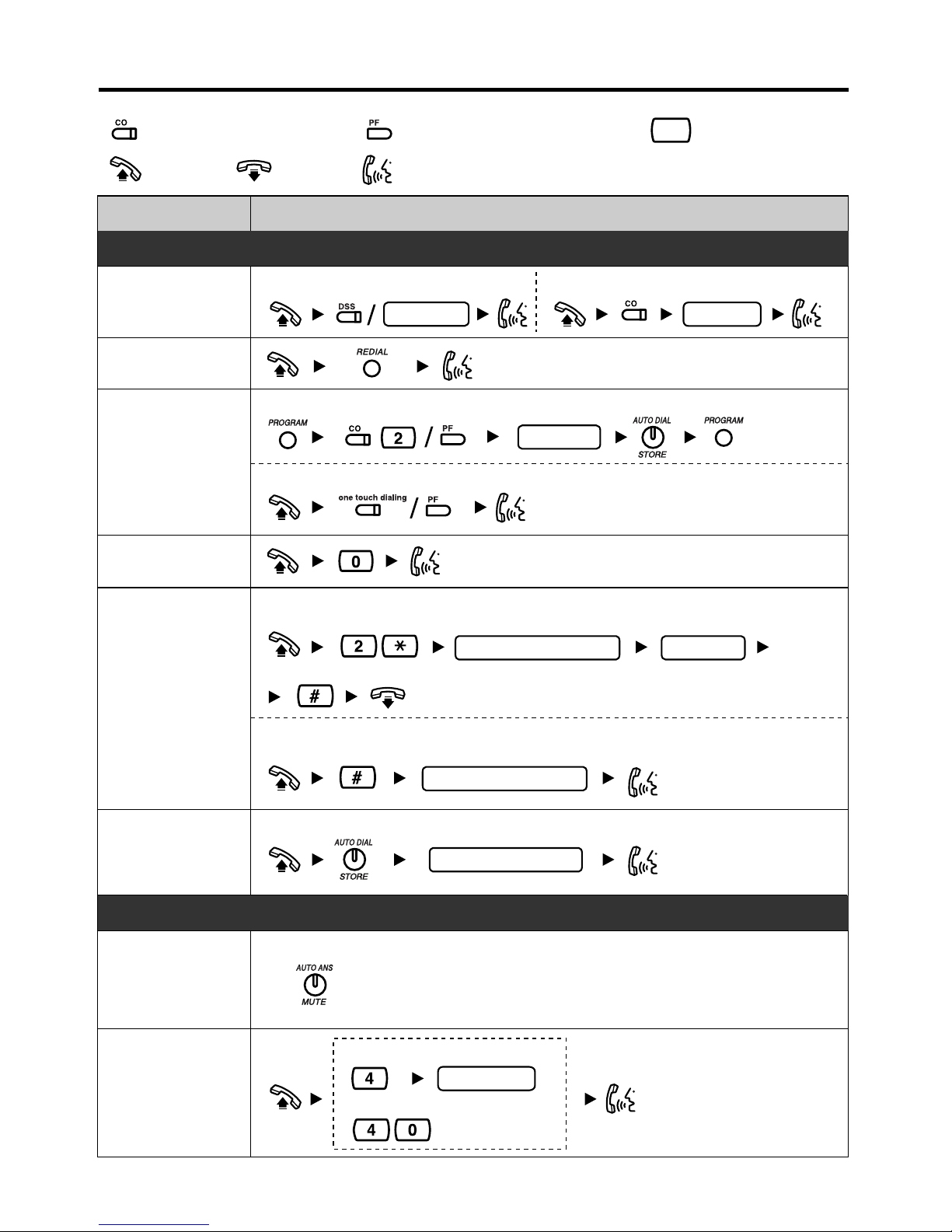

Desired Feature Operation

Calling

To store

personal speed dial no.

Redial

One-Touch

Dialing

Speed Dialing

(Personal)

To an extension To an external party

phone no.

extension no.

To program

To dial

desired no.

Calling an

operator

desired no.

To dial

personal speed dial no.

Programmable Feature button

Speed Dialing

(System)

system speed dial no.

To dial

Making Calls

Receiving Calls

– 2 –

While on-hook

Handsfree

answerback

(Other than

KX-T7750)

Picking up

a call Group

Directed

extension no.

Features List

Desired Feature

Operation

To set

While hearing a busy tone

To call

If you hear callback ringing

Automatic

Callback Busy

When the Dialed Extension is Busy/No Answer

Receiver

Sender

To leave a notification

To cancel a notification

To call back

To clear all notifications

Message

Waiting

receiver's extension no.

– 3 –

Call Waiting

Set

Cancel

For outside calls

Set

Cancel

For intercom calls

Receiver

Sender

While hearing a busy tone

Wait for an answer.

To talk to the new party

Terminating a current status

While hearing the Call Waiting tone

Holding a current status

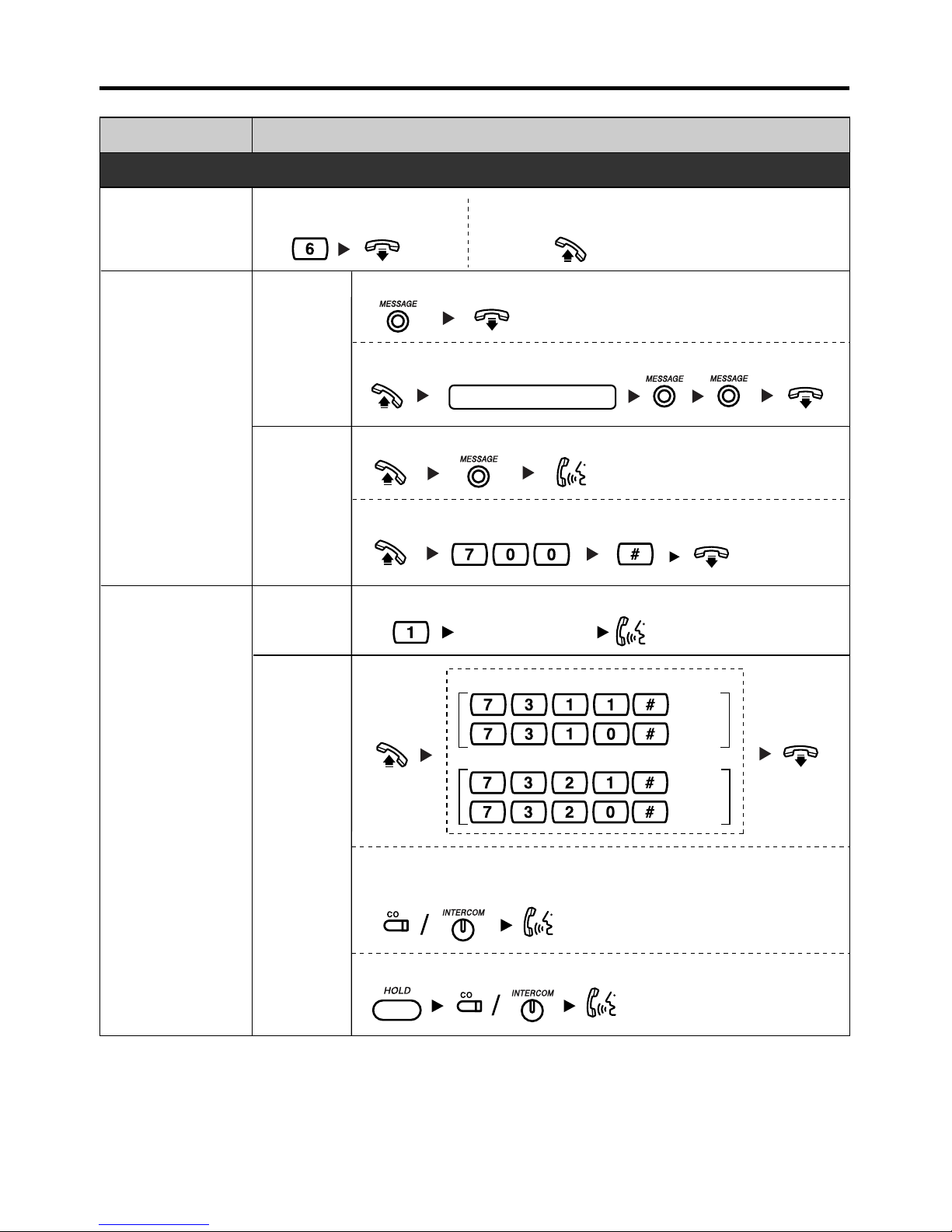

Features List

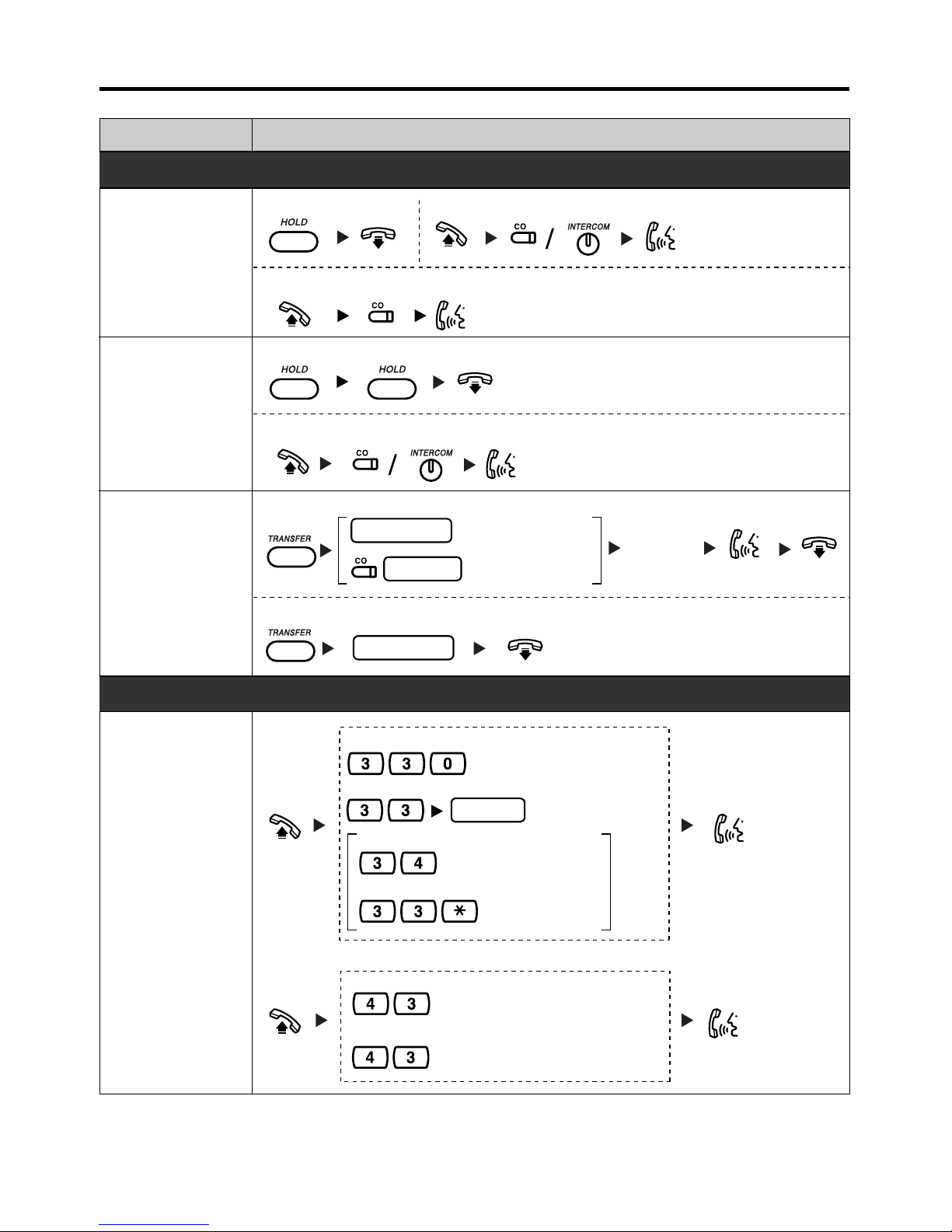

Desired Feature Operation

Wait for

an answer.

During a Conversation

Holding To retrieve a call at the holding extension

To retrieve an outside call from another extension

To retrieve a call on exclusive hold

Holding

Screened

extension no.

To an extension

phone no.

To an external party

(System programming

is required.)

Announce.

Holding a call

exclusively

Transferring

a call Unscreened

to an extension

extension no.

– 4 –

Useful Features

Paging

Announce.

All extensions

Group

All external speakers

All extensions & external speakers

group no.

To answer an announced page

From a telephone speaker

From an external speaker

To page

Features List

Desired Feature Operation

Useful Features

third party's no.

Three-party

conference

Setting Absent

Message

parameter

(if required)

message no.

To set

To cancel

– 5 –

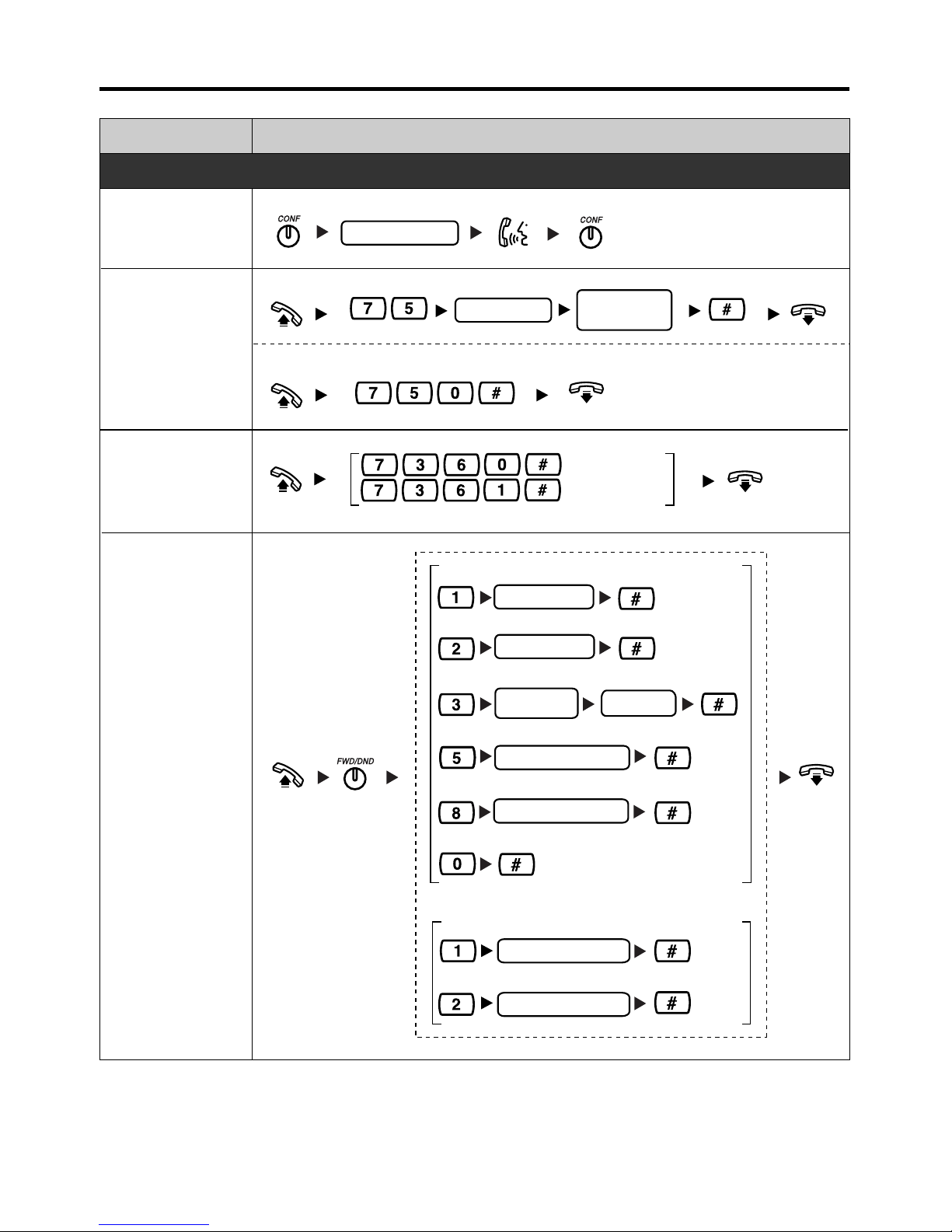

Log-In/Log-Out

For Log-In

For Log-Out

To an outside line

Cancel

Busy/No answer

All calls extension no.

extension no.

Follow Me

your extension no.

Cancel Follow Me

your extension no.

phone no.

line access

code

Busy/No answer

All calls

VPS extension No.

Forwarding

a call

To Voice Mail

VPS extension No.

Features List

Desired Feature Operation

Useful Features

lock code lock code

lock code

Lock

Unlock

Set

Cancel

Locking your

extension

Clearing the

setting

7 7

7 7 #

7 9 #

Do Not Disturb

(DND) #

(Lock code is 4 digits.)

– 6 –

Features List

Desired Feature Operation

To Make Use of Voice Mail Service

Listening

Message

From

someone

else's

extension

From your

Own

Extension

– 7 –

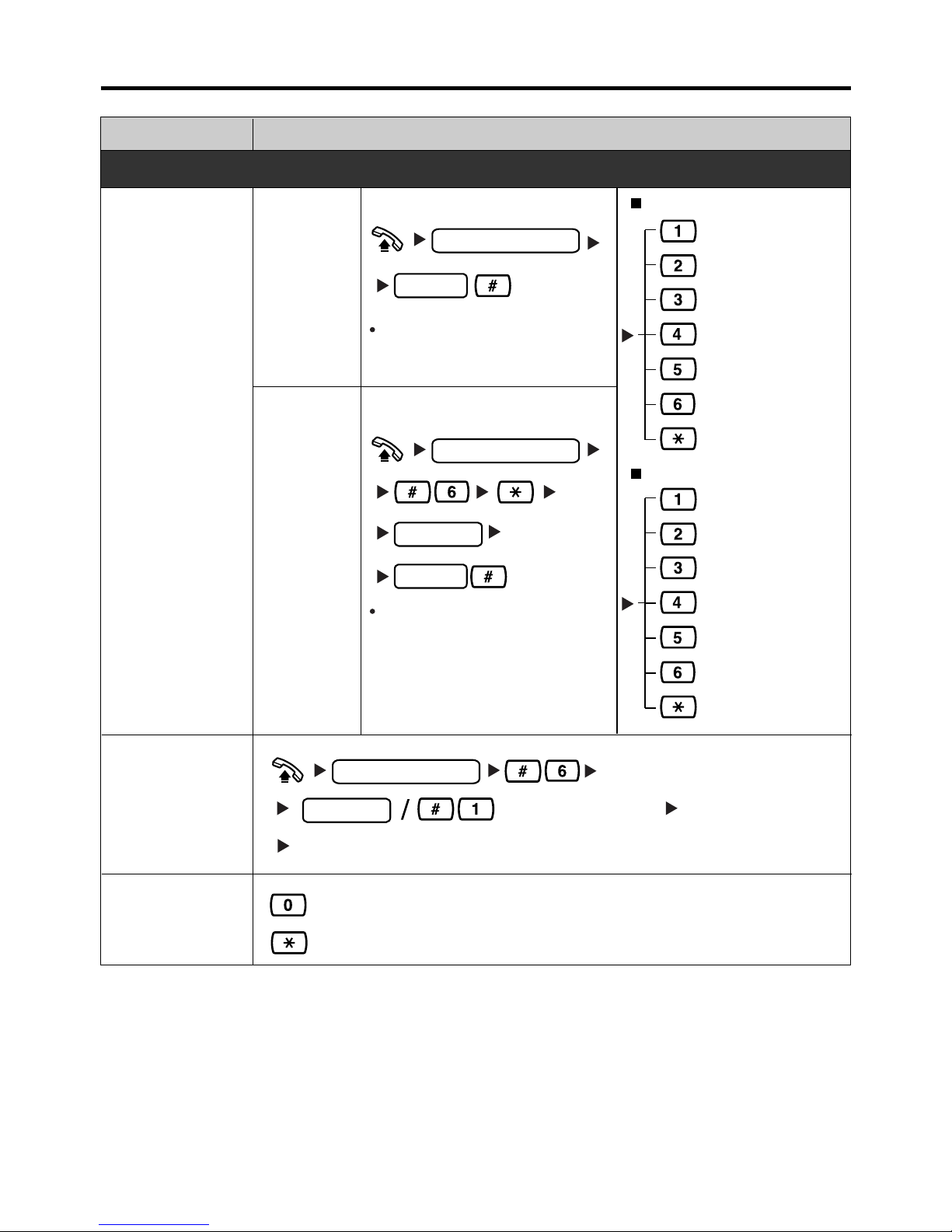

Extension No. of the VPS

Password

If you have no password, you can

skip the last step.

Extension No. of the VPS

Mailbox No.

Password

Leaving

Message

Extension No. of the VPS

Mailbox No.

first 3 or 4 of name

Leave Message

During

Playback Repeat Voice Guidance

Exit Menu

If you have no password, you can

skip the last step.

Listen to Message

KX-TVA series

Deliver Message

Mailbox Management

Automated Attendant

Message Notification

Other Features

End Call

Listen to Message

Deliver Message

Check Mailbox

Distribution

Automated Attendant

Mailbox Management

Other Features

End Call

KX-TVS series

*The backlit display is only available on the KX-T7730/7731/7735/7736.

*The KX-T7750 does not have a microphone.

*The headset is an option. Recommended headsets are

KX-TCA91 and KX-TCA92.

Headset Jack

LCD (Liquid Crystal Display)

RINGER Volume Selector/

BACKLIGHT

Illumination Selector

Microphone

BACKLIGHT

RINGER

10 1311 12

Location of Controls

– 8 –

TRANSFER: Used to transfer a call to

another party.

9DIALING BUTTONS WITH BACKLIGHT

(KX-T7731/36): Dialing buttons are backlit

when (1) you receive a call, (2) during a

conversation, or (3) when BGM is activated

at your phone.

HOLD: Used to place a call on hold.

SP-PHONE (Other than KX-T7750):

Used

for the handsfree operation.

MONITOR (KX-T7750 only): Used for

handsfree dialing. You can monitor the

other party's voice handsfree.

NAVIGATOR KEY

(KX-T7730/7731/7735/7736):

Used to adjust the volume and the display

contrast, or select desired items.

VOLUME KEY (KX-T7720/7750): Used to

adjust the volume.

Programmable Feature (PF) Button:

Used as anOne-Touch Dialing button

(Button assignment is required).

PAUSE: Used to insert a pause during

dialing.

MESSAGE: Used to leave a message

waiting indication, or call back the party

who left the message waiting indication.

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside

line automatically. (Button assignment is

required.) Also used as feature buttons.

(Button assignment is required.)

Location of Controls

Message/Ringer Lamp: The Message/

Ringer lamp informs you visually that you

have a message or a call.

When you receive a call, the lamp

flashes depending on the ringing pattern.

When the ringing pattern is set to Single

(Slow flash), Double (Moderate flash), or

Triple (Rapid flash) in your PBX, the lamp

flashes. When the other ringing patterns

are set in your PBX, the lamp may not

flash. (e.g., S-Double, Call Waiting

Tone1).

When someone has left you a message,

the lamp is lit continuously.

– 9 –

1PROGRAM: Used to enter and exit the

programming mode.

FWD/DND (Call Forwarding/Do Not

Disturb):

Used to perform Call Forwarding

or Do Not Disturb.

2CONF (Conference): Used to establish a

multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

6AUTO ANS (Auto Answer)

(Other than KX-T7750): Used to receive an

incoming call in the hands-free mode.

MUTE (Other than KX-T7750): Used to

mute the microphone during a conversation.

VOICE CALL (KX-T7750 only): Used to

receive a notification via monitor in place of

ringing.

5FLASH/RECALL: Used for External Feature

Access or to disconnect the current call and

make another call without hanging up.

7AUTO DIAL/STORE: Used for speed

dialing or storing program changes.

8REDIAL: Used to redial.

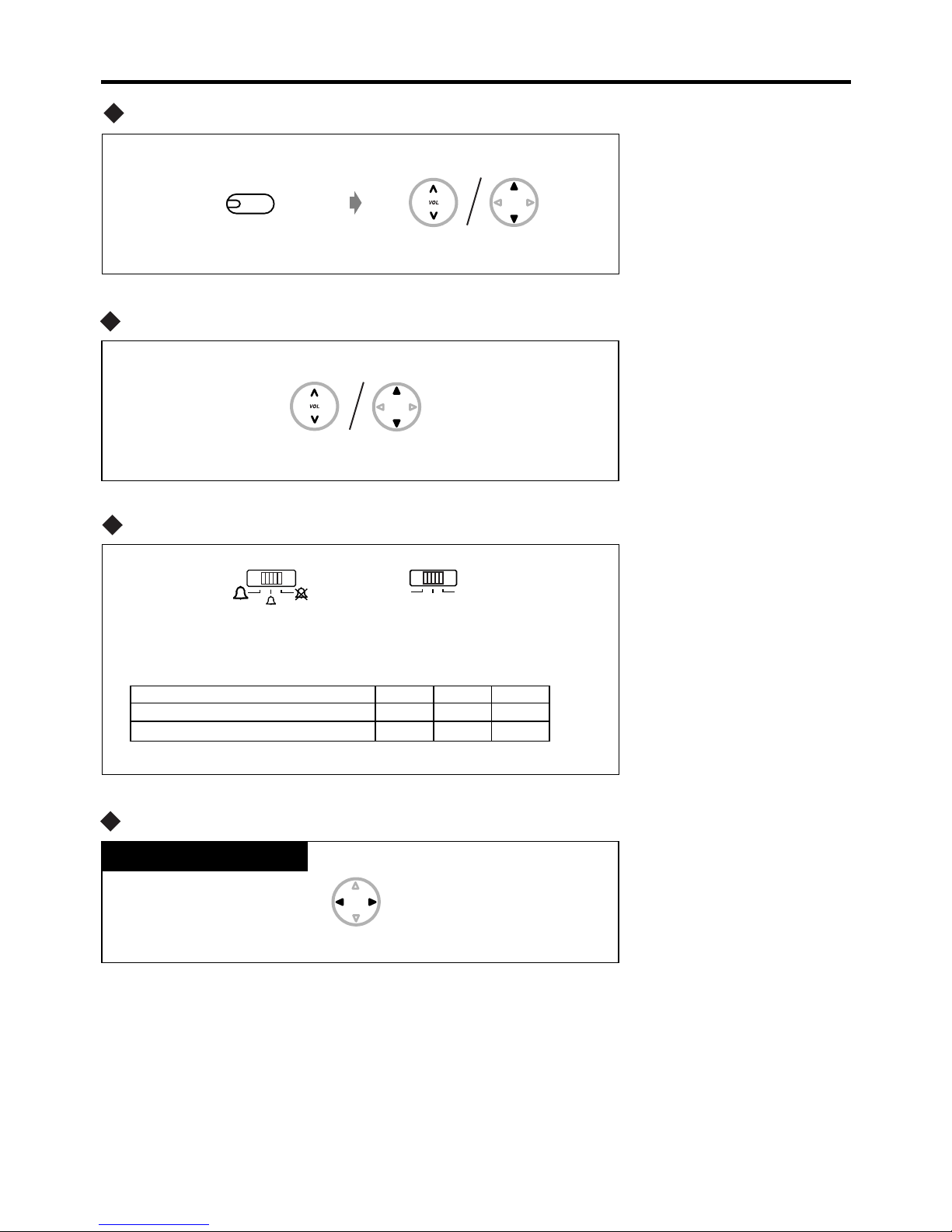

Initial Settings

Speaker volume

Press

SP-PHONE. Press Up or Down.

While on-hook or during a conversation

Handset/Headset volume

Press Up or Down.

While using the handset or headset

Ringer volume

/Backlight illumination

SPSP-PHONE

Display contrast

Press Left or Right.

KX-T7730/7731/7735/7736

Slide the lever of the RINGER Volume Selector and

BACKLIGHT Illumination Selector to the desired setting.

RINGER

*The above settings may return to default settings if the

telephone line cord is disconnected, or the main unit's power

is interrupted.

BACKLIGHT

– 10 –

BACKLIGHT SW POSITION 2 1 0

LCD backlight HIGH LOW OFF

DIALING BUTTONS backlight

AUTO: The backlight shines only during operation.

AUTO AUTO OFF
