65 Desk Phone

And the KX-UDT131 Cordless Phone

TIPT (Telstra IP Telephony)

Page 2

1 WHAT’S INSIDE

02 Let’s get started

03 Getting connected

04 Connecting additional cordless phones

05 Working in Parallel Mode

06 Changing the Handset Number and Name Display

07 Disassociating an Additional Handset from the Main Number

08 Registering/De-Registering a Desk Phone to the KX-TGP600 Base Unit

09 Re-Pairing a Cordless Phone and Base Unit [KX-UDT131]

10 Problem Solving [KX-TPA65 Desk Phone]

11 Problem Solving [KX-UDT131 Cordless Phone]

Page 3

2 LET’S GET STARTED

Your package contains the following:

•1x This Quick Start Guide

•1x Panasonic KX-TGP600 Base Unit

•1x KX-TPA65 Desk Phone

•1x Ethernet Cable for Base Unit

•1x AC Adapter for Base Unit

•1x AC Adapter for Desk Phone

•1x Handset Cord

•1x Handset

•1x Stand

•Manufacturer Warranty Card

•1x Wall mount kit KX-A440 (optional)

If you have Purchased the KX-UDT131 Cordless phone you will also receive:

•1x KX-UDT131 Cordless Phone

•1x Charger (Cordless Phone Cradle)

•1x AC Adapter for Charger (Cordless Phone Cradle)

•1x Ethernet Cable

•1x Battery and battery cover

•1x Belt Clip Replacement Cover

Page 4

3 GETTING CONNECTED

This section details the setting up a new TGP600 Base unit and the included Desk phone.

Step 1: Set up the new KX-TGP600 Base Unit

•Connect the Ethernet cable (included) to your base unit and to the Ethernet port located

on the back of your TIPT switch/PC.

•Connect the AC adapter for the base unit to the base unit and a power socket.

Ensure that you have plugged the adapter in securely.

•The status indicator on the Base Unit will flash as follows.

1) Solid –Red: When the base unit is turned on, the status indicator turns red for ~40

seconds.

2) Slow Flashing –Amber: The base unit is obtaining an IP address / configurations and

registering with your phone system. Please wait.

3) Solid –Green: The base unit is connected to the TIPT network.

Step 2: Set up the included KX-TPA65 Desk Phone

•Attach the AC adapter to the desk phone and a power socket.

•Attach the Corded Handset and headset (if required) to the desk phone.

Step 3: Attach the Stand to the KX-TPA65 Desk Phone

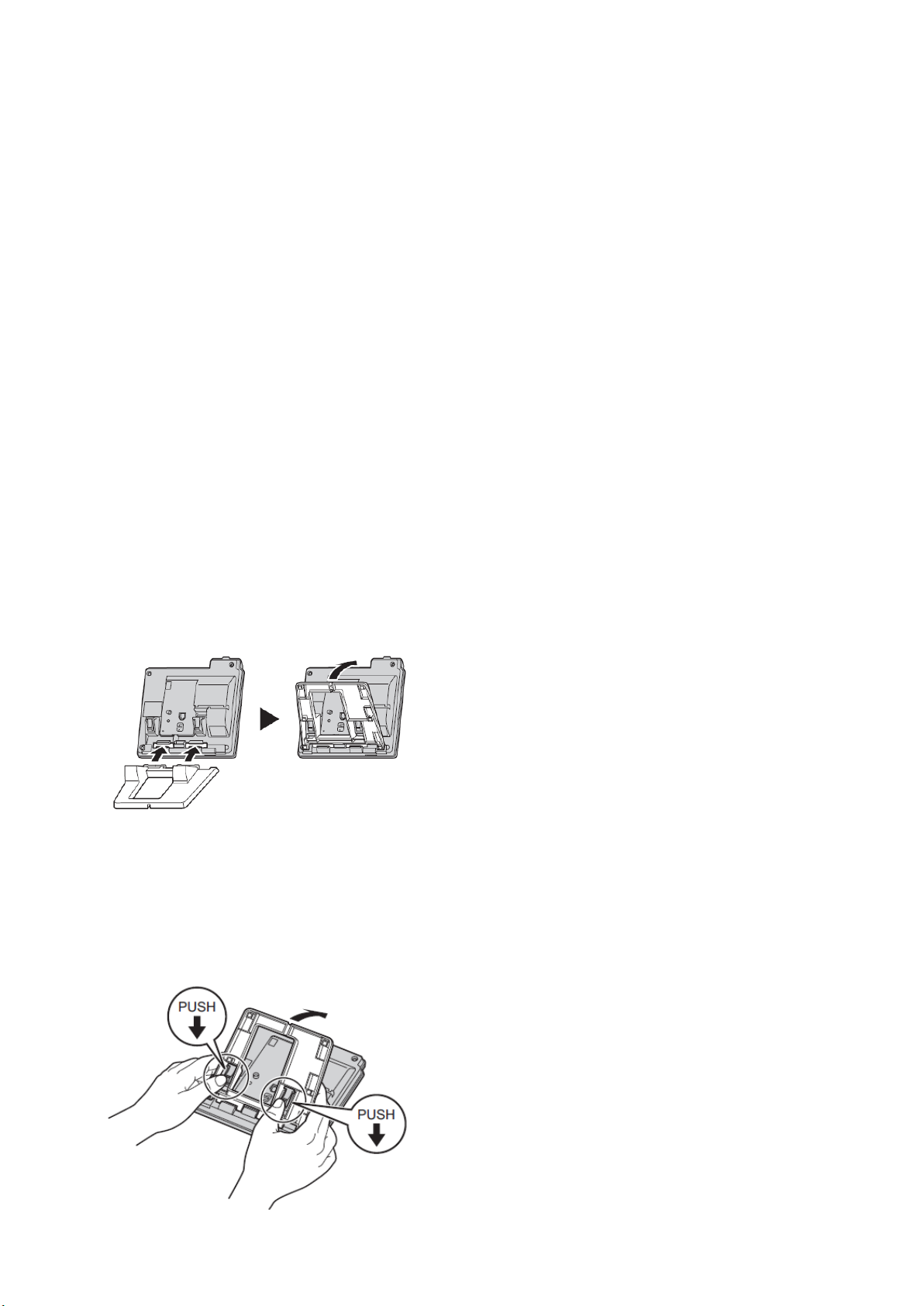

•Insert the stand into the hooks located in the unit.

•Gently rotate the stand in the direction indicated until it is released

Step 4: Adjusting the Stand Position

•Push the PUSH marks in the direction indicated, with both hands, and tilt the stand until it

becomes fixed in the desired position.

•Choose the High Position or Low Position.

Page 5

Step 5: Removing the Stand

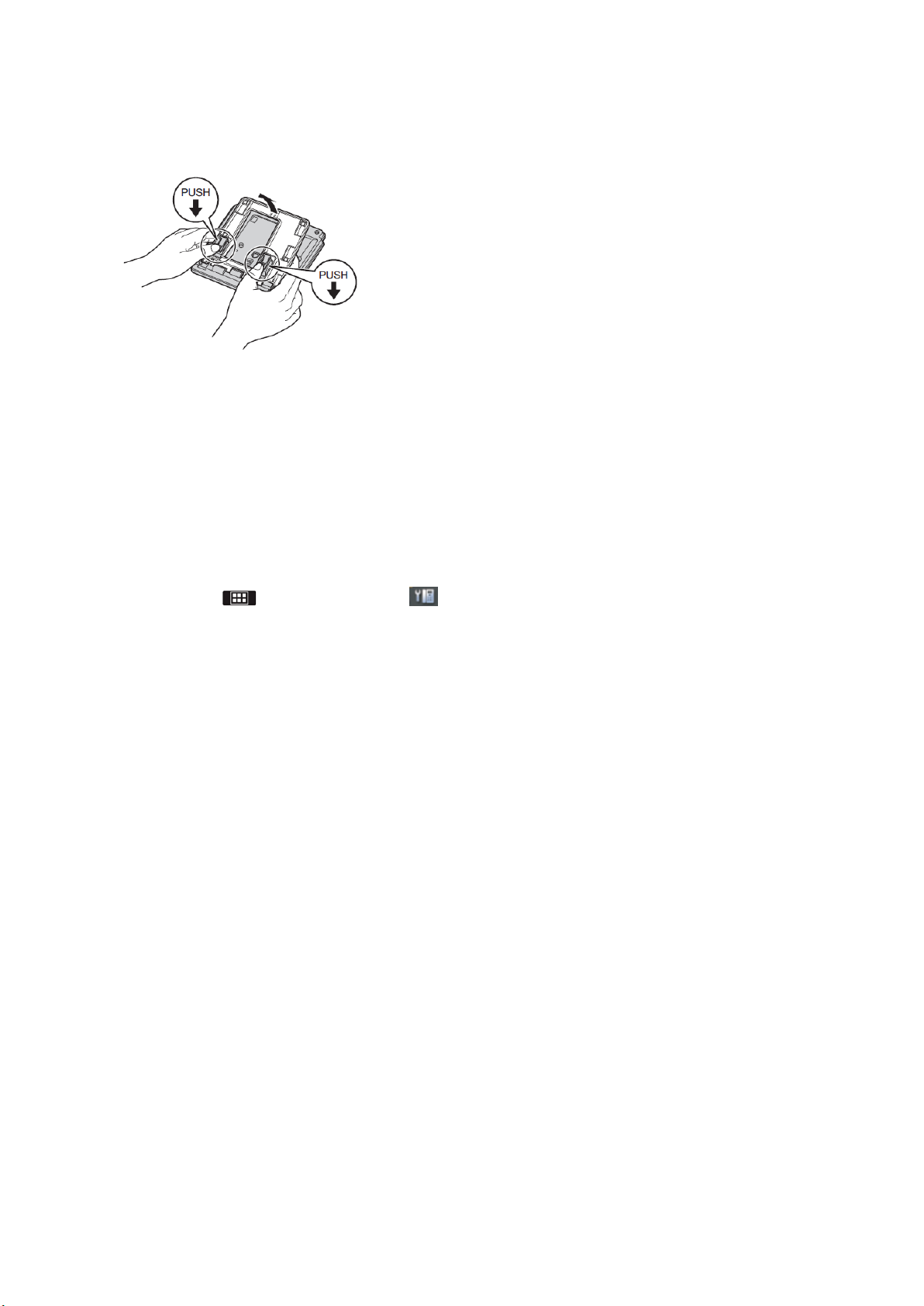

•Tilt the stand in the direction indicated while pushing the PUSH marks with both hands.

Step 5: Set up the included KX-UDT131 Cordless Phone (to be used if you have purchased the

additional KX-UDT131 cordless Phone)

•Open the battery cover and insert the battery, close the cover.

•Connect the AC adapter to the charger (phone cradle) and a power socket.

•Complete the charging cycle by replacing the cordless phone in the charger for 6 hours –

you may choose to complete the charging cycle when you have completed the set up.

Step 6: Activate your TIPT service (this can only be performed from the KX-UDT65 Desk phone)

•Select Menu > System Settings > System Settings > Authentication

•Select ID –Enter details and select OK.

•Select Password –Enter details and select OK.

•Press the Back button x 3 to return to the main display and complete the activation

process.

•The status indicator on the base unit will flash as follows:

a) Solid –Red: The status indicator will flash solid red for ~20 seconds.

b) Slow flashing –Amber: Next, the status indicator will flash amber for ~50 seconds.

c) Solid –Green: If the configuration is correct, the status indicator will flash solid green.

Quick Tip

Q: Where can I find my Authentication ID and Password?

A: Your ID and Password will be sent to you via email. If you choose to use an additional KX-TPA60 or KX-UDT131 cordless

phone(s) you do not require an authentication ID or Password –these details are displayed as NULL.

Q: I am still unable to connect successfully, what do I do?

A: Check that you have entered the correct ID and Password by repeating the Step 3. Next, restart the system by

disconnecting and reconnecting the base unit from the power supply. Failing this, call the TIPT Help Desk on 1800 648

116.

Page 6

4a CONNECTING ADDITIONAL CORDLESS PHONES [KX-TPA65 Desk Phone]

If you need to use a portable cordless phone with your desk phone:

•Press and hold the Handset Locator button on the base unit for ~3 seconds.

•The status indicator on the Base Unit will flash as follows:

a) Slow flashing –Red: The base unit is registering to a phone.

•Select Menu > System Settings > System Settings > Register H/S

•Select the handset you would like to register > Select OK

•The phone will display the following prompts:

a) “Executing”: Please wait till the registration process is completed.

b) “Registered”: Initial registration is completed.

•Press the Back button to return to the main screen and complete the registration process.

4b CONNECTING ADDITIONAL CORDLESS PHONES [KX-UDT131]

•Press and hold the Handset Locator button on the base unit for ~3 seconds.

•The status indicator on the Base Unit will flash as follows:

a) Slow flashing –Red: The base unit is registering to a phone.

•Select Menu > Setting Handset > System Option > Register H/S

•Select the base unit you would like to register the handset to (default: Base Unit 1) > Select

•The phone will display the following prompts:

a) “Executing”: Please wait till the registration process is completed.

b) “Registered”: Initial registration is completed.

•Press the Power / Cancel button to complete the registration process.

Quick Tip

You can register a maximum of 8 phones to a base unit.

Page 7

5 Working in Parallel Mode [KX-TPA65 desk phone]

By using a desk phone as the master phone (KX-TPA65), a portable cordless phone (KX-TPA60)

or [KX-UDT131] can be set to be paired with it so that the phone number (account) of the

master desk phone is applied to the potable (paired) handset(s). With pairing settings, the desk

phone can be used while you are sitting at your desk, and the portable handset can be used

while away from your desk.

•Select Menu > System Settings > System Settings

•Navigate to select Parallel Setting and Select OK

•Select the desk phone (KX-TPA65) to use as the Master handset and Select OK.

•Select Pairing and Select OK

•Select the portable handset to use as the paired unit and Select OK

•Select Mode and Select OK

To make one unit receive a busy signal while the other is on a call:

•Select Busy and Select OK

To make one unit take over a call when the other is on a call

•Select Take Over Call and Select OK

Page 8

6 Changing the Handset Number and Name Display [KX-TPA65 &

KX-UDT131]

Each handset can be assigned a unique name / number that can be displayed on the handset

screen. Identifying your desk phone will enable you to easily transfer calls between phones

registered to the same base unit (i.e. internal call transfer).

Step 1: Assign a name / number to a phone:

•Select Menu > Setting Handset > Display option > Handset Name

•Toggle the alpha-numeric keypad and enter the desired name / number

•Select OK to save entry

Quick Tip

Q: I have saved a handset name / number, but it’s not appearing on the display – What do I do?

A: Ensure that you have selected the option to display the handset name by following these steps:

•Select Menu > Setting Handset > Display option > Handset Name

•Toggle the alpha-numeric keypad and retype the desired name / number

•Select OK to save entry

Or Call the TIPT Help Desk on 1800 648 116.

Page 9

7 Disassociating an Additional Handset from the Main Number [KX-TPA65]

If you have purchased multiple handsets, by default all handsets will ring when the main number is

dialled. You can assign different numbers to the handsets from one handset or from the desk

phone.

Step 1: To disassociate a handset from the main number for incoming calls:

•Note the handset name

•Press Menu

•Select System Settings and Press OK

•Select Multiline Setting and Press OK

•Select Incoming Call and Press OK

•Select the number –and Select OK

•Select the Handset name/number –Handset 1 or Handset 2 or telephone number, Select

✓

•Press OK

•Press the Back button x 5 times to return to the main screen

Step 1: To disassociate a handset from the main number for outgoing calls.

•Note the handset name

•Press Menu

•Select System Settings and Press OK

•Select Multiline Setting and Press OK

•Select Outgoing Call and Press OK

•Select the Handset name –Handset 1 or Handset 2 etc, Press OK.

•Select the number –and Select

✓

•Press OK

•Press the Back button x 5 times to return to the main screen

Page 10

8 Registering/De-Registering a Desk Phone to the KX-TGP600 Base Unit

[KX-TPA65]

Before operating the handset/desk phone, confirm that the STATUS indicator of the base unit is

Green (On/Slow Flashing/Quick Flashing).

Step 1: Deregister the Desk phone from a base unit:

1. Select Menu > System Settings > Select OK

2. Use the navigation buttons to scroll to System Settings and Press OK

3. Scroll to Cancel Register > Select OK

4. Select a handset/desk phone and Select OK

Step 2: Register the Desk phone to a base unit:

1. Select Menu > System Settings > Select OK

2. Use the navigation buttons to scroll to System Settings and Press OK

3. Scroll to Register H/S > Select OK

4. Select a handset/desk phone and Select OK

9 RE-PAIRING A CORDLESS PHONE AND BASE UNIT [KX-UDT131]

Step 1: Deregister the cordless phone from a base unit:

5. Select Menu > Setting Handset > System option

6. Scroll to Cancel Base > Select OK > Select Base Name >Select

✓

to confirm > Select OK

7. You will be prompted “Confirm Delete?” – Select Yes

8. Screen will display “Register Unit” once successfully deregistered

Step 2: Register the cordless phone to a base unit:

5. Long-press the Handset Locator Button on the base unit for ~5 seconds

6. The status indicator on the Base Unit will flash as follows:

a) Slow flashing –Red: The base unit is registering a phone

7. From screen display “Register Unit” – Select OK

8. The phone will display the following prompts:

a) “Please wait...”: Please wait till the registration process is completed.

b) “Registered”: Registration is completed.

Note: You can register a handset/desk phone to up to 4 base units. You can register a base

unit up to 8 handsets/desk phones.
