Panasonic CT-24SX10 Bedienungsanleitung

Color Television

Operating Instructions

CT-20SX10

CT-24SX10

CT-27SX10

CT-F2110X

CT-F2510X

CT-F2910X

TQB2AA0363 00918

PRINTED IN USA

Televisor a color

Instrucciones de Operación

CT-20SX10

CT-24SX10

CT-27SX10

CT-F2110X

CT-F2510X

CT-F2910X

TQB2AA0363 00918

IMPRESO EN EE.UU.

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: consumerproducts@panasonic.com

Para asistencia llame al teléfono: 1-800-211-PANA (7262)

o envíe un correo electrónico a la dirección:

consumerproducts@panasonic.com

0363.fm Page 1 Wednesday, February 7, 2001 10:27 AM

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

WARNING:To reduce the risk of electric shock do not remove cover or back. No user-

serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within a

triangle is intended to tell the user

that important operating and

servicing instructions are in the

papers with the appliance.

The lightning flash with arrow

head within a triangle is intended

to tell the user that parts inside

the product are a risk of electric

shock to persons.

WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

0363 E Prod .fm Page 1 Wednesday, February 7, 2001 10:17 AM

ABLE

ONTENTS

Table of Contents

Congratulations........................................................3

Customer Record.....................................................................3

Care and Cleaning ...................................................................3

Specifications...........................................................................3

Installation.................................................................4

Television Location...................................................................4

Optional Cable Connections.....................................................4

AC Power Supply Cord ............................................................4

Cable / Antenna Connection ....................................................5

Optional Equipment Connections...........................6

VCR Connection.......................................................................6

VCR and Cable Box Connection .............................................7

Amplifier Connection (To Audio Amp) .....................................7

Digital TV - Set-Top (DTV-STB)

or DVD Connection...............................................................8

Main Menu.................................................................9

Remote Control Buttons...........................................................9

Remote Control Guide..............................................................9

Main Menu Feature Chart.......................................10

Special Features.....................................................12

Menu Languages....................................................................12

Program Channels .................................................................12

Closed Captioning..................................................................13

Other Adjustments..................................................................14

Sleep Timer............................................................................15

Timer 1 and Timer 2...............................................................15

Picture - Video Adjustments ..................................................16

Picture - Other Adjustments ..................................................16

Channels - Favorites..............................................................17

Channels - Caption.................................................................17

Lock - Mode ...........................................................................18

Troubleshooting Chart...........................................19

Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

0363 E Prod .fm Page 2 Wednesday, February 7, 2001 10:17 AM

ONGRATULATIONS

Congratulations

Your new Panasonic Tau television is designed to provide state-of-the-art picture

quality and features an innovative PureFlatTM picture tube. The new silver-gray

cabinet with compact, elegant styling is designed to give you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV. You

should note the model and serial number in the space provided and retain as a

permanent record of your purchase. This will aid in identification in the event of theft or

loss. Product registraton for U.S. customers is available at: www.prodreg.com/

panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

rUse a mild soap solution or window cleaner with a soft, clean cloth. DO NOT USE

ABRASIVE CLEANERS.

rAvoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent

solution. Avoid excessive moisture and wipe dry.

rDo not use benzene, thinner or other petroleum based products.

Specifications

Specifications are subject to change without notice or obligation.

Power Source

CT-20SX10 (1.7A)

CT-24SX10 (2.2A)

CT-27SX10 (2.3A) 120V AC, 60Hz

Channel Capability - 181 VHF-12; UHF-56; Cable-125

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Component Input (Y / PB / PR)75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

0363 E Prod .fm Page 3 Wednesday, February 7, 2001 10:17 AM

NSTALLATION

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center.

Consult your dealer for available options.

rAvoid excessive sunlight or bright lights, including reflections.

rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

rFluorescent lighting may reduce remote control transmitting range.

rKeep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination to avoid injury from

tip-over. In order to avoid injury to children, never place your television receiver on

a piece of furniture that is capable of being tilted by a child leaning on it, pulling on

it, standing on it, or climbing on it.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best

results:

rUse 75-ohm coaxial shielded cables.

rUse appropriate input and output connectors, that match your component connectors.

rAvoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF

PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT

USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT

OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE

POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

0363 E Prod .fm Page 4 Wednesday, February 7, 2001 10:17 AM

NSTALLATION

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be required for proper reception.

Check with your local cable company for compatibility

requirements.

Antenna Connections

rFor proper reception of VHF/UHF channels, an external antenna is

required. For best reception an outdoor antenna is recommended.

rAntenna Mode must be set to TV.

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Cable Company

ncom

rom

Home Antenna

Cable Preset

Cable Mode is preset at the factory. Antenna

users must change to TV mode in the SETUP

menu.

0363 E Prod .fm Page 5 Wednesday, February 7, 2001 10:17 AM

PTIONAL

QUIPMENT

ONNECTIONS

Optional Equipment Connections

VCR Connection

VCRs, video disc players, video game equipment, and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for more

information.

Procedure

1. Connect equipment as shown to front or rear Audio/Video input jacks.

2. Select the Video mode by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Push to open the front panel of the television to use the Audio/Video input jacks for

optional equipment. Press the TV/VIDEO button to select VIDEO 3 input mode.

Note: The S-VIDEO connection provides higher quality picture. It overrides other

VIDEO connections. Use INPUT 3, AUDIO L and R with S-VIDEO

connection.

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent “shadow

image” on the picture tube. This background image is viewable on normal programs in

the form of a stationary fixed image. This type of irreversible picture tube deterioration

can be limited by observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image use is not

an operating defect and as such is not covered by Warranty. This product is not

designed to display fixed image patterns for extended periods of time.

VIDEO AUDIO

RTOAUDIO

AMP

VIDEO

INPUT

1INPUT

COMPONENT

VIDEOINPUT

RAUDIO

S-VIDEO

ANT

ANT IN ANT OUT

VIDEO OUT

S-VIDEO

VIDEO

AUDIO OUT

Use either the

S-Video or Video

connection.

TERMINALS ON BACK OF TV

CABLES NOT SUPPLIED

VCR

INPUT 3

HPJ

S-VIDEO VIDEO L-AUDIO-R

Incoming Cable

TERMINALS ON FRONT OF TV

0363 E Prod .fm Page 6 Wednesday, February 7, 2001 10:17 AM

PTIONAL

QUIPMENT

ONNECTIONS

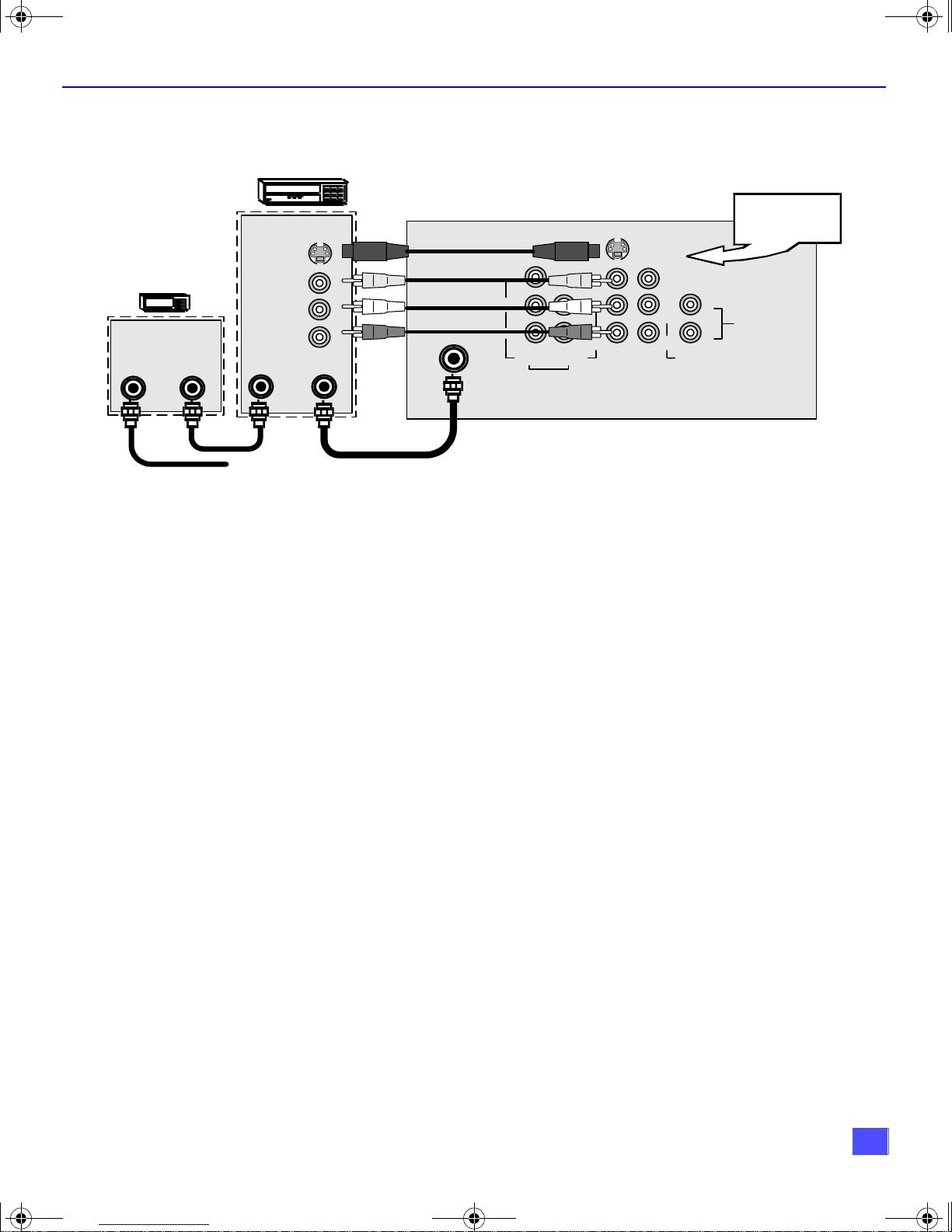

VCR and Cable Box Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.

See Programming the Remote Control in the Remote Control Quick Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Tune the television to CH 3 or 4 depending on the Cable box RF out.

2. Using the cable box, tune to the premium cable channel you want to view.

Viewing a premium (scrambled) cable channel using the A/V input jacks

1. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

2. Turn the VCR ON.

3. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.

4. Using your cable box, tune to the premium cable channel you want to view.

Amplifier Connection (To Audio Amp)

Connect to an external audio amplifier input for listening through a stereo system.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select TV SPEAKERS ON from AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled from the TV.

Note: In OFF&FAO the volume is controlled by the external amplifier.

VIDEO AUDIO

RTO AUDIO

AMP

VIDEO

INPUT

1INPUT

COMPONENT

VIDEOINPUT

RAUDIO

S-VIDEO

ANT

ANT IN ANT OUT

VIDEO OUT

S-VIDEO

VIDEO

AUDIO OUT

Incoming Cable

VCR

CABLE BOX

TERMINALS ON BACK OF TV

CABLES NOT INCLUDED

Use either the

S-Video or Video

connection.

ANT OUTANT IN

0363 E Prod .fm Page 7 Wednesday, February 7, 2001 10:17 AM

PTIONAL

QUIPMENT

ONNECTIONS

Digital TV - Set-Top Box (DTV-STB) or DVD Connection

Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) or a

DVD player to the back of your TV.

Notes:

rThere are three video inputs, Y, PB, and PR. Separate component color inputs provide

luminance and color separation. Use the L (left) and R (right) audio inputs.

rSelect DTV-STB to 480i output mode. TV set can receive 480i signal only.

NTSC OUTPUT

R-AUDIO-L VIDEO

DIGITAL OUTPUT

L-AUDIO-R

S-VIDEO

VIDEO AUDIO

ANT

RTOAUDIO

AMP

VIDEO

INPUT

1INPUT

COMPONENT

VIDEOINPUT

RAUDIO

S-VIDEO

COMPONENT VIDEO INPUT

ON BACK OF TV

TERMINALS ON BACK OF DTV-STB OR DVD PLAYER

CABLES NOT SUPPLIED

0363 E Prod .fm Page 8 Wednesday, February 7, 2001 10:17 AM

AIN

ENU

Main Menu

Procedures

1. Press the ACTION button on the remote control to display Main Menu.

2. Press the CH pq or VOL tu button to highlight the desired icon.

3. Press the ACTION button to display icon features and submenus.

4. Press the CH pq buttons to select desired icon features.

5. Press the VOL ubutton to highlight submenus.

6. Press the CH pq to select desired submenu.

7. Press the VOL tu button to select or adjust submenu.

8. Press the ACTION button repeatedly to exit menus.

Remote Control Buttons

Remote Control Guide

The Remote Control Quick Reference Guide is located within the package provided

with this TV.

Main Menu

Remote ACTION / Navigation Button

VOL

0363 E Prod .fm Page 9 Wednesday, February 7, 2001 10:17 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-28DK20D Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PS12D Bedienungsanleitung

Panasonic

Panasonic TX-W32D4DP Bedienungsanleitung

Panasonic

Panasonic ST50 series Montageanleitung

Panasonic

Panasonic Viera TX-32LX85P Bedienungsanleitung

Panasonic

Panasonic TX-25P80T Bedienungsanleitung

Panasonic

Panasonic TX-34P800R Bedienungsanleitung

Panasonic

Panasonic TX-29E355RF-IRAN Bedienungsanleitung

Panasonic

Panasonic Viera TH-L42U30S Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-32PS10D Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS1P Bedienungsanleitung

Panasonic

Panasonic TX-28MD3L Bedienungsanleitung

Panasonic

Panasonic TX-29PS11DM Bedienungsanleitung

Panasonic

Panasonic TX-28LD4P Bedienungsanleitung

Panasonic

Panasonic TX-24PS1 Bedienungsanleitung

Panasonic

Panasonic TX-21AS1P Bedienungsanleitung

Panasonic

Panasonic TC-29PS70R Bedienungsanleitung

Panasonic

Panasonic Gaoo TX-25AD2DP Bedienungsanleitung

Panasonic

Panasonic Color Television Bedienungsanleitung

Panasonic

Panasonic CT-20SL15 - 20" CRT TV Bedienungsanleitung

Panasonic

Panasonic TX-29P82X Bedienungsanleitung

Panasonic

Panasonic TX-P58V10E Bedienungsanleitung

Panasonic

Panasonic TX-29PS62Z Bedienungsanleitung

Panasonic

Panasonic CT-3272S Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
