Panasonic CT-24SX11 Bedienungsanleitung

Color Television

Operating Instructions

CT-24SX11

CT-24SX11U CT-F2511

CT-F2511X CT-F2521L

TQB2AA0377 10611

PRINTED IN USA

Televisor a color

Instrucciones de Operación

CT-24SX11

CT-24SX11U CT-F2511

CT-F2511X CT-F2521L

TQB2AA0377 10611

IMPRESO EN EE.UU.

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: consumerproduct[email protected] (USA only)

Para asistencia llame al teléfono: 1-800-211-PANA (7262)

o envíe un correo electrónico a la dirección:

consumerproducts@panasonic.com (Solo en Estados Unidos)

0377 Cover.fm Page 1 Wednesday, July 25, 2001 2:44 PM

WARNING:To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within a

triangle is intended to tell the

user that important operating

and servicing instructions are in

the papers with the appliance.

The lightning flash with arrow

head within a triangle is

intended to tell the user that

parts inside the product are a

risk of electric shock to persons.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

WARNING:To prevent fire or shock hazard, do not expose this

appliance to rain or moisture.

The double insulation symbol (a square within a square) is intended to

alert qualified service personnel to use only identical replacement

parts in this apparatus.

ABLE

ONTENTS

Table of Contents

Feature Comparison Chart ......................................3

Congratulations........................................................4

Customer Record.....................................................................4

Care and Cleaning ...................................................................4

Specifications...........................................................................4

Installation.................................................................5

Television Location...................................................................5

Optional Cable Connections.....................................................6

AC Power Supply Cord ............................................................6

Cable / Antenna Connection ....................................................6

Optional Equipment Connections...........................7

VCR Connection.......................................................................7

Cable Box Connection .............................................................8

VCR and Cable Box Connection .............................................9

Amplifier Connection (To Audio Amp) ...................................10

Digital TV - Set-Top Box (DTV-STB) or

DVD Player Connection.......................................................11

Main Menu...............................................................12

Remote Control Buttons.........................................................12

Remote Control Guide............................................................12

Main Menu Feature Chart.......................................13

Special Features.....................................................16

Menu Languages....................................................................16

Program Channels .................................................................16

CC (Closed Captioning) .........................................................17

Other Adjustments .................................................................17

Sleep Timer............................................................................18

Timer......................................................................................18

Picture - Video Adjustments...................................................19

Picture - Other Adjustments...................................................19

Channels - Caption.................................................................20

Video Input Skip Feature........................................................20

Lock - Mode............................................................................21

Troubleshooting Chart...........................................22

Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

EATURE

OMPARISON

HART

Feature Comparison Chart

MODELS

CT-24SX11

CT-24SX11U

CT-F2511

CT-F2511X

CT-F2521L

FEATURES

MENU LANGUAGE

ENG/SPAN/FR

r r r r r

VIDEO INPUT

PICTURE MEMORY

r r r r r

V-CHIP CAPABILITY

r r r r r

75 OHM INPUT

r r r r r

CHANNEL INFO BANNER

r r r r r

VIDEO INPUT SKIP

r r r r r

VIDEO NORM

r r r r r

AUDIO NORM

r r r r r

STEREO

r r r r r

AI SOUND

r r r r r

BASS/BALANCE/TREBLE

r r r r r

SURROUND

r r r r r

BBE

r r r r r

A/V IN

(REAR/FRONT) 3

(2/1) 3

(2/1)

AUDIO OUT

r r r r r

S-VHS INPUT

1/1 2

1/1

COMPONENT INPUT

r r r r r

HEADPHONE JACK

r r r r r

A/V JACKS AUDIO SPECIAL FEATURES

ONGRATULATIONS

Congratulations

Your new Panasonic Tau television is designed to provide state-of-the-art picture

quality and features an innovative PureFlatTM picture tube. The new gray or silver

cabinet with compact, elegant styling is designed to give you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV. You

should note the model and serial number in the space provided and retain as a

permanent record of your purchase. This will aid in identification in the event of theft or

loss. Product registraton for U.S. customers is available at: www.prodreg.com/

panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

rUse a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

rAvoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent

solution. Avoid excessive moisture and wipe dry.

rDo not use benzene, thinner or other petroleum based products.

Specifications

Specifications are subject to change without notice or obligation.

Power

Source

CT-24SX11 (2.2A)

CT-24SX11U (2.2A) 120V AC, 60Hz

Channel Capability - 181 VHF-12; UHF-56; Cable-113

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Audio Output Jacks 0-2.0V RMS 4.7K Ohm

Component Input (Y / PB / PR)75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

NSTALLATION

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center.

Consult your dealer for available options.

rAvoid excessive sunlight or bright lights, including reflections.

rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

rFluorescent lighting may reduce remote control transmitting range.

rKeep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When

a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over. In order to avoid injury to children, never place your

television receiver on a piece of furniture that is capable of being tilted by a child

leaning on it, pulling on it, standing on it, or climbing on it.

NSTALLATION

Optional Cable Connections

Shielded audio and video cables should be used between components. For best

results:

rUse 75-ohm coaxial shielded cables.

rUse appropriate input and output connectors, that match your component connectors.

rAvoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY

INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER,

CRIMPED, BENT OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE

RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be required for proper reception.

Check with your local cable company for compatibility

requirements.

Antenna Connections

rFor proper reception of VHF/UHF channels, an external antenna is required. For best

reception an outdoor antenna is recommended.

rAntenna Mode must be set to TV.

Polarized plug

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Cable Company

Incoming Cable from

Home Antenna

Cable Preset

Cable Mode is preset at the factory. Antenna

users must change to Antenna Mode in the

Setup Menu.

NSTALLATION

Optional Equipment Connections

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent “shadow image” on

the picture tube. This background image is viewable on normal programs in the form of a

stationary fixed image. This type of irreversible picture tube deterioration can be limited by

observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image

use is not an operating defect and as such is not covered by Warranty. This

product is not designed to display fixed image patterns for extended periods

of time.

VCR Connection

VCRs, video disc players, video game equipment, and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for more

information.

Note: VIDEO 1 input is a dual-purpose input. It is primarily intended for connection

with 480i devices such as a DVD player using the Y P

component video

jacks and Audio L & R jacks. However, it can also be connected to

conventional composite video sources such as a VCR, using only the Y/Video

jack and Audio L & R jacks. The on-screen label will display Component or

Video 1 depending on which source is connected.

Procedure

1. Connect equipment as shown to front or rear Audio/Video input jacks.

2. Select the Video mode by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

TERMINALS ON FRONT OF TV

Jack used for 1/8"

headphone plug

ANT IN

VIDEO OUT

AUDIO OUT

ANT OUT

INPUT 3

S-VIDEO VIDEO L AUDIO R HPJ

CABLES NOT SUPPLIED

CONNECTIONS ON BACK OF TV VCR

COMPONENT

VIDEO INPUT

INPUT 1

Y/VIDEO

VIDEO

INPUT 2

S-VIDEO R

LTO AUDIO

AMP

ANT

AUDIO

Use either the

S-Video or Video

connection.

NSTALLATION

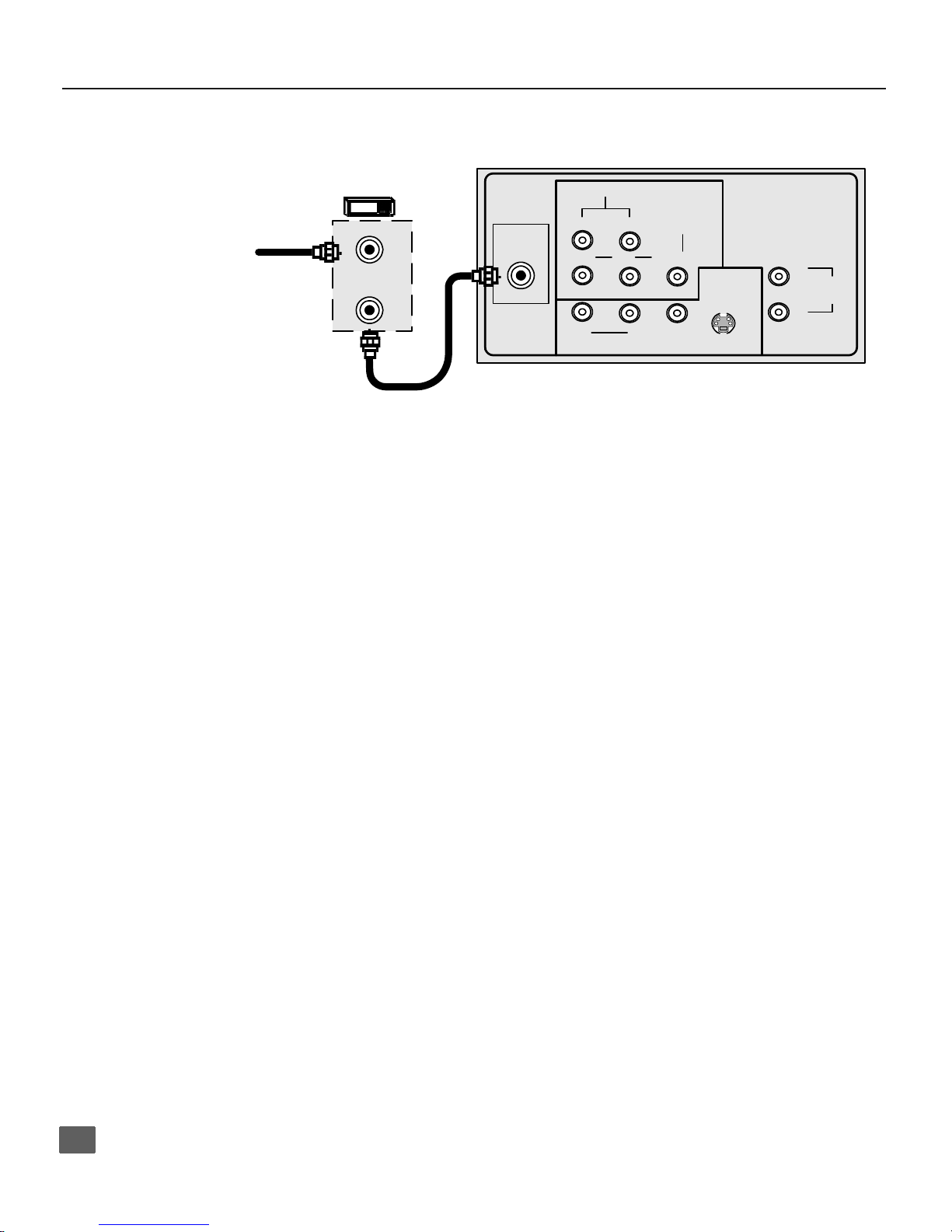

Cable Box Connection

Follow this diagram when connecting your television to a cable box only.

Note: The remote control must be programmed with supplied codes to operate the cable

box. See Programming the Remote Control in the Remote Control Quick Reference

Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Tune the television to Channel 3 or 4 depending the RF out setting of the cable box.

2. Using the cable box, tune to the premium cable channel you want to view.

COMPONENT

VIDEO INPUT

INPUT 1

Y/VIDEO

VIDEO

INPUT 2

S-VIDEO R

LTO AUDIO

AMP

ANT

AUDIO

INCOMING

CABLE

CABLES NOT SUPPLIED

CONNECTIONS ON BACK OF TV

CABLE BOX

ANT IN

ANT OUT

NSTALLATION

VCR and Cable Box Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

Note: The remote control must be programmed with supplied codes to operate the VCR and

cable box. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Tune the television to CH 3 or CH 4 depending on the Cable box RF out.

2. Using the cable box, tune to the premium cable channel you want to view.

Recording a premium (scrambled) cable channel

Procedure

1. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

2. Turn the VCR ON.

3. Tune the VCR to Channel 3 or 4, depending on your VCR.

4. Using your cable box, tune to the premium cable channel you want to record.

5. Begin recording.

COMPONENT

VIDEO INPUT

INPUT 1

Y/VIDEO

VIDEO

INPUT 2

S-VIDEO R

LTO AUDIO

AMP

ANT

AUDIO

RL Incoming Cable

ANT IN

ANT OUT

CABLE BOX

VCR

ANT OUT

VIDEO OUT

AUDIO OUT

ANT IN

CABLES NOT SUPPLIED

CONNECTIONS ON BACK OF TV

Use either the

S-Video or Video

connection.

Andere Handbücher für CT-24SX11

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-24PS1 Bedienungsanleitung

Panasonic

Panasonic TX-28LD4P Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32E31B Bedienungsanleitung

Panasonic

Panasonic CT27C8G - 27" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-32LX70F Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PS2P Bedienungsanleitung

Panasonic

Panasonic CT31XF44V - 31" COLOR TV Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32E3B Bedienungsanleitung

Panasonic

Panasonic TX-W32D2F Bedienungsanleitung

Panasonic

Panasonic TX-25MK1F Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29E40D Bedienungsanleitung

Panasonic

Panasonic TC-L38D Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LX600F Bedienungsanleitung

Panasonic

Panasonic Viera TH-L32X15M Bedienungsanleitung

Panasonic

Panasonic VIERA TH-P50VT30A Bedienungsanleitung

Panasonic

Panasonic CT27D10B - 27" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TC-L37G1 Bedienungsanleitung

Panasonic

Panasonic TX-55C320B Bedienungsanleitung

Panasonic

Panasonic TH-39LRUU60 Bedienungsanleitung

Panasonic

Panasonic TC-21T1Z Bedienungsanleitung

Panasonic

Panasonic TX-50A300E Bedienungsanleitung

Panasonic

Panasonic CT-D14R Bedienungsanleitung

Panasonic

Panasonic TC-14Z88RQ Bedienungsanleitung

Panasonic

Panasonic CT-31SF14 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
