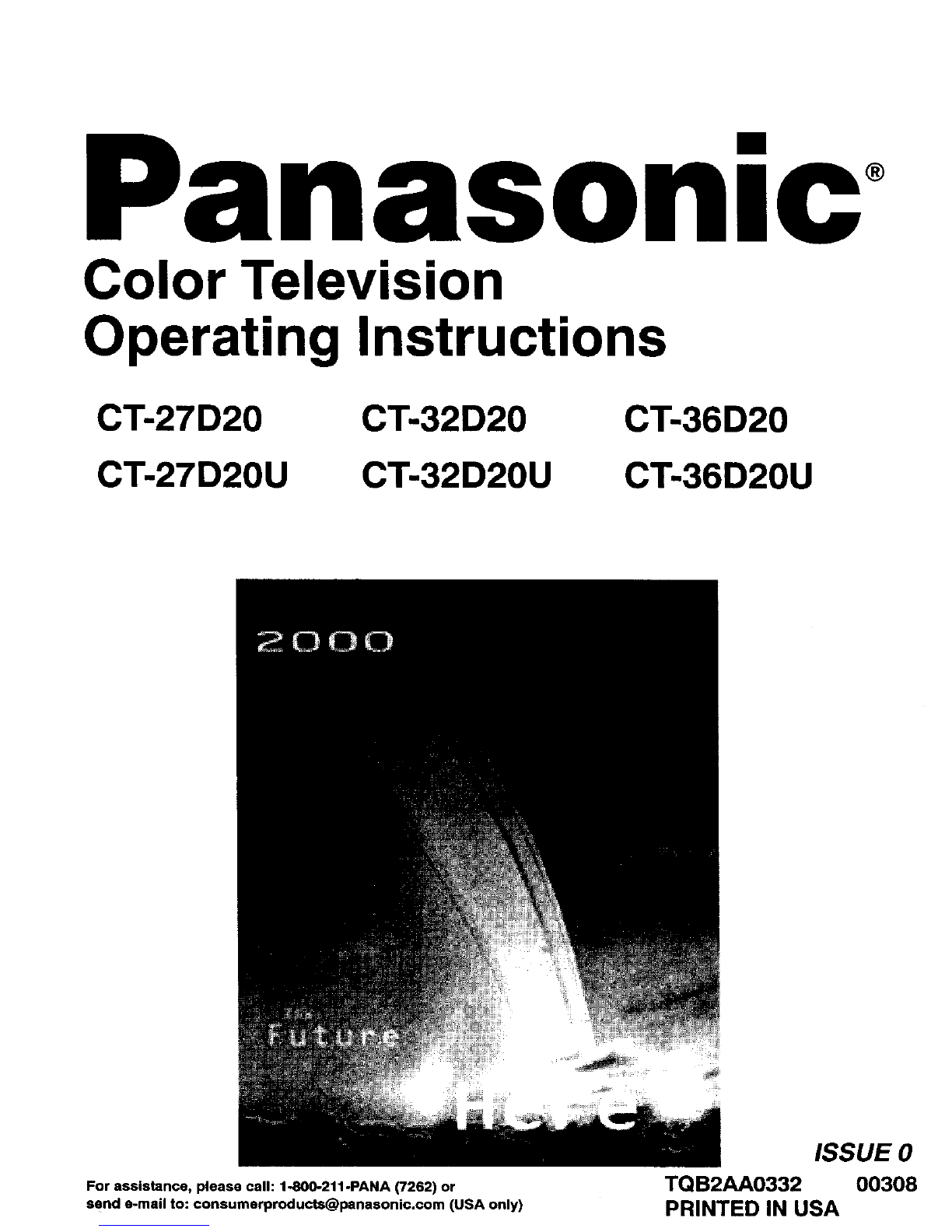

Panasonlc

Color Television

Operating Instructions

CT-27D20 CT-32D20 CT-36D20

CT-27D20U CT-32D20U CT-36D20U

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: [email protected] (USA only) TQB2AA0332

ISSUE 0

00308

PRINTED IN USA

WARNING

WARNING: To reduce the risk of electdc shock do not remove cover or back.

No user-servlceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow

head within a triangle is

intended to tell the user that

parts inside the product are a

risk of electric shock to persons.

The exclamation point within a

triangle is intended to tell the

user that important opera_ng

and servicing instructions are in

the papers with the appliance.

WARNING: To preventfireor shockhazard,do notexposethisappliance

to rainor moisture. =el

TABLE OF CONTENTS

Table of Contents

Congratulations ........................................................ 3

Customer Record ..................................................................... 3

Care and Cleaning ................................................................... 3

Specifications ........................................................................... 3

Installation ................................................................. 4

Television Location ................................................................... 4

Optional Cable Connections ..................................................... 4

AC Power Supply Cord ............................................................ 4

Cable /Antenna Connection .................................................... 4

Optional Equipment Connections ........................... 5

VCR Connection ....................................................................... 5

Amplifier Connection (To Audio Amp) ..................................... 5

Picture In Picture (PIP) Operation ........................... 6

PIP Operation with a VCR and Cable Box ............................... 6

PIP Operation with a VCR - No Cable Box .............................. 7

Main Menu ................................................................. 8

ACTION Button ........................................................................ 8

CH /VOL Buttons ..................................................................... 8

Remote Control Guide .............................................................. 8

Main Menu Feature Chart ......................................... 9

Special Features ..................................................... 12

Menu Languages .................................................................... 12

Program Channels ................................................................. 12

Sleep Timer ............................................................................ 13

Timer 1 and Timer 2 ............................................................... 13

Other Adjustments (Picture) .................................................. 14

Favorite Channels and Caption .............................................. 14

Mode (Lock) .......................................................................... 15

Digital rv- Set-Top (DTV-STB) Connection ......... 16

Glossary .................................................................. 17

Frequently Asked Questions About Digital TV....18

Troubleshooting Chart ........................................... 19

Read these Instructions completely before operating "IV.

Contents are subject to change without notice or obligation.

Unauthorizedcopyingand distributionisa violationof law.

CONGRA TULA TIONS

3ongratulations Your new "IV features a solid state chassis that isdesigned to give you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

3ustomer Record

The model and serial number of this product are located on the back of the "IV. You

should note the model and serial number-in the space provided and retain as a

permanent record of your purchase. This will aid in identification in the event of theft or

loss. Product registraton for U.S. customers is available at: www.prodreg.com/

panasonic,

Model

Number

.3are and Cleaning

;pecifications

Serial

Number

Screen (Turn TV Off)

DUse a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

t-I Avoidexcessivemoistureand wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

r-i For cabinetsand remotecontrol,usea softclothdampenedwithwater or a milddetergent

solution. Avoidexcessivemoistureand wipe dry.

[] Do notuse benzene,thinneror otherpetroleumbased products.

Power Source

CT-27D20 (2.1A)

CT-27D20U (2.1A)

CT-32D20 (2.2A) 120V AC, 60Hz

CT-32D20U (2.2A)

CT-36D20 (2.4A)

CT-36D20U (2AA)

Channel Capability -181 VHF-12; UHF-56; Cable-125

3 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

6 Audio Input Jacks 500mV RMS 47K Ohm

Component Input (Y /PB /PR) 75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

IEi

INSTALLATION

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center.

Consult your dealer for available options.

E3 Avoid excessive sunlight or bright lights, including reflections.

I_ Keep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

E3 Fluorescent lighting may reduce remote control transmitting range.

E3 Keep away from magnetic equipment, including motors, fans and external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best

results:

El Use 75-ohm coaxial shielded cables.

1_ Use appropriate input and output connectors, that match your component connectors.

I_ Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO

WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE. FOR SOME MODELS THAT ARE

NON-POLARIZED, THE USE OF AN AC ADAPTOR CONNECTOR MAY

BE NECESSARY.

Cable /Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be required for proper reception. Check with

your local cable company for compatibility requirements.

Antenna Connections

t'l For proper reception of VHF/UHF channels, an external antenna is

required. For best reception an outdoor antenna is recommended.

DAntenna Mode must be set to IV.

--_ Cable Preset

Cable Mode is preset at the factory. Antenna I

users must change to Antenna Mode in the

Setup Menu,

Polarized plug

,llI

Non-Polarized plug

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Home Antenna

Iii

)ptional Equipment Connections INSTALLATION

fCR Connection

VCRs, video disc players, video game equipment, and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for more

information.

TERMINALS ON BACK OF TV

VCR

TO AUO

AMP

_L m

COMPONENT R--AUDIIC-- L

v_o._ _) _ _v,_O_T

ANT INPUT I

I,_ P. __Ps__Y/VIDEO I _)

,..=, _®0 'v,oEoooT

t- rO-J !,'%']TTO--oT

I _ J :i I=" "

CABLES NOT SUPPLIED Hpj VIOE O 3 L AUDI O IN R

.,., i,,,.j, ®

headphoneplug TERMINALS ON FRONT OF TV

Procedure

1. Connect equipment as shown to front or rear AudioNideo input jacks.

Note: Front and rear Audio/Video connectors cannot be operated at the same time.

2. Select the Video mode by pressing TVNIDEO button.

3. Operate optional equipment as instructed in equipment manual.

_,mplifier Connection (To Audio Amp)

Connect to an external audio amplifier input for listening to a stereo system.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select TV SPEAKERS ON from AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled from the TV.

Note: In OFF&FAO the volume is controlled by the external amplifier.

PICTURE IN PICTURE (PIP) OPERATION

Picture In Picture (PIP) Operation

PIP Operation with a VCR and Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source

(VCR, Camcorder, etc.) is required to provide a second picture.

Connect your television to a VCR and'Cable Box, as shown.

TERMINALS ON BACK OF TV

COMPONENT R--AUDIO-- L

TO AUDIAMP VIDEOINPUT _ ®

; L_ PR __PB__Y/VIDEO

I_L_ INPUT 1 _) _

VCR CABLE BOX

I(_) _T_'mUT I

Iv'_°°uT ' I I

'AUDIOOUT OUI]PUT I I ANTINPUT I

CABLES NOT SUPPLIED

Cable splitter

(Not supplied)

Incoming cable

Note: The Remote Control must be programmed with suppfied codes to operate the VCR and Cable

Box. See Programming the Remote Control in the Remote Control Quick Reference Guide,

Procedure

Press the PIP button on the Remote Control to display the PIP frame.

Note: The PIP picture is the same as the main picture, initially.

To view adifferent picture in the PIP frame:

[3 Press the W/VIDEO button on the Remote Control to select the video PIP source.

[3 Verify the CABLE BOX and VCR are ON and the VCR is tuned to channel 3,

£3 Choose channels for the PIP frame by pressing the CBL button on the Remote Control and

using the numeric keypad or CH up/down buttons,

£3 Choose channels for the Main Picture by pressing the TV button on the Remote Control

and using the numeric keypad or CH up/down buttons.

.__/__ SWAP Button

The SWAP button switches the PIP and Main

Picture source. Press the RECALL button for on

screen PIP and Main Picture source status.

PIP OPERATIONWITHAVCR - NO CARl EBOX

PIP Operation with a VCR - No Cable Box

This television includes a Picture In Picture (PIP) feature, A second video source

(VCR) is required to provide a second picture.

Connect your television to a VCR, as shown:

TERMINALS ON BACK OF TV

VCR

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with the supplied codes to operate the VCR. See

Programming the Remote Control in the Remote Control Quick Reference Guide.

Procedure

Turn the VCR OFF and tune the "IV to channel 3.

Press the PIP button on the Remote Control to display the PIP frame on screen,

Note: The PiP picture is the same as the Main picture, initially.

OPress the W/VIDEO button on the Remote Control to select the VIDEO PIP source.

r'l Press the VCR button on the Remote Control and turn ON the VCR.

rl Press the TV/VCR button on the Remote Control.

t'l Choose channels for PiP frame by pressing VCR CHANNEL up/down buttons on the

Remote Control.

OChoose channels for the Main Picture by pressing the TV button on the Remote Control

and using the numeric keypad or CH up/down buttons.

--__SWAP Button

The SWAP button switches the PIP and Main

Picturesource. Pressthe RECALL buttonfor on

screen PIP and MainPicturesourcestatus.

[]

MAIN MENU

Main Menu

LOCK

SET UP

Main Menu

TIMER

AUDIO

ACTION Button

Press the ACTION button to display the Main Menu and submenus. Press the

ACTION button repeatedly to exit.

CH /VOL Buttons

Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH

buttons to highlight the desired features. Use MOL buttons to select and adjust

features.

Remote ACTION /Navigation Button

VOL VOL

Remote Control Guide

The Remote Control Quick Reference Guide is located within the package provided

with this TV.

MAIN MENU FEATURE CHART

Main Menu Feature Chart

LANGUAGES

PROG. CHAN

(ProgramChannels)

(ClosedCaptioning)

OTHER ADJ.

AUDIO

AUDIO ADJ.

(Adjustments)

SET UP

O Select English, Spanish, or French menu.

[] MODE - Select Cable or TV. See Installa-

tion section in manual.

[] AUTO PROGRAM - Automatically program

channels having a signal into memory.

[] MANUAL PROGRAM - Manually add or

delete channels from memory.

13 CC ON MUTE - Activate C1-C2 for Closed

Captioning display when the remote MUTE

button is pressed.

[] CC MODE - Select C1 or C2 for Closed

Captioning, program guides and other

information.

[] AUTO POWER ON - Select SET to power

up the TV at the same time as the Cable

Box or other components or select OFF.

£3

AUDIO

[]

OTHER ADJ.

_Adju_men_)

SURROUND

[]

SPEAKERS []

MODE -Select STEREO, SAP (Second

Audio Program) or MONO. (Use MONO

when stereo signal is weak.)

BASS - Increase or decrease the bass

response.

TREBLE - Increase or decrease the treble

response.

BALANCE Emphasize the left/right

speaker volume.

NORMAL - Reset BASS, TREBLE and

BALANCE to factory default.

AI SOUND - Automatically adjust volume

to maintain a comfortable listening level.

(AI sound is not available in VIDEO mode).

Enhances audio response when listening

to stereo.

ON - TV speakers operate normally.

OFF & VAO (Variable Audio Output) -

TV speakers off - audio adjustable by IV.

OFF &FAO (Fixed Audio Output)-

TV speakers off - audio adjustable only by

the external amplifier. I=

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic QuintrixF TX-28PK10 Bedienungsanleitung

Panasonic

Panasonic my Home Screen Montageanleitung

Panasonic

Panasonic TX-32PD50D Bedienungsanleitung

Panasonic

Panasonic TCL47DT50X Bedienungsanleitung

Panasonic

Panasonic Viera TH-65PHD8 Bedienungsanleitung

Panasonic

Panasonic TX-21V50X Bedienungsanleitung

Panasonic

Panasonic TX-W28R4F Bedienungsanleitung

Panasonic

Panasonic TH-37PX60U Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS10F Bedienungsanleitung

Panasonic

Panasonic TC-21PM30R Bedienungsanleitung

Panasonic

Panasonic TX-W32R4 Bedienungsanleitung

Panasonic

Panasonic SuperFlat CT-27SF26 Bedienungsanleitung

Panasonic

Panasonic CT20G11 - 20" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-25MD3L Bedienungsanleitung

Panasonic

Panasonic TX-28MD4P Bedienungsanleitung

Panasonic

Panasonic TC-21FX20RG Bedienungsanleitung

Panasonic

Panasonic Viera TX-P42S20L Bedienungsanleitung

Panasonic

Panasonic PT43LC14 - MULTI MEDIA DISPLAY Gebrauchs- und Pflegehandbuch

Panasonic

Panasonic TX-28PG45 Bedienungsanleitung

Panasonic

Panasonic Viera TH-65PZ750 Bedienungsanleitung

Panasonic

Panasonic TX-28DT2 Bedienungsanleitung

Panasonic

Panasonic SP-2719UV Bedienungsanleitung

Panasonic

Panasonic TX-21PZ1 Bedienungsanleitung

Panasonic

Panasonic TC-14JR1P Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
