Table of Contents TABLE OF CONTENTS

Congratulations ........................................................ 2

Customer Record ..................................................................... 2

Care and Cleaning ................................................................... 2

Specifications ................. ,.,....................................................... 2

Installation ................................................................. 3

Television Location................................................................... 3

Optional Cable Connections............................. :....................... 3

AC Power Supply Cord ............................................................ 3

Cable /Antenna........................................................................ 3

Cable Connection..................................................................... 3

Antenna Connection................................................................. 3

Optional Equipment Connections............................................. 4

To Audio Amplifier.................................................................... 4

Audio Adjustments ................................................................... 4

Picture In Picture (PIP) Operation ........................... 5

With /Without a VCR and Cable Box...................................... 5

With aVCR -No Cable Box ................................................... 6

Main Menu ................................................................. 7

ACTION Button ................................................. :...................... 7

CH /VOL Buttons..................................................................... 7

Main Menu Feature Chart ......................................... 8

Special Features ..................................................... 10

Languages.............................................................................. 10

Geomagnetic Correction ........................................................ 10

Timer ...................................................................................... 10

Sleep Timer ............................................................................ 10

Program Timer ....................................................................... 11

CH CAP (Channel Caption).................................................... 12

LOCK...................................................................................... 12

Game Guard Lock .................................................................. 12

Unlocking Game Guard.......................................................... 13

Troubleshooting Chart ........................................... 14

Ill

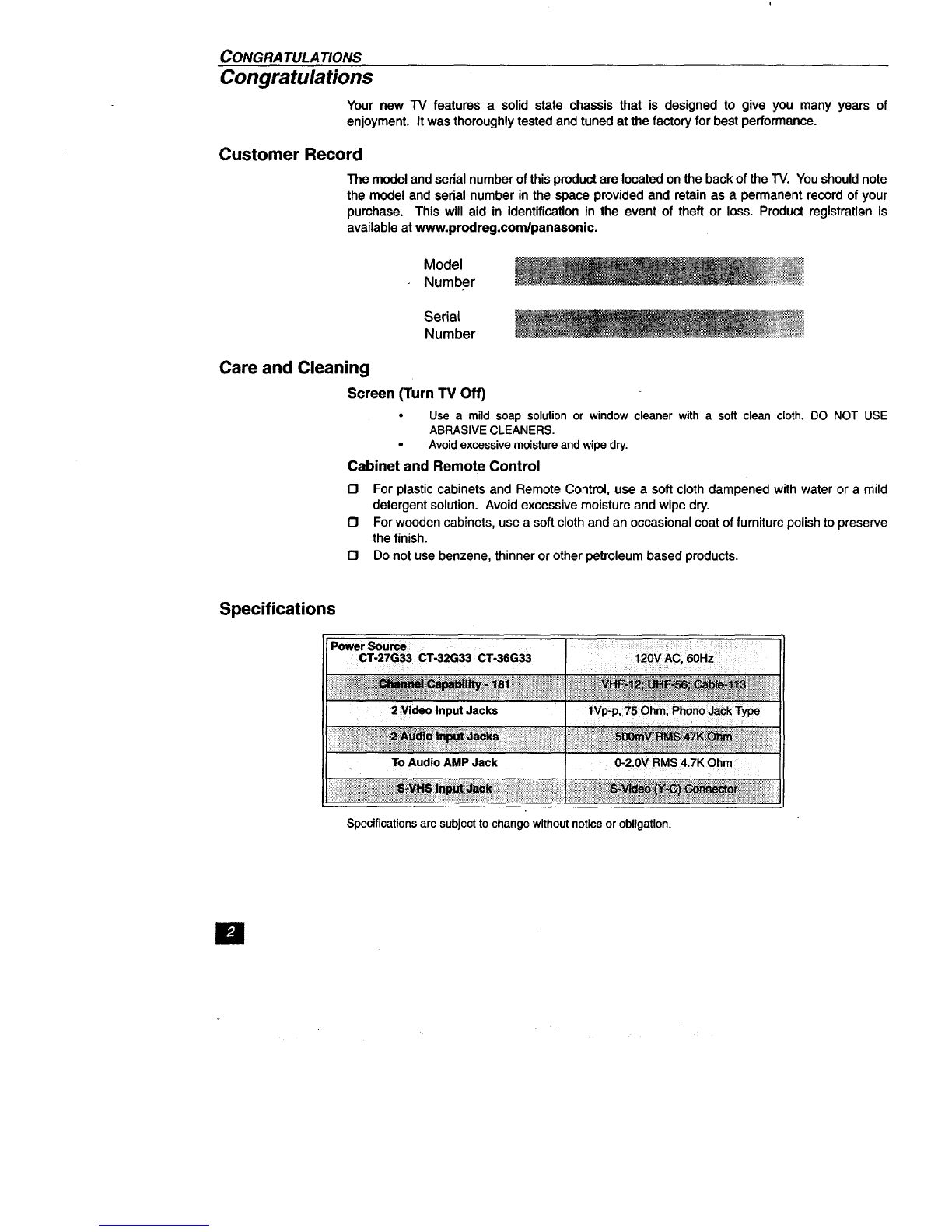

CONGRA TULA TIONS

Congratulations

Your new TV features a solid state chassis that is designed to give you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

Themodelandserialnumberofthisproductarelocatedon thebackoftheTV. Youshouldnote

themodeland serialnumberinthe spaceprovidedand retainas a permanentrecordofyour

purchase. This willaid in identificationin the event of theft or loss.Productregistratienis

availableat www.prodreg.com/panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

•Use a mild soap solutionor window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

•Avoidexcessivemoistureandwipedry.

Cabinet and Remote Control

D For plastic cabinets and Remote Control, use a soft cloth dampened with water or a mild

detergent solution. Avoid excessive moisture and wipe dry.

O For wooden cabinets, use a soft cloth and an occasional coat of furniture polish to preserve

the finish.

rl Do not use benzene, thinner or other petroleum based products.

Specifications

PowerSou_

CT;27G33 CT-32G33 CT-36G33

2 Video InputJacks

To AudioAMPJack

IVp,p,75Ohm; PhonoJack Type

Specifications are subject to change without notice or obligation.

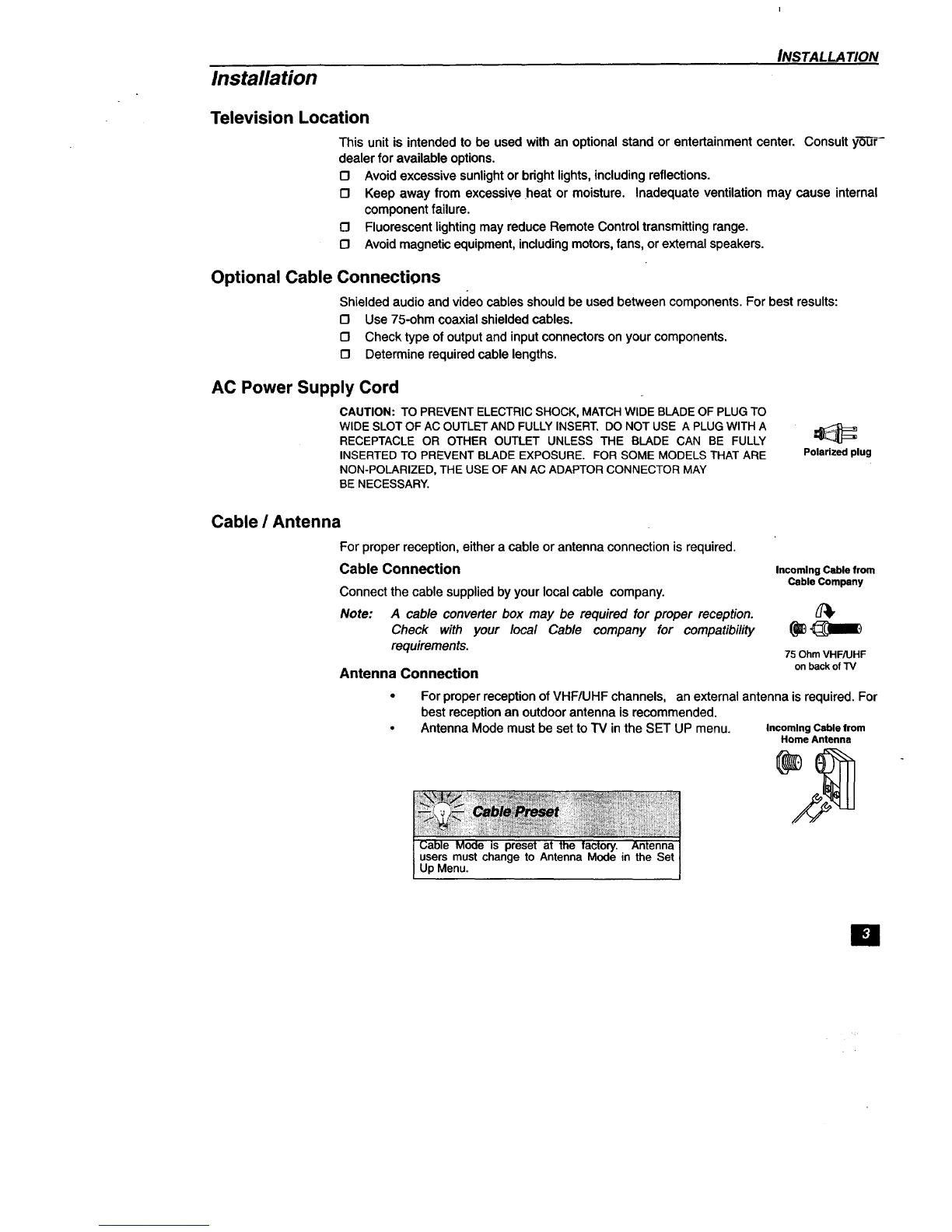

Installation INSTALLATION

Television Location

This unit is intended to be used with an optional stand or entertainment center. Consult y_

dealer for available options.

OAvoid excessive sunlightor brightlights, including reflections.

13 Keep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

13 Fluorescent lighting may reduce Remote Control transmitting range.

C3 Avoid magnetic equipment,includingmotors, fans, or external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

13 Use 75-ohm coaxial shielded cables.

13 Check type of output and input connectors on your components.

13 Determine required cable lengths.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT OF AC OUTLET AND FULLY INSERT, DO NOT USE APLUG WITH A

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE. FOR SOME MODELS THAT ARE

NON-POLARIZED, THE USE OF AN AC ADAPTOR CONNECTOR MAY

BE NECESSARY.

Polarized plug

Cable /Antenna

Forproper reception,eitheracable or antennaconnectionisrequired.

Cable Connection

Connectthecablesuppliedbyyourlocalcable company.

Note: A cable converterbox may be requiredfor proper reception.

Check with your local Cable company for compatibility

requirements.

Antenna Connection

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

For proper reception of VHF/UHF channels, an external antenna is required. For

best reception an outdoor antenna isrecommended.

Antenna Mode must be set to TV in the SET UP menu. Incoming Cable from

Home Antenna

users must change to Antenna Mode in the Set

Up Menu.

INSTALLATION

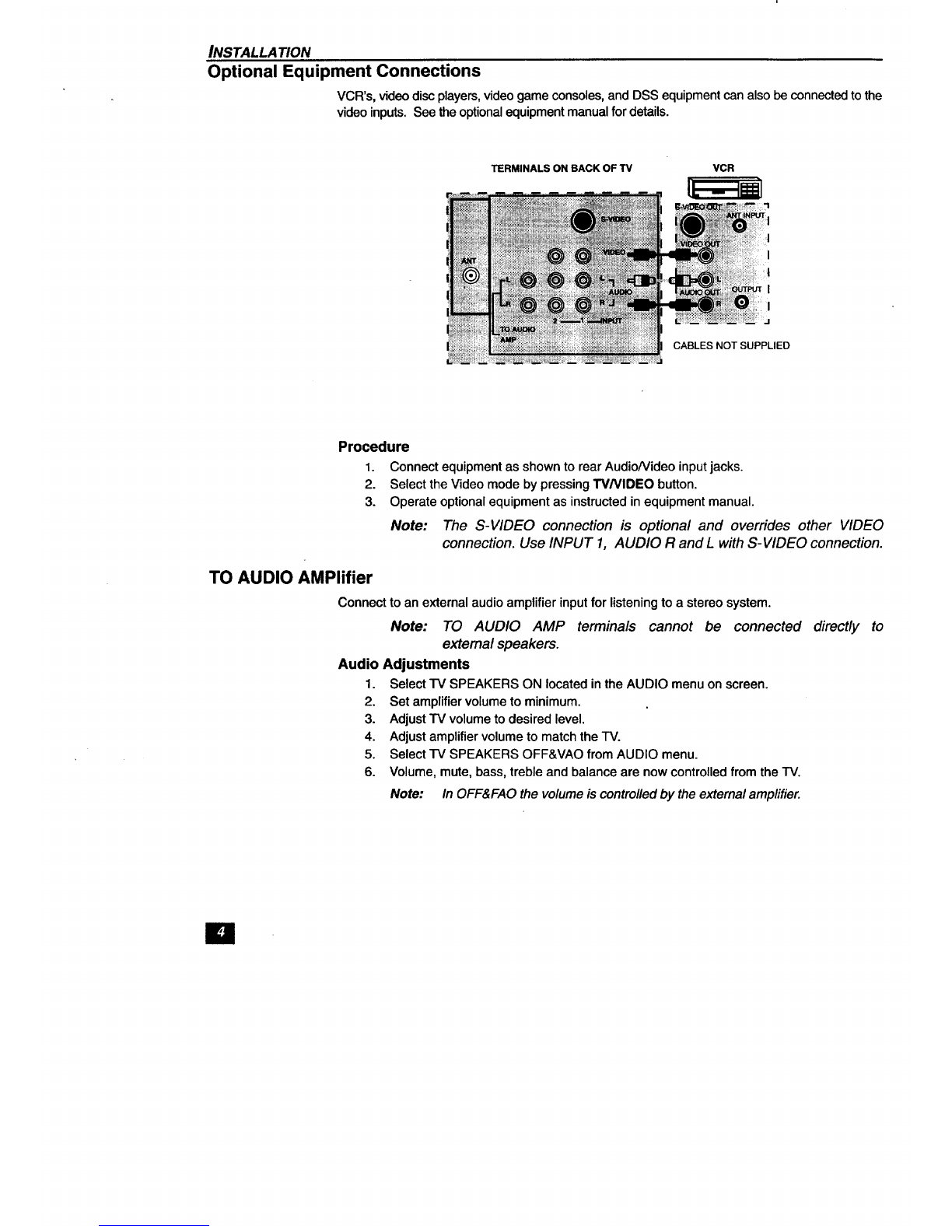

Optional Equipment Connections

VCR's, video discplayers,video game consoles,and DSS equipment can also be connectedto the

video inputs. See the optionalequipment manual fordetails.

TERMINALS ON BACK OF "rv VCR

CABLES NOT SUPPLIED

Procedure

1. Connectequipmentas shown torear Audio/Videoinputjacks.

2. SelecttheVideomode bypressingW/VIDEO button.

3. Operateoptionalequipmentas instructedin equipmentmanual.

Note: The S-VIDEO connection is optional and overrides other VIDEO

connection. Use INPUT 1, AUDIO Rand L withS-VIDEO connection.

TO AUDIO AMPlifier

Connect to an external audio amplifier input for listeningto a stereo system.

Note: TO AUDIO AMP terminals cannot be connected

external speakers.

Audio Adjustments

1. Select IV SPEAKERS ON located in the AUDIO menu on screen.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the "IV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled from the TV.

Note: In OFF&FAO the volume is controlled by the external amplifier.

directly to

Picture In Picture (PIP) Operation PICTURE IN PICTURE (PIP) OPERATION

With IWithout A VCR And Cable Box

This television includes a two tuner Picture In Picture (PIP) feature. This allows watching'_o-

(2) live broadcasts at the same time without or with an external video source (VCR).

Without A VCR (External Video Source)

Procedure

•Connect incoming cable to antenna (ANT) input on back of TV.

• Press the PIP button on the Remote Controlto display the PIP frame.

Note: The audio is for the Main Picture, only.

•-Choose. channels for the PiP frame by pressing the Remote Control PIP

CHANNEL up/down buttons.

•Choose channels for the Main Picture by pressing the Remote Control CH

up/down buttons or by using the numedc keypad.

With A VCR (External Video Source) And Cable Box

Connectyourtelevisiontoa VCR andCableBox,as shown.

TERMINALS ON BACK OF TV VCR CABLEBOX

Incoming

Cable

Cable Splitter

(Not Supplied)

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with supp/ied codes to operate the VCR

and Cab/e Box. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Procedure

Note:

Press the PIP button on the Remote Control to display the PIP frame.

Note: TheaudioisfromtheMain Pictureonly. i

To view scrambled channels through your Cable Box in the PIP frame:

•Press the W/VIDEO button on the Remote Control to select the same video

input which your cable box is connected to.

•Verify the CABLE'BOX and VCR are ON and the VCR tuned to channel 3.

•Choose channels for the PiP frame by pressing the CBL button on the Remote

Control and using the numeric keypad or CH up/down buttons.

•Choose channels for the Main Picture by pressing the TV button on the Remote

Control and using the numeric keypad or CH up/down buttons.

TheSWAPbutton switchesthePIPand MainPicturesource. PresstheRECALL button forPiP

andMain Picturesourcestatus,onscreen. El

PICTURE IN PICTURE (PIP) OPERATION (CONT.)

Picture In Picture (PIP) Operation (Cont.)

With a VCR -No Cable Box

This television includes a two tuner Picture In Picture (PIP) feature. This allows watching two

(2) live broadcasts at the same time without or with an extemal video source (VCR).

Connect your television to a VCR, as shown.

TERMINALS ON BACK OF TV VCR

Incoming

Cable

Cable Splitter

(Not Supplied)

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with the supplied codes to operate the

VCR. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Procedure

Press the PIP button on the Remote Control to display the PIP frame on screen.

Note: The audio is from the Main Picture only.

To view an external video source in the PIP frame:

•Press the W/VIDEO button on the Remote Control to select the same video

inputwhich your VCR is connected to.

• Vedfy the VCR ison.

• Choose channels for the Main Picture by pressing the TV button on the Remote

Control and using the numeric keypad or CH up/down button.

• Choose channels for the PIP frame by pressing the TM button on the Remote

Control and using the PIP Channel up/down buttons

The SWAP button switches the PIP and Main

Picture source. Press the RECALL button for PIP

and Main Picture source status, on screen.

lal

Main Menu MAIN MENU

Main Menu

I_111

ACTION Button

Press the ACTION button to display the Main Menu and Sub Menus. Press the ACTION button

repeatedly to exit.

CH /VOL Buttons

Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH buttons to

highlightthe desired features. Use VOL buttons to select and adjust features.

Remote Action /Navigation Buttons

VOL

Remote Control

The Remote Control Quick Reference Guide is located withinthe package providedwiththis "IV.

MAIN MENU FEATURE CHART

Main Menu Feature Chart

Reset BASS, TREBLE and BALANCE to factory

default.

Increase or decrease the bass response.

Increase or decrease the treble response.

Emphasize the left/right speaker volume.

Select the audio mode:

I"1 STEREO -Two channel audio reception.

13 SAP - (Second Audio Program) Tune to the

altemate audio channel if available in your area

(bilingual or descriptive audio).

13 MONO - One channel audio. Use when stereo

signal is weak.

Automatically maintain constant volume between

programs and commercials.

Enhances audio response when listening to stereo.

MAIN MENU FEATURE CHART

Main Menu Feature Chart (ConL)

Select TV SPEAKERS:

D ON -TV SPEAKERS operate normally.

O OFF&VAO (Variable Audio Output) - TV

Speakers off -- audio adjustable by -rv.

[3 OFF&FAO (Fixed Audio Output) - TV

SPEAKERS off -- audio adjustable only by the

external amplifier.

Program TV to automatically turn off in30, 60, or

90 minutes. Select NO to turn timer off.

Program TV to automatically turn on and off at

selected time on a selected channel, daily or only one

day.

Reset all picture adjustments to factory default

settings.

Adjust desired color intensity.

Adjust natural flesh tones.

Adjust dark areas for crisp detail.

Adjust white areas of picture.

Adjust clarity of outline detail.

;;!ii ! iiiiiiili!i!ii_i

Provide labels for up to 30 stations using up to four

characters for each station.

Program to prevent video games, cable box, and

VCR's from being viewed.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic Viera TX-L32DT30E Bedienungsanleitung

Panasonic

Panasonic TC-14JR1P Bedienungsanleitung

Panasonic

Panasonic ST50 series Montageanleitung

Panasonic

Panasonic CT27SX11E - 27" COLOR TV Bedienungsanleitung

Panasonic

Panasonic CT-3272S Bedienungsanleitung

Panasonic

Panasonic TX-29PX20DM Bedienungsanleitung

Panasonic

Panasonic TC-29A11Z Bedienungsanleitung

Panasonic

Panasonic TX-29E50DB Bedienungsanleitung

Panasonic

Panasonic TX-21PM30T Bedienungsanleitung

Panasonic

Panasonic TC-14E1M Bedienungsanleitung

Panasonic

Panasonic TX-28XD90FA Bedienungsanleitung

Panasonic

Panasonic CT-32D20 Bedienungsanleitung

Panasonic

Panasonic TX-21MK1/M Bedienungsanleitung

Panasonic

Panasonic Viera TH-P42VT30Z Bedienungsanleitung

Panasonic

Panasonic TX-21S3TC Bedienungsanleitung

Panasonic

Panasonic CT-F2936LC Bedienungsanleitung

Panasonic

Panasonic TX-L26X20B Bedienungsanleitung

Panasonic

Panasonic Viera TX-20LA5P Bedienungsanleitung

Panasonic

Panasonic TC-59R62 Bedienungsanleitung

Panasonic

Panasonic TX-32PX10D Bedienungsanleitung

Panasonic

Panasonic CT-F2156WLC Bedienungsanleitung

Panasonic

Panasonic Viera TH-58PE75 Bedienungsanleitung

Panasonic

Panasonic TX-32DS600E Montageanleitung

Panasonic

Panasonic Omnivision VHS PV-C2780 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
