Panasonic CT-G2939 Bedienungsanleitung

TABLE OF CONTENTS

Table of Contents

Congratulations ................................................... 3

Customer Record ............................................... 3

Care and Cleaning ............................................. 3

Specifications ..................................................... 3

Remote Control .................................................. 3

Installation ................................................. ;.......... 4

Television Location ............................................ 4

Optional Cable Connections .............................. 4

AC Power Supply Cord ...................................... 4

Cable /Antenna ................................................. 4

Cable Connection .............................................. 4

Antenna Connection .......................................... 4

Optional Equipment Connections ...................... 5

Main Menu ............................................................ 6

ACTION Button .................................................. 6

CH /VOL Buttons .............................................. 6

Main Menu Feature Chart .................................... 7

Special Features .................................................. 9

Languages ......................................................... 9

Timer .................................................................. 9

Sleep Timer ....................................................... 9

Program Timer ................................................... 9

CH CAP (Channel Caption) ............................. 10

LOCK ............................................................... 11

Lock Mode (Lock and Unlock) ......................... 11

Troubleshooting Chart ...................................... 12

Safety Instructions

WARNING

WARNING: To reduce the risk of ek_bic shock do not renlo_9coverorback.

No _s_r-seP,,]ceable p6rts inside. Refer sen/icing to quaJified_persoNneL

_The ligilb_ingflash with arrow AThe exclamationpointwithina

head wt_in a Iriangle is _._ triangle is intended to tell _he

intendedto tell the user that user that imporiant operating

parts inside the productare a andServtcinginstnJctionsarein

dskof electhcshoc_to persons, thepaperswiththea_pliance.

WARNING: Toi_eventfire ofshockhazard,do notexposethisapplianceto rain(x moisture.

Read these Instructions completely before operating TV.

Contents are subject to change wRhont nntlce or obligation.

Unauthorized copying and dtsl_bulJon is a violation of law,

[]

FEATURE COMPARISON CHART

Feature Comparison Chart

MODELS

FEATURES

MENU LANGUAGE

ENG/SPAN/FR

CLOSED CAPTIONING

V-CHIP CAPABILITY

75 OHM INPUT

VIDEO NORM

STEREO

AI SOUND

NUMBER OF SPEAKERS

ALVIN

(REAR/FRONT)

S-VHS INPUT

HEADPHONE JACK

£3

(1/0)

£3

r'l

£3

(1/o)

£3

[]

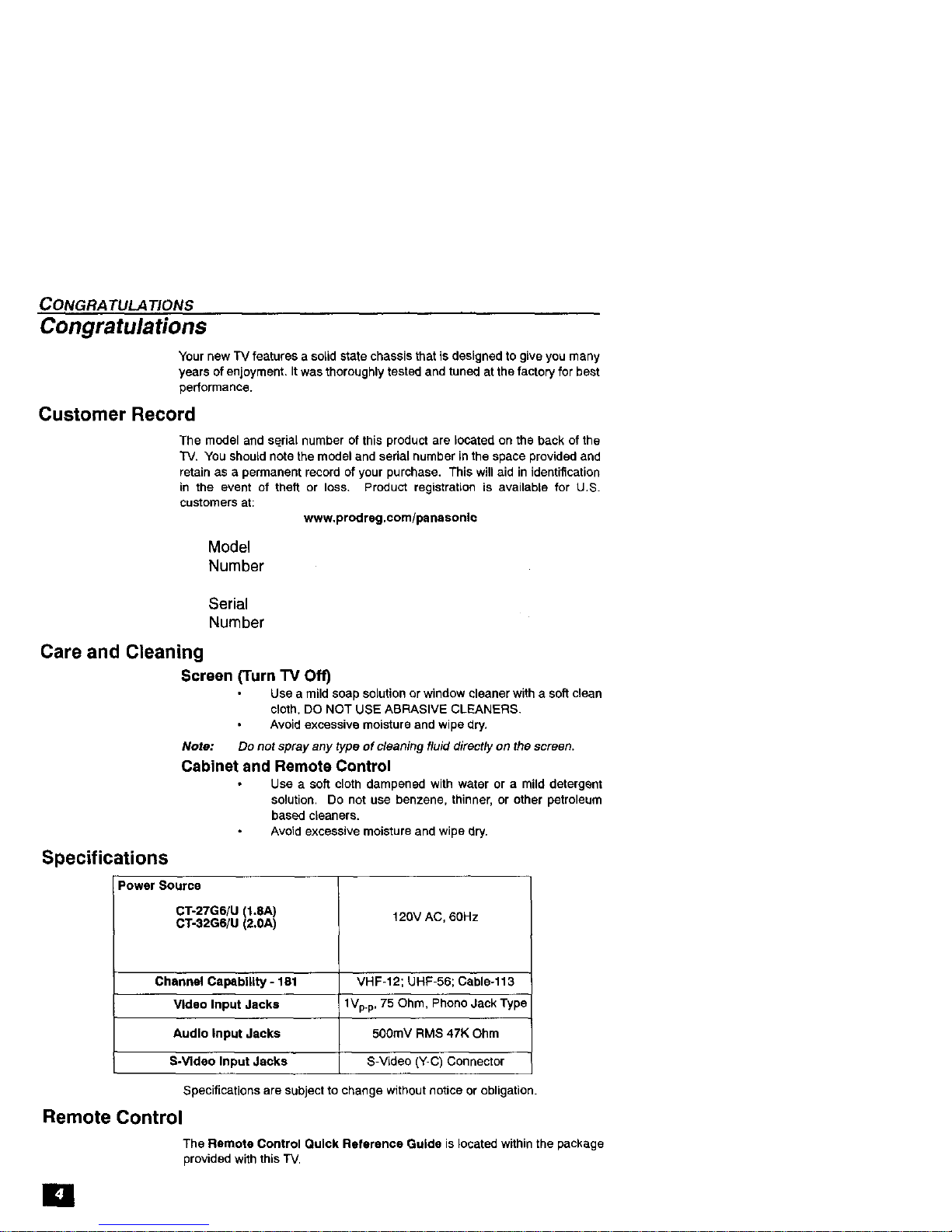

CONGRA TULA'I IONS

Congratulations

Your new TV features a solid state chassis that is designed to give you many

years of enjoyment. It was thoroughly tested and tuned at the factory for best

performance.

Customer Record

The model and serial number of this product are located on the back of the

TV. You should note the model and serial number in the space provided and

retain as a permanent record of your purchase. This will aid in identification

in the event of theft or loss. Product registration is available for U.B.

customers at: www, prodreg.com/panesonle

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

Use a mild soap solution or window cleaner with asoft clean

cloth. DO NOT USE ABRASIVE CLEANERS.

Avoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

Use asoft cloth dampened with water or a mild detergent

solution. Do not use benzene, thinner, or other petroleum

based cleaners.

Avoid excessive moisture and wipe dry.

Specifications

Power Source

CT-27G6/U (1.8A)

CT-32G6/U (2.0A) 120V AC, 60Hz

Channel Capability- 181 VHF-12; UHF-56; Cable-113

Video Input Jacks 1Vp.p, 75 Ohm, Phone Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

S-Video Input Jacks S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

Remote Control

The Remote Control Quick Reference Guide is located within the package

provided with this TV.

[]

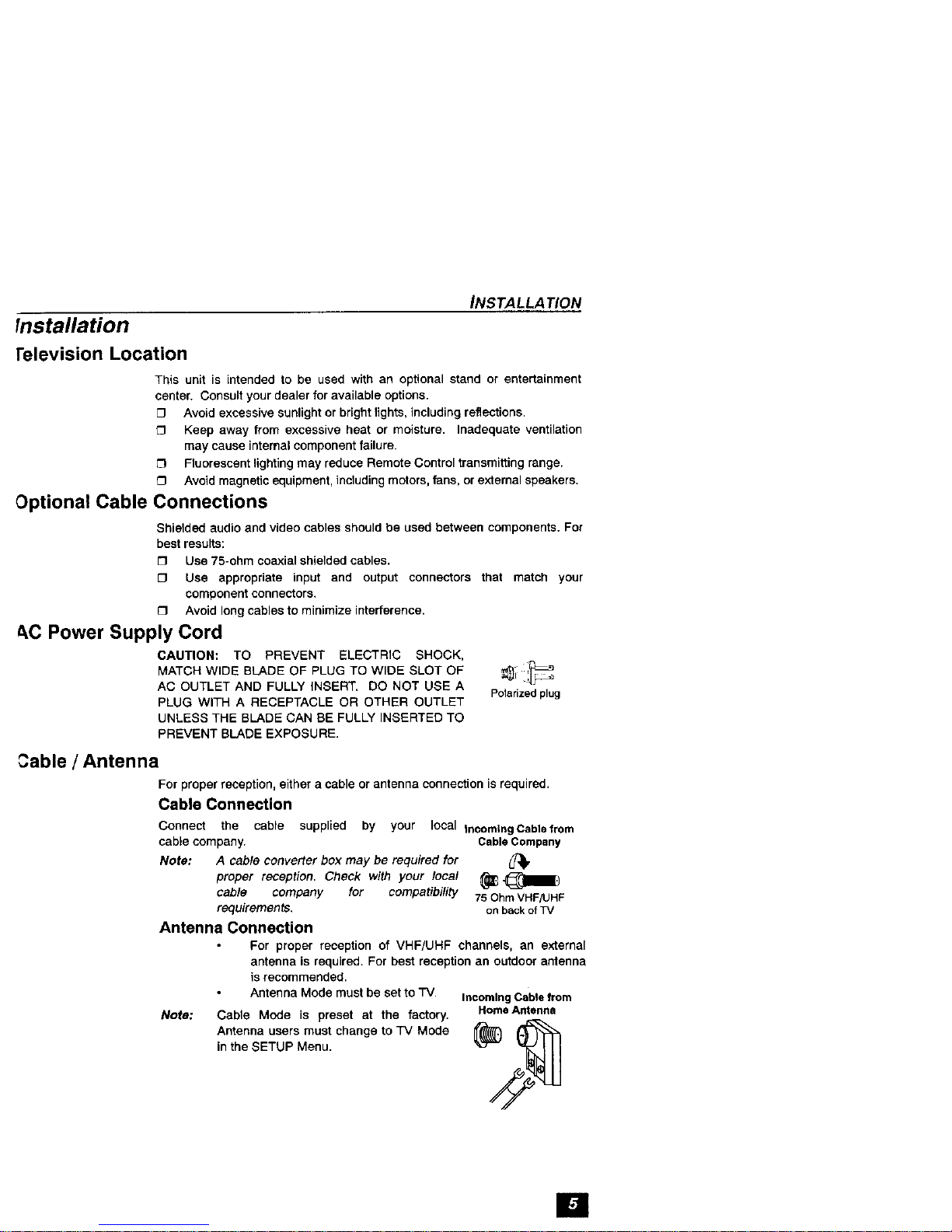

rnstallation INSTALLATION

I'elevision Location

This unit is intended to be used with an optional stand or entertainment

center. Consult your dealer for available options.

[3 Avoid excessive sunlight or bright lights, including reflections.

C3 Keep away from excessive heat or moisture. Inadequate ventilation

may cause internal component failure.

O Fluorescent lighting may reduce Remote Control transmitting range.

O Avoid magnetic equipment, including motors, fans, or external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For

best resulLs:

[3 Use 75-ohm coaxial shielded cables.

O Use appropriate input and output connectors that match your

component connectors.

O Avoid long cables to minimize interference.

_,C Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF

AC OUTLET AND FULLY INSERT. DO NOT USE A Polarized plug

PLUG WITH A RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADE CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

3able /Antenna

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local IncomlngCabletrom

cable company. Cable Company

Note: A cable converter box may be required for

proper reception. Check with your local _

cable company for compatibility 75 Ohm VHF/UHF

requirements, on back ofTV

Antenna Connection

For proper reception of VHF/UHF channels, an external

antenna is required. For best reception an outdoor antenna

is recommended.

Antenna Mode must be set to TV.

Cable Mode is preset at the factory.

Antenna users must change to TV Mode

in the SETUP Menu.

Note: Incoming Cable from

Home Antenna

[]

INSTALLATION

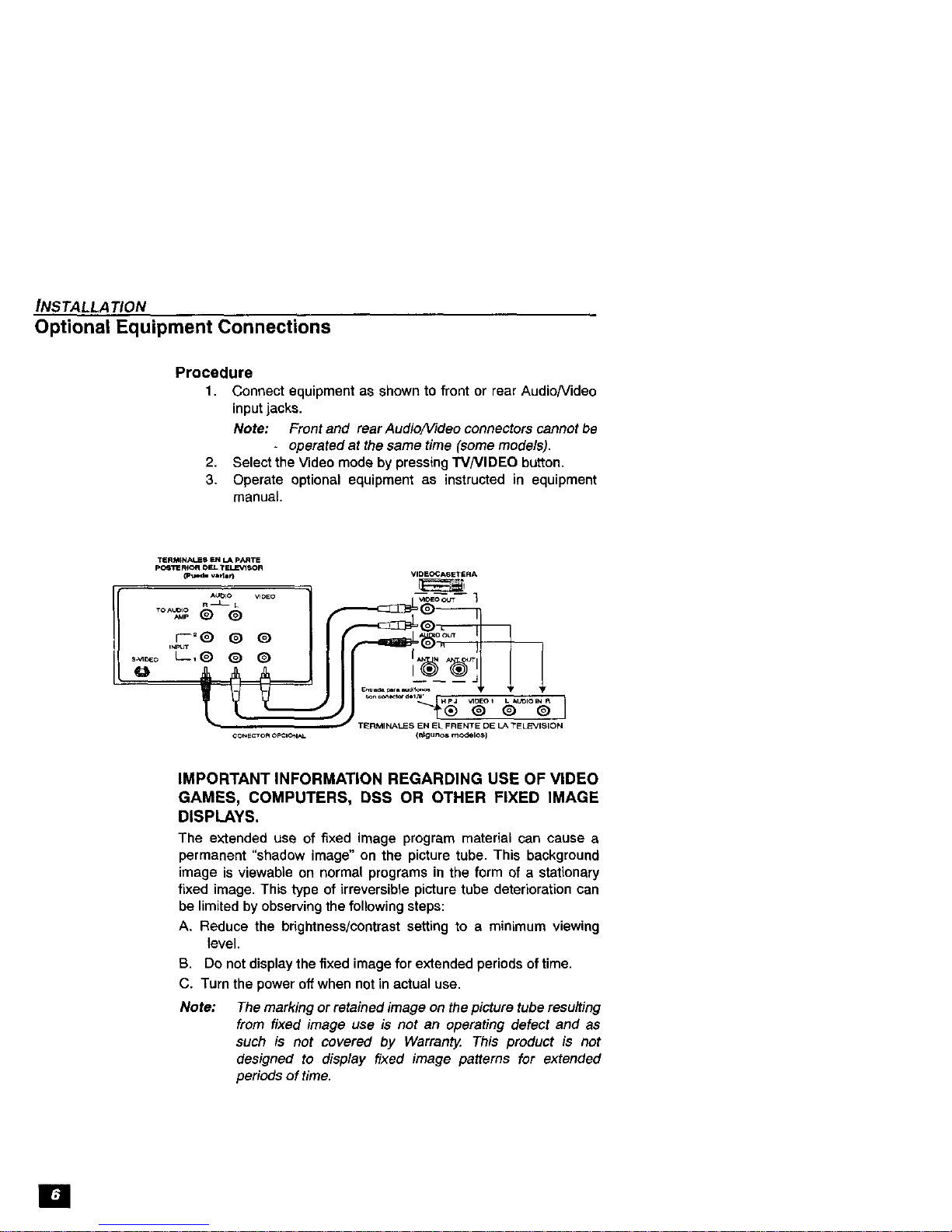

Optional Equipment Connections

Procedure

1. Connect equipment as shown to front or rear Audio/Video

input jacks.

Note: Front and rear Audio/Video connectors cannot be

-operated at the same time (some models).

2. Select the Video mode by pressing TVNIDEO button.

3. Operate optional equipment as instructed in equipment

manual.

T_RMINALES EN EL FRENTE DE LA +£ELEVISION

(_gunos m OdelO,S]

IMPORTANT INFORMATION REGARDING USE OF VIDEO

GAMES, COMPUTERS, DSS OR OTHER FIXED IMAGE

DISPLAYS.

The extended use of fixed image program material can cause a

permanent "shadow image" on the picture tube. This background

image is viewable on normal programs in the form of a stationary

fixed image. This type of irreversible picture tube deterioration can

be limited by observing the following steps:

A+ Reduce the brightness/contrast setting to a minimum viewing

level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting

from fixed image use is not an operating defect and as

such is not covered by Warrant_ This product is not

designed to display fixed image patterns for extended

periods of time.

[]

INSTALLATION

_.mplifier Connection (To Audio Amp)

Connect to an external audio amplifier input for listening to a

stereo system.

Note: TO AUD/O AMP terminals cannot be connected directly to

extema/speakers.

Audio Adjustments

1. Select TV'SPEAKERS ON from AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the "IV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled

from the TV.

Note: In OFF&FAO the volume is controlled by the external amplifie_

...._ Q (_

r--'® O ®

.... oW,® Q ®

TE R_t tNALES EN LA pARTE

p O6_ RIOFI DE;- TELEVI_BOR

(putde v,rlar)

[]

MAIN MENU

Main Menu

ACTION Button

Press the ACTION button to display the Main Menu and submenus. Press

the ACTION button repeatedly to exit.

OH /VOL Buttons

Remote Navigation Buttons

VOL VOL

Procedure

[] Pressthe CH (channel) orVOL (volume)buttonsto select an icon.

[] Usethe CH buttonstohighlightthedesiredfeatures,

_3 UseVOL buttons toselectand adjustfeatures,

[]

MAIN MLNU I-EATUR_ L;HART

Main Menu Feature Chart

SETUP

IDIOM_ _ Select English, Spanish, or French menu.

LANGUE

PRO_ CHAN

(Program Chan_l_

AUTO PROG

CC MODE

[]

OTHER ADJ.

[]

OTHER ADJ.

SURROUND

AUDIO ADJ.

MODE - Select Cable or TV, See Installation section

in manual.

AUTO PROGRAM Automatically program

channels having a signal into memory,

MANUAL PROGRAM - Manually add or delete

channels from memory.

CC MODE - Select Cl or C2 for Closed Captioning,

program guides and other information.

AUTO POWER ON - Select SET to power up the TV

at the same time as the Cable Box or other

components or select OFF.

AUDIO

MODE - Select STEREO, SAP (Second Audio

Program) or MONO. (Use MONO when stereo!

signal is weak.)

BASS - Increase or decrease the bass response.

TREBLE - Increase or decrease the treble

response.

BALANCE - Emphasize the left/right speaker

volume.

NORMAL - Reset BASS, TREBLE and BALANCE

to factory default.

AI SOUND - Automatically maintain constant

volume between programs and commercials.

MODE - Enhances audio response when listening

to stereo.

C3 ON - TV speakers operate normally.

[] OFF & VAO (Variable Audio Output) -

SPEAKERS TV speakers off -audio adjustable by 37/.

[] OFF & FAO (Fixed Audio Output)-

TV speakers off - audio adjustable only by the

external amplifier.

[]

MAIN MENU FEATURE CHART

Main Menu Feature Chart (ConL)

TIMER

£3 When entered, TIME will display on screen after

CLOCK SET pressing POWER button, RECALL button, or

changing channels.

O Program TV to automatically turn off in 30, 60, or

SLEEP 90 minutes. Select NO to turn timer off.

O Program TV to automatically turn on and off at

PROGRAM TIMER selected time on a selected channel, daily or only

one day.


OCOLOR - Adjust desired color intensity.

OTINT- Adjust natural flesh tones,

VIDEO ADJ. I3 BRIGHTNESS -Adjust dark areas for crisp detail,

DPICTURE -Adjust white areas of picture.

(Adjustments) [] SHARPNESS - Adjust clarity of outline detail.

£3 NORMAL- Reset all picture adjustments to factory

default settings.

CH CAP

[] MANUAL CAPTION -Provide labels for up to 30

CHANNEL CAPTION stations using up to four characters for each station,

LOCK

[] LOCK SET - Program to prevent video games

cable box, and VCR from being viewed.

LOCK MODE Note: For more information about Block Programs

see the V-CHIP Parental Lock manua

provided with the TV package.

[]

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TC-33V30H Bedienungsanleitung

Panasonic

Panasonic TX-28LDP4F Bedienungsanleitung

Panasonic

Panasonic TX-32CW304 Bedienungsanleitung

Panasonic

Panasonic TX-55CX300E Bedienungsanleitung

Panasonic

Panasonic TC-21Z80PQ Bedienungsanleitung

Panasonic

Panasonic TX-33AK10P Bedienungsanleitung

Panasonic

Panasonic TC-25FJ20R Bedienungsanleitung

Panasonic

Panasonic CT-27SL15ND Operating Bedienungsanleitung

Panasonic

Panasonic TX-W32D2DP Bedienungsanleitung

Panasonic

Panasonic Viera TH-37PW5 Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-28PS12 Bedienungsanleitung

Panasonic

Panasonic CT-27D11D, CT-27D31C, CT-2772SC, CT-32D11C, CT-32D31C, CT-3274SC, CT-36D11C,... Bedienungsanleitung

Panasonic

Panasonic TC-14Z88RQ Bedienungsanleitung

Panasonic

Panasonic TX-21MK1F Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LMD71FA Bedienungsanleitung

Panasonic

Panasonic TX32DTX-11 Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-32PS10D Bedienungsanleitung

Panasonic

Panasonic TX-21S4TL Bedienungsanleitung

Panasonic

Panasonic TX-15AT1 Bedienungsanleitung

Panasonic

Panasonic TX-28LK1F Bedienungsanleitung

Panasonic

Panasonic CT-F2524 Bedienungsanleitung

Panasonic

Panasonic TX-21PZ1F Bedienungsanleitung

Panasonic

Panasonic CT-Z1425 Bedienungsanleitung

Panasonic

Panasonic TX-25P92X Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
