WARNING

WARNING: To reduce the riskofelectd¢shockdo notremovecoveror back.

'No user-serviceablepartsinside. Referservicing to qualifiedservicepersonnel.

_The lightning flesh with arrow AThe exclamation point within

head within a triangle is _triangle is intended to tell the

intended to tell the user that user that important operating

pert_; inside the product are e and servicing instructionsare in

risk of electricshocktopersons, the papers withthe appliance,

WARNING: To prevent fire or shock hazard, do not expose this appliance to

rain or moisture.

Read these Instructions completely before operating TV.

Contents are subject to change without notice or obligation.

Unauthorized copyingand distributionisaviolationof law.

TABLE OF CONTENTS

Table of Contents

Congratulations ........................................................ 2

Customer Record ................................................................ ._.:2

Care and Cleaning ...................................................... ii...2

Specifications ........................................ :,:.,,.:.,:.....=._.....,: ......... 2

Installation ................................... •.,.v__-=.,,:-, •............... 3

Television Location ........................... ,,:-_::;..._.:.._i .......... ......... 3

Optional Cable Connections ................................................ :....3

AC Power Supply Cord .................... ._..'_._....._.-.i._'_...i_ ........... 3

Cable /Antenna ............................. ;:::.,.:_.*.:.._...:.:.:: ........... ....... 3

Cable Connection ........................... _-, .-..,;..;.......;._...... 3

Antenna Connection ................................................................. 3

Optional Equipment Connections ............................................. 4

To Audio Amplifier .................................................................... 4

Audio Adjustments ................................. L.:..-.::..:. ................... ,4

Picture In Picture (PIP) Operation ........................... 5

With /Without a VCR and Cable Box ...................................... 5

With a VCR - No Cable Box ................................................... 6

Main Menu ................................................................. 7

ACTION Button ........................................................................ 7

CH /VOL Buttons ..................................................................... 7

Main Menu Feature Chart ......................................... 8

Special Features ..................................................... 10

Languages .............................................................................. 10

Timer ...................................................................................... 10

Sleep Timer ............................................................................ 10

Program Timer ....................................................................... 10

CH CAP (Channel Caption) .................................................... 11

LOCK ...................................................................................... 12

Game Guard Lock and Unlock ............................................... 12

Troubleshooting Chart ........................................... 13

Ill

CONGRA TULA TIONS

Congratulations

Your new "IV features asolid state chassis that is designed to give you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The modeland serialnumberof thisproduct are located on the back of the TV. You should note

the model and serial number in the space provided and retain as a permanent record of your

purchase. This will aid in identification in the event of theft or loss. Product registration is

available to U.S. customers at www.prodreg.corrdpanasoni¢.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

•Use a mildsoap solutionor wir_d0w_leaner witha softclean cloth.DO NOT USE

ABRASIVE CLEANERS,

•Avoidexcessive moistureand wipe dry,

Cabinet and Remote Control

C3 For plastic cabinets and Remote Control, use a soft clothdampened with water or a mild

detergent solution. Avoid excessive moisture and wipe dry.

[D For wooden cabinets, use a soft cloth and an occasional coat of furniture polish to preserve

the finish.

[D Do not use benzene, thinner or other petroleum based products.

Specifications

Power Source

CT-27G34 CT-32G34

CT-36G34 120V AC. 60Hz

Channel Capability -181 VHF-12; UHF-56; Cable-113

2 Video Input Jacks 1Vp-p, 75 Ohm, PhonoJack Type

2 Audio Input Jacks 50OmVRMS 47K Ohm

To Audio AMP Jack 0-2.0V RMS 4.7K Ohm

S-VHS Input Jack S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

[]

INSTALLATION

Installation

Television Location

This unit is intendedto be used with an optional stand or entertainment center. Consult your

dealer for availableoptions.

[] Avoidexcessivesunlightor brightlights,includingreflections.

£3 Keep away from excessive heat or moisture. Inadequate ventilationmay cause internal

componentfailure.

£3 Fluorescent lightingmay reduce remotecontroltransmittingrange.

£3 Avoidmagneticequipment,includingmotors,fans, or externalspeakers.

Optional Cable Connections

Shieldedaudio and videocables shouldbe used between components.For best results:

OUse 75-ohm co_tal shieldedcables.

£3 Use appropdate inputand outputconnectorsthat matchyourcomponent connectors.

[] Avoidlongcables to minimizeinterference.

AC Powe r Supply Cord .....

CAUTION: TOPREVENTELECTRICSHOCK,MATCHWIDEBLADEOFPLUGTO

WIDE,SLOTOFACOUTLETANDFULLYINSERT.DONOTUSE APLUGWITHA

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTEDTO PREVENTBLADEEXPOSURE. FORSOMEMODELSTHATARE

NON-POLARIZED,THE USEOFANACADAPTORCONNECTORMAY

BENECESSARY.

Polarized plug

Cable /Antenna

Forproper reception,eithera cable or antenna connectionis required.

Cable Connection

Connectthe cable suppliedby yourlocalcable company.

Note: A cable converter box may be required for proper reception.

Check with your local cable company for compatibility

requirements.

Antenna Connection

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on backof TV

Forproper receptionofVHF/UHF channels, anextemal antenna isrequired. For

best receptionan outdoorantenna is recommended.

Antenna Mode must be set to TV in the SETUP menu.

-_, Cable Preset

Cable Mode is preset at the factory.

Antenna users must change to Antenna

Mode in the Setup Menu.

Incoming Cable from

Home Antenna

[]

INSTALLATION

Optional Equipment Connections

VCRs, video discplayers, video game equipment, and DSS equipment can also be connected

to the video inputs. See the optional equipment manual for details.

CABLES NOT SUPPLIED ViOEO LAuBon

r "1

headphoneplug TERMINALS ON FRONT OF TV

Procedure

1. Connect equipment as showntofrontor rear AudioNideo inputjacks.

Note: Frontand rear Audio/Videoconnectorscannotbe operatedat thesame time.

2. Select theVideo mode bypressingTV/VIDEO button.

3. Operate optionalequipmentas instructedin equipmentmanual.

Note: If S-VIDEO and VIDEO input are used at the same time, two images will

appear on the TV screen.

TO AUDIO AMPlifier

Connect to an externalaudio amplifier inputfor listeningto a stereosystem.

Note: TO AUDIO AMP terrnina/scannotbe connecteddirectlytoexternalspeakers.

Audio Adjustments

1. SelectTV SPEAKERS ON from AUDIO menu.

2. Set amplifiervolumeto minimum.

3. AdjustTV volumeto desired level.

4. Adjustamplifier volumeto matchtheTV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balanceare now controlledfrom theTV.

Note: In OFF&FAO the volumeis controlledby the externalamplifier.

[]

PICTURE IN PICTURE (PIP) OPERATION

Picture In Picture (PIP) Operation

With /Without A VCR And Cable Box

This television includesa two tuner Picture In Picture (PIP) feature. This allowswatching two

(2) live broadcasts at the same time without or with an external video source (VCR).

Without A VCR (External Video Source)

Procedure

•Connect incoming cable toantenna (ANT) inputon back ofTV.

Pressthe PIP buttonon the Remote Controlto displaythe PIP frame.

Note: The audio is for theMain Picture,only.

•Choose channels for the PiP frame by pressing the Remote Control PIP

CHANNEL up/downbuttons.

• Choose channelsfor the Main Piciure bypressingthe Remote Control

CH up/downbuttonsor by usingthe numerickeypad.

With A VCR (External Video Source) And Cable Box

Connect yourtelevision to aVCR and Cable Box, as shown.

TERMINALS ON BACK OF TV VCR

(may YaW) .....

CABLEBOX

Note: The Remote Control must be programmed with supplied codes to operate the VCR

and Cable Box. See ProgrammingtheRemote Controlin the Remote Control Quick

Reference Guide.

Procedure

Pressthe PIP button on the Remote Control todisplay the PiP frame.

Note: The audio is fromthe Main Pictureonly.

No_:

Toview scrambled channelsthrough yourCable Box in the PIP frame:

• Press the W/VIDEO button on the Remote Control to select the same video

input to which your cable box is connected.

• Verify the CABLE BOX and VCR are ON and the VCR tuned to channel 3.

• Choose channels for the PIP frame by pressing the CBL button on the Remote

Control and using the numeric keypad or PIP CHANNEL up/down buttons.

Choose channels for the Main Picture by pressing the TV button on the Remote

Control and using the numeric keypad or CH up/down buttons.

The SWAP button switches the on screen PIP and Main Picture source. Press the

RECALL button for PIP and Main Picture sourcestatus. m

PICTURE IN PICTURE (PIP) OPERATION (CONT.)

Picture In Picture (PIP) Operation (ConL)

With a VCR -No Cable Box

This television includes atwo tuner Picture In Picture (PIP) feature. This allowswatchingtwo

(2) live broadcasts at the same time without or with an externalvideo source (VCR).

Connect yourtelevision toa VCR, as shown

TERMINALS ON BACK OF "IV VCR

tmay vary)

INCOMING

_-VmDEOOUT 1 CABLE

Note: The Remote Control must be programmed with the supplied codes to operate the

VCR. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Procedure

Press the PIP buttonon the Remote Controlto displaythe PiP frame on screen.

Note: The audio isfrom theMain Pictureonly.

To viewan externalvideo sourcein the PIP frame:

•Press the TVNIDEO button on the Remote Control to select the same video

inputto whichyourVCR isconnected.

• Verifythe VCR ison.

•Choose channels for the Main Pictureby pressingthe TV buttonon the Remote

Controland usingthe numerickeypad or CH up/down button.

•Choose channels for the PIP frame by pressingthe TV button on the Remote

Control and usingthe PIP Channel up/downbuttons.

The SWAP button switches the PIP and

Main Picture source. Press the RECALL

button for on screen PIP and Main Picture

sourcestatus.

[]

MAIN MENU

Main Menu

ACTION Button

Pressthe ACTION buttontodisplaythe Main Menu and submenus. Pressthe ACTION button

repeatedlyto exit,

CH /VOL Buttons

Press the CH (channel) or VOL (volume)buttonsto selectan icon. Use the CH buttonsto

highlightthe desiredfeatures, Use VOL buttonstoselect and adjustfeatures,

Remote Action /Navigation Buttons

VOL VOL

Remote Control

The Remote Control Quick Reference Guide is located within the package provided with

this"IV.

[]

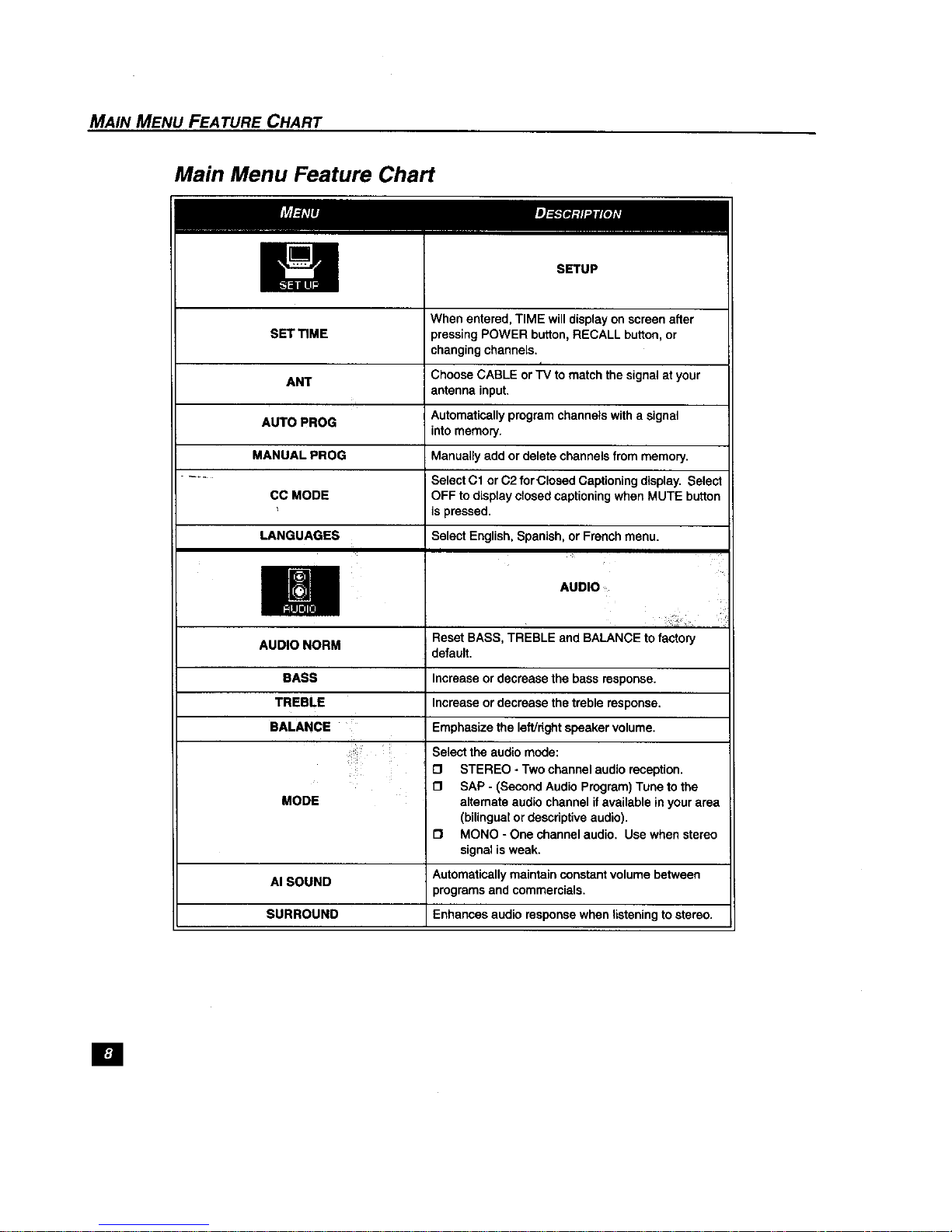

MAIN MENU FEATURE CHART

Main Menu Feature Chart

SET TIME

SETUP

When entered, TIME will display on screen after

pressing POWER button, RECALLbutton, or

changing channels. J

Choose CABLE or TV to match the signal at your

antenna input.

ANT

AUTO PROG Automaticallyprogramchannelswitha signal

intomemory.

MANUAL PROG Manually add ordelete channelsfrom memory.

.... Select C1 or C2 forCIosed Captioningdisplay. Select

CC MODE OFF to display closed captioningwhen MUTE button

is pressed.

Select English, Spanish, or French menu.

AUDIO

Reset BASS, TREBLE and BALANCE tofactory

default.

Increaseor decrease the bass response.

Increaseor decrease the treble response.

Emphasize the left/rightspeaker volume.

LANGUAGES

AUDIO NORM

BASS

TREBLE

BALANCE

MODE

Select the audio mode:

£3 STEREO - Two channel audio reception.

£3 SAP - (Second AudioProgram)Tune to the

alternate audio channel ifavailable in your area

(bilingualor descriptiveaudio).

£3 MONO - One channel audio, Use when stereo

signal isweak.

AI SOUND Automaticallymaintainconstantvolume between

programsand commercials.

SURROUND Enhances audio response when listening tostereo.

[]

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-25S80Z Bedienungsanleitung

Panasonic

Panasonic TX-40AS640E Bedienungsanleitung

Panasonic

Panasonic TC-21T1Z Bedienungsanleitung

Panasonic

Panasonic CT25L8G - 25" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-W28R3F/L Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS1F Bedienungsanleitung

Panasonic

Panasonic Viera TX-PF37X20 Bedienungsanleitung

Panasonic

Panasonic CT2007F - TV Bedienungsanleitung

Panasonic

Panasonic TX-28SL20C Bedienungsanleitung

Panasonic

Panasonic CX600H series Bedienungsanleitung

Panasonic

Panasonic TX-28LD4DPL Bedienungsanleitung

Panasonic

Panasonic TX-W28R3F Bedienungsanleitung

Panasonic

Panasonic TX-29P82X Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32E30Y Bedienungsanleitung

Panasonic

Panasonic TH-P50V20K Bedienungsanleitung

Panasonic

Panasonic PT43LC14 - MULTI MEDIA DISPLAY Gebrauchs- und Pflegehandbuch

Panasonic

Panasonic Viera TH-42PZ800E Bedienungsanleitung

Panasonic

Panasonic TX-W32D2DP Bedienungsanleitung

Panasonic

Panasonic CT27E33 - 27" TV Bedienungsanleitung

Panasonic

Panasonic TC-29V50R Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32DT30B Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LMD70A Bedienungsanleitung

Panasonic

Panasonic Vera TC-P42X3X Bedienungsanleitung

Panasonic

Panasonic TH-37PHD8UK Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
