Panasonic CT32SX30E - DTV Bedienungsanleitung

Color Television

Operating Instructions

CT-32SX30

TQB2AA0338 00905

PRINTED IN USA

Televisor a color

Instrucciones de Operación

CT-F3430 CT-F3430V CT-F3430X

TQB2AA0338 00905

IMPRESO EN EE.UU.

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: consumerproduct[email protected] (USA only)

Para asistencia llame al teléfono: 1-800-211-PANA (7262)

o envíe un correo electrónico a la dirección:

consumerproducts@panasonic.com (Solo en Estados Unidos)

0338-Cover.fm Page 1 Wednesday, February 7, 2001 11:24 AM

Certain audio features of this product are manufactured under a license from Desper Products, Inc.

Spatializer® and the circle-in-square device are trademarks owned by Desper Products, Inc.

Spatializer U.S. Patents are: 4,308,423; 4,355,203 and 5,412,731.

0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

WARNING:To reduce the risk of electric shock do not remove cover or back. No user-

serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within a

triangle is intended to tell the user

that important operating and

servicing instructions are in the

papers with the appliance.

The lightning flash with arrow

head within a triangle is intended

to tell the user that parts inside

the product are a risk of electric

shock to persons.

WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

0338E Prod.fm Page 1 Wednesday, February 7, 2001 11:07 AM

ABLE

ONTENTS

Table of Contents

Congratulations........................................................3

Customer Record.....................................................................3

Care and Cleaning ...................................................................3

Specifications...........................................................................3

Installation.................................................................4

Television Location...................................................................4

Optional Cable Connections.....................................................4

AC Power Supply Cord ............................................................4

Cable / Antenna Connection ....................................................5

Optional Equipment Connections.............................................6

Additional Equipment Connections ..........................................9

Amplifier Connection (TO AUDIO AMP)...................................9

Program Out Connection (PROG OUT).................................10

Digital TV - Set-Top Box (DTV-STB)

or DVD Connection................................................................10

Home Theater Connection ....................................................11

Picture In Picture (PIP) Operation.........................12

Split Screen Operation...........................................13

Roller Guide Menu™ ..............................................14

Basic Navigation.....................................................................14

Remote Control Guide............................................................14

Roller Guide Feature Chart....................................15

Special Features.....................................................18

Menu Languages....................................................................18

Prog Chan (Program Channels).............................................18

Closed Captioning..................................................................19

Geomagnetic Correction ........................................................20

Picture Adjustments ...............................................................21

Favorite Channels and Captions............................................22

Dolby Center Mode & Fixed Audio Out..................................22

Lock........................................................................................23

Sleep Timer............................................................................24

Timer 1 and Timer 2...............................................................24

Troubleshooting Chart...........................................25

Read these instructions completely before operating television.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

0338E Prod.fm Page 2 Wednesday, February 7, 2001 11:07 AM

ONGRATULATIONS

Congratulations

Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and

features an innovative PureFlatTM picture tube. The new silver-gray cabinet with compact,

elegant styling is designed to give you many years of enjoyment. It was thoroughly tested and

tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the television. You

should note the model and serial number in the space provided and retain as a permanent

record of your purchase. This will aid in identification in the event of theft or loss. Product

registration for U.S. customers is available at www.prodreg.com/panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent

solution. Avoid excessive moisture and wipe dry.

rDo not use benzene, thinner or other petroleum based products.

Specifications

Specifications are subject to change without notice or obligation.

Power Source

CT-32SX30 (2.9A)

120V AC, 60Hz

Channel Capability - 181 VHF-12; UHF-56; Cable-125

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Video Output Jack 1Vp-p, 75 Ohm, Phono Jack Type

Audio Output Jacks 0-2.0V RMS 4.7K Ohm

Component Input 75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

0338E Prod.fm Page 3 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center. Consult your

dealer for available options.

rAvoid excessive sunlight or bright lights, including reflections.

rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

rFluorescent lighting may reduce remote control transmitting range.

rKeep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over. In order to avoid injury to children, never place your

television receiver on a piece of furniture that is capable of being tilted by a child

leaning on it, pulling on it, standing on it, or climbing on it.

CT-32SX30:

CAUTION: This television receiver for use only with PANASONIC TY-32HX40P stand.

Use with other carts (or stands) is capable of resulting in instability causing possible

injury.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

rUse 75-ohm coaxial shielded cables.

rUse appropriate input and output connectors that match your component connectors.

rAvoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF

PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT

USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT

OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE

POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

0338E Prod.fm Page 4 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company to ANT1

connection on back of television. Select cable mode and ANT1 in SET UP

menu under Prog Chan (Program Channels).

Note: A cable converter box may be required for proper

reception. Check with your local cable company for

compatibility requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external

antenna is required. For best reception, an outdoor

antenna is recommended.

• Connect home antenna to ANT1 connection on back of

television. Select TV mode and ANT1 in the SET UP menu

under Prog Chan.

Cable Preset

Cable Mode is preset at the factory.

Antenna users must change to TV mode and

select ANT1 in the Set Up Menu under Prog

Chan.

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Cable Company

Incoming

able

rom

Home Antenna

0338E Prod.fm Page 5 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

Optional Equipment Connections

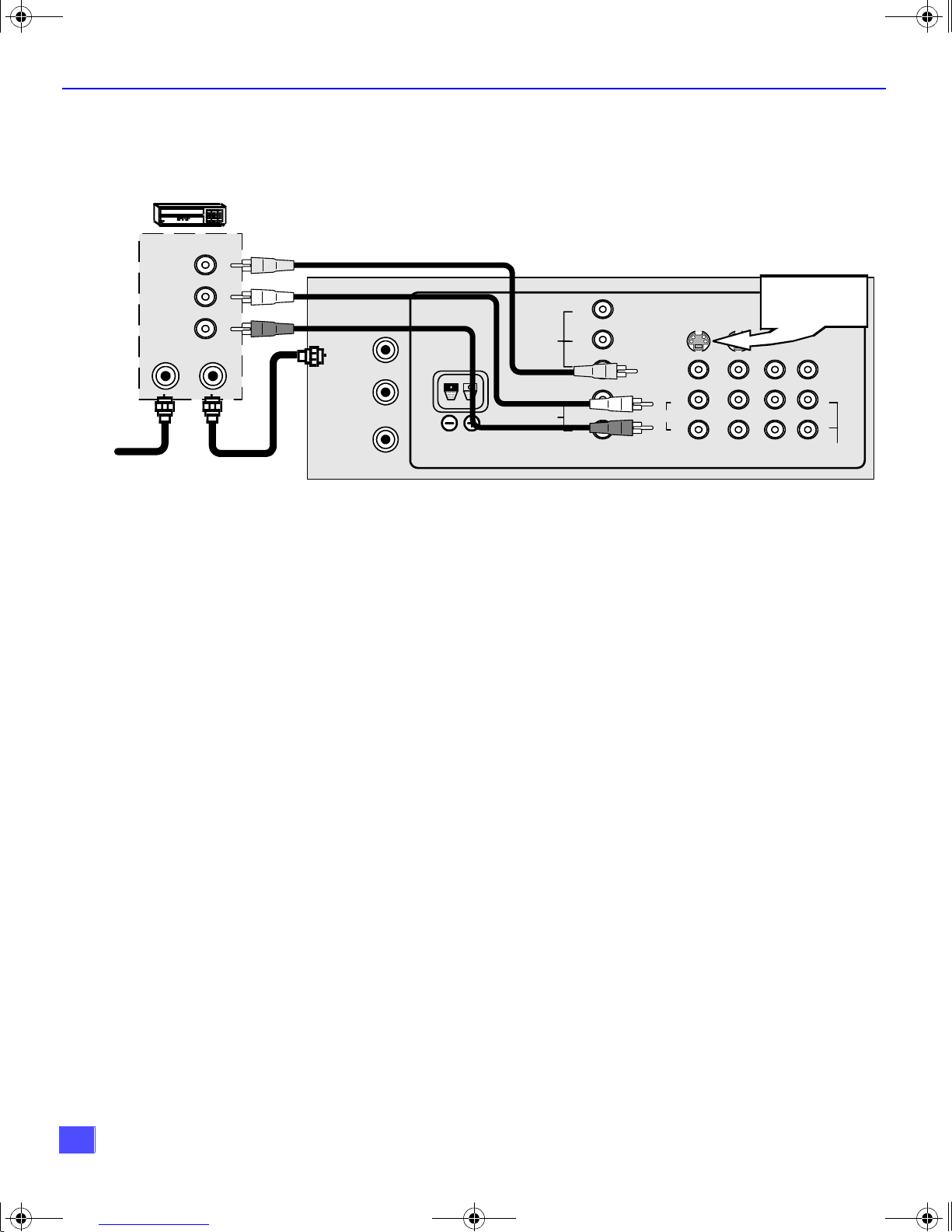

VCR Connection

Follow this diagram when connecting your television to a VCR only.

Note: The remote control must be programmed with supplied codes to operate the

VCR. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Viewing a television program

Procedure

1. Select ANT1 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to the television program you want to view.

Viewing a video

Procedure

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Begin the video.

Recording a television program

Procedure

rOption A (Recording and viewing the same program)

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Tune the television to Channel 3 or 4, depending on your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

rOption B (Recording one program while viewing another program).

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

5. Press the TV/VIDEO button on the remote control to switch back to TV mode.

6. Tune the television to the television program you want to view.

VCR

COMPONENT VIDEO INPUT

AUDIO

CENTER CHANNEL

INPUT

ANT 1

ANT 2

SPLIT OUT

VIDEO

AUDIO

INPUT

1INPUT

2INPUT

3TO AUDIO

AMP

S-

VIDEO

PROG

OUT

VIDEO OUT

AUDIO OUTL

ANT IN ANT OUT

CONNECTIONS ON BACK OF TV

CABLES NOT SUPPLIED

Incoming

Cable

Use either the

S-Video or Video

connection.

0338E Prod.fm Page 6 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

Cable Box Connection

Follow this diagram when connecting your television to a cable box only.

Note: The remote control must be programmed with supplied codes to operate the

cable box. See Programming the Remote Control in the Remote Control

Quick Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3 or 4.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: To use special features such as Favorite Channels and Channel Captions

(see Special Features section for more information), ANT1 must be selected

in the SET UP menu under Prog Chan.

Incoming

Cable

CONNECTIONS ON BACK OF TV

COMPONENT VIDEOINPUT

AUDIO

CENTER CHANNEL

INPUT

ANT 1

ANT 2

SPLIT OUT

VIDEO

AUDIO

INPUT

1INPUT

2INPUT

3TOAUDIO

AMP

S-

VIDEO

PROG

OUT

CABLE BOX

ANT IN

ANT OUT

0338E Prod.fm Page 7 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

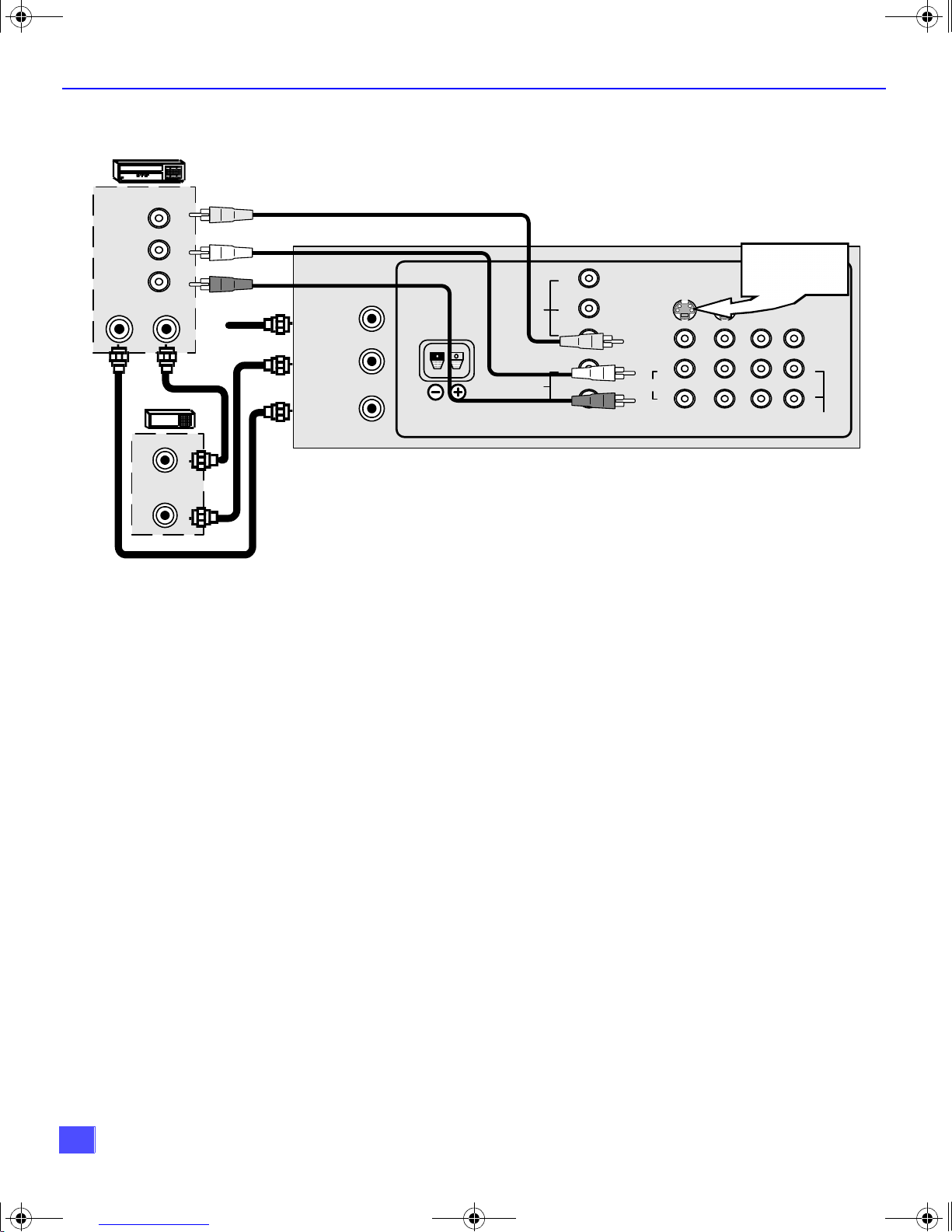

VCR and Cable Box Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

Note: The remote control must be programmed with supplied codes to operate the

VCR and cable box. See Programming the Remote Control in the Remote

Control Quick Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: To use special features such as Favorite Channels and Channel Captions

(see Special Features section for more information), ANT1 must be selected

in the SET UP menu under Prog Chan.

Recording a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Turn the VCR ON.

4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.

5. Using your cable box, tune to the premium cable channel you want to record.

6. Begin recording.

Note: To view a different channel while recording:

• Select ANT1 in the SET UP menu under Prog Chan.

• Press the TV/VIDEO button on the remote control to TV mode.

• Tune the television to a television program (except another premium cable

channel).

VCR

COMPONENT VIDEO INPUT

AUDIO

CENTER CHANNEL

INPUT

ANT 1

ANT 2

SPLIT OUT

VIDEO

AUDIO

INPUT

1INPUT

2INPUT

3TO AUDIO

AMP

S-

VIDEO

PROG

OUT

Use either the

S-Video or Video

connection.

VIDEOOUT

AUDIO OUTL

ANT OUT ANT IN

ANT IN

ANT OUT

CABLE BOX

Incoming Cable

CONNECTIONS ON BACK OF TV

CABLES NOT SUPPLIED

0338E Prod.fm Page 8 Wednesday, February 7, 2001 11:07 AM

NSTALLATION

Additional Equipment Connections

Push to open the front panel of the television to use the Audio/Video input jacks for optional

equipment. Press the TV/VIDEO button to select VIDEO 4 input mode.

A second VCR, a video disc player, video game equipment and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for details.

Procedure

1. Connect equipment to rear or front Audio/Video input jacks.

2. Select the corresponding video input by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Note: The S-VIDEO connection provides higher quality picture. It overrides other

VIDEO connections. Use INPUT 4, AUDIO L and R with S-VIDEO

connection.

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent “shadow image” on

the picture tube. This background image is viewable on normal programs in the form of a

stationary fixed image. This type of irreversible picture tube deterioration can be limited by

observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image

use is not an operating defect and as such is not covered by Warranty. This

product is not designed to display fixed image patterns for extended periods

of time.

Amplifier Connection (TO AUDIO AMP)

To listen through a separate stereo system, connect an external audio amplifier TO AUDIO

AMP outputs on back of television.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select SPEAKERS ON located in the onscreen AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust television volume to desired level.

4. Adjust amplifier volume to match the television.

5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled through the television.

Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions

through the external amplifier.

CONNECTIONS ON FRONT OF TV

INPUT 4

S-VIDEO VIDEO L-AUDIO-R

HPJ

ACTION TV/VIDEO

CHANNEL

VOLUME

Jack used for 1/8”

headphone plug

0338E Prod.fm Page 9 Wednesday, February 7, 2001 11:07 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic Viera TX-32LXD700 Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PS2P Bedienungsanleitung

Panasonic

Panasonic CT27E33 - 27" TV Bedienungsanleitung

Panasonic

Panasonic SuperFlat CT-F2993X Bedienungsanleitung

Panasonic

Panasonic TX-32F250A Bedienungsanleitung

Panasonic

Panasonic TH-P60S60A Montageanleitung

Panasonic

Panasonic CT-27G22 Bedienungsanleitung

Panasonic

Panasonic VIERA TX-50CX700E Montageanleitung

Panasonic

Panasonic TX-W32D4DP Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PX10D Bedienungsanleitung

Panasonic

Panasonic TX-36PD30 Bedienungsanleitung

Panasonic

Panasonic TX-36PL30 Bedienungsanleitung

Panasonic

Panasonic CT-32SX12U Bedienungsanleitung

Panasonic

Panasonic CT-32G19 Bedienungsanleitung

Panasonic

Panasonic TX-32DTDS3 Bedienungsanleitung

Panasonic

Panasonic TX-W32D4DP Bedienungsanleitung

Panasonic

Panasonic TX-32PX10P Bedienungsanleitung

Panasonic

Panasonic TX-28LD2P Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PX75 Bedienungsanleitung

Panasonic

Panasonic Viera TX-32LED7FM Bedienungsanleitung

Panasonic

Panasonic TX-32PS11D Bedienungsanleitung

Panasonic

Panasonic Viera TH-50PF10 Bedienungsanleitung

Panasonic

Panasonic PVDF2000 - MONITOR/DVD COMBO Bedienungsanleitung

Panasonic

Panasonic TH-43EX680H Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
