Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of

enjoyment from your new colour television. This is a very advanced television;

however, the Quick Start Guide will tell you how to have the TV operating quickly. You

can then read the instructions completely and retain them for future reference.

Warnings and Precautions 3..........

Accessories 4.......................

Quick Start Guide 5..................

Basic Controls 8.....................

Using the On Screen Displays 9.......

Aspect controls 10...................

Still Control 12.......................

Picture and Text 12...................

Picture Menu 13.....................

Sound Menu 14......................

Setup Menu 15.......................

Tuning Menu 16......................

Tuning Menu -- Programme edit 17....

Tuning Menu -- Auto Setup 21.........

Tuning Menu -- Manual tuning 22.....

Q-- Link 23...........................

OSD Language 24...................

VCR / DVD/R Operation 25...........

Te l e te x t O p e rat i on 2 6................

Audio / Video (AV) Connections 28....

AV Select and Setup 28...............

Front sockets 28......................

SCART and S-- Video socket

information 29........................

Rear sockets 30......................

Troubleshooting 31..................

Foryourguidance 32................

Specifications 32....................

WELCOME

CONTENTS

DThis TV set is designed to operate on A.C.

220 -- 240V, 50Hz.

DTo prevent damage which might result in

electric shock or fire, do not expose this TV

set to rain or excessive moisture. This TV

must not be exposed to dripping or splashing

water and objects filled with liquid, such as

vases, must not be placed on top of or above

the TV.

DWARNING : HIGH VOLTAGE !!!

Do not remove the rear cover as live parts are

accessible when it is removed. There are no

user serviceable parts inside.

DAvoid exposing the TV set to direct sunlight

and other sources of heat. To prevent fire,

never place any type of candle or naked flame

on top of, or near the TV set.

DEnsure that the mains plug is easily

accessible

DThe On/Off switch on this model does not fully

disconnect the TV from the mains supply.

Remove the mains plug from the wall socket

when the TV set is not used for a prolonged

period of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket.

The cabinet and picture tube can be cleaned

with a soft cloth moistened with mild

detergentandwater.Donotusesolutions

containing benzol or petroleum. TV sets can

produce static electricity, care must be taken

whenever touching the TV screen.

DAdequate ventilation is essential to prevent

failure of electrical components, we

recommend that a gap of at least 5cm is left all

around this television receiver even when it is

placed inside a cabinet or between shelves.

DVentilation should not be impleded by

covering the ventilation openings with items

such as newspapers, tabel cloths and

curtains.

HENVIRONMENT

Batteries, packaging and old equipment

should not be disposed of as domestic

waste, but in accordance

with the applicable regulations.

HTV GAMES / HOME COMPUTERS

Extended use of TV games or home computers

with any television set can cause a permanent

‘shadow’ on the screen. This type of irreversible

picture tube damage, can be limited by observ-

ing the following points:

DReduce the brightness and contrast levels

to a minimum viewing level.

DDo not operate the television set for a

continuous period of time while using TV

games or home computers.

DThistypeofpicturetubedamage,isnotan

operating defect, and as such is not

covered by the Panasonic warranty.

HSLEEP FEATURE

If the set is not switched off when the TV station

stops transmitting , it will automatically go to

standby mode after 30 minutes. This function

will not operate when the TV is in AV mode.

WARNINGS AND PRECAUTIONS

Batteries for the Remote Control Transmitter.

(2 x R6 (UM3) size)

Check that you have the accessories and items shown

Operating Instruction book

DMake sure that the batteries are fitted the

correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted batteries

immediately.

DDonotmixdifferentbatterytypes,i.e.

Alkaline and Manganese or use

r e ch a r g ea b le ( N i --- C d , N i --- M H ) b a t te r i es .

Remote control batteries

Remote Control Transmitter EUR511212A

PanEuropeanguarantee

ACCESSORIES

VCR/DVD/R

AV2

AV1

AV2

AV1

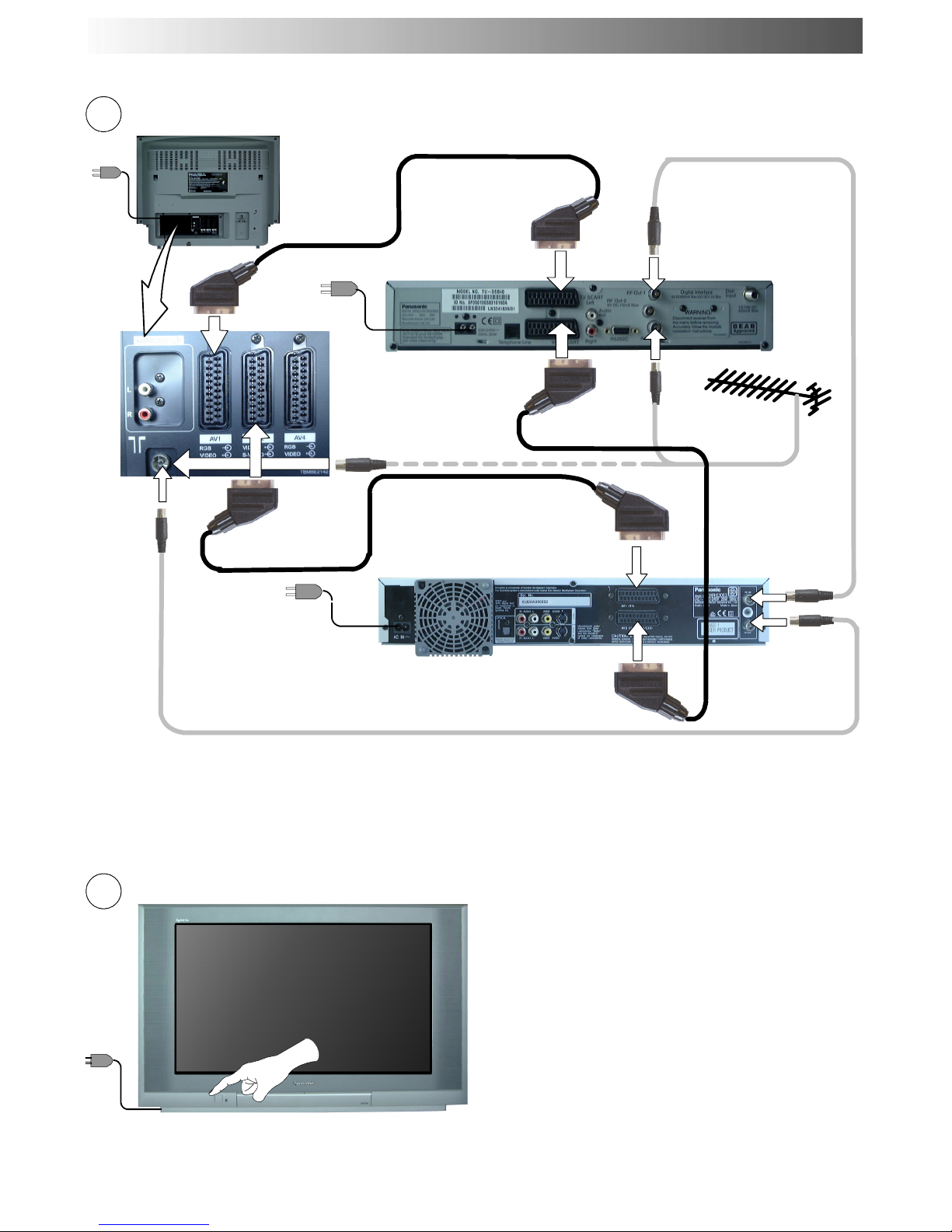

Plug in aerial and connect ancillary equipment.

SATELLITE RECEIVER

First, ensure that the VCR is in Standby

mode.

Plug in TV and switch on.

QUICK START GUIDE

DIf the VCR has not accepted download data from the TV, you may need to select the Download

option from the VCR’s menu.

DIf Q---Link is not operating correctly, check it is connected to the television’s AV2 socket, the

SCART lead is a “full function” type, and the VCR is compatible with Q---Link, NEXTVIEWLINK or

similar technologies. Ask your dealer for further details.

DFor further information on Q---Link and connecting equipment, see pages 23, 24, 28 and 30.

5If you are installing a new Q---Link compatible VCR, you can now switch it ON. Downloaded

tuning data will match the television’s.

If you are installing a new NEXTVIEWLINK compatible VCR, you will need to initiate download

manually.

See the VCR handbook for details.

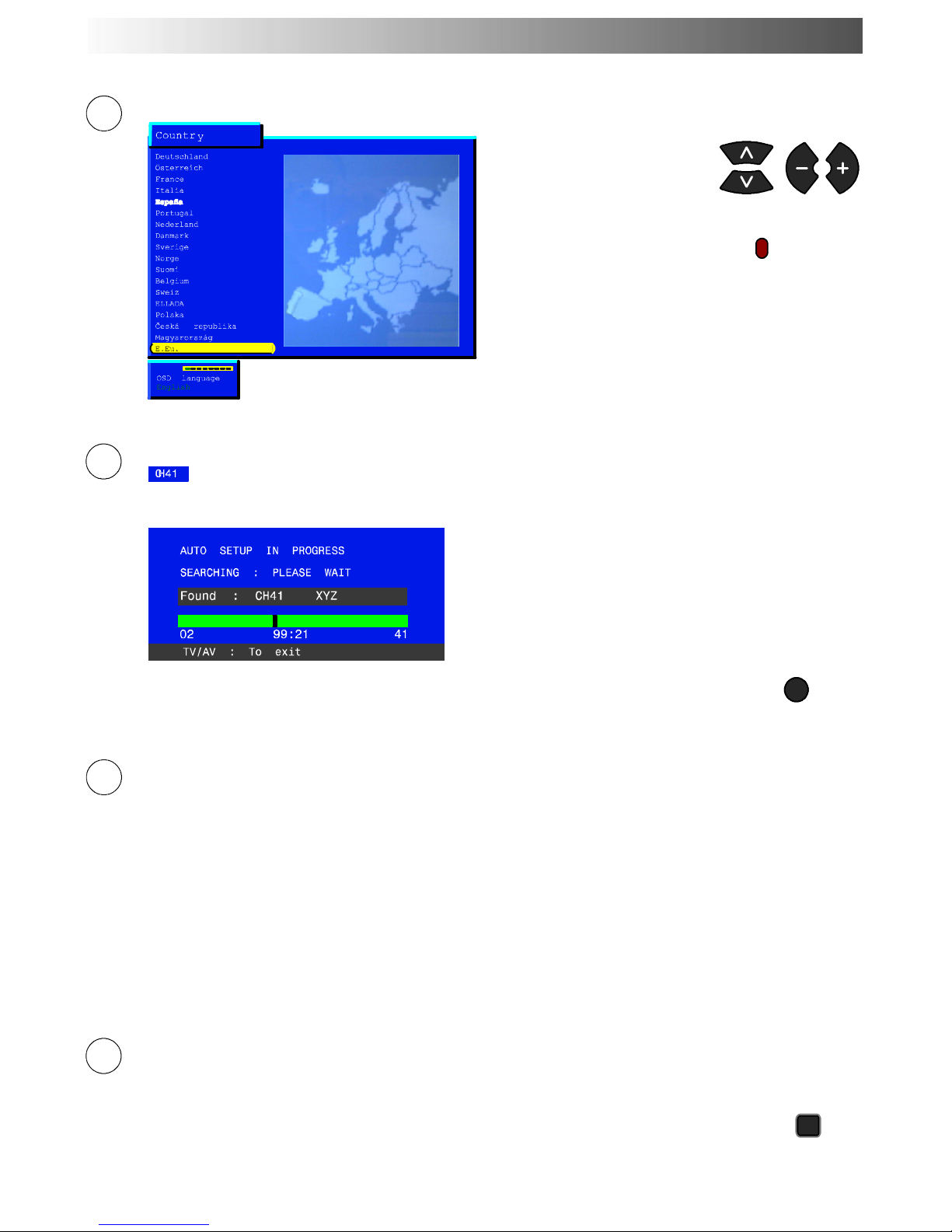

Select your country.

Auto setup will begin, your stations will

be located and stored.

Use the Programme Edit menu to

delete unwanted stations

(see page 17).

Press the TV/AV button to exit.

Press the red button.

TV/AV

6WerecommendthatassoonastheAuto setup feature is completed, the picture controls

are reset to normal viewing levels. To do this, press the ”N” button, found under the remote

control’s pull down flap.

QUICK START GUIDE

Press and release here to open flap

Slight tilting of the picture may be noticeable or coloured patches may sometimes appear

at the corners of the screen (colour purity). The Geomagnetic Correction feature can be

used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete. The screen should

not be showing any On---Screen Display menus.

Press the Fbutton repeatedly until the Geomagnetic Correction feature

is displayed.

Press the +or --- buttons repeatedly until the picture appears to be level.

Press the Fbutton again to return to normal viewing. Close the flap to

prevent damage.

Adjust Volume

Change Programme

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

Using the remote control keys indicated, access the Geomagnetic Correction menu

option and follow the procedure below (for a full explanation of the On Screen Display

menu system see page 9) :

Press the SETUP menu button

Move to the Geomagnetic menu option

Access the Geomagnetic menu

Adjust the picture tilt as necessary

Press the TV/AV button to exit the SETUP menu

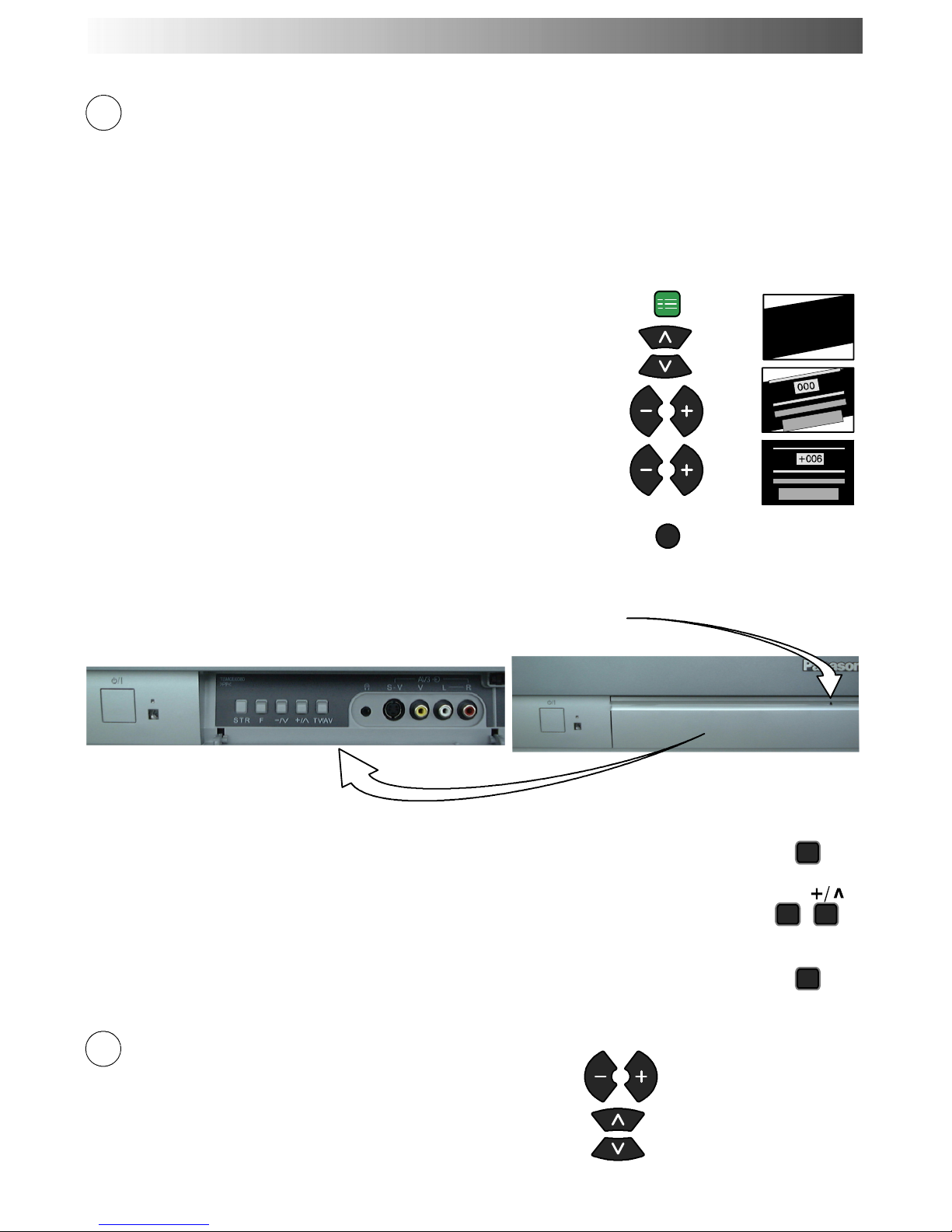

The function ’geomagnetic correction’ is also accessible from the front panel.

SET UP

TV/AV

--- / v

QUICK START GUIDE

Switch between viewing TV or

AVinput(seepage28)

Standby ON/OFF switch

Switches TV On or Off standby

Programme position for selec-

tion of two digit programmes

(10-- 99) using numeric buttons.

P r e s s t h e “ C ” an d “ --- / --- --- ” b u t -

tons for Direct Channel Access

in hyperband.

Programme / channel change

buttons (0-- 9) and Teletext page

buttons (see page 26)

Menu buttons

Press to access the Picture,

Sound

and Setup menus (see page 9).

Sound mute On/Off

Direct Channel Access

During normal TV viewing or

when in the Tuning,

Programme edit or Manual

tuning menus, press and then

enter channel number using

the numeric buttons.

Teletext buttons (see page 26)

Coloured buttons used for

Programme Edit functions (see

page 17)

Teletextfunctions(seepage26)

AV selection (see page 28)

MAINS

Power On/Off

switch

STR (Normalisation store)

Used to store tuning and other function set-

tings

F(Functionselect)

Displays the On Screen Display functions, use

repeatedly to select from the available

functions -- Volume, Contrast, Brightness,

Colour, Sharpness, Tint (in NTSC mode), Bass,

Treble, Balance, Tuning mode and

Geomagnetic Correction.

Increases or decreases the programme

position by one. When a function is already

displayed, press to increase or decrease the

selected function.

TV/AVswitch(seepage28)

Headphonesocket(seepage28)

RCA Audio/Video sockets

(page 28)

Red light indicates Standby mode.

The N button will recall settings

stored with STR.

STR (Normalisation store)

Cursor buttons to make

selections and adjustments.

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 23)

Status button

Press to display programme

position, programme name,

channel number, TV system,

time stereo mode

and programme table.

VCR / DVD/R buttons

(see page 25)

S---VHSsocket(seepage28)

Aspect control button

(see page 10)

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to

increase or decrease their level.

Some selections, for example, Off timer,allowachoicetobemade.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are used to open the

main menus and also to return to the previous menu.

The up and down cursor buttons are used to move the cursor up and

down the menus.

The left and right cursor buttons are used to access menus, adjust levels

or to select from a range of options.

The STR button is used to store settings after adjustments have been

made or options have been set.

The TV/AV button is used to exit the menu system and return to the

normal viewing screen.

PICTURE SOUND SET UP

STR

TV/AV

An On Screen Help box is displayed whenever a menu is displayed on the TV. This Help box indicates

which keys on the remote control are used to navigate the menu shown, see above for descriptions

of button functions.

Note:

DIf the HELP button is pressed while a

menu is displayed, the ’Instructions’ box

will be hidden from view. Press the HELP

button again to show the ’Instructions’

box.

DTheHelpboxisnotshowninthemenu

pictures in this instruction book due to

space limitations.

The HELP button runs a demonstration of

the menus available.

Press ∧∨buttons and select one of the

options

Last Position Memory

Certain functions have a last position

memory,i.e.thesettingatthetimeof

switch-- off will be the setting used when the

receiver is switched on again.

USING THE ON SCREEN DISPLAYS

ON SCREEN HELP

’Instructions’ box

MENU TV/AV

HOW TO USE THE MENUS

Press the MENU keys to

open or close the menus

Use the ∨∧ keys on the

remote to move between

menu options

Usethe+-keysto

adjust the chosen option or

to access the chosen menu

Press the TV/AV key to

go back to watching TV

Help menu

External Connection

Menu demonstration Access

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-NR Off

AI On

Select

Change

Exit

TV/AV

HELP

The widescreen TV will allow you to enjoy viewing the picture at its optimum

size and aspect, including widescreen ‘cinema format’ pictures.

Press the ASPECT button repeatedly to move through the seven aspect options:

Panasonic Auto, 16:9, Just, 4:3, Zoom1, Zoom2 and Zoom3.

Press the ASPECT button then use the RED or GREEN buttons to move in either

direction through the seven aspect options.

Panasonic Auto

Panasonic Auto determines the best aspect

ratio to use to display the picture you are viewing.

It does this using a four step process to

determine if the picture being viewed is a

widescreen picture.

If Panasonic Auto detects a widescreen signal it

switches into 16:9 widescreen mode. If

Panasonic Auto does not detect a widescreen

signal then this advanced TV set enhances the

picture for optimum viewing pleasure.

The text shown on the screen indicates how Panasonic Auto determined which ratio to use:

’WIDE’ appears in the top left of the screen if a widescreeen identification signal (WSS) is found

or a signal is found through a Scart socket. Panasonic Auto switches into 16:9 widescreen ratio.

’Panasonic Auto’ appears in the top left of the screen if black stripes above and below the picture

are detected. Panasonic Auto chooses the best ratio and expands the picture to fill the screen.

This process can take several minutes, depending how dark the picture is.

Equally, you may prefer to select one of the other modes available to view the picture.

Notes:

DIf, in Panasonic Auto mode, you experience problems with the screen display size when playing

back widescreen format recordings from your VCR then it is possible that the tracking control of

your VCR requires adjustment (your VCR instruction book will contain adjustment details).

DThe widescreen aspect ratios of different films and programmes can vary. If these are wider than a

standard 16:9 aspect picture then a black band may be visible at the top and bottom of the screen.

16:9

16:9 will display a true 16:9 (anamorphic) picture

with no aspect distortions.

ASPECT CONTROLS

ASPECT

16:9

<< >>

Panasonic Auto

<< >>

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic CX600H series Bedienungsanleitung

Panasonic

Panasonic PRISM W1 Series Bedienungsanleitung

Panasonic

Panasonic TX-28G1 Bedienungsanleitung

Panasonic

Panasonic Viera TH-32AS610A Montageanleitung

Panasonic

Panasonic Viera TC-L50ET60 Bedienungsanleitung

Panasonic

Panasonic TX-28SL20F Bedienungsanleitung

Panasonic

Panasonic TC-21S3M Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PX10D Bedienungsanleitung

Panasonic

Panasonic CT-32SX31E Bedienungsanleitung

Panasonic

Panasonic TX-29AD1D Bedienungsanleitung

Panasonic

Panasonic CT-27D11D, CT-27D31C, CT-2772SC, CT-32D11C, CT-32D31C, CT-3274SC, CT-36D11C,... Bedienungsanleitung

Panasonic

Panasonic TX-34P150X Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PX10D Bedienungsanleitung

Panasonic

Panasonic CT3697VY - 36" MONITOR Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-32PS10D Bedienungsanleitung

Panasonic

Panasonic CT-20R13 Bedienungsanleitung

Panasonic

Panasonic Viera TX-32LX80P Bedienungsanleitung

Panasonic

Panasonic TX-40AS640E Bedienungsanleitung

Panasonic

Panasonic TX-28SL1F / TX-25SL1? Bedienungsanleitung

Panasonic

Panasonic Viera TX-P42XT50E Bedienungsanleitung

Panasonic

Panasonic TX-28LD1 Bedienungsanleitung

Panasonic

Panasonic Viera TXL32C2B Bedienungsanleitung

Panasonic

Panasonic TX-21ST15M Bedienungsanleitung

Panasonic

Panasonic VIERA TH-42PV7AZ Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
