Panasonic TX-32DK1L Bedienungsanleitung

Colour Television

TX-32DK1L

EURO-4 Chassis

SPECIFICATIONS

Power Source: 220-240V a.c., 50Hz

Power Consumption: 95W

Stand-by Power

Consumption: 1.4W

Aerial Impedance: 75Ωunbalanced, Coaxial Type

Receiving System: PAL I, PAL-525/60

M.NTSC

NTSC (AV only)

Receiving Channels: UHF E21-E69

VHF A1-S20

Intermediate Frequency:

Video/Audio

Video 39.5MHz

Audio 33.5MHz

32.95MHz (NICAM)

Colour 35.07MHz

Terminals:

AUDIO MONITOR OUT Audio (RCAX2) 500mV 1kΩ

AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin)

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

S-Video IN Y: 1V p-p 75Ω

(21-pin) C: 0.3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

Selectable output (21 pin)

AV3 IN S-Video IN Y: 1V p-p 75Ω

(4-pin) C: 0.3V p-p 75Ω

Audio (RCAx2) 500mV rms 10kΩ

Video (RCAx1) 1V p-p 75Ω

High Voltage: 30.5kV ±1kV

Picture Tube: W76ESF031X13 76cm

Audio Output: Front Left/Right 2 x 15W

(Music Power)

Headphones: 8ΩImpedance

3.5mm

Accessories

supplied: Remote Control

2 x R6 (UM3) Batteries

VS-DK1/2 Video Cabinet

Dimensions:

Height: 561mm

Width: 896mm

Depth: 558.5mm

Net weight: 46.5kg

Specifications are subject to change without notice.

Weights and dimensions shown are approximate.

NOTE: This Service Manual should be used in conjunction with

the EURO-4 Technical guide.

ORDER No. SM-99095

HOW TO MOVE THE CHASSIS INTO SERVICE POSITION

1. Remove the bead clamper from the mains lead and affix, using back cover screw, into top right-hand cabinet rib (A),

shown in Fig. 4.

2. Hold and lift the rear of the chassis and gently pull the chassis toward you, as shown in Fig. 4.

3. Release the respective wiring clips and rotate the chassis vertically through 90°, anti-clockwise.

4. Locate the base of the chassis frame into location (C), shown in Fig. 5. /Fig. 7.

5. Clip the chassis frame onto the bead clamper, shown in Fig. 5. /Fig. 6.

6. After servicing replace the bead clamper, and ensure all wiring is returned to its original position before returning the

receiver to the customer.

Fig. 5.

(

)

Fig. 6.

Fig. 7.

Fig. 4.

(

)

ADJUSTMENT PROCEDURE

Item / Preparation Adjustments

+B SET-UP

1. Receive a Greyscale signal.

2. Set the controls :-

Brightness: Minimum

Contrast: Minimum

Volume: Minimum

1. Set the +B voltage up as follows:-

Adjust R811 so that B2 shows 148V ± 1V.

2. Confirm the following voltages.

B9 5 ± 0.25V B10 5 ± 0.25V

B5 12 ± 0.5V B11 33 ± 1.5V

B4 15.5 ± 1V B7 8 ± 0.5V

B12 26 ± 1V B8 5.5 ± 0.5V

B3 39 ± 1.5V B13 13 ± 1V

B1 215 ± 10V B14 -13 ± 1V

CUT OFF / Ug2 Test

1. Receive a Greyscale signal.

2. Degauss the tube externally.

3. Set the TV into Service Mode 1.

4. Select Cut off mode.

To adjust Cutoff connect an oscilloscope to the Blue

cathode. Press "STR" and adjust "cutoff" value using the

"Yellow" and "Blue" buttons until the black level is

160V ± 5V press "STR" to store the value. Remove the

oscilloscope. Select Ug2 adjustment and adjust the screen

VR until the display shows "O.K."

FACTORY SETTINGS

To return customer settings to factory settings and clear owner ID of all information input by the customer, enter Self-Check

mode. Press the down (-/v) button on the customer controls at the front of the TV set, at the same time pressing the STATUS

button on the remote control. To exit Self Check, switch off the TV set at the power button.

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

Service Aids

To aid in the service of our current chassis there are a number of Service Aids which have been made available.

•LUCI interface kit (Linked Utility Computer Interface)

Part number: TZS6EZ002

This contains interface and cables for connecting TV service connector and a PC as well as diagnostic software. As new

models are introduced upgrade software will become available.

•VICI (Visual Interactive Computer Information)

These C.D.'s contain multimedia documentation providing quick access to service information.

Part No. TZS7EZ006, TZS7EZ005 & TZS8EZ001

1. Service Manuals

2. Instruction Books

3. Technical Information

•TASMIN (Technically Advanced System for Multimedia Interactive Notes)

As well as providing a first step towards more interactive training this product also achieves quick access to Technical

Information.

VDP O.K.

TUN O.K.

E2 O.K.

MSP O.K.

DPL

PCB O.K.

Cab O.K.

Sum Factory use only

OPTION 1 00

OPTION 2 A1

OPTION 3 02

OPTION 4 00

OPTION 5 B1

OPTION 6 E9

NOTE: Self Check should onl

be used when refurbishin

the TV set and not durin

normal repair work.

WAVEFORM PATTERN TABLE

Video Out

IC601 Pin 59

64µs

B - Out

E8 Pin 4

64µs

4.6V

64µs

H - Pulse

Base Q503

VFLB

IC451 Pin 3

20ms

B - Out

IC601 Pin 39

275mV

64µs

H - Out

IC601 Pin 50

Vert Out

IC601 Pin 31

20ms

0.7V

13µs

3.7V

SCL

IC1201 Pin 3

R - Out

E8 Pin 5

64µs

4.6V

HFLB

IC601 Pin 13

64µs

6.2V

R - Out

IC601 Pin 37

64µs

275mV

G - Out

IC601 Pin 38

275mV

64µs

Vert Drive

IC451 Pin 2

20ms

57V

HFLB

IC701 Pin 8

64µs

1.5V

G - Out

E8 Pin 3

64µs

4.4V

SVM Out

IC601 Pin 34

88mV

64µs

H - Out

IC701 Pin 5

30mV

64µs

VIDEO BLOCK DIAGRAM

Q105

AV1

IC601

9LGHR



2XW





9LGHR





AV2 Q3601

IC1101

R 37

CVBS

61 V IN 1

43 B IN

42 G IN

41 R IN

62 VIN 2

60 C IN

63 VIN 3

VIN 4

64 VIDEO OUT

B IN 47

B OUT 39

Q305

Q303

Q301

Q353

Q35

CRT

IC351

TUNER

Q104

5HG





%OXH





*UHHQ





9LGHR





$9





9LGHR



2XW





G OUT 38

R OUT 37

G IN 46

R IN 45

Q306

Q304

Q302

Q35

COILS

Q905 Q907 Q909

Q908Q906

SVM OUT 34

Q950 Q951

Q3001

G 38

B 39

Y - BOARD

E - BOARD

RGB

OUTPUT

VIDEO

PROCESSOR

MICRO

PROCESSOR

E15

H3E61

1 1

H - BOARD

IC3401

VIDEO

SWITCHING

Q3201 Q3202

Q3203 Q3204

Q3206 Q3205Q3207

E17

6 6

AV3

M - BOARD

M3 42 86

H2 42 86

Q3208 Q3209

Q3402

AUDIO BLOCK DIAGRAM

TUNER

Q101

Q102

IC2101

AV2

AV1

DACM_R 24

SC3_IN_L 37

SC1_OUT_R 30

SC1_OUT_L 31

1 R OUT

3 L OUT

1 R OUT

3 L OUT

2 R IN

6 L IN

2 R IN

6 L IN

47 ANA_IN1+

44 MONO IN

DACM_L 25

SC3_IN_R 38

SC1_IN_R 42

SC1_IN_L 41

SC2_OUT_R 27

SC2_OUT_L 28

SC2_IN_R 40

SC2_IN_L 39

E - BOARD AUDIO

PROCESSOR

Q2303

Q2301

AUDIO

MONITOR

OUT

49 ANA_IN2+

X102

Q2302 22 DACA_L

Q2304 21 DACA_R

E16A

2 2 AV3

6 R

4 L

HEADPHONE

7 R

5 L

E17

8 8

M - BOARD

IC251

Q2102

Q2103

5 R R 7

Q252

Q251

2 L L 11

AUDIO

OUTPUT

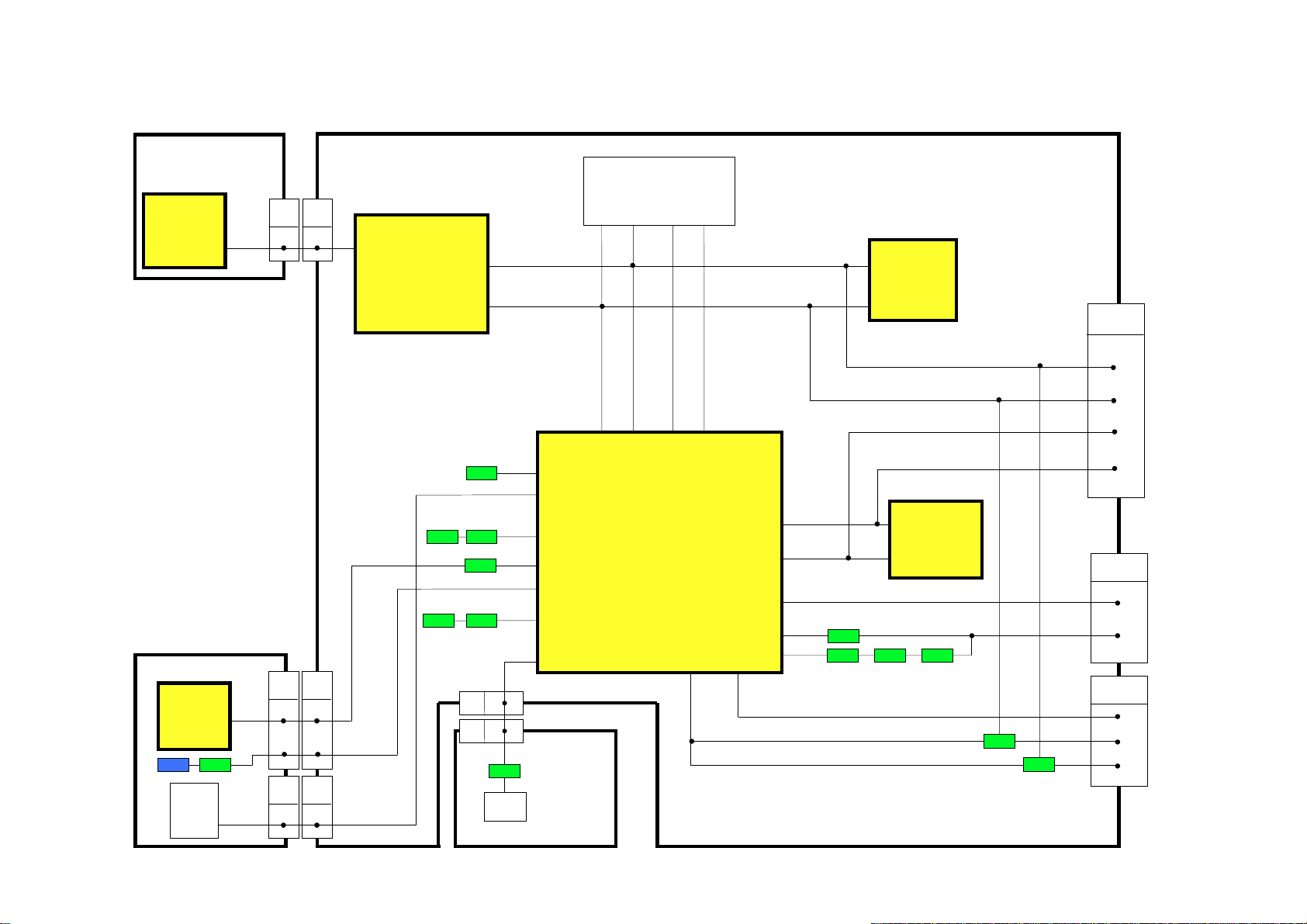

CONTROL BLOCK DIAGRAM

E63

E18

SDA 1

SCL 1

SDA 2

SCL 2

SERVICE / TEST

IC1101

TUNER

IC601

50 SCL 2

SDA 2

SDA 1

SCL 1

Q451

Q854

Q853

AV2

AV1

Q856

Q851

Q1106

Q1105

Q1107

Q1104

AV LINK

SLOW 2

SLOW 1

SCL 1

SDA 1

Q3006

Q3007

VPROT

KEYSCAN

ON/OFF

R.C.

L.E.D.

PROT 1

SLOW 2

OUT

SLOW 1

SERVICE

SCL SDA

48 49

SCL

SDA

H - BOARD E - BOARD

IC3401

VIDEO

SWITCHING IC2101

4AUDIO

PROCESSOR

MICRO

PROCESSOR

VIDEO

PROCESSOR

IC1103

EAROM

Q1051

E16A

7 7

E17

IC1061

REMOTE

CONTROL

RECEIVER

D1061

Q1062

LOCAL

KEYS

SWITCH

MATRIX

M - BOARD

E9 3

P6 3P - BOARD

Q580

L/L’ POS/NEG

83 82

L/L’

POS/NEG

RL580

POWER SUPPLY BLOCK DIAGRAM

M11

H - BOARD

D868

IC801

T801

IC251

D850

TUNER

Q850

IC851

IC853

D454

Q853

IC1101 IC1102 IC1103 IC2101

T802 RL801

5V SBY

IC601

24366 13132 833 46 15 58

T551

12V

200V

150V

-14V

14V

27V

150V

29V

15V

D867

Q852

Q854

Q855

D805

R805 R814

IC850

D862

R854

33V

IC1104

RESET

MICRO

PROCESSO

AUDIO

PROCESSOR VIDEO

PROCESSOR

EPROM EAROM IC1105

RESET

REG

IC3401

7VIDEO

SWITCHING

IC701

CORRECTION

POWER

SUPPLY IC451

V-OUTPUT

AUDIO

OUTPUT

D801

E - BOARD

Y - BOARD

2Y3

1R802

Line

Filter

E62

1H3

IC351

6RGB

OUTPUT

12V

IC852

REG

Degauss Coil

F802 S802

M10 4 1

Line

Filter

Mains

M - BOARD

9E16A

IC1061

REMOTE

CONTROL

RECEIVER

3E21

M - BOARD

IC1900

G.M.C.

1E66

P - BOARD

RL580
