OPERATING INSTRUCTIONS

TX-55CR430B

COLOUR TELEVISION WITH REMOTE CONTROL

English - 1 -

Contents

Safety Information ..................................................2

Maintenance...........................................................3

Display panel, Cabinet, Pedestal............................3

Mains plug ..............................................................3

Assembling / Removing the pedestal .....................3

When using the wall-hanging bracket.....................4

Environmental Information......................................4

Features .................................................................4

Accessories Included..............................................5

Standby Notications..............................................5

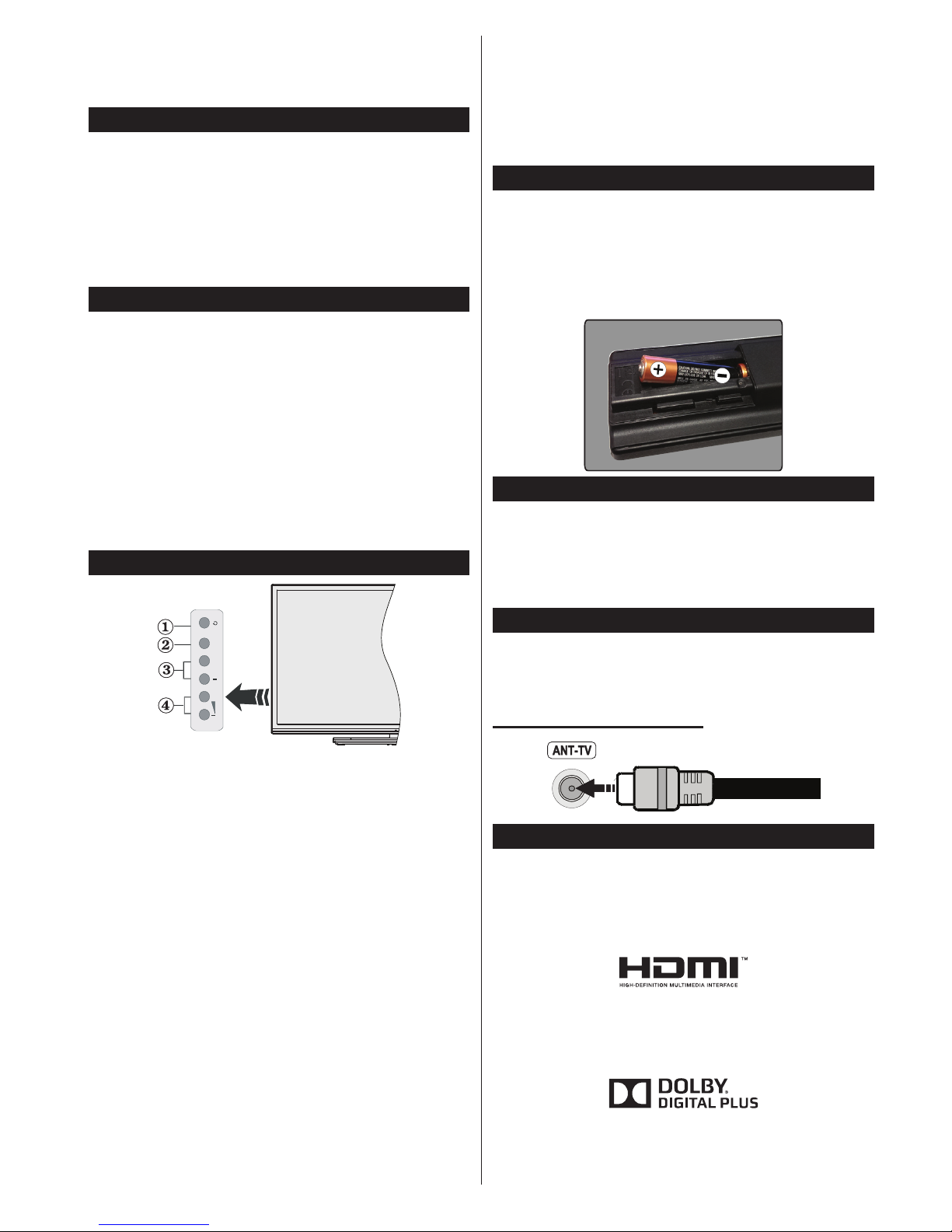

TV Control Buttons & Operation.............................5

Inserting the Batteries into the Remote ..................5

Connect Power ......................................................5

Antenna Connection...............................................5

Notication..............................................................5

Specication ...........................................................7

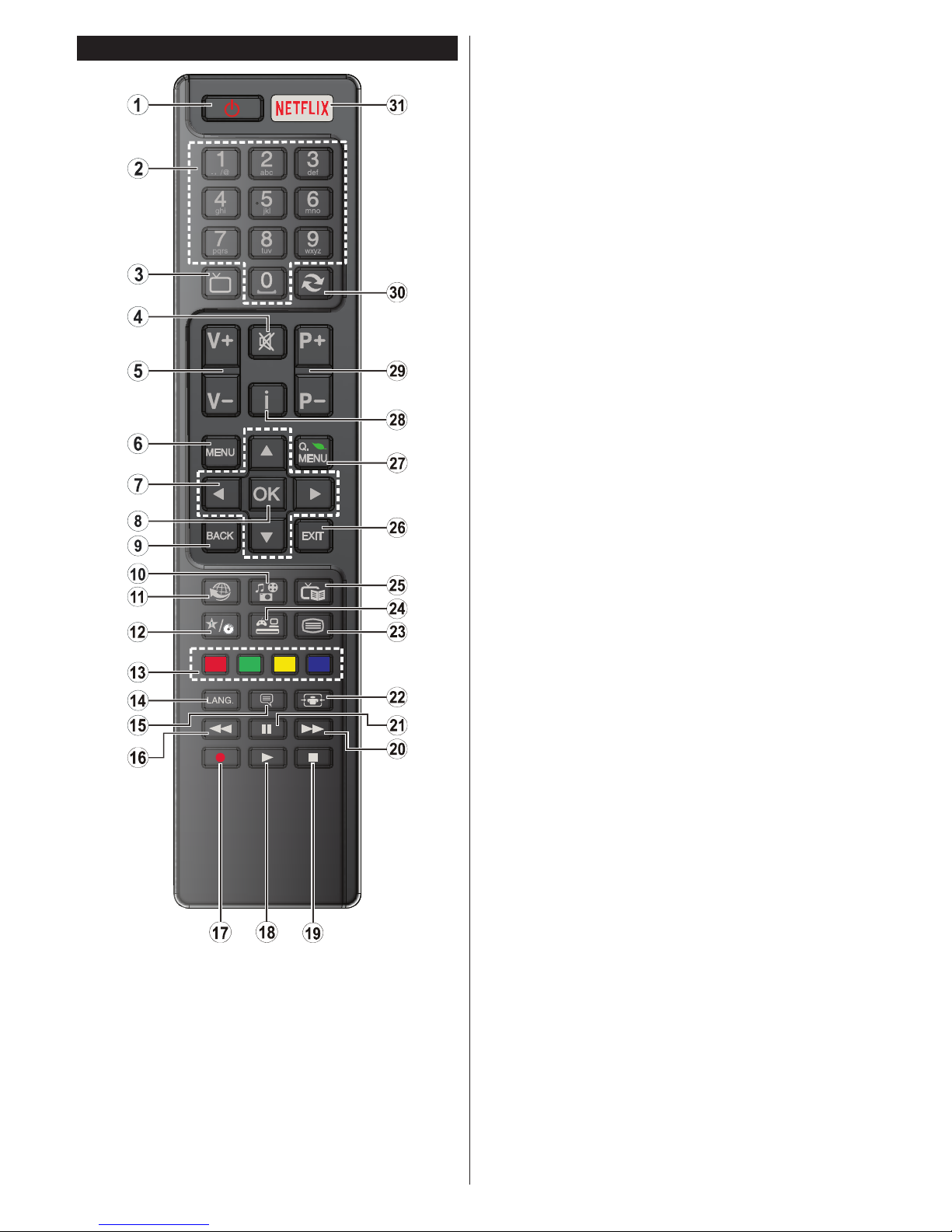

Remote Control ......................................................8

Connections............................................................9

Switching On/Off...................................................10

First Time Installation............................................10

Media Playback via USB Input .............................10

Media Browser Menu............................................ 11

CEC and CEC RC Passthrough........................... 11

TV Menu Contents................................................12

General TV Operation ..........................................16

Using the Channel List .........................................16

Conguring Parental Settings...............................16

Electronic Programme Guide (EPG) ....................16

Teletext Services ..................................................17

Software Upgrade.................................................17

Troubleshooting & Tips.........................................18

PC Input Typical Display Modes...........................18

AV and HDMI Signal Compatibility .......................19

Supported Video File Formats for USB Mode ......20

Supported Picture File Formats for USB Mode ....20

Supported Audio File Formats for USB Mode ......21

Supported DVI Resolutions ..................................21

3D Mode...............................................................22

Connectivity..........................................................25

Wireless Connectivity ..........................................26

Internet Portal.......................................................28

Internet Browser ...................................................29

Important Instruction.............................................30

English - 2 -

Safety Information

Don’t operate your TV in extreme ambient

conditions as this may cause damage to your TV.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note: Follow the on screen instructions for operating the

related features.

In extreme weather (storms, lightning) and long

inactivity periods (going on holiday) disconnect

the TV set from the mains. The mains plug is

used to disconnect TV set from the mains and

therefore it must remain readily operable.

This sign is present wherever there is very

important information on operation and

maintenance of the appliance in the literature

accompanying it.

IMPORTANT - Please read these

instructions fully before installing or

operating

WARNING: Never let people (including

children) with reduced physical, sensory or

mental capabilities or lack of experience and / or

knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at

least 10 cm all around the set.

•Do not block ventilation holes.

•Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause re or give

you an electric shock. Handle the power cord by the

plug, do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands

as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with

other cords. When damaged it must be replaced,

this should only be done by qualied personnel.

•Do not use this TV in a humid or damp environment.

Do not expose the TV to liquids. In case the cabinet

contacts any liquids unplug the TV immediately

and have it checked by qualied personnel before

operating it any further.

•Do not expose the TV to direct sunlight,

open ames or place it near intense heat

sources such as electric heaters.

• Listening in excessive volumes from earphones and

headphones may cause hearing loss.

• Ensure that no open ame sources, such

as lit candles, are placed on top of the TV.

• To prevent injuries, this TV must be securely

attached to a wall by carefully following the

instructions (if the option is available).

• Occasionally, a few non-active pixels may appear

on the screen as a xed blue, green or red point.

Please note that this does not affect the performance

of your product. Take care not to scratch the screen

with ngernails or other hard objects.

• Before cleaning, unplug the TV from the wall socket.

Only use a soft, dry cloth while cleaning.

Warning Serious injury or death risk

Risk of electric shock Dangerous voltage risk

Caution Injury or property damage risk

Important Operating the system correctly

Notice Additional notes marked

English - 3 -

Maintenance

First, remove the mains plug from the mains

socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet,

or pedestal by using a soft cloth to remove dirt or

ngerprints.

For stubborn dirt:

1. First clean the dust from the surface.

2. Dampen a soft cloth with clean water or diluted

neutral detergent (1 part detergent to 100 parts

water).

3. Wring out the cloth rmly. (Please note, do not

let liquid enter the TV inside as it may lead to

product failure.)

4. Carefully wipe moisten and wipe away the

stubborn dirt.

5. Finally, wipe away all the moisture.

Caution

Do not use a hard cloth or rub the surface too hard,

otherwise this may cause scratches on the surface.

• Take care not to subject the surfaces to insect

repellent, solvent, thinner or other volatile

substances. This may degrade surface quality or

cause peeling of the paint.

• The surface of the display panel is specially treated

and may be easily damaged. Take care not to tap

or scratch the surface with your ngernail or other

hard objects.

• Do not allow the cabinet and pedestal to make

contact with a rubber or PVC substance for a long

time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular

intervals.

Moisture and dust may cause re or electrical shock.

Assembling / Removing the pedestal

Preparations

Take out the pedestal(s) and the TV from the packing

case and put the TV onto a work table with the screen

panel down on the clean and soft cloth (blanket, etc.)

• Use a at and rm table bigger than the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV.

Assembling the pedestal

1. Place the stand(s) on the stand mounting

pattern(s) on the rear side of the TV.

2. Insert the screws (M4 x 12) provided and

tighten them gently until the stand is properly

tted.

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way

when using the wall-hanging bracket or repacking

the TV.

• Put the TV onto a work table with the screen panel

down on the clean and soft cloth. Leave the stand(s)

protruding over the edge of the surface.

• Unsrew the screws that xing the stand(s).

• Remove the stand(s).

English - 4 -

When using the wall-hanging bracket

Please contact your local Panasonic dealer to

purchase the recommended wall-hanging bracket.

Holes for wall-hanging bracket installation;

Rear of the TV

a (mm) 400

b (mm) 400

View from the side

Depth of

screw (a)

min. (mm) 4

max. (mm) 6

Diameter M6

Note: The screws for xing the TV onto the wall-hanging

bracket are not supplied with the TV.

Environmental Information

This television is designed to be environment friendly.

To reduce energy consumption, you can follow these

steps:

If you set the Energy Saving to Minimum, Medium,

Maximum or Auto the TV will reduce the energy

consumption accordingly. If you like to set the

Backlight to a xed value set as Custom and adjust

the Backlight (located under the Energy Saving

setting) manually using Left or Right buttons on the

remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending

on the selected Mode in the Picture menu.

The Energy Saving settings can be found in the

Picture menu. Note that some picture settings will

be unavailable to be changed.

If pressed Right button while Auto option is selected or

Left button while Custom option is selected, “Screen

will be off in 15 seconds.” message will be displayed

on the screen. Select Proceed and press OK to turn

the screen off immediately. If you don’t press any

button, the screen will be off in 15 seconds. Press

any button on the remote or on the TV to turn the

screen on again.

Note: Screen Off option is not available if the Mode is set

to Game.

When the TV is not in use, please switch off or

disconnect the TV from the mains plug. This will also

reduce energy consumption.

Features

• TV supports Ultra HD (Ultra High Denition - also

known as 4K) which provides resolution of 3840 x

2160 (4K:2K). It equals 4 times the resolution of Full

HD TV by doubling the pixel count of the Full HD TV

both horizontally and vertically. Ultra HD contents are

supported from HDMI, USB inputs and over DVB-T2

and DVB-S2 broadcasts.

•3D Viewing: This product supports the viewing of

3D content from devices such as a High Denition

Satellite Receiver or Blu-ray Player via HDMI, PC,

YPBPR, USB inputs or via an available broadcast.

3D content provided from the portal applications/

services are also supported

• Remote controlled colour TV

• Fully integrated digital terrestrial/cable (DVB-T2/C)

• HDMI inputs to connect other devices with HDMI

sockets

• USB input

• OSD menu system

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

• Stereo sound system

• Teletext

• Headphone connection

• Automatic programming system

• Manual tuning

• Automatic power down after up to eight hours.

• Sleep timer

• Child lock

• Automatic sound mute when no transmission.

• NTSC playback

• AVL (Automatic Volume Limiting)

• PLL (Frequency Search)

• PC input

• Game Mode (Optional)

• Picture off function

English - 5 -

• Ethernet (LAN) for Internet connectivity and service

• 802.11n built in WIFI Support

• Media Sharing

Accessories Included

• Remote Control

• Batteries: 2 x AAA

• Instruction Book

• Quick Start Guide

• Detachable stand

• Stand mounting screws (M4 x 12)

StandbyNotications

If the TV does not receive any input signal (e.g. from

an aerial or HDMI source) for 5 minutes, it will go

into standby. When you next switch-on, the following

message will be displayed: “TV switched to stand-by

mode automatically because there was no signal

for a long time.” Press OK to continue.

If the TV is on and it isn’t being operated for a while

it will go into standby. When you next switch-on, the

following message will be displayed. “TV switched to

stand-by mode automatically because no operation

was made for a long time.” Press OK to continue.

TV Control Buttons & Operation

P/CH

TV/AV

1. Standby/On button

2. Source button

3. Programme +/- buttons

4. Volume +/- buttons

Press the Volume +/- buttons simultaneously to

view main menu and use Programme +/- buttons to

navigate and Volume +/- buttons to change value.

Note: The position of the control buttons may differ

depending on the model.

Operation with the Remote Control

Press the Menu button on your remote control to

display main menu screen. Use the directional buttons

to select a menu tab and press OK to enter. Use the

directional buttons again to select or set an item. Press

Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your

TV, you can switch to different input sources. Press the

Source button on your remote control consecutively

to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume

by using the Volume +/- and Programme +/- buttons

on the remote.

Inserting the Batteries into the Remote

Remove the back cover to reveal the battery

compartment. Insert two size AAA batteries. Make

sure the (+) and (-) signs match (observe correct

polarity). Do not mix old and new batteries. Replace

only with same or equivalent type. Place the cover

back on.

Connect Power

IMPORTANT: The TV set is designed to operate on

220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature

before you connect the set to the mains. Plug the

power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL

INPUT (ANT-TV) socket located on the rear bottom

side of the TV.

Rear bottom side of the TV

Notication

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing LLC in the

United States and other countries.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

YouTube and the YouTube logo are trademarks of

Google Inc.

English - 6 -

Disposal of Old Equipment and Batteries

Only for European Union

and countries with recycling

systems

These symbols on the products,

packaging, and/or accompanying

documents mean that used electrical

and electronic products and batteries

must not be mixed with general

household waste.

For proper treatment, recovery and

recycling of old products and batteries,

please take them to applicable

collection points in accordance with

your national legislation.

By disposing of them correctly, you will

help to save valuable resouces and

prevent any potential negative effects

on human health and the environment.

For more information about collection

and recycling, please contact your local

municipality.

Penalties may be applicable for

incorrect disposal of this waste, in

accordance with national legislation.

Note for the battery symbol

(bottom symbol):

This symbol might be used in

combination with a chemical symbol.

In this case it complies with the

requirement set by the Directive for

the chemical involved.

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Web Site: http://www.panasonic.com

Sales and Support Information

Customer Communication Centre

• For customers within the UK: 0344 844 3899

• For customers within Ireland: 01289 8333

• Monday - Friday 9:00am - 5:00pm, (Excluding public

holidays).

• For further support on your product, please visit our

website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your

product with ease and condence by phoning our

Customer Comminications Centre Monday - Friday

9:00am - 5:00pm, (Excluding public holidays).

• Or go on line through our Internet Accessory

ordering application at www.pas-europe.com.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities

are provided directly by Panasonic UK.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping

for a wide range of nished products. Take a browse

on our website for further details.

English - 7 -

Specication

TV Broadcasting PAL BG/I/DK/LL’

SECAM BG/DK

Receiving Channels VHF (BAND I/III) - UHF

(BAND U) - HYPERBAND

Digital Reception

Fully integrated digital

terrestrial-cable TV

(DVB-T-C)

(DVB-T2 compliant)

Number of Preset

Channels 1.000

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio A2 Stereo+Nicam Stereo

Headphone 3.5 mm mini stereo jack

Audio Output Power

(WRMS.) (10% THD) 2 x 12,5 W

Power Consumption (W) 200 W

Weight (Kg) 20 Kg

TV Dimensions DxLxH

(with foot) (mm) 243 x 1232 x 768

TV Dimensions DxLxH

(without foot) (mm) 99/106 x 1232 x 713

Display 16/9 55”

Operation temperature

and operation humidity

0ºC up to 40ºC, 85%

humidity max

WirelessLANSpecications

Frequency Range

USA: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~

5.725GHz, 5.725 ~ 5.85GHz

Europe: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47

~ 5.725GHz

Japan: 2.400 ~ 2.497GHz, 5.15 ~ 5.35GHz, 5.47 ~

5.725GHz

China: 2.400 ~ 2.483GHz, 5.725 ~5.85GHz

Standard

IEEE 802.11.a/b/g/n

Host Interface

USB 2.0

Security

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

Notice for DVB / Data broadcasting / IPTV

functions

• This TV is designed to meet the standards (as of

August, 2013) of DVB-T / T2 (MPEG2 and MPEG4-

AVC(H.264)) digital terrestrial services and DVB-C

(MPEG2 and MPEG4-AVC(H.264)) digital cable

services.

Consult your local dealer for availability of DVB-T /

T2 services in your area.

Consult your cable service provider for availability

of DVB-C services with this TV.

• This TV may not work correctly with the signal

which does not meet the standards of DVB-T / T2

or DVB-C.

• Not all the features are available depending on the

country, area, broadcaster, service provider and

network environment.

• Not all CI modules work properly with this TV.

Consult your service provider about the available

CI module.

• This TV may not work correctly with CI module that

is not approved by the service provider.

• Additional fees may be charged depending on the

service provider.

• The compatibility with future services is not

guaranteed.

• Check the latest information on the available

services at the following website.

http://panasonic.net/viera/support

English - 8 -

Remote Control

(*) MY BUTTON:

This button may have a default function depending on the

model. However you can set a special function to this button

by pressing on it for ve seconds when on a desired source

or channel. A conrmation message will be displayed on the

screen. Now MY BUTTON is associated with the selected

function.

Note that if you perform First Time Installation, MY BUTTON

will return to its default function.

1. Standby: Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a

number or a letter in the text box on the screen.

3. TV: Displays channel list / Switches to TV Source

4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Menu: Displays TV menu

7. Directional buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when

pressed Right or Left

8. OK: Conrms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

9. Back/Return: Returns to previous screen, opens

index page (in TXT mode)

10. Media player: Opens the media player screen

11. Internet: Opens the portal page, where you can reach

many web based applications

12. My button (*)

13. Coloured Buttons: Follow the on-screen instructions

for coloured button functions

14. Language: Switches between sound modes

(analogue TV), displays and changes audio/subtitle

language (digital TV, where available)

15. Subtitles: Turns subtitles on and off (where available)

16. Rapid reverse: Moves frames backwards in media

such as movies

17. No function

18. Play: Starts to play selected media

19. Stop: Stops the media being played

20. Rapid advance: Moves frames forward in media such

as movies

21. Pause: Pauses the media being played

22. Screen: Changes the aspect ratio of the screen

23. Text: Displays teletext (where available), press again

to superimpose the teletext over a normal broadcast

picture (mix)

24. Source: Shows all available broadcast and content

sources

25. EPG (Electronic programme guide): Displays the

electronic programme guide

26. Exit: Closes and exits from displayed menus or

returns to previous screen

27. Quick Menu: Displays a list of menus for quick access

28. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

29. Programme +/-

30. Swap: Quickly cycles between previous and current

channels or sources

31. Netix: Launches the Netix application, if this feature

is supported by your TV

English - 9 -

Connections

Connector Type Cables Device

Mini Scart

Connection

(bottom) Mini Scart adapter cable (supplied)

VGA

Connection

(bottom)

AUDIO IN PC/YPbPr

Audio

Connection

(back) YPbPr/PC Audio Cable (not supplied)

HDMI

Connection

(bottom&side)

SPDIF SPDIF

(Optical Out)

Connection

(back)

SIDE AV Side AV

(Audio/Video)

Connection

(side)

Audio/Video

Cable

(not supplied)

Side Audio/Video

Connection Cable

(supplied)

HEADPHONE Headphone

Connection

(side)

YPBPR

YPbPr Video

Connection

(back)

YPbPr Connection Cable(not supplied)

USB

Connection

(back&side)

Connection

(side)

CAM

module

LAN Ethernet

Connection

(back) LAN / Ethernet Cable

Subwoofer

Connection

(back)(*)

NOTE: When connecting

a device via the YPbPr or Side

AV input, you must use the

connection cables to enable

connection. For Side AV input

you should use the supplied

cable. See the illustrations on

the left side. | To enable PC/

YPbPr audio, you will need to

use the Back Audio inputs with

a YPbPr/PC audio cable (not

supplied) for audio connection.

| If an external device is connected

via the SCART socket, the TV will

automatically switch to AV mode.|

When receiving DTV channels

(Mpeg4 H.264) or while in Media

Player mode, output will not be

available via the scart socket. |

When using the wall mounting

kit (available from third party

in the market, if not supplied),

we recommend that you plug all

your cables into the back of the

TV before mounting on the wall.

| Insert or remove the CI module

only when the TV is SWITCHED

OFF. You should refer to the

module instruction manual for

details of the settings. | The

USB input on the back of the

TV(USB 2.0) supports devices up

to 500mA. Connecting devices

that have current value above

500mA may damage your TV. For

the USB inputs on the side of the

TV(USB 3.0) this limit value is 1A.

| By connecting an HDMI cable to

your TV, you have to use only a

shielded HDMI cable to guarantee

a sufficient immunity against

parasitic frequency radiation. And

make sure to use a High-Speed

HDMI cable that can transmit

high denition signals, such as

4K contents, for trouble-free

transmission.

If you want to connect a

device to the TV, make

sure that both the TV

and the device are turned off

before making any connection.

After the connection is done, you

can turn on the units and use

them.

(*) For external subwoofer connection

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-25FG20R Bedienungsanleitung

Panasonic

Panasonic Viera TH-37PR10 Einrichtungshandbuch

Panasonic

Panasonic CT-13R4 Bedienungsanleitung

Panasonic

Panasonic CT3696VY - 36" MONITOR Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-21AP2 Bedienungsanleitung

Panasonic

Panasonic OmniVision PV-DM2794 Bedienungsanleitung

Panasonic

Panasonic CT-20SL15 - 20" CRT TV Bedienungsanleitung

Panasonic

Panasonic TX-29AL10D Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PE77 Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-21AS1D Bedienungsanleitung

Panasonic

Panasonic CT-32D10 Bedienungsanleitung

Panasonic

Panasonic TH-P42G15A Bedienungsanleitung

Panasonic

Panasonic TX-76PW100A Bedienungsanleitung

Panasonic

Panasonic CT20G11 - 20" COLOR TV Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LMD70A Bedienungsanleitung

Panasonic

Panasonic TX-32C200E Bedienungsanleitung

Panasonic

Panasonic TX-29AD1E Bedienungsanleitung

Panasonic

Panasonic VIERA TH-P55VT60A Bedienungsanleitung

Panasonic

Panasonic CT-36SF24 Bedienungsanleitung

Panasonic

Panasonic TX-51PS72Z Bedienungsanleitung

Panasonic

Panasonic TX-29AS10C Bedienungsanleitung

Panasonic

Panasonic TX-28LD1E Bedienungsanleitung

Panasonic

Panasonic VIERA TC-L32E3 Bedienungsanleitung

Panasonic

Panasonic CT-36SX32 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
