Operating Instructions

LCD Television

English Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Model No. TX-32LED7FM

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

Notice for DVB functions

•

Any functions related to DVB (Digital Video Broadcasting) will work in areas where

DVB-T (MPEG2) digital terrestrial broadcasting are received. Consult your local

Panasonic dealer with coverage areas.

•

DVB functions may not be available in some countries.

•

This TV has the capability for DVB specications. But future DVB services cannot be

guaranteed.

Viewing Advanced FAQs, etc.Quick Start Guide

media excitement

Enjoy rich multi-media

Camcorder

Amplier with

Speaker system

VCR DVD player

DVD Recorder

Set top box

Contents

•Safety Precautions······································4

(Warning / Caution)

•Notes···························································5

•Maintenance················································5

Be Sure to Read

Advanced Features

•How to Use Menu Functions·····················18

(picture, sound quality, etc.)

•DVB Settings (DVB)·································· 22

(pay-TV, software update, time adjustment)

•Editing Channels·······································24

•Tuning Channels ······································· 26

•Restore Settings ······································· 30

•Input Labels···············································31

•Q-Link Functions······································· 32

•HDMI Functions ·······································33

(HDMI terminal / VIERA Link)

•External Equipment···································36

Basic Features

•Watching TV··············································12

•Watching Videos and DVDs······················14

•Viewing Teletext ········································ 16

Enjoy your TV!

•Technical Information ································ 38

•FAQs ························································· 41

•Specications············································43

•Licence······················································44

FAQs, etc.

Accessories / Options·········· 6

Identifying Controls ··············· 7

Basic Connection··················· 8

Auto Setup······························· 10

Quick Start Guide

Safety Precautions

If you nd any

abnormality,

remove the mains plug

immediately!

Do not remove covers

NEVER modify the TV yourself

(High-voltage components may cause serious

electrical shock.)

Have the TV checked, adjusted, or repaired at your

local Panasonic dealer.

Keep liquids away from the TV

To prevent damage which may result in re or

shock hazard, do not expose this appliance to

dripping or splashing.

Do not place containers with water (ower vase,

cups, cosmetics, etc.) above the TV. (including on

shelves above, etc.)

AC 220-240 V

50 Hz

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause re.)

Ensure that the mains plug is easily accessible.

Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

Do not damage the mains lead. (A damaged lead may cause re or electrical shock.)

Do not move the TV with the lead plugged in the socket outlet.

Do not place a heavy object on the lead or place the lead near a high-temperature object.

Do not twist the lead, bend it excessively, or stretch it.

Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.

Do not use a damaged mains plug or socket outlet.

Warning

Do not expose to direct sunlight

and other sources of heat

Avoid exposing the TV to direct sunlight and other

sources of heat. To prevent re never place any

type of candle or naked ame on top or near the TV.

Do not place foreign objects

inside the TV

Do not let any objects drop into the TV through the

air vents (re or electrical shock may result).

Use only the dedicated stands

/ mounting equipment

Using an unauthorized stand or other xtures may

make the TV unstable, risking injury. Be sure to

ask your local Panasonic dealer to perform setup.

Use optional stands / mounts (p. 6).

Do not place the TV on sloped

or unstable surfaces

The TV may fall off or tip over.

(Cleaning an energized TV may cause electrical shock.)

When cleaning the TV, remove the mains plug

Caution

Blocked ventilation by curtains,

etc. may cause overheating, re

or electrical shock.

Do not block the rear air vents

Notes

Maintenance

Display panel

Cabinet

Mains plug

Regular care: Gently wipe the surface clean of dirt by using a soft cloth.

Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral

detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Regular care: Wipe the surface clean using a soft dry cloth.

Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.

Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to re or electrical shock.)

First, remove the mains plug from the socket outlet.

Caution

•

The surface of the display panel has been specially treated and may be easily damaged.

Do not tap or scratch the surface with your ngernail or other hard object.

•

Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances

(this may degrade surface quality).

Caution

•

Use care not to subject the TV's surfaces to detergent.

(A liquid inside the TV could lead to product failure.)

•

Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances

(this may deteriorate the surface by peeling the paint).

•

Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

Electronic equipment

In particular, do not place video equipment too close

the TV (electromagnetic interference may distort

images / sound).

Equipment with an infrared sensor

Remote Controller of this TV also emits infrared rays

(this may affect operation of other equipment).

Keep the TV away from these equipment

If no signal is received and no operation is

performed in TV mode for 30 minutes, the TV will

automatically go to standby mode.

Auto power standby function

Transporting the TV with its display panel

facing upright or downward may cause

damage to the internal circuitry.

Transport only in upright position

Remove the mains plug from the wall

socket when TV is not in use for a

prolonged period of time. Remove the

mains plug from the wall socket before

connecting or disconnecting any leads.

This TV will still consume some power even in

the Standby mode, as long as the mains plug

is still connected to a live socket outlet. On /Off

switch see page 7.

Do not expose your ears to excessive

sound pressure from headphones.

Irreversible damage can be caused.

Allow sufcient space around the

TV for radiated heat

10 10

(cm)

TV Stand

Minimum distance

132

465

798

Accessories / Options

Batteries for the Remote

Control Transmitter (2)

•

R6 (UM3)

Clamper

Remote Control

Transmitter

•

EUR7651110

Standard accessories Check that you have the accessories and items shown

Operating Instructions Pan European Guarantee Card

Installing remote’s batteries

Caution

•

Incorrect installation may cause battery

leakage and corrosion, resulting in

damage to the remote control.

•Do not mix old and new batteries.

•Do not mix different battery types (such

as alkaline and manganese batteries).

•Do not use rechargeable (Ni-Cd)

batteries.

•

Do not burn or breakup batteries.

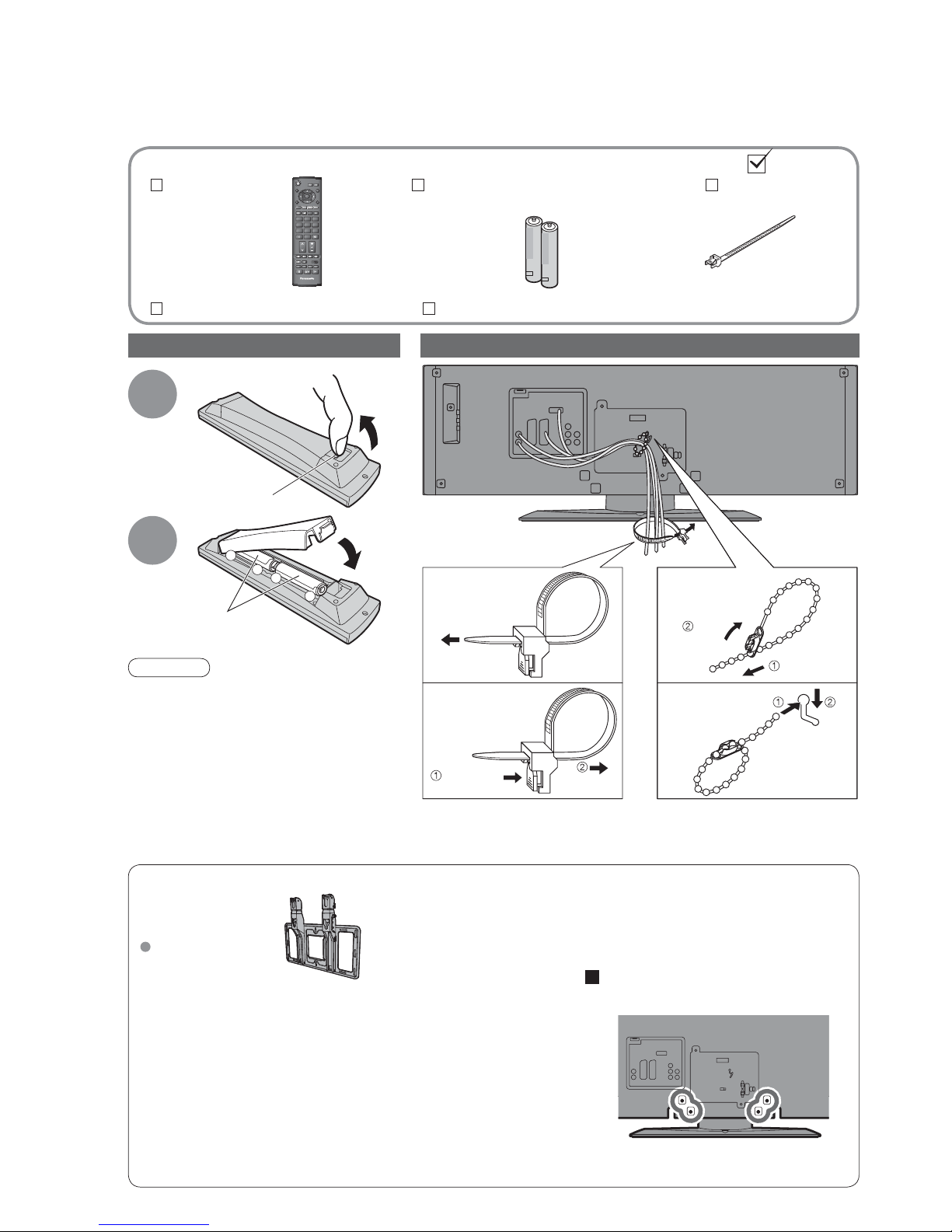

1Pull

open

Hook

Note the correct

polarity (+ or -)

Using the clamper

•

Do not bundle the RF cable and mains lead together (could cause distorted image).

•

Fix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to x cables.

To tighten:

Keep the

knob pressed

Rear of the TV

To loosen:

Clamper

(Standard accessory)

Clamper

that bundle

mains lead

Bundle the

cables:

Hook the

clamper:

Tight

Lock

Optional accessories

Wall-hanging

bracket

TY-WK32LR2W

WARNING!

•

Failure to use a Panasonic bracket or choosing to mount the

unit yourself will be done at the risk of the consumer.

Any damage resulting from not having a professional installer

mount your unit will void your warranty.

•

Always be sure to ask a qualied technician to carry out set-up.

Incorrect tting may cause equipment to fall, resulting in injury

and product damage.

•

Do not mount the unit directly below ceiling lights (such as

spotlights, oodlights or halogen lights) which typically give off

high heat. Doing so may warp or damage plastic cabinet parts.

•

Take care when  xing wall brackets to the wall. Always ensure that there

are no electrical cables or pipes in the wall before hanging bracket.

Please contact your nearest Panasonic dealer to purchase the

recommended wall-hanging bracket. For additional details, please

refer to the wall-hanging bracket installation manual.

How to remove the TV Stand

Remove four screws.

Rear of the TV

Quick Start Guide

FTV AV

PROGRAMME

GUIDE

INPUT

RETURN

EXIT

ASPECT

OPTION

DIRECT TV REC

VCR

132

465

798

REC VCR DVD

TEXT STTL INDEX HOLD

Identifying Controls

•Identifying Controls

•Accessories / Options

Increases or decreases the programme

position by one. When a function is

already displayed, press to increase or

decrease the selected function. When in

Standby mode, switches TV On.

Mains power

On / Off switch

C.A.T.S. (Contrast Automatic Tracking System) sensor

(senses brightness to adjust picture quality in “Auto” Mode in Picture Menu) (p. 20)

Remote control

signal receiver

Changes the

input mode

Function select

•Volume / Contrast / Brightness /

Colour / Sharpness /

Tint (NTSC mode) / Bass / Treble /

Balance / Auto Setup (p. 28)

Cursor buttons to make selections and

adjustments

DVB LED

•DVB system active during Direct TV Recording (Standby) :orange

Power LED

•Standby: red

On: green

Standby On / Off switch

(Switches TV On or Off standby)

Sound mute On / Off

Changes aspect ratio (p. 13)

Selects programmes in sequence

Teletext (p. 16)

OK button to conrm selections and choices

Press after selecting programme positions to

quickly change programme.

VCR / DVD operations (p. 15)

Volume

Programme Information (p. 13)

Teletext Index (p. 17)

Coloured buttons used for the

selection, navigation and operation of

various functions

EXIT (Returns to TV screen)

DIRECT TV Recording

To immediately record programme in VCR /

DVD recorder with Q-Link connection

(p. 32)

Programme / channel change buttons (0-9)

and Teletext page buttons.

(p. 12 and p. 16)

When in Standby mode, switches TV On.

Access VIERA Link Menu (p. 35)

Programme Guide (p. 12)

Option menu

Sets the preferred settings of viewing

and sound options easily (p. 13)

Subtitles

Showing subtitles (p. 13)

Changes the input mode

TV -

switches DVB (digital broadcasting)

/ Analogue mode

(p. 12)

AV - changes AV input mode (p. 14)

Returns to the previous menu

Still picture (p. 13)

Teletext Hold (p. 17)

Main Menu

Press to access VIERA Link, Picture,

Sound and Setup menus (p. 18)

AUDIO OUT

COMPONENT

HDMI

RF IN

RF OUT

AUDIO OUT

COMPONENT

HDMI

Basic Connection

Mains lead Mains lead

SCART cable

(fully wired)

DVD Recorder or VCR

cable

Aerial AerialRear of the TV Rear of the TV

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

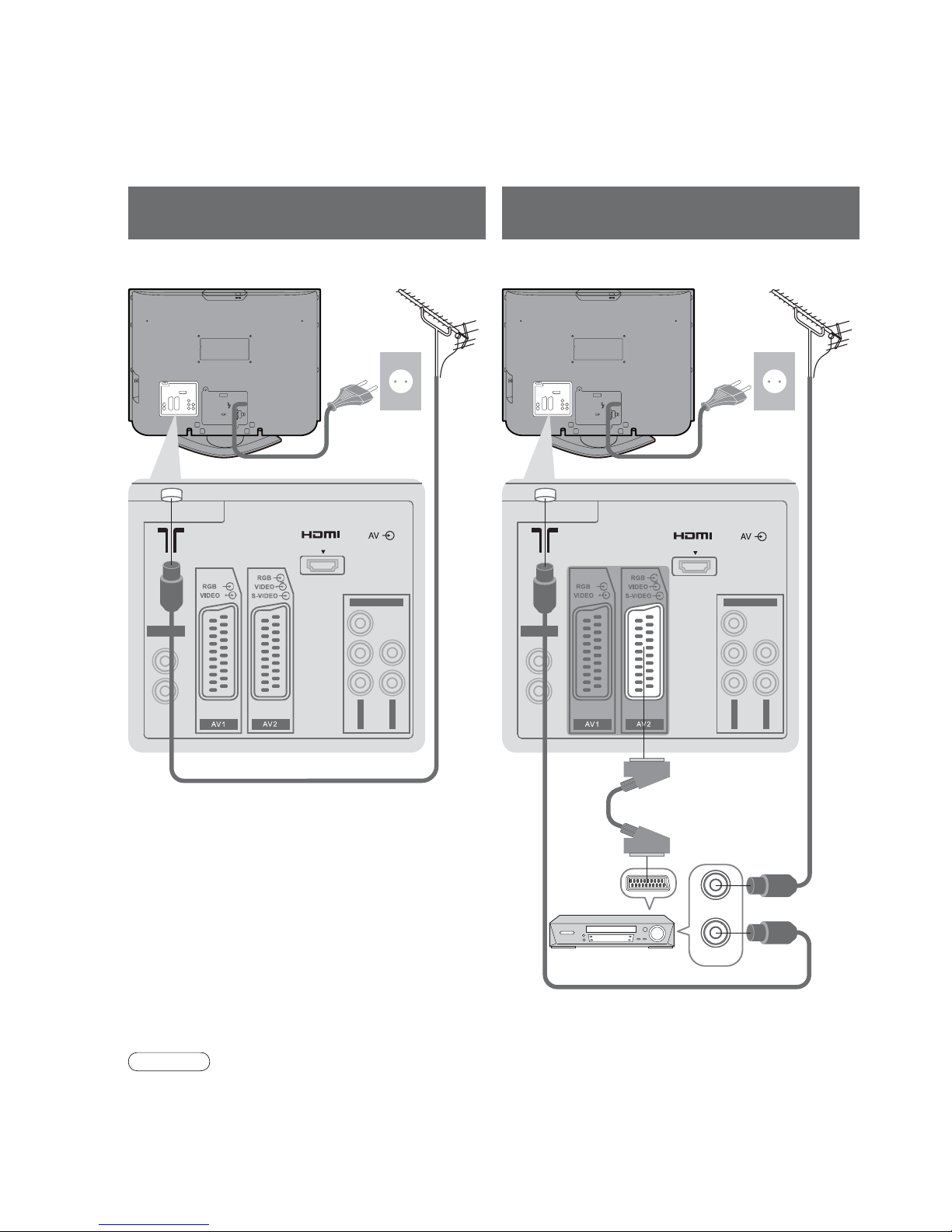

Example 1

Connecting aerial

Example 2

Connecting DVD Recorder / VCR

RF cable

TV only TV, DVD Recorder or VCR

AC 220-240 V

50 Hz

AC 220-240 V

50 Hz

Note

•

Connect to AV1 / 2 for a DVD Recorder / VCR supporting Q-Link (p. 32).

Quick Start Guide

AUDIO OUT

COMPONENT

HDMI

RF OUTRF IN RF OUTRF INRF IN

•

Basic Connection

DVD Recorder

or VCR

SCART cable

(fully wired)

RF cable

Aerial

Mains lead

Rear of the TV

Set top box

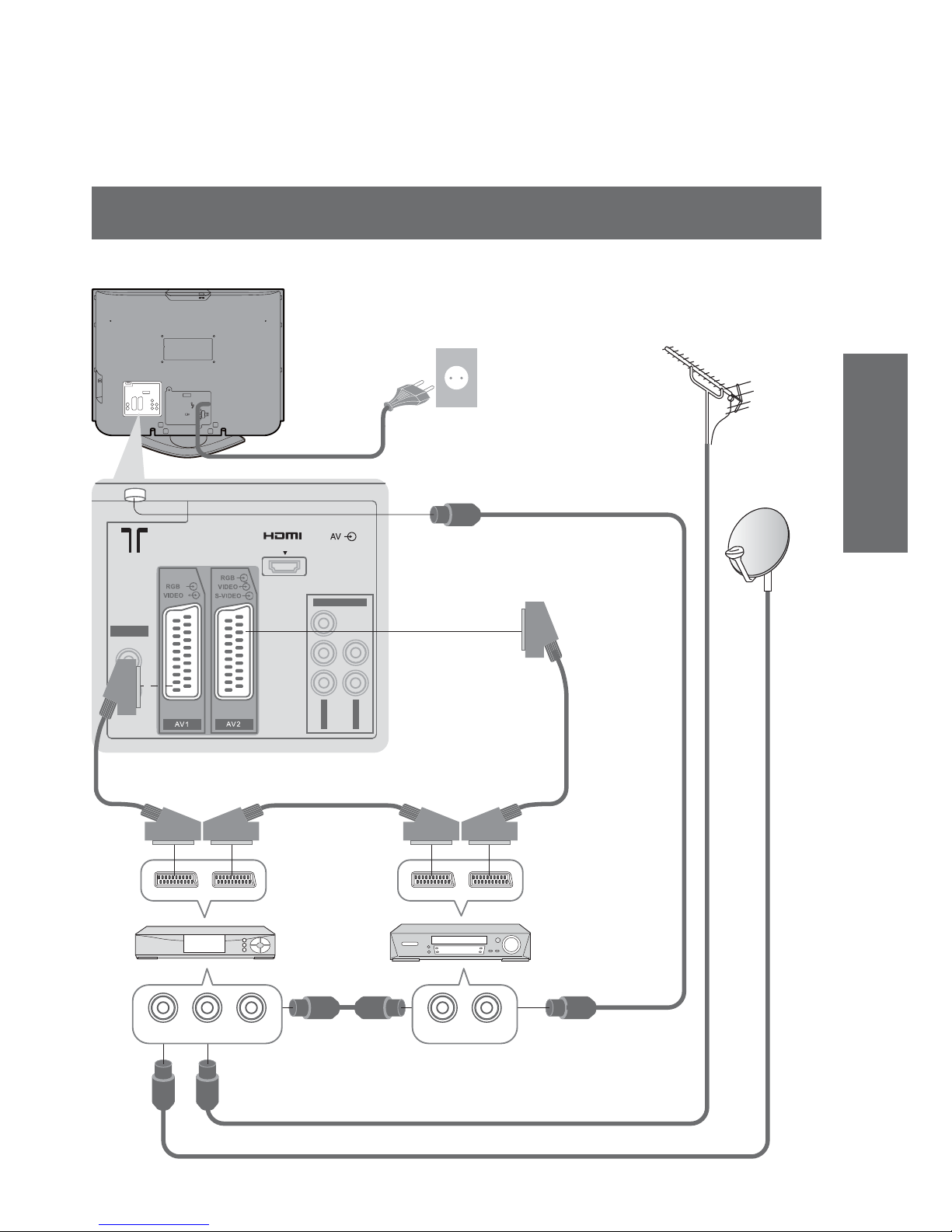

Example 3

Connecting DVD Recorder / VCR and Set top box

AC 220-240 V

50 Hz

RF cable

TV, DVD Recorder / VCR and Set top box

SCART cable

(fully wired)

SCART cable

(fully wired)

RF cable

GUIDE

INPUT

ASPECT

OPTION

DIRECT TV REC

PROGRAMME

REC VCR DVD

TEXT STTL INDEX HOLD

VCR

132

465

798

RETURN

EXIT

Auto Setup - Digital and Analogue

EXIT

This will take about 3 mins.

RETURN

Analogue Scan 2 78 1 41

Digital Scan 5 69

Channel Service Name Type Quality

CBBC Channel DVB 10

62 BBC Radio Wales DVB 10

BBC Radio Cymru

DVB 10

Cartoon Nwk

DVB 10

29 Analogue

BBC1

Analogue

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

Country

Portugal

Spain

Italy

France

Austria

Germany

Netherlands

Hungary

Czech

E.Eu

Poland

Switzerland

Belgium

Finland

Norway

Sweden

Denmark

Greece

Menüsprache

Slovenčina

Čeština

Еλληνικά

Italiano

Français

English

Srpski

Deutsch

Português

Türkçe

Suomi

Polski

Românǎ

Hrvatski

Nederlands

Slovenščina

Български

Magyar

Svenska

Dansk

Norsk

Español

Viewing Mode

Dynamic Normal Cinema Auto

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.

Auto Setup is now complete and your TV is ready for viewing.

•

You can now use the remote

control to turn On the TV or turn

the TV to standby mode.

(Power LED: On)

•

To edit channels

Editing Channels (p. 24)

Analogue Programme Edit (p. 27)

4Start Auto Setup

•

If a compatible recording equipment

with Q-Link or similar technologies

(p. 32) is connected, analogue

channel information is automatically

downloaded to the equipment.

•

Auto Setup will start to search for

TV channels and store them.

The sorted programme order

depends upon the TV signal,

the broadcasting system and

reception conditions.

3Select your country

2Select the language

select

store

select

•

Also possible to change the setting

in Picture Menu (p. 20)

5Select the picture setting

select

set

Andere Handbücher für Viera TX-32LED7FM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic ST50 series Montageanleitung

Panasonic

Panasonic TX-14JT1F Bedienungsanleitung

Panasonic

Panasonic RX-28XDP1C Bedienungsanleitung

Panasonic

Panasonic TX-28LD90P Bedienungsanleitung

Panasonic

Panasonic PT52DL10 - 52" DLP REAR PJ HDTV Stücklistenhandbuch

Panasonic

Panasonic CT-F2524 Bedienungsanleitung

Panasonic

Panasonic TX-29F150B Bedienungsanleitung

Panasonic

Panasonic TC-14A04A Bedienungsanleitung

Panasonic

Panasonic Viera TH-50PZ77U Bedienungsanleitung

Panasonic

Panasonic Viera TH-H37X8A Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PZ77 Bedienungsanleitung

Panasonic

Panasonic TX-21FG50A Bedienungsanleitung

Panasonic

Panasonic TX-29F150B Bedienungsanleitung

Panasonic

Panasonic TX-W32D5F/P Bedienungsanleitung

Panasonic

Panasonic CT-27SX32 Bedienungsanleitung

Panasonic

Panasonic VIERA TX-32LXD6 Bedienungsanleitung

Panasonic

Panasonic TX-48CX403E Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS1C Bedienungsanleitung

Panasonic

Panasonic TX-32PD50F Bedienungsanleitung

Panasonic

Panasonic CT24SL13 - 24" TELEVISION Bedienungsanleitung

Panasonic

Panasonic TX-25AD2C Bedienungsanleitung

Panasonic

Panasonic Quintrix TX-25CK1C/BM Bedienungsanleitung

Panasonic

Panasonic TX-76PW05A Bedienungsanleitung

Panasonic

Panasonic TX-32DTDS3 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
