Panasonic NV-HV66 EG Bedienungsanleitung

NV-HV66 EG (Hi-Fi)

Operating Instructions

Video Cassette Recorder

Before connecting the device, operating it or adjusting settings please read these operating

instructions completely; especially the safety precautions on page 3.

Contents Page

Included Accessories 2

Inserting Batteries

Safety Precautions 3

Remote control functions 4-5

Front- /Rear Panel VCR 6

Connecting with a 21-pin Scart cable 7

VCR Auto Setup with 21-pin Scart cable

Connecting with RF Coaxial cable 8

VCR Auto Setup with RF Coaxial cable

Channel tuning / Correcting interferences 9

Setting Time and Date

External Devices 10-11

Connecting a Set Top Box,

satellite receiver, decoder

or a second recorder

Connecting an amplifier

Menu 12

Manual Setup 13-14

Creating a new station table

Changing the name and order of TV stations

Creating a new station table

Shipping condition/factory defaults

Menu Others 15

Recording 16

Timer recording 17-18

Recording with INTELLIGENT TIMER 19

Recording with ShowView 20

Recording with external recording controls 21

Playback 22

General convenient functions 23-24

Video cassettes 25

Video cassette handling

Playing back NTSC video cassettes

Cassette erasure protection

Before requesting service 26

Specifications 27

Index last page

Matsushita Electric Industrial Co., Ltd.

http://www.panasonic.co.jp/global/

Dear customer

Thank you for your trust and your decision to purchase this top-quality device. Panasonic is one

of the leading manufacturers of entertainment electronics devices. We are sure that you will be

completely satisfied with this device.

AC Mains Lead

RJA0043-1C

RF Coaxial cable

Batteries

AA, UM3 or R6

Operating Instructions

Guarantee Card

ccessories

Included

Remote control

N2QAJB000088

Dispose of batteries, packaging material and the unit according to

statutory regulations. They must not be thrown into the household refuse.

Inserting Batteries

The batteries last for about a year, depending on how often you use the remote control unit.

!Do not mix old with new batteries or batteries of different types.

!Only use batteries without any harmful substances (lead, cadmium, mercury).

!Do not use rechargeable type batteries.

!Remove the batteries if the remote control unit will remain unused

for longer periods of time.

!Do not heat or short-circuit the batteries. Immediately remove

used-up batteries and replace with batteries of type AA, UM3 or R6.

!Be sure to put in the batteries the right way round (+ and -).

ENTER

VCR

INPUT SEL

ShowView

AUDIO

RESET/CANCEL

REC MODE

OFF-TIMER

PROG PLAY

I-TIMER

MENU EXIT

JET REW

AV LINK

EXT LINK

STATUS

RECTIMER

INDEX

VOL

TRACKING/V-LOCK

N2QAJB000088

123

456

789

PROG

/CHECK

PAUSE/SLOW

VCR/TV

"Some functions may not be

applicable to your VCR."

The model and serial number of this product can be found on the back of the unit. Please note them

and keep for future reference. Model No. Serial No.

Keep the VCR away from

high temperatures and avoid

changes in temperatures.

Avoid magnets or

magnetised objects.

Keep away from liquids.

Install the VCR in a horizontal

position. Do not place anything

heavy on it.

Don´t put fingers or

other objects inside.

Keep away from humidity

and dust.

Safety Precautions Voltage: Only use power sources complying with the specifications for this device.

AC mains lead protection: Ensure the AC mains lead is connected correctly and not damaged.

Poor connection and lead damage can cause fire or electric shock.

Service: Never attempt to repair this unit by yourself. If a problem occurs that is not described in

these operating instructions, disconnect the power supply and contact your dealer or an authorised

after sales service centre.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS

APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH

LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

This product may receive radio interference caused by mobile telephones during use. If such

interference is apparent, please increase separation between the product and the mobile telephone.

CAUTION!

!DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER

CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

!DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS,

CURTAINS, AND SIMILAR ITEMS.

!DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.

!DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an

appliance coupler shall remain readily operable.

JET REW

INDEX

N2QAJB000088

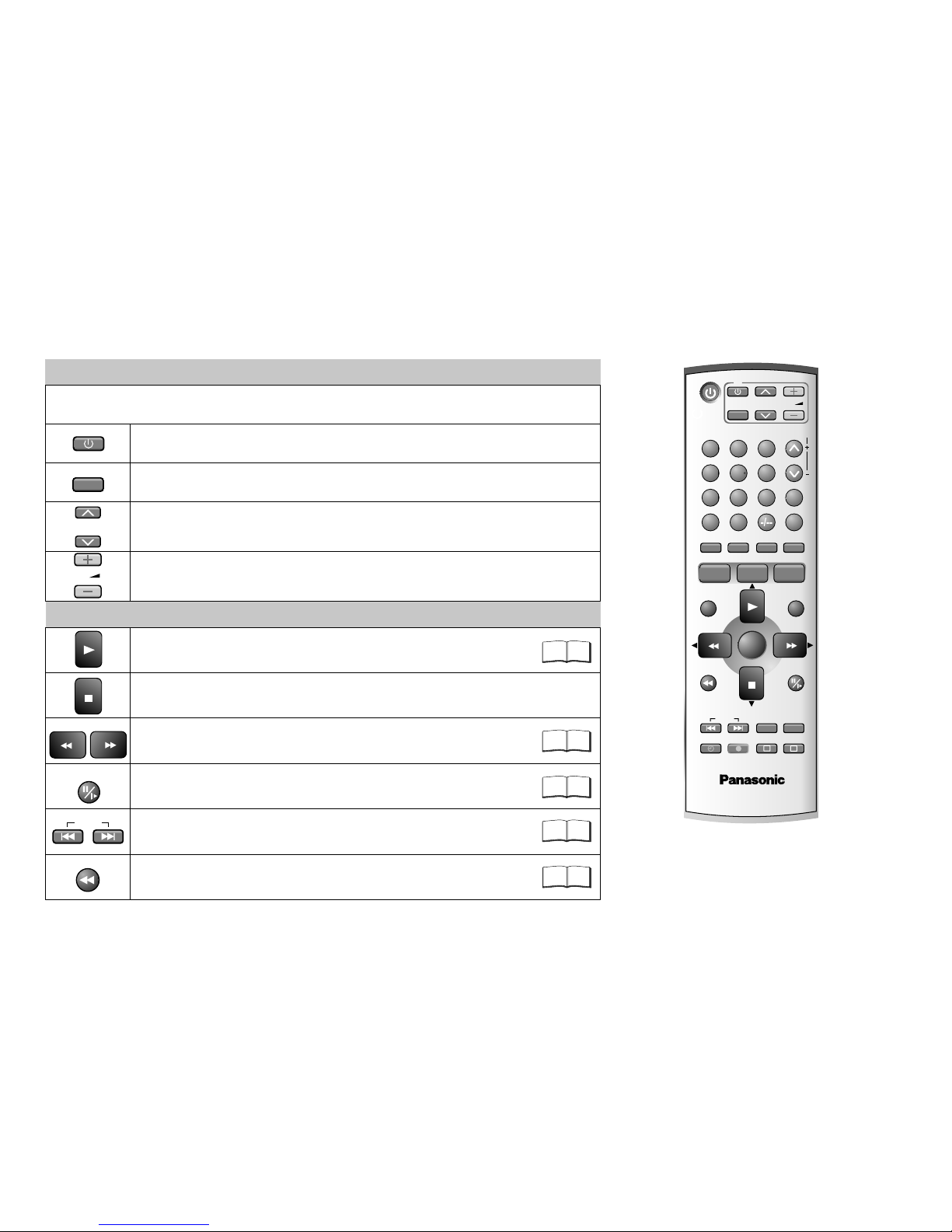

Remote control functions

Some Panasonic television sets may be controlled with the remote control unit of this VCR.

Search beginning of a recording session.

Normal playback

Fast forward/rewind when stopped,

search forward or backwards during playback.

Stop ends recording, playback, or winding.

Eject: Press and hold for more than 3 seconds.

Stop a recording session.

Still playback or Slow Playback.

Volume control.

VCR Playback Control

TV Controls

Television set Stand-by/on switch.

Fast rewind to beginning of tape.

Channel selector.

Selects the TV set's AV port.

VOL

PAUSE/SLOW

ENTER

VCR

INPUT SEL

ShowView

AUDIO

RESET/CANCEL

REC MODE

OFF-TIMER

PROG PLAY

I-TIMER

MENU EXIT

JET REW

AV LINK

EXT LINK

STATUS

RECTIMER

INDEX

VOL

TRACKING/V-LOCK

N2QAJB000088

123

456

789

PROG

/CHECK

PAUSE/SLOW

VCR/TV

"Some functions may not be

applicable to your VCR."

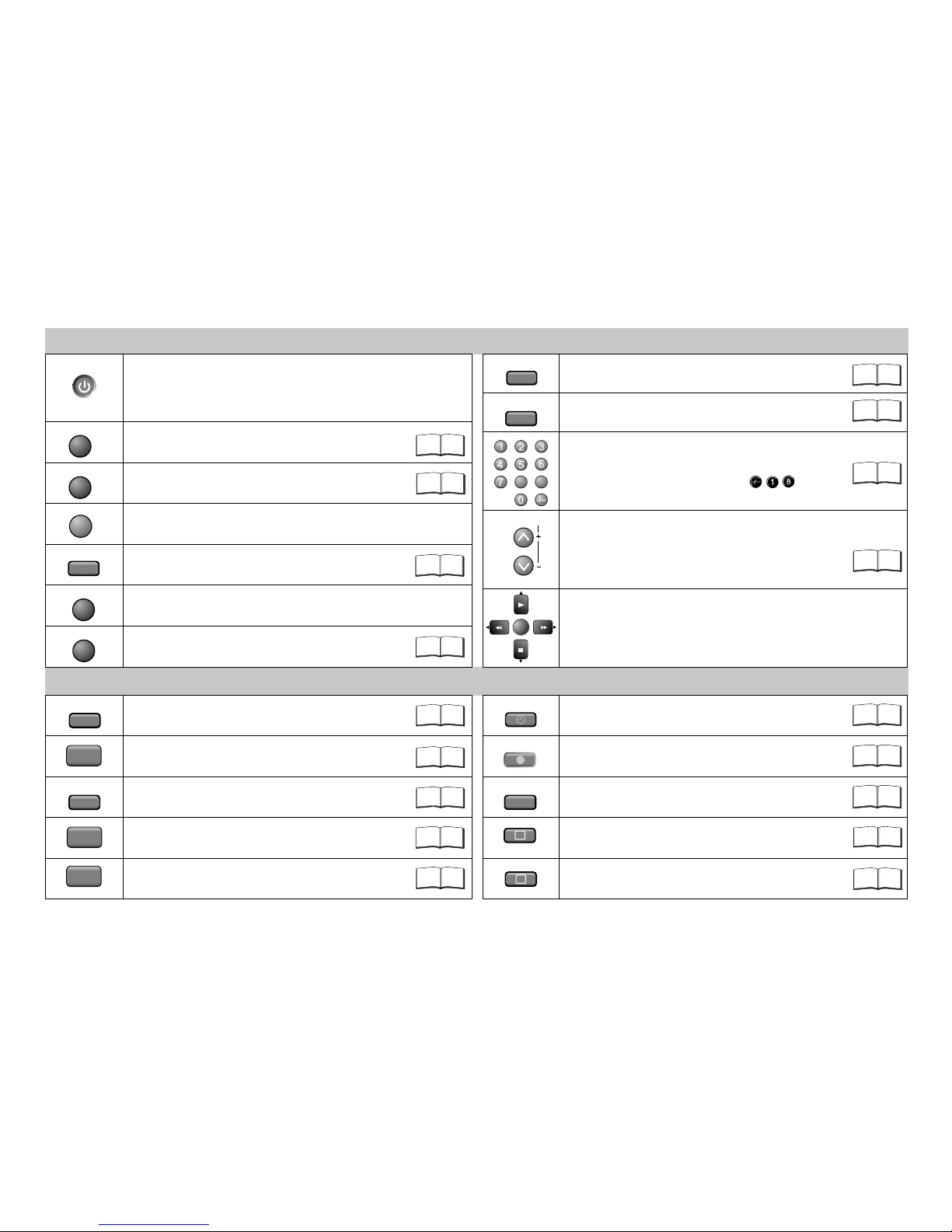

Stand-by/on switch

Press to switch the unit from on to stand-by mode or vice versa.

In stand-by mode, the unit is still consuming a small amount of

power.

ENTER

REC

8 9

RESET/CANCEL

OFF-TIMER

EXIT

AUDIO

ShowView

AV LINK

EXT LINK

VCR

I-TIMER

Displays the menu.

VCR Recording Controls

Audio mode.

Sets the tape speed.

Record

Activate the recording timer mode.

Quits a menu.

Programming TV programmes broadcasted at the same

time and on the same channel.

Switches the VCR into stand-by mode after a preset

period of time during recording, playback or stop mode.

Press repeatedly to display the time,

tape counter or tape remain.

ShowView Menu

Menu navigation buttons.

ENTER: Selecting or storing settings.

VCR Standard Controls

Select programme storage position or enter

the ShowView number. E.g.: 18 =

Channel select buttons.

Tracking control of VCR picture disturbance.

Records with external recording control.

Switches from television reception to the

video playback channel.

Delete highlighted station.

Move highlighted station.

Displays the menu Timer recording.

Switches between AV inputs A1, A2

and Tuner.

Plays back programmed recordings.

RESET : Resets the counter to 0:00.00.

CANCEL : Clears an entry you made.

INPUT SEL

PROG PLAY

REC MODE

TIMER

STATUS

TRACKING/V-LOCK

PROG

/CHECK

CVC super (Crystal View Control super): The picture is automatically adjusted as clear and sharp as possible.

Record

Fast winding

Playback

Erases a cassette.

Ejects the cassette.

Stop ends recording, playback, or winding.

Fast rewind to the beginning of the tape.

Stand-by/on switch /I

VCR= Video Cassette Recorder

Activates the recording timer.

Channel selector

Page

Detailed information

is available on the

specified pages.

Rear Panel VCR

AUDIO

AV1(TV) AV2 (DECODER/EXT)

AC IN~

RF IN

RF OUT

AC IN~(Power supply)

AUDIO output

R = AUDIO output right channel

L = AUDIO output left channel

AV2 (21-pin Scart socket)

AV1 (21-pin Scart socket)

RF IN = Antenna input

RF OUT = Antenna output

QUICK ERASE

EJECT

REC

TIMER REC

Front Panel VCR

JET REW

652

AUDIO OUT

AC mains lead

VCR

1Antenna

AC IN

RF IN

Antenna input

AV1

21-pin Scart socket

RF OUT

Antenna output

AC mains lead

Antenna input

RF coaxial cable

21-pin

Scart cable

AC IN~

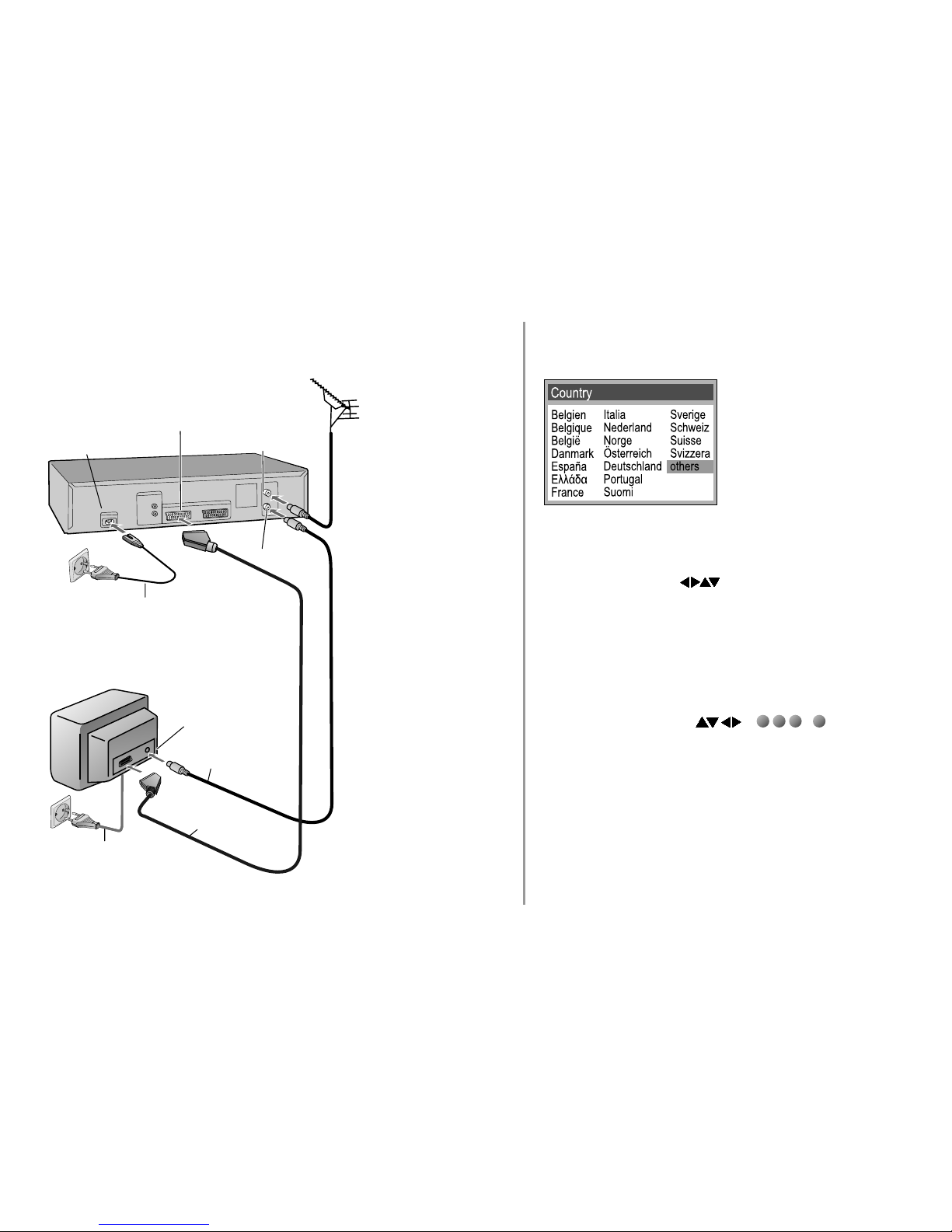

VCR Auto Setup with 21-pin Scart cable

Connecting with a 21-pin Scart cable

Follow the steps

described below.

Disconnect power to

all devices.

Connect antenna to the

RF IN (Antenna input)

connector of the VCR.

Connect the VCR’s RF OUT

(Antenna output) to the

television set’s antenna input

connector.

Connect the VCR’s AV1 socket

(21-pin Scart socket) to the TV

set’s Scart In socket.

Connect VCR and TV set to

the AC mains supply.

!Turn on your television set.

!With the Stand-by/on switch turn on the VCR.

The Country menu appears.

!With the arrow buttons select the according country, and

confirm by pressing ENTER.

Automatic tuning for all receivable TV stations begins.

Approximate duration is 5 minutes.

If menu Clock set appears

If time and date are not transmitted by a TV station, they must be set

manually.

!Enter Time and Date with or ... , then

save with ENTER.

1 2 3 0

DMind that a wrong date or time will influence the programmed

recording of TV programmes (don't forget to change summer time

and winter time).

DIf the Country menu does not

appear after turning the device

on, you may reset the device to

its factory defaults (page 14).

Upon doing so the VCR Auto

Setup will start again.

(Automatic tuning)

AC mains lead

VCR

AC IN~

Antenna

RF IN

Antenna input

RF OUT

Antenna output

Antenna input

RF coaxial cable

AC mains lead

Connecting with RF Coaxial cable

Connect antenna to the

RF IN (Antenna input)

connector of the VCR.

Connect the VCR´s RF OUT

(Antenna output) to the

television set’s antenna in

connector.

Connect VCR and television

set to the AC mains supply.

Follow the steps

described below.

Disconnect power to

all devices.

You can connect the VCR to your TV set

by using a RF coaxial cable.

VCR Auto Setup with RF Coaxial cable

DMind that a wrong date or time will influence the programmed

recording of TV programmes (don't forget to change summer time

and winter time).

DIf the Country menu does not

appear after turning the device

on, you may reset the device to

its factory defaults (page 14).

Upon doing so the VCR Auto

Setup will start again.

The Country menu appears.

!With the arrow buttons select the according country, and

confirm with ENTER.

Automatic tuning for all receivable TV stations begins.

Approximate duration is 5 minutes.

If menu Clock set appears

If time and date are not transmitted by a TV station, they must be set

manually.

!Enter Time and Date with or ... , then

save with ENTER.

1 2 3 0

(Automatic tuning)

(RF OFF)

21 69

...

VCR Display

RF Output Channel

Test pattern

VCR Ch:39

Screen Display

!Press MENU for about 5 seconds. The preset channel will be

displayed on the VCR-display.

!Press channel select buttons CH or 0to invoke [- -].

!Confirm with ENTER.

If a 21-pin Scart cable is used, please adjust the following

settings to disable the VCR´s RF-output channel.

Channel tuning / Correcting interferences

!Turn on your television set.

!Turn on the VCR by pressing the Stand-by/on switch.

!Press MENU for about 5 seconds. The preset channel is

displayed on the VCR-display.

!Adjust television set to show the test picture.

If there are any interferences select another channel on the

television set and the VCR.

!Press the CH button to change the channel

(e.g. Channel 39). Fine-tune television set until

a clear picture is displayed.

!Confirm with ENTER.

Continue VCR Auto Setup (Automatic tuning).

DThe VCR will not initiate the VCR Auto Setup if it was run once

before.

Reset the device to factory defaults (page 14). Upon doing so

you will be able to start VCR Auto Setup again.

DPress EXIT to abort VCR Auto Setup. You can run VCR Auto

Setup again at another time.

!Press MENU,

the Menu screen appears.

!With select Clock set.

!Press ENTER.

Setting Time and Date

: select : access

: return : exit

ENTER

MENU EXIT

!Select [AUTO] and confirm with

ENTER.

!Select [MANUAL] and confirm with

ENTER.

!With or ...

enter Time and Date, then store

with ENTER.

1 2 3 0

: select : access

: exit

ENTER

EXIT

Timer recording

Tuning

Clock set

Others

Language : English

Test pattern

VCR Ch:36

AUTO

Time : 12 : 00 : 00

Date : 11. 6. 04

RF Output Channel

If you decide to just use the RF coaxial cable to connect the TV set you must adjust the

video output channel with the TV set’s input channel.

Automatic tuning

If the device does not find a TV

station broadcasting the time

signal, set Time and Date manually.

Manual tuning

Clock set

: select : access

: return : exit

ENTER

MENU EXIT

MANUAL

Time : 12 : 00 : 00

Date : 11. 6. 04

Clock set

TRACKING/V-LOCK

21-pin Scart cable

External unit

VCR

Antenna

External Devices

Setting the channel to decoder

!Press MENU.

!With select menu Tuning

and confirm with ENTER.

!With ENTER select Manual.

!With , select the encrypted channel and

confirm with ENTER.

!With select Decoder, then select [ON] with .

!Press MENU to return to the Tuning menu.

Disconnect power to all devices.

Connect the external device to the AV2 input of the VCR by

using a 21-pin Scart cable.

Connect VCR, television set and the external unit to the AC

mains supply and switch it on.

!Press MENU.

!With select the Others menu and confirm with ENTER.

Connecting a Set Top Box, satellite receiver, decoder or a second recorder.

You can connect a Set Top Box to receive digital broadcast by antenna (DVB-T) signals,

a satellite receiver (digital/analogue) or a decoder to decrypt encrypted programmes.

Decoder:

!Select AV2 with , and set to [DECODER] with .

This setting does not allow you to change option AV2 IN.

!Press MENU to return to the Menu screen.

When using a decoder switch channel to decoder.

Set Top Box, satellite receiver, second recorder:

!Select AV2 with , and set to [EXT] with .

Tape length : AUTO ( E-240)

AV2 : EXT

TV system : AUTO

SQPB : AUTO

OSD : 4 : 3

Power save : OFF

VCR display: ON

Others 1 / 2

Tuning

Pos Name Ch Pos Name Ch

1 ARD 7

2 ZDF 4

3 N3 2

4 RTL 12

5 SAT1 13

: delete : move

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

Pos

Name

Channel

Fine tuning

Decoder

Video system

Mono

: PREM

: 97

AUTO

:PAL

: OFF

- - -

: select

: return :exit

MENUMENUMENUMENUMENUMENUMENUMENU EXITEXITEXITEXITEXITEXITEXITEXIT

6 VOX 8

7 PRO7 95

8 RTL2 85

9 PREM 97

10 S-RTL 98

:: access

select

: return : exit

ENTERENTERENTERENTERENTERENTERENTERENTER

MENUMENUMENUMENUMENUMENUMENUMENU EXITEXITEXITEXITEXITEXITEXITEXIT

Tape length : AUTO ( E-240)

AV2 : DECODER

TV system : AUTO

SQPB : AUTO

OSD : 4 : 3

Power save : OFF

VCR display: ON

Others 1 / 2

Inhaltsverzeichnis

Andere Panasonic Videorecorder-System Handbücher

Panasonic

Panasonic NV-HD675 Series Bedienungsanleitung

Panasonic

Panasonic AG-6740P Bedienungsanleitung

Panasonic

Panasonic AG5710P - SVHS Bedienungsanleitung

Panasonic

Panasonic AG-MD830P Bedienungsanleitung

Panasonic

Panasonic OmniVision PV-QV200 Bedienungsanleitung

Panasonic

Panasonic ProLine AG-1340P Bedienungsanleitung

Panasonic

Panasonic NV-MV21GN Bedienungsanleitung

Panasonic

Panasonic NV-HS830 Series Bedienungsanleitung

Panasonic

Panasonic Omnivision PV-M1349 Bedienungsanleitung

Panasonic

Panasonic AJHD150P - DIGITAL HD RECORDER Bedienungsanleitung

Panasonic

Panasonic Omnivision PV-7452 Bedienungsanleitung

Panasonic

Panasonic NV-SD400 Series Bedienungsanleitung

Panasonic

Panasonic NV-SD200BA Bedienungsanleitung

Panasonic

Panasonic AJD780P - 4X DVCPRO VTR Bedienungsanleitung

Panasonic

Panasonic NV-SJ4130PN Bedienungsanleitung

Panasonic

Panasonic Omnivision VHS PV-4465S Bedienungsanleitung

Panasonic

Panasonic NV-D48 Series Bedienungsanleitung

Panasonic

Panasonic AJ-HD2000 Bedienungsanleitung

Panasonic

Panasonic Omnivision PV-S9670 Bedienungsanleitung

Panasonic

Panasonic NV-L25 Series Bedienungsanleitung

Panasonic

Panasonic NV-SD1 Series Bedienungsanleitung

Panasonic

Panasonic Omnivision PV-S7680 Bedienungsanleitung

Panasonic

Panasonic PV-8660 Bedienungsanleitung

Panasonic

Panasonic AJ-SDa755E Bedienungsanleitung

Beliebte Videorecorder-System Handbücher anderer Marken

Toshiba

Toshiba M-662 Bedienungsanleitung

Sony

Sony GV-500 Primary Bedienungsanleitung

JVC

JVC HR-J282EU Bedienungsanleitung

Sony

Sony HDCAM-SR SRW5800 Bedienungsanleitung

Magnavox

Magnavox VRU242AT Bedienungsanleitung

Sony

Sony HVR-M10C Bedienungsanleitung

RCA

RCA VR634HF - Hi-Fi VCR Bedienungsanleitung

JVC

JVC HR-5910U Bedienungsanleitung

JVC

JVC HR-S8600EU Bedienungsanleitung

JVC

JVC HR-FS1U Bedienungsanleitung

Sharp

Sharp VC-H9888U Bedienungsanleitung

FUNAI

FUNAI LC-950 Bedienungsanleitung

Sharp

Sharp VC-S2000GM Bedienungsanleitung

Sony

Sony Video8 EV-A60 Bedienungsanleitung

Aiwa

Aiwa HV-E212 Bedienungsanleitung

JVC

JVC HR-J3006UM Bedienungsanleitung

GE VG4271 Bedienungsanleitung

RCA

RCA VR678HF Bedienungsanleitung
