Panasonic NA-168VX2 Bedienungsanleitung

Order No.WMH1002151CE

Drum Type Washing Machine

NA-168VX2

NA-168VG2

NA-148VA2

CONTENTS

Page

1 SPECIFICATIONS 2

2 PRODUCT INFORMATION 3-8

3 KNOW THE WASHING MACHINE 9

4 MOVING AND INSTALLING 10-14

5 HOW TO ADD DETERGENT AND SOFTENER 15

6 MAINTENANCE 16

7 USING THE BUTTONS 17

8 DETAILS OF PROGRAMMES 18

Product Colour :White

Destination :Germany, United Kingdom, France, Spain,

Italy, Holand, Belgium, Sweden, Norway, Denmark,

Poland, Czech, Hungary, Romania, Malaysia,

Indonesia

Page

Panasonic HA Washing Machine Hangzhou 2010.

distribution is a violation of law.

9 WIRING DIAGRAM 19

10 CHECK INPUT AND OUTPUT VOLTAGE OF THE PC.BOARD

20-21

11 TROUBLESHOOTING GUIDE 22-23

12 OPERATING TEST-NO WATER 24-25

13 ERROR DISPLAY 26-27

14 DISASSEMBLY INSTRUCTIONS AND ADJUSTMENTS 28-38

15 LOCATION OF PARTS 39-48

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

There are special components used in this equipment which are important for safet y. These parts are marked by in the Schematic

Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the orig inal design without permission of

manufacturer.

WARNING

IMPORTANT SAFETY NOTICE

NA-128VA2

NA-147VB2

AC220V-240V/50Hz

85kg

596*625*845

7.0kg

White

Dial+LED

37 53 r/min.

Max: 1400rpm.

Below 1.19kWh

Super quiet by Inverter-

Controlled brushless

Motor

Tilted 10 Drum

One Push Button

2075W-2250W

2000W/230V

0.03-1Mpa

Cotton Cotton-Eco

Quick60 Rapid 15

Ease-care Wool/Silk

Delicates Shirts

Bedding Colours

Quiet Tub clean

Cold 30 40

60 90

Cycle-end buzzer,

Beeper alarm

U appears 5 items

H appears 18 items

Cover cap Spanner

Elbow

NA-168VX2 NA-168VG2 NA-148VA2 NA-128VA2

AC220V-240V/50Hz AC220V-240V/50Hz AC220V-240V/50Hz AC220V-240V/50Hz

85kg 85kg 85kg 85kg

596*625*845 596*625*845 596*625*845 596*625*845

8.0kg 8.0kg 8.0kg 8.0kg

White White White White

Dial+LCD Dial+LED Dial+LED Dial+LED

37 53 r/min. 37 53 r/min. 37 53 r/min. 37 53 r/min.

Max: 1600rpm. Max: 1600rpm. Max: 1400rpm. Max: 1200rpm.

- - -

12 12 12 12

Below 1.19kWh Below 1.19kWh Below 1.19kWh Below 1.19kWh

Super quiet by Inverter-

Controlled brushless

Motor

Super quiet by Inverter-

Controlled brushless

Motor

Super quiet by Inverter-

Controlled brushless

Motor

Super quiet by Inverter-

Controlled brushless

Motor

Tilted 10 Drum O

Tilted 10 Drum

One Push Button One Push Button One Push Button One Push Button

2075W-2350W 2075W-2350W 2075W-2350W 2075W-2350W

2000W/230V 2000W/230V 2000W/230V 2000W/230V

0.03-1Mpa 0.03-1Mpa 0.03-1Mpa 0.03-1Mpa

Cotton Cotton-Eco

Quick60 Rapid 15

Ease-care Wool/Silk

15 Wash Memory

Sportswear Shirts

Bedding Colours

Cotton Cotton-Eco

Quick60 Rapid 15

Ease-care Wool/Silk

15 Wash Memory

Sportswear Shirts

Bedding Colours

Cotton Cotton-Eco

Quick60 Rapid 15

Ease-care Wool/Silk

15 Wash Sportswear

Shirts Baby-care

Bedding Colours

Cotton Cotton-Eco

Quick60 Rapid 15

Ease-care Wool/Silk

15 Wash Sportswear

Shirts Baby-care

Bedding Colours

Cold 30 40

50 60 70

80 90

Cold 30 40

60 90

Cold 30 40

60 90

Cold 30 40

60 90

Cycle-end buzzer,

Beeper alarm

Cycle-end buzzer,

Beeper alarm

Cycle-end buzzer,

Beeper alarm

Cycle-end buzzer,

Beeper alarm

U appears 5 items

H appears 18 items

U appears 5 items

H appears 18 items

U appears 5 items

H appears 18 items

U appears 5 items

H appears 18 items

Cover cap Spanner

Elbow

Cover cap Spanner

Elbow

Cover cap Spanner

Elbow

Cover cap Spanner

Elbow

1 SPECIFICATIONS

NA-168VX2/168VG2/148VA2/128VA2/147VB2

Model No.

Power source

Product weight

Dimensions(W*D*H)(mm)

Laundry capacity

Body Colour

Operation Panel

Drum(Wash) r/min .(Rated load)

Spin r/min. (Rated load)

Variable Rotation Control

Wide Angle Water Supply Shower

Process & Cloth load Indicator

Washing Program

Energy Consumption

Noise level

Easy to take-out laundry

Lid Open

Maximum power consumption

Heating power consumption

Pressure of tap water

Course select

Temperature

Buzzer

Error display

Accessories

Washing

Performance

-2-

-3-

2 PRODUCT INFORMATION

2-1 New Drum washing machine Tilted Drum

Foam

Horizontal drum type

The drum shall be tilted to save water and increase easy operation.

Compared to the Horizontal drum type, Tilted drum can save water.

When put laundry into the drum and take out laundry easily from the drum after washing. It is called

Universal design .

And also, the door can be opened easily by pressing the door button.

Tilted drum

2-2 Produce high washability

Condensed foam shall be produced at bottom portion of the outer tub unit when the drum rotating at the initial

stage of the wash cycle. This condensed foam will taken the soil from the laundry very effect ively. Splashed water

shall be showered from the upper portion of the outer tub, and also dissolved detergent showered from three baffles

on the drum.

Shower Shower

Foam wash

Shower from the upper portion

+ Whirling Shower from the baffle + Whirling

2-3 Model

On model NA-168VX2

NA-168VX2/168VG2/148VA2/128VA2/147VB2

2-3-1 Optional Washing Settings

2-3-2

For 168VX2(LCD Display)

For 168VG2, 148VA2/147VB2, 128VA2(LED Display)

Example Display on NA-168VG2

Process & Cloth Load Indicator

*Cloth load indicator (after push start button)

*Process indicator (during washing process)

Child Lock & Door Lock

Indicator

Water Temperature Setting

*90 *80 *70 *60 *50

*40 *30 *Cold

Spin Speed Setting

*1600 *1200

*800 *400

r/min*1400r/min r/min*1000r/min

r/min*700r/min*600r/min*500r/min r/min

Delay Start Setting

& Remain Time Indicator

Process Select

*Wash+Rinse+Spin

*Rinse only

*Spin only

*Wash+Rinse

*Rinse+Spin

*Drain only

Child Lock & Door Lock Indicator

Water Temperature Setting

*90 *60

*40 *30 *Cold

Spin Speed Setting

(168VG2) *1600r/min *1200r/min *800r/min *500r/min

(148VA2/147VB2) *1400r/min *1200r/min *800r/min *500r/min

(128VA2) *1200r/min *1000r/min *800r/min *500r/min

Delay Start Setting

& Remain Time Indicator

Process Select

*Wash+Rinse+Spin

*Rinse only

*Spin only

*Wash+Rinse

*Rinse+Spin

*Drain only

Intensive Extra Rinse Prewash Easy Ironing

Conducts a more

thorough wash

that lasts 10 or 20

minutes longer

than normal.

Ideal for heavily

soiled laundry

such as

sportswear with

tough stains.

Adds an extra

rinse cycle to

ensure that all

detergent is

removed.

Ideal forbabies

with delicate skin

or anyone

concerned about

allergies.

Add a pre-wash

cycle to the

ordinary course.

Ideal for heavily

soiled items.

Prevent wrinkles caused by

tangling.

Once the spin cycle completes,

the machine intermittently

comes on and the drum rotates

to loosen garments.

This mode gently spin-dries

shirts and other items that tend

to wrinkle easily.

-4-

NA-168VX2/168VG2/148VA2/128VA2/147VB2

-5-

2-3-3 Programme

For NA-168VX2/168VG2

For NA-148VA2/128VA2

For NA-147VB2

2-5 Wide angle water supply shower

New method (Conventional Supply + Wide-Angle Water Supply Shower)

Benefit of Wide-Angle Water Supply Shower

Washing

Process

Rinsing

Process

Quick Water

Penetration Effect

Water Supply Shower

During Rinsing Process

High Beating Wash and

Save The Time

Fine Rinsing Effect and

Save The Time

2-4 How to turn the "end of programme" buzzer on or off

1Press the START and power ON buttons at the same

time,

2and keep pressing the START button for at least

three seconds.

Start

Pause

Start

Pause

NA-168VX2/168VG2/148VA2/128VA2/147VB2

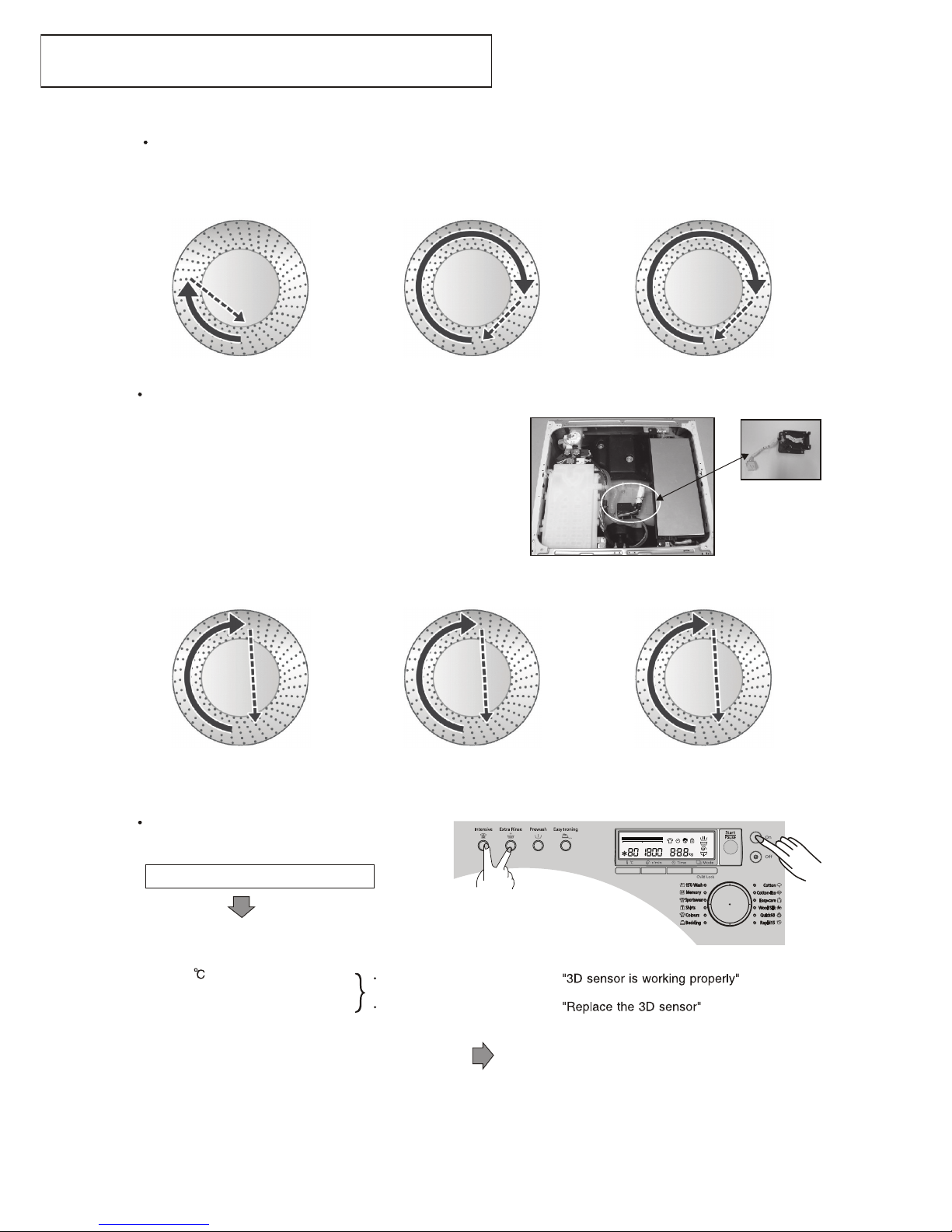

2-6 Smart Beat Wash by variable rotation control

Previous washing method

New washing method (Variable rotation control)

The drum rotates at a constant speed. Therefore, due to different fabrics and weights of clothing

and insufficient penetration of water, dirt can not be beaten out by washing.

The laundry s movement inside the drum shall

be detected by 3D sensor, and the drum rotates

most suitable speed to realize proper beat washing.

Heavily clothes

Lightly clothes

If clothes shall not be

penetrated water enough

If clothes shall not be

penetrated water enough

45 r/min 45 r/min 45 r/min

Increased rotation

speed of the drum

Decreased rotation

speed of the drum

Decreased rotation

speed of the drum

3D Sensor

How to check the 3D sensor

Operate "Test-No water"

C-process: Spin Operation

Operate approx. 2 minutes with no load

(it shall be rotated smoothly)

1)Press / temp. switch =X-axis

2)Press r/min (spin) switch =Y-axis

3)Time (Reserve) switch =z-axis

If indicate below 30 (Actual

moving 3mm)

If indicate more than 30

Incase there is no data and signal coming from the

3D sensor to the main PC Board within 30 seconds

H41 shall be appeared.

Replace the 3D sensor

-6-

NA-168VX2/168VG2/148VA2/128VA2/147VB2

2-7 Safety

Leak-proof System

Water Supply Valve

Detect water leakage, stop water

supply at product side.

Filter Valve

Detect the opening and closing

condition of drain filter,

prevent coming out the water.

Water Hose Valve

If the water hose is damaged,

detect water leakage and stop

water supply at the tap side.

Interlocking

Water Leakage Sensor

2-8 Switching Sensor

Other brands

When "Drain filter" is opened during the operation,

water in the drum comes out.

When "Drain filter" is opened ,Filter valve closes

automatically by sensing the filter condition

in order prevent from coming water.

-7-

This system is designed to prevent water leaks from the washing machine, and includes

the following components:

Drain filter

Drain Filter

valve

Panasonic

Water Supply Valve

Filter Valve

Water Hose Valve

Premium

NA-168VX2

Yes

Standard

Deluxe

NA-168VG2

Yes

(Germany/

France:Yes)

NA-148VA2

Yes

(Germany:Yes)

NA-128VA2

Yes

(Germany:Yes)

NA-147VB2

Yes

(Germany:Yes)

NA-168VX2/168VG2/148VA2/128VA2/147VB2

Interlocking

2-9 How to lock or unlock the door

Caution

Start

Pause

Press

2-10 How to set and reset the child safety lock

2-11 Release the door lock for servicing

Incase the locked by breaker cut off or power outage.

Push the small hole between the door

and body B by pin, and press the

push button to open the door.

-8-

The child safety lock prevents children climbing into the washing machine drum and getting trapped.

It keeps the door closed and locked even when the washing machine is not in use.

It also locks the control buttons.

1Switch the washing machine on.

2Press and hold the MODE button for five seconds or more.

(The sign lights to confirm the child safety lock is active.)

After the drum stops spinning, the door will automatically unlock and will be

signaled with a clicking sound. This can take about a minute.

* If you have to unlock the door mid-programme, try to make sure you don't

flood the floor with water from the drum.

The door is automatically locked while any programme is running. sign is shown

while the door is locked.

To unlock the door while a programme is running

During operation

* On model NA-168VX2

NA-168VX2/168VG2/148VA2/128VA2/147VB2

3 KNOW THE WASHING MACHINE

-9-

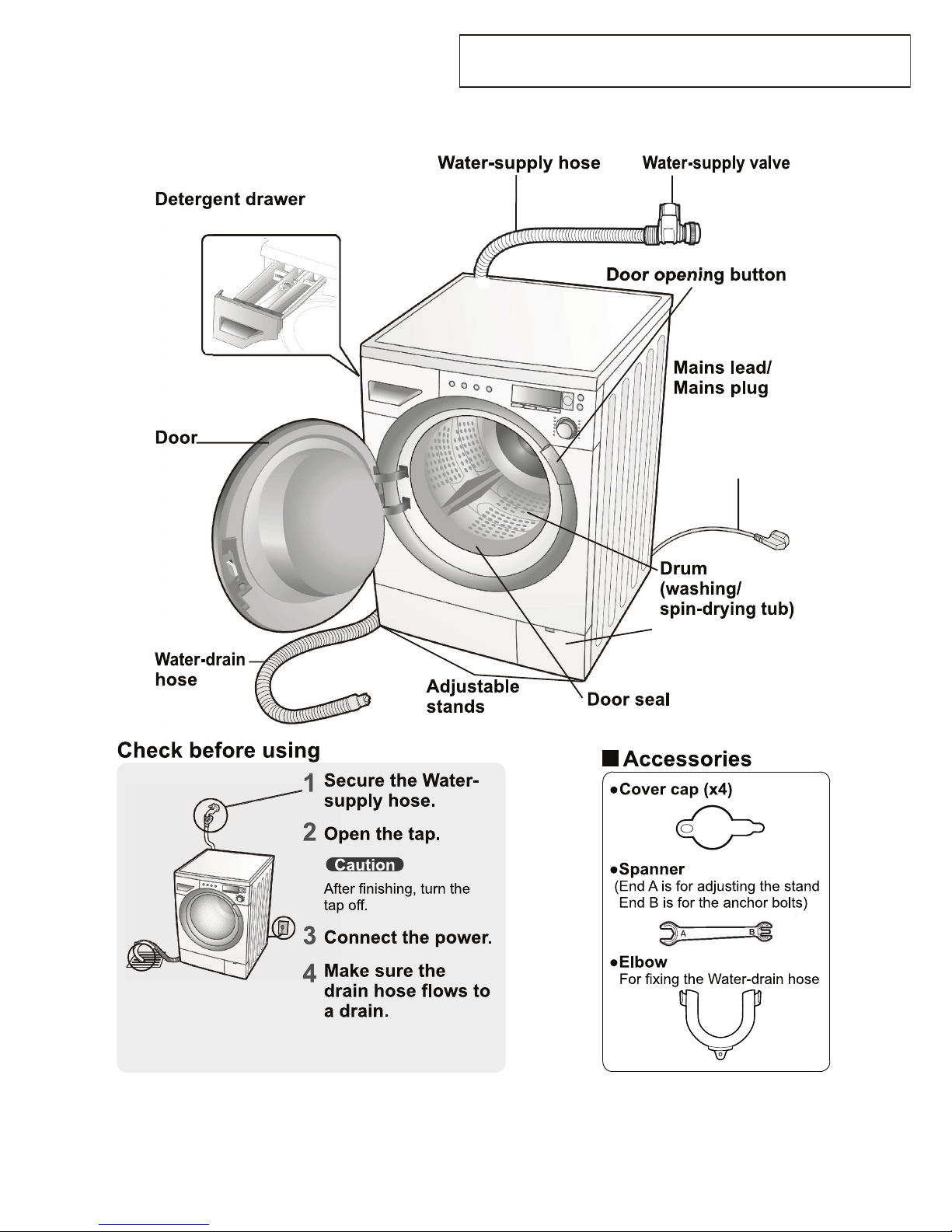

3-1 Component Name

(Push the door opening

button and open by holding

the right side of the door)

Do not fold the

mains lead when

the washing

machine is running.

Drain filter

cover

(On model

NA-168VX2

only)

NA-168VX2/168VG2/148VA2/128VA2/147VB2

4 MOVING AND INSTALLING

4-1 Carrying the washing machine

4-2 Removing the anchor bolts

You'll need the anchor bolts again if you move the washing machine, so make sure you

keep them safe. And if the washing machine passes to someone else, make sure you give

them the anchor bolts.

4-3 Moving the washing machine from one location to another

Make sure to fix the anchor bolts for transportation to the washing machine.

Before you move the washing machine

Shut the tap and run the washing machine to drain the water. Drain any remaining water from the pump hose.

Depressurise the water-supply hose and remove it.

Disconnect the power cable.

Attach the anchor bolts .

4-4 Attaching the anchor bolts

Unscrew and remove the four cover caps.

Pull the bolts out, so their tips are level with the tips of the

sleeves.

(Ask someone else to hold the upper surface of the drum and

pull it forward.)

Insert the transportation guards 1, 2, 3 and 4.

Tighten each bolt.

Tighten the bolt so that spring length becomes 26mm.

-10-

Two or more people must carry the washing machine.

Start by tilting the washing machine backwards. One person

should stand behind it, holding the rear of the top panel.

The other person should grip the bottom stands at the front.

Don't touch the door opening button while holding.

Make sure of the needed accessories for installation.

Entrust the installation of the product to our dealer or

service agent.

To remove the anchor bolts:

washing

NA-168VX2/168VG2/148VA2/128VA2/147VB2

Andere Handbücher für NA-168VX2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Waschmaschine Handbücher

Panasonic

Panasonic NA-F100A4 Produkthandbuch

Panasonic

Panasonic NA-148MB3 Bedienungsanleitung

Panasonic

Panasonic NA-F70B1 Bedienungsanleitung

Panasonic

Panasonic NA-FS90X1 Bedienungsanleitung

Panasonic

Panasonic NA-V105FR1 Produkthandbuch

Panasonic

Panasonic NA-140VG4 Betriebsanleitung

Panasonic

Panasonic NA-F135V5 Produkthandbuch

Panasonic

Panasonic NA-148VX3 Betriebsanleitung

Panasonic

Panasonic NA-106VC Betriebsanleitung

Panasonic

Panasonic NA-F70B2 Bedienungsanleitung

Panasonic

Panasonic NA-149MG4 Series Bedienungsanleitung

Panasonic

Panasonic NA-127VB6WAE Bedienungsanleitung

Panasonic

Panasonic NA-FD17X1 Produkthandbuch

Panasonic

Panasonic NA-106VC5 Betriebsanleitung

Panasonic

Panasonic NA-FD10V1 Produkthandbuch

Panasonic

Panasonic NA-127VB5WGB Bedienungsanleitung

Panasonic

Panasonic NA-120VX6 Produkthandbuch

Panasonic

Panasonic NA-F80VB7 Produkthandbuch

Panasonic

Panasonic NA-V10FC1 Produkthandbuch

Panasonic

Panasonic NA-F95A1 Produkthandbuch

Panasonic

Panasonic NA-FS16G2 Bedienungsanleitung

Panasonic

Panasonic NA-W100G1 Produkthandbuch

Panasonic

Panasonic NA- 127VB7LEG Betriebsanleitung

Panasonic

Panasonic ECONAVI NA-FS20V5SRY Produkthandbuch

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
