Panasonic NA-16VX1 Bedienungsanleitung

Order No.WMH0902141C2

Drum Type Washing Machine

NA-16VX1

NA-16VG1

NA-14VA1

CONTENTS

Page

1 SPECIFICATIONS 2

2 PRODUCT INFORMATION 3-7

3 KNOW THE WASHING MACHINE 8

4 MOVING AND INSTALLING 9-12

5 HOW TO ADD DETERGENT AND SOFTENER 13

6 MAINTENANCE 14

7 USING THE BUTTONS 15

8 DETAILS OF PROGRAMMES 16

Product Colour :White

Destination :Germany, United Kingdom, France, Spain, Poland,

Czech, Hungary, Romania, Holland, Belgium, Sweden,

Norway, Denmark, Russia, Singapore, Malaysia,

Vietnam, UnitedArab Emirates, Oman, Kuwait,Qatar,

HongKong, Thailand, Iran, New Zealand, Italy

Page

Panasonic HA Washing Machine Hangzhou 2009.

distribution is a violation of law.

9 WIRING DIAGRAM 17

10 CHECK INPUT AND OUTPUT VOLTAGE OF THE PC.BOARD

18-19

11 TROUBLESHOOTING GUIDE 20-21

12 OPERATING TEST-NO WATER 22-23

13 ERROR DISPLAY 24-25

14 DISASSEMBLY INSTRUCTIONS AND ADJUSTMENTS 26-36

15 LOCATION OF PARTS 37-46

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

There are special components used in this equipment which are important for safet y. These parts are marked by in the Schematic

Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the orig inal design without permission of

manufacturer.

WARNING

IMPORTANT SAFETY NOTICE

All manuals and user guides at all-guides.com

all-guides.com

-2-

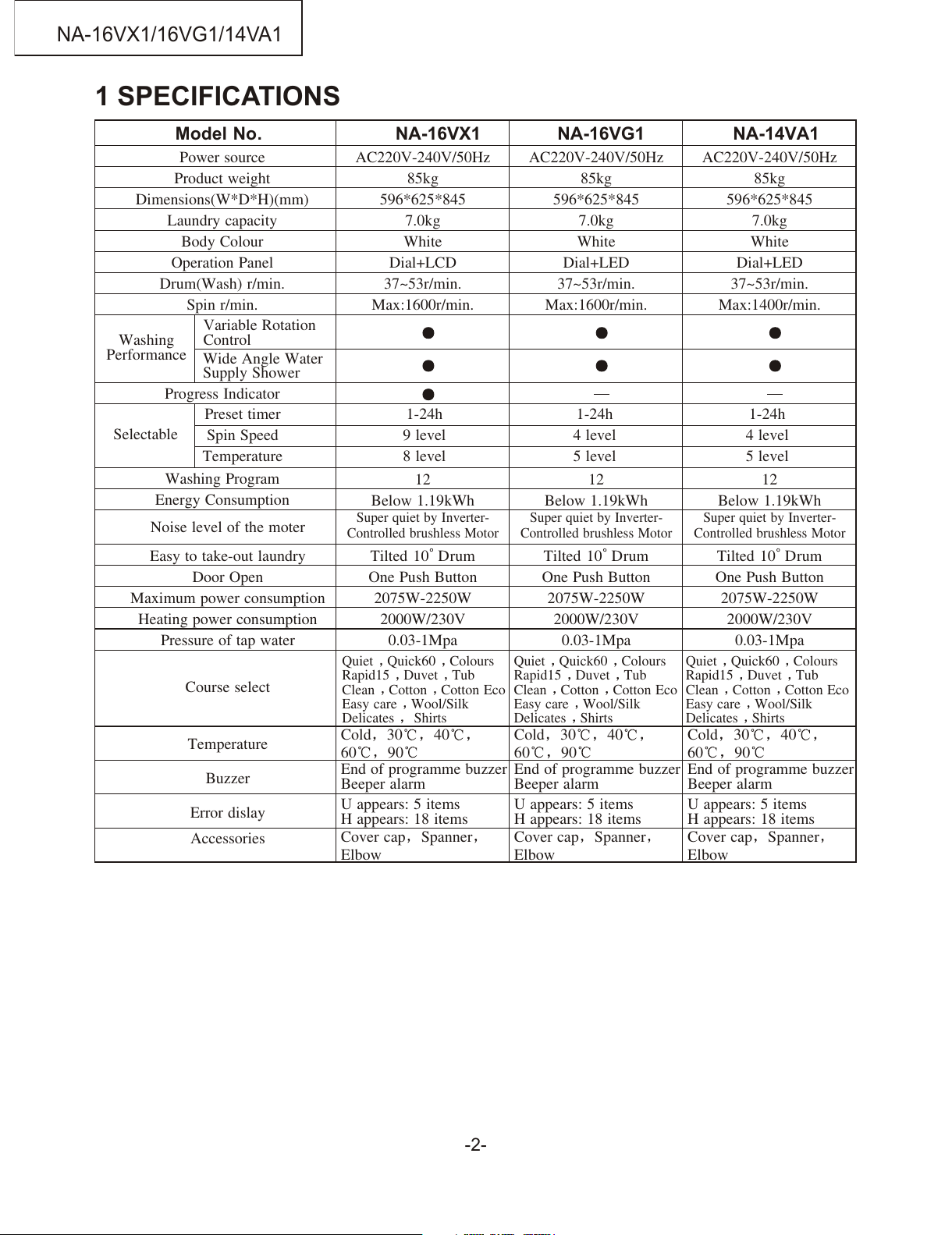

1 SPECIFICATIONS

NA-16VX1/16VG1/14VA1

Model No. NA-16VX1 NA-16VG1 NA-14VA1

Power source

Product weight

Dimensions(W*D*H)(mm)

Laundry capacity

Body Colour

Operation Panel

Drum(Wash) r/min.

Spin r/min.

Variable Rotation

Control

Wide Angle Water

Supply Shower

Washing

Performance

Progress Indicator

AC220V-240V/50Hz

85kg

596*625*845

7.0kg

White

Dial+LCD

37~53r/min.

Max:1600r/min.

AC220V-240V/50Hz

85kg

596*625*845

7.0kg

White

Dial+LED

37~53r/min.

Max:1600r/min.

AC220V-240V/50Hz

85kg

596*625*845

7.0kg

White

Dial+LED

37~53r/min.

Max:1400r/min.

Washing Program

Energy Consumption

Noise level of the moter

Easy to take-out laundry

Door Open

Maximum power consumption

Heating power consumption

Pressure of tap water

Course select

Temperature

Buzzer

Error dislay

Accessories

Below 1.19kWh

Super quiet by Inverter-

Controlled brushless Motor

Super quiet by Inverter-

Controlled brushless Motor

Super quiet by Inverter-

Controlled brushless Motor

Tilted 10 Drum

One Push Button

2075W-2250W

2000W/230V

0.03-1Mpa

Tilted 10 Drum

One Push Button

2075W-2250W

2000W/230V

0.03-1Mpa

Tilted 10 Drum

One Push Button

2075W-2250W

2000W/230V

0.03-1Mpa

Quiet Quick60 Colours

Rapid15 Duvet Tub

Clean Cotton Cotton Eco

Easy care Wool/Silk

Delicates Shirts

Quiet Quick60 Colours

Rapid15 Duvet Tub

Clean Cotton Cotton Eco

Easy care Wool/Silk

Delicates Shirts

Quiet Quick60 Colours

Rapid15 Duvet Tub

Clean Cotton Cotton Eco

Easy care Wool/Silk

Delicates Shirts

End of programme buzzer

Beeper alarm

End of programme buzzer

Beeper alarm

End of programme buzzer

Beeper alarm

U appears: 5 items

H appears: 18 items

U appears: 5 items

H appears: 18 items

U appears: 5 items

H appears: 18 items

Cold 30 40

60 90

Cold 30 40

60 90

Cold 30 40

60 90

Cover cap Spanner

Elbow

Cover cap Spanner

Elbow

Cover cap Spanner

Elbow

Selectable

Preset timer

Spin Speed

Temperature

1-24h

9 level

8 level

1-24h

4 level

5 level

1-24h

4 level

5 level

All manuals and user guides at all-guides.com

-3-

2 PRODUCT INFORMATION

2-1 New Drum washing machine Tilted Drum

Foam

Horizontal drum type

The drum shall be tilted to save water and increase easy operation.

Compared to the Horizontal dram type, Tilted drum can save water.

When put laundry into the drum and take out laundry easily from the drum after washing. It is called

Universal design .

And also, the door can be opened easily by pressing the door button.

Tilted drum

2-2 Produce high washability

Shower Shower

Foam wash

Shower from the upper portion

+ Whirling Shower from the baffle + Whirling

NA-16VX1/16VG1/14VA1

All manuals and user guides at all-guides.com

Spin Speed Setting

*1600 *1200

*800 *400

r/min*1400r/min r/min*1000r/min

r/min*700r/min*600r/min*500r/min r/min

Water Temperature Setting

*90 *80 *70 *60 *50

*40 *30 *Cold

-4-

2-3 Model

For 16VX1(LCD Display)

For 16VG1, 14VA1(LED Display)

Process & Cloth Load Indicator

*Cloth load indicator (after push start button)

*Process indicator (during washing process)

Child Lock & Door Lock

Indicator

Delay Start Setting

& Remain Time Indicator

Child Lock & Door Lock

Indicator

Delay Start Setting

& Remain Time Indicator

2-4 How to turn the "end of programme" buzzer on or off

1Press the STARTand power ON buttons at the same

time,

2and keep pressing the STARTbutton for at least

three seconds.

Start

Pause

Start

Pause

NA-16VX1/16VG1/14VA1

Process Select

*Wash+Rinse+Spin

*Rinse only

*Spin only

*Wash+Rinse

*Rinse+Spin

*Drain only

Water Temperature Setting

*90 *60

*40 *30 *Cold

Spin Speed Setting

(16VG1) *1600r/min *1200r/min *800r/min *500r/min

(14VA1) *1400r/min *1200r/min *800r/min *500r/min

Process Select

*Wash+Rinse+Spin

*Rinse only

*Spin only

*Wash+Rinse

*Rinse+Spin

*Drain only

All manuals and user guides at all-guides.com

-5-

2-5 Smart Beat Wash by variable rotation control

Previous washing method

New washing method (Variable rotation control)

The drum rotates at a constant speed. Therefore, due to different fabrics and weights of clothing

and insufficient penetration of water, dirt can not be beaten out by washing.

The laundry s movement inside the drum shall

be detected by 3D sensor, and the drum rotates

most suitable speed to realize proper beat washing.

Heavily clothes

Lightly clothes

If clothes shall not be

penetrated water enough

If clothes shall not be

penetrated water enough

45 r/min 45 r/min 45 r/min

Increased rotation

speed of the drum

Decreased rotation

speed of the drum

Decreased rotation

speed of the drum

2-6 Wide angle water supply shower

New method (Conventional Supply + Wide-Angle Water Supply Shower)

Benefit of Wide-Angle Water Supply Shower

Washing

Process

Rinsing

Process

Quick Water

Penetration Effect

Water Supply Shower

During Rinsing Process

High Beating Wash and

Save The Time

Fine Rinsing Effect and

Save The Time

NA-16VX1/16VG1/14VA1

3D Sensor

All manuals and user guides at all-guides.com

2-7 Safety

Leak-proof System

Water Supply Valve

Detect water leakage, stop water

supply at product side.

Filter Valve

Detect the opening and closing

condition of drain filter,

prevent coming out the water.

Water Hose Valve

If the water hose is damaged,

detect water leakage and stop

water supply at the tap side.

Interlocking

Water Leakage Sensor

Water Supply Valve

Filter Valve

Water Hose Valve

Premium

NA-16VX1

Deluxe

NA-16VG1

Standard

NA-14VA1

Yes

(Germany/France: Yes)

2-8 Switching Sensor

Other brands

When "Drain filter" is opened during the operation,

water in the drum comes out.

When "Drain filter" is opened ,Filter valve closes

automatically by sensing the filter condition

in order prevent from coming water.

-6-

NA-16VX1/16VG1/14VA1

This system is designed to prevent water leaks from the washing machine, and includes

the following components:

Drain filter

Drain Filter

valve

NA-16VX1,16VG1,14VA1

(Germany: Yes)

Euro Only

(Russia: No)

All manuals and user guides at all-guides.com

all-guides.com

2-9 How to lock or unlock the door

Caution

Start

Pause

Press

2-10 How to set and reset the child safety lock

2-11 Release the door lock for servicing

Incase the locked by breaker cut off or power outage.

Push the small hole between the door

and body B by pin, and press the

push button to open the door.

-7-

NA-16VX1/16VG1/14VA1

The child safety lock prevents children climbing into the washing machine drum and getting trapped.

It keeps the door closed and locked even when the machine is not in use.

It also locks the control buttons.

1Switch the machine on.

2Press and hold the MODE button for five seconds or more.

(The sign lights to confirm the child safety lock is active.)

After the drum stops spinning, the door will automatically unlock and will be

signaled with a clicking sound. This can take about a minute.

* If you have to unlock the door mid-programme, try to make sure you don't

flood the floor with water from the drum.

The door is automatically locked while any programme is running. sign is shown

while the door is locked.

To unlock the door while a programme is running

During operation

All manuals and user guides at all-guides.com

3 KNOW THE WASHING MACHINE

-8-

NA-16VX1/16VG1/14VA1

3-1 Component Name

(Push door opening

button and open with

the right end of a door)

Do not fold the

mains lead when

the washing

machine is running.

Drain filter

cover

All manuals and user guides at all-guides.com

4 MOVING AND INSTALLING

4-1 Carrying the washing machine

4-2 Removing the anchor bolts

You'll need the anchor bolts again if you move the machine, so make sure you keep them

safe. And if the machine passes to someone else, make sure you give them the anchor

bolts.

4-3 Moving the washing machine from one location to another

Make sure to fix the anchor bolts for transportation to the machine.

Before you move the washing machine

Shut the tap and run the machine to drain the water. Drain any remaining water from the pump hose.

Depressurise the water-supply hose and remove it.

Disconnect the power cable.

Attach the anchor bolts .

4-4 Attach the anchor bolts

Unscrew and remove the four cover caps.

Pull the bolts out, so their tips are level with the tips of the

sleeves.

(Ask someone else to hold the upper surface of the drum and

pull it forward.)

Insert the transportation guards 1, 2, 3 and 4.

Tighten each bolt.

Insert the washer shaft into the thread screw groove located

in the rear panel.

-9-

NA-16VX1/16VG1/14VA1

Two or more people must carry the washing machine.

Start by tilting the machine backwards. One person should

stand behind it, holding the rear of the top panel. The other

person should grip the bottom stands at the front.

Don't touch the door opening button while holding.

Make sure of the needed accessories for installation.

Entrust the installation of the product to our dealer or

service agent.

To remove the anchor bolts:

All manuals and user guides at all-guides.com

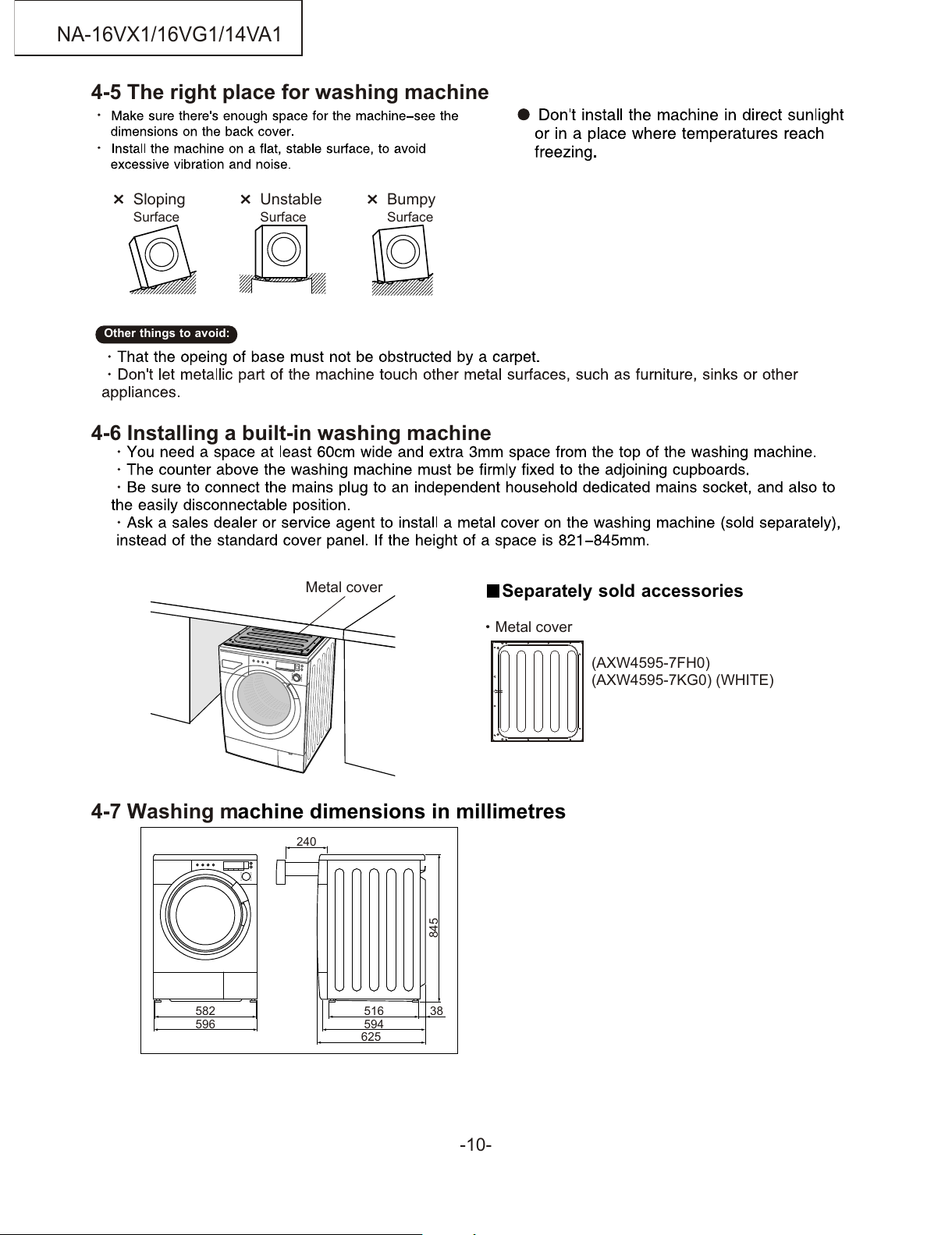

4-5 The right place for washing machine

Sloping Unstable Bumpy

Surface Surface Surface

526

845

042

Metal cover

Other things to avoid:

4-6 Installing a built-in washing machine

4-7 Washing machine dimensions in millimetres

-10-

NA-16VX1/16VG1/14VA1

Metal cover Separately sold accessories

(AXW4595-7FH0)

(AXW4595-7KG0) (WHITE)

All manuals and user guides at all-guides.com

Andere Handbücher für NA-16VX1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Waschmaschine Handbücher

Panasonic

Panasonic NA-F80B3 Bedienungsanleitung

Panasonic

Panasonic NA-148VB6WDE Bedienungsanleitung

Panasonic

Panasonic NA-F100X1 Bedienungsanleitung

Panasonic

Panasonic NA-F100A1 Produkthandbuch

Panasonic

Panasonic NA-140VS4 Betriebsanleitung

Panasonic

Panasonic NA-F75S6 Produkthandbuch

Panasonic

Panasonic NA-168VX3 Betriebsanleitung

Panasonic

Panasonic NA-F80GD Bedienungsanleitung

Panasonic

Panasonic NA-107VC4W01 Bedienungsanleitung

Panasonic

Panasonic NA-W120G1 Produkthandbuch

Panasonic

Panasonic NA-FS95G2 Produkthandbuch

Panasonic

Panasonic NA-FS12X1WPT Bedienungsanleitung

Panasonic

Panasonic NA-F80VS8 Produkthandbuch

Panasonic

Panasonic NA-148VB3 Bedienungsanleitung

Panasonic

Panasonic NA-120VX6 Produkthandbuch

Panasonic

Panasonic NA-W60L1 Bedienungsanleitung

Panasonic

Panasonic NA-F80G9P Bedienungsanleitung

Panasonic

Panasonic NA-F100A2 Bedienungsanleitung

Panasonic

Panasonic NA-F10MB1 Bedienungsanleitung

Panasonic

Panasonic NA-W100G1 Produkthandbuch

Panasonic

Panasonic NA-F75G6 Bedienungsanleitung

Panasonic

Panasonic NA-128VB5WFR Bedienungsanleitung

Panasonic

Panasonic NA-F500P Bedienungsanleitung

Panasonic

Panasonic NA-120VG6 Produkthandbuch

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
