Panasonic NA-F80H Bedienungsanleitung

Fully Automatic Washing Machine

NA-F80B1, NA-F80T1, NA-F80H1

NA-F90T1, NA-F90H1

NA-F1011T

Silver (A), White (D), Grey (J)

Destination

Thailand, Indonesia, Vietnam, Malaysia,

Singapore (Local), India, Singapore (Export),

Fiji, Philippine, Tahiti, UAE (Local), Kuwait

and distribution is a violation of law

Service Manual

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to

service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic

Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be

replaced with manufacturer’s speciﬁed parts to prevent shock, ﬁre or other hazards. Do not modify the original design without

permission of manufacturer.

IMPORTANT SAFETY NOTICE

Order No. PHAT080804C3

(Revision : Jul. 2010)

Product Colour

CONTENTS

Usage: For repairs and change of spare part only for washing machine type

Panasonic Model NA-F80B1/NA-F80T1/NA-F80H1/NA-F90T1/NA-F90H1/

NA-F1011T

Instruction

for Usage: The work repair and changing of space part should be operated by a skilled

technician from the distribution agents, or Panasonic’s standard service center.

Warning: Switch off electrical power before commencing work to avoid a potential short

circuit or injury.

1. SPECIFICATIONS.........................................................................................3

2. FEATURES AND TECHNICAL INFORMATION .......................................... 4-5

3. INSTALLATION ......................................................................................... 6-7

4. OPERATIONS PANEL............................................................................... 8-9

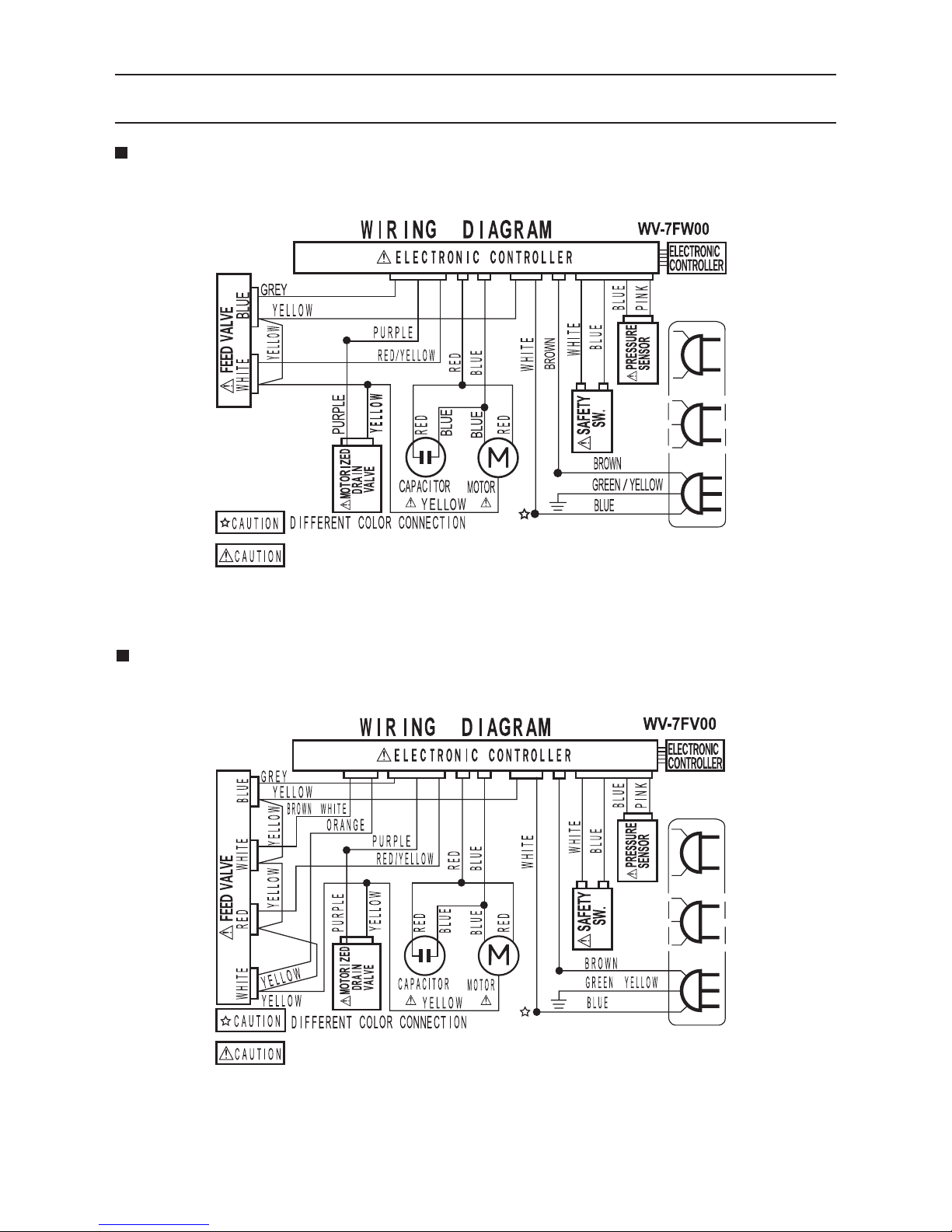

5. WIRING DIAGRAM .....................................................................................10

6. TABLE OF ERRORS ...................................................................................11

7. TROUBLESHOOTING .......................................................................... 12-14

8. DISASSEMBLY INSTRUCTION...................................................................15

9. LOCATION OF PARTS AND REPLACEMENT PARTS ........................... 16-29

Page

1. SPECIFICATIONS

MODEL NA-F80B1 NA-F80T1 NA-F80H1 NA-F90T1 NA-F90H1 NA-F1011T

Rate Voltage

And Frequency

220V/50Hz Thailand,

Vietnam,

Sin(Exp)

Thailand,

Vietnam

Thailand,

Vietnam,

UAE(Exp)

Thailand,

Vietnam,

Sin(Exp),

Fiji,UAE(Exp)

Thailand,

Vietnam,

Sin(Exp),

UAE(Exp)

Indonesia

230V/50Hz Singapore,

India

Singapore,

India

Singapore Singapore Singapore,

India

230V/60Hz Philippines

240V/50Hz Malaysia Malaysia Malaysia,

UAE(Loc),

Kuwait,Oman,

Qatar

Malaysia,

UAE(Loc),

Kuwait,Oman,

Qatar

Malaysia,

UAE(Loc),

Kuwait,

Qatar

Colour Gray (J) White (D) Silver (A) White (D) Silver (A) White (D)

Rate Power

Consumption

(Wash / Spin)

220V/50Hz 430W / 235W 450W / 240W

230V/50Hz 440W / 245W 460W / 250W

230V/60Hz 510W / 340W 510W / 340W

240V/50Hz 450W / 260W 470W / 265W

Standard Water Consumption 172 Liter 177 Liter

Standard Capacity 8 Kg 9 Kg

Weight (with accessories) 41 Kg 41 Kg

Pulsator (r.p.m.) 110 r / min

Spin Tub (r.p.m.) 740 r / min

Water Pressure 0.3 - 10 Kg.f / cm2(8 - 25 liter / min)

External Dimension Width : 643mm. × Depth : 637mm. × Height : 1042mm.

Net Weight 41 Kg

Motor Power Input : 320 Watts / Output : 180 Watts

Safety Switch Checking Unbalance / Tub Lid

Alarm Rings When Finishing Washing Or Unusual

Thermoprotector Motor

Water Inlet Hole ¢

Fabric Softener Dispensor ¢

Filter ¢

Automatic Power-Cut Switch ¢

Bleach Dispensor ¢¢

Standard Water Consumption

Model NA-F80B1 / NA-F80T1 / NA-F80H1

Standard Water Consumption

Model NA-F90T1 / NA-F90H1

Wash Level Water Only Clothes Weight Wash Level Water Only Clothes Weight

High

Medium

Low 1

Low 2

Low 3

77 Liters

72 Liters

65 Liters

61 Liters

55 Liters

51 Liters

45 Liters

41 Liters

35 Liters

18 Liters

8.0 Kgs

6.0 Kgs

5.0 Kgs

4.2 Kgs

3.5 Kgs

2.5 Kgs

1.5 Kgs

1.1 Kgs

0.8 Kgs

0.3 Kgs

69 Liters

65 Liters

60 Liters

56 Liters

52 Liters

48 Liters

43 Liters

38 Liters

33 Liters

18 Liters

High

Medium

Low 1

Low 2

Low 3

77 Liters

72 Liters

65 Liters

61 Liters

55 Liters

51 Liters

45 Liters

41 Liters

35 Liters

18 Liters

9.0 Kgs

6.0 Kgs

5.0 Kgs

4.2 Kgs

3.5 Kgs

2.5 Kgs

1.5 Kgs

1.1 Kgs

0.8 Kgs

0.3 Kgs

71 Liters

65 Liters

60 Liters

56 Liters

52 Liters

48 Liters

43 Liters

38 Liters

33 Liters

18 Liters

2. FEATURES AND TECHNICAL INFORMATION

Model NA-F80B1 / NA-F80T1 / NA-F80H1 / NA-F90T1 / NA-F90H1 / NA-F1011T

Program Time

Normal Approx. 47~56 min.

Mini Approx. 20 min.

Soak Approx. 107 min.

High Speedy Approx. 21~27 min.

Blanket Approx. 55 min

Delicate Approx. 29-32 min

Tub Hygiene Approx. 150 min

Soak 1 hour Approx. 107 min

Soak 8 hour Approx. 527 min

Product special features

•Dial indicating detergent level after sensing wash level

•Pre-set timer

•Fabric softener dispenser

•Detergent dispenser

•Automatic power-off when ﬁnish

•Dial indicating unusual sign (LED will blink)

•Alarm ON-OFF

•Overﬂow sensing device.

•Ag Shower (NA-F80H1 / NA-F90H1 only)

- This has the disinfection effect with Ag+.

- This can be used for the course marked with ★.

Weight Sensor

The weight is sensed by the moving force of

the Pulsator, which changes a capacitor pole

and releases a signal wave. The wave is changed

into a pulse number from which the clothes

weight is sensed. Prior to weight sensing for

Normal and Strong program, the machine runs

without water by spinning the Pulsator to left

and right for 4.2 seconds (ON 0.3 second-

OFF 0.4 second). The motor stops (OFF),

a water system counts the pulse number, then

calculates the accumulated pulse numbers for

drawing water into the tub over a deﬁned level.

The dial will indicate High wash level.

High Medium Low

Low Pulse Number High

2. FEATURES AND TECHNICAL INFORMATION

Function Control with Fuzzy sensor

Clothes quantity checking, wash level indication and detergent consumption indication with Fuzzy Logic system

1. Check clothes quantity and specify the amount of detergent

2. Temperature checking

Check temperature in the atmosphere when the machine starts.

In case of low temperature, wash timer and spin timer are extended

automatically so that washed clothes are as clean as washing in

high temperature.

1. Wash timer and spin timer with checked clothes quantity

High

3.0 Kg and more

Medium

1.2 Kg~3.0 Kg

Low

0 Kg~1.2 Kg

Wash Timer 12 min. 12 min. 9 min.

Spin Timer 6 min. 6 min. 5 min.

Additional wash timer and spin timer as temperature increases

External temp. 25°C15°C5°C30°C

Wash Timer +0 min. +2 min. +3 min. -1 min.

Spin Timer +0 min. +1 min. +2 min. +0 min.

Rotate clockwise

stop

Rotate

anti-clockwize

Turn Switch “ON”

Press “Start”button

1. Check clothes quantity

2. Check ambient

temperature

A. Check clothes

quantity

B. Control wash time

C. Control spin time

Supply water to a proper

level

WASH

RINSE

SPIN

Switch will automatically

cut the power current

“OFF”

Check cross pressure at the

capacitor while the Pulsator operates

without water.

stop

Rotate clockwise

stop

Rotate

anti-clockwize

stop

Rotate clockwise

stop

Rotate

anti-clockwize

stop

Connect the water supply hose

to the water supply valve screw.

1. Push the water supply hose nut straights onto

the water supply valve screw.

2. Hold the elbow by lifting it up, screw the nut

onto the water supply valve screw, and ﬁrmly

tighten the nut.

3. After the nut is tightened, check whether or

not the elbow is unsteady or loose.

4. After tightening, open the faucet to conﬁrm

that there is no water leakage.

[Cautions]

Firmly tighten the nut, otherwise water leakage

will result.

Water Pressure Rating :

2.9 x 104~ 9.8 x 105Pa

3. INSTALLATION

3.1 Checking of Placement

Hose extension

If extended external part is necessary when connecting the drain hose, the length of the drain hose should be less

than 3 m and the height should be below 10 cm.

Elbow

Water supply

valve screw

Nut

Water Supply

Hose

Drain hose

3 m max.

Do not put hose tip

under the water

Over 10 cm

Install the machine 10 cm or more away from the wall.

Good Example

Below 10 cm

3. INSTALLATION

3.2 Connect the water supply hose

[Note]

- Firmly tighten part B of the water tap adaptor,

otherwise water leakage will result.

- When the hose must be reinstalled (after you

remove, for example), turn B to the left until

about 4 mm of the thread becomes visible,

then carry out the procedure described above.

- If a water tap adaptor is already connected,

replace with the attached new one.

3.3 Install Washing Machine to steady

1. Turn the adjustable leg knob towards (Loosen)

direction to loose it.

2. Turn the adjustable leg to adjust the levelness.

2.1 When increasing height, turn adjustable leg

towards (Loosen) direction.

2.2 When decreasing height, turn adjustable leg

towards (Tighten) direction.

3. Turn the adjustable leg knob towards (Tighten)

direction to tighten it.

If the ﬂoor is largely inclined

Use board or

a like for prop

up under leg

of washing

machine

3.4 CHILD LOCK Program

Press the [ POWER OFF/ON] button for at least

5 seconds. The buzzer sounds (two time for

setting) and the [CHILD LOCK] indication turns

on.

Open lid

Close lid

Buzzer on Buzzer off

Water drain Buzzer on and

abnormal alarm

Unplug the power

cord from the

outlet and re-plug

it again after

5 seconds

Adjust Height of leg

Less than

10 sec.

More than

10 sec.

Water faucet

Water supply

hose cover

Screw (4)

Water tap

adaptor

Lever

Approx. 4 mm

Adjustable leg knob

Adjustable leg

Loosen

To raise To lower

Tighten

4. OPERATIONS PANEL

Operations Panel Fuzzy logic control is used to recommend the proper water level and amount of detergent for

the amount of laundry being done.

Caution: If you need to change the [PROGRAM] and [SOAK] settings after the cycle has already started,

turn the power off and on it back.

4.1 Model NA-F80B1 / NA-F80T1 / NA-F90T1 / NA-F1011T

RESERVE

•Press the [RESERVE] button to set how many

hours later you would like the wash to be

completed.

SOAK (EXCEPT NA-F80B1)

•Operations course for heavily washed laundry.

•You can adjust soak time based on the

condition of dirt.

•You can choose your soak time from 1, 3, 5,

8 hours.

OFF/ON

•The power automatically turns off when total

operations is ﬁnished.

•The power automatically turns off if [START/

HOLD] button is not pressed within 10

minutes after turning on the power.

WASH/SPIN

•Press this button, and the pre-set laundry

cycle display will turn off allowing you to

choose your own laundry setting.

WATER LEVEL (Water volume display)

•The appropriate WATER LEVEL for the size

and type of your laundry will be displayed.

•You can adjust the WATER LEVEL according

to your desired level.

RINSE

•Press this button, and the pre-set laundry

cycle display will turn off allowing you to

choose your own laundry setting.

•At “REFILL”selection, water will be supplied

while “RINSE”process is in operation.

Time display

•When the machine is in operation, the time

display shows how much time (in minutes) is

left.

•When the programmable timer has been

set, this display shows how much time is

left until the wash is ﬁnished by pressing the

[RESERVE] button.

•Timer indication on the panel will show longer

time than selected time as it includes water

feeding, draining, etc.

START/HOLD

•Press this to start.

•Press this to stop in the middle of the cycle.

PROGRAM (Course Select)

•According to type of laundry and stain, you

can select suitable course yourself.

4.2 Model NA-F80H1 / NA-F90H1

Ag Shower

•Press this button to have an effect with Ag+ to

coliform bacillus, a staphyococcus, etc. which

course food poisoning.

•Suits for clothing (underwear, baby’s clothing,

etc.) to wash hygienically.

4. OPERATIONS PANEL

Operations Panel Fuzzy logic control is used to recommend the proper water level and amount of detergent for

the amount of laundry being done.

Caution: If you need to change the [PROGRAM] and [SOAK] settings after the cycle has already started,

turn the power off and on it back.

RESERVE

•Press the [RESERVE] button to set how many

hours later you would like the wash to be

completed.

SOAK

•Operations course for heavily washed laundry.

•You can adjust soak time based on the

condition of dirt.

•You can choose your soak time from 1, 3, 5,

8 hours.

OFF/ON

•The power automatically turns off when total

operations is ﬁnished.

•The power automatically turns off if [START/

HOLD] button is not pressed within 10

minutes after turning on the power.

Time display

•When the machine is in operation, the time

display shows how much time (in minutes) is

left.

•When the programmable timer has been

set, this display shows how much time is

left until the wash is ﬁnished by pressing the

[RESERVE] button.

•Timer indication on the panel will show longer

time than selected time as it includes water

feeding, draining, etc.

START/HOLD

•Press this to start.

•Press this to stop in the middle of the cycle.

PROGRAM (Course Select)

•According to type of laundry and stain, you

can select suitable course yourself.

WASH, SPIN

•Press this button, and the pre-set laundry

cycle display will turn off allowing you to

choose your own laundry setting.

WATER LEVEL (Water volume display)

•The appropriate WATER LEVEL for the size

and type of your laundry will be displayed.

•You can adjust the WATER LEVEL according

to your desired level.

RINSE

•Press this button, and the pre-set laundry

cycle display will turn off allowing you to

choose your own laundry setting.

•At “REFILL”selection, water will be supplied

while “RINSE”process is in operation.

5. WIRING DIAGRAM

5.1 MODEL NA-F80B1 / NA-F80T1 / NA-F90T1 / NA-F1011T

5.2 MODEL NA-F80H1 / NA-F90H1

THIS IS SAFETY PART SIGN.

PLEASE USE SPECIFIC PARTS FOR SAFETY MAINTENANCE

WHEN YOU REPLACE IT.

BROWN

THIS IS SAFETY PART SIGN.

PLEASE USE SPECIFIC PARTS FOR SAFETY MAINTENANCE

WHEN YOU REPLACE IT.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Waschmaschine Handbücher

Panasonic

Panasonic NA-F120T1 Bedienungsanleitung

Panasonic

Panasonic NA-16VX1 Bedienungsanleitung

Panasonic

Panasonic NA-148VG4 Betriebsanleitung

Panasonic

Panasonic NA-F130T1 Bedienungsanleitung

Panasonic

Panasonic NA-F70B6 Produkthandbuch

Panasonic

Panasonic NA-F70H2 Bedienungsanleitung

Panasonic

Panasonic NA-140VS4 Betriebsanleitung

Panasonic

Panasonic NA-F70H3 Betriebsanleitung

Panasonic

Panasonic NA-149MG4 Series Bedienungsanleitung

Panasonic

Panasonic NA-W60L1 Bedienungsanleitung

Panasonic

Panasonic NA-F80VS7 Produkthandbuch

Panasonic

Panasonic NA-W1500T Produkthandbuch

Panasonic

Panasonic NA-W100G1 Produkthandbuch

Panasonic

Panasonic NA-F70S7 Produkthandbuch

Panasonic

Panasonic NA-127XB1L01 Bedienungsanleitung

Panasonic

Panasonic NA-140VX3 Betriebsanleitung

Panasonic

Panasonic NA-FS95A1 Produkthandbuch

Panasonic

Panasonic ECONAVI NA-FS95G3WAU Bedienungsanleitung

Panasonic

Panasonic NA-128VB6WAE Bedienungsanleitung

Panasonic

Panasonic NA-F70B5 Produkthandbuch

Panasonic

Panasonic NA-F135X1 Produkthandbuch

Panasonic

Panasonic NA-FD135X3 Produkthandbuch

Panasonic

Panasonic NA-FD16X1 Produkthandbuch

Panasonic

Panasonic NA-FS16X3 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
