Panther Hawk Bedienungsanleitung

HAWK SAFETY CART

INSTRUCTION MANUAL

WARNING!

SERIOUS INJURY OR DEATH MAY RESULT IF THIS PRODUCT IS USED FOR PURPOSES

OTHER THAN DESIGNED.

ANY OTHER USE OF THIS MACHINE VOIDS THE MANUFACTURER’SWARRANTY, AND IS THE SOLE

RESPONSIBILITY OF THE OWNER SHOULD ANY DAMAGE OR INJURY OCCUR.

ITIS THE RESPONSIBILITY OF THE OWNER/OPERATOR TO UNDERSTAND AND

CONVEY EXPLICIT INSTRUCTION TO EACH USER.

PANTHER PRODUCTS CORPORATION

2501 ANACONDA RD., HARRISONVILLE, MO 64701

816-884-4444 WWW.PANTHERPRODUCTS.US 800-283-8627

Rev. 04/10

Published by Panther Products Corporation, Inc.

2501 Anaconda Rd.

Harrisonville, MO 64701

www.pantherproducts.us

PRINTED IN THE UNITED STATES OF AMERICA

HAWK SAFETY CART

INSTRUCTION MANUAL

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

SPECIFICATIONS

Total Weight

The Panther Hawk Safety Cart has a total weight in-service weight of 700 lbs.

Component Weights

Dimensions

Frame 153 lbs.

Front Axle/Pull Bar Support 24 lbs.

Handle 5 lbs.

4 Tires/Wheels 40 lbs. (10 lbs. each)

Equipment Storage Rack—End Plates (2) 30 lbs. (15 lbs. each)

Equipment Storage Rack—Side Plates (2) 58 lbs. (29 lbs. each)

Solid Counterweights (6) 300 lbs. (50 lbs. each)

Counterweights with holes for

Fall Arrest Attachment Eye Bolt (2) 90 lbs. (45 lbs. each)

Length with the handle up 65"

Width 38"

Height 30"

Ground Clearance 7 1/4"

Length with the handle down 99"

Height with the handle up

(to the top of the handle) 48"

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

TESTED PERFORMANCE

The Panther Hawk Safety Cart was tested and found to meet the requirements of OSHA

Regulation 1926.502 for fall arrest (section d). It is the owner/employee/contractor’s

responsibility to inspect the cart and all components of the system to insure their compliance to

the OSHA Fall Protection Requirements.

It is the owners/employer/contractor’s responsibility to have an approved fall protection plan in

effect when using a Panther Hawk Safety Cart for fall restraint or fall arrest. Each contractor and

each job may have its own unique “Fall Protection Plan”. Check your job before putting the

Panther Hawk Safety Cart on the roof.

The Panther Hawk Safety Cart may be used where worker mobility and fall protection are

essential factors of a successful job. When the workers and equipment are rigged properly the

Panther Hawk Safety Cart is an integral component of a complete fall protection system. The

Panther Hawk Safety Cart can be utilized to allow two workers to be rigged for fall restraint and

also have one worker to be rigged for fall arrest.

For more information, or to receive a copy of the testing report, contact:

Panther Products Corporation

2501 Anaconda Road

Harrisonville, MO 64701

(816) 884-4444

(800) 283-8627

THE PANTHER HAWK SUPPORTS ATOTAL OF 3 (THREE) WORKERS

SIMULTANEOUSLY FOR FALL PROTECTION, AS FOLLOWS:

No More Than ONE WORKER Shall Be Connected

To the Panther Hawk Safety Cart for FALL ARREST. For Fall Arrest, the

Worker is connected to the fall arrest plate located on the lower side of the

cart to the attachment plate with One Eye-Bolt.

No More Than TWO WORKERS Shall be Connected to the Panther Hawk

Safety Cart for FALL RESTRAINT. For Fall Restraint, Up to Two workers

May be Connected to the Hoisting Rings.

NOTE: The total number of workers attached to the Panther Hawk Safety Cart shall not

exceed 3 (three). The workers connected shall have a combined weight

(clothing, tools, etc.) of no more than 310 lbs per person.

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

PANTHER HAWK SAFETY CART

OPERATOR PREPARATION

READ INSTRUCTIONS

Read the instructions completely for safe operation of this equipment. Failure to do so can

subject operator and others to death or serious injury.

DRESS PROPERLY

Safety glasses or face shield must be worn at all times when operating roofing equipment.

Proper eye protection will help avoid irritation to the eyes caused by dust particles in the air.

Wear properly fitting clothes. Loose fitting clothing can be dangerous and cause serious

injury if caught in moving mechanical parts. Wear a long-sleeved shirt, buttoned at the cuffs,

safety shoes, and pants without cuffs.

Consult the owner/employer/contractor’s approved fall protection plan for additional dress

requirements in effect when using a Panther Hawk Safety Cart.

UNDER DUSTY CONDITIONS A DUST MASK IS RECOMMENDED.

JOB SITE PREPARATION

INSPECT ROOF DECK

Prior to allowing equipment or personnel access to the roof, make certain the deck is strong

enough to support the total weight of the Hawk and all personnel and equipment.

All potentially dangerous obstacles and debris that could cause injury to the operator or

others should be removed from the work area.

Keep unauthorized people away from the work area.

Check to see that all roof openings are guarded to protect against falls.

Keep extension cords and power lines away from the work area.

THE CURB WEIGHT OF THE PANTHER HAWK SAFETY CART IS 700 LBS. AS SHIPPED.

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

HOISTING THE HAWK SAFETY CART

TO THE ROOF

INSPECT THE ROOF

Make certain hoist is in safe condition and operated by trained personnel. Make sure everyone

on the ground is completely clear of the hoisting area. Do not exceed the weight and size

capacity of your hoist. Refer to equipment weights listed above.

CONNECT TO HOIST PROPERLY

Use all hoisting rings/D-Rings (4 total) provided on the equipment when hoisting.

GENERAL SAFETY PRECAUTIONS

1. Safety footwear, eye protection, and snug fit clothing should be worn by all workers

working near the Panther Hawk Safety Cart.

2. Be certain all guards, shields and pins are securely locked in place before operating.

4. Do not allow any unauthorized personnel near the equipment during operation.

5. Never allow anyone to ride the machine.

6. Repair or replace any damaged or lost components before operating.

7. Do not modify the equipment.

8. Do not operate equipment that has been modified.

9. Be aware of obstructions, openings and people.

10. Do not operate within 15 feet of roof edge.

11. Guard all openings in the roof.

12. Check load rating of deck with owner or architect. Do not overload roof deck. (Consider

700 pound equipment weight plus operator and any additional items.)

13. Keep hands and feet away from moving parts.

14. Operate on flat, level roofs only.

15. Keep at least ten feet away from electrical lines.

16. Do not operate the machine if you are under the influence of alcohol, or drugs that could

impair judgment ability.

17. Keep the equipment in good condition. Maintain it as directed in this manual.

18. Maintain visibility at all times. Stop if visibility is obstructed.

19.The owner or operator must see that all nameplates, warnings and instructions are in

place and legible. Write to Panther Products Corporation for replacement decals and

instructions.

20.Consult the owner/employer/contractor’s approved fall protection plan for additional safety

precautions.

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

PRE-OPERATION CHECKLIST

OSHA Regulation 1926.502 requires that before operating the system there must be an

inspection for damaged equipment.

1.Read and understand the owner/employer/contractor Fall Protection Plan

2.Check for loose, worn or damaged parts.

3.Check all welds for cracking and/or any evidence of excessive wear or fatigue on any other

parts of the equipment prior to starting and daily during use.

4.Check lifting D-Rings for distortion or damage.

5.Check chain for rusting and/or wear before each use—DO NOT use if chain and chain

connections have been damaged.

6.All labels must be present and fully legible. (Copies of all labels are attached at the back of

the manual for accurate inspection).

7.Check for corrosion on entire unit.

8.Check connector plate for free movement.

9.Check Hawk Safety Cart claw for cracks or distortion.

10.Check pivot post for free movement and rotation.

11.Check rear brake for proper function.

12. Refer to Fall Protection Plan for additional inspection items.

If any items are found defective, damaged, modified or in any way degraded from the original

condition, the cart should be removed from service and repaired before being used.

DO NOT OPERATE DAMAGED EQUIPMENT.

DO NOT OPERATE EQUIPMENT THAT HAS BEEN MODIFIED.

Record all inspection results on the attached pages, or on your own company inspection

forms. Additional pages of our form can be photo copied or obtained by calling Panther

Products Corporation in Harrisonville, MO at (816) 884-4444 or toll-free at (800) 283-8627.

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

THE PANTHER HAWK SUPPORTS ATOTAL OF 3 (THREE) WORKERS SIMULTANEOUSLY

FOR FALL PROTECTION, AS FOLLOWS:

No More Than ONE WORKER Shall Be Connected

To the Panther Hawk Safety Cart for FALL ARREST. For Fall Arrest, the

Worker is connected to the fall arrest plate located on the lower side of the

cart to the attachment plate with One Eye-Bolt.

No More Than TWO WORKERS Shall be Connected to the Panther Hawk

Safety Cart for FALL RESTRAINT. For Fall Restraint, Up to Two workers

May be Connected to the Hoisting Rings.

INFORMATIONAL

Fall Restraint is preventing a fall from happening. The worker should be rigged so that they

CANNOT reach a fall hazard. Refer to OSHA standards (www.OSHA.gov) 1926.502 (d). Fall

restraint is successful when workers are rigged sufficiently to limit their mobility to the sides

and edges of the surface and any roof openings on the roof/surface they are working on. This

includes interior openings in the roof/surface.

Fall Arrest is stopping a fall after it occurs. The worker is rigged so that they CAN reach a fall

hazard, but the fall arrest system (The Panther HAWK, Lanyards, and Harnesses) should be

rigged to stop their fall. Refer to OSHA standards (www.OSHA.gov) 1926.502 (d).

Fall Arrest

Connector Plate

Fall Restraint

Connectors

Hoisting Rings

are also used

for fall restraint.

No more than two

workers shall be

connected to the

Hawk for Fall

Restraint.

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

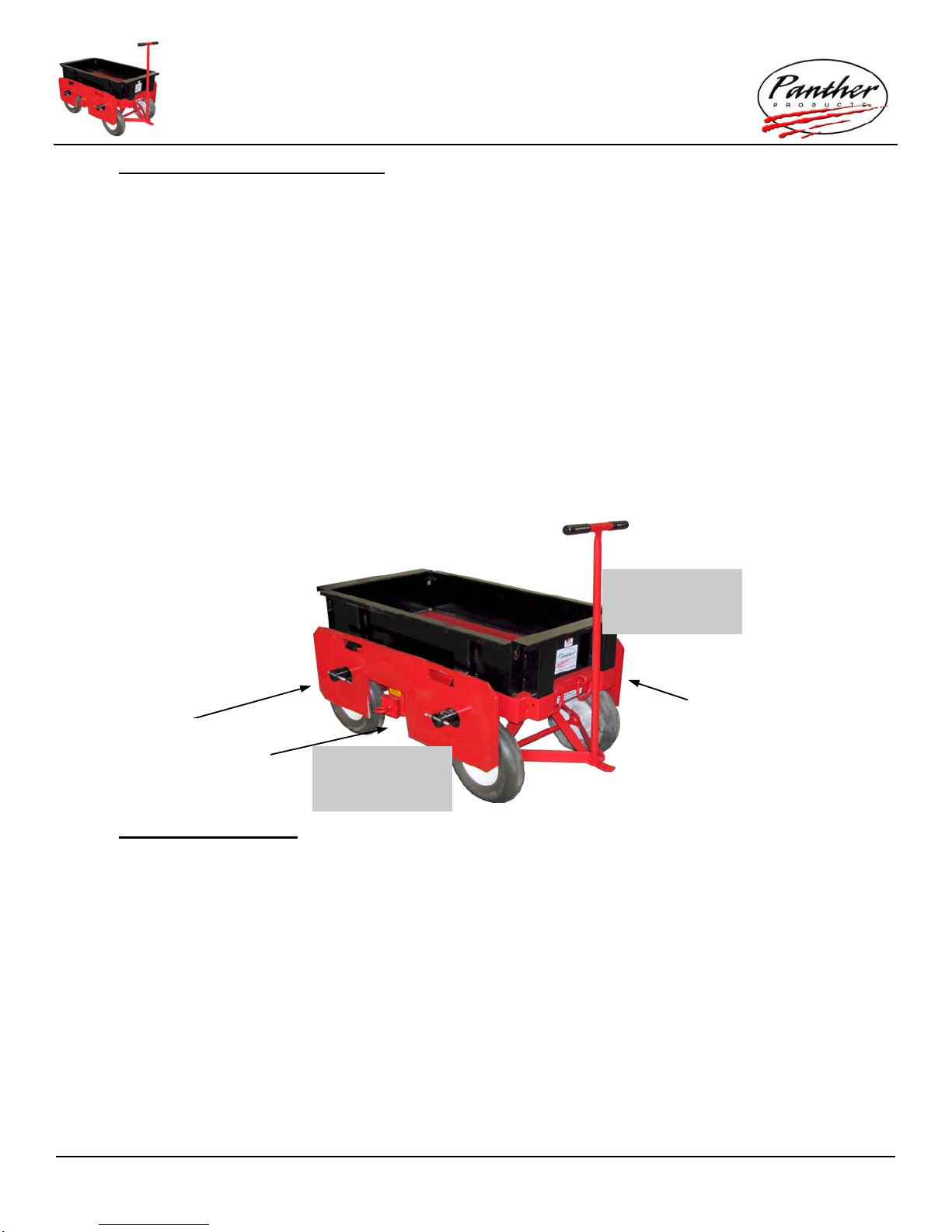

Roofing System Components

The Panther HAWK may be used on flat roof surfaces (slope under .5:1) composed of

the following structures:

SUBSTRATE

•Steel Corrugated Panel (22 Ga.)

•Concrete Roof Deck

•Lightweight Concrete

•Plywood

INSULATION (Securely fastened)

•Fiber Board

•Hard Board

TOP SURFACE LAYER

•Built-Up

•Single Ply (TPO, EPDM, PVC, etc.)

•Ballasted System

For additional roofing system components, contact Panther Products Corporation or

your regional distributor for custom testing fees. Do not use the Panther Hawk if you

are unsure your roofing or other surface cannot support the weight of the Hawk and all

attached workers and equipment.

DO NOT USE THE PANTHER HAWK SAFETY CART ON THE

FOLLOWING SURFACES:

•Random loose laid insulation (not part of a system)

•Icy surfaces

PANTHER HAWK SAFETY CART

INSTRUCTION MANUAL

OPERATION REQUIREMENTS

Note: First, verify that the surface that the Panther Hawk Safety Cart will be installed

onto is capable of supporting the product and personnel using it. A complete

assessment of the entire surrounding areas should be made to determine if the

working surfaces have the strength and structural integrity to support users safely.

1 (one) workers can be rigged for fall arrest with up to 2 (two) additional workers

rigged for fall restraint. The total number of workers attached to the Panther Hawk

Safety Cart shall not exceed 3 (three). The workers connected shall have a combined

weight (person, clothing, tools, etc.) of no more than 310 lbs per person.

Position the Panther Hawk Safety Cart a minimum of 15 feet from the leading edge of

the roof or opening. Make sure the ring connector plate is pointing toward the leading

edge and the cart is set to travel parallel to the leading edge. Set rear brake by

rotating brake handles to locked (downward) position. The working area is a 90oarea

extending outwards from the ring connector plate to the edge of the roof.

COUNTERWEIGHTS

Place 6 (six) of the 50 lb. counterweights on the mounting brackets on the opposite

side of the fall arrest ring, or the side farthest from the roof edge.

Place 2 (two) of the 45 lb. counterweights, (with large holes cut out of sides) on the

mounting brackets on the same side as the fall arrest ring, or the side closest to the

roof edge. Make sure that with the counterweights installed, the Fall Arrest Connector

Plate and Eye-Bolt are visible and unobstructed.

WARNING: DO NOT USE HAWK SAFETY CART WITHOUT

ALL EIGHT (8) COUNTERWEIGHTS INSTALLED!

Side of cart

FACING

Roof edge

Side of cart

AWAY from

Roof edge

6 Counterweights

2 Counterweights

w/large cutout

Inhaltsverzeichnis

Andere Panther Nutzfahrzeug Handbücher

Panther

Panther T-5 Bedienungsanleitung

Beliebte Nutzfahrzeug Handbücher anderer Marken

Polaris

Polaris ACE 900 SP Bedienungsanleitung

TrailMax

TrailMax T-12-UR Bedienungsanleitung

Floe

Floe Cargo Max 9.5-73 Bedienungsanleitung

Toro

Toro 07277 Workman 2110 Bedienungsanleitung

Taylor-Dunn

Taylor-Dunn B0-050-00 Handbuch

Toro

Toro 133-7128 Bedienungsanleitung

Taylor-Dunn

Taylor-Dunn ET 3000 Bedienungsanleitung

Kayo

Kayo S70 Bedienungsanleitung

Range Road

Range Road RR608 Bedienungsanleitung

Landoll

Landoll 900D Series Bedienungsanleitung

pronovost

pronovost PUMA-10000 Bedienungsanleitung

SSI SCHAEFER

SSI SCHAEFER WEASEL LITE Bedienungsanleitung

Club Car

Club Car TURF 272 2005 Handbuch

Toro

Toro 07059TC Bedienungsanleitung

Cushman

Cushman Turf Truckster 84069 Bedienungsanleitung

BERG

BERG Large Trailer Bedienungsanleitung

Cub Cadet

Cub Cadet Big Country 641 Bedienungsanleitung

Westward

Westward Go-4 XTR Bedienungsanleitung

Panther hawk Bedienungsanleitung

Beliebte Nutzfahrzeug Handbücher anderer Marken
