OWNERS MANUAL OM-140

Thank you for choosing award-winning Paradigm®speakers and congratulations.

You are about to hear the difference our sonically accurate Rock Monitor™speakers

will make in your outdoor listening experience. These speakers are the product of

countless hours of comprehensive research and development. They will stand up

exceptionally well to the rigors of Mother Nature and reward you with high-quality

sound for many years.

To ensure proper installation please read this manual and follow all instructions. If you

have further questions contact your Authorized Paradigm®Dealer or visit the Q&A

page on our website at www.paradigm.com

Paradigm Electronics Inc.: In Canada: 205 Annagem Blvd., Mississauga, ON L5T 2V1. In U.S.: MPO Box 2410, Niagara Falls, NY 14302

TABLE OF CONTENTS

Your New Speakers. . . . . . . . . . . . . . . . . . . . . . . . . 1

How To Avoid Speaker Damage. . . . . . . . . . . . 2

Listening Outdoors . . . . . . . . . . . . . . . . . . . . . . . . . 2

Speaker Placement and

Connection (pictorial) . . . . . . . . . . . . . . . . . . . . . . 3

Speaker Placement . . . . . . . . . . . . . . . . . . . . . . . . . 5

About Speaker Cable . . . . . . . . . . . . . . . . . . . . . . . 6

Connecting the Speakers. . . . . . . . . . . . . . . . . . . 7

Installing the Security Stake and Cable . . . . 8

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . 8

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

YOUR NEW SPEAKERS

Paradigm®Rock Monitor™speakers are designed for outdoor use where they will provide true high-

performance sound. Their supremely realistic textured faux-stone finish will blend naturally into the

outdoor landscape. Stainless steel grilles and advanced PolyGlass™mineral-filled enclosures with

self-draining fissures are weather, water and UV-resistant, even under adverse weather conditions.

Paradigm

Rock Monitor

™

speakers offer the following connection options:

Stereo Input: Wide dispersion “Left plus Right” channel sound from a single Rock Monitor

™

speaker.

Mono Input: Very wide dispersion stereo sound from two Rock Monitor

™

speakers, one for the left,

one for the right.

Care of Speakers

A damp, soft cloth or the gentle spray from a garden hose may be used to clean the speakers’ exterior.

• Do not use strong or abrasive cleaners on speakers

• Do not spray directly through the grilles into the drive unit

• Do not use a pressure (power) washer to clean speakers—the powerful force of the spray will

damage the drivers and the finish

• Do not place speakers in direct line with an underground sprinkler

• Do not place speakers in an area where they will be drenched with pool splash—over time

heavy doses of chlorine and other pool chemicals may affect the finish

• Do not allow lawn and garden chemicals to come into contact with speakers

• Where possible, avoid placing speakers in direct sunlight—over time this may cause the finish

to fade

Security Stake and Cable

(optional use)

The security stake and cable

(included)

may be used to inhibit theft and reduce the chance of unauthorized

movement of your speakers. See “Installing the Security Stake and Cable” for more information.

HOW TO AVOID SPEAKER DAMAGE

Use an appropriate amplifier. At high volumes, a very powerful amplifier can overdrive your speakers

and damage them. On the other hand, if your amplifier isn’t powerful enough, it can produce clipping

distortion that can easily damage high-frequency drivers.

(See dealer.)

Don’t be fooled by your amplifier’s volume control. It adjusts listening level—it does not indicate

power output. If your speakers begin to sound harsh or grating, or if you hear the bass breaking up,

turn the volume down immediately or you will damage your speakers! This type of damage constitutes

abuse and is not covered by the warranty!

Tone controls and equalizers can demand even more power from an amplifier, lowering the point at

which it produces clipping distortion. Use them sparingly, if at all, and do not use them when listening

at loud levels.

LISTENING OUTDOORS

Outdoors there are no walls to contain sound. Background noise is louder and the distance listeners

are from the speaker(s) is usually greater. Achieving a reasonable listening level can be more difficult.

The tendency is to turn up the volume, however this may disturb neighbors and when turned up

too high, can seriously damage the speakers or your amplifier.

The solution? In larger areas we recommend using multiple Rock Monitor™speakers. Using more

speakers ensures that sound is evenly distributed, allowing for reasonable listening levels at lower

volumes. Demand on the amplifier is reduced and neighbors are not disturbed. Think of it this way:

When lighting a large outdoor area, using multiple floodlights on a dimmer set to a low setting is

far more effective than using a single floodlight with the dimmer set to high.

Fig. 1 Fig. 2

Fig. 3 Fig. 4

Fig. 5

Two Speakers (each wired for Mono)

Very Wide Dispersion Stereo Sound

Couverture stéréophonique très large à deux

enceintes (raccordées en mode mono)

Single Speaker, Wide Dispersion

“Left plus Right” Channel Sound

Couverture large à une seule enceinte,

canaux Gauche+Droit

Multiple Speakers (each wired for Mono)

Ultra-Wide Stereo Coverage

Couverture stéréophonique ultra-large à

enceintes multiples (raccordées en mode mono)

Multiple Speakers, Distributed

“Left plus Right” Channel Sound

Couverture distribuée à enceintes multiples,

canaux Gauche+Droit

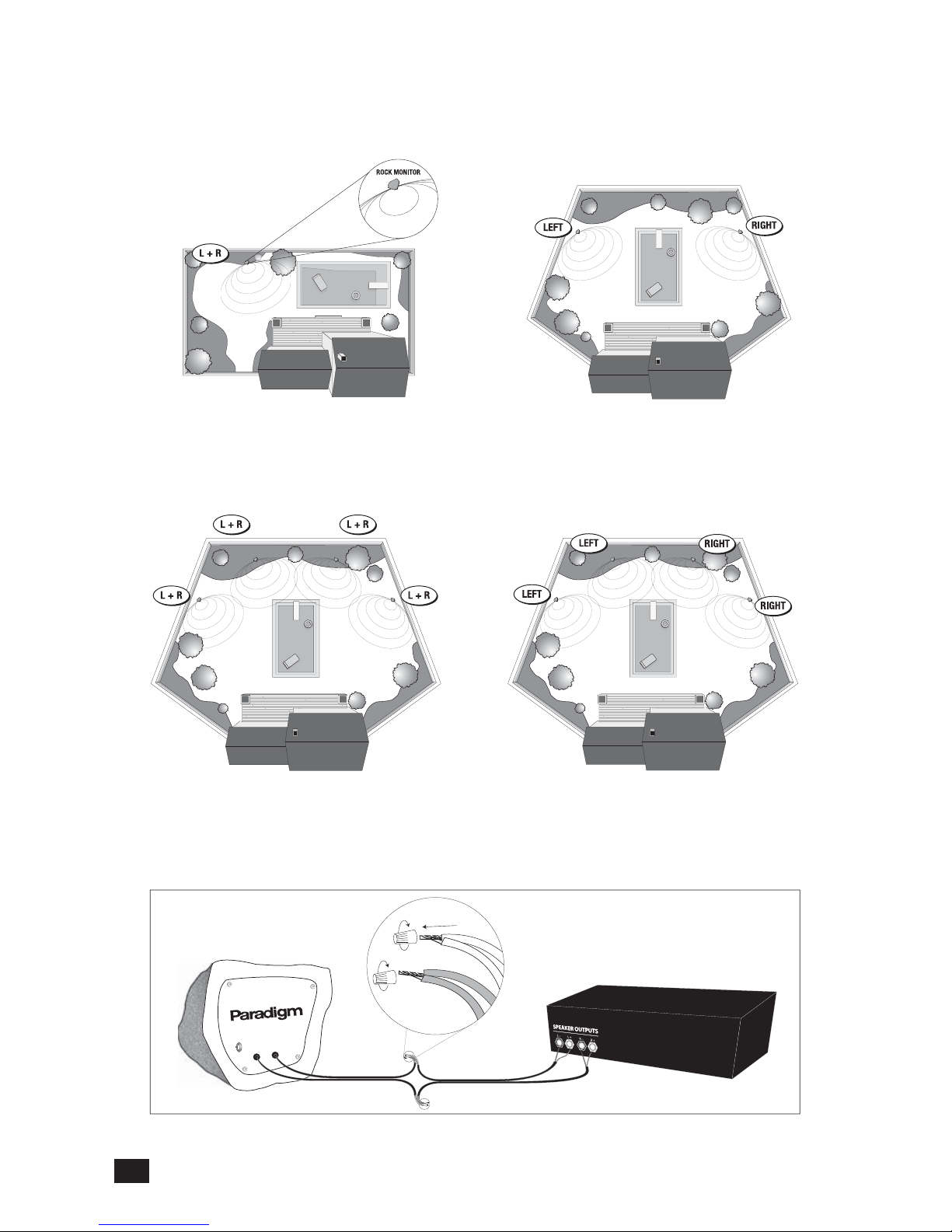

SPEAKER PLACEMENT AND CONNECTION

(pictorial)

POSITIONNEMENT ET RACCORDEMENT DES ENCEINTES

(figures)

Stereo Input (Single Speaker)

Sortie stéréo (une seule enceinte)

Sample Layouts of Backyards / Exemples de configurations de cours arrière

™

Fig. 6

LRLR

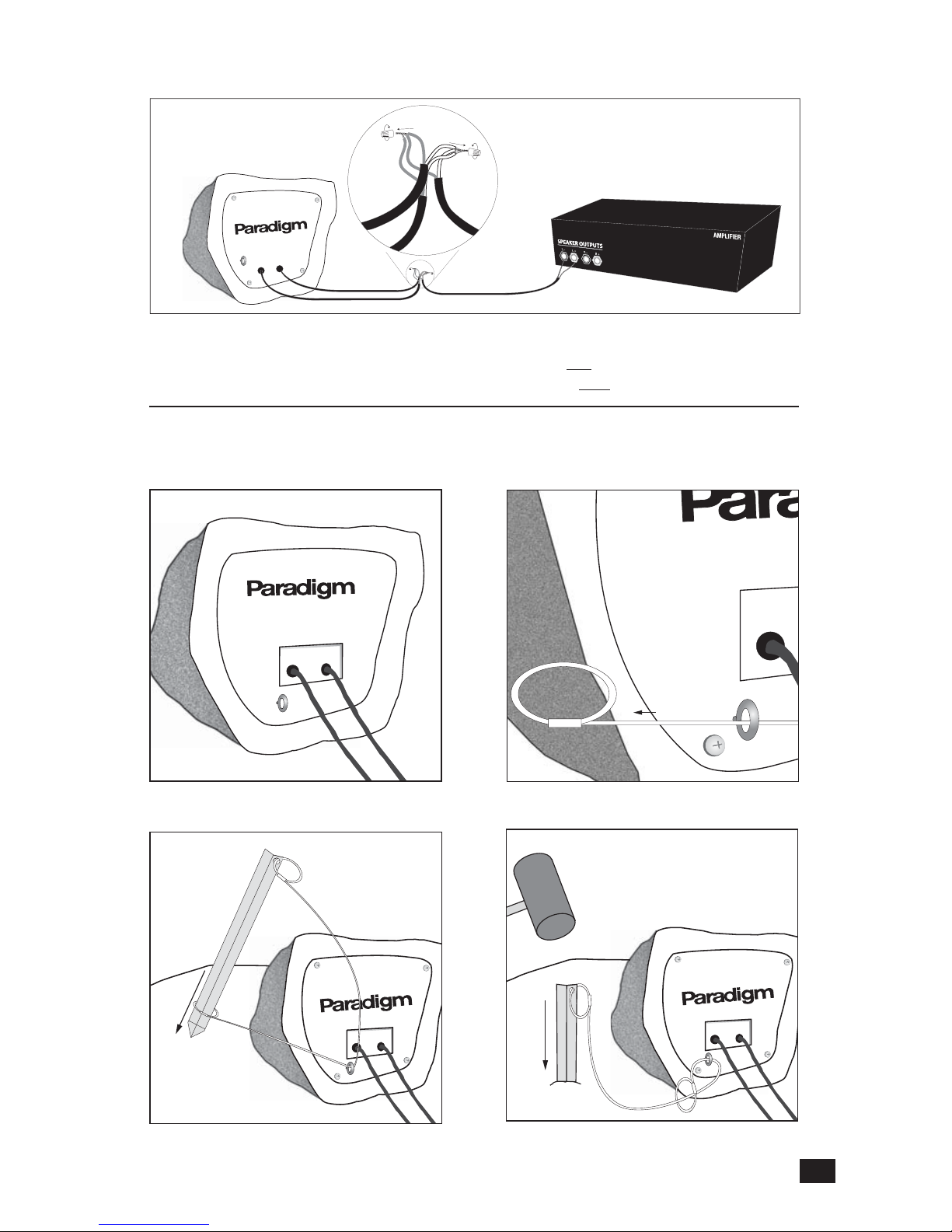

Installing Security Stake and Cable

(optional)

Installation du piquet et du câble de sécurité

(optionnelle)

Fig. 7 Fig. 8

Fig. 9 Fig. 10

Mono (Wide dispersion stereo sound from two speakers)

Sortie mono (couverture stéréophonique large à deux enceintes)

Left Rock speaker only shown / Seule l'enceinted acoustique de gauche apparaît sur l'illustration

SPEAKER PLACEMENT

Paradigm®Rock Monitor™speakers can be placed:

• On the ground

• In a flower bed

• On a deck or patio

• Around a pool

See “Care of Speakers” section when selecting placement.

NOTE:

Rock Monitor™ speakers may be installed on a grade of up to 20° while still allowing for

adequate drainage.

Sound Coverage

At a reasonable listening level, sound from one Rock Monitor™speaker will cover a 20´ (approximately) wide

dispersion arc in front of the speaker.

Placement Options

With their Dual-Directional Soundfield™, Rock Monitor™speakers provide wider than normal dispersion

which allows for a great deal of placement flexibility—something that is especially important outdoors.

Single Speaker, Wide Dispersion “Left plus Right” Channel Sound (Fig. 1)

Ideal in small areas less suited to a stereo pair of speakers or where a single speaker is the preferred

choice. The speaker is connected to both Left and Right amplifier channels. Place the speaker so

that it is “aimed” toward the main listening area.

Two Speakers, Very Wide Dispersion Stereo Sound (Fig. 2)

Ideal for stereo coverage in small to medium sized areas. One speaker is connected to the Left

amplifier channel and the other to the Right channel (wired for Mono). Place speakers about 12 – 16 feet

apart to achieve good stereo imaging throughout your listening area.

Multiple Speakers, Distributed “Left plus Right” Channel Sound (Fig. 3)

In larger or unusually shaped areas, multiple speakers (each wired for “Left plus Right” channel sound)

may be used to eliminate the sound imbalances that occur with stereo sound when people move

around or are seated closer to one speaker than the other.

Multiple Speakers, Ultra-Wide Stereo Coverage (Fig. 4)

In larger areas multiple speakers (each wired for Mono) can be used in a ‘flanked’

(see illustration)

stereo placement to provide ultra-wide stereo coverage and broader imaging.

Speaker Impedance with Multiple Speakers

If you are planning to use multiple speakers, first determine the number of

speakers your amplifier is capable of driving safely. Check your amplifier’s

specifications to determine minimum safe speaker impedance load (in ohms).

The MINIMUM load impedance of one Rock Monitor™speaker is:

• 8 ohms per channel when wired for Stereo Input

• 4 ohms per speaker when wired for Mono Input

Each additional speaker you connect will drop nominal impedance by

half. We strongly recommend using a Paradigm® VC-150 volume control

when connecting more than two speakers. See “Using a Volume Control,”

or see dealer for more information.

ABOUT SPEAKER CABLE

Before running speaker cable through walls, under walkways, patios, etc., check

local building code requirements or contact a qualified installer

(see dealer)

Preparing the Cable

Always use high-quality, moisture-resistant speaker cable

(see dealer).

1. Measure and mark the path from amplifier to speaker(s) and/or speaker to speaker to determine

length of cable required.

2. Add 2´ to 3´ feet extra to allow some play when installing.

3. Select correct gauge using the chart on page 7.

4. If cable is to run underground it must be rated for direct burial and/or enclosed in PVC pipe to

prevent deterioration over time. Contact a qualified installer before commencing installation in

this case

(see dealer).

5. Cut cable to required length.

6. Using wire strippers, strip the outer casing of the cable back about 2˝ at either end.

7. Strip inner insulation on both wires back about 1/2˝at either end.

… you are now ready to evaluate your speaker placement.

PRECAUTION: Before proceeding, read and follow the safety precautions below.

Information on running speaker cable through walls, under walkways, patios, etc. is not provided in this

manual. If you are not comfortable with this type of installation, contact a qualified installer

(see dealer).

Before digging, verify location of gas lines and buried cables with local utility companies

FIRST … TEST your speaker placement

Perform a temporary connection (

see “Connecting”

) to test your speaker placement as follows:

Volume: Walk around the area and ensure that sound is coming from each speaker, and that it is

balanced throughout the listening area. If using a Volume Control(s) ensure that it is operating.

Single Speaker, Wide Dispersion “Left plus Right” Channel Sound (Fig. 1): When sitting in the

main listening area, sound should be spacious and clear.

Multiple Speakers, Distributed “Left plus Right” Channel Sound (Fig. 3): Walk around your entire

area. Adjust position of speakers for the most uniform sound coverage possible.

Two Speakers, Very Wide Dispersion Stereo Sound (Fig. 2) and Multiple Speakers, Ultra-Wide

Stereo Coverage (Fig. 4): When sitting in the main listening area, sound should be spacious and

clear. Fine-tune placement to achieve optimal imaging. This may involve moving speakers a small

amount in one direction or the other, or turning speakers slightly to point toward the listening area.

If a speaker is not working correctly, refer to the “Troubleshooting Guide” at the end of this manual,

otherwise finalize connections.

Connecting

IMPORTANT NOTE: Connect wires with wire nuts

(not included)

following wire nut manufacturer’s

instructions. Fill nuts with waterproof silicone sealant

(not included)

to prevent deterioration over time

— do this only after testing speaker placement.

(See dealer for more information.)

Stereo Input (Single Speaker) (Fig. 5)

Connect one speaker channel at a time to your receiver/amplifier …

Connect the Right red (+) amplifier terminal to the Right red (+) input wire and the Right black (-)

amplifier terminal to the Right black (-) input wire. Twist wires together, then cap with wire nut. Connect

the Left red (+) amplifier terminal to the Left red (+) input wire and the Left black (-) amplifier terminal

to the Left black (-) input wire. Twist wires together, then cap with wire nut. Fill wire nuts with silicone.

ABOUT SPEAKER CABLE

(cont’d)

The following chart identifies the minimum gauge requirements for various cable lengths:

LENGTH DIAMETER GAUGE

Under 4.5 m (15 feet) 1.3 mm (0.05 in) 16 awg

Under 9 m (30 feet) 1.6 mm (0.06 in) 14 awg

Over 9 m (30 feet) 2.0 mm (0.08 in) 12 awg

CONNECTING THE SPEAKERS

Turn your receiver/amplifier OFF before connecting the speakers. This will avoid

damage which could result from accidental shorting of speaker cables.

MINIMUM GAUGE REQUIREMENTS

Mono Input (Wide dispersion stereo sound from two speakers) (Fig. 6)

Connect one speaker at a time to the left and right channels of your receiver/amplifier …

Connect the red (+) amplifier terminal to both the Right red (+) and the Left red (+) input wire.

Twist wires together, then cap with wire nut using a twisting motion. Connect the black (-) amplifier

terminal to both the Right black (-) and the Left Black (-) input wire. Twist wires together, then cap

with wire nut using a twisting motion. Fill wire nuts with silicone.

Speaker cable can now be buried, where burying is required.

Using a Volume Control

Using a Paradigm®VC-150 Volume Control

(sold separately)

eliminates the need for additional amplifiers,

and compensates for the impedance drop that results when connecting multiple speakers. You can

also use the VC-150 on individual speakers or groups of speakers, to control volume at various

points on your property — further promoting even and spacious coverage. Follow the directions

included with the VC-150 Volume Control.

When used outdoors, the Paradigm

VC-150 must be enclosed in a weather-

proof box designed for use with electrical switches

(see dealer)

INSTALLING THE SECURITY STAKE AND CABLE

(optional)

1. Without moving the speaker too much out of position, turn it so that the bottom is facing you. (Fig. 7)

2. Feed the looped end of the security cable (the end without spike attached) through the factory-installed

eyelet, until you are able to feed spike through (see next step). (Fig. 8)

3. Feed the spike (with attached cable) through the loop. Once spike and most of the cable are

through, pull gently on cable until it is snug around the eyelet. (Fig. 9)

4. Using a rubber mallet, drive the security stake into the ground close to where the speaker will sit.

It must be completely under the surface of the ground. Give cable a gentle tug to make sure

stake is firmly planted in the ground. (Fig. 10)

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION

No Sound

Make sure receiver, preamp or amplifier is plugged in and turned on. Check power

outlet at the wall is working. Are headphones plugged in, or is system on Mute?

Re-check all connections.

No Sound from One or

More Speakers

Check your balance control or VC-150 Volume Control (if using). Check that all

power cords are properly plugged in and functioning. Swap a non-working speaker

with one that works to determine if the problem is with the speaker or something

else (i.e. wiring, amplifier).

Lack of Bass or Dislocated

Image (Stereo)

One or more speakers may be connected out of phase (their polarity is reversed).

Re-check to ensure that each speaker’s cable is connected with correct polarity:

red (+) to red (+) and black (-) to black (-).

LIMITED WARRANTY

Paradigm®Rock Monitor™speakers are warranted to be and remain free of manufacturing and/or

material defects for a period of five (5) years from the date of original purchase. Within the time

period specified, repair, replacement or adjustment of parts for manufacturing and/or material

defects will be free of charge to the original owner.

Thermal or mechanical abuse/misuse is not covered under warranty.

Limitations:

• Warranty begins on date of original retail purchase from an Authorized Paradigm®Dealer only.

It is not transferable

• Warranty applies to product in normal residential use only. If product is subjected to any of the

conditions outlined in the next section, warranty is void

• Warranty does not apply if the product is used in professional or commercial applications

• Warranty also excludes normal cosmetic deterioration caused by environmental conditions.

Warranty is Void if:

• The product has been abused

(intentionally or accidentally)

• The product has been used in conjunction with unsuitable or faulty equipment

• The product has been subjected to damaging signals, derangement in transport, mechanical

damage or any abnormal conditions

• The product

(including cabinet)

has been tampered with or damaged by an unauthorized service facility

• The serial number has been removed or defaced

Owner Responsibilities:

• Provide normal/reasonable operating care and maintenance

• Provide or pay for transportation charges for product to service facility

• Provide proof of purchase (your sales receipt given at time of purchase from your Authorized

Paradigm®Dealer must be retained for proof-of-purchase date)

Should servicing be required, contact your nearest Authorized Paradigm®Dealer, Paradigm

Electronics Inc. or Import Distributor (outside the U.S. and Canada) to arrange, bring in or ship

prepaid, any defective unit. Visit our website, www.paradigm.com for more information.

Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming

any obligation to modify any product previously manufactured.

This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for

any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm

Electronics Inc., their agents or representatives be responsible for any incidental or consequential

damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this

exclusion may not apply to you.

Retain this manual and your sales receipt for proof of warranty term and proof of purchase.

Inhaltsverzeichnis

Sprachen:

Andere Paradigm Sprecher Handbücher

Paradigm

Paradigm OM-132 Bedienungsanleitung

Paradigm

Paradigm SOUNDSCAPE Bedienungsanleitung

Paradigm

Paradigm Monitor Series 7 Bedienungsanleitung

Paradigm

Paradigm CI Home Series Bedienungsanleitung

Paradigm

Paradigm PW 300 Bedienungsanleitung

Paradigm

Paradigm Decor Bedienungsanleitung

Paradigm

Paradigm PERSONA 9H Bedienungsanleitung

Paradigm

Paradigm PW 800 Bedienungsanleitung

Paradigm

Paradigm Decor 2SC Bedienungsanleitung

Paradigm

Paradigm Prestige Series Bedienungsanleitung

Paradigm

Paradigm SOUNDSCAPE Bedienungsanleitung

Paradigm

Paradigm Shift A2 Bedienungsanleitung

Paradigm

Paradigm OM-571 Bedienungsanleitung

Paradigm

Paradigm OM-104 Bedienungsanleitung

Paradigm

Paradigm OM-581 Bedienungsanleitung

Paradigm

Paradigm PREMIUM WIRELESS Series Bedienungsanleitung

Paradigm

Paradigm SE series Bedienungsanleitung

Paradigm

Paradigm OM-102 Bedienungsanleitung

Paradigm

Paradigm MILLENIA LP 2 Bedienungsanleitung

Paradigm

Paradigm CI PRO Series Bedienungsanleitung

Paradigm

Paradigm Millenia OM-575 Bedienungsanleitung

Paradigm

Paradigm Millenia One CT Bedienungsanleitung

Paradigm

Paradigm CS-60R Abmessungen

Paradigm

Paradigm Paradigm Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
