ACCULINKr

3162 DSU/CSU

QUICK REFERENCE

Document No. 3162-A2-GL11-50

All manuals and user guides at all-guides.com

all-guides.com

Printed in U.S.A.

Notice

This publication is protected by federal copyright law. No part of this publication may be

copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated

into any human or computer language in any form or by any means, electronic,

mechanical, magnetic, manual or otherwise, or disclosed to third parties without the

express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo,

FL 33773.

Paradyne Corporation makes no representation or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for a particular purpose. Further, Paradyne Corporation reserves the right to

revise this publication and to make changes from time to time in the contents hereof

without obligation of Paradyne Corporation to notify any person of such revision or

changes.

Changes and enhancements to the product and to the information herein will be

documented and issued as a new release to this manual.

Warranty, Sales, Service, and Training Information

Contact your local sales representative, service representative, or distributor directly for

any help needed. For additional information concerning warranty, sales, service, repair,

installation, documentation, training, distributor locations, or Paradyne worldwide office

locations, use one of the following methods:

HInternet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be

sure to register your warranty at www.paradyne.com/warranty.)

HTelephone: Call our automated system to receive current information by fax or to

speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A, call 1-727-530-2340

Document Feedback

We welcome your comments and suggestions about this document. Please mail them

to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773,

or send e-mail to [email protected]. Include the number and title of this

document in your correspondence. Please include your name and phone number if you

are willing to provide additional clarification.

Trademarks

ACCULINK is a registered trademark of Paradyne Corporation. All other products and

services mentioned are the trademarks, service marks, registered trademarks, or

registered service marks of their respective owners.

All manuals and user guides at all-guides.com

ACCULINKr3162 DSU/CSU

Quick Reference

Document Number 3162-A2-GL11-50

August 2000

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the waste of

surplus printing. It also helps us maintain competitive prices for our products.

Complete documentation for this product is available at www.paradyne.com.

Select Library →Technical Manuals →T1/E1 Digital Access Devices.

Select the following document:

3162-A2-GB20

ACCULINK 3162 DSU/CSU User’s Guide

To order a paper copy of a Paradyne document:

HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

HOutside the U.S.A., call 1-727-530-8623

All manuals and user guides at all-guides.com

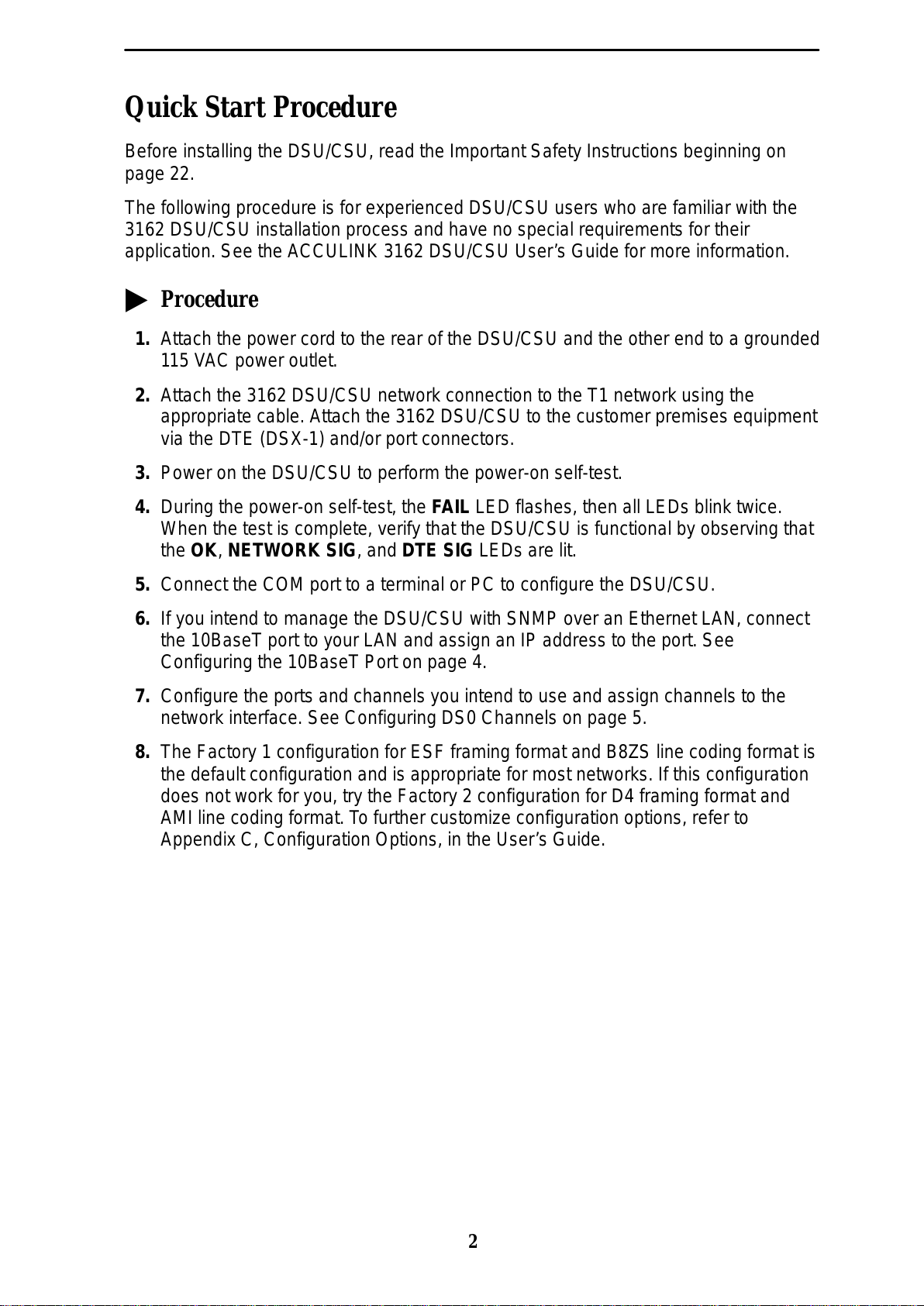

Quick Start Procedure

Before installing the DSU/CSU, read the Important Safety Instructions beginning on

page 22.

The following procedure is for experienced DSU/CSU users who are familiar with the

3162 DSU/CSU installation process and have no special requirements for their

application. See the ACCULINK 3162 DSU/CSU User’s Guide for more information.

"Procedure

1. Attach the power cord to the rear of the DSU/CSU and the other end to a grounded

115 VAC power outlet.

2. Attach the 3162 DSU/CSU network connection to the T1 network using the

appropriate cable. Attach the 3162 DSU/CSU to the customer premises equipment

via the DTE (DSX-1) and/or port connectors.

3. Power on the DSU/CSU to perform the power-on self-test.

4. During the power-on self-test, the FAIL LED flashes, then all LEDs blink twice.

When the test is complete, verify that the DSU/CSU is functional by observing that

the OK, NETWORK SIG, and DTE SIG LEDs are lit.

5. Connect the COM port to a terminal or PC to configure the DSU/CSU.

6. If you intend to manage the DSU/CSU with SNMP over an Ethernet LAN, connect

the 10BaseT port to your LAN and assign an IP address to the port. See

Configuring the 10BaseT Port on page 4.

7. Configure the ports and channels you intend to use and assign channels to the

network interface. See Configuring DS0 Channels on page 5.

8. The Factory 1 configuration for ESF framing format and B8ZS line coding format is

the default configuration and is appropriate for most networks. If this configuration

does not work for you, try the Factory 2 configuration for D4 framing format and

AMI line coding format. To further customize configuration options, refer to

Appendix C, Configuration Options,in the User’s Guide.

All manuals and user guides at all-guides.com

POWER

PORT 2

PORT 1

10Base-T

COM DSX-1MODEM

EXT CLK

NET

00-16828

POWER

3162 DSU/CSU

3162

DSU/CSU

SERIAL

PORT

COM

PORT NETWORK

PORT

NETWORK

PORT

NETWORK

10BaseT

PORT

10BaseT

SNMP

MANAGER

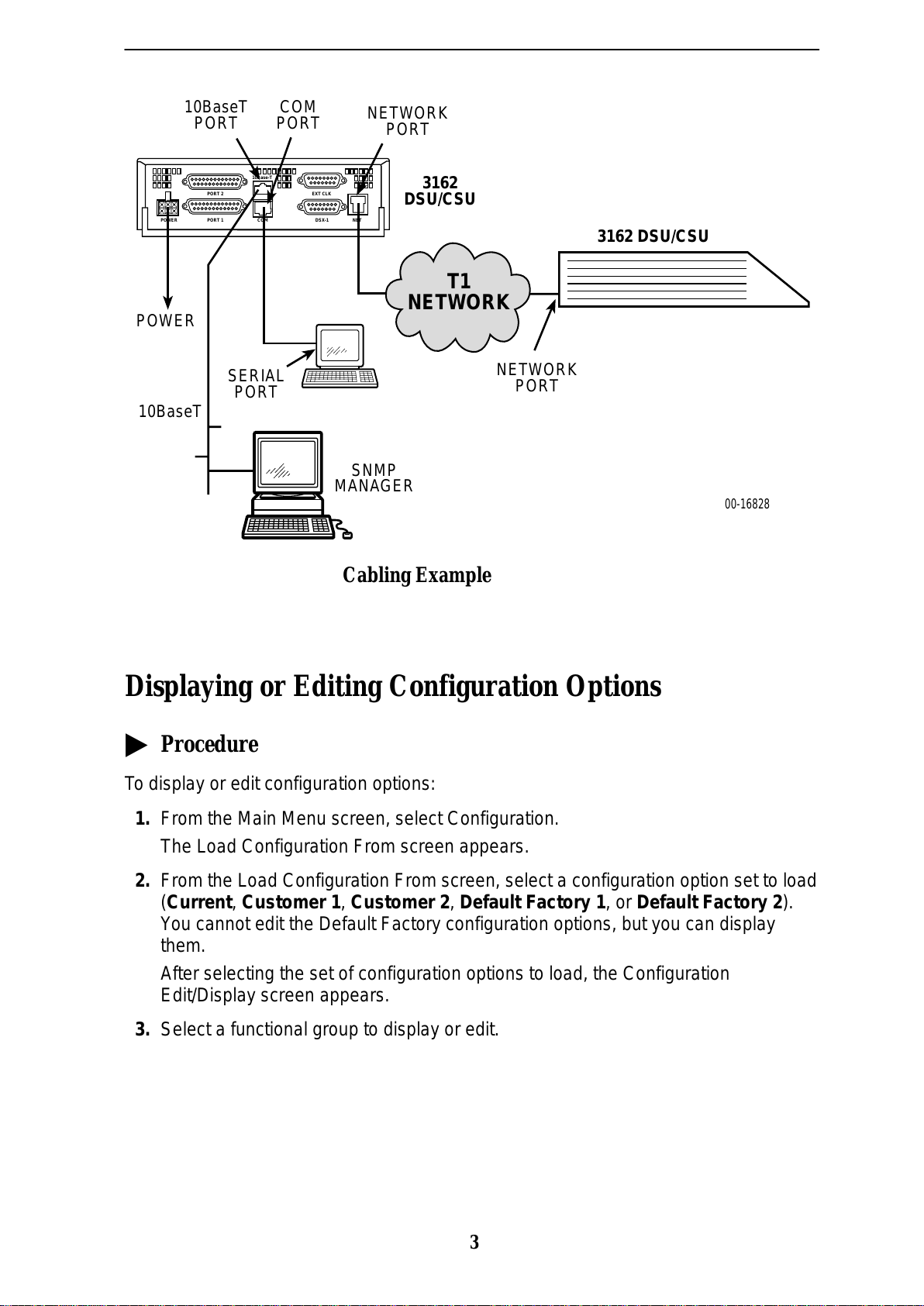

Cabling Example

Displaying or Editing Configuration Options

"Procedure

To display or edit configuration options:

1. From the Main Menu screen, select Configuration.

The Load Configuration From screen appears.

2. From the Load Configuration From screen, select a configuration option set to load

(Current, Customer 1, Customer 2, Default Factory 1, or Default Factory 2).

You cannot edit the Default Factory configuration options, but you can display

them.

After selecting the set of configuration options to load, the Configuration

Edit/Display screen appears.

3. Select a functional group to display or edit.

All manuals and user guides at all-guides.com

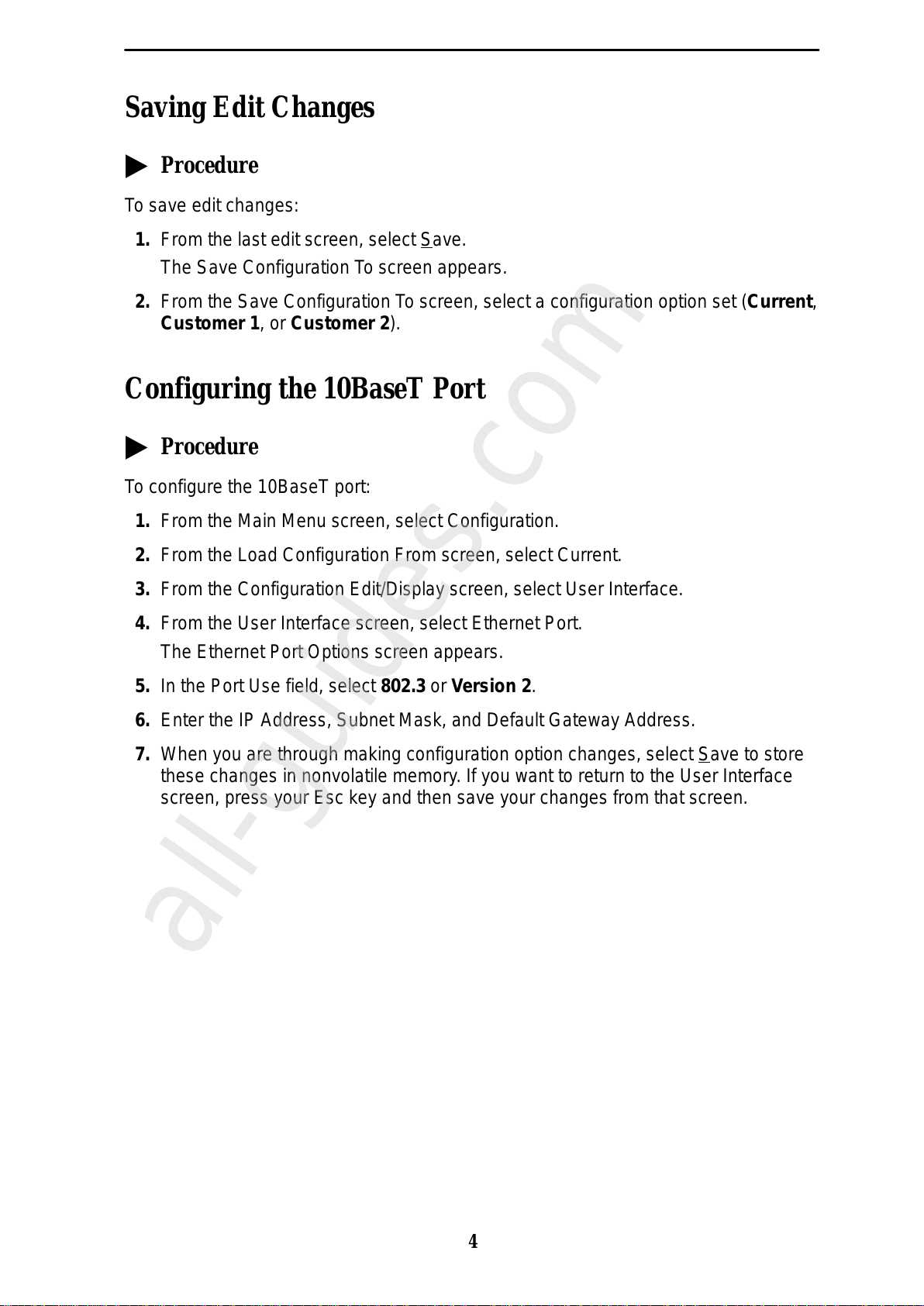

Saving Edit Changes

"Procedure

To save edit changes:

1. From the last edit screen, select Save.

The Save Configuration To screen appears.

2. From the Save Configuration To screen, select a configuration option set (Current,

Customer 1, or Customer 2).

Configuring the 10BaseT Port

"Procedure

To configure the 10BaseT port:

1. From the Main Menu screen, select Configuration.

2. From the Load Configuration From screen, select Current.

3. From the Configuration Edit/Display screen, select User Interface.

4. From the User Interface screen, select Ethernet Port.

The Ethernet Port Options screen appears.

5. In the Port Use field, select 802.3 or Version 2.

6. Enter the IP Address, Subnet Mask, and Default Gateway Address.

7. When you are through making configuration option changes, select Save to store

these changes in nonvolatile memory. If you want to return to the User Interface

screen, press your Esc key and then save your changes from that screen.

All manuals and user guides at all-guides.com

all-guides.com

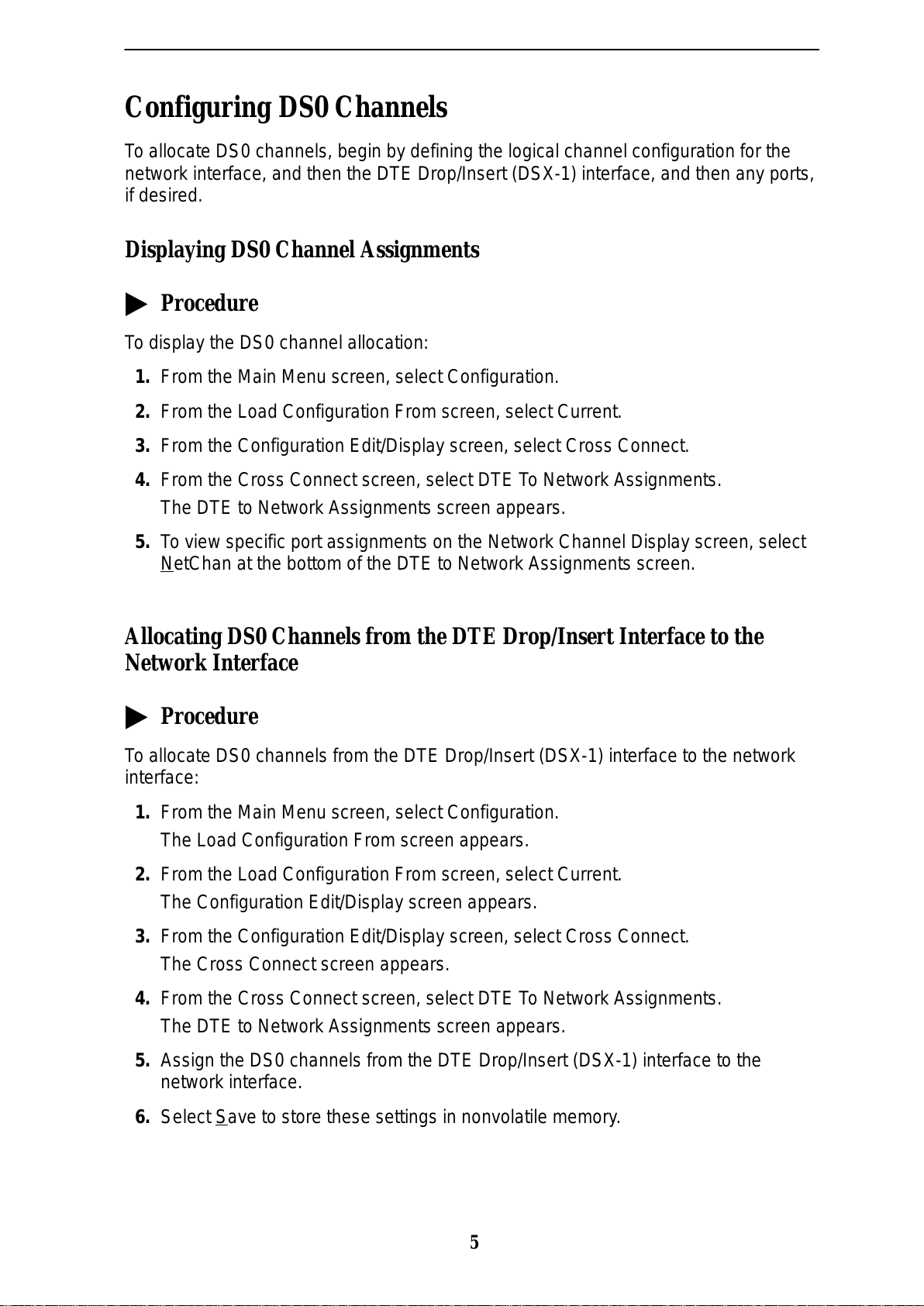

Configuring DS0 Channels

To allocate DS0 channels, begin by defining the logical channel configuration for the

network interface, and then the DTE Drop/Insert (DSX-1) interface, and then any ports,

if desired.

Displaying DS0 Channel Assignments

"Procedure

To display the DS0 channel allocation:

1. From the Main Menu screen, select Configuration.

2. From the Load Configuration From screen, select Current.

3. From the Configuration Edit/Display screen, select Cross Connect.

4. From the Cross Connect screen, select DTE To Network Assignments.

The DTE to Network Assignments screen appears.

5. To view specific port assignments on the Network Channel Display screen, select

NetChan at the bottom of the DTE to Network Assignments screen.

Allocating DS0 Channels from the DTE Drop/Insert Interface to the

Network Interface

"Procedure

To allocate DS0 channels from the DTE Drop/Insert (DSX-1) interface to the network

interface:

1. From the Main Menu screen, select Configuration.

The Load Configuration From screen appears.

2. From the Load Configuration From screen, select Current.

The Configuration Edit/Display screen appears.

3. From the Configuration Edit/Display screen, select Cross Connect.

The Cross Connect screen appears.

4. From the Cross Connect screen, select DTE To Network Assignments.

The DTE to Network Assignments screen appears.

5. Assign the DS0 channels from the DTE Drop/Insert (DSX-1) interface to the

network interface.

6. Select Save to store these settings in nonvolatile memory.

All manuals and user guides at all-guides.com

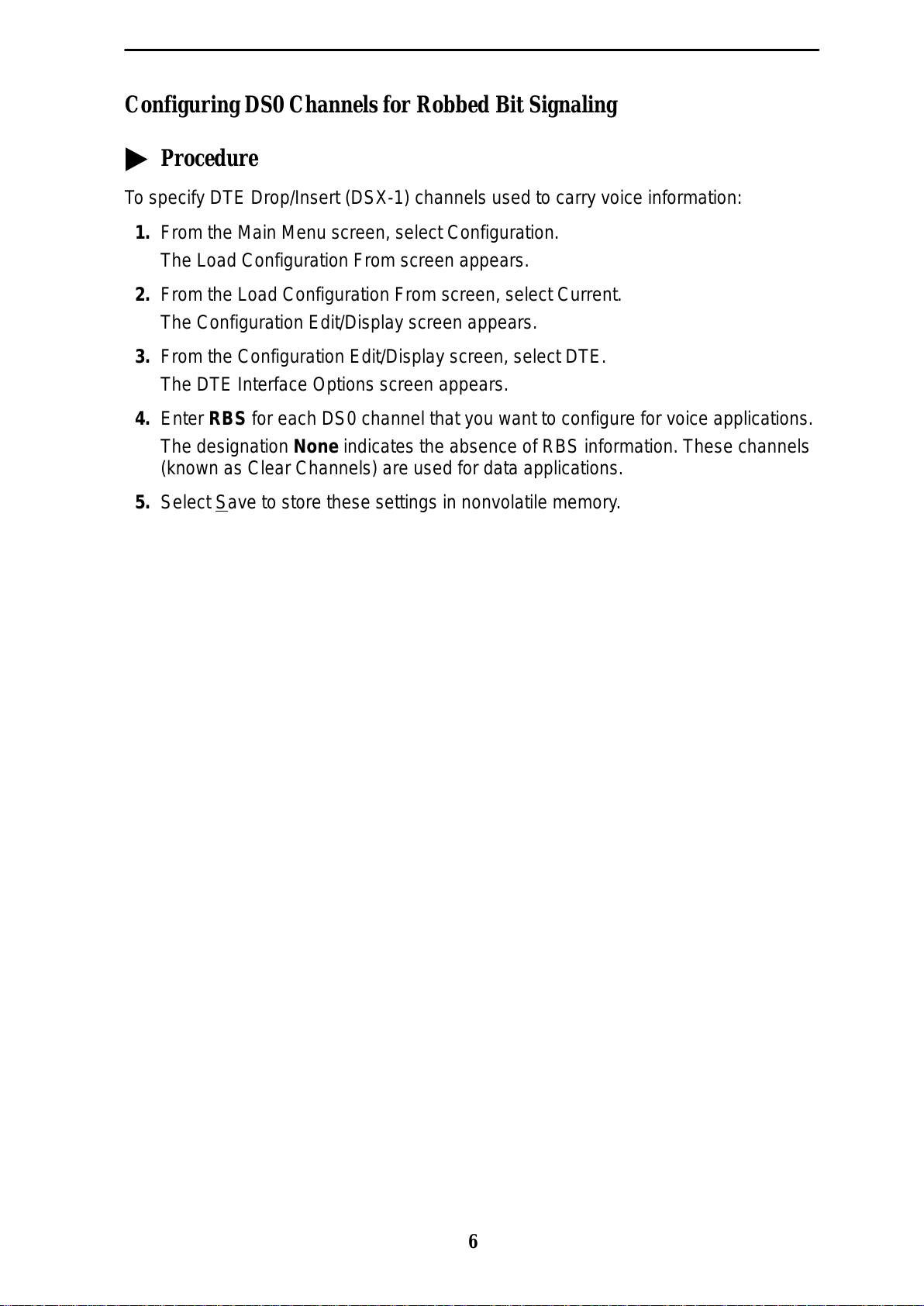

Configuring DS0 Channels for Robbed Bit Signaling

"Procedure

To specify DTE Drop/Insert (DSX-1) channels used to carry voice information:

1. From the Main Menu screen, select Configuration.

The Load Configuration From screen appears.

2. From the Load Configuration From screen, select Current.

The Configuration Edit/Display screen appears.

3. From the Configuration Edit/Display screen, select DTE.

The DTE Interface Options screen appears.

4. Enter RBS for each DS0 channel that you want to configure for voice applications.

The designation None indicates the absence of RBS information. These channels

(known as Clear Channels) are used for data applications.

5. Select Save to store these settings in nonvolatile memory.

All manuals and user guides at all-guides.com

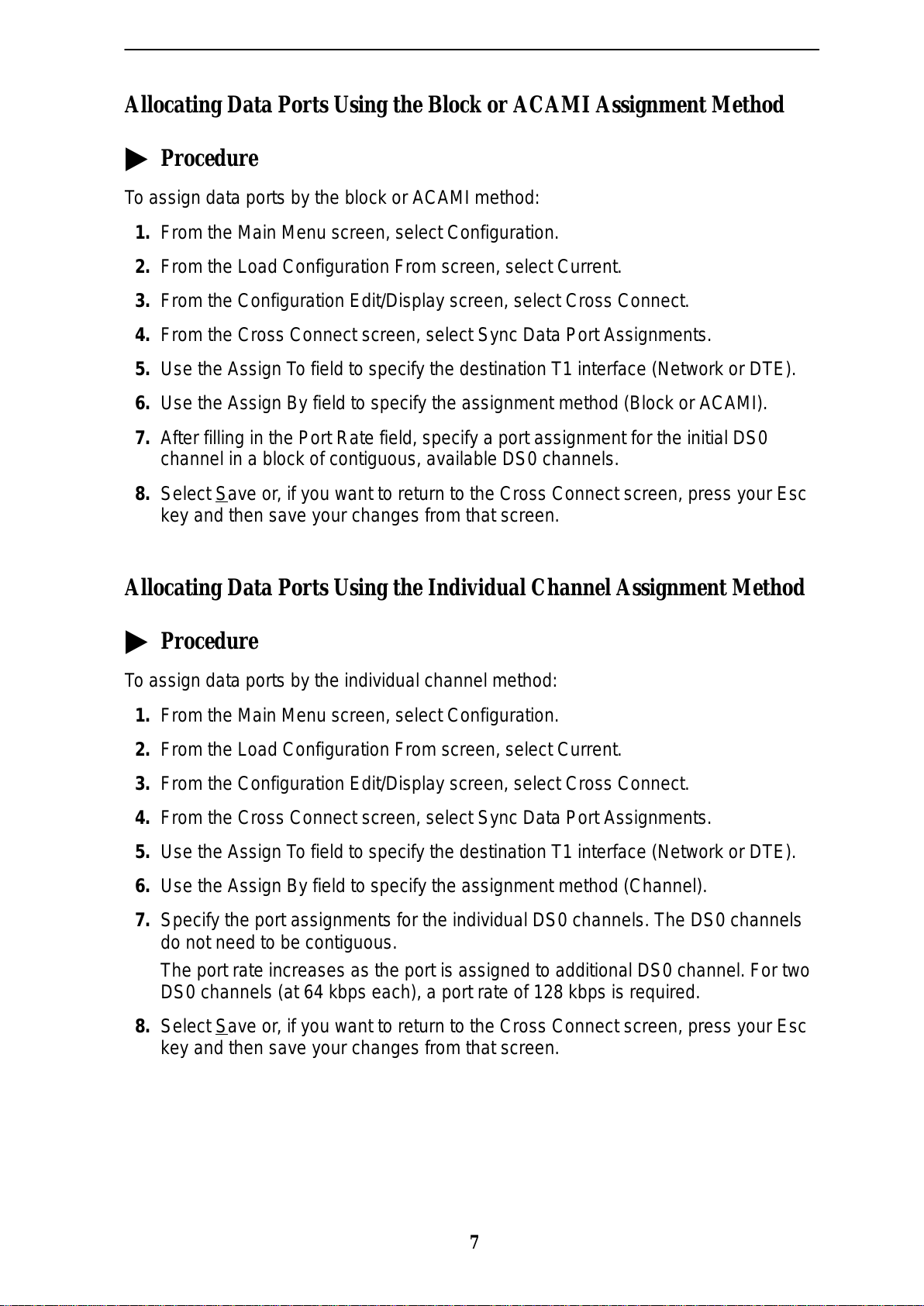

Allocating Data Ports Using the Block or ACAMI Assignment Method

"Procedure

To assign data ports by the block or ACAMI method:

1. From the Main Menu screen, select Configuration.

2. From the Load Configuration From screen, select Current.

3. From the Configuration Edit/Display screen, select Cross Connect.

4. From the Cross Connect screen, select Sync Data Port Assignments.

5. Use the Assign To field to specify the destination T1 interface (Network or DTE).

6. Use the Assign By field to specify the assignment method (Block or ACAMI).

7. After filling in the Port Rate field, specify a port assignment for the initial DS0

channel in a block of contiguous, available DS0 channels.

8. Select Save or, if you want to return to the Cross Connect screen, press your Esc

key and then save your changes from that screen.

Allocating Data Ports Using the Individual Channel Assignment Method

"Procedure

To assign data ports by the individual channel method:

1. From the Main Menu screen, select Configuration.

2. From the Load Configuration From screen, select Current.

3. From the Configuration Edit/Display screen, select Cross Connect.

4. From the Cross Connect screen, select Sync Data Port Assignments.

5. Use the Assign To field to specify the destination T1 interface (Network or DTE).

6. Use the Assign By field to specify the assignment method (Channel).

7. Specify the port assignments for the individual DS0 channels. The DS0 channels

do not need to be contiguous.

The port rate increases as the port is assigned to additional DS0 channel. For two

DS0 channels (at 64 kbps each), a port rate of 128 kbps is required.

8. Select Save or, if you want to return to the Cross Connect screen, press your Esc

key and then save your changes from that screen.

All manuals and user guides at all-guides.com

Configuration Options

Configuration options are accessed from the Configuration branch of the asynchronous

terminal interface menu.

Main

Status

00-16829

Test Control

Cross Connect

Status Performance

Statistics

Display

LEDs Identity

Call

Setup Call

Directories

Customer ID

Administer

PasswordStart

Download

Select

LEDs

Reset

Device

System and

Test Status

Network

Channel

Display

DTE

Channel

Display Port

Assignment

Display

Network

Sync Data

Port Clear

Statistics

Network &

DTETests

Sync Data

PortTests

Device

Tests Abort

Tests

Select

Monitor Jack

Configuration

Edit/Display

Configuration

Copy

Ports Cross

Connect General

Options User

Interface Alarms

&Traps Management

and

Communication

Protocol General SNMP

Management SNMP NMS

Security SNMP

Traps

Communication

Port External

Device Ethernet

Port

Sync Data

Ports

Network DTE

DTE to

Network

Assignments

Sync Data

Port

Assignments

Clear

Assignments

Telnet

Sessions

All manuals and user guides at all-guides.com

Andere Handbücher für 3162

Inhaltsverzeichnis

Andere Paradyne Modem Handbücher

Paradyne

Paradyne Hotwire 7974 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3910 Betriebsanleitung

Paradyne

Paradyne Hotwire 6390 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3825Plus Bedienungsanleitung

Paradyne

Paradyne StormPort DSL Modem Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3910 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3810 Bedienungsanleitung

Paradyne

Paradyne 7984 Bedienungsanleitung

Paradyne

Paradyne HotWire 7914 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3921 Bedienungs- und Wartungshandbuch

Paradyne

Paradyne FrameSaver FLEX 9123 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3825Plus Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3920PLUS Series Bedienungsanleitung

Paradyne

Paradyne Hotwire 7974 Bedienungsanleitung

Paradyne

Paradyne 7510 Handbuch

Paradyne

Paradyne Hotwire 7974 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3810 Montageanleitung

Paradyne

Paradyne COMSPHERE 3920PLUS Series Bedienungs- und Montageanleitung

Paradyne

Paradyne COMSPHERE 3911 Bedienungsanleitung

Paradyne

Paradyne KeepInTouch 3760 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3810Plus Bedienungs- und Wartungshandbuch

Paradyne

Paradyne StormPort 1020 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3810 Handbuch

Paradyne

Paradyne 6310 MVLT Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung

Zoom

Zoom 1070 Series Bedienungsanleitung
