TCR_Quickstart_Guide_en-00
QUICKSTART GUIDE
LoRaWAN™ Radar Traffic Counter
TCR-EU868
TCR-US915
TCR-AU915
TCR-AS923
www.parametric.ch/product/tcr

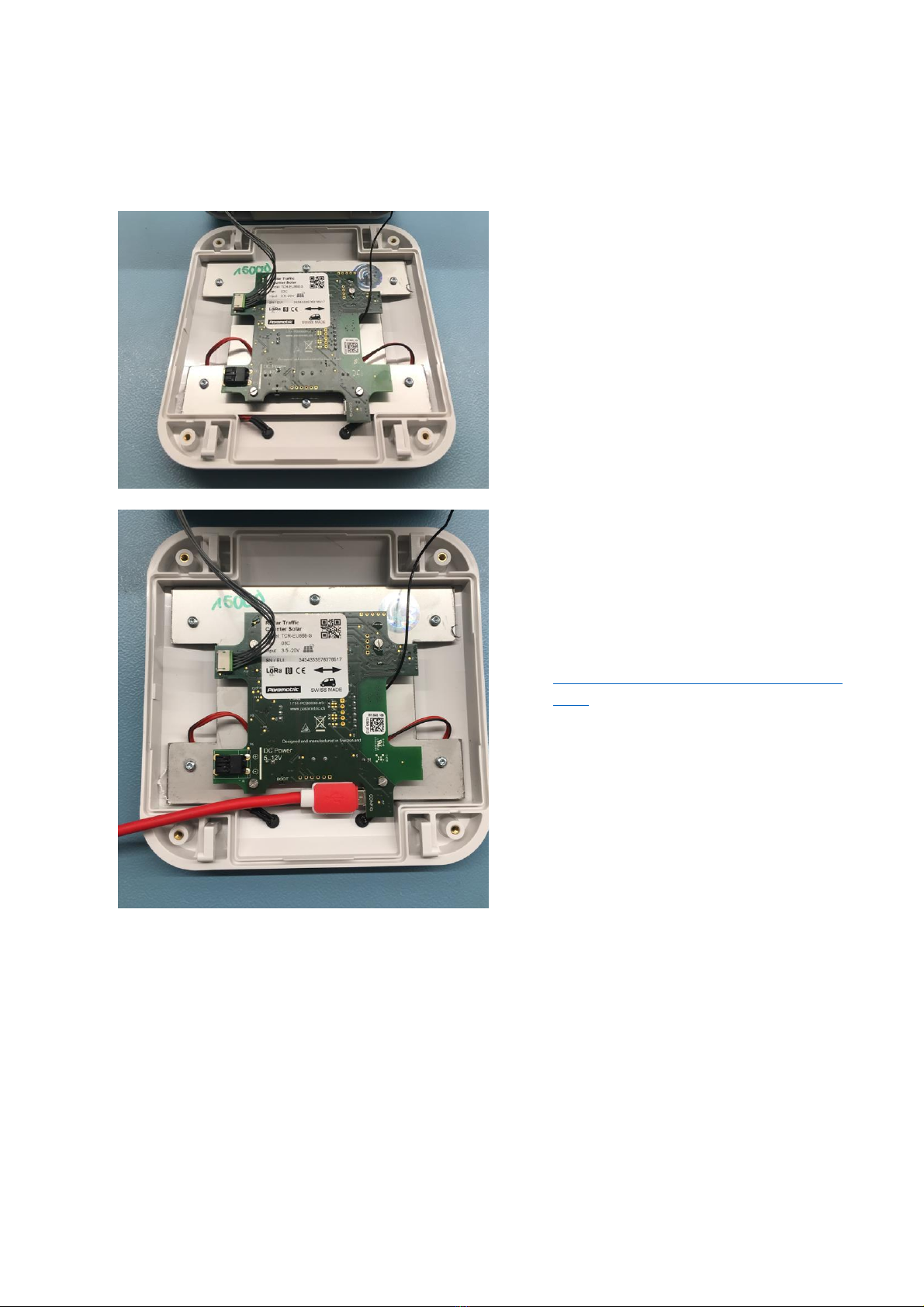

Setup
You can open the device to access the USB configuration port to change device settings.
•Remove the four screws from the
casing to gain access to the
device.
•Carefully open the enclosure while
making sure not to yank the
cables connecting the two
electronic parts in the top and the
bottom of the casing.
•Connect the sensor to your
Computer with a USB Cable using
the Config Port.
•Download Parametric Device
Explorer from
https://www.parametric.ch/downlo
ads/
www.parametric.ch/product/tcr

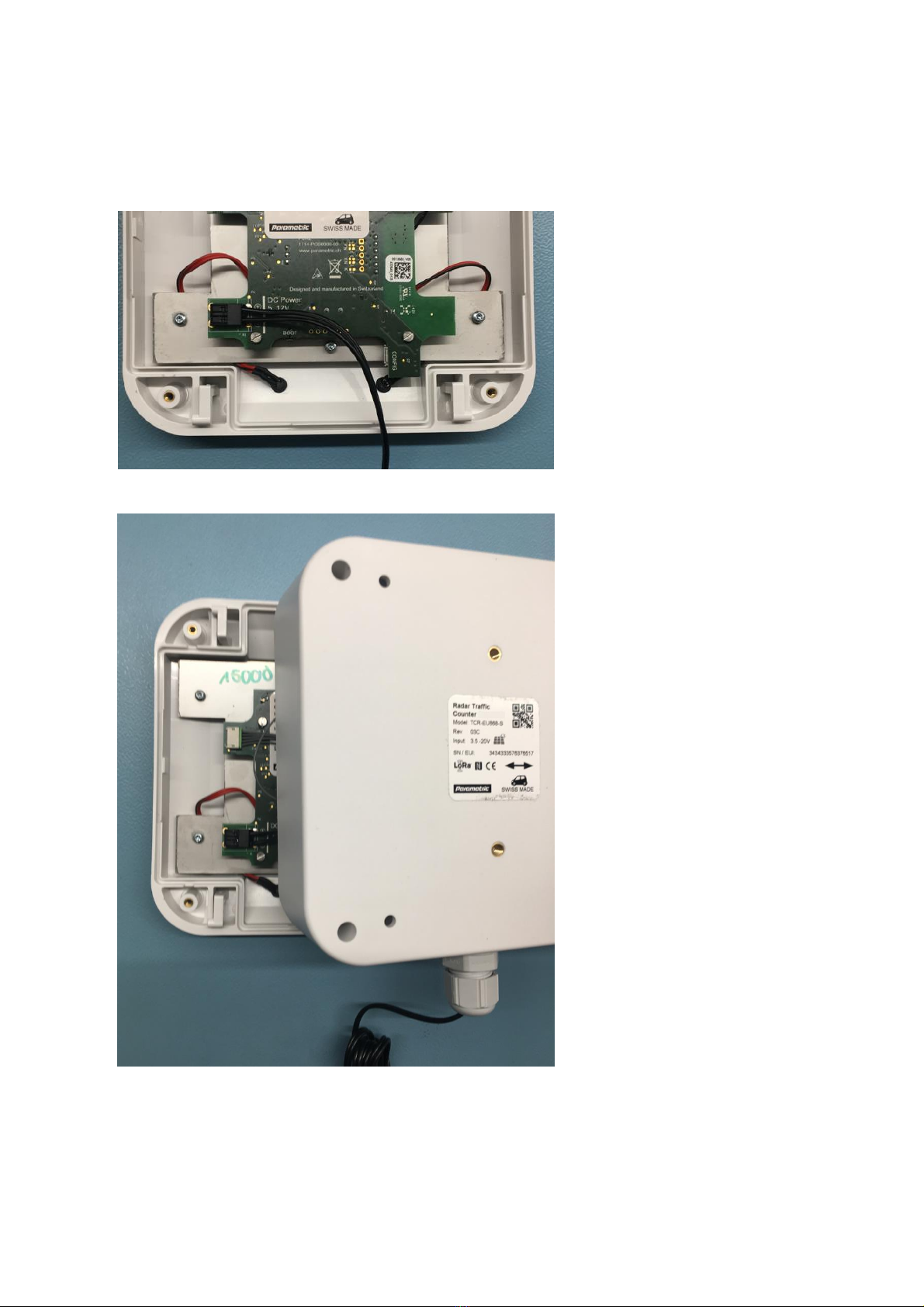

Electrical Installation
TCR devices can be powered by a 5-24V DC power supply or a battery (not included).
•Carfully check
polarization
•Gentle press terminals
and push in wire.
•Wires should be 22 –18
AWG (0.2 –0.75mm2).
•Guide the cable through
the cable gland.
•Before closing the casing,
make sure that the two
components are aligned
as depicted.
•The cable gland is
pointing downwards and
should be fastened to
ensure water protection
www.parametric.ch/product/tcr
•WPMB Universal Mounting Bracket
can be attached with 2 screws.
•Optional MT40 tiltable pole mount
needs to be attached to the TCR-S.
www.parametric.ch/product/tcr
Optimal Placement
TCR-S are 1D sensors measuring Traffic along a virtual line.
The device can be directed horizontal or with a tilt up to -40
Installation scenarios
Counting bicycles
Place at saddle height
Counting people:
Place at hips height
Counting cars:
Place at door handle height
www.parametric.ch/product/tcr
Testing
Counting functionality can be checked by 2 direction leds.
•RTL LED blinks when traffic detected from right
•LTR LED blinks when traffic detected from left
If both LEDs are blinking, the device is trying to connect to the LPWAN.
RTL
LTR
www.parametric.ch/product/tcr
