User Manual

13”Graphics Monitor

English/ 日本語/ Pусский/ Deutsch/ Español

Contents

1. Product Overview……………………………………………………………1

2. Driver Installaon……………………………………………………………1

2.1 Windows…………………………………………………………………..1

2.2 Mac…………………………………………………………………………..2

3. Driver Conﬁguraon………………………………………………………..5

2.1 Windows.…………………………………………………………….......5

2.2 Mac.…………………………………………………………………….......6

4. Speciﬁcaon…………………………………………………………………….9

5. FAQ………………………………………………………………………………..10

1. Product Overview

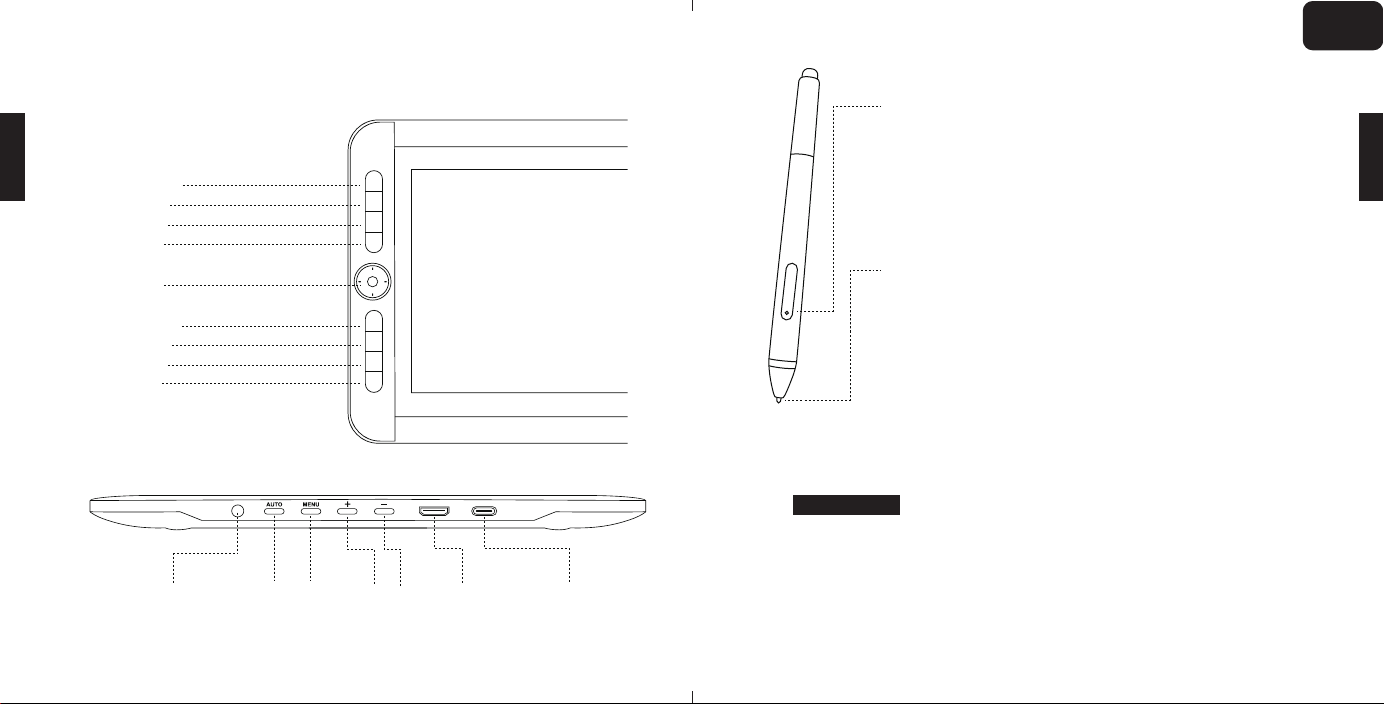

Express keys Default:

K1: Space

K2: Shi

K3: Ctrl

K4: Alt

Switch

K5: Space

K6: Shi

K7: Ctrl

K8: Alt

Indicator Light

/ Switch

MENUAUTO +

HDMI PORT USB PORT

2. Driver Installaon

Side Buon: It is equal to the right-key of a mouse

by default and it can be customized as the Le Key,

Right Key, Middle Key, Double Click Key, Scroll Up,

Scroll Down, Keyboard, Applicaon and Disable

funcon.

Pen Tip: It can be as the same funcon as le key

of the mouse.

When the p gets too short or develops a sharp

edge, you can replace it with one of the replacement

ps inside the pen box. (Please replace the pen

ps according to the FAQ8.)

STEP1: Please uninstall and completely remove any driver of other

graphics tablet on your computer.

2.1 WINDOWS

STEP2: Please disable any an-virus soware such as Firewall. Make

sure that you are installing the driver as the Administrator.

STEP3: Connect Coast13 with your computer. (USB Cable: To provide

power to Coast13; HDMI Cable: To provide the “display”

funcon to Coast13.)

STEP4: Insert the disk into your CD drive and follow the on screen

instrucons to install driver by following the screen instrucon.

(Note: Or you can download the up-to-date driver from

hp://parblo.com/support by ﬁnding out “PARBLO COAST13”.)

Kindly Remind: If your computer has installed the driver for Parblo

Coast13 and you will see the following message:

Please choose “Remove” to remove the former old driver in your

computer. Then, execute the Zip ﬁle and install the driver again.

STEP6: Once it is installed successfully, the digital pen should be in a

control of the cursor. And you can search for “tablet seng”

in the “start tray” of your computer/Laptop.

STEP5: Restart your computer.

2.2 MAC

STEP1: Connect Coast13 with your computer. (USB Cable: To provide

power to Coast13; HDMI Cable: To provide the “display”

funcon to Coast13.)

Note:

1. If your computer/laptop is Mac Book Air or IMac, please use the Mini

DisplayPort to HDMI adapter to connect the HDMI with your laptop.

2. If your laptop is the Mac Book Pro, please use the USB 3.1 type C to

HDMI adapter to connect the HDMI with your laptop.

STEP2: Insert the disk into your CD driver and follow the on screen

instrucons to install driver by following the screen instrucon.

(Note: Or you can download the up-to-date driver from

hp://parblo.com/support by ﬁnding out “PARBLO COAST13”.)

STEP3: Log out and restart your computer/laptop by following the

screen instrucon.

STEP4: Once it is installed successfully, there is an icon on the upper

right of your computer’s screen. And the digital pen should

be in a control of the cursor.

3. Driver Conﬁguraon

You may conﬁgure the Parblo Coast13 by modifying the funcons

of the pen p and the shortcut keys, please follow the WIN and

MAC installaon steps to conﬁgure your Parblo.

1. Tap [Start] > [Sengs] > [Applicaon] > ﬁnd [Tablet Seng],

double-tap it and open it. You will see [Pen Seng],

[Mapping], [Key Seng] and [About] buon.

2. Pen Seng

You can test the pen pressure and conﬁgure the shortcut key

of the digital pen. You can set the shortcut key as the funcon

of “Le Key”, “Right Key”,＂Middle Key”,＂Double Click Key”,

“Scroll Up”, “Scroll Down”, “Keyboard”, “Applicaon” and

“Disable”.

2.1 WINDOWS

3. Mapping

Monitors: Please choose the monitor that you want the digital

pen to take control of it.

1. Please make it clear that which one is “monitor1” and

“monitor2” between Coast13 and your computer.

2. For example, Your Computer= Monitor 1 & Coast13=Monitor2

If you want the pen to control your computer only, so please

choose the “Monitor 1”; if you want the digital pen to control

Parblo only, please choose “Monitor2”.

Calibrate: Please click the “Calibrate” and you will see 4 red-cross

on the Coast13‘s screen, please use the digital pen to click the

center of the cross over right above it in turns.

4. Key Seng

You can conﬁgure those express keys (8+1) of the Coast13.

5. About

Introduce the basic informaon about this version of driver.

1. Please ﬁnd the tablet icon on the upper right of your

computer’s screen. Click it and enter to the “Quick Steup”,

and you will see the below panel:

2.2 MAC

2. Normal Seng

You can test the pen pressure and conﬁgure the shortcut key of the

digital pen. You can set the shortcut key as the funcon of “Disable”,

“Le Key”, “Right Key”,＂Middle Key”,＂Double Click”, “Launch

Applicaon”, “Key Bindings”, “Switch Screen”.

3. Region Seng

Monitors: Please choose the monitor that you want the digital pen to

take control of it.

1. Please make it clear that which one is “monitor1” and “monitor2”

between Coast13 and your computer.

2. For example, Your Computer= Monitor 1 & Coast13=Monitor2.

If you want the pen to control your computer only, so please

choose the “Monitor 1”; if you want the digital pen to control

Parblo only, please choose “Monitor2”.

Calibrate: Please click the “Calibrate” and you will see 4 red-cross

on the Coast13’s screen, please use the digital pen to click the center

of the cross over right above it in turns.

4. Key Seng

You can conﬁgure the 8 express keys on the Coast13 as the funcon

of “Disable”, “Le Key”, “Right Key”, “Middle Key”, “Double Click”,

“Launch Applicaon”, “Shi”, “Ctrl” and “Alt”.

5. About

Introduce the basic informaon about this version of driver.

Item

Speciﬁcaon

LCD

Display

Panel Size

13.3 inch

Panel Type

TFT LCD

Display Ratio

16:9

Active Area 293.76(H) x165.24 (V) mm/11.6 x 6.5 inches

Resolution

1920*1080

Pixel Pitch

0.153x 0.153mm/0.006 x 0.006 inch

Contrast Ratio

1000:1

Color

16.7 M colors

Viewing Angle

Horizontal 178°, vertical 178°@CR≥10

Surface Treatment

Tempered Glass 6H6H

Touch

Touch Solution

Electromagnetic Touch

Digitizer Resolution

5080LPI

Pressure (Full Level)

2048

Report Rate Speed

200RPS

Accuracy ±0.5mm/±0.02inch(Center);±2mm/±0.08 inch (Edge)

Pen Working Angle

±45°

Sensor Height

5-15 mm/0.2-0.6 inches

Pen

Type

Wireless & Battery-free Pen

Pen Tip

Switch Freely

Weight 16g/0.56oz

4. Speciﬁcaon

Others

Power Supply Type USB 5V1A

Power Consumption

Touch Interface

USB*1

Input Interface

HDMI*1

Dimension

380*240*14mm/ 15*9*0.6 inch

Weight

1kg/35oz

Windows XP/7/8/8.1/10 (32/64bit) or above;

Mac OSX 10.8.5.or above

OperationTemp/Humidity

0-65℃/20-80%

Storage Temp/Humidity -10-80℃/ 10-90%

Certification

CE, FCC, RoHS

Note: Speciﬁcaon may be subject to change without prior noce.

5. FAQ

1. Q: How to connect Coast13 with computer?

A: Please use the USB cable to connect ﬁrstly and HDMI cable to

connect secondly. Aer you plug the USB cable, the indicator

light will ﬂash; aer plug HDMI cable, Coast13 can be displayed.

(To make it convenient to use, we bind the HDMI and USB cable.)

Note: 1. If your computer/laptop is Mac Book Air or IMac, please

use the Mini DisplayPort to HDMI adapter to connect the

HDMI with your laptop.

2. If your laptop is the Mac Book Pro, please use the USB 3.1

type C to HDMI adapter to connect the HDMI with your laptop.

2. Q: Where do I download the current updated drivers for Parblo

Coast13 Graphic Monitor?

A: Please download the drivers in the “support” panel of

www.parblo.com by ﬁnding out “PARBLO COAST13”.(Notes: Please

download the driver according to the name and version of your

computer’s operaon system.)

3. Q: Why the indicator light didn’t on aer connecng through the

USB cable?

A: Please check whether the USB connector of your computer is good

or not? You can use one of your USB port (Refereed as USB01 later)

on your desktop/laptop to charge your phone or connect your mouse.

Please repeat to check another USB port (Refereed as USB02 later).

Then, please conﬁrm they are workable or not.

4. Q: How will I know if the driver is completely installed?

A: WIN: When the driver is completely installed, please search for

“tablet seng” in the “start tray” of your computer. Once completed,

the digital pen should be in control of the cursor, and acvated for

conﬁguraon on the pressure test area.

MAC: Once it is installed successfully, there is an icon on the

upper right of your computer’s screen. And the digital pen should

be in a control of the cursor.

5. Q: How to remove driver?

A: WIN: 1. Explore [Start] → [All Programs] → [Tablet Seng]

→ [Uninstall]

2. Explore [Control Panel] → [Uninstall a Program] →

[Tablet Seng] and choose [Uninstall/ Change]

MAC: 1. Open [Finder]→[Applicaon]→[Tablet Seng]→[Uninstall]

If the ﬁrst method does not uninstall the driver completely,

please uninstall it by following the next step.

2. Open [Finder]→[Applicaon]→[Tablet Seng] please

delete the ﬁle directly.

Follow the instrucons unl uninstallaon is completed.

6. Q: What can I do if there is no pen sensivity pressure in my

frequently-used paint soware?

A: Please test the pen pressure in other paint soware, if there is

pen pressure in those sowares, and then you need to set the

pen pressure manually, or the current version of this paint

soware isn’t compable with Parblo Coast13. If not, please ﬁnd

the “Pen Seng” in the “Tablet Seng”(WIN) or “Normal Seng”

(MAC), and then use the pen draw in the right area to test the

pen pressure. If it has pen pressure, it means that the driver

installed successfully; if not, you need reinstall the driver.

カタログ

1.商品概況......................................................................................1

2.ドライブインスターレーシ.................................................1

2.1ウインドーズ........................................................................1

2.2MAC........................................................................................2

3.ドライブコンフィギュレーション.......................................5

2.1ウインドーズ........................................................................5

2.2MAC.......................................................................................6

4.スペシフィケーション...............................................................9

5.質問と答え.................................................................................10

7. Q: If I want to seek help from Parblo’s aer sales services, what’s

informaon that I need to submit.

A: Please email the following informaon to [email protected]om:

1. Your order number

2. The name and version of your computer/laptop’s operaon system

3. The name and version of your frequently-used paint soware

4. Step by Step details to reproduce the issue including the exact

text of any error messages. Please aach either a Screen Shot

or Text File of the Error Message and/or images to show the issue.

If there is an Error Report, please upload that to this incident.

Our customer service will help you to resolve the problem at their

fastest speed.

8. Q: How to replace the pen nibs?

A: When the pen p gets too short or develop a

sharp edge, you can replace it with the spare ps.

Please following the following steps：

* Use the removal tool to pull the old p straight

out the pen.

* Insert a new pen p into the stylus pen and push

the p unl it stops.

(Note: Tip replacement toll and spare ps are included.)

1.商品概況

ポイントシステム設定を紹介します。

K1:Space

K2:Shift

K3:Ctrl

K4:Alt

スイッチ

K5:Space

K6:Shift

K7:Ctrl

K8:Alt

インジケーターライト

/スイッチ

メニューオート +

HDMIポート USBポート

2 ．ドライブのインストール

サイドボトム：システムの設定によって、このボトムはマウスの右

のキーと同じです。お客様の希望にように左のキーとか、右のキ

ーとか、真ん中のキーとか、ダブルクリックキーとか、スクロール

アップとか、スクロールダウンとか、キーボートとか、アプリケー

ションとでぃゼーブルなどに変更する事もできます。

ペンチップ：このボトムの機能はマウスの左のキーと同じです。

このチップが短過ぎると、鋭いへりが見えます。その時にはペン

ボックスにある備品のチップと取り替えてください（お取り替え

るときには、FAQをご覧下さい）。

ステップ１：まずはパソコンにある全てのドライブと他のグラフィックスタブ

レットをアンインストールしてください。残りのデータも完全に削除してください。

ステップ２：それにパソコンにあるアンチウイルスソフト例えばファイアウォ

ールを閉じてください。管理人としてドライブをインストールすることを確保

してください。

2.1ウインドース

Inhaltsverzeichnis

Sprachen:

Andere Parblo Monitor Handbücher

Parblo

Parblo coast 16 Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
