Parkinson Cowan CSIG 500X Kurzanleitung
Owners handbook
and
Installation Instructions
CSIG 500X
Introduction
This gas cooker has been designed and manufactured to all the
necessary British Standards.
It is important that you understand how to use and care for the
cooker properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the cooker. Keep the booklet in a
safe place so that anyone who uses the cooker can read it. Pass the
booklet on with the cooker if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Important: Make sure you remove the sales stickers before you use
this cooker.
C S I G 5 0 0 X
2
For your safety
The cooker is designed to cook food and you must not use it for
any other purpose.
Keep children, babies and toddlers away from the cooker at all
times.
The instructions that came with the cooker tell you how and
where it can be fitted. If the cooker is already installed you must
make sure that all instructions have been followed. If you are in
any doubt get a registered person to check it. There are more
details on installation on page 34.
Introduction
Lighting the cooker 4
The grill 6
The hotplate 8
The oven 11
Oven cooking chart 14
The electronic minute minder 17
Slow cooking 20
Care and cleaning 22
Installing the cooker 27
General information 29
What is wrong and why? 31
Service and spare parts 33
Installation Instructions 34
Technical Data 35
Safety requirements/ventilation 36
Location of appliance 37
Installation 38
Testing 40
C S I G 5 0 0 X
3
Contents
Contents Page

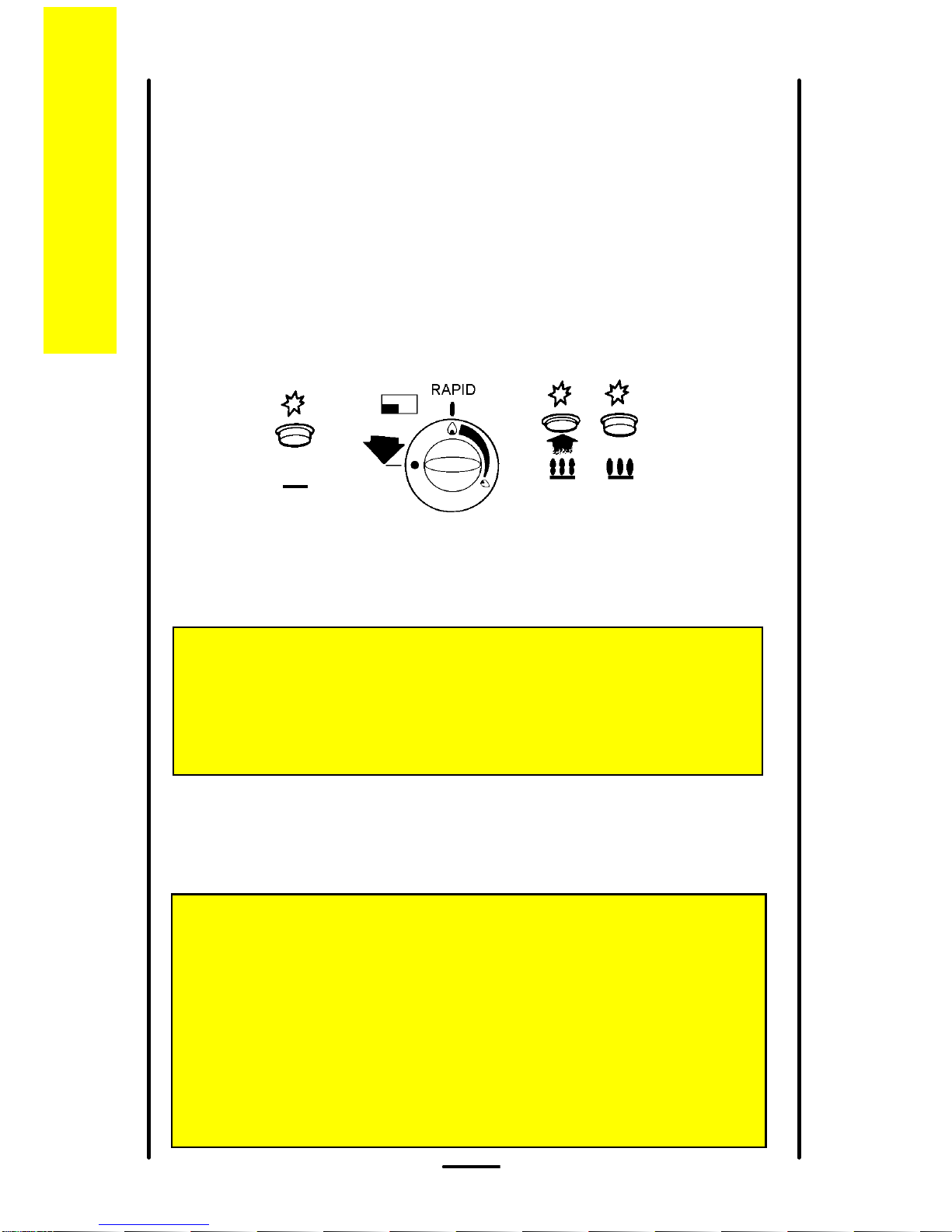

Lighting the cooker
The system works by means of an electric spark system. Details about
the plug are given on page 29.
Hotplate & Grill
To light
1. Lift up the lid. You cannot use the hotplate when the lid is down.
2. Push in the control knob and turn it to the large flame symbol
(highest setting), and press the ignition button immediately. When
the burner has lit release the button.
2. Leave the grill door open when you are using the grill.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Please note: If you have any trouble lighting a hotplate burner turn all
the hotplate control knobs off and make sure the hotplate burner parts
have been replaced correctly.
See page 23 for more information.
C S I G 5 0 0 X
4
Lighting the cooker
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires.
For your safety
If you close the lid of the cooker while any of the hotplate burners
are lit the gas will go out. This is because it would be dangerous if
the burners stayed on when the lid was closed.
Always use the control to turn off a burner. Do not use the
lid cut-off device. This will only cut off the gas when the lid is
closed. The gas will flow again when the lid is opened.
The oven
To light:
1 Set the time of day on the clock. See page 17.
2 Open the oven door.
3 Push in the control knob and turn it to gas mark 9. After a few
seconds, the oven will light automatically and the light will illuminate.
3 Now turn the control knob back to the gas
mark you want.
4 Wait until the burner is showing large
flames.
5 Close the oven door.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
C S I G 5 0 0 X
5
Lighting the cooker
For your safety
When you are lighting any burner check that it has lit before
you leave the cooker.
When you are turning off a burner, do not leave the cooker
until the flame has gone out.
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Heat control
The grill control has two heat settings.
The control knob turns to the left
from 'OFF' to 'HIGH' and then to
'LOW'. Use the high setting for fast
cooking such as toast. Use the low
setting to cook thicker food such as
chicken after you have browned it on
the high setting.
Cooking positions
There is only one position for the
grill shelf.
Most food should be cooked on
the grid in the grill pan. You can turn
the grid over to suit different
thicknesses of food.
You can place some dishes
straight on to the grill shelf. This is
useful when you are browning the
top of food such as cauliflower
cheese.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.
C S I G 5 0 0 X
6
The grill
For your safety
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to
grill fires.

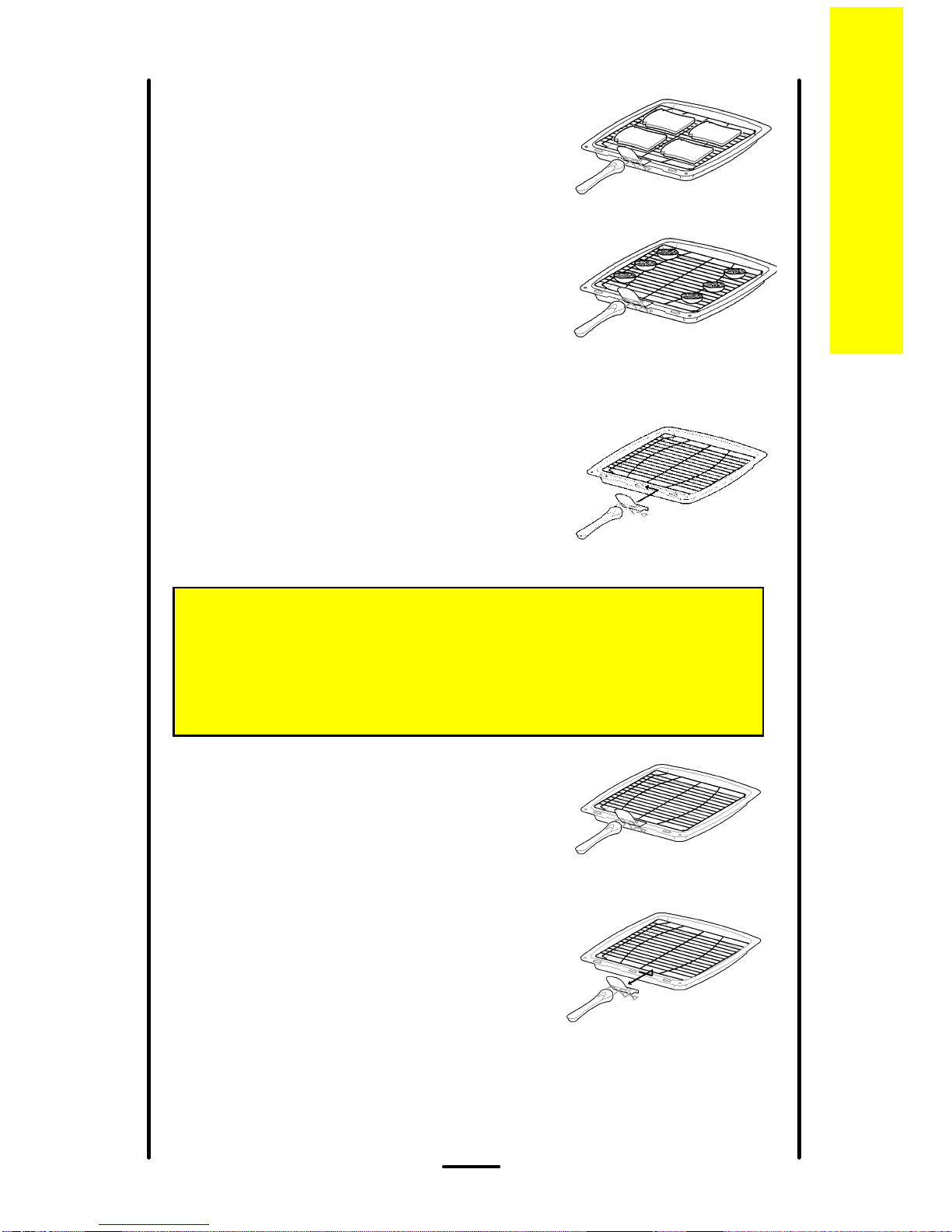

Positioning food on
the grid
Place food such as toast, tea-cakes and
muffins towards the centre of the grid.
Place food which needs a gentle heat,
such as tomatoes and mushrooms towards
the edge of the grid.
Arrange meat, meat products and fish to
suit their thickness and how you like them
cooked.
The grill pan and handle
The grill pan should be fitted with the handle
for grilling.
To attach the handle, place the wirework
under the cut out in the pan so that the metal
plate hooks over the top of the grill pan.
Slide the handle to the left and over the
central bump on the grill pan.
Place the grill pan on the shelf so that the
pan is positioned centrally beneath the grill
burner.
For storage, the handle should be removed
from the grill pan. To remove the handle,
slide the handle to the right and lift the handle
away from the cut out on the grill pan.
If you require an additional handle for your grill pan, this can be ordered
from your local Parkinson Cowan Service Force Centre by quoting part
number 311479800\6.
C S I G 5 0 0 X
7
The grill
For your safety
Ensure the handle is correctly located. The grill pan handle
should not be removed when grilling.
The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner turn all hotplate control knobs off and
make sure the hotplate burner parts have been replaced correctly. See
page 23 for more information.
Heat control
The hotplate control knobs turn to
the left from 'OFF' to 'HIGH' and
then to 'LOW'. You can adjust the
heat by turning the control between
the highest and lowest settings.
These are shown as a large and a
small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9"). The
base of the smallest pan should not measure less than 100mm (4").
C S I G 5 0 0 X
8
The hotplate
C S I G 5 0 0 X
9
For your safety
Take care to avoid burns and scalds when you
are reaching across the hotplate.
Use pans with flat bases. They are more stable
than pans which are warped.
Do not use pans with very heavy handles which
cause the pan to tip.
Put pans on the centre of the burners.
Position pan handles so they cannot be
accidentally knocked.
Take extra care when you are deep fat frying. Do
not cover the pan with a lid.
Do not leave a pan unattended. If the pan catches
fire, leave it where it is and turn off all controls.
Place a damp cloth or a fitting lid over the pan to
smother the flames.
Never put water on the fire.
Leave the pan to cool for 30 minutes.
If you are using a Wok we recommend it has a flat
base as it will stand stable on the pan supports. If
you use a round based Wok with a collar support,
the collar must be of the open wire work type. A
closed collar will affect the performance of the
burner. Before you use the Wok make sure that
the collar is stable on the pan supports. Always
follow the instructions that come with the Wok.
Do not use the lid as a work surface or chopping
board. This could damage the glass and reduce its
strength.
The hotplate
7
1
8
Helpful hints
1 Keep flames under the base of pans. If
the flames lick round the sides of the
pans you are wasting gas.
2 Only heat the amount of liquid you
need. Do not overfill pans.
3 Cover pans with a lid whenever
possible. The food will heat up more
quickly and there will be less steam in
the kitchen.
4 Try cooking more than one vegetable in
the same pan, for example potatoes
and carrots.
5 Cut vegetables into smaller pieces.
This way they will cook more quickly.
6 A pressure cooker will save time and
energy.
C S I G 5 0 0 X
10
Th
e
h
otp
l
ate
