Parkside PDKS 6.3 B3 Bedienungsanleitung

AIR SAW PDKS 6.3 B3

DRUCKLUFT-SÄGE

Originalbetriebsanleitung

IAN 339157_1910

AIR SAW

Translation of the original instructions

FERĂSTRĂU PNEUMATIC

Traducerea instrucţiunilor de utilizare original

PNEUMATSKA TESTERA

Prevod originalnog uputstva za upotrebu

ΣΈΓΑ ΑΈΡΟΣ

Μετάφραση των αυθεντικών οδηγιών

λειτουργίας

GB/CY Translation of the original instructions Page 1

RS Prevod originalnog uputstva za upotrebu Strana 27

RO Traducerea instrucţiunilor de utilizare original Pagina 53

GR/CY Μετάφραση των αυθεντικών οδηγιών

λειτουργίας Σελίδα 79

DE/AT/CH Originalbetriebsanleitung Seite 105

Before reading, unfold the page containing the illustrations and familiarise

yourself with all functions of the device.

Pre čitanja rasklopite obe strane sa slikama te se upoznajte sa svim funkcija-

ma uređaja.

Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă cu toate

funcţiile aparatului.

Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και

εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen

Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

PDKS 6.3 B3 GB│CY │ 1 ■

Contents

Introduction...................................3

Intended use..........................................3

Features .............................................4

Package contents ......................................5

Technical speciﬁcations .................................5

General safety instructions ......................7

Hazards caused by ﬂying parts ...........................8

Hazards caused by entanglement .........................8

Hazards during operation ...............................8

Hazards caused by repetitive movements ..................10

Hazards caused by accessories..........................10

Hazards in the workplace ..............................11

Hazards caused by dust and vapours .....................12

Hazards caused by noise...............................13

Hazards caused by vibrations ...........................14

Additional safety instructions for pneumatic machines.........15

Before use ...................................16

Lubrication ..........................................16

Topping up the oil ....................................17

Connecting to a compressed-air source ....................17

Fitting/changing the saw blade ..........................18

Adjusting/changing the stop bracket ......................18

Operation ...................................19

Switching on and oﬀ ..................................19

PDKS 6.3 B3

■ 2 │ GB│CY

Maintenance, cleaning and storage ..............19

Disposal.....................................21

Kompernass Handels GmbH warranty ...........22

Service ......................................25

Importer ....................................25

Translation of the original Conformity Declaration..26

PDKS 6.3 B3 GB│CY │ 3 ■

AIR SAW PDKS 6.3 B3

Introduction

Congratulations on the purchase of your new appliance. You have

chosen a high-quality product. The operating instructions are part of

this product. They contain important information about safety, usage

and disposal. Before using the product, please familiarise yourself

with all operating and safety instructions. Use the product only as

described and for the range of applications speciﬁed. Please also

pass these operating instructions on to any future owner.

Intended use

The appliance is suitable for manual use in car body construction,

automotive and workshop areas. The user should protect him-/herself

with protective goggles against fragments and with gloves against

accidental contact with sharp edges. Retain these instructions for

future reference. Please also pass these operating instructions on

toany future owner(s). Any other usage or modiﬁcation of the

appliance is deemed to be improper and carries a signiﬁcant risk of

accidents. The manufacturer accepts no responsibility for damage(s)

resulting from improper usage. This appliance is intended for

domestic use only.

PDKS 6.3 B3

■ 4 │ GB│CY

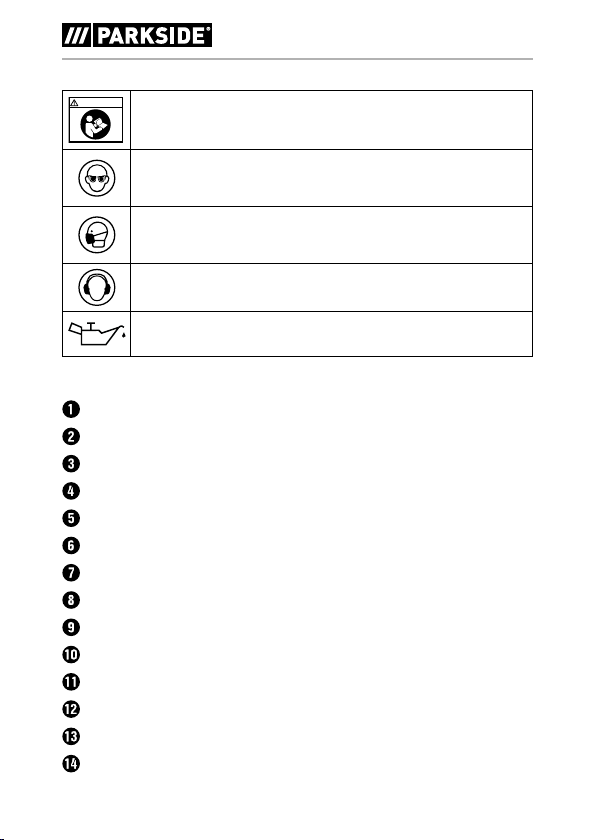

Symbols on the compressed-air tool

WARNING!

Read the operating instructions before use.

Always wear eye protection when using or servicing the

compressed-air saw.

Always wear a dust mask in situations in which dust is

being generated.

Always wear ear muﬀs.

Oil daily

Features

Stop bracket

Connector nipple (pre-assembled)

Trigger lock

Trigger

Hexagon socket screw (for the saw blade holder)

Cover

Screw (for the cover)

Hexagon socket screw (for the stop bracket)

Saw blade

Saw blade holder

Spare stop bracket

Hex key (2 mm)

Hex key (4 mm)

Saw blades

PDKS 6.3 B3 GB│CY │ 5 ■

Package contents

1 air saw

1 spare stop bracket

1 hex key (2 mm)

1 hex key (4 mm)

6 saw blades (3x wood HCS; 3x metal BIM)

1 connector nipple 6.35 mm (1/4", pre-assembled)

1 set of operating instructions

Technical speciﬁcations

Rated speed max. 8500 rpm

Rated air pressure max. 6.3 bar

Stroke 10 mm

Noise emission values

Noise measurement determined in accordance with ISO15744:

Sound pressure level LpA = 92.1 dB (A)

Uncertainty KpA = 3 dB

Sound power level LWA = 103.1 dB (A)

Uncertainty KWA= 3 dB

Wear ear muﬀs!

Vibration emission value

Vibration values determined in accordance with ISO 28927-8 and

EN 12096: ah= 20.46 m/s2

Uncertainty K = 2.52 m/s2

PDKS 6.3 B3

■ 6 │ GB│CY

WARNING!

► The noise emission levels speciﬁed in these instructions have

been measured in accordance with the standardised measuring

procedure speciﬁed in ISO15744 and can be used to make

equipment comparisons. The noise emission values vary in

accordance with the use of the compressed-air tool and may

be higher than the values speciﬁed in these instructions in some

cases. It is easy to underestimate the noise emission load if the

compressed-air tool is used regularly in a certain manner.

NOTE

► For an accurate estimate of the noise emission load during a

certain working period, the times during which the appliance is

switched oﬀ or is running but not actually being used must also

be taken into consideration. This can signiﬁcantly reduce the

noise emission load over the total working period.

PDKS 6.3 B3 GB│CY │ 7 ■

WARNING!

General safety instructions

■ Multiple hazards. Please ensure that you have read and under-

stood the safety instructions before setting up, operating,

repairing, maintaining and replacing accessories on circular and

oscillating sawing machines and sawing machines with recipro-

cating saw blades and before working near the machine. Failure

to do this can result in serious bodily injury.

■ Circular and oscillating sawing machines or sawing machines

with reciprocating saw blades should only be set up, adjusted or

used by suitably qualiﬁed and trained operators.

■ These circular and oscillating sawing machines or sawing

machines with reciprocating saw blades must not be modiﬁed.

Modiﬁcations can reduce the eﬀectiveness of the safety measures

and increase the risks for the operator.

■ Do not lose the safety instructions – hand them to the operator.

■ Never use circular and oscillating sawing machines or sawing

machines with reciprocating saw blades if they are damaged.

■ Machinery must be inspected regularly to ensure that it is marked

with the required clearly legible rated values and markings. The

user must contact the manufacturer to obtain replacement labels

if necessary.
