Patchwork Technology BlackBox air Bedienungsanleitung
User Guide
2
Mount to the windscreen using supplied suction mount and arm.
Warranty Void if suction mount fails !! - It is advised that the suction mount is
removed from the windscreen when the unit is not in operation and reattached on a
day to day basis.
For a more permanent xing, a mounting kit that can be secured to the vehicle is available
for an additional cost.

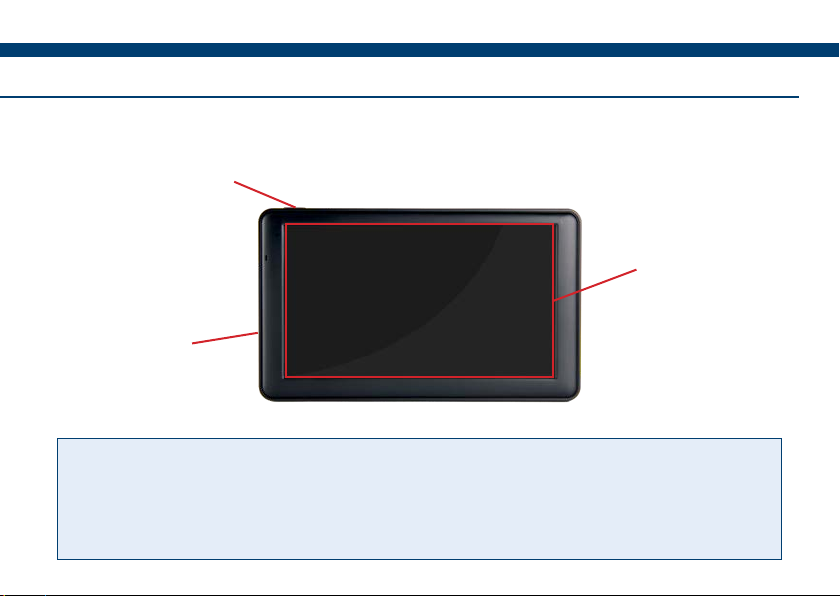

Touch Screen
On/O button
Mini USB
Charge port
Display
3
Installing the Unit
If the tilt function is required, the unit needs to be securely mounted on a at surface with
the ‘Y’ pointing towards the direction of travel.
12v DC Plug
Plug into 3 pin socket on vehicle.
USB Power Socket
Charge the screen via supplied USB Cable.
It is recommended that the charge cable
is always connected to the screen whilst
in use.
Magnetic Antenna
Install centrally across the width of the
roof (if the roof is not metal use the
roof mount plate supplied).
Important!! Completely uncoil the
cable and route around the cab.
Warning - Please
disconnect the unit
from the power supply,
if you need to jump
start your vehicle.
GPS Receiver and Tilt unit
4
To access the
setup screens
press Setup
on the Home
screen.
To return to the
Home screen
press the Home
button.
Guidance Setup
Set the working
width for guidance
and coverage. Set the coverage
recording On/O
method (see over).
To oset the
antenna position
if not central or
when using an
oset mower.
To congure
the built in tilt
correction.
The following overview highlights where to nd the common settings for guidance and
area measurement.
5
Setup
Coverage Recording On/O Method
On Screen - Coverage recording can be turned on and o manually via the Recording
On/O button (see Guidance Screen Overview).
Always Record - Coverage recording continually records and cannot be turned o.
Auto Record - Air+ software feature (see Air+ Features > Auto Record for details).
Enable Tilt Correction (If required)
1) Press Tilt Compensator 2) Set Tilt to ‘On’, enter
Height, distance from the
ground to the antenna.
3) Position the vehicle on a
known level surface, press
Zero Tilt.
6
Local Setup
To access the
local setup
screen, press
Unit Setup.
Next select Local
Setup.
Select the country
of use.
Select the display
language.
Set the units of
measurement for
the display.
7
Hardware Setup
To access the
hardware setup
screen, press the
Hardware Setup
icon.
Press and hold
on the white dot
then slide nger to
adjust the screen
brightness, release
nger to set*.
Press and hold
on the white dot
then slide nger to
adjust the screen
volume, release
nger to set*.
Setup
*Alternatively press directly on the bar to adjust.
8
Important! Before starting a job ensure the correct Bluetooth device is connected and that
the GPS Quality level is within the green. This ensures the best GPS performance for use
with guidance and area measurement.
1) Press Start Job. 2) Enter the Farm/Field
name and Conrm.
3) Check working Width,
select Guidance Mode and
press Conrm to begin job.
Start Job
Use this method for starting a job, to save Boundary Maps, use Field Recognition and the
following Air+ features:- Pause/Resume job, Boundary Printing and Coverage Job Data
Sync.
9
Starting a Job
Guidance Modes
Straight - Sets a straight guidance line between set point A and point B, which is then replicated
both sides of the original line at equal intervals based on the entered width.
Curved - Creates a curved guidance line based on the path driven between set point A and
point B. The line is then replicated both sides of the original line at equal intervals based on the
entered width.
1) Press Quick Job. 2) Launches the Guidance
screen, ready for work.
Quick Job
Use this method to start a job, when a job or multiple jobs do not require boundary maps
to be saved or job recording.
10
If a Farm or Field name has been entered incorrectly or is no longer required it can be
easily renamed or deleted from the system using the job maintenance tools.
List Bar
Renaming/Deleting a Farm or Field
Previous Scroll Up Scroll Down Delete Edit Conrm
1) Select Start Job > Farm. 2) Highlight the Farm
name and go to step 3) to
adjust the farm.
Or press Conrm and go
to step 4) to adjust the
eld.
