Model 394C06

Handheld shaker, 1g at 159.2 Hz (for up to 210 grams total weight of

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-828-8840

24-hour SensorLine: 716-684-0001

Fax: 716-684-0987

E-mail: [email protected]

Web: www.pcb.com

nbn Elektronik Handelsgesellschaft m.b.H.

Riesstraße 146, 8010 Graz | Tel. +43 316 4028 05 | Fax +43 316 4025 06www.nbn.at

Vertrieb für Österreich:

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Total Customer Satisfaction –PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge.

You may also choose to have your

purchase price refunded in lieu of the

repair, replacement, or exchange of the

product.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before

Warranty, Service, Repair, and

Return Policies and Instructions

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Warranty –All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are

not covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: C

ECN: 45605

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

MANUAL NUMBER: 18295

MANUAL REVISION: NR

Model Number

394C06 HAND HELD SHAKER Revision: H

ECN #: 40107

[12]

Performance

ENGLISH

Operating Frequency(± 1 %)

159.2 Hz

Acceleration Output(± 3 %) 1.00 g rms 9.81 m/s² rms [6]

Velocity Output

0.39 in/sec rms

9.81 mm/s rms

[7]

Displacement Output 0.39 mil rms 9.81 µm rms [7]

Transverse Output

≤3 %

Distortion(0 to 99 grams load) ≤2 % ≤2 %

Distortion(100 to 149 grams load)

≤5 %

Distortion(150 to 210 grams load) ≤9 % ≤9 %

Maximum Load

7.4 oz

210 gm

[8]

Automatic Switch Off Time

1.0 to 2.5 minutes

[9]

Calibration Cycles(2 gram load)

320 cycles

[5]

Calibration Cycles(25 gram load)

600 cycles

[5]

Calibration Cycles(50 gram load)

1600 cycles

[5]

Calibration Cycles(100 gram load)

400 cycles

[5]

Calibration Cycles(150 gram load)

160 cycles

[5]

Calibration Cycles(210 gram load)

80 cycles

[5]

Environmental

Temperature Range(Operating)

+15 to +130 °F

-10 to +55 °C

Electrical

Ramp-Up time

≤3 sec

[1]

Internal Battery(Quantity)

Internal Battery(Type)

[2]

DC Power

10 VDC

[3]

DC Power

2.4 amps

[4][3]

Battery Life(2 gram load)

8 hours

[5]

Battery Life(25 gram load)

15 hours

[5]

Battery Life(50 gram load)

40 hours

[5]

Battery Life(100 gram load)

10 hours

[5]

Battery Life(150 gram load)

4 hours

[5]

Battery Life(210 gram load)

2 hours

[5]

Physical

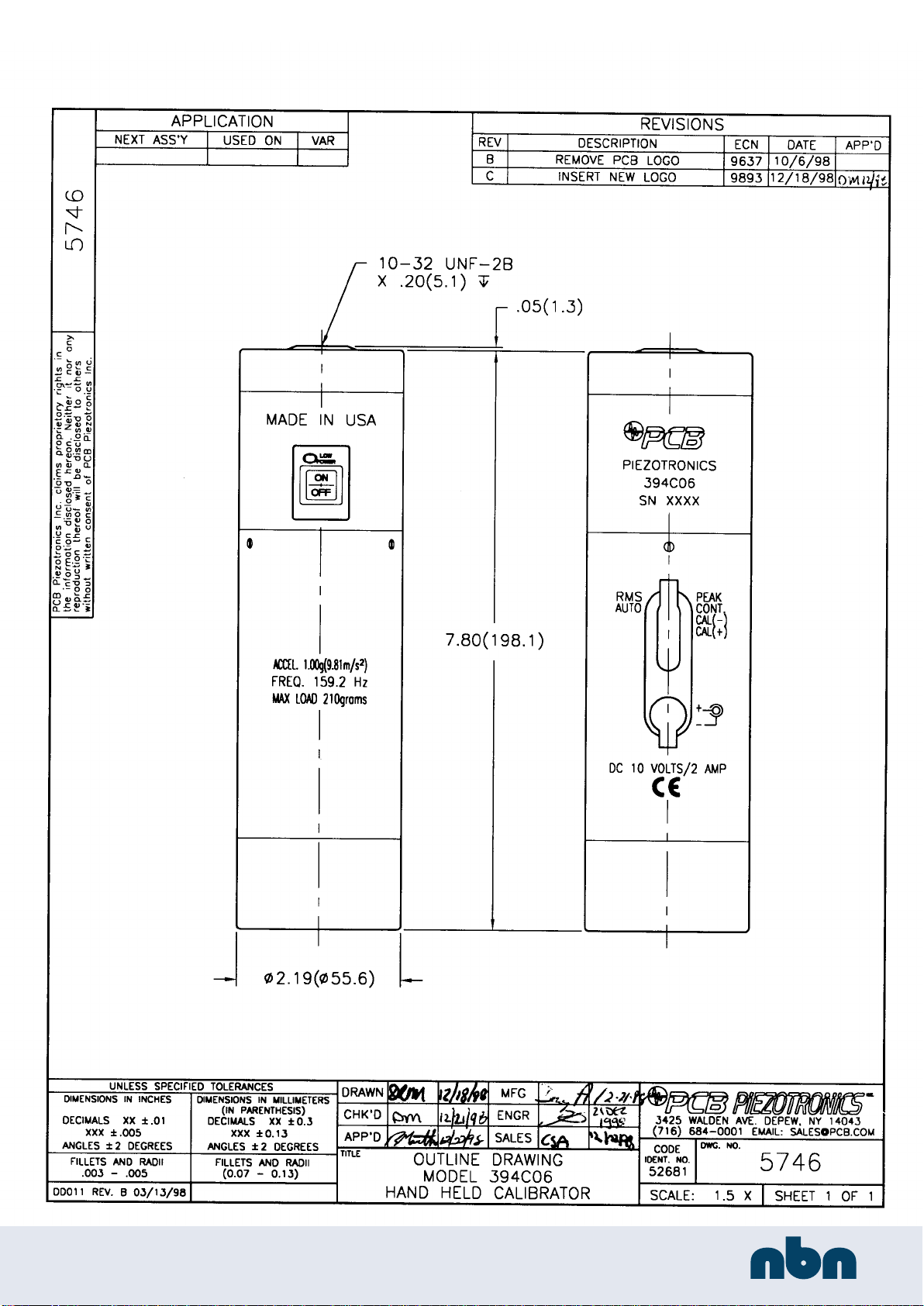

Size (Diameter x Height)

2.2 in x 7.8 in

56 mm x 200 mm

Weight(with batteries)

31 oz

900 gm

[1]

Mounting Thread

10-32 Female

[10][11]

Mounting Torque(Maximum)

10 in-lb

112 N-cm

[11]

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP

is a registered trademark of PCB Group, Inc.

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard model

except where noted below. More than one option may be used.

- Metric Mount

Acceleration Output(± 3 %)

1.02 g rms

10.0 m/s² rms

NOTES:

[1]

Typical.

[2]

Alkaline type recommended for longest service life.

[3]

This specification for external DC power supply (optional).

[4]

Maximum.

[5]

Approximate values, based on automatic switch off time and dependent on type of batteries.

[6]

Unit supplied set to rms; see manual for peak selection.

[7]

Calculated values for reference only.

[8] Maximum load includes sensor, connector and cabling.

[9]

Unit supplied set to auto shut off; see manual for continuous use selection.

[10]

Test sensor should be hand tightened (without tools).

[11]

Transducer to shaker table.

[12]

See PCB Declaration of Conformance PS022 for details.

SUPPLIED ACCESSORIES:

Model 073A15 Battery Pack (1)

Model 080A109 Petro Wax (1)

Model 080A84 Mounting Base (5-40 to 10-32) (1)

Model 080A85 Mounting Base (M3 X 0.5 to 10-32) (1)

Model 081A08 Mounting Stud (10-32 to 1/4-28) (1)

Model 081B05 Mounting Stud (10-32 to 10-32) (2)

Model M081B05 Mounting Stud 10-32 to M6 X 0.75 (1)

Model M081B23 Metric mounting stud, 10-32 to M5 x 0.80 long (1)

OPTIONAL ACCESSORIES:

Model 073A16 DC switching power supply (for Model 394C06) (1)

Model 080A150 Mounting Base (1/4-28) (1)

Model 080B44 3

Pin Mounting Adapter (1)

Entered: AP Engineer: AJP Sales: WDC

Approved: JWH

Spec Number:

Date: 1/28/2013 Date: 1/28/2013 Date: 1/28/2013 Date: 1/28/2013

1345

3425 Walden Avenue, Depew, NY 14043

Phone: 716-684-0001

Fax: 716-684-0987

E-Mail: info@pcb.com

Vertrieb für Österreich:

nbn Elektronik Handelsgesellschaft m.b.H.

Riesstraße 146, 8010 Graz | Tel. +43 316 4028 05 | Fax +43 316 402506www.nbn.at

nbn Elektronik Handelsgesellschaft m.b.H.

Riesstraße 146, 8010 Graz | Tel. +43 316 4028 05 | Fax +43 316 4025 06www.nbn.at

Vertrieb für Österreich:

Andere Handbücher für 394C06

Inhaltsverzeichnis

Andere PCB Piezotronics Industrieanlagen Handbücher

PCB Piezotronics

PCB Piezotronics ICP RHM240A03 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 320C15 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 320C34 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics TORKDISC 5309D-01A Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 393A03/ACS-23 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 1630-03C Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J353B32 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics M205C Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 080A187 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics M353B12 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics HTM352C68 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 355B04 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J320C33 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 356B11/003CA Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 201B76 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics M1630-03C Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS 080M470 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics Y1404-03ADB Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 356B21/ACS-23T Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 488B14/NC Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 1631-06C Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics TLD356A25 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics M352C66 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS M080A121 Bedienungsanleitung

Beliebte Industrieanlagen Handbücher anderer Marken

ABB

ABB Unifix AD Handbuch

Mark 7

Mark 7 Evolution Bedienungsanleitung

Husky

Husky HyPET Bedienungsanleitung

bora

bora PM-1800 Bedienungsanleitung

Grizzly

Grizzly T32428 Bedienungsanleitung

Siemens

Siemens 8MF1 Series Bedienungsanleitung

ABB

ABB HT610965 Bedienungsanleitung

ABB

ABB SafeLink Bedienungsanleitung

Phoenix

Phoenix PHX-150 Bedienungsanleitung

ABB

ABB A165-L32 Bedienungsanleitung

ABB

ABB HT842936 Bedienungsanleitung

Rioned

Rioned UrbanJet Bedienungsanleitung

Hermetica

Hermetica 10 Series Bedienungsanleitung

HORNER

HORNER OEE Solution Bedienungsanleitung

Hammerhead

Hammerhead HG375 Bedienungsanleitung

SCHUNK

SCHUNK VERO-S NSE-A3 138 Gebrauchsanweisung

ABB

ABB HT566657 Bedienungsanleitung

Webasto

Webasto GSE CAN Bedienungsanleitung
