Peak USB to CAN Interface Bedienungsanleitung

USB to CAN Interface

User Manual

V2.1.4

PCAN-USB

PCAN-USB – User Manual

Products taken into account

Product Name Model Part Number

PCAN-USB IPEH-002021

PCAN-USB opto-decoupled Galvanic isolation for CAN

interface

IPEH-002022

The cover picture shows the product PCAN-USB opto-decoupled.

CANopen® and CiA® are registered community trade marks of CAN in Automation

e.V.

All other product names mentioned in this document may be the trademarks or

registered trademarks of their respective companies. They are not explicitly marked

by “™” or “®”.

PEAK-System Technik GmbH

Otto-Roehm-Strasse 69

64293 Darmstadt

Germany

Phone: +49 (0)6151 8173-20

Fax: +49 (0)6151 8173-29

www.peak-system.com

info@peak-system.com

Document version 2.1.4 (2013-03-21)

PCAN-USB – User Manual

Contents

1Introduction 5

1.1 Properties at a Glance 5

1.2 System Requirements 6

1.3 Scope of Supply 7

2Installing the Software and the Adapter 8

3Connecting the CAN Bus 10

3.1 D-Sub Connector 10

3.2 Supplying External Devices via the CAN

Connector 11

3.3 Cabling 13

3.3.1 Termination 13

3.3.2 Example of a Connection 13

3.3.3 Maximum Bus Length 14

4Operation 15

4.1 Status LED 15

4.2 Unplugging the USB Connection 15

4.3 Distinguishing Several PCAN-USB Adapters 15

5Using the Software 16

5.1 CAN Monitor PCAN-View for Windows 16

5.1.1 Receive/Transmit Tab 18

5.1.2 Trace Tab 20

5.1.3 PCAN-USB Tab 21

5.1.4 Status Bar 21

5.2 Linking Own Programs with PCAN-Basic 22

5.2.1 Features of PCAN-Basic 23

5.2.2 Principle Description of the API 24

5.2.3 Notes about the License 25

PCAN-USB – User Manual

6Technical Specifications 26

Appendix A CE Certificate 28

Appendix B Dimension Drawings 29

Appendix C Quick Reference 30

PCAN-USB – User Manual

1Introduction

The PCAN-USB adapter provides one CAN channel at computers

with USB ports. Device drivers and programming interfaces exist

for different operating systems, so programs can easily access a

connected CAN bus.

Tip: At the end of this manual (Appendix C) you can find a

Quick Reference with brief information about the installation

and operation of the PCAN-USB adapter.

1.1 Properties at a Glance

Adapter for USB connection (USB 1.1, compatible with USB 2.0)

USB voltage supply

Bit rates up to 1 Mbit/s

Time stamp resolution approx. 42 μs

Compliant with CAN specifications 2.0A (11-Bit ID)

and 2.0B (29-Bit ID)

CAN-Bus connection via D-Sub, 9-pin (in accordance with

CiA® 102)

NXP SJA1000 CAN controller, 16 MHz clock frequency

NXP PCA82C251 CAN transceiver

Galvanic isolation on the CAN connection up to 500 V (only

PCAN-USB opto-decoupled)

5-Volts supply to the CAN connection can be connected through

a solder jumper, e.g. for external bus converter

PCAN-USB – User Manual

Extended operating temperature range from -40 to 85 °C

(-40 to 185 °F)

Note: This manual describes the use of PCAN-USB adapter with

Windows. You can find device drivers for Linux and the

corresponding application information on the provided DVD in

the directory branch Develop and on our website under

www.peak-system.com/linux.

1.2 System Requirements

A vacant USB port (USB 1.1 or USB 2.0) at the computer or at a

self-powered USB hub connected to the computer

Operating system Windows 8, 7, Vista, XP (32/64-bit)

or Windows CE 6.x (x86 and ARMv4 processor support)

or Linux (32/64-bit)

Note: Do not use a USB extension cable to connect the PCAN-

USB adapter to the computer. The use of an extension cable

does not comply with the USB specification and can lead to

malfunction of the adapter.

PCAN-USB – User Manual

1.3 Scope of Supply

PCAN-USB in plastic casing

Device drivers for Windows 8, 7, Vista, XP (32/64-bit)

and Linux (32/64-bit)

Device driver for Windows CE 6.x

(x86 and ARMv4 processor support)

PCAN-View CAN monitor for Windows 8, 7, Vista, XP (32/64-bit)

PCAN-Basic programming interface consisting of an interface

DLL, examples, and header files for all common programming

languages

Manual in PDF format

PCAN-USB – User Manual

2Installing the Software and

the Adapter

This chapter covers the software setup for the PCAN-USB adapter

under Windows and the connection of the adapter to the computer.

Setup the driver before connecting the PCAN-USB adapter to the

computer for the first time.

Do the following to install the driver:

1. Make sure that you are logged in as user with administrator

privileges (not needed for normal use of the PCAN-USB

adapter later on).

2. Insert the supplied DVD into the appropriate drive of the

computer. Usually a navigation program appears a few

moments later. If not, start the file Intro.exe from the root

directory of the DVD.

3. On the page English > Drivers activate the entry PCAN-USB.

4. Click on Install now. The setup program for the driver is

executed.

5. Follow the instructions of the program.

Tip: If you don't want to install the CAN monitor PCAN-View for

Windows onto the hard disk together with the driver, you have

the option to start the program later directly from DVD without

prior installation.

PCAN-USB – User Manual

Do the following to connect the PCAN-USB adapter to the

computer and complete the initialization:

Note: Do not use a USB extension cable to connect the PCAN-

USB adapter to the computer. The use of an extension cable

does not comply with the USB specification and can lead to

malfunction of the adapter.

1. Connect the PCAN-USB adapter to a USB port of the

computer or of a connected USB hub. The computer can

remain powered on.

Windows notifies that new hardware has been detected.

2. Windows XP only: A Wizard dialog box appears. Follow its

instructions. Deny the search for driver software at

Windows Update and select the automatic software

installation during this procedure.

All Windows operating systems: The drivers are found and

installed by Windows.

3. Afterwards you can work as user with restricted rights

again.

After the initialization process is finished successfully the red LED

on the PCAN-USB adapter is illuminated.

PCAN-USB – User Manual

3Connecting the CAN Bus

3.1 D-Sub Connector

A High-speed CAN bus (ISO 11898-2) is connected to the 9-pin

DSub connector. The pin assignment for CAN corresponds to the

specification CiA® 102.

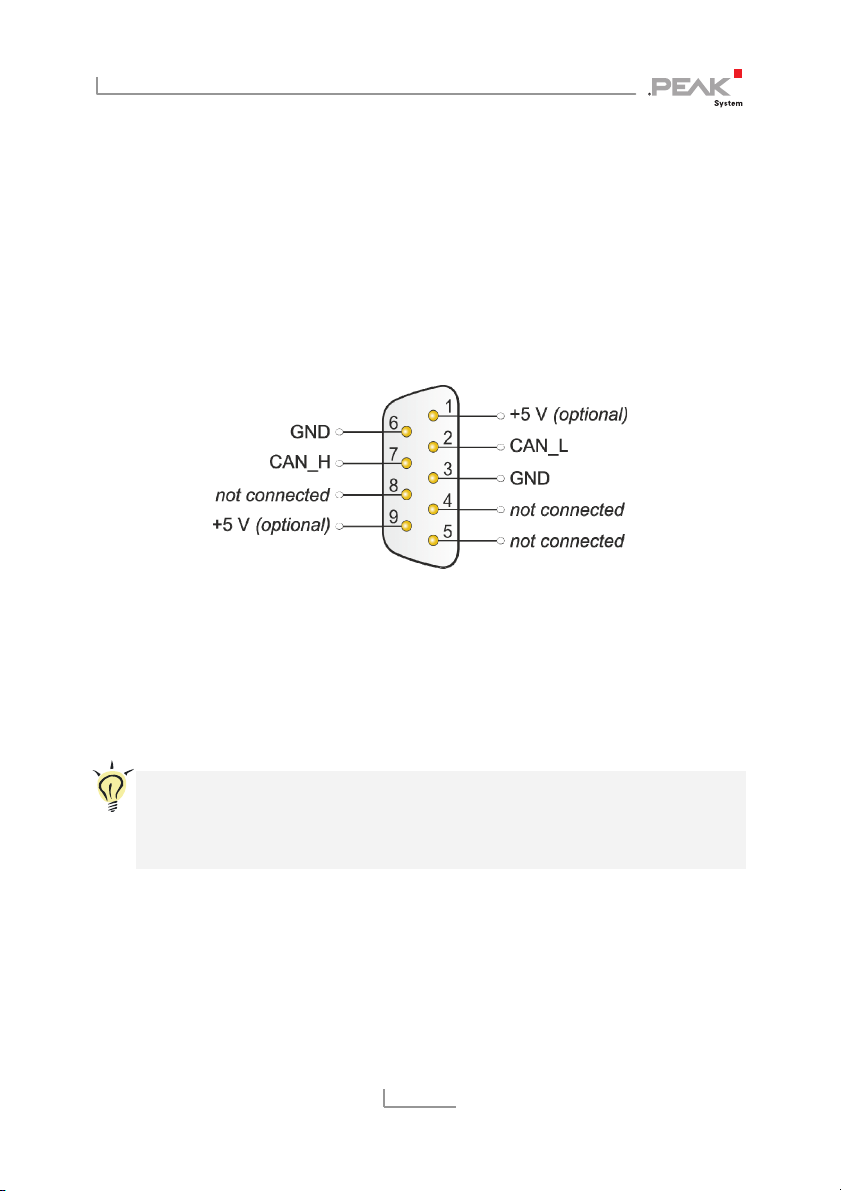

Figure 1: Pin assignment High-speed CAN

(view onto connector of the PCAN-USB adapter)

With the pins 1 and 9 devices with low power consumption (e.g. bus

converters) can be directly supplied via the CAN connector. At deli-

very these pins are not assigned. You can find a detailed description

about the activation in the following section 3.2.

Tip: You can connect a CAN bus with a different transmission

standard via a bus converter. PEAK-System offers different bus

converter modules (e.g. PCAN-TJA1054 for a Low-speed CAN

bus according to ISO 11898-3).
