PEAKMETER PM5205 Bedienungsanleitung

Contents

Safety Information................................................................................................................................................ 1

Warning...............................................................................................................................................................................................1

Warranty..............................................................................................................................................................................................1

Accessories......................................................................................................................................................................................... 2

Introduction........................................................................................................................................................... 2

Front Panel..........................................................................................................................................................................................2

Display Screen....................................................................................................................................................................................3

Display Messages............................................................................................................................................................................... 5

Buttons................................................................................................................................................................................................7

Rotary switch......................................................................................................................................................................................9

Input Terminal.....................................................................................................................................................................................9

Function Description.............................................................................................................................................9

Power-Up Options.............................................................................................................................................................................. 9

Automatic Power Off........................................................................................................................................................................10

Hold Funcion.................................................................................................................................................................................... 10

Relative Measurement...................................................................................................................................................................... 10

Insulation Test Lock..........................................................................................................................................................................11

Storing Test Data.............................................................................................................................................................................. 11

Reading Test Data.............................................................................................................................................................................12

Delete Data....................................................................................................................................................................................... 13

Compare Function............................................................................................................................................................................ 14

Timer Function................................................................................................................................................................................. 16

MAX/ MIN/AVG..............................................................................................................................................................................18

DAR & PI......................................................................................................................................................................................... 19

Making Basic Measurements............................................................................................................................. 19

Measuring DC Voltage..................................................................................................................................................................... 19

Measuring AC Voltage...................................................................................................................................................................20

Measuring Resistance.......................................................................................................................................................................21

Insulation Test...................................................................................................................................................................................22

Replacing battery................................................................................................................................................ 23

Specifications....................................................................................................................................................... 24

Accuracy........................................................................................................................................................................................... 26

Insulation Tester

Safety Information

This style of digital multimeter is designed and manufactured according to the safety requirements set out by the

IEC61010-1 standards for electronic test instruments . Its design and manufacture is strictly based on the provisions in the

1000V CAT Ⅲ of IEC61010-1 and the Stipulation of 2-Pollution Grade.

Warning

To avoid possible electric shock or personal injury, follow these guidelines:

Use the Meter only as specified in this manual or the protection provided by the Meter might be impaired.

Do not use the Meter or test leads if they appear damaged, or if the Meter is not operating properly. If in doubt, have

the Meter serviced.

Always use the proper terminal, switch position, and range for measurements before connecting Meter to circuit

under test.

Verify the Meter’s operation by measuring a known voltage.

Do not apply more than the rated voltage as marked on the Meter, between the terminals or between any terminal and

earth ground.

Use caution with voltages above 30 V ac rms, 42 V ac peak, or 60 V dc. These voltages pose a shock hazard.

Replace the battery as soon as the low battery indicator ( ) appears.

Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes, or

capacitance.

Do not use the Meter around explosive gas or vapor.

When using the test leads, keep your fingers behind the finger guards.

Remove test leads from the Meter before opening the Meter case or battery door.

Never operate the Meter with the cover removed or the battery door open.

Comply with local and national safety requirements when working in hazardous locations.

Use proper protective equipment, as required by local or national authorities when working in hazardous areas.

Use only the replacement fuse specified or the protection may be impaired.

Warranty

The meter is warranted to be free from defects in material and workmanship under normal use and service. The

warranty period is one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 12

months except for misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation

or handling.This warranty does not apply to fuses, disposable batteries.

Accessories

Item

Test Leads

Clips

Battery AA LR6

Manual

Quantity

Introduction

Front Panel

Insulation Tester

Display Screen

Indicator

Description

Low battery Indicates when it is time to replace the battery.

To avoid false readings, which could lead to possible electric shock or personal injury,

replace the battery as soon as the low battery indicator appears.

Indicates a test lock will be applied the next time you press Test Button on the meter,the

test lock acts to hold down the button until you press Test Button again.

Hold function ,the meter do not update display.

Accessories

Indicator

Description

Compare function is selected

When compare function is selected,when the measuring value between upper limited value

and lower limited value ,display this sign.

Compare function is selected

In insulation test mode, display the DAR value

In insulation test mode, display the PI value

Timer function is selected

Store function is selected

View the memory data,when the data is invalid,display---

DC Voltage function is selected

AC Voltage function is selected

In insulation test mode ,test voltage unit

Minus, When the measure value lower than 0,display the sign.

Greater symbols，In insulation test mode, indicates the measure value overflow.

Unsafe voltage warning，In insulation mode,indicates greater 20V voltage is detected on

the input terminals.

Insulation Tester

Indicator

Description

Continuity test function is selected

Auto power off function is selected

Insulation test Indicator.when the rotary switch at insulation position, this sign

appers,when the test voltage is present ,the sign alternate on or off

Source voltage rating for insulation test

Timer unit

Measure unit

Display the Max,Min Avg value

Display Messages

Indicator

Description

batt

Appears on primary display Indicates the battery too low for reliable operation,please

replace battery.

bat

Appears on Auxiliary display，Indicates the battery too low to perform Insulation test

P r E S

Preset value

POFF

Auto power off function is disabled

Display Messages

Indicator

Description

LIVE

In insulation mode,indicates meter have detected the voltage on the input terminals

DISC

In insulation mode,indicates the meter performs the auto discharge function.;not to touch

any input terminals in this mode.

SAVE

Store measuring data

dEL n:

Delete the selected data

dEL ALL

Delete all memorized data

COMP Hi

The upper limited value

COMP Lo

The lower limited value

- - - - COMP

The limited value is invalid

Beep function is disabled

Insulation Tester

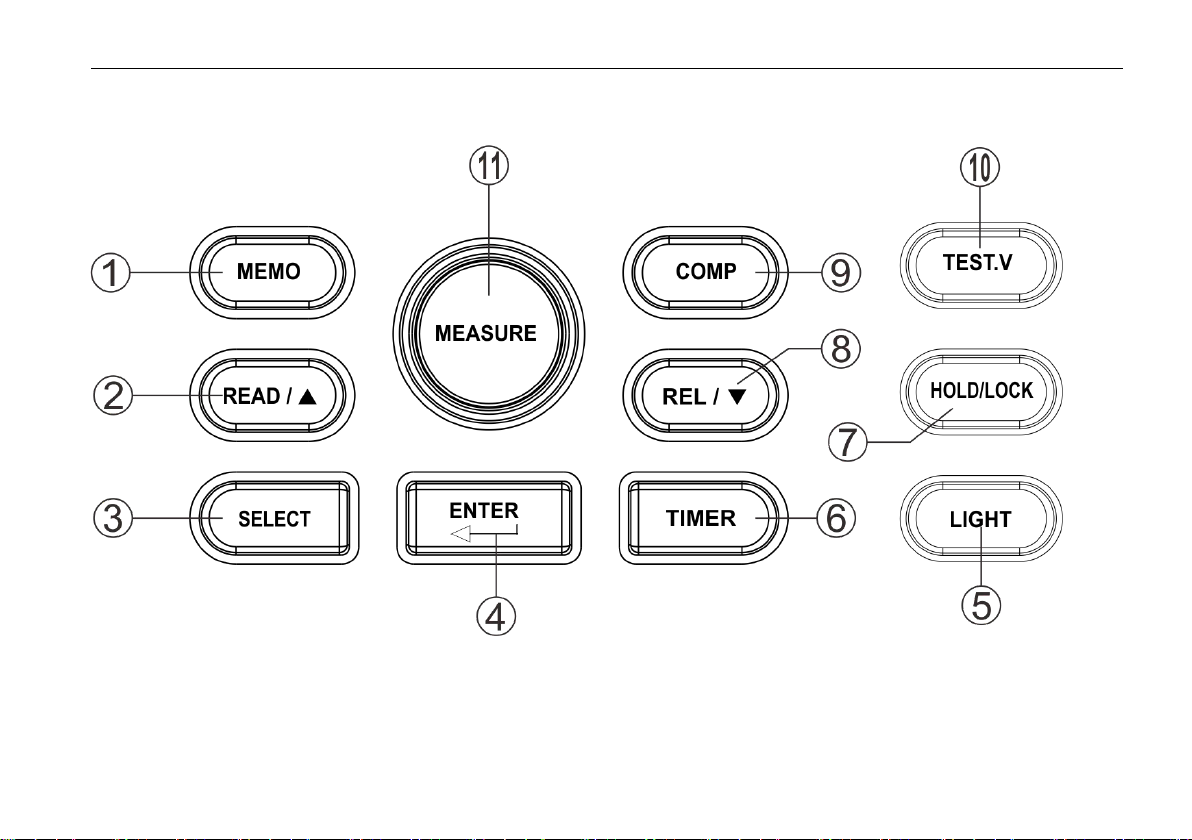

Buttons

Description

○

Active store function: store the measureing data to memory

○

Active read function,to view the data store in memory; change cursor position.

○

1：in dcv ,acv,continuty mode to view the max value,min value ,avg value, upper limited value,

lower limited value,relative value

2：in insulation mode to view max value,min value ,avg value, upper limited value, lower limited

value,preset timer,DAR,PI

○

Confirm Button

○

Back Light on/Off,when the light turn on ,after 10s the meter auto turn off light

○

Active the timer function

○

Active hold function(in DCV,ACV,Continuity) or lock function(Insulation)

○

Active rel function(in dcv,acv,continuity mode);change cursour position ;

○

Active compare function

○

Select one test output voltage for insulation test.

○

Active insulation test
