Peavey PHR410II Bedienungsanleitung

PHR410II

Ceiling Speaker

Frame Construction Ceiling Installation

Take the cutout template from the packaging box and punch out

along the larger perforated circle. Place the cutout template

against the bottom of the ceiling and trace the inside of it.

Carefully cut out the ceiling material along the circle.

9.56"

243mm

Remove the top cover to contact the 4-position screw-terminal

barrier strip on the back of the speaker. Connect the speaker

wire to the 4-position screw-terminal barrier strip . Install the

catheter and secure the connection.

PHR410II

Ceiling Speaker

Frequency Response ..............65Hz - 11.8kHz,-10dB

Power Handling ............... 40W @8Ω......

Nominal Sensitivity.............. 86dB ±3dB ,1m,1W..

Transformer Taps.............. 15W, 7.5W, 3.75W, 1.9W, 1W, (100V)......

70V capable

Component 4" woofer, PP cone .............................. and rubber

surround 3/4" soft dome tweeter

Crossover Frequency 4kHz..............

Outside Dimensions 275mm x 170mm...............

Cutout Diameter 243mm.....................

Weight 1 81kg/4 lbs...................................... .

PEAVEY PHR410II Ceiling Speaker Specifications

Replace the top cover and tighten the screws. connector a

dary support line from the seismic tab to a secure support point.

secon-

Parallel Hookup Wiring Diagram

ꜜCover

ꜜ

To speaker

ꜜ

From

Power Amplifier

Enlarged to

Show Detail

Loosen the four screws on the front baffle (counter clockwise)

1/2 turn. Then tighten the screws (clockwise) until the dog legs

clamp the speaker to the ceiling. Then install the speaker grille.

Do not over tighten screws.CAUTION

Adjusting the tap selector

Remove the grille and set the rotary tap selector switch.

the speaker through the bottom of the hole in the ceiling.

insert

Support

Line

power

amplifier

To speakers

Speaker1 Speaker2 Speaker3

LOOP

THRU

IN LOOP

THRU

LOOP

IN LOOP LOOP

IN LOOP

Recommended filter type and point: 24 dB/oct.

Linkwitz-Riley at 80 Hz.

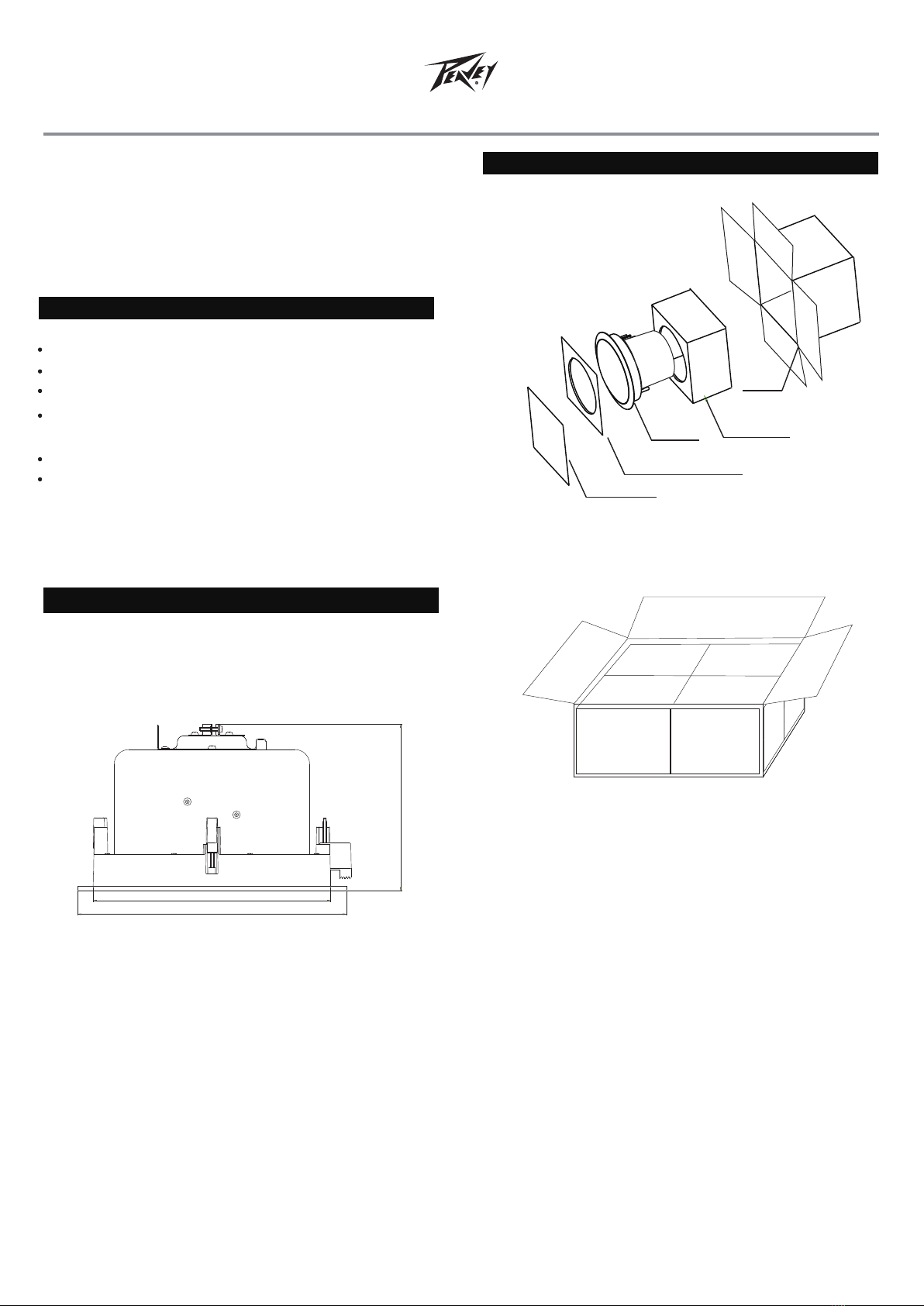

Product size diagram:

PHR410II

Ceiling Speaker

PACKAGING:

Carton

Speaker Paper Card

Opening paper cover

Paper Cover

Ultrathin fireproof cover design.

Magnetic suction type grille, easy to disassemble.

Integrated design used in various places.

Wide dynamic range can keep in large volume output without

distortion.

The logo can rotate 360 degrees.

With steel fire dome.

FEATURES:

275

170

243

The PHR410II tweeter can be aimed toward a desired listening

area, so the clarity of the announcements or music can be

improved. Carefully but firmly grasp the tweeter flange and

aim the tweeter in the desired angle.

DO NOT APPLY EXCESSIVE FORCE, OR THE TWEETER

MOUNTING POST MIGHT GET DAMAGED.

An carton boxed 4 units

Unit: mm
